1

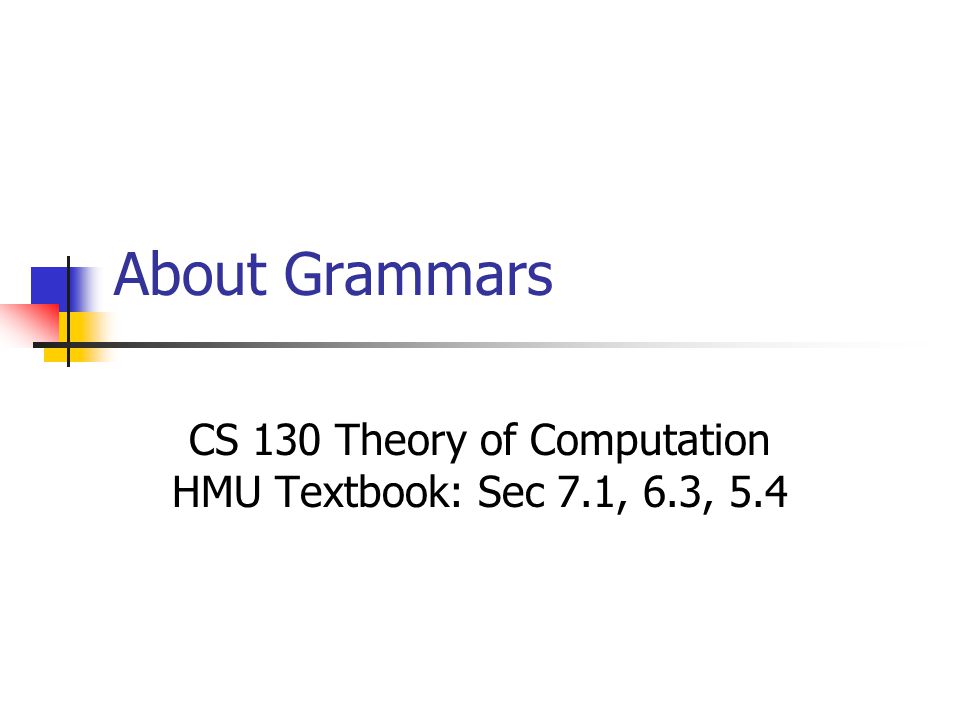

About Grammars CS 130 Theory of Computation HMU Textbook: Sec 7.1, 6.3, 5.4

2
About grammars Simplifying grammars Normal forms for grammars Grammar Ambiguity

3

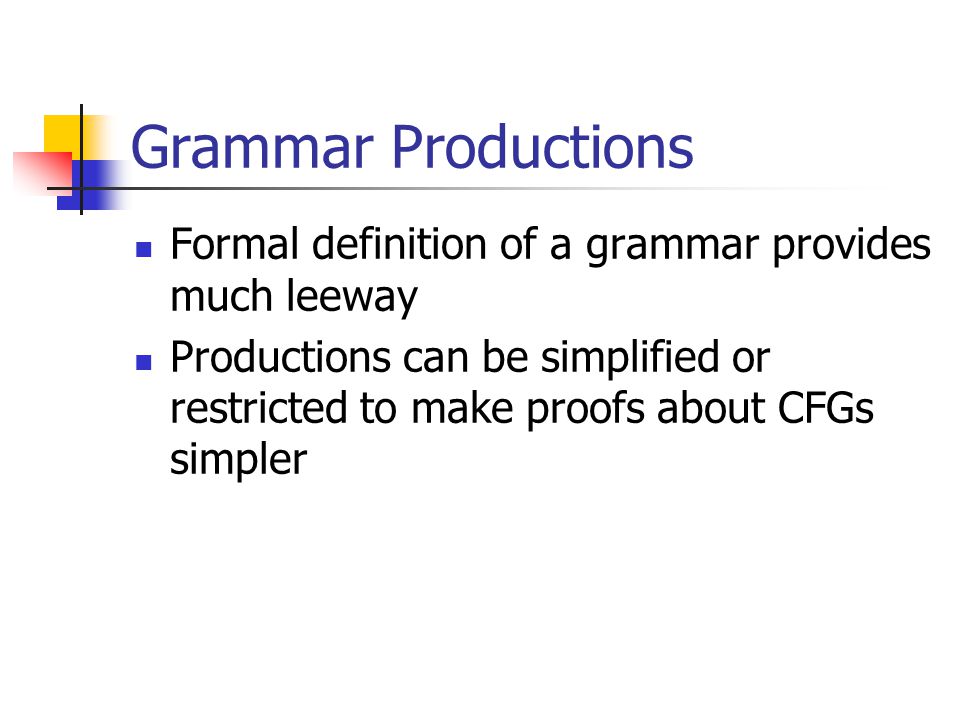

Grammar Productions Formal definition of a grammar provides much leeway Productions can be simplified or restricted to make proofs about CFGs simpler

4

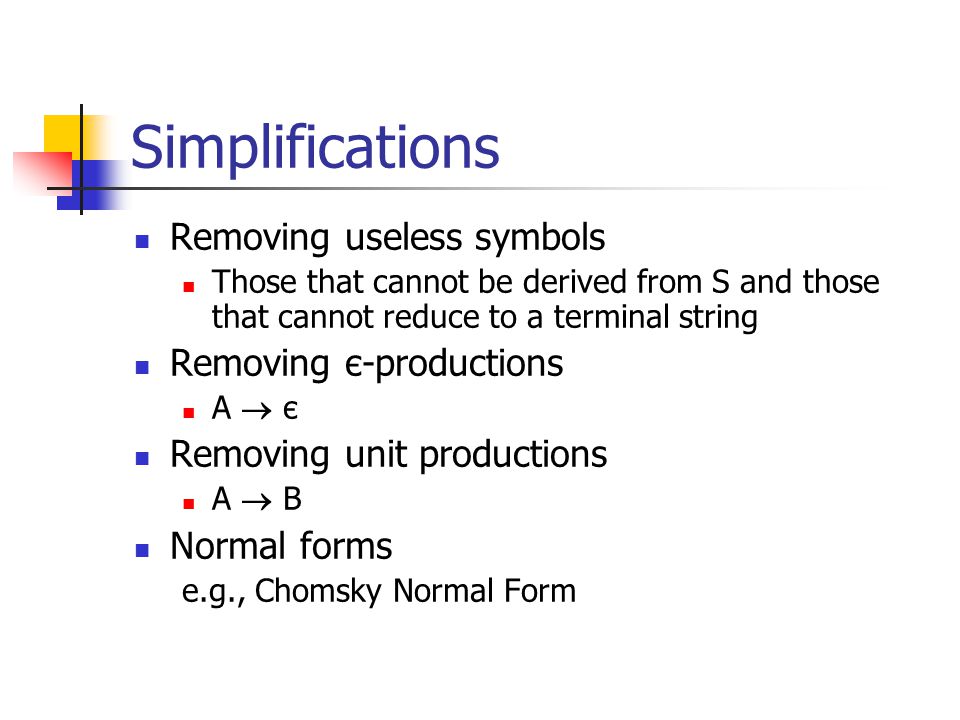

Simplifications Removing useless symbols Those that cannot be derived from S and those that cannot reduce to a terminal string Removing є-productions A є Removing unit productions A B Normal forms e.g., Chomsky Normal Form

5
Useless symbols We want to ensure all productions in the grammar have no useless symbols, i.e., all symbols are generating and reachable Generating symbols All variables that could eventually derive a string of terminals; i.e., all A in V, such that there exists a string w of terminals where A * w Reachable symbols All variables that can be reached from the start symbol; i.e., all A in V, such that S * uAw, for some u and w

6
Removing useless productions Remove productions with non-generating symbols Requires identifying generating symbols recursively: right hand side of production contains only terminals and generating symbols Remove productions with non-reachable symbols Requires identifying reachable symbols recursively: S is reachable, and so are symbols that exist on the right hand side of productions with reachable symbols on the left hand side

7
Epsilon Productions є-productions: productions of the form A є Nullable symbols: symbols A where A є or A B 1 B 2 …B n such that each B i is nullable For each production that has a nullable symbol on the right hand side, add a production without that symbol; apply rule iteratively on resulting productions After this step, all є-productions can be removed Note, if the language L generated by the original grammar includes є, then the language generated by the resulting grammar will be L – {є}

8

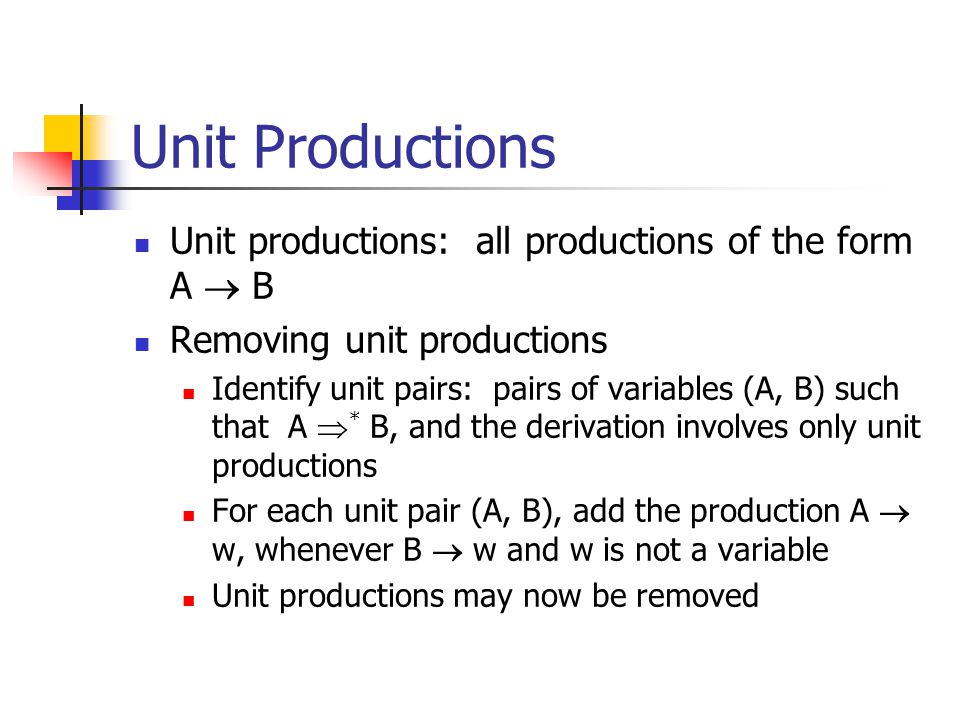

Unit Productions Unit productions: all productions of the form A B Removing unit productions Identify unit pairs: pairs of variables (A, B) such that A * B, and the derivation involves only unit productions For each unit pair (A, B), add the production A w, whenever B w and w is not a variable Unit productions may now be removed

9
Chomsky Normal Form CNF: all productions are of the form A BC(B, C are variables) A a(a is a terminal) How do we convert a grammar to an equivalent CNF grammar?

10
Greibach Normal Form GNF: all productions are of the form A aB 1 B 2 …B n Note that A a is allowed Note that if the grammar is GNF, each step in a derivation of a string adds a terminal How do we convert a grammar to an equivalent GNF grammar?

11
Recall CFG to PDA conversion Transition function is based on the variables, productions and terminals of the grammar: (q 0, є, A) includes (q 0, w) whenever A w (q 0, a, a) = (q 0, є ) for each a in T Easier and more intuitive if the grammar is of GNF (q 0, a, A) = (q 0, B 1 B 2 …B n ) for each production A aB 1 B 2 …B n

12
Ambiguous grammar A grammar G is ambiguous if there exists a string for which two different parse trees exist (two different leftmost derivations) Example: S i = E E n E i E E + E E E * E Parse tree for i = n + n * n ?

13
Two leftmost derivations S i = E i = E + E i = n + E i = n + E * E i = n + n * E i = n + n * n S i = E i = E * E i = E + E * E i = n + E * E i = n + n * E i = n + n * n

14
Grammar and precedence S i = E E E + T E T T T * F T F F n F i Parse tree for i = n + n * n ? S i = E i = E + T i = T + T i = F + T i = n + T i = n + T * F i = n + F * F i = n + n * F i = n + n * n

15
Chomsky hierarchy Relaxing or adding restrictions to productions in a grammar leads towards a hierarchy of languages Note: Context-free grammar definition imposes that a production should take the form A w, where A T and w is a string over T V

16

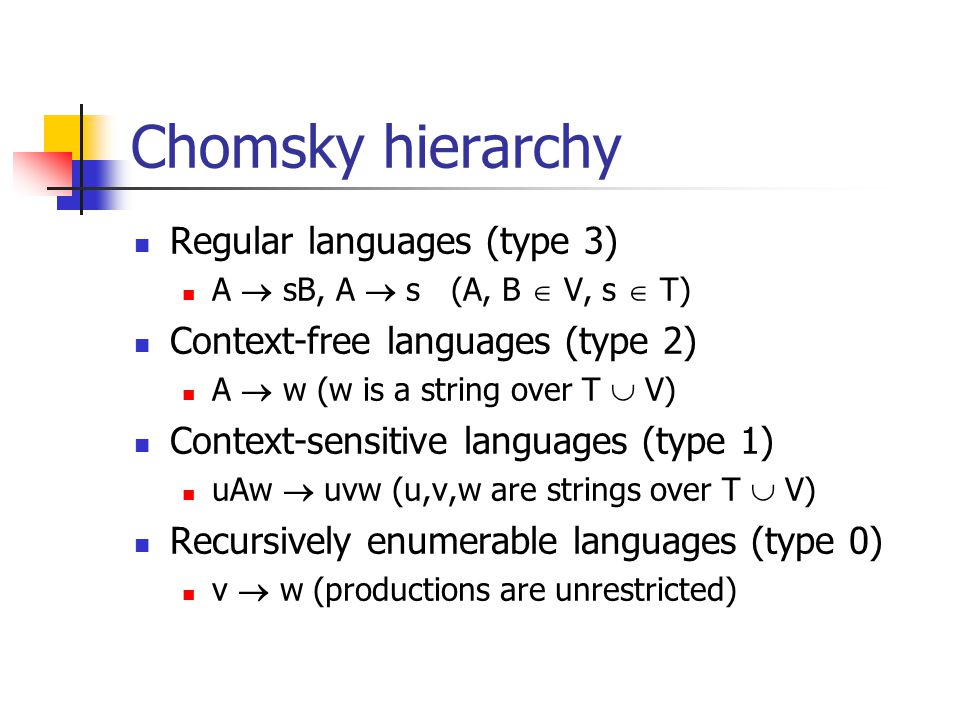

Chomsky hierarchy Regular languages (type 3) A sB, A s (A, B V, s T) Context-free languages (type 2) A w (w is a string over T V) Context-sensitive languages (type 1) uAw uvw (u,v,w are strings over T V) Recursively enumerable languages (type 0) v w (productions are unrestricted)

17
Chomsky hierarchy regular recursive recursively enumerable context-free context-sensitive type 0 type 1 type 2 type 3
