1 Qualitätssicherung von Software (SWQS) Prof. Dr. Holger Schlingloff Humboldt-Universität zu Berlin und Fraunhofer FOKUS : Modellprüfung II - BDDs

2 Folie 2 H. Schlingloff, Software-Qualitätssicherung Existenzgründer gesucht!

3 Folie 3 H. Schlingloff, Software-Qualitätssicherung Fragen zur Wiederholung Unterschied Verifikation – Validierung? Wie kann man Sudoku aussagenlogisch beschreiben? Wie ist die Komplexität des Erfüllbarkeitsproblems? Was versteht man unter Modellprüfung? Unterschied Sudoku – Schiebepuzzle?

4 Folie 4 H. Schlingloff, Software-Qualitätssicherung Binary Encoding of Domains Any variable on a finite domain D can be replaced by log(D) binary variables  similar to encoding of data types by compilers  e.g. var v: {0..15} can be replaced by var v1,v2,v3,v4: boolean (0=0000, 1= 0001, 2=0010, 3=0011,..., 15=1111) State space  still in the order of original domain!  e.g. three int8-variables can have 2 24 =10 8 states  e.g. buffer of length 10 with 10-bit values  states Representation of large sets of states?

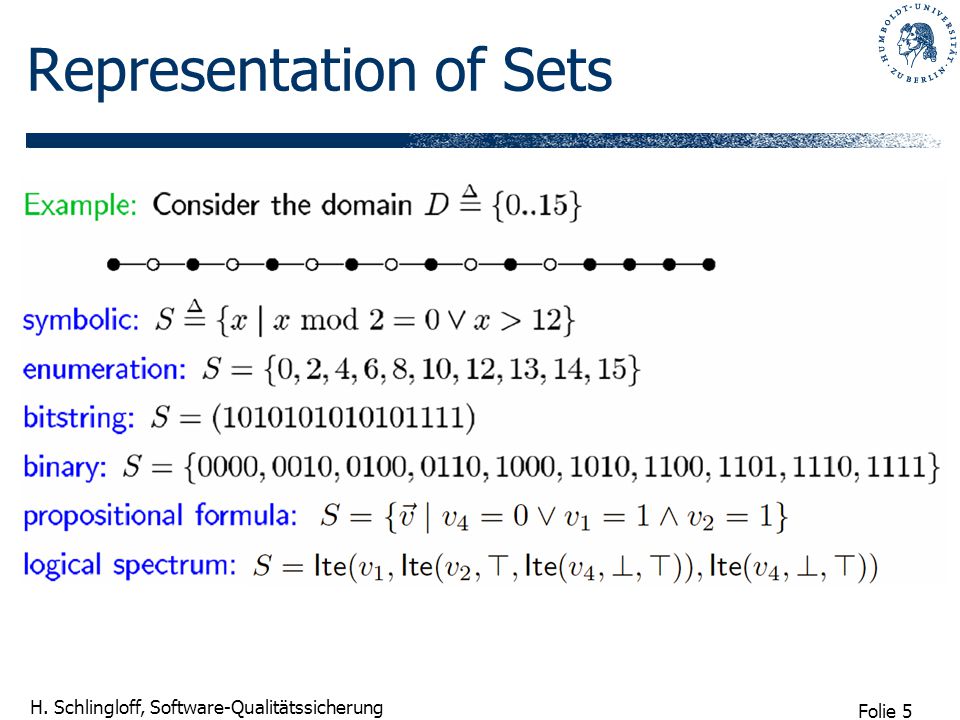

5 Folie 5 H. Schlingloff, Software-Qualitätssicherung Representation of Sets

6 Folie 6 H. Schlingloff, Software-Qualitätssicherung Truth table and tree form formula Reduction: Replace Ite (v,ψ,ψ) by ψ

7 Folie 7 H. Schlingloff, Software-Qualitätssicherung Abbreviations Introduce abbreviations maximally abbreviated for any given order of variables the maximal abbreviated form is uniquely determined!

8 Folie 8 H. Schlingloff, Software-Qualitätssicherung Binary Decision Trees (BDTs) Binary decision tree Elimination of isomorphic subtrees (abbreviations)

9 Folie 9 H. Schlingloff, Software-Qualitätssicherung Binary Decision Diagrams (BDDs) Elimination of redundant nodes (redundant subformulas) Ite (v,ψ,ψ) by ψ formula: ((V1  V2)   V4)

10 Folie 10 H. Schlingloff, Software-Qualitätssicherung Calculation of BDDs

11 Folie 11 H. Schlingloff, Software-Qualitätssicherung Boolean operations on BDDs

12 Folie 12 H. Schlingloff, Software-Qualitätssicherung Satisfiability This procedure can be applied for arbitrary boolean connectives (or, and, not)  BDD(  ) is the constant node    p = (p  ), (p  q) = (  p  q) etc.  direct algorithms for ,  possible  this amounts to set union, intersection, and complement with respect to the base set Formula φ is satisfiable iff BDD(φ)    any path through the BDD to T defines a model

13 Folie 13 H. Schlingloff, Software-Qualitätssicherung Binary Encoding of Relations A relation is a subset of the product of two sets  Thus, a relation is nothing but a set Example: var v: {0..3}, w:{0..7}; var v0, v1, w0, w1, w2: boolean; “divides”-Relation: v divides w iff v=1, or v=2 and w even, or v=3 and w in {0,3,6} boolean formula:

14 Folie 14 H. Schlingloff, Software-Qualitätssicherung The Influence of Variable Ordering

15 Folie 15 H. Schlingloff, Software-Qualitätssicherung Boolean Quantification Substitution by constants is trivial Boolean quantification: ! This works for arbitrary finite domains !

16 Folie 16 H. Schlingloff, Software-Qualitätssicherung Bounded Model Checking State s is reachable from s 0 iff  it is reachable in 0 steps: s=s 0, or  it is reachable in 1 step: R(s 0,s), or  it is reachable in 2 steps:  s 1 (R(s 0,s 1 )  R(s 1,s)), or  it is reachable in 3 steps:  s 1  s 2 (R(s 0,s 1 )  R(s 1,s 2 )  R(s 2,s)), or ..., or  it is reachable in n steps, where n is the diameter of the model Idea: Check each of these formulas sequentially

17 Folie 17 H. Schlingloff, Software-Qualitätssicherung Transitive Closure Each finite (transition) relation can be represented as a BDD The transitive closure of a relation R is defined recursively by Thus, transitive closure be calculated by an iteration on BDDs

18 Folie 18 H. Schlingloff, Software-Qualitätssicherung Reachability State s is reachable iff s 0 R*s, where s 0  S 0 is an initial state and R is the transition relation Reachability is one of the most important properties in verification  most safety properties can be reduced to it  in a search algorithm, is the goal reachable? Can be arbitrarily hard  for infinite state systems undecidable Can be efficiently calculated with BDDs
