MRI-Based Finite-Element Analysis of Left Ventricular Aneurysm Julius M. Guccione, Ph.D. Walker et al, Am J Physiol. 289:H692-700, 2005. UCSF/VAMC Cardiac.

Similar presentations


Presentation on theme: "MRI-Based Finite-Element Analysis of Left Ventricular Aneurysm Julius M. Guccione, Ph.D. Walker et al, Am J Physiol. 289:H692-700, 2005. UCSF/VAMC Cardiac."— Presentation transcript:

1 MRI-Based Finite-Element Analysis of Left Ventricular Aneurysm Julius M. Guccione, Ph.D. Walker et al, Am J Physiol. 289:H , UCSF/VAMC Cardiac Biomechanics Laboratory San Francisco, California

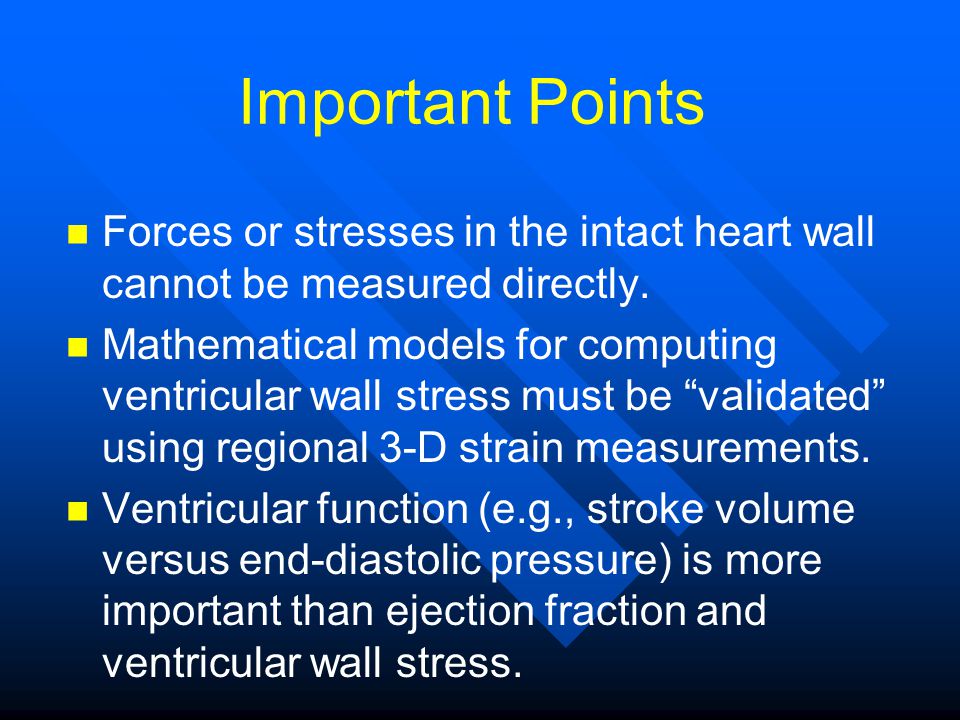

2 Important Points Forces or stresses in the intact heart wall cannot be measured directly. Mathematical models for computing ventricular wall stress must be “validated” using regional 3-D strain measurements. Ventricular function (e.g., stroke volume versus end-diastolic pressure) is more important than ejection fraction and ventricular wall stress.

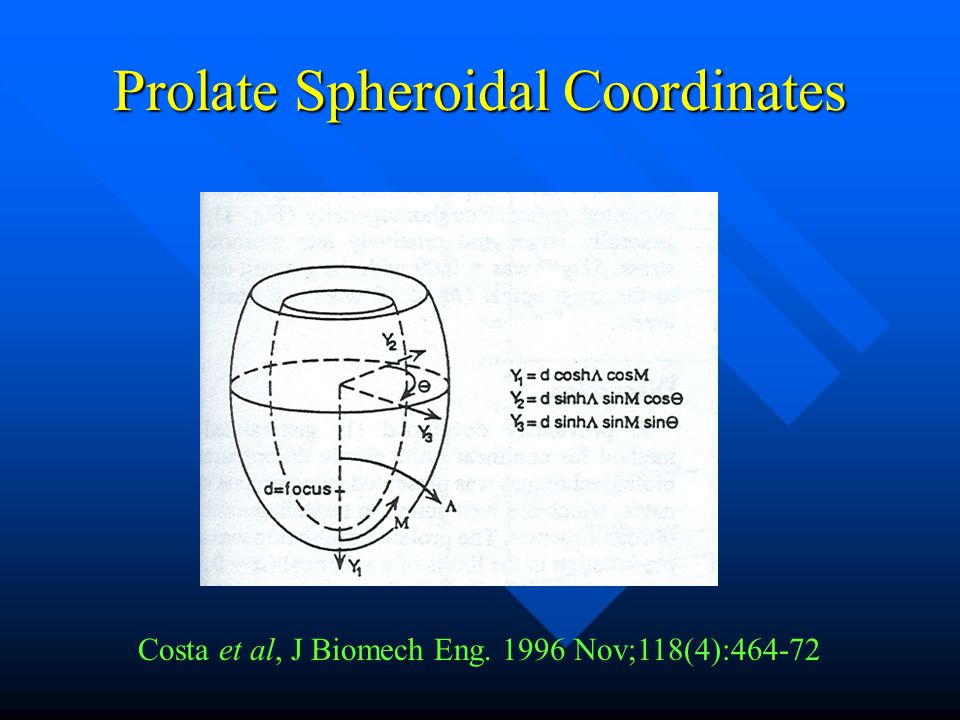

3 Prolate Spheroidal Coordinates Costa et al, J Biomech Eng Nov;118(4):464-72

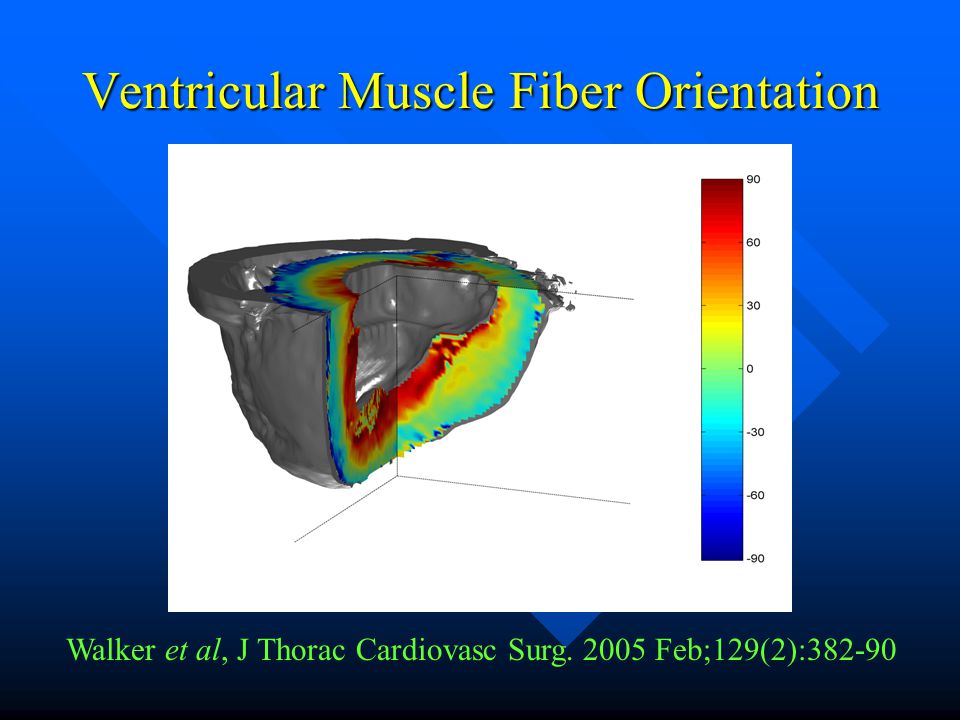

4 Ventricular Muscle Fiber Orientation Walker et al, J Thorac Cardiovasc Surg Feb;129(2):382-90

5 Definition of (Cauchy) Stress Fung, A First Course in Continuum Mechanics, 1994

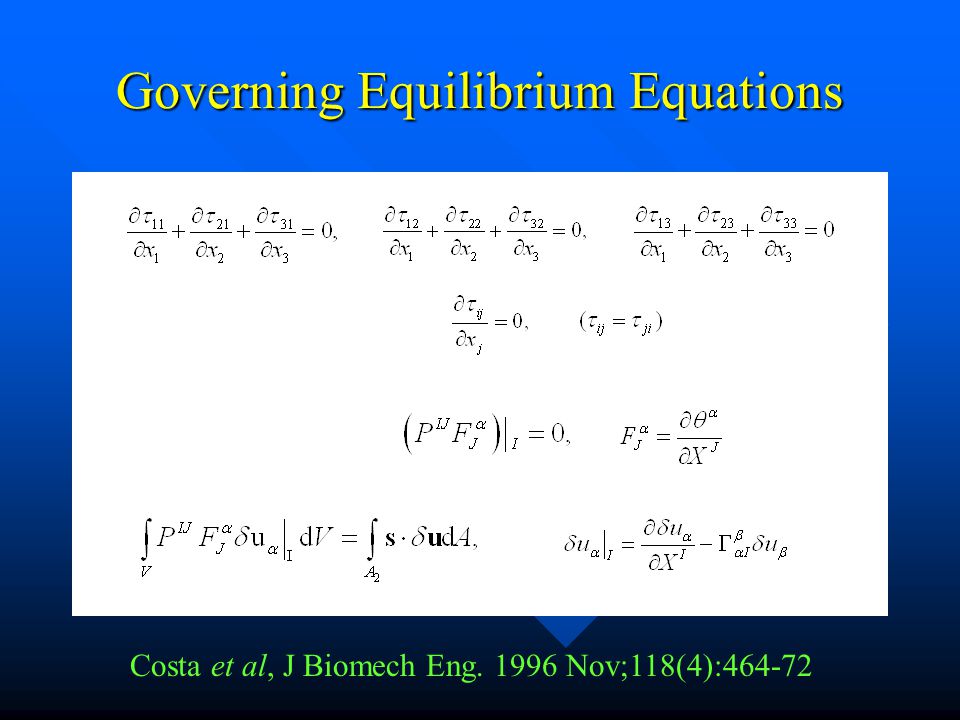

6 Governing Equilibrium Equations Costa et al, J Biomech Eng Nov;118(4):464-72

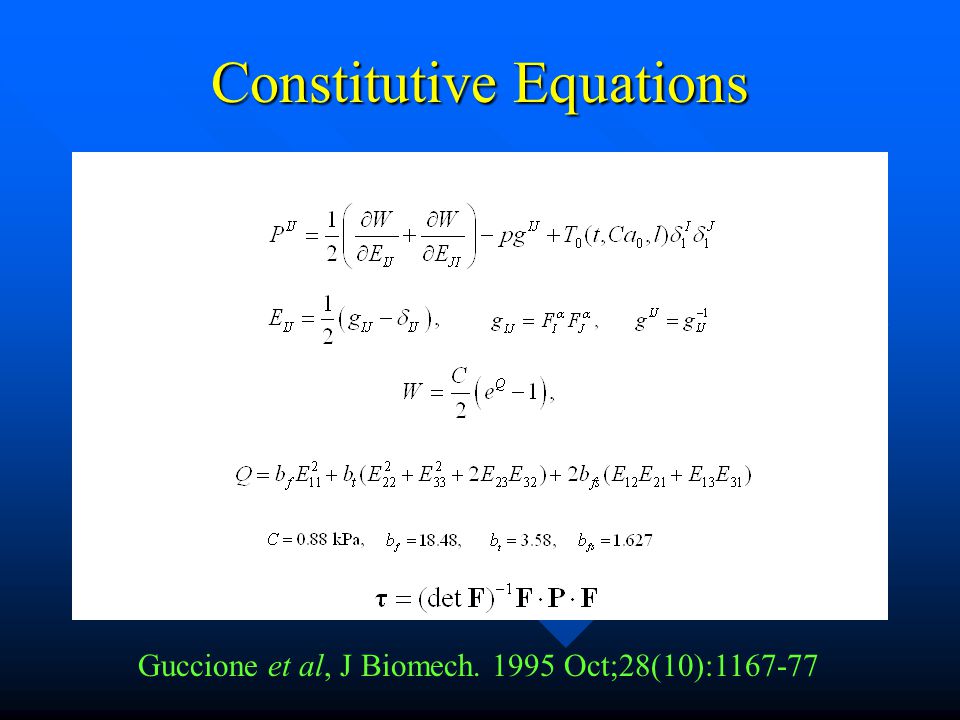

7 Constitutive Equations Guccione et al, J Biomech Oct;28(10):

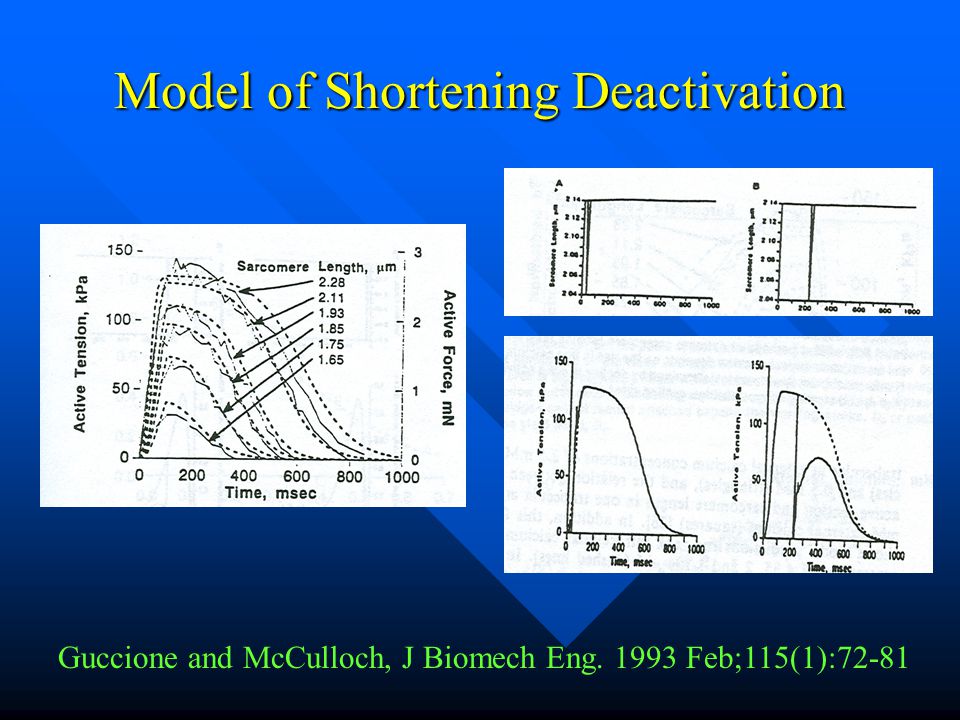

8 Model of Shortening Deactivation Guccione and McCulloch, J Biomech Eng Feb;115(1):72-81

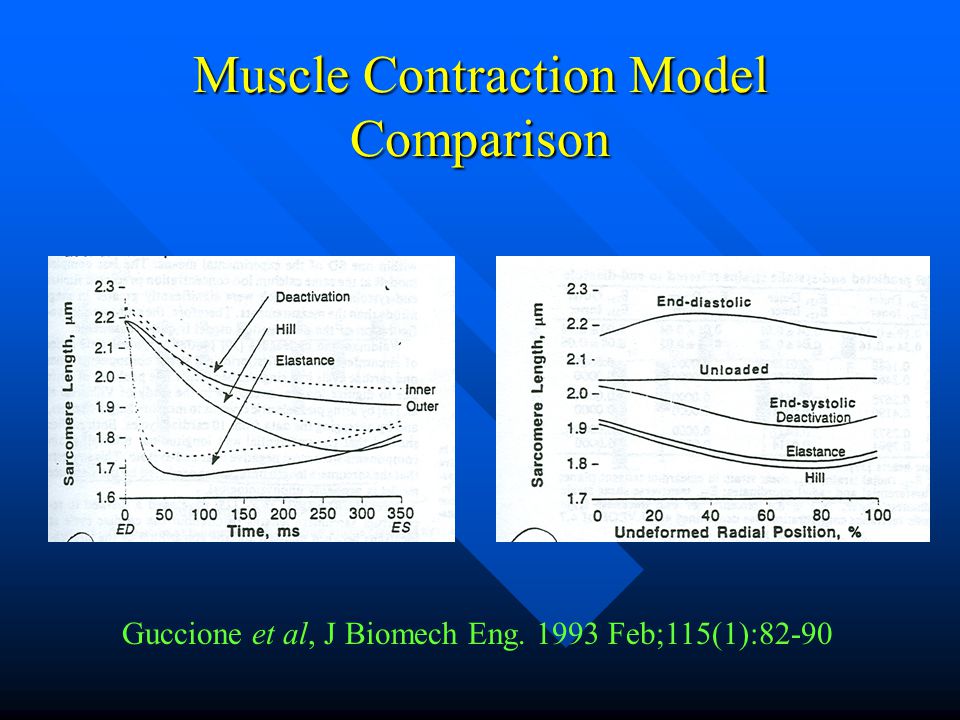

9 Muscle Contraction Model Comparison Guccione et al, J Biomech Eng Feb;115(1):82-90

10 (Time Varying) Elastance Model Guccione et al, J Biomech Eng Feb;115(1):82-90

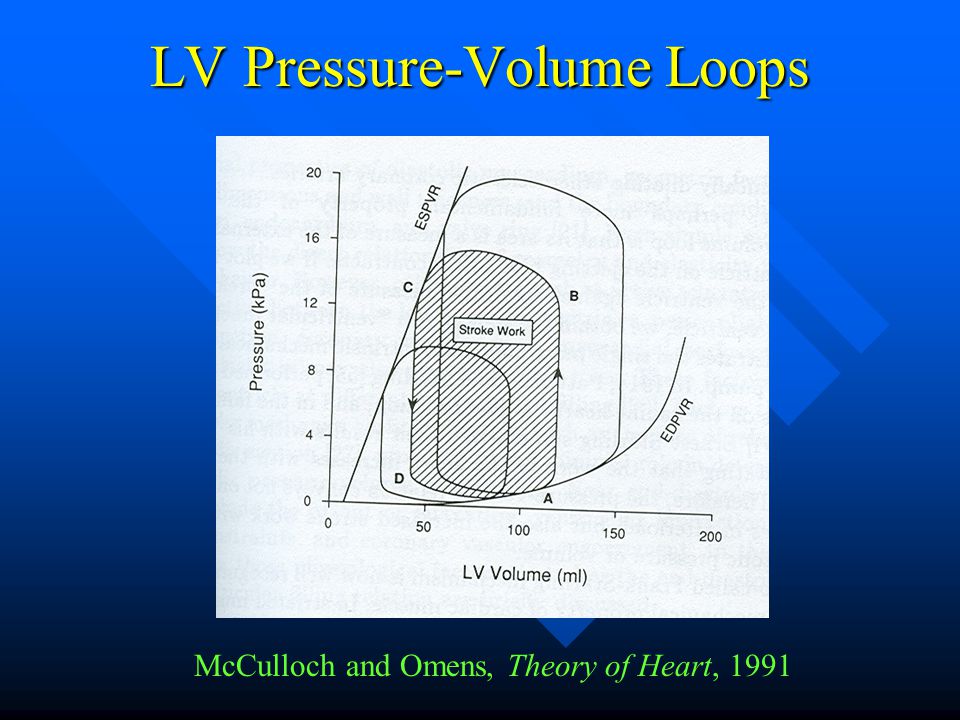

11 LV Pressure-Volume Loops McCulloch and Omens, Theory of Heart, 1991

12 Sheep Model of LV Aneurysm Markovitz et al, Ann Thorac Surg Dec;48(6):

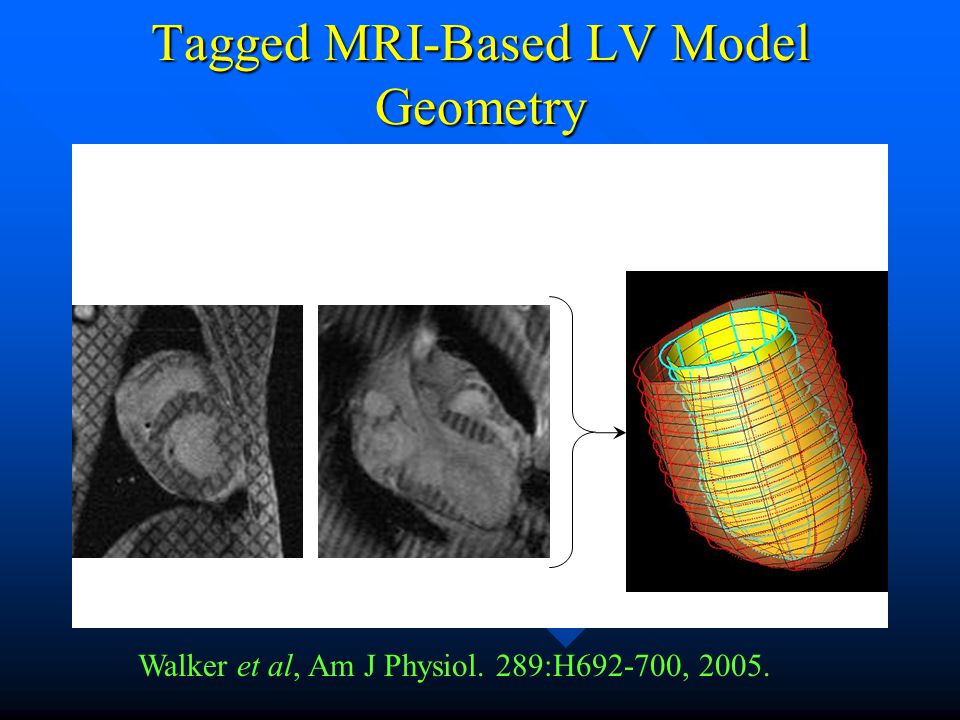

13 Tagged MRI-Based LV Model Geometry Walker et al, Am J Physiol. 289:H , Figure 1 ABC

14 Automated BZ Detection Walker et al, Am J Physiol. 289:H , BA Figure 2

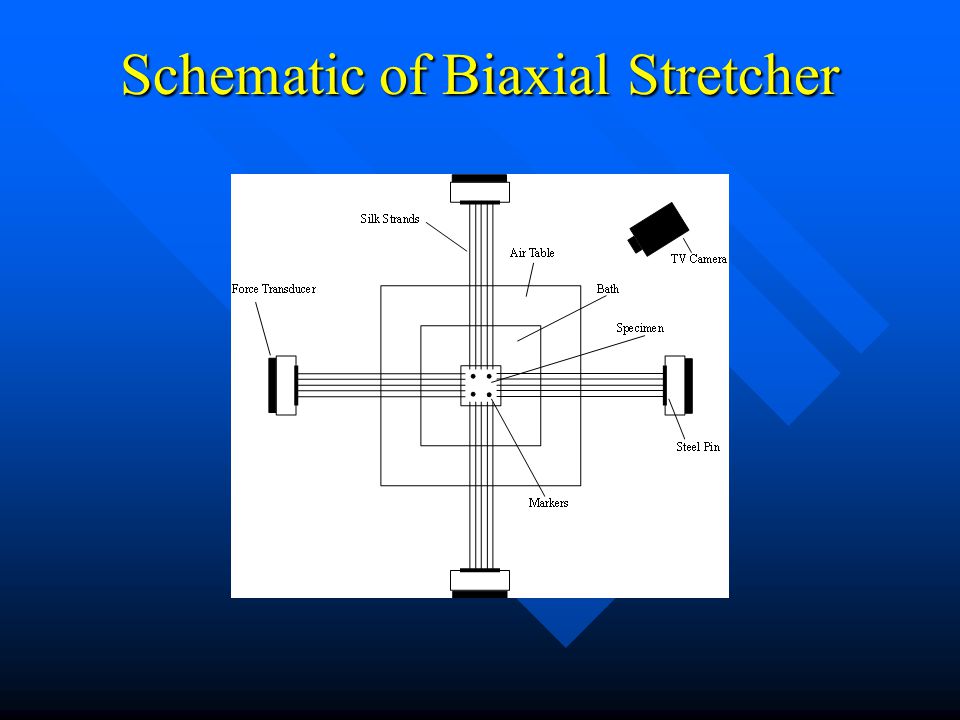

15 Schematic of Biaxial Stretcher

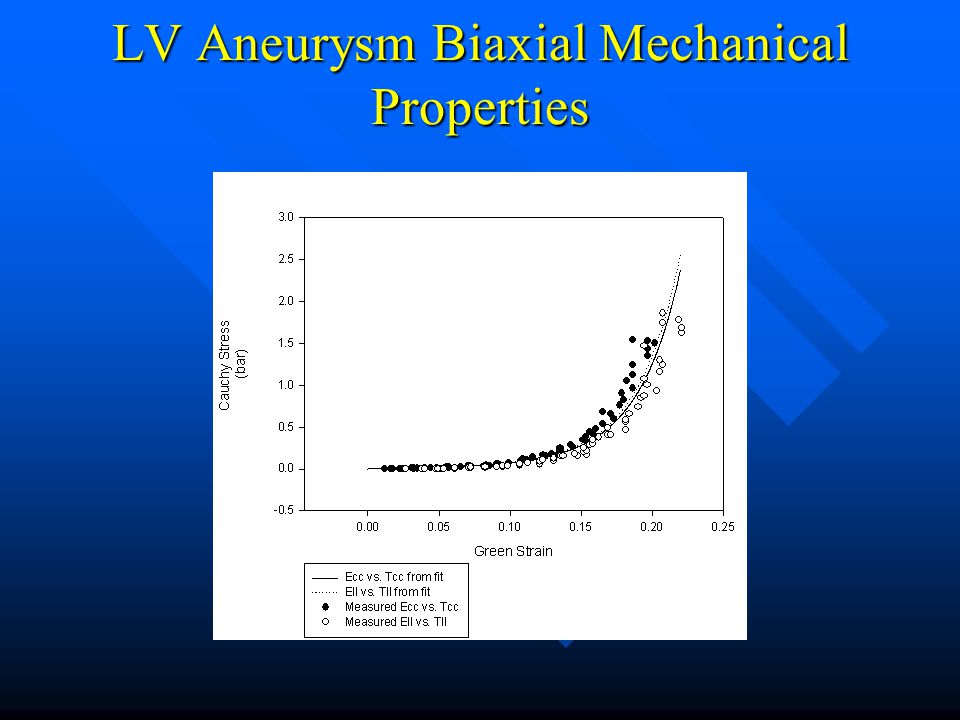

16 LV Aneurysm Biaxial Mechanical Properties

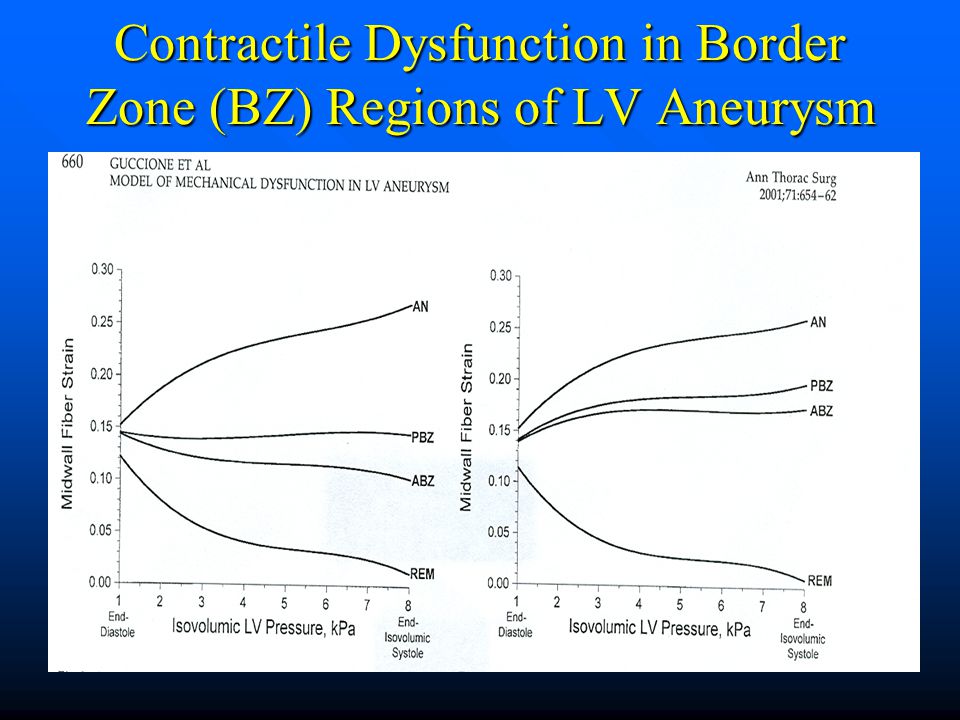

17 Contractile Dysfunction in Border Zone (BZ) Regions of LV Aneurysm

18 End-Systolic Circumferential Strain Comparison Walker et al, Am J Physiol. 289:H , BA Figure 45

19 Effect of Active Cross-Fiber Stress Walker et al, Am J Physiol. 289:H , Figure 56

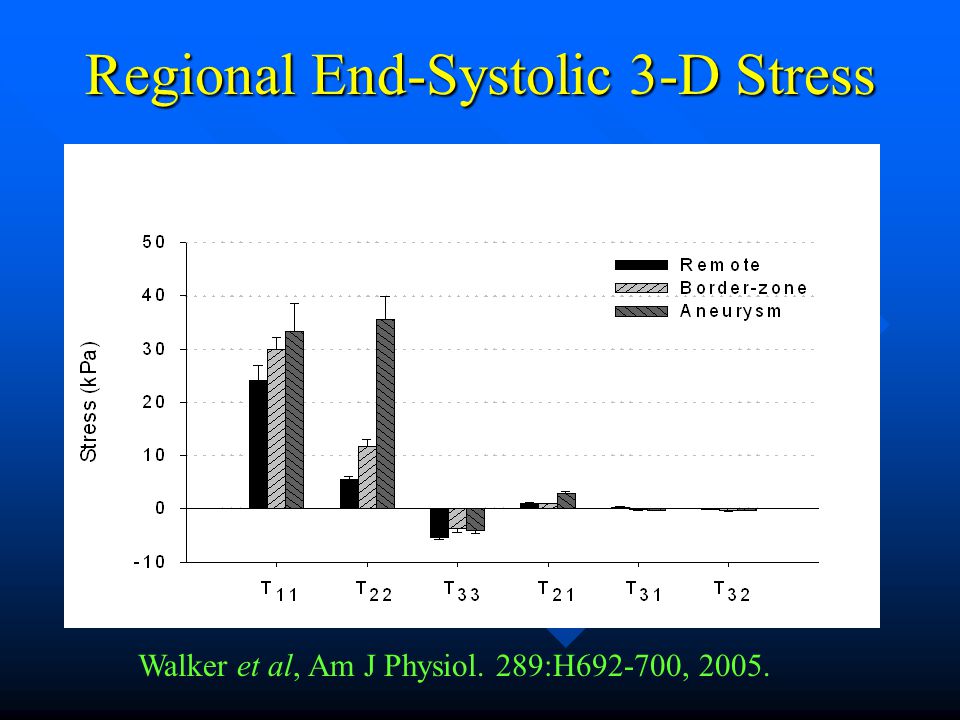

20 Regional End-Systolic 3-D Stress Walker et al, Am J Physiol. 289:H , Figure 67

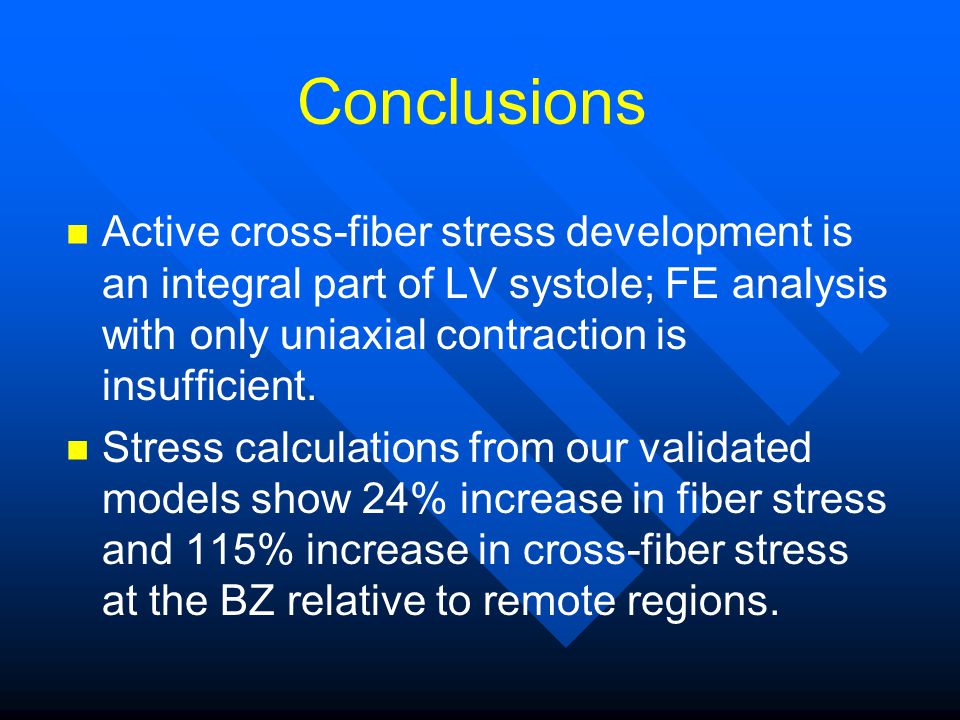

21 Conclusions Active cross-fiber stress development is an integral part of LV systole; FE analysis with only uniaxial contraction is insufficient. Stress calculations from our validated models show 24% increase in fiber stress and 115% increase in cross-fiber stress at the BZ relative to remote regions.

22 Study Limitations No validation of estimated myocardial material properties using direct measurements (e.g., biaxial testing). In vivo boundary conditions are extremely complicated to model mathematically. A formal optimization of myocardial material parameters was not performed. Tagged MRI methodology was not state- of-the-art (e.g., C-SPAMM).

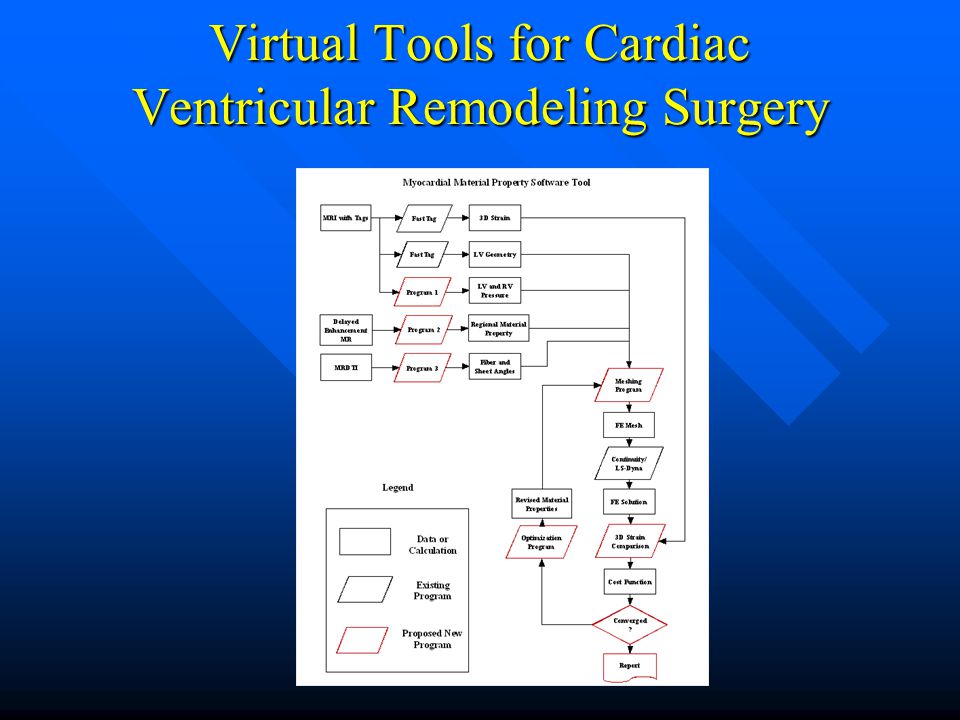

23 Virtual Tools for Cardiac Ventricular Remodeling Surgery

24 Necrosis-Specific MR Contrast Media in Rats Saeed et al, Circulation Feb 13;103(6):871-6.

25 Effect of Aneurysm Repair on Stress ABC

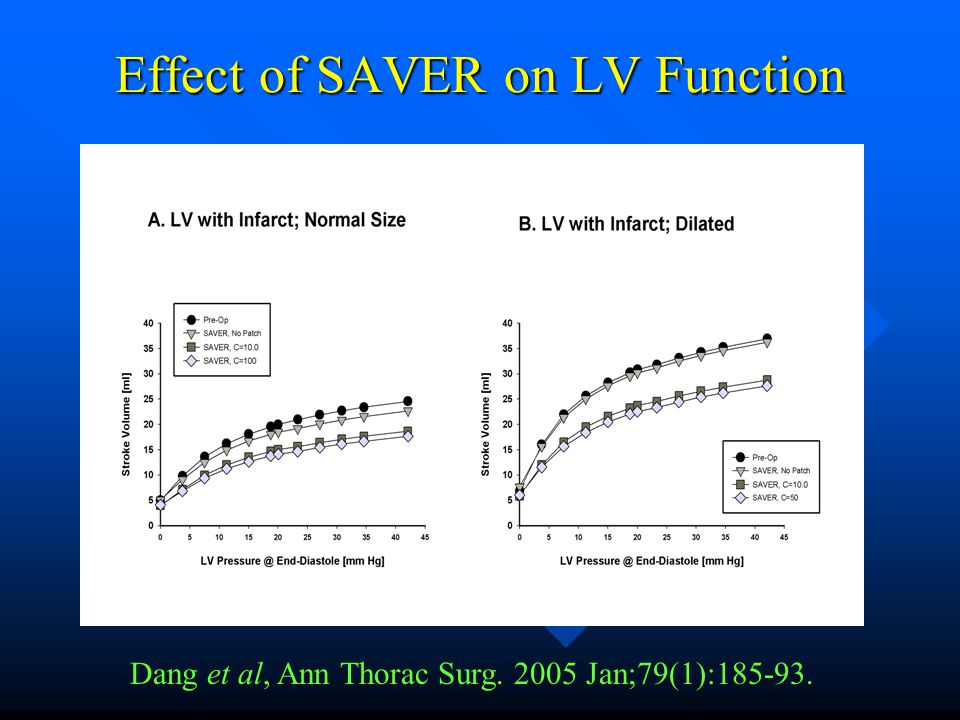

26 Effect of SAVER on LV Function Dang et al, Ann Thorac Surg Jan;79(1):

27 Thank You
