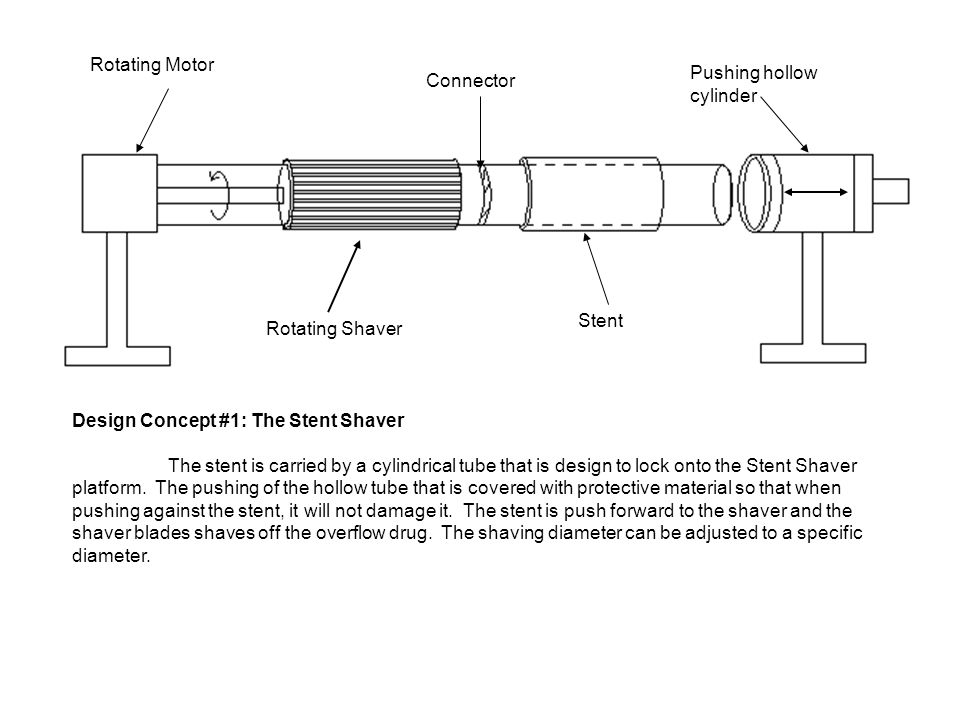

Rotating Motor Connector Pushing hollow cylinder Stent Rotating Shaver Design Concept #1: The Stent Shaver The stent is carried by a cylindrical tube that is design to lock onto the Stent Shaver platform. The pushing of the hollow tube that is covered with protective material so that when pushing against the stent, it will not damage it. The stent is push forward to the shaver and the shaver blades shaves off the overflow drug. The shaving diameter can be adjusted to a specific diameter.
Stent Holder Stent Drill Conceptual Design #2 Stent Driller The stent is load into the stent holder which does not touch the outter diameter of the stent. The stent is uploaded by a cylindrical rod into the stent holder which can open and close. The drill is precisely cut to fit over the stent inner diameter. The drill will drill through the stent and remove any overflow solution to an accuracy. Open and Closing
Cloths Cleaner Brush Cleaner 2 type of brush Heating Rod Conceptual Design #3: Multipurpose Cleaner The stent is held fix by the stent holder, the spinner is rotated so that the heating rod is aligned with the stent inner diameter. The heating rod is moved forward and heat the inner diameter of the stent to loosen the overflow drug. Then it is move backward and the spinner rotate to the brush cleaner rod. The brush cleaner rod moves back and fourth to scrub out the solution and absorb it in the brushes. Lastly, the spinner rotate to the cloths cleaner rod which is made to mop and clean the stent. The stent is then reversed to clean the other side. Stent Holder Spinner
Stent Stent Lock Stent Holder Rotating Rod Circular blade Conceptual Design #4: Stent Cutter The stent is held fix by the stent holder, and is block from moving by the stent lock. The rotating rod spins the blade with the motion of cutting and slicing while moving slowly to the left. The circular blade slice and cut the hanging overflow drug and is move through the entire length of the stent. It is followed by a second stent holder, as the first one leave.
Rotating Rod Linear motion Filler Stent Holder Stent Conceptual Design #4: Stent Filler The stent is held into place by the stent holder and the filler is situated close to the stent Surface and it motion is linear, up and down and forward and backward. The stent filler is rotated along with the stent holder to file the remaining surface on the stent. The filler is made with tiny blade the will carve the overflow coating solution.
