1 Via Leonardo Da Vinci, 11/b CASSINA DE’ PECCHI (MI) Italy Tel. 0039/ Fax 0039/ Sito Web : PACKAGING MACHINES FOR LIQUID AND VISCOUS PRODUCTS

2 BLOWING AND RINSING UNIT Blowing and rinsing unit for empty jars and bottles; Semiautomatic blowing machine in AISI 304 stainless steel for new jars, complete with two working stations one for water rinsing and one for air blowing. The unit is provided with adjustable feet. This machine has a simple and manual use but is essential for hygienic and legislative rules in every food production laboratory. The operator takes the bottle or the jar and turn it down on the operative plate, it is enough a simple pression and the bottle is rinsed and blowed. Frontal view Particular of bottles in drainage

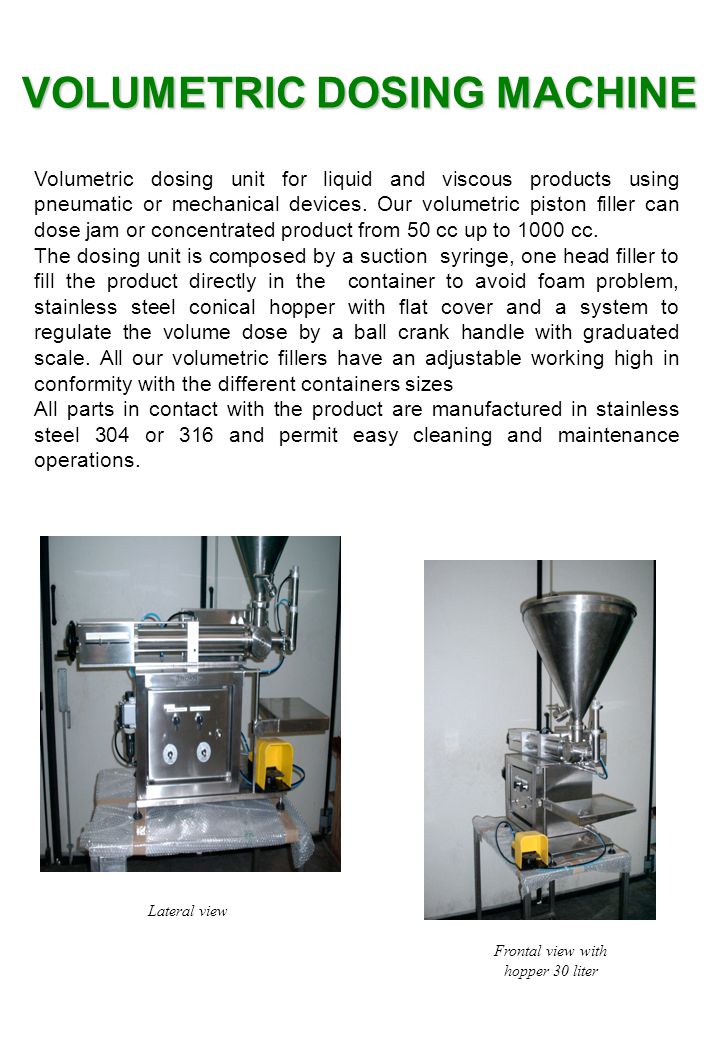

3 Volumetric dosing unit for liquid and viscous products using pneumatic or mechanical devices. Our volumetric piston filler can dose jam or concentrated product from 50 cc up to 1000 cc. The dosing unit is composed by a suction syringe, one head filler to fill the product directly in the container to avoid foam problem, stainless steel conical hopper with flat cover and a system to regulate the volume dose by a ball crank handle with graduated scale. All our volumetric fillers have an adjustable working high in conformity with the different containers sizes All parts in contact with the product are manufactured in stainless steel 304 or 316 and permit easy cleaning and maintenance operations. Lateral view Frontal view with hopper 30 liter VOLUMETRIC DOSING MACHINE

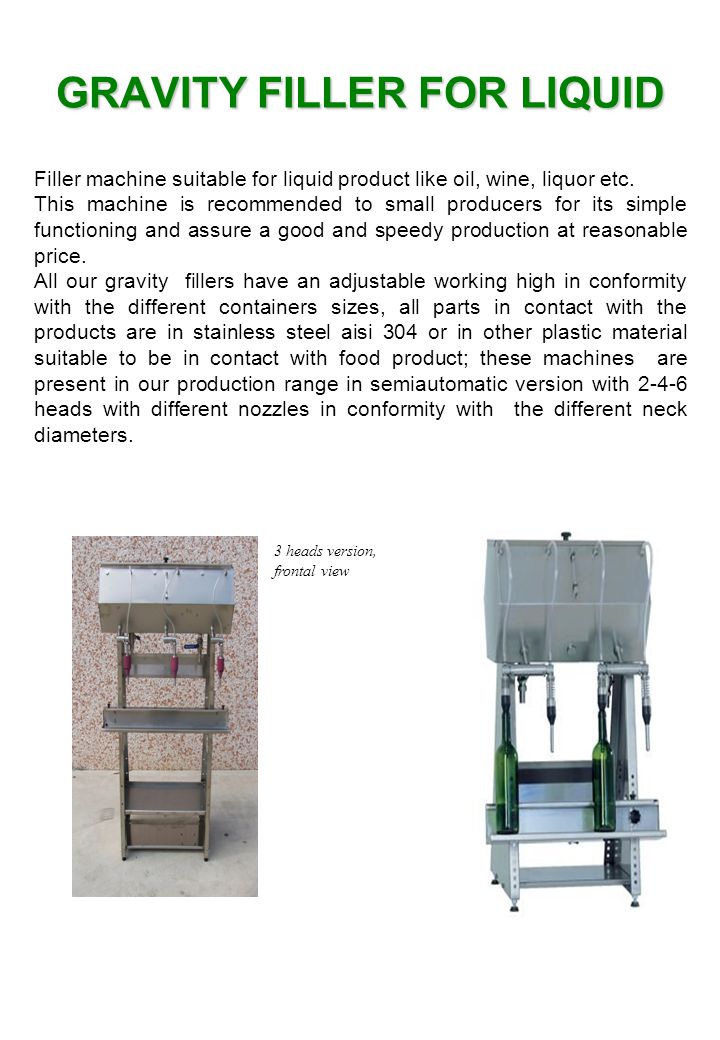

4 Filler machine suitable for liquid product like oil, wine, liquor etc. This machine is recommended to small producers for its simple functioning and assure a good and speedy production at reasonable price. All our gravity fillers have an adjustable working high in conformity with the different containers sizes, all parts in contact with the products are in stainless steel aisi 304 or in other plastic material suitable to be in contact with food product; these machines are present in our production range in semiautomatic version with heads with different nozzles in conformity with the different neck diameters. 3 heads version, frontal view GRAVITY FILLER FOR LIQUID

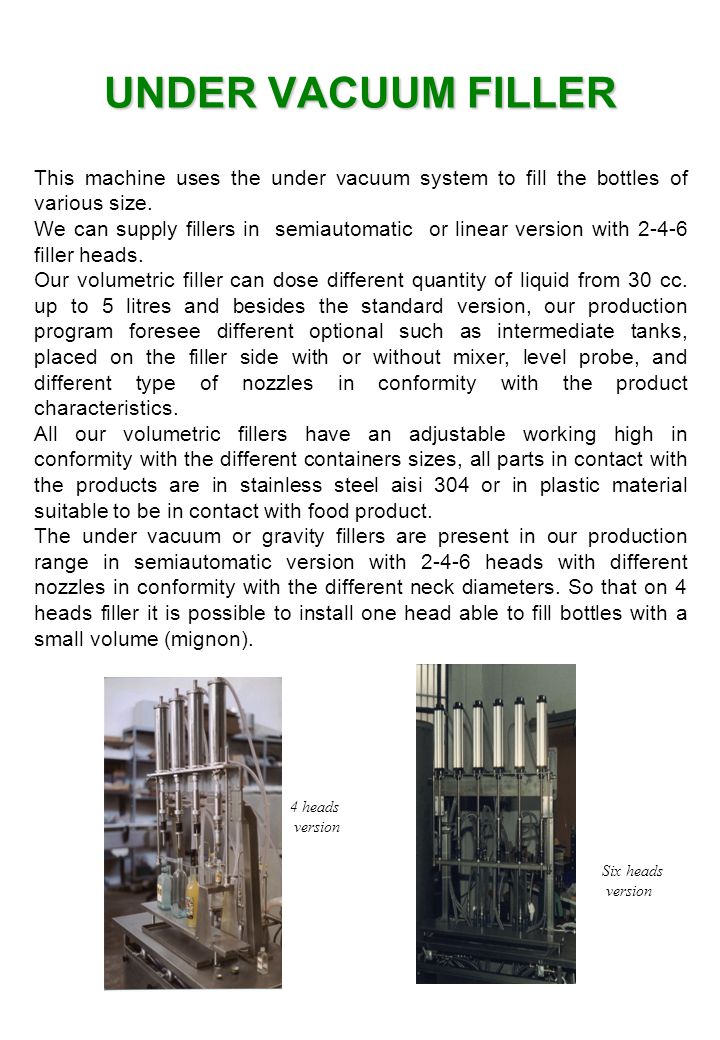

5 This machine uses the under vacuum system to fill the bottles of various size. We can supply fillers in semiautomatic or linear version with filler heads. Our volumetric filler can dose different quantity of liquid from 30 cc. up to 5 litres and besides the standard version, our production program foresee different optional such as intermediate tanks, placed on the filler side with or without mixer, level probe, and different type of nozzles in conformity with the product characteristics. All our volumetric fillers have an adjustable working high in conformity with the different containers sizes, all parts in contact with the products are in stainless steel aisi 304 or in plastic material suitable to be in contact with food product. The under vacuum or gravity fillers are present in our production range in semiautomatic version with heads with different nozzles in conformity with the different neck diameters. So that on 4 heads filler it is possible to install one head able to fill bottles with a small volume (mignon). 4 heads version Six heads version UNDER VACUUM FILLER

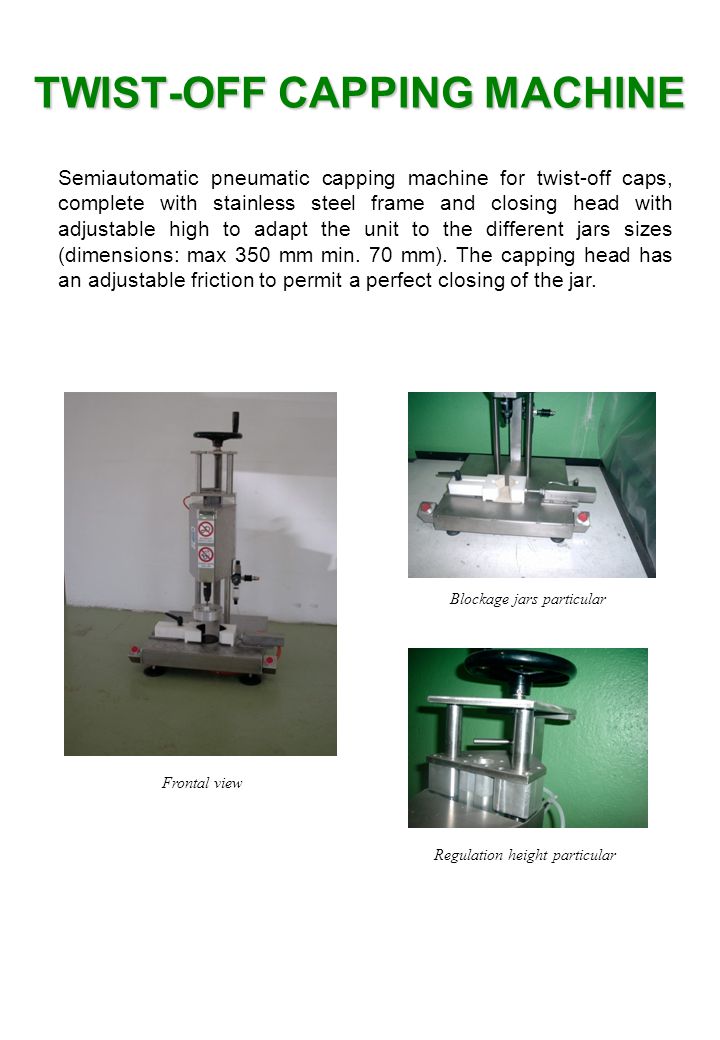

6 Semiautomatic pneumatic capping machine for twist-off caps, complete with stainless steel frame and closing head with adjustable high to adapt the unit to the different jars sizes (dimensions: max 350 mm min. 70 mm). The capping head has an adjustable friction to permit a perfect closing of the jar. Frontal view Blockage jars particular Regulation height particular TWIST-OFF CAPPING MACHINE

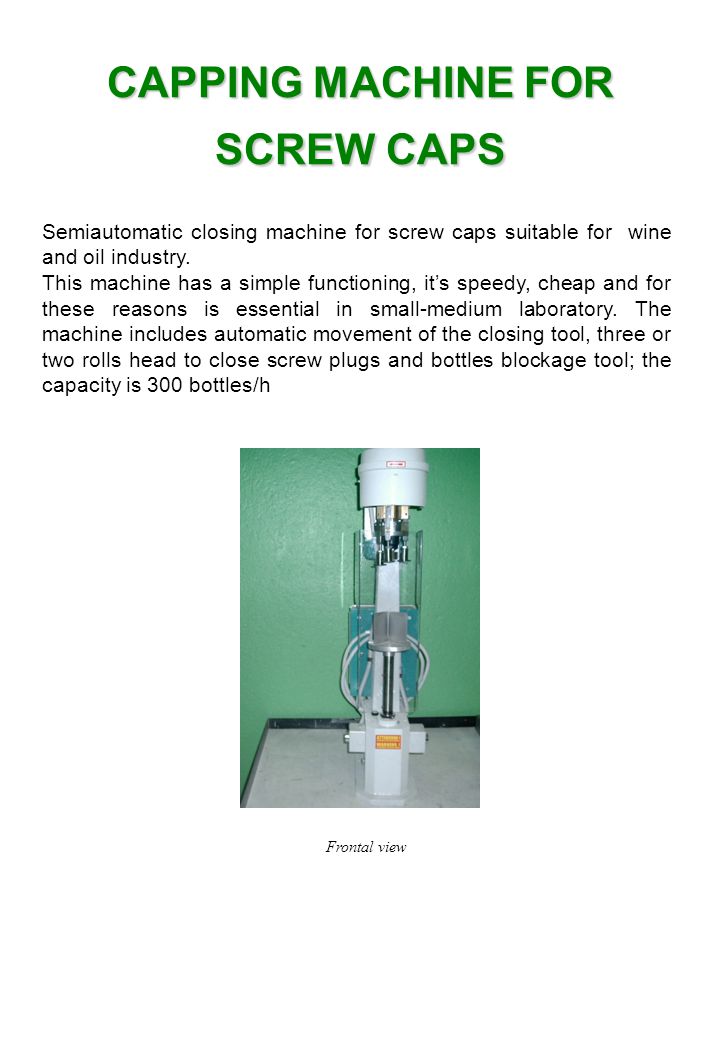

7 CAPPING MACHINE FOR SCREW CAPS Semiautomatic closing machine for screw caps suitable for wine and oil industry. This machine has a simple functioning, it’s speedy, cheap and for these reasons is essential in small-medium laboratory. The machine includes automatic movement of the closing tool, three or two rolls head to close screw plugs and bottles blockage tool; the capacity is 300 bottles/h Frontal view
