1 New functionality of Photomod system. Version 3.8 RACURS Denis Naumov Jurmala, Latvia, September 14, 2005

2 Content Introduction New Features – General changes – Montage Desktop – Scanner imagery processing – AT, Solver, DTM – StereoDraw Conclusion

3 Introduction PHOTOMOD 3.6 – 3.8 More powerful Easier in use More reliable

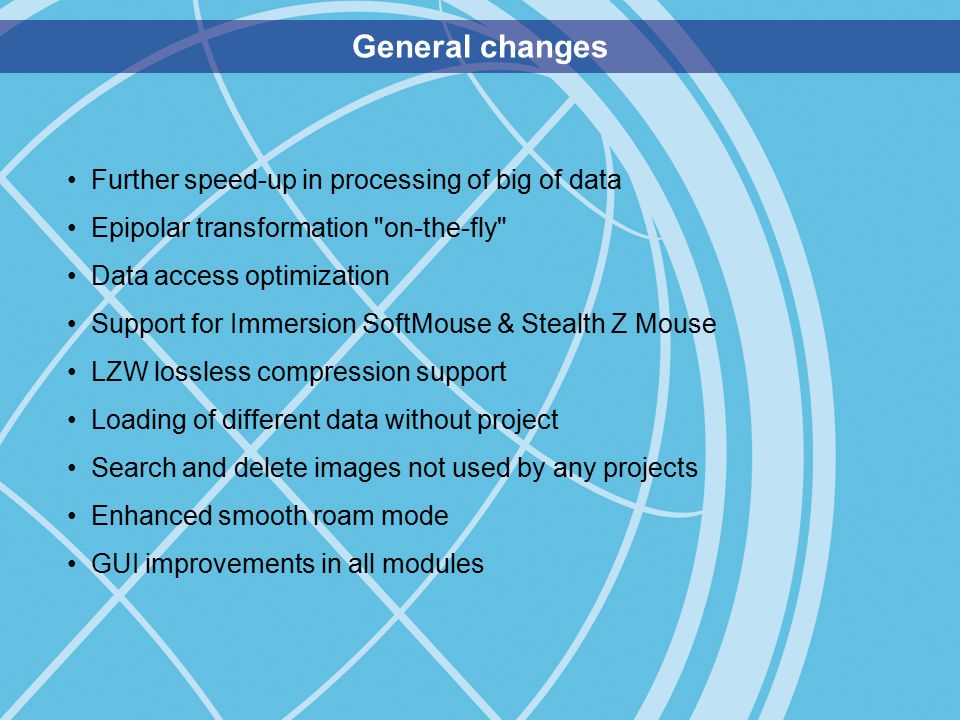

4 General changes Further speed-up in processing of big of data Epipolar transformation "on-the-fly" Data access optimization Support for Immersion SoftMouse & Stealth Z Mouse LZW lossless compression support Loading of different data without project Search and delete images not used by any projects Enhanced smooth roam mode GUI improvements in all modules

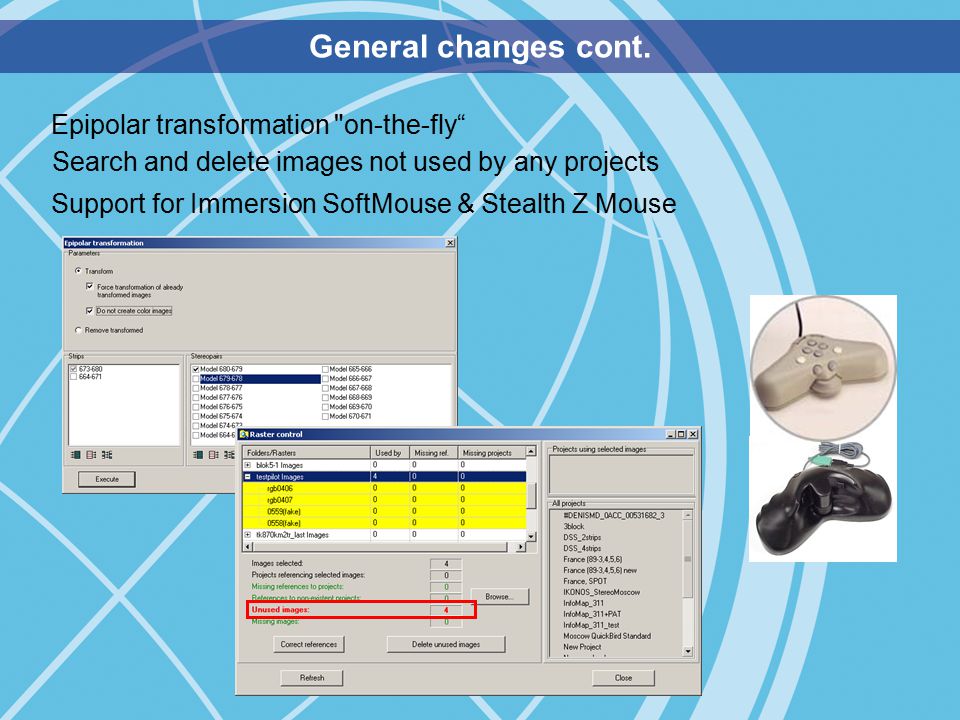

5 General changes cont. Epipolar transformation "on-the-fly“ Search and delete images not used by any projects Support for Immersion SoftMouse & Stealth Z Mouse

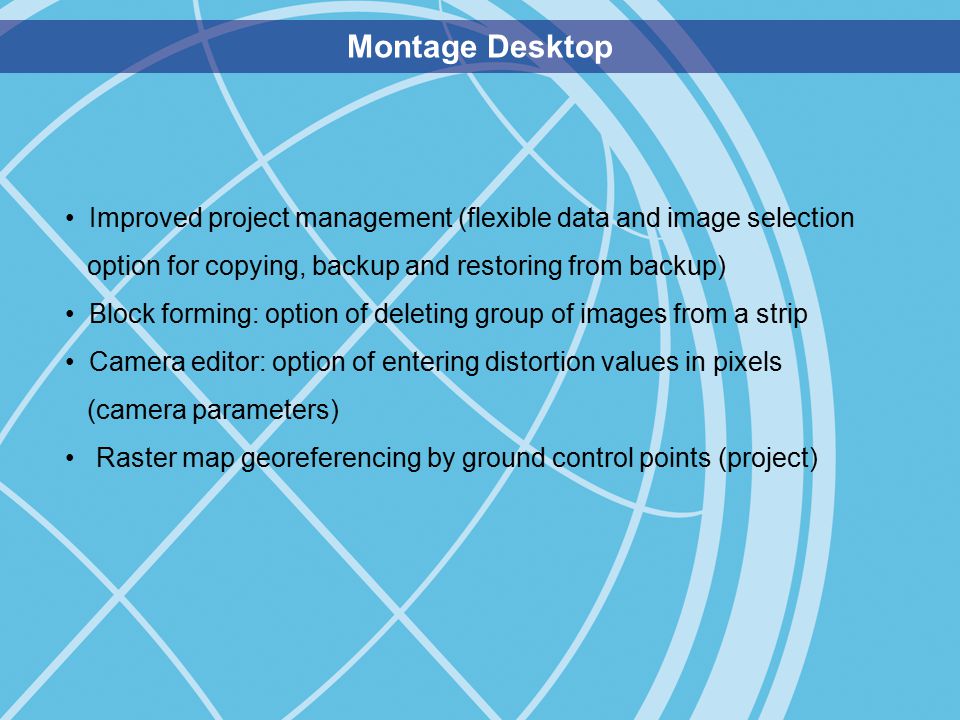

6 Montage Desktop Improved project management (flexible data and image selection option for copying, backup and restoring from backup) Block forming: option of deleting group of images from a strip Camera editor: option of entering distortion values in pixels (camera parameters) Raster map georeferencing by ground control points (project)

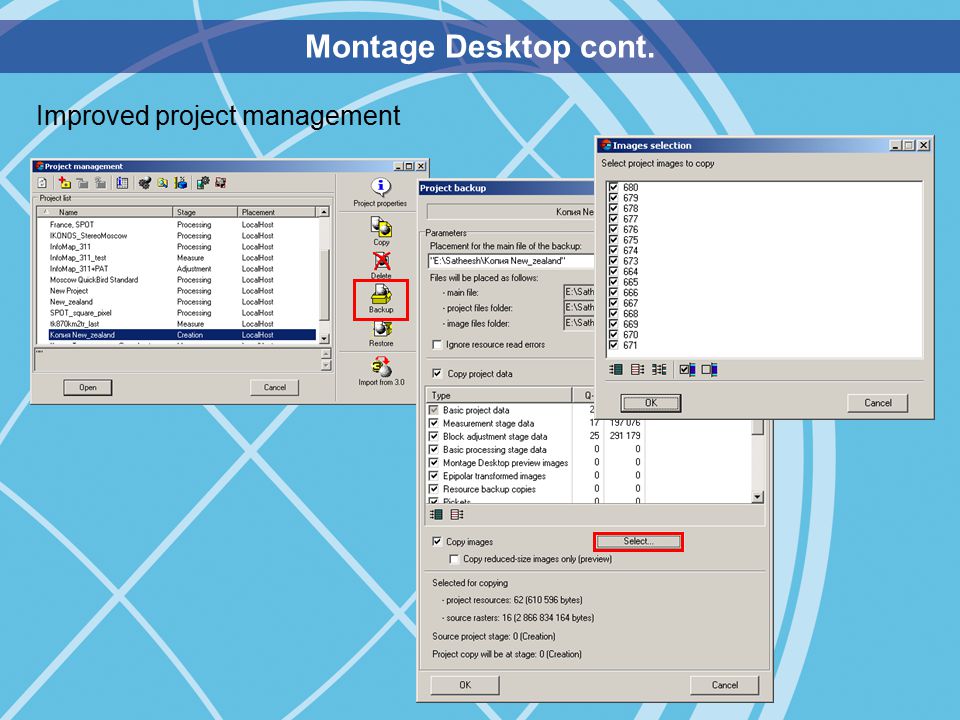

7 Montage Desktop cont. Improved project management

8 Montage Desktop cont. Raster map georeferencing by ground control points

9 Scanner imagery processing Processing of mono blocks of images supplied with RPC data (IKONOS, QuickBird и OrbView) Processing of SPOT 5 images (HRG and HRS sensors) Displaying detailed sensor information in the process of images input

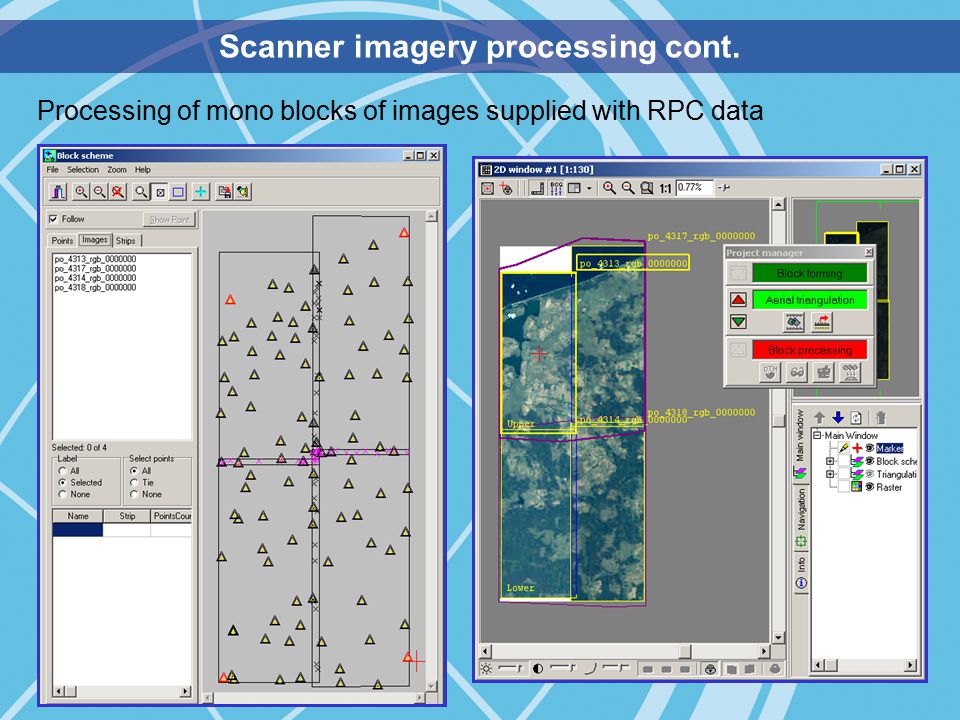

10 Scanner imagery processing cont. Processing of mono blocks of images supplied with RPC data

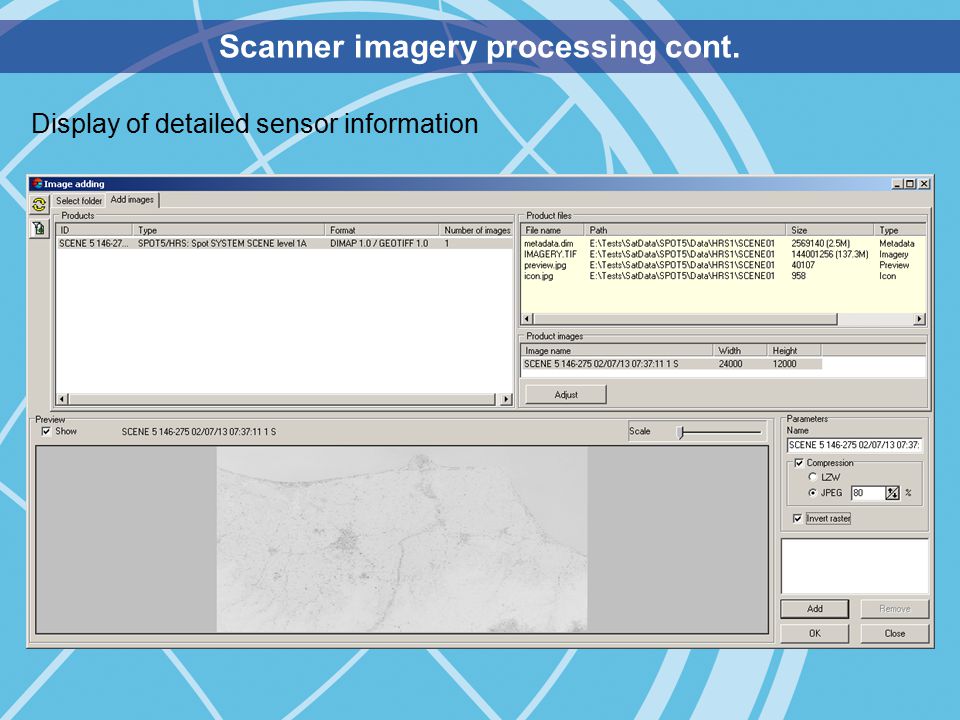

11 Scanner imagery processing cont. Display of detailed sensor information

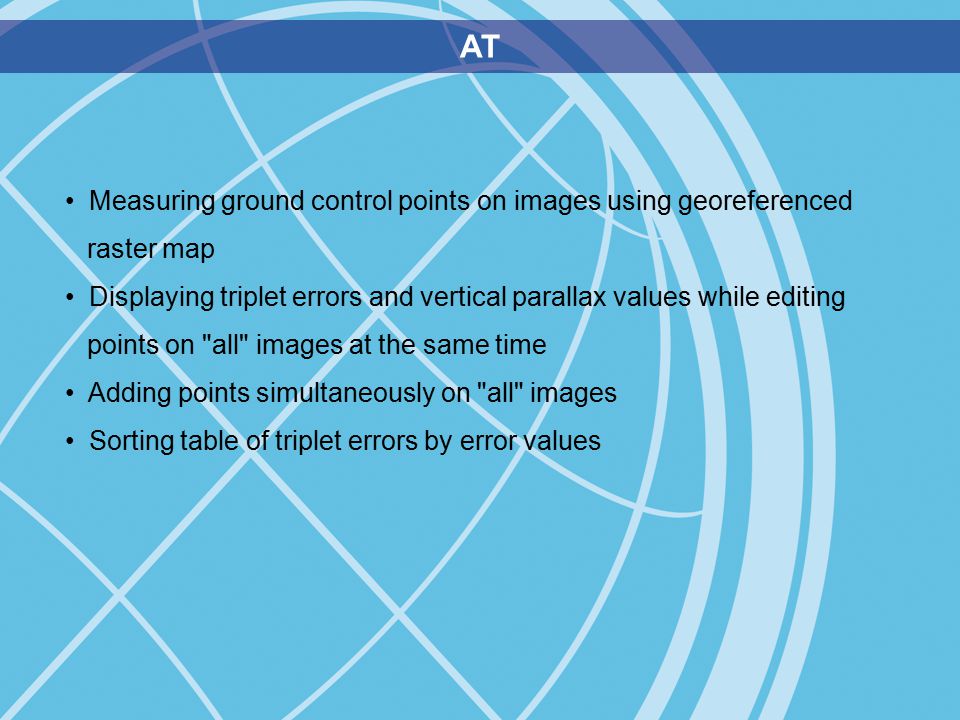

12 AT Measuring ground control points on images using georeferenced raster map Displaying triplet errors and vertical parallax values while editing points on "all" images at the same time Adding points simultaneously on "all" images Sorting table of triplet errors by error values

13 AT cont. Measuring ground control points using georeferenced raster map

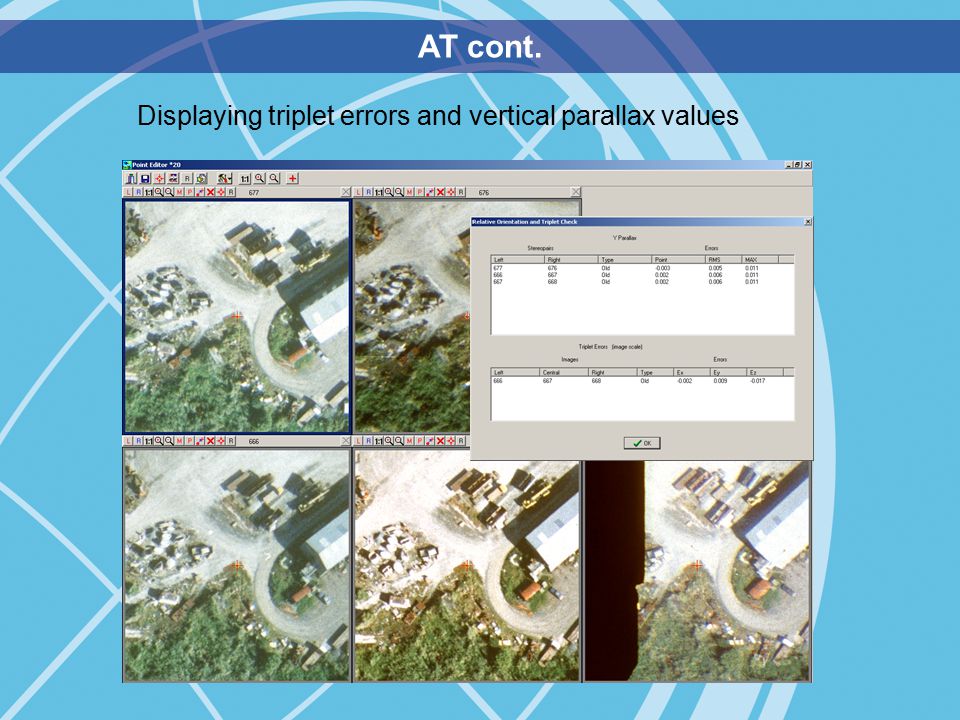

14 AT cont. Displaying triplet errors and vertical parallax values

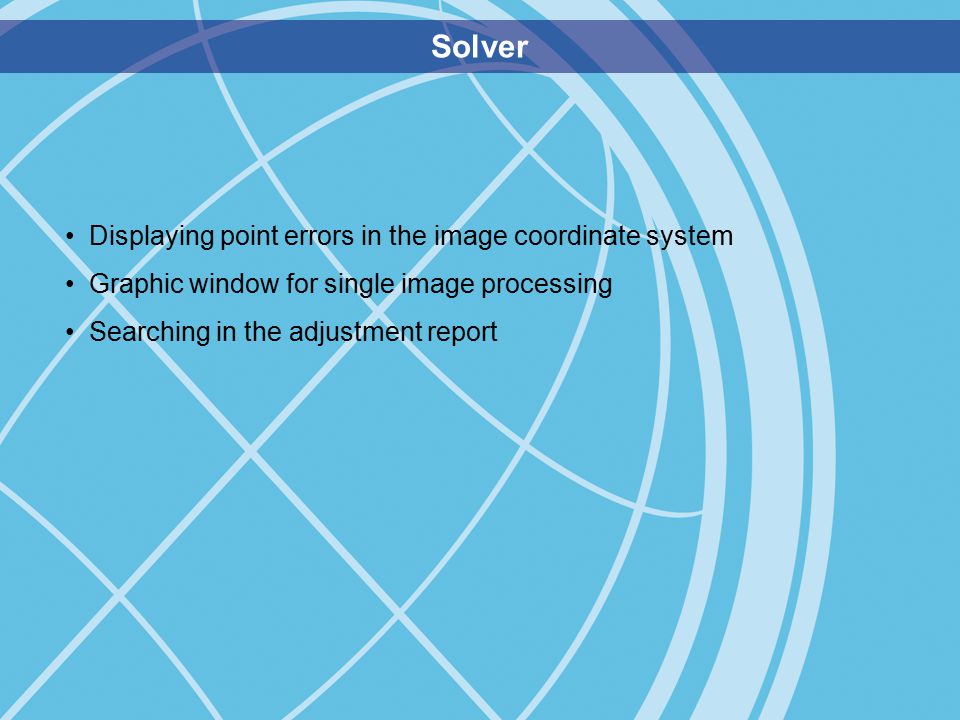

15 Solver Displaying point errors in the image coordinate system Graphic window for single image processing Searching in the adjustment report

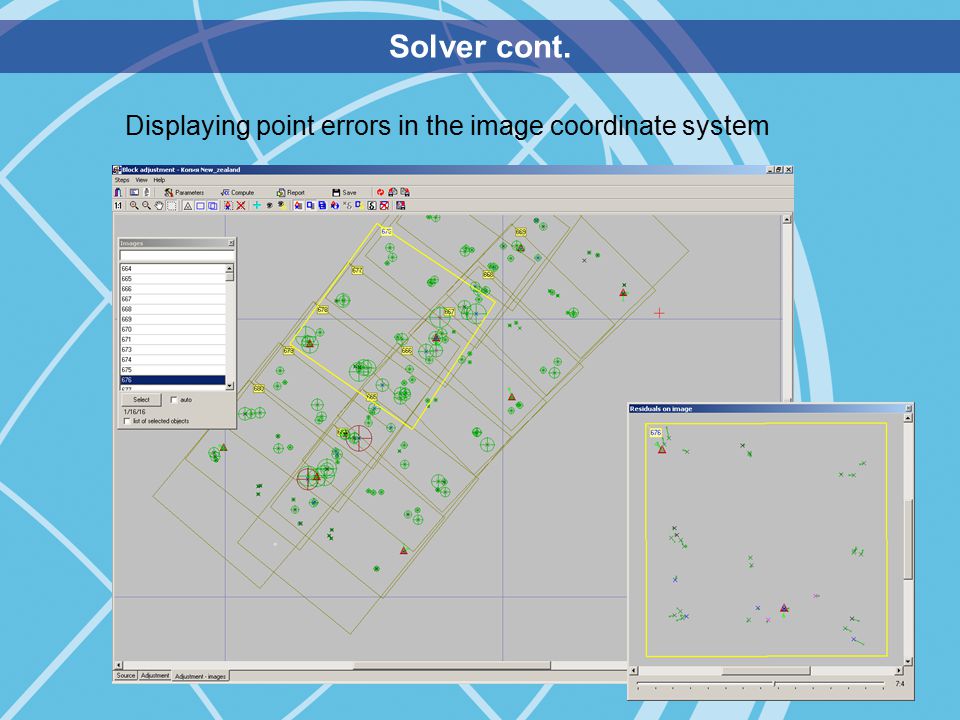

16 Solver cont. Displaying point errors in the image coordinate system

17 DTM Automatic switching between stereopairs during block-wide TIN and contour lines control operations Direct input of the grid origin coordinates for DTM creation

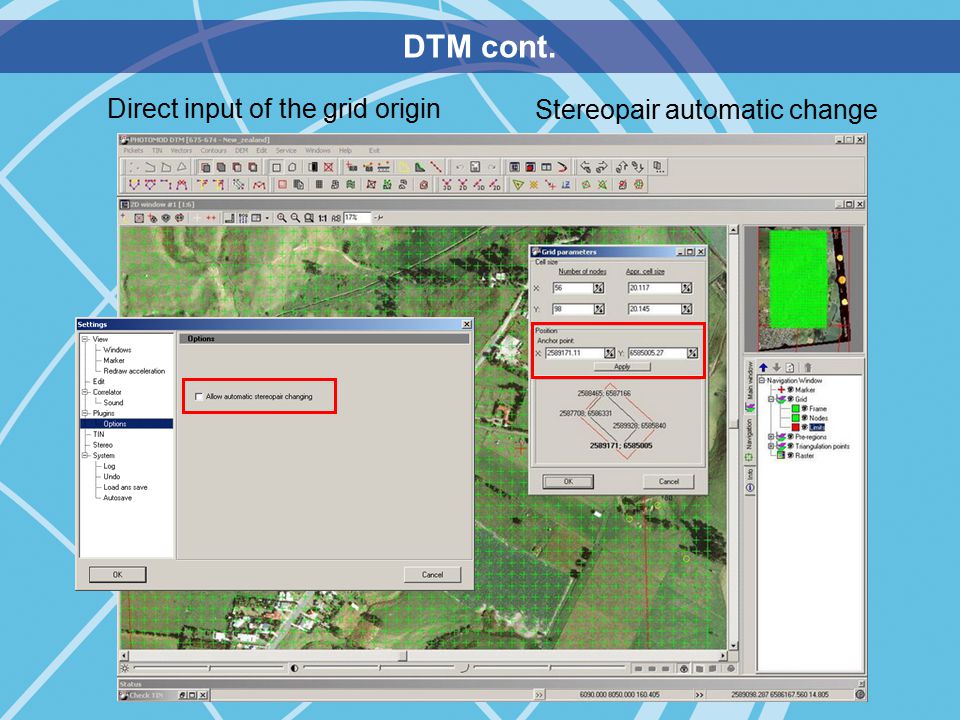

18 DTM cont. Direct input of the grid origin Stereopair automatic change

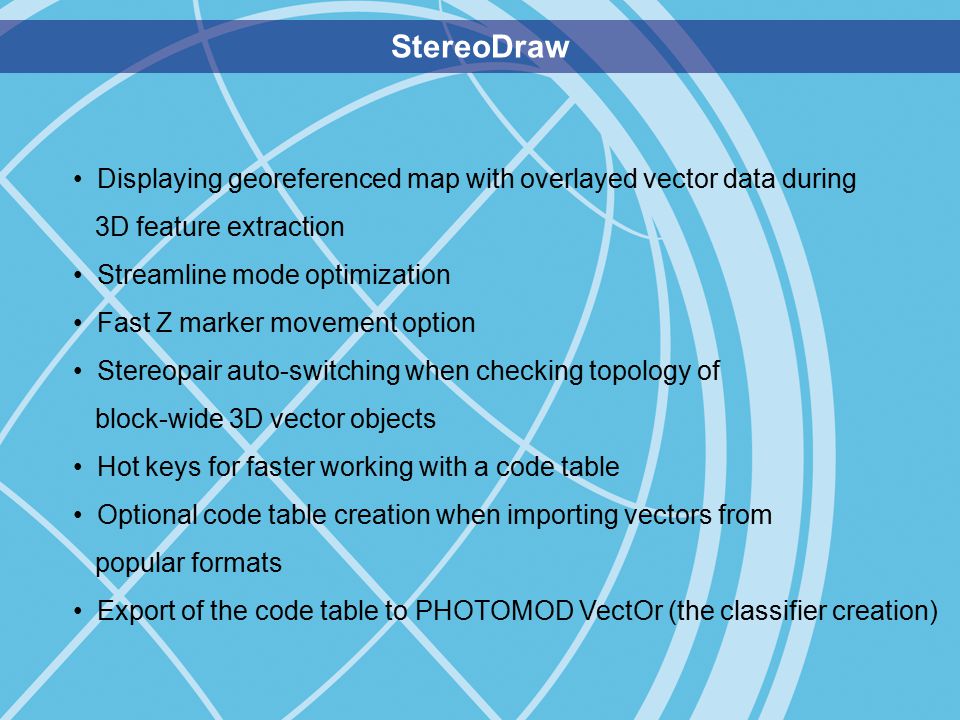

19 StereoDraw Displaying georeferenced map with overlayed vector data during 3D feature extraction Streamline mode optimization Fast Z marker movement option Stereopair auto-switching when checking topology of block-wide 3D vector objects Hot keys for faster working with a code table Optional code table creation when importing vectors from popular formats Export of the code table to PHOTOMOD VectOr (the classifier creation)

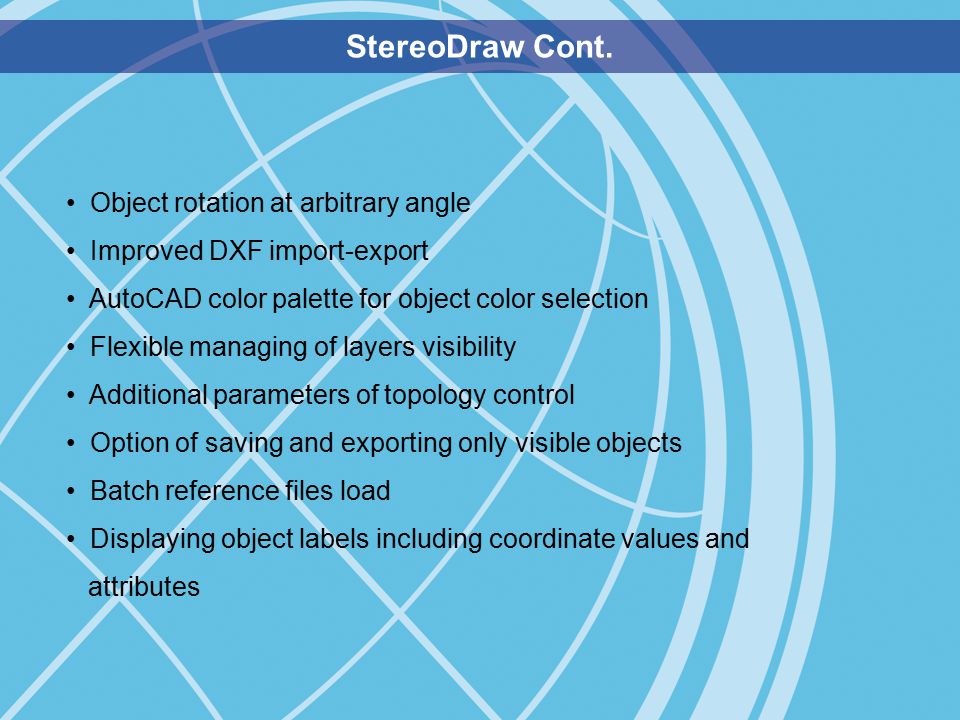

20 StereoDraw Cont. Object rotation at arbitrary angle Improved DXF import-export AutoCAD color palette for object color selection Flexible managing of layers visibility Additional parameters of topology control Option of saving and exporting only visible objects Batch reference files load Displaying object labels including coordinate values and attributes

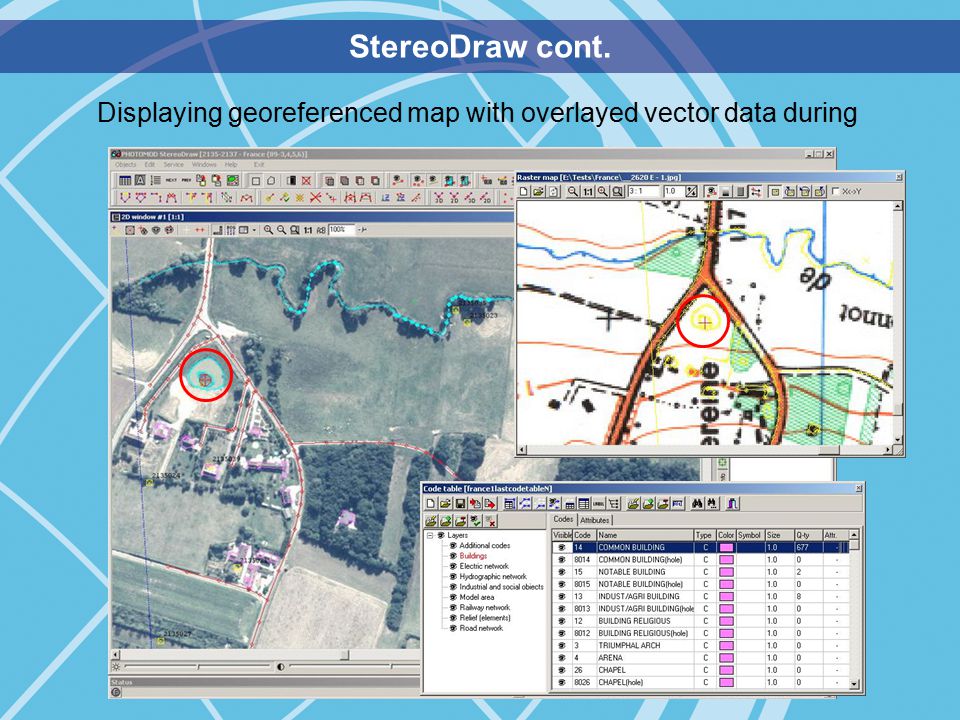

21 StereoDraw cont. Displaying georeferenced map with overlayed vector data during

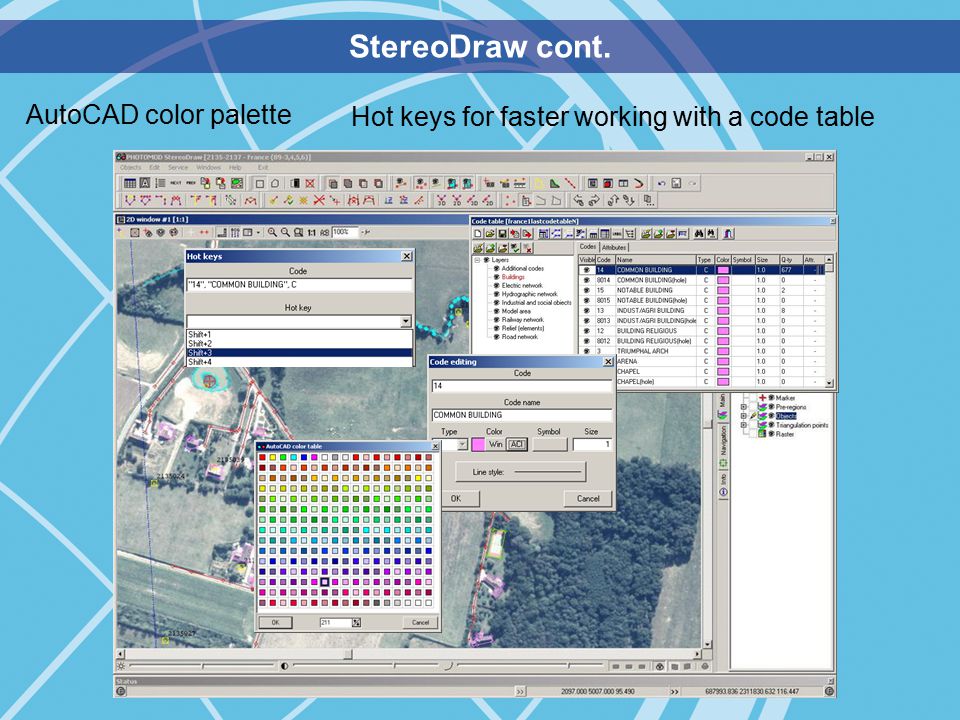

22 StereoDraw cont. AutoCAD color palette Hot keys for faster working with a code table

23 StereoDraw cont. Object rotation at arbitrary angle Flexible managing of layers visibility

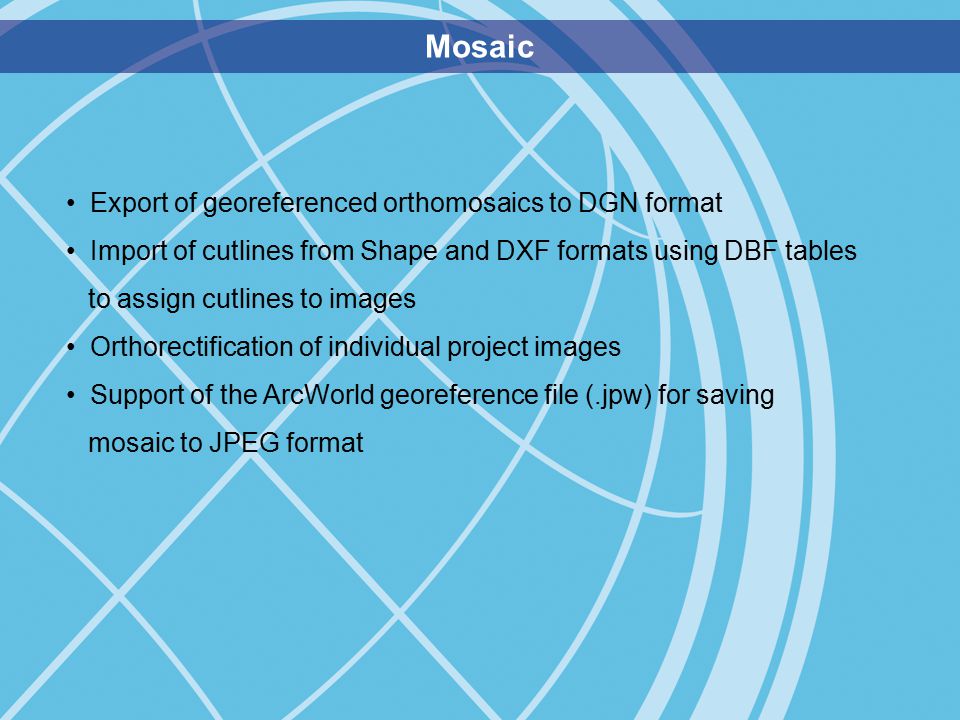

24 Mosaic Export of georeferenced orthomosaics to DGN format Import of cutlines from Shape and DXF formats using DBF tables to assign cutlines to images Orthorectification of individual project images Support of the ArcWorld georeference file (.jpw) for saving mosaic to JPEG format

25 PHOTOMOD GeoMosaic New module, Work outside PHOTOMOD system Comprise all what PHOTOMOD Mosaic has plus more Possibility of an automated registration of original images Georeferencing and mosaicing of images in external formats Definition of an arbitrary coordinate system both for original images and resultant mosaic Background trimming and automated building of transformation regions

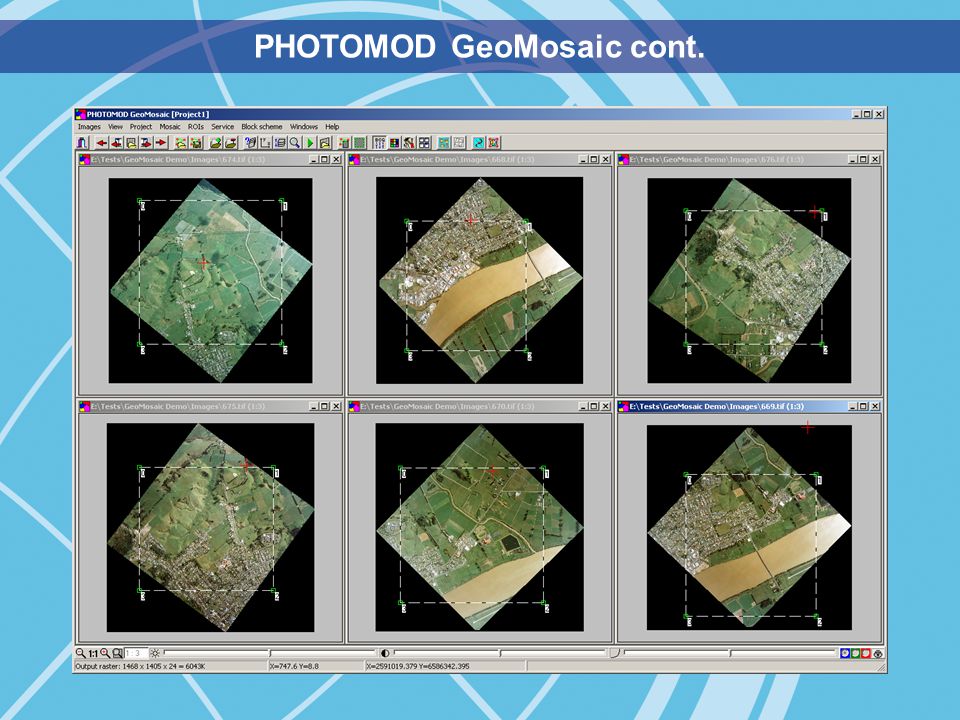

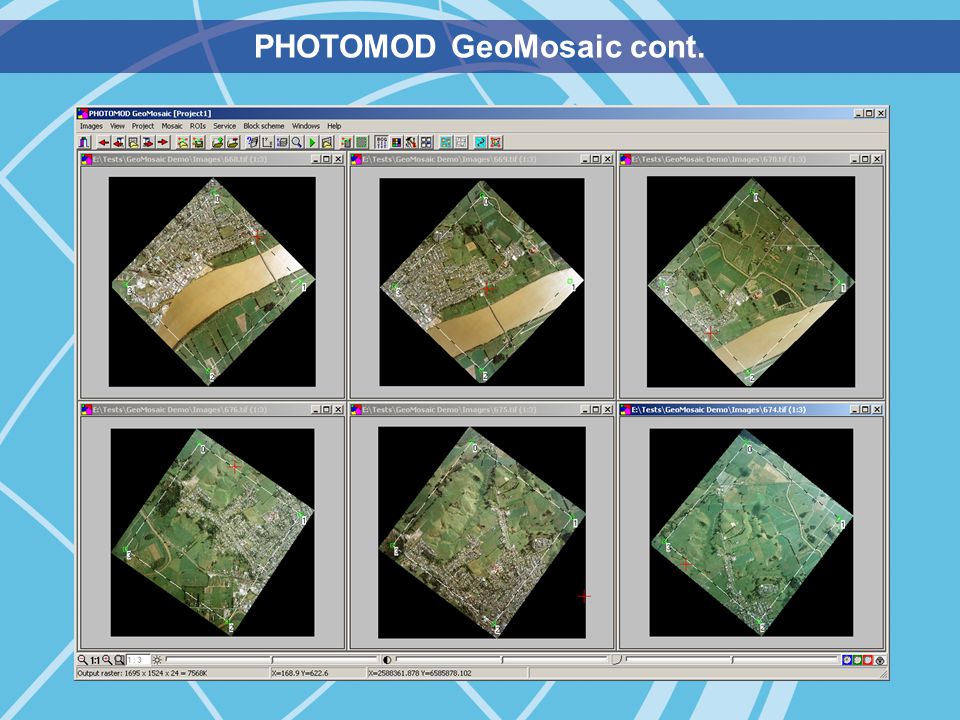

26 PHOTOMOD GeoMosaic cont.

27

28 Definition of an arbitrary coordinate system both for original images and resultant mosaic

29 Thank you for your attention
