1 KODAK 9000C 3D Extraoral Imaging System

2 TROPHY TRAINING CENTER K90003D-C Aug Introducing the new KODAK 9000C Extraoral Imaging System

3 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C Panoramic – 3D and Cephalometric Imaging System The Best Solution to address the needs of general practitioners and orthodontists One Shot cephalometric imaging Unique range of image formats Automatic Tracing Module Easy and simple to use High-end panoramic unit

4 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C « One Shot » Cephalometric Imaging First direct digital cephalometric system Exposure in a single shot Capture in a fraction of seconds Reduction of the risk of blurred images Patient comfort improvement

5 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C - Unique range of cephalometric formats Specific Low Dose: 18x18 cm (8 x 8 in.) Half Skull CHILD: 18x24 cm (8 x 10 in.) Half Skull ADULT: 24x30 cm (10 x 12 in.) Full Skull CHILD: 24x24 cm (10 x 10 in.) Full Skull ADULT: 30x30 cm (12 x 12 in.)

6 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C - Variety of cephalometric programs Lateral Frontal (AP/PA) Oblique Submento-vertex Carpus

7 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C Extraoral Imaging System Two built-in CCD digital sensors: Panoramic Cephalometric No worries No additional cost at purchase No handling of the sensor No risk to damage the sensors No loss of time for the operator PAN CEPH

8 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C - Compact « One Shot » Design New One Shot system with reduced footprints => Fits into a 2.23 m-width-room 2,23 m (86.6 in)

9 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C - Unique Automatic Landmark Recognition Thanks to the Automatic Landmark Recognition application Allowing… - time savings for identification of basic landmarks - instant display of “ready for analysis & diagnosis”images.

10 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C - Easy integration The same imaging software is used for all Kodak digital imaging systems KODAK 8000 / 8000C KODAK 9000C Digital Panoramic and Cephalometric System

11 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C - Face to face positioning Direct contact with the patient Constant control of the situation Reinforced patient communication The patient is not stressed

12 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C - Wheel chair access Standard wheel chairs can access the unit Exam can be performed on most disable patients

13 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C - User friendly graphic interface Fast learning curve for operators Limited risk of making mistakes

14 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C - Easy control panel Just key functions to easily understand and operate the system Clear representation A display screen provides messages and reminds the current exam settings

15 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000 – A True High End Panoramic System

16 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C - Total flexibility Multiple programs Standard panoramic Segmented panoramic Maxillary sinus TMJ x2 or x4 LA Panoramic (adult and child) Segmented panoramic TMJ 4 lateral views Maxillary sinus

17 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C - Total flexibility Anatomic programs Variable focal trough that allows anatomical selection according to patient morphology – ‘U’, ‘V’ or Square shape of the jaw – Large, medium or small size of the jaw – Incisors tilt standard, inward or outward SmallMediumLarge

18 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C - Easy patient positioning Two positioning laser beams: Horizontal for Frankfurt plan Vertical for Sagittal plan

19 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C - Panoramic features – Lateral holders New lateral holders More ergonomic Keep the head stable Invisible in the image

20 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C –3D 3D benefits

21 TROPHY TRAINING CENTER K90003D-C Aug The new Kodak 9000C 3D presentation We initiate a new era for extra- oral systems: An affordable 3D solution 3D exam now for everyone Easy to use everyday A true high-end panoramic unit The best Ceph technology: One-shot

22 TROPHY TRAINING CENTER K90003D-C Aug Kodak D - 3 built-in sensors Kodak 9000C 3D integrates three modalities: Panoramic Cephalometry 3D (DVT = Digital Volumetric Tomography)

23 TROPHY TRAINING CENTER K90003D-C Aug Kodak D - No sensor handling The system positions automatically the right sensor There is no risk of dropping the sensor on the floor Sensors are always “stored” in secured conditions

24 TROPHY TRAINING CENTER K90003D-C Aug Kodak D - 3D benefits for ortho Most important concerns where 3D can be more than useful: Impacted canines Micro-implants Wisdom teeth Other cases where 3D can be used: Complicated root case Suspicion of endodontic pathology Endodontic surgery case Post operating checkup

25 TROPHY TRAINING CENTER K90003D-C Aug Kodak 9000C 3D – Expanding Care & Expanding Services Allow you to perform a wider range of diagnoses and treatments in your office. Reduces multiple visits and rescheduling Saving of time and money for you and your patients. Improvement in your care and services.

26 TROPHY TRAINING CENTER K90003D-C Aug Kodak D - 3D features – Acquisition Capture 50x37 mm FOV For fine details (endodontics) For viewing enough dental structures (single implants) Slice thickness 76 microns

27 TROPHY TRAINING CENTER K90003D-C Aug Kodak D - 3D features – Positioning of the FOV The positioning is made easy thanks to the 50mm diameter field of view! Positioning of the area of interest Automatic with the virtual arch on the GUI Vertical alignment check Pre shoot mode

28 TROPHY TRAINING CENTER K90003D-C Aug Kodak D - 3D software features Among hundreds of fancy features directly inherited from medical or industrial scanning applications: Measurements (segments, angles) Multi planar review 3D volume review Curved plane slicing and orthogonal views Thick slices

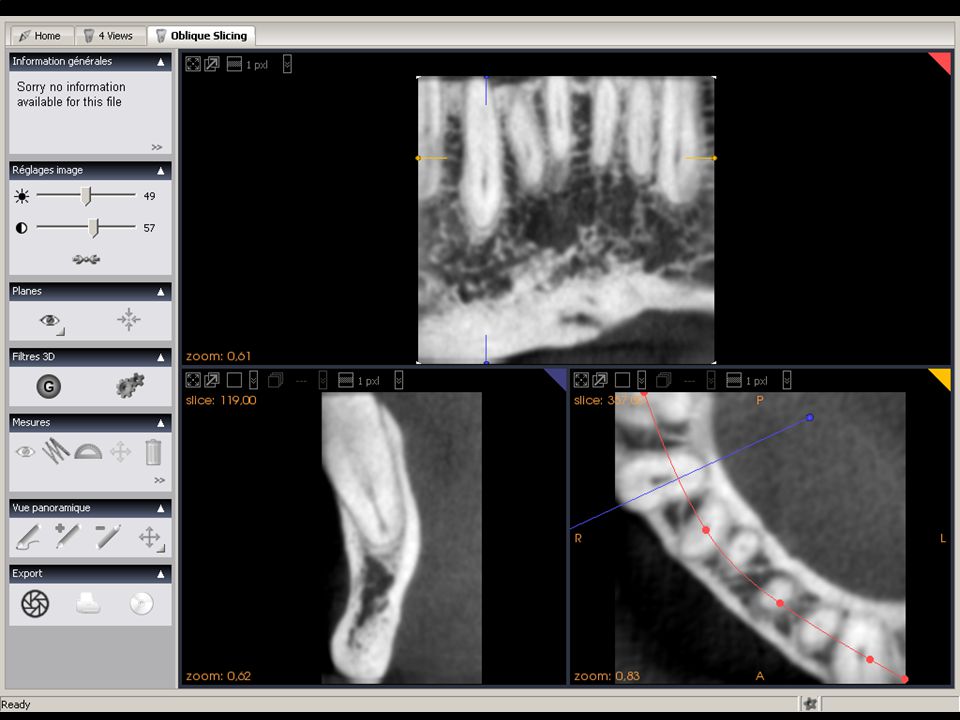

29 TROPHY TRAINING CENTER K90003D-C Aug

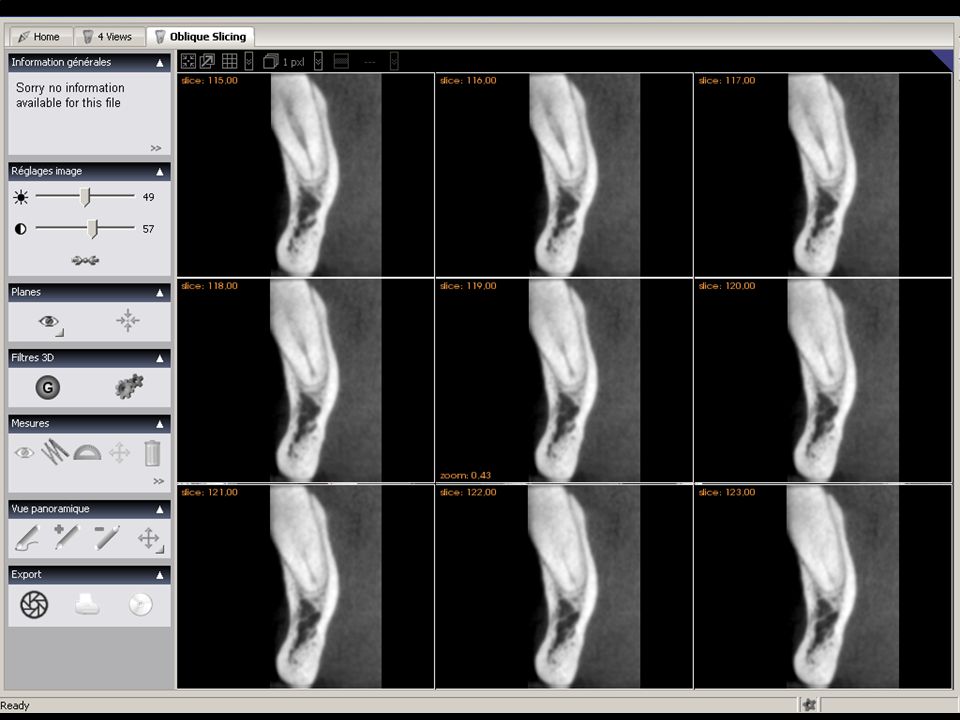

30 TROPHY TRAINING CENTER K90003D-C Aug

31 Kodak 9000C 3D – Technical Specifications

32 TROPHY TRAINING CENTER K90003D-C Aug KODAK D – Unit overview Face to face positioning Direct contact with the patient Constant control of the situation Reinforced patient communication Reduction of the feeling of entrapment. The patient is not stressed

33 TROPHY TRAINING CENTER K90003D-C Aug KODAK D – Unit overview Main features : Full Ethernet connection Fast Ethernet connection for quick and secured image transfer Easy installation Long distance possible between the unit and the host computer Point to Point protocol for optimum safety

34 TROPHY TRAINING CENTER K90003D-C Aug KODAK D – Unit overview 3D features – Patient positioning Two positioning laser beams: Vertical for Sagittal plan Sensor height line for vertical centring of the area of interest In manual mode: Laser spot that indicates the centre of the area of interest

35 TROPHY TRAINING CENTER K90003D-C Aug KODAK D – Unit overview 3D volume sides A A = Anterior P = Posterior L = Left R = Right H = Head F = Foot

36 TROPHY TRAINING CENTER K90003D-C Aug K9000C 3D -Technical Specifications Tube voltage kV (max) Tube current mA (max) Frequency140 kHz (max) Tube focal spot0.5 mm (IEC 336) Total filtration> 2.5 mm eq. Al Ceph Modality TechnologyOne Shot Sensor technologyCCD sensor with optical fiber Gray scale bits Magnification1.15 Exposure time0.1 to 3.2 sec. Cephalometric exam options Lateral Oblique Frontal (AP / PA) Submento-vertex Carpus Cephalometric formats 18 X x x x x 30 Panoramic Modality Sensor technologyCCD Optical fibre sensor Gray scale16384 (14 bits) Magnification1.27 Exposure time Adult pan sec. Pediatric pan sec. Programs12 anatomical settings Radiological exam options Panoramic Segmented panoramic Maxillary sinus LA TMJ x2 LA TMJ x4 Input voltage V - 50/60 Hz V - 50/60 Hz Weight185 kg

37 TROPHY TRAINING CENTER K90003D-C Aug K9000C 3D - Technical Specifications

38 ©Carestream Health, Inc., “Kodak” and the Kodak trade dress are trademarks of Eastman Kodak Company used under license.
