1 STATES OF CONSCIOUSNESS, SLEEP Olga Vajnerová Department of Physiology 2nd Medical School Charles University Prague

2 Consciousness 2 different concepts 1. Wakefulness 2. Be aware of oneself = self-awareness (thoughts, perception, memories and feelings) Wakefulness – vigilance High level of vigilance = arousal Ability to orient appropriately to stimuli. Dependent on the activity of two cerebral hemispheres.

3 Wakefulness – vigilance Sleep AAS activity is decreased Activity of sleep centers is increased Can be waken up Unconsciousness - Generalized impairment of consciousness, diffuse dysfunction in both cerebral hemispheres Cannot be waken up States of consciousness

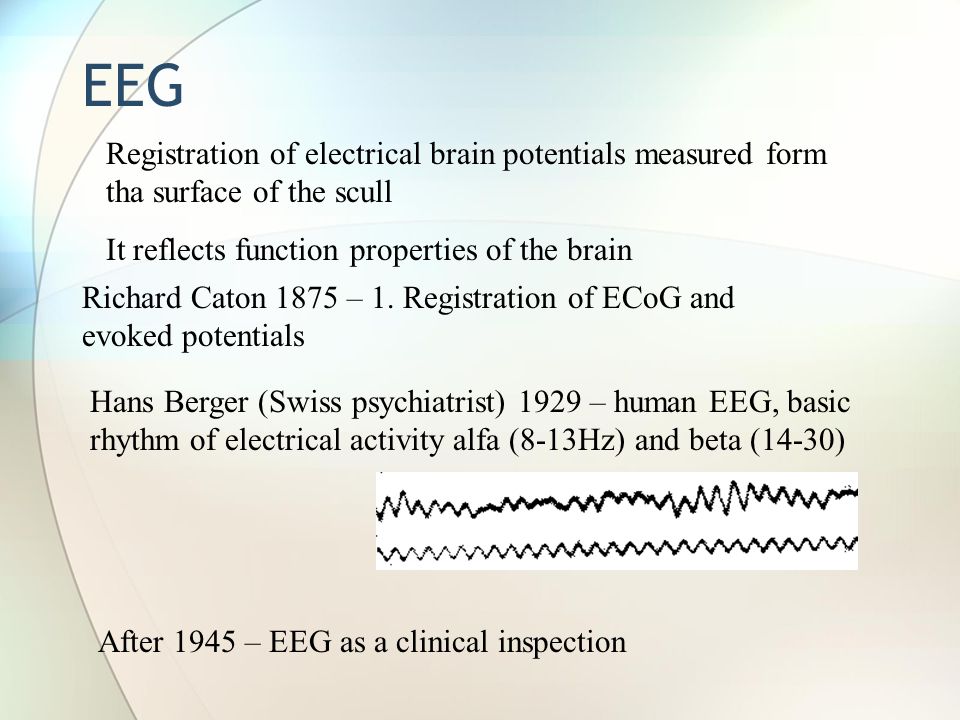

5 Richard Caton 1875 – 1. Registration of ECoG and evoked potentials Registration of electrical brain potentials measured form tha surface of the scull It reflects function properties of the brain Hans Berger (Swiss psychiatrist) 1929 – human EEG, basic rhythm of electrical activity alfa (8-13Hz) and beta (14-30) After 1945 – EEG as a clinical inspection

6 Elektroencephalograf Elektroencephalogram apparatus record (registration, paper)

7 EEG activity is mostly rhytmic and of sinusoidal shape rhythm  8-13 Hz (quiet wakefulness) rhythm , rolandic rhythm 8-10 Hz rhythm  4-7 Hz rhythm  3 and less Hz rhythm  14-30 Hz

8 Normal EEG – lokalization of graphoelement types Frontal -  activity parietal – , rolandic rhythm Temporal - ,  activity Temporo-parieto- occipital -  activity FistUnbend fingers Eyes openEyes closed Podle Faber Elektroencefalografie

9 Ontogenesis EEG Until 1 year –  (1-3 Hz) not too regular, high amplitude, 1- 3 years - rhythm  (4-7 Hz) 3-5 let – more regular prealfa  (6-8 Hz) 5-7 let – regular  (8-13Hz) medial voltage, frontally  Is blocked by eye opening Very good reactivity Attenuation by opening eye is imperfect Is not blocked by eye opening

10 Montage A standard set of placements for EEG electrodes



13 Pyramidal neuron Apical dendrite


15 Thalamocortical system (thalamic activity is rhytmic) Ascending arousal systém (AAS or RAS) pathways from brain stem RF to thalamus Slow-wave sleep Waking Thalamic firing BurstsSingle spikes EEGHigh voltage low frequency Low voltage high frequency irregular

16 Thalamocortical modulation

17 Evoked Potentials

18 Average evoked potentials Event-related potentials Routine procedure of clinical EEG laboratories from 1980s Valuable tool for testing afferent functions EEG changes bind to sensory, motor or cognitive events

19 Electrical activity – electrodes placed on the patient’s scalp Evoked electrical activity appears against a background of spontaneous electrical activity. Evoked activity = a signal Background activity = a noise Signal lower amplitude than noise, it may go undetected (hidden or masked by the noise) Solution - by increasing amplitude of the signal – intensity of stimulation -by reducing the amount of the noise

20 How to reduce the amount of the noise -Superimposition

21 Simplified diagram illustrating how coherent averaging enhances a low level signal (coherent = EP time locked to the evoking stimulus) How to reduce the amount of the noise

22 Brain’s spontaneous electrical activity is random with respect to the signal – sum of many cycles will tend to cancel out. (to zero) The polarity of the EP will always be the same at any given point in time relative to the evoking stimulus Evoked activity will sum linearly

23 Signal averaging Mixture of electrical activity composed of spontaneously generated voltages and the voltage evoked by stimulation Segments or epochs of equal duration Start coincides with the presentation of stimulus Duration varies from 10 to hundrets milliseconds

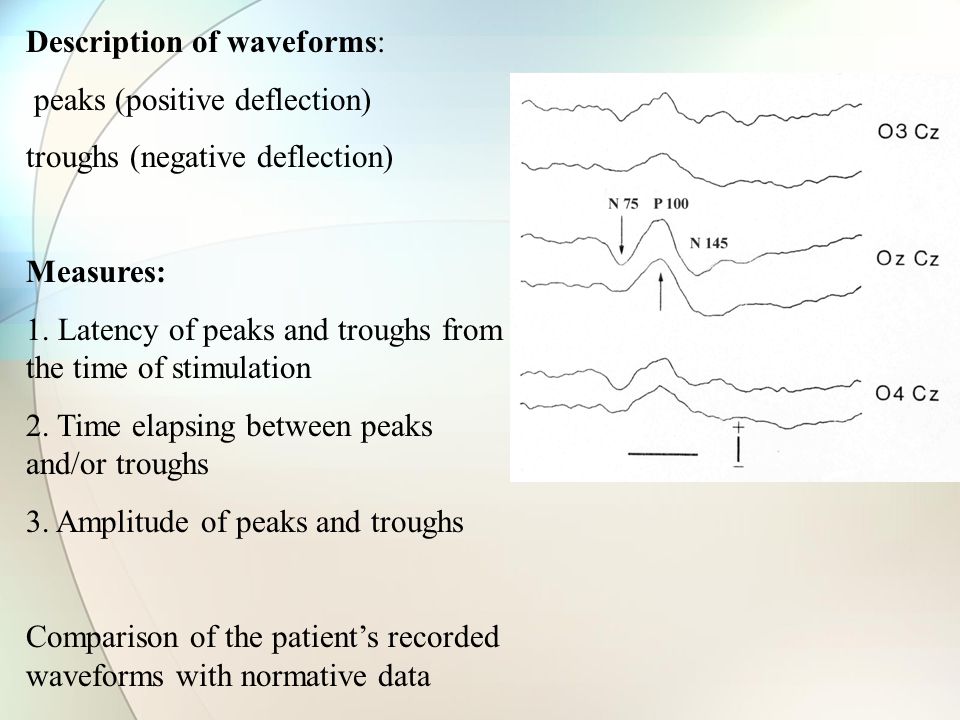

24 Description of waveforms: peaks (positive deflection) troughs (negative deflection) Measures: 1. Latency of peaks and troughs from the time of stimulation 2. Time elapsing between peaks and/or troughs 3. Amplitude of peaks and troughs Comparison of the patient’s recorded waveforms with normative data

25 Visual-evoked potentials (VEP) Stimulus: checkerboard pattern on a TV monitor The black and white squers are made to reverse A pattern-reversal rate – from 1to 10 per second Electrodes - 3 standard EEG electrodes placed over the occipital area and a reference elektrode in a midfrontal area Analysis time (one epoch) is 250 ms Number of trials 250 2 tests at least to ensure that the waveforms are replicable

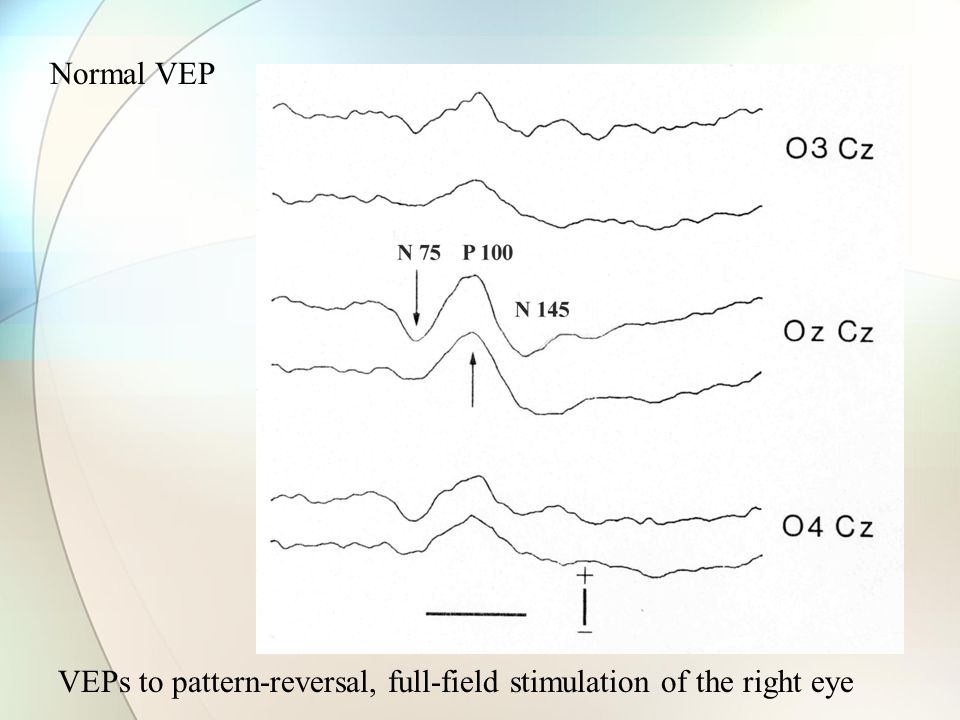

26 Normal VEP VEPs to pattern-reversal, full-field stimulation of the right eye

27 Visual-evoked potentials (VEP) Electrical activity induced in visual cortex by light stimuli Anatomical basis of the VEP: Rods and Cones Bipolar neurons Retina Ganglion cells Optic nerve Optic chiasm Optic tract Lateral geniculate body Optic radiation Occipital lobe, visual cortex Anterior visual pathways Retrochiasmal pathways

28 Abnormal VEPs Absence of a VEP Prolonged P 100 – latency - demyelination of the anterior visual pathways Amplitude attenuation - compressive lesions Prolonged P 100 only on left or right eye stimulation – lesion of the ipsilateral optic nerve Excessive interocular difference in P 100 latency – lesion of the ipsilateral optic nerve

29 of multiple sclerosis: Excessive interocular difference in P100 latency Prolonged absolute latency Decreased amplitude Compression of optic nerve, optic chiasm (tumor of pituitary gland or optic nerve glioma) Decreased amplitude Prolonged latency of P100 VEPs as a tool in the diagnosis

30 Epileptic seizures are characterized by following disturbances: occur in attacks, abrupt onset usually accompanied by disturbances of consciousness usually accompanied by disturbances of motor and/or sensory functions and/or vegetative symptoms abnormal EEG recordings

31 Seizures I. Partial (focal) a simple partial seizures (without alternation of consciousness) b complex partial seizures (with impairment of consciousness c comples partial seizures evolving to secondarily generalized seizures II. Generalized seizures (simultaneous disruption of normal brain activity in both hemispheres) (convulsive or noncolvulsive) a absence (petit mal) b tonic-clonic (grand mal)

32 Typical epileptic grafoelements in EEG Petit mal (absence) Grand mal Tonic phase clonic un consciousness (coma) Temporal seizure = partial seizure with complex symptomatology Septo-hipocampal system Alpha activity Eyes open Spike and wave activity Beta aktivita 15-20 Hz Theta až delta aktivita

33 Epileptic seizure - grand mal This 40 year-old patient had epilepsy worsened by an inappriopriate change in his antiepileptic treatment. Seizure begins by a sudden scream with bilateral axial flexion with an internal rotation of both upper limbs. A slight non-forced rotation of head to the right is then followed by a clonic phase. A second tonic phase occurs 55 seconds after seizue onset, followed by bilateral clonic jerks, a stertorous breathe. Post-ictal headache and limb stiffness.

34 Sleep

35 Ascending arousal system Frederic Bremer (30. years of 20. century) Cerveau isolé (intercollicular midbrain transection between colliculi superiores and inferiores) uncosciouness, EEG of sleep type Encephal isolé (transection at C1) Sleep and wakefulness alternate

36 Ascending arousal system – the most important conections 1. Reticular formation (in the brain stem) 2A. Non-specific thalamic nuclei: intralaminar, periventicular, reticular 2B. Subthalamus a hypothalamus 3. Cerebral cortex (all regions, divergention)

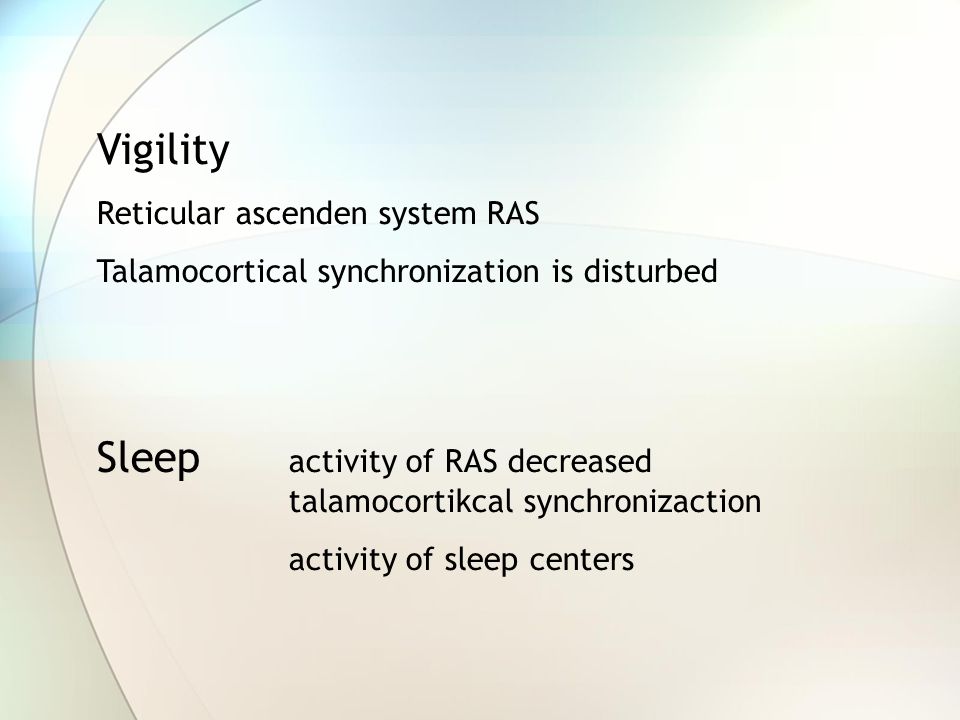

37 Vigility Reticular ascenden system RAS Talamocortical synchronization is disturbed Sleep activity of RAS decreased talamocortikcal synchronizaction activity of sleep centers

38 Arousal reaction 1.Sensory signal – all sensory fibers project collaterals to RF and activate AAS 2.Limbic system – alert under the influence of emotions

39 Sleep Nathaniel Kleitman in early 1950s made remarkable discovery: Sleep is not a single process, it has two distinct phases: REM sleep (paradoxical) is characterized by Rapid Eye Movements Non-REM sleep (slow-wave sleep) The age-old explanation until 1940s – sleep is simply a state of reduced activity Sleep is an actively induced and highly organized brain state with different phases

40 Brain correlates of sleep Non-REM nuclei raphe (serotonin) ncl. tractus solitarii cholinergic neurons of RF (pons, mesencefalon) ncl. reticularis thalami REM nucleus reticularis pontis oralis, (nucleus of RF at the junction of the pons a midbrain), (higher activity during REM sleep, its destruction eliminates REM sleep)

41 Charakteristic of non-REM Skeletal muscles – relaxed Parasympaticus predominate –heart rate, preassure, motility of GIT, breathing Dreams – usually no Humans are more difficult to awaken in 4. stage Charakteristic of REM Skeletal muscles – loss of tone except eye and breathing muscles Sympaticus predominate – heart rate, preassure, motility of GIT, breathing, erection in men Dreams – are frequent EEG remind wakefulness – for this reason paradoxical

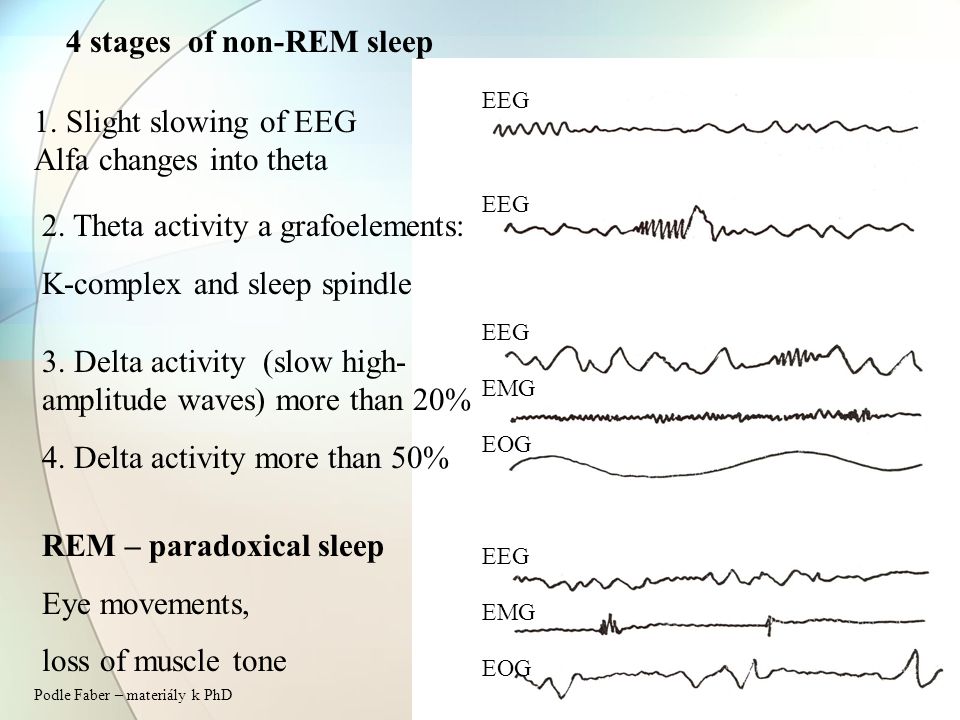

42 4 stages of non-REM sleep 1. Slight slowing of EEG Alfa changes into theta 2. Theta activity a grafoelements: K-complex and sleep spindle 3. Delta activity (slow high- amplitude waves) more than 20% 4. Delta activity more than 50% REM – paradoxical sleep Eye movements, loss of muscle tone EEG EMG EOG EEG EMG EOG Podle Faber – materiály k PhD EEG

43 Hypnogram Extensity REM = duration Intensity REM = fruitfulness (eye movements, jerks) Selectiv deprivation = REM sleep is blocked Next night rebound efect Aggressivenes, memory, hypersexuality, polyphagia REM is related to psychological activity Non REM to physical

44 Polysomnography

45 Sleep in phylogenesis and ontogenesis Fish – no sleep Reptiles – begining of non REM Birds – beginning of REM Mammalian – developed non REM – REM cyklus From 30. week of gravidity – REM Newborn – REM 50% Preschool age – REM 30% Adults – REM 20% In phylogenesis there is non REM first In ontogenesis there is REM first

46 Sleep follows a circadian rhythm about 24 hours Circadian rhythms are endogenous – persist without enviromental cues – pacemaker, internal clock – suprachiasmatic ncl. hypothalamus Under normal circumstances are modulated by external timing cues – sunlight – retinohypothalamic tract from retina to hypothalamus (independent on vision) Resetting of the pacemaker Lesion or damage of the suprachiasmatic ncl. – animal sleep in both light and dark period but the total amount of sleep is the same suprachiasmatic ncl. regulates the timing of sleep but it si not responsible for sleep itself

47 Thank you for your attention?
