AT LOUISIANA STATE UNIVERSITY High Performance Computing: Concepts, Methods & Means Scientific Components and Frameworks Prof. Daniel S. Katz Department.

Similar presentations


Presentation on theme: "AT LOUISIANA STATE UNIVERSITY High Performance Computing: Concepts, Methods & Means Scientific Components and Frameworks Prof. Daniel S. Katz Department."— Presentation transcript:

1 AT LOUISIANA STATE UNIVERSITY High Performance Computing: Concepts, Methods & Means Scientific Components and Frameworks Prof. Daniel S. Katz Department of Electrical and Computer Engineering Louisiana State University April 24 th, 2007

2 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Opening Remarks Context: high performance computing May have multiple types of physics May have multiple spatial scales May have multiple time scales May use multiple solvers May need multiple I/O libraries May need multiple visualization interfaces Need to build real, working, complex applications How?

3 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY 3 Topics Meat Grinder Introduction (slides from Gary Kumfert, part of CCA tutorial) Common Component Architecture (CCA) Cactus Earth System Modeling Framework (ESMF) Summary

4 A Pictorial Introduction to Components in Scientific Computing

5 5 Once upon a time... Input Output Program

6 6 As Scientific Computing grew...

7 7 Tried to ease the bottle neck

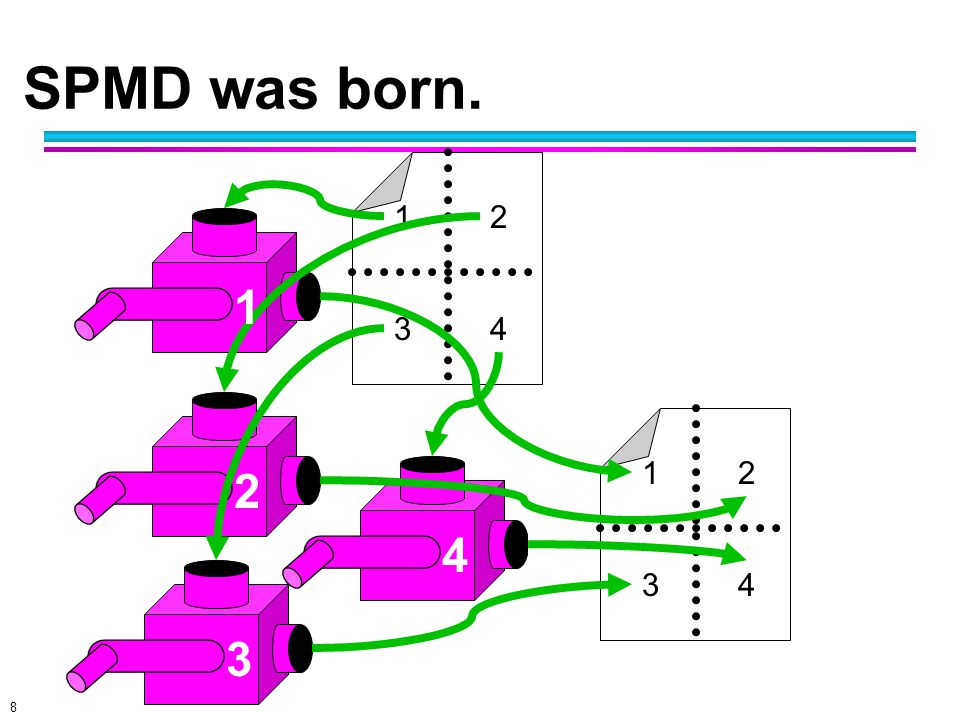

8 8 SPMD was born

9 9 SPMD worked But it isn’t easy!!! But it isn’t easy!!!

10 10 Meanwhile, corporate computing was growing in a different way Input Output Program browser spreadsheet editor graphics database multimedia client Unicode Input

11 11 This created a whole new set of problems complexity browser spreadsheet editor graphics database multimedia client Unicode l Interoperability across multiple languages l Interoperability across multiple platforms l Incremental evolution of large legacy systems (esp. w/ multiple 3rd party software)

12 12 Component Technology addresses these problems

13 13 So what’s a component ??? Implementation : No Direct Access Interface Access : Generated by Tools Matching Connector : Assigned by Framework Hidden from User

14 14 1. Interoperability across multiple languages C C++ F77 Java Python Language & Platform independent interfaces Automatically generated bindings to working code

15 15 2. Interoperability Across Multiple Platforms Imagine a company migrates to a new system, OS, etc. What if the source to this one part is lost???

16 16 Transparent Distributed Computing internet These wires are very, very smart!

17 17 3. Incremental Evolution With Multiple 3rd party software v 1.0 v 2.0 v 3.0

18 18 Now suppose you find this bug... v 1.0 v 2.0 v 3.0

19 19 Good news: an upgrade available v 1.0 v 2.0 v 3.0 Bad news: there’s a dependency

20 20 v Great News: Solvable with Components

21 21 v 1.0 Great News: Solvable with Components 2.1 v

22 22 Why Components for Scientific Computing Complexity l Interoperability across multiple languages l Interoperability across multiple platforms l Incremental evolution of large legacy systems (esp. w/ multiple 3rd party software) Sapphire SAMRAI Ardra Scientific Viz DataFoundry Overture linear solvers hypre nonlinear solvers ALPS JEEP

23 23 The Model for Scientific Component Programming Science Industry ? CCA

24 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY 24 Topics Meat Grinder Introduction Common Component Architecture (CCA) Cactus Earth System Modeling Framework (ESMF) Summary

25 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY CCA Motivation: Modern Scientific Software Engineering Challenges Productivity –Time to first solution (prototyping) –Time to solution (“production”) –Software infrastructure requirements (“other stuff needed”) Complexity –Increasingly sophisticated models –Model coupling – multi-scale, multi-physics, etc. –“Interdisciplinarity” Performance –Increasingly complex algorithms –Increasingly complex computers –Increasingly demanding applications

26 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Motivation: For Library Developers People want to use your software, but need wrappers in languages you don’t support –Many component models provide language interoperability Discussions about standardizing interfaces are often sidetracked into implementation issues –Components separate interfaces from implementation You want users to stick to your published interface and prevent them from stumbling (prying) into the implementation details –Most component models actively enforce the separation

27 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Motivation: For Application Developers and Users You have difficulty managing multiple third-party libraries in your code You (want to) use more than two languages in your application Your code is long-lived and different pieces evolve at different rates You want to be able to swap competing implementations of the same idea and test without modifying any of your code You want to compose your application with some other(s) that weren’t originally designed to be combined

28 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Some Observations About Software… “The complexity of software is an essential property, not an accidental one.” [Brooks] –We can’t get rid of complexity “Our failure to master the complexity of software results in projects that are late, over budget, and deficient in their stated requirements.” [Booch] –We must find ways to manage it “A complex system that works is invariably found to have evolved from a simple system that worked… A complex system designed from scratch never works and cannot be patched up to make it work.” [Gall] –Build up from simpler pieces “The best software is code you don’t have to write” [Jobs] –Reuse code wherever possible

29 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Component-Based Software Engineering CBSE methodology is emerging, especially from business and internet areas Software productivity –Provides a “plug and play” application development environment –Many components available “off the shelf” –Abstract interfaces facilitate reuse and interoperability of software Software complexity –Components encapsulate much complexity into “black boxes” –Plug and play approach simplifies applications –Model coupling is natural in component-based approach Software performance (indirect) –Plug and play approach and rich “off the shelf” component library simplify changes to accommodate different platforms

30 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY A Simple Example: Numerical Integration Components FunctionPort MidpointIntegrator IntegratorPort FunctionPort MonteCarloIntegrator IntegratorPort RandomGeneratorPort IntegratorPort Driver GoPort NonlinearFunction FunctionPort LinearFunction FunctionPort RandomGenerator RandomGeneratorPort PiFunction FunctionPort Interoperable components (provide same interfaces)

31 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Many Applications are Possible… FunctionPort MidpointIntegrator IntegratorPort FunctionPort MonteCarloIntegrator IntegratorPort RandomGeneratorPort IntegratorPort Driver GoPort NonlinearFunction FunctionPort LinearFunction FunctionPort RandomGenerator RandomGeneratorPort PiFunction FunctionPort Dashed lines indicate alternate connections Create different applications in "plug-and-play" fashion

32 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY The “Sociology” of Components Components need to be shared to be truly useful –Sharing can be at several levels Source, binaries, remote service –Various models possible for intellectual property/licensing Components with different IP constraints can be mixed in a single application Peer component models facilitate collaboration of groups on software development –Group decides overall architecture and interfaces –Individuals/sub-groups create individual components

33 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Who Writes Components? “Everyone” involved in creating an application can/should create components –Domain scientists as well as computer scientists and applied mathematicians –Most will also use components written by other groups Allows developers to focus on their interest/specialty –Get other capabilities via reuse of other’s components Sharing components within scientific domain allows everyone to be more productive –Reuse instead of reinvention As a unit of publication, a well-written and tested component is like a high-quality library –Often a more appropriate unit of publication/recognition than an entire application code

34 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY CCA Concepts: Components Components are a unit of software composition –Composition is based on interfaces (ports) Components provide/use one or more ports –A component with no ports isn’t very interesting –Components interact via ports; implementation is opaque to the outside world Components include some code which interacts with the CCA framework The granularity of components is dictated by the application architecture and by performance considerations Components are peers –Application architecture determines relationships NonlinearFunction FunctionPort MidpointIntegrator IntegratorPort

35 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY What is a Component Architecture? A set of standards that allows: –Multiple groups to write units of software (components)… –And have confidence that their components will work with other components written in the same architecture These standards define… –The rights and responsibilities of a component –How components express their interfaces –The environment in which are composed to form an application and executed (framework) –The rights and responsibilities of the framework

36 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY CCA Concepts: Frameworks The framework provides the means to “hold” components and compose them into applications –The framework is often application’s “ main ” or “ program ” Frameworks allow exchange of ports among components without exposing implementation details Frameworks provide a small set of standard services to components –BuilderService allow programs to compose CCA apps Frameworks may make themselves appear as components in order to connect to components in other frameworks Currently: specific frameworks support specific computing models (parallel, distributed, etc.). Future: full flexibility through integration or interoperation

37 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY CCA Concepts: Ports Components interact through well-defined interfaces, or ports –In OO languages, a port is a class or interface –In Fortran, a port is a bunch of subroutines or a module Components may provide ports – implement the class or subroutines of the port ( ) Components may use ports – call methods or subroutines in the port ( ) Links denote a procedural (caller/callee) relationship, not dataflow! –e.g., FunctionPort could contain: evaluate(in Arg, out Result) NonlinearFunction FunctionPort MidpointIntegrator IntegratorPort “Provides” Port “Uses” Port

38 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Interfaces, Interoperability, and Reuse Interfaces define how components interact… –Therefore interfaces are key to interoperability and reuse of components In many cases, “any old interface” will do, but… –General plug and play interoperability requires multiple implementations providing the same interface Reuse of components occurs when they provide interfaces (functionality) needed in multiple applications

39 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Designing for Reuse, Implications Designing for interoperability and reuse requires “standard” interfaces –Typically domain-specific –“Standard” need not imply a formal process, may mean “widely used” Generally means collaborating with others Higher initial development cost (amortized over multiple uses) Reuse implies longer-lived code –thoroughly tested –highly optimized –improved support for multiple platforms

40 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Relationships: Components, Objects, and Libraries Components are typically discussed as objects or collections of objects –Interfaces generally designed in OO terms, but… –Component internals need not be OO –OO languages are not required Component environments can enforce the use of published interfaces (prevent access to internals) –Libraries can not It is possible to load several instances (versions) of a component in a single application –Impossible with libraries Components must include some code to interface with the framework/component environment –Libraries and objects do not

41 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Domain-Specific Frameworks vs Generic Component Architectures Domain-Specific Often known as “frameworks” Provide a significant software infrastructure to support applications in a given domain –Often attempts to generalize an existing large application Often hard to adapt to use outside the original domain –Tend to assume a particular structure/workflow for application Relatively common Generic Provide the infrastructure to hook components together –Domain-specific infrastructure can be built as components Usable in many domains –Few assumptions about application –More opportunities for reuse Better supports model coupling across traditional domain boundaries Relatively rare at present –Commodity component models often not so useful in HPC scientific context

42 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Special Needs of Scientific HPC Support for legacy software –How much change required for component environment? Performance is important –What overheads are imposed by the component environment? Both parallel and distributed computing are important –What approaches does the component model support? –What constraints are imposed? –What are the performance costs? Support for languages, data types, and platforms –Fortran? –Complex numbers? Arrays? (as first-class objects) –Is it available on my parallel computer?

43 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY What is the CCA? (User View) A component model specifically designed for high-performance scientific computing Supports both parallel and distributed applications Designed to be implementable without sacrificing performance Minimalist approach makes it easier to componentize existing software

44 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY What is the CCA? (2) Components are peers Not just a dataflow model A tool to enhance the productivity of scientific programmers –Make the hard things easier, make some intractable things tractable –Support & promote reuse & interoperability –Not a magic bullet

45 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Importance of Provides/Uses Pattern for Ports Fences between components –Components must declare both what they provide and what they use –Components cannot interact until ports are connected –No mechanism to call anything not part of a port Ports preserve high performance direct connection semantics… …While also allowing distributed computing Component 1Component 2 Provides/Uses Port Direct Connection Component 1 Component 2 Uses Port Provides Port Network Connection

46 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY CCA Concepts: Framework Stays “Out of the Way” of Component Parallelism Single component multiple data (SCMD) model is component analog of widely used SPMD model P0P1P2P3 Components: Blue, Green, Red Framework: Gray MCMD/MPMD also supported Different components in same process “talk to each” other via ports and the framework Same component in different processes talk to each other through their favorite communications layer (i.e. MPI, PVM, GA) Each process loaded with the same set of components wired the same way Other component models ignore parallelism entirely

47 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY CCA Concepts: MxN Parallel Data Redistribution Share Data Among Coupled Parallel Models – Disparate Parallel Topologies (M processes vs. N) – e.g. Ocean & Atmosphere, Solver & Optimizer… – e.g. Visualization (Mx1, increasingly, MxN) Research area -- tools under development

48 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY CCA Concepts: Language Interoperability Existing language interoperability approaches are “point- to-point” solutions Babel provides a unified approach in which all languages are considered peers Babel used primarily at interfaces C C++ f77 f90 Python Java Babel C C++ f77 f90 Python Java Few other component models support all languages and data types important for scientific computing

49 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY What the CCA isn’t… CCA doesn’t specify who owns “main” –CCA components are peers –Up to application to define component relationships “Driver component” is a common design pattern CCA doesn’t specify a parallel programming environment –Choose your favorite –Mix multiple tools in a single application CCA doesn’t specify I/O –But it gives you the infrastructure to create I/O components CCA doesn’t specify interfaces –But it gives you the infrastructure to define and enforce them –CCA Forum supports & promotes “standard” interface efforts CCA doesn’t require (but does support) separation of algorithms/physics from data

50 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY What the CCA is… CCA is a specification for a component environment –Fundamentally, a design pattern –Multiple “reference” implementations exist –Being used by applications CCA increases productivity –Supports and promotes software interoperability and reuse –Provides “plug-and-play” paradigm for scientific software CCA offers the flexibility to architect your application as you think best –Doesn’t dictate component relationships, programming models, etc. –Minimal performance overhead –Minimal cost for incorporation of existing software CCA provides an environment in which domain-specific application frameworks can be built –While retaining opportunities for software reuse at multiple levels

51 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Review of CCA Terms & Concepts Ports –Interfaces between components –Uses/provides model Framework –Allows assembly of components into applications Direct Connection –Maintain performance of local inter-component calls Parallelism –Framework stays out of the way of parallel components MxN Parallel Data Redistribution –Model coupling, visualization, etc. Language Interoperability –Babel, Scientific Interface Definition Language (SIDL)

52 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY CCA Summary Components are a software engineering tool to help address software productivity and complexity Important concepts: components, interfaces, frameworks, composability, reuse Scientific component environments come in “domain specific” and “generic” flavors Scientific HPC imposes special demands on component environments –which commodity tools may have trouble with The Common Component Architecture is specially designed for the needs of HPC CCA is a research project - intended to be quite general - not heavily used yet in production

53 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY 53 Topics Meat Grinder Introduction Common Component Architecture (CCA) Cactus (slides from Tom Goodale) Earth System Modeling Framework (ESMF) Summary

54 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY What Is Cactus? Cactus is a framework for developing portable, modular applications, in particular, although not exclusively, high- performance simulation codes. Cactus is designed to allow experts in different fields to develop modules based upon their expertise and to leverage off modules developed by experts in other fields to perform their work, with minimal knowledge of the internals or operation of the other modules. This enables it to be used in large, geographically dispersed, collaborations. Cactus and the Cactus Computational Toolkit are Open Source and freely available.

55 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Cactus Goals Portable Modular –People can write modules that interact through standard interfaces with other modules without knowing internals of the other modules –Modules with same functionality are interchangeable Support legacy codes Make use of existing technologies and tools where appropriate Future proof –Not tied to any particular paradigm –Parallelism is independent but compatible with MPI or PVM –I/O system is independent but compatible with HDF or others Easy to use Maintainable

56 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Cactus History First developed in 1997 by Paul Walker, Joan Masso, and others, as a continuation of a long line of numerical relativity codes, such as the NCSA G-code and Paul's Framework In first years, Cactus became progressively more modular, allowing modules for different formulations of Einstein's equations and different physical systems Although in principle Cactus was modular, its history and evolution had left many dependencies between modules and between the core and the modules Cactus 4.0 (current) is complete redesign of core -- moved everything possible out into modules, and put structures in place to enable modules to be far more independent

57 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Current Cactus Users Numerical Relativity –Used by many groups including: AEI (Germany), UNAM (Mexico), Tuebingen (Germany), Southampton (UK), Sissa (Italy), Valencia (Spain), U. of Thessaloniki (Greece), MPA (Germany), RIKEN (Japan), TAT (Denmark), Penn State, U. of Texas at Austin, U. of Texas at Brownsville, LSU (USA), Wash, U. of Pittsburgh, U. of Arizona, Washburn, UIB (Spain), U. of Maryland, Monash (Australia) Quantum Gravity Coastal and Climate Modeling CFD –KISTI –DLR looking at flow in turbines Lattice Boltzmann Over 150 Science Papers Over 30 Student Theses

58 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Cactus Structure Cactus source code consists of core part, the Flesh, and set of modules, the Thorns Flesh –Independent of all thorns –After initialization, acts as a utility and service library that the thorns call to get information or ask for some action to happen Thorns –Separate libraries that encapsulate some functionality –In order to keep a distinction between functionality and implementation of the functionality, each thorn declares that it provides a certain “implementation” –Different thorns can provide the same “implementation”, and thorn dependencies are expressed in terms of “implementations” rather than explicit references to thorns, thus allowing the different thorns providing the same “implementation” to be interchangeable

59 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Structure Core “Flesh” Plug-In “Thorns” (modules) driver input/output interpolation SOR solver coordinates boundaryconditions boundary conditions black holes equations of state remote steering wave evolvers multigrid parameters gridvariables grid variables errorhandling error handling scheduling extensibleAPIs extensible APIs makesystem make system ANSI C Fortran/C/C++

60 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Cactus Flesh Make System –Organizes builds as configurations which hold everything needed to build with a particular set of options on a particular architecture API –Functions which must be there for thorns to operate Scheduling –Sophisticated scheduler which calls thorn-provided functions as and when needed CCL –Configuration language which tells the flesh all it needs to know about the thorns

61 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Thorn Specification The Flesh finds out about thorns by configuration files in each thorn These files are converted at compile time into a set of routines the Flesh can call to find out about thorns There are three such files –Scheduling directives The flesh incorporates a scheduler which is used to call defined routines from different thorns in a particular order –Interface definitions All variables which are passed between scheduled routines need to be declared Any thorn-provided functions which other thorns call should be declared –Parameter definitions The flesh and thorns are controlled by a parameter file; parameters must be declared along with their allowed values

62 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Scheduling Thorns specify which functions are to be called at which time, and in which order Rule-based scheduling system Routines are either before or after other routines (or don't care) Routines can be grouped, and whole group scheduled Functions or groups can be scheduled while some condition is true Flesh sorts all rules and flags an error for inconsistent schedule requests

63 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY The Driver Layer In principle, drivers are the only thorns which know anything about parallelism Other thorns access parallelism via an API provided by the flesh Underlying parallel layer could be anything from a TCP-socket to Java RMI -- should be transparent to application thorns Could even be a combination of things Can even run with no parallel layer at all Can pick actual driver to use at runtime - no need to recompile code to test differences between parallel layers Can take one executable and use whatever the best layer for any particular environment happens to be

64 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Current Drivers There are several drivers available at the moment, both developed by the cactus team and by the community. PUGH –a parallel uni-grid driver, which comes as part of the the computational toolkit PAGH –a parallel AMR driver which uses the GrACE library for grid hierarchy management Carpet a parallel fixed mesh refinement driver SimpleDriver –a simple demonstration driver which illustrates driver development

65 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Cactus Computational Toolkit Core thorns which provide many basic utilities, such as: –Boundary conditions –I/O methods –Reduction and Interpolation operations –Coordinate Symmetries –Parallel drivers –Elliptic solvers –Web-based interaction and monitoring interface –...

66 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Current Capabilities: Methods Almost all codes in Cactus are explicit finite difference codes on structured meshes In principle, finite volume or finite element on structured meshes is possible There is now a generic method-of-lines thorn which makes developing thorns using such methods very quick and easy Interface for elliptic solvers and support for generic elliptic solver packages such as PETSc as well as a numerical- relativity-specific multigrid solver written by Bernd Bruegmann –However, interface is not as generic as it could be, and it may not be too useful as it stands for solving general implicit problems

67 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Current Capabilities: Interaction HTTPD thorn provides interface that allows web browser to connect to running simulation Allows a user to examine state of running simulation and change parameters, such as frequency of I/O or variables to be output, or any other parameter that thorn author declared may be changed during the simulation These capabilities may be extended by any other thorn –E.g. the HTTPDExtra thorn allows the user to download any file output by the I/O thorns in the Computational toolkit, and even to view two- dimensional slices as jpegs –Also, there is helper script for web browsers that allows appropriate visualization tool to be launched when a user requests a file

68 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Cactus Summary Used to build apps in NumRel, and starting to be used in other fields Flesh/Thorns distinction –Flesh is like CCA Framework + some general components –Thorns are like CCA components Production code for certain domains, well-used and well-tested

69 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY 69 Topics Meat Grinder Introduction Common Component Architecture (CCA) Cactus Earth System Modeling Framework (ESMF) - slides from ESMF tutorial Summary

70 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY ESMF Motivation and Context In climate research and NWP... increased emphasis on detailed representation of individual physical processes; requires many teams of specialists to contribute components to an overall modeling system In computing technology... increase in hardware and software complexity in high- performance computing, as we shift toward the use of scalable computing architectures In software … development of first-generation frameworks, such as FMS, GEMS, CCA and WRF, that encourage software reuse and interoperability

71 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY What is ESMF? ESMF provides tools for turning model codes into components with standard interfaces and standard drivers. ESMF provides data structures and common utilities that components use for routine services such as data communications, regridding, time management and message logging. ESMF GOALS 1.Increase scientific productivity by making model components much easier to build, combine, and exchange, and by enabling modelers to take full advantage of high-end computers. 2.Promote new scientific opportunities and services through community building and increased interoperability of codes (impacts in collaboration, code validation and tuning, teaching, migration from research to operations)

72 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Each box is an ESMF component Every component has a standard interface so that it is swappable Data in and out of components are packaged as state types with user-defined fields New components can be added to the system Each ESMF application is also a Gridded Component Entire ESMF applications can be nested within larger applications This strategy can be used to systematically compose very large, multi- component codes. Coupling tools include regridding and redistribution methods Application Example: GEOS-5 AGCM

73 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Design Strategies Modularity ◦ Gridded Components don’t have access to the internals of other Gridded Components, and don’t store any coupling information ◦ Gridded Components pass their States to other components through their argument list. ◦ Components can be used standalone or coupled with others into a larger application. Flexibility ◦ Users write their own drivers as well as their own Gridded Components and Coupler Components -- Users decide on their own control flow Communication ◦ All communication handled within components. If an atmosphere is coupled to an ocean, Coupler Component is defined on both atmosphere and ocean processors. ◦ The same programming interface is used for shared memory, distributed memory, and combinations thereof. This buffers the user from variations and changes in the underlying platforms.

74 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Elements of Parallelism: Serial vs. Parallel Computing platforms can have multiple processors, some or all of which may share the same memory pools Can be multiple Persistent Execution Threads (PETs) Can be multiple PETs per processor Software like MPI and OpenMP commonly used for parallelization Programs can run in a serial fashion, with one PET, or in parallel, using multiple PETs Often, a PET can be thought of as a processor Sets of PETs are represented by Virtual Machines (VMs)

75 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Elements of Parallelism: Sequential vs. Concurrent In sequential mode components run one after the other on the same set of PETs. In concurrent mode components run at the same time on different sets of PETs

76 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Elements of Parallelism: DEs Data decomposition represented as set of Decomposition Elements (DEs) Sets of DEs are represented by the DELayout class DELayouts define how data is mapped to PETs In many applications there is one DE per PET

77 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Modes of Parallelism: Single vs. Multiple Executable In Single Program Multiple Datastream (SPMD) mode the same program runs across all PETs in the application - components may run sequentially or concurrently. In Multiple Program Multiple Datastream (MPMD) mode the application consists of separate programs launched as separate executables - components may run concurrently or sequentially, but in this mode almost always run concurrently

78 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Classes and Objects in ESMF The ESMF Application Programming Interface (API) based on object-oriented programming notion of class –A software construct that’s used for grouping a set of related variables together with the subroutines and functions that operate on them –They help to organize the code, and often make it easier to maintain and understand. A particular instance of a class is an object –For example, Field is an ESMF class –An actual Field called temperature is an object

79 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY ESMF Class Structure DELayout Communications State Data imported or exported Bundle Collection of fields GridComp Land, ocean, atm, … model F90 Superstructure Infrastructure Field Physical field, e.g. pressure Grid LogRect, Unstruct, etc. Data Communications C++ Regrid Computes interp weights CplComp Xfers between GridComps Utilities Virtual Machine, TimeMgr, LogErr, IO, ConfigAttr, Base etc. Array Hybrid F90/C++ arrays Route Stores comm paths DistGrid Grid decomposition PhysGrid Math description

80 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY ESMF Superstructure Classes Gridded Component –Models, data assimilation systems - “real code” Coupler Component –Data transformations and transfers between Gridded Components State – Packages of data sent between Components –Can be Bundles, Fields, Arrays, States, or name- placeholders Application Driver – Generic driver

81 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY ESMF Components Component has two parts –One supplied by ESMF - an ESMF derived type that is either a Gridded Component or a Coupler Component –One supplied by the user Gridded Component typically represents a physical domain in which data is associated with one or more grids - for example, a sea ice model Coupler Component arranges and executes data transformations and transfers between one or more Gridded Components. Gridded Components and Coupler Components have standard methods, which include initialize, run, and finalize

82 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY ESMF Infrastructure Data Classes Model data is contained in a hierarchy of multi-use classes The user can reference a Fortran array to an Array or Field, or retrieve a Fortran array out of an Array or Field. Array – holds a Fortran array (with other info, such as halo size) Field – holds an Array, an associated Grid, and metadata Bundle – collection of Fields on the same Grid bundled together for convenience, data locality, latency reduction during communications Supporting these data classes is the Grid class, which represents a numerical grid

83 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Application Driver Small, generic program that contains the “main” for an ESMF application.

84 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY ESMF Communications Halo –Updates edge data for consistency between partitions Redistribution –No interpolation, only changes how the data is decomposed Regrid –Based on SCRIP package from Los Alamos –Methods include bilinear, conservative Bundle, Field, Array-level interfaces

85 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY ESMF Utilities Time Manager Configuration Attributes (replaces namelists) Message logging Communication libraries Regridding library (parallelized, on-line SCRIP) I/O (barely implemented) Performance profiling (not implemented yet, may simply use Tau)

86 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY ESMF Summary Developed for and by climate community Sandwich model –EMSF provides superstructure and infrastructure, user provides filling Used for some applications, and increasingly, apps are written using it Mostly Fortran-based (user community requirement), and CCA compatible

87 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY Summary – Material for the Test CCA Motivations: slides Component based Software Engineering: slide 29 CCA Concepts: slides What is Cactus: slides 54,55,57 Cactus Architecture: slides Cactus, current capabilities: slides 66,67 What is ESMF: slides 70,71 Design concepts in ESMF: slides ESMF Architectural Components: slides 78-85

88 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY 88 URLs Common Component Architecture (CCA) –http://www.cca-forum.org/ Cactus –http://www.cactuscode.org/ Earth System Modeling Framework (ESMF) –http://www.esmf.ucar.edu/

89 CENTER FOR COMPUTATION & TECHNOLOGY AT LOUISIANA STATE UNIVERSITY
