1 Reclamation Case Studies of Dam Removal Cassie C. Klumpp

2 Dam Removal 75,000 dams greater than 5 feet in United States 50,000 dams greater than 50 ft. in height 2 million dams total in the United States Dams are removed, in most cases, because of the age of the dams, not environmental reasons

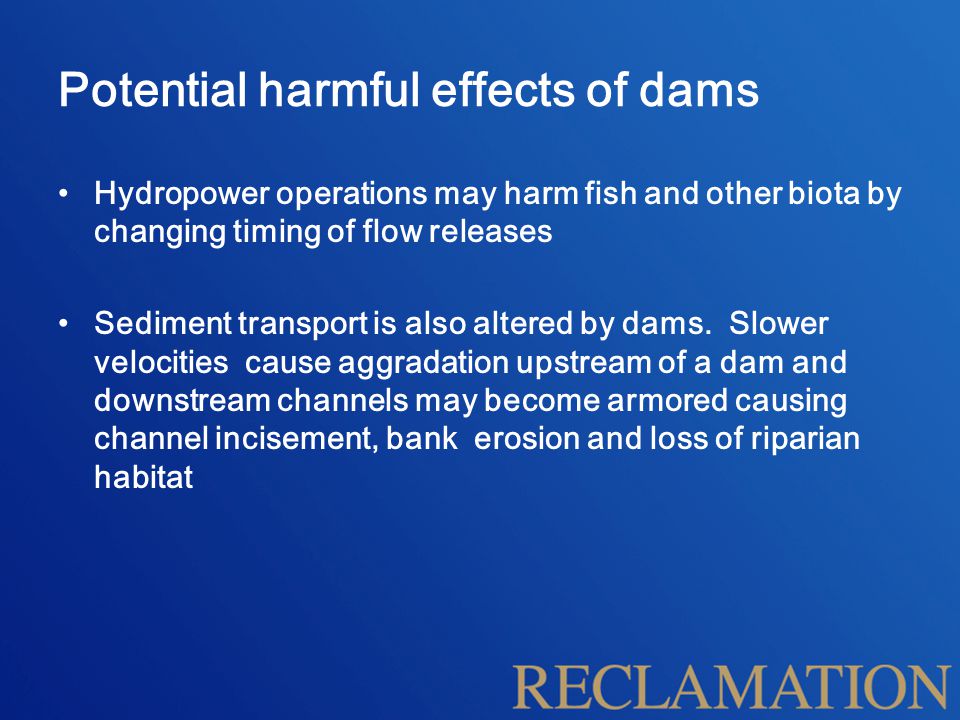

3 Potential harmful effects of dams Hydropower operations may harm fish and other biota by changing timing of flow releases Sediment transport is also altered by dams. Slower velocities cause aggradation upstream of a dam and downstream channels may become armored causing channel incisement, bank erosion and loss of riparian habitat

4 Effects of dams Vital functions to man including water supply, navigation, recreation and hydro-electric power Dams may reach a point where removal is necessary because of economics or dam safety issues

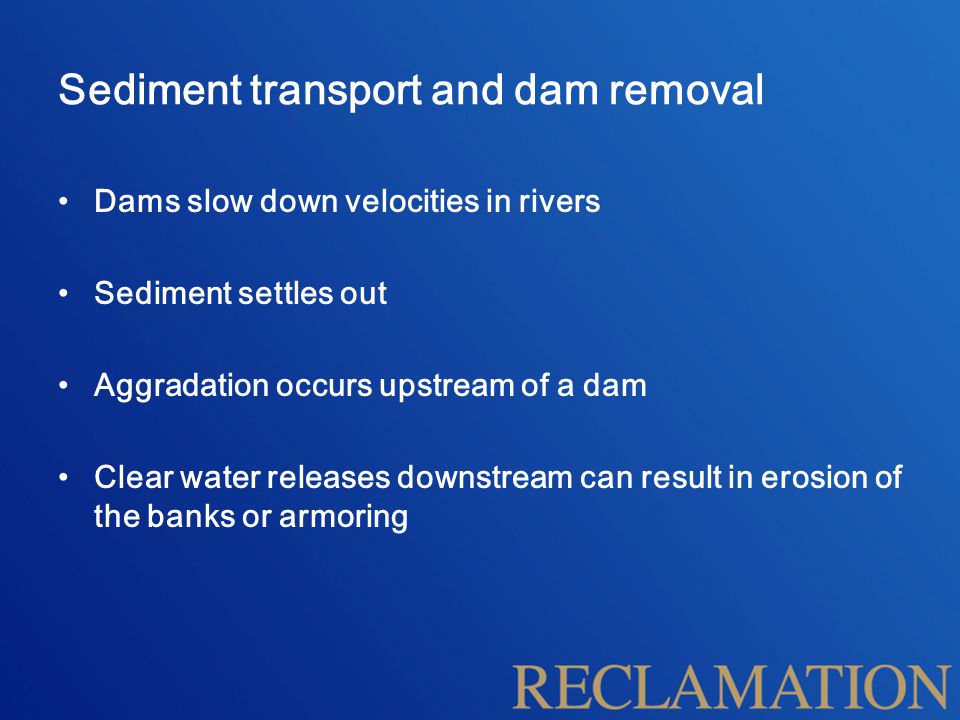

5 Sediment transport and dam removal Dams slow down velocities in rivers Sediment settles out Aggradation occurs upstream of a dam Clear water releases downstream can result in erosion of the banks or armoring

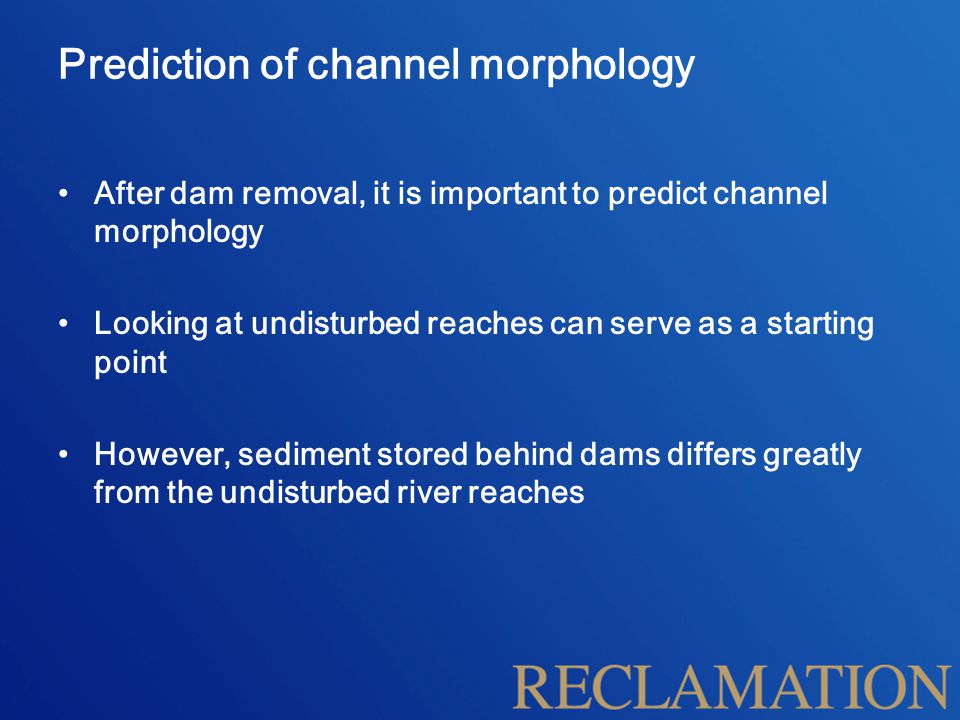

6 Prediction of channel morphology After dam removal, it is important to predict channel morphology Looking at undisturbed reaches can serve as a starting point However, sediment stored behind dams differs greatly from the undisturbed river reaches

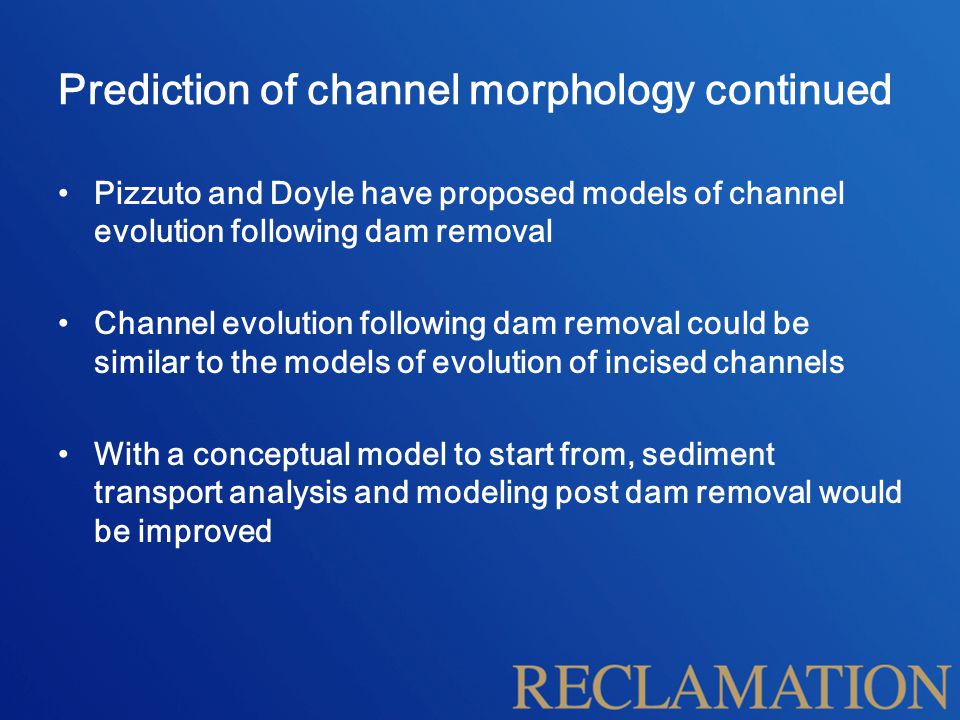

7 Prediction of channel morphology continued Pizzuto and Doyle have proposed models of channel evolution following dam removal Channel evolution following dam removal could be similar to the models of evolution of incised channels With a conceptual model to start from, sediment transport analysis and modeling post dam removal would be improved

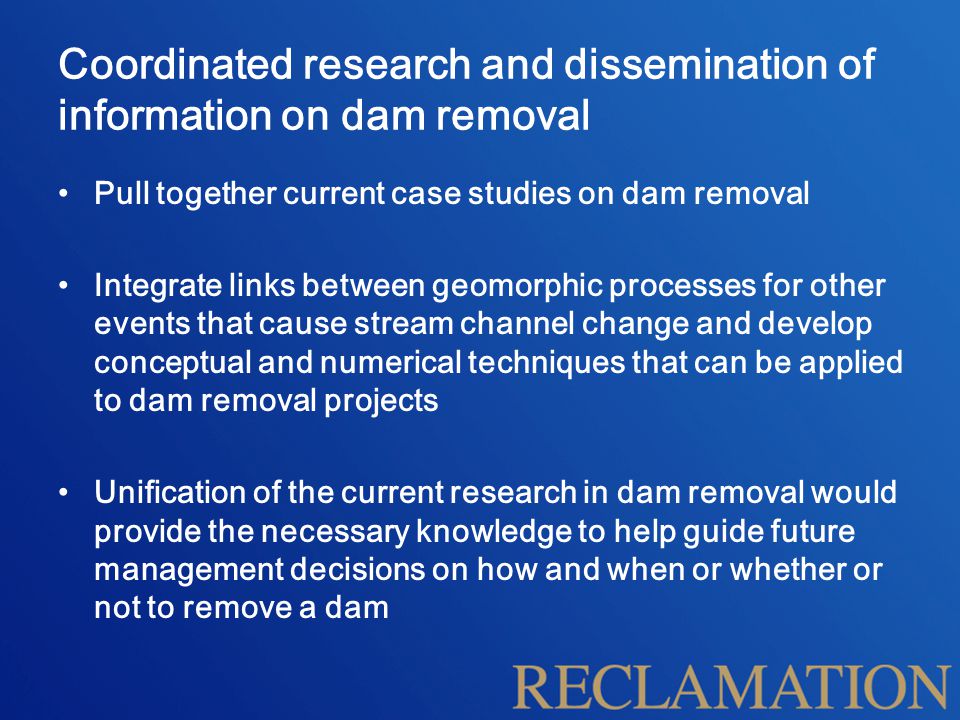

8 Coordinated research and dissemination of information on dam removal Pull together current case studies on dam removal Integrate links between geomorphic processes for other events that cause stream channel change and develop conceptual and numerical techniques that can be applied to dam removal projects Unification of the current research in dam removal would provide the necessary knowledge to help guide future management decisions on how and when or whether or not to remove a dam

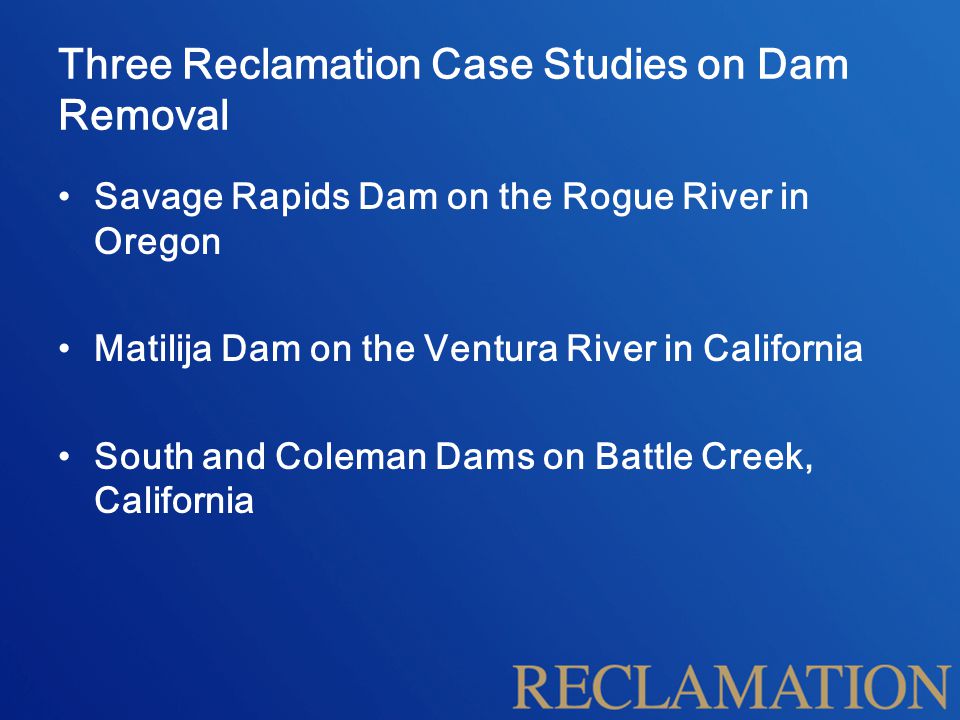

9 Three Reclamation Case Studies on Dam Removal Savage Rapids Dam on the Rogue River in Oregon Matilija Dam on the Ventura River in California South and Coleman Dams on Battle Creek, California

10 Savage Rapids Dam Run of the river dam Stores 153,000 cu m of sediment Dam is raised 3.35 m. during the irrigation season Fish ladders exist for the dam but are inadequate and or are not working properly

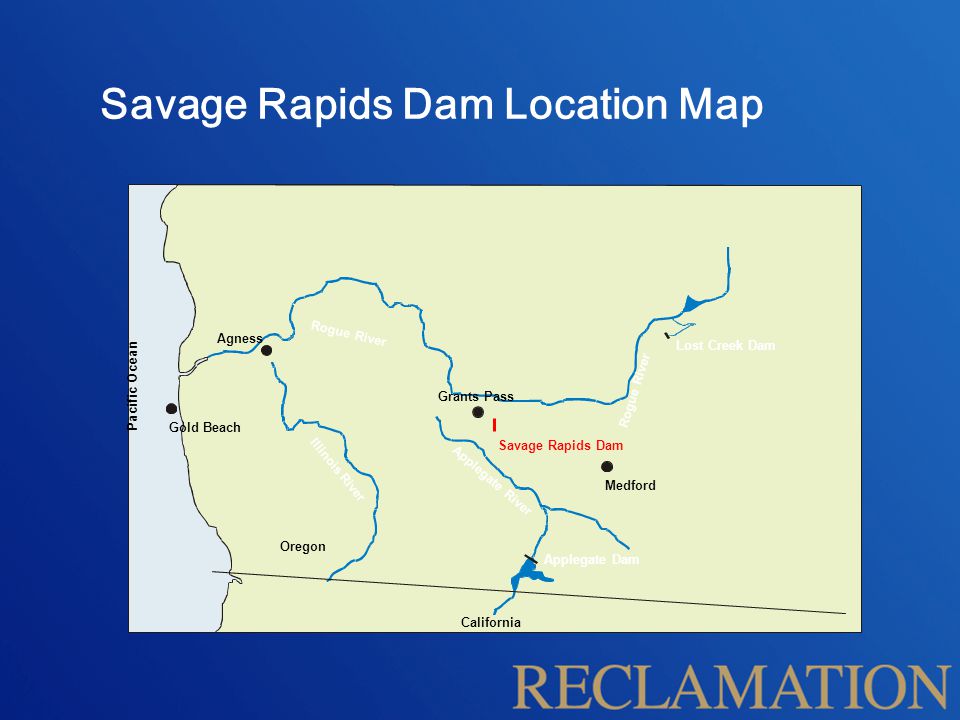

11 Savage Rapids Dam Location Map Grants Pass Medford Gold Beach Agness Lost Creek Dam Applegate Dam Oregon California P a c i f i c O c e a n Illinois River Applegate River Rogue River Savage Rapids Dam

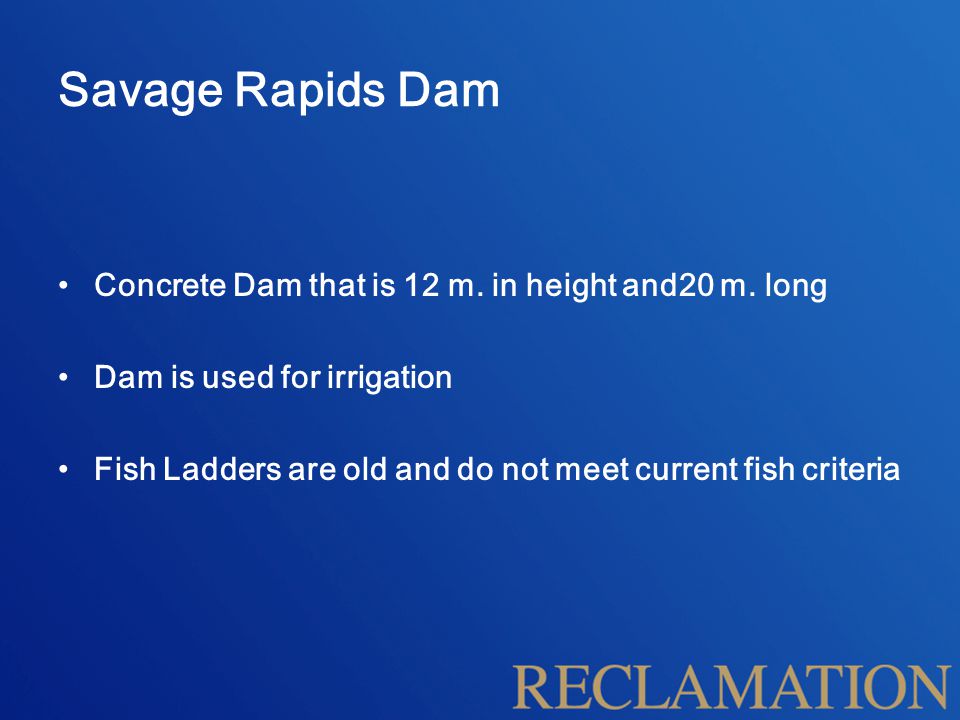

12 Concrete Dam that is 12 m. in height and20 m. long Dam is used for irrigation Fish Ladders are old and do not meet current fish criteria

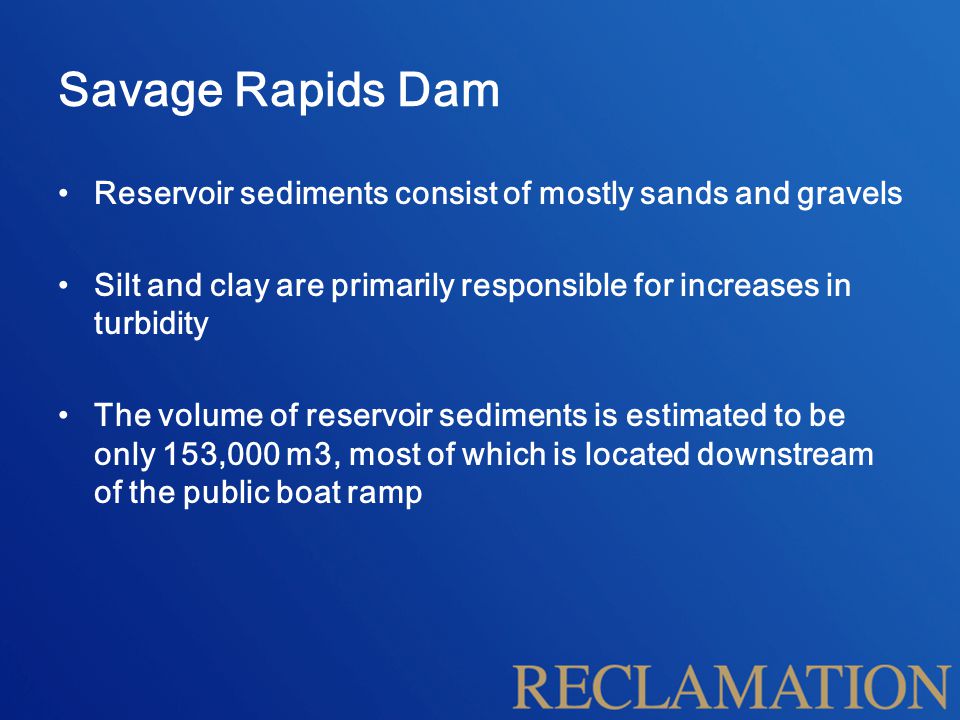

13 Savage Rapids Dam Reservoir sediments consist of mostly sands and gravels Silt and clay are primarily responsible for increases in turbidity The volume of reservoir sediments is estimated to be only 153,000 m3, most of which is located downstream of the public boat ramp

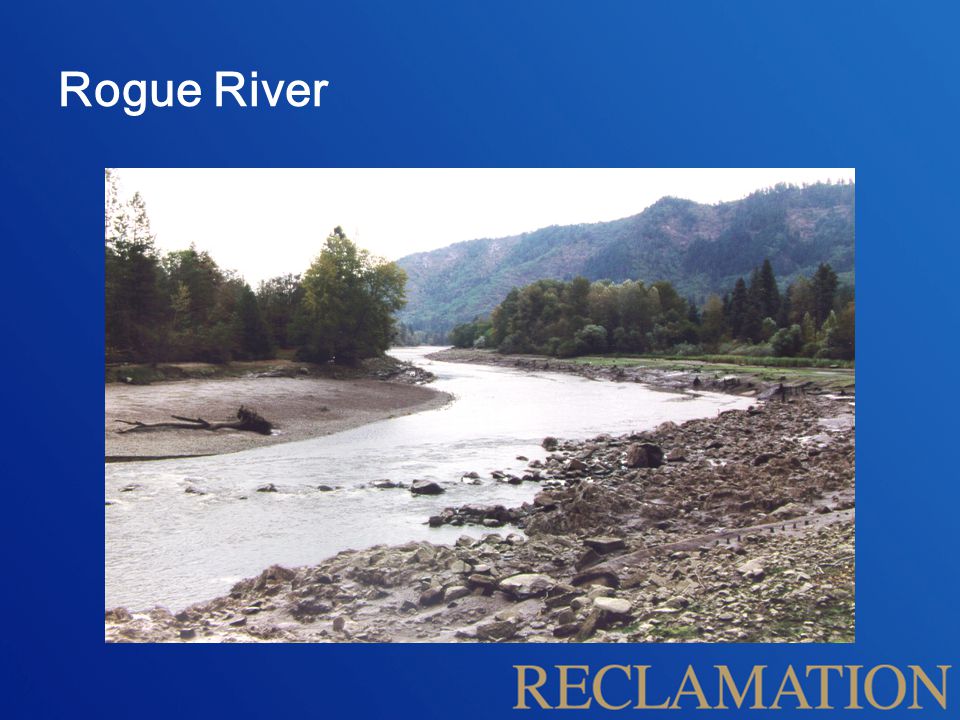

14 Rogue River

15 Savage Rapids Sediment Modeling Results 0 50,000 100,000 150,000 200,000 012345678910 Years Following Dam Removal Volume of Sediment (yds 3 ) Dam removal followed by dry years Dam removal followed by wet years

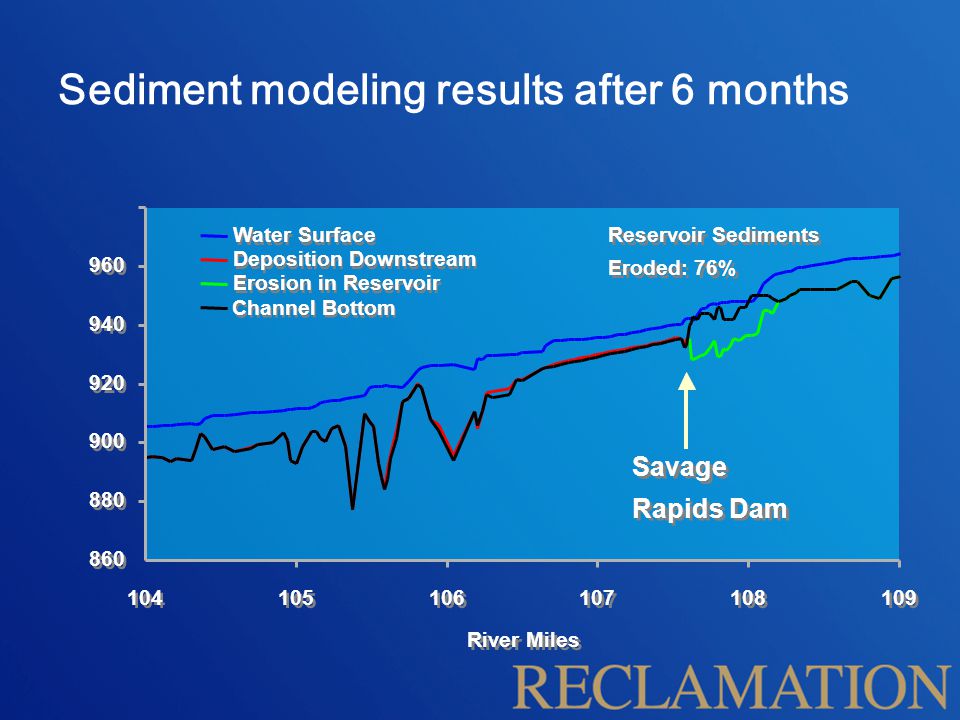

16 Sediment modeling results after 6 months Water Surface Deposition Downstream Erosion in Reservoir Channel Bottom Reservoir Sediments Eroded: 76% 860 880 900 920 940 960 104 105 106 107 108 109 River Miles Savage Rapids Dam

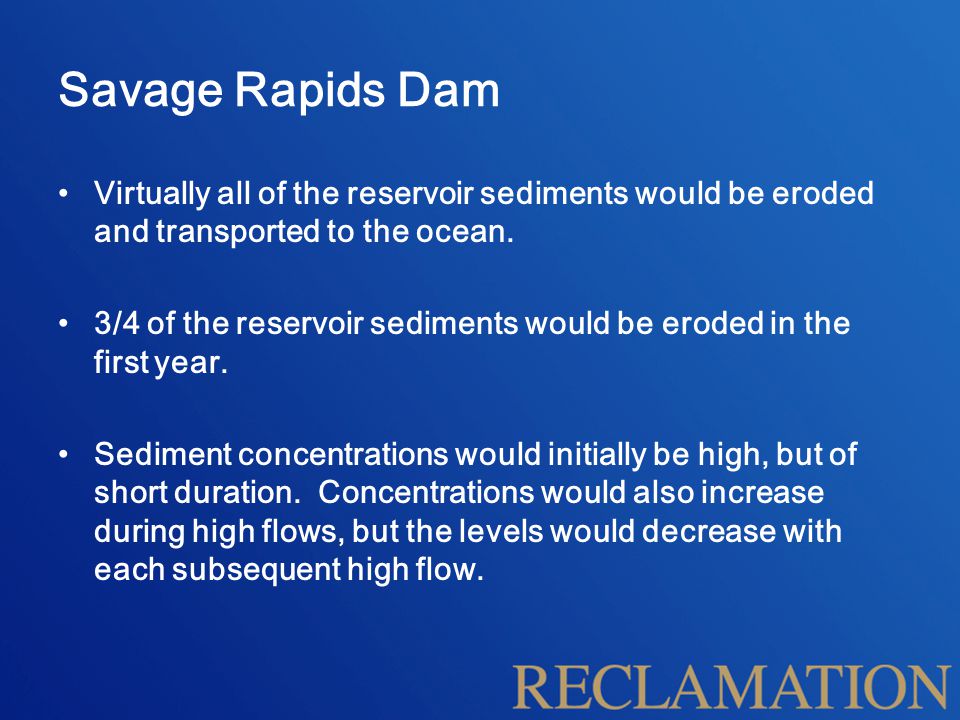

17 Savage Rapids Dam Virtually all of the reservoir sediments would be eroded and transported to the ocean. 3/4 of the reservoir sediments would be eroded in the first year. Sediment concentrations would initially be high, but of short duration. Concentrations would also increase during high flows, but the levels would decrease with each subsequent high flow.

18 Matilija Dam Matilia Dam contrasts with Savage Rapids Dam 58 meters tall, with the current crest elevation at 334 m Located 26 km upstream of the ocean on a tributary of Ventura River

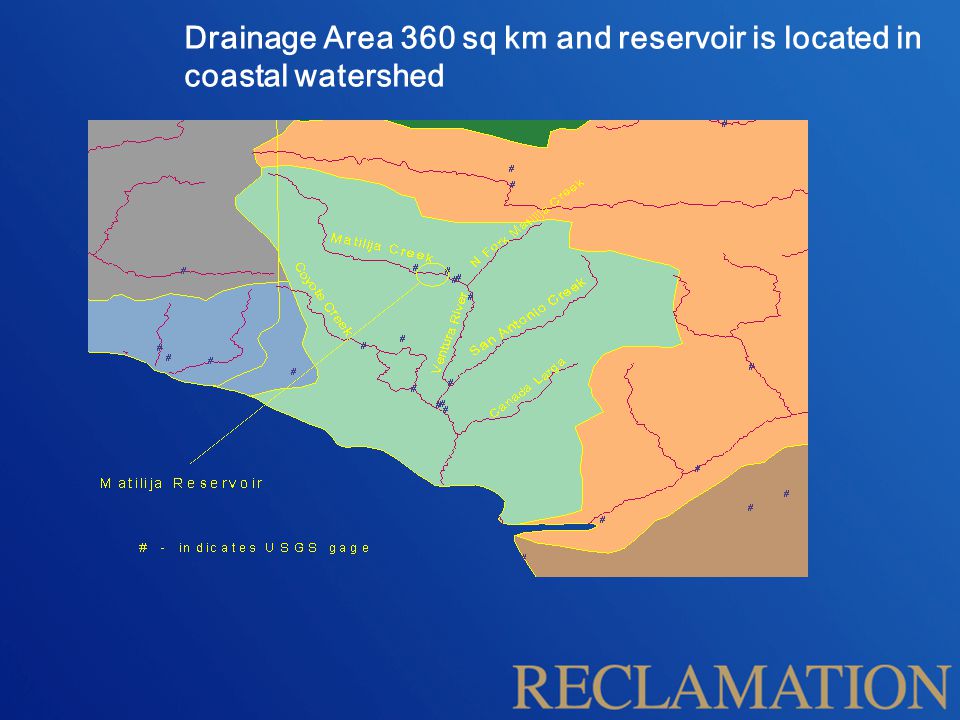

19 Drainage Area 360 sq km and reservoir is located in coastal watershed

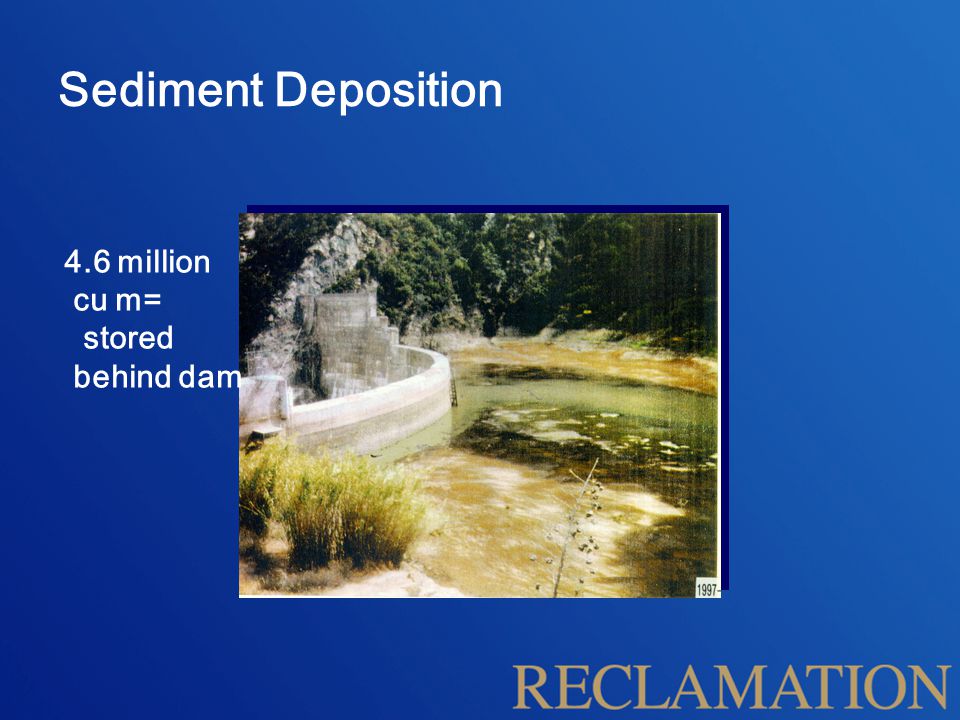

20 Sediment Deposition 4.6 million cu m= stored behind dam

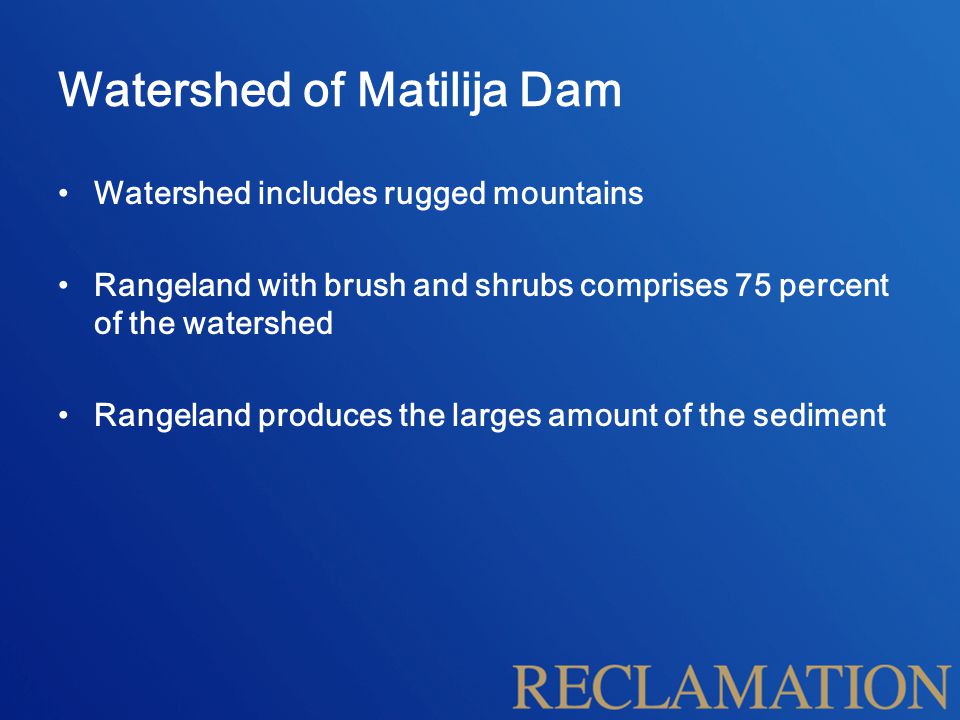

21 Watershed of Matilija Dam Watershed includes rugged mountains Rangeland with brush and shrubs comprises 75 percent of the watershed Rangeland produces the larges amount of the sediment

22 Matilija Dam Large volume of sediment stored behind dam Sediment was stored rapidly behind the dam Effects of dam included losses of spawning areas of 4,000 to 5,000 steelhead trout Loss of riparian and wildlife habitat

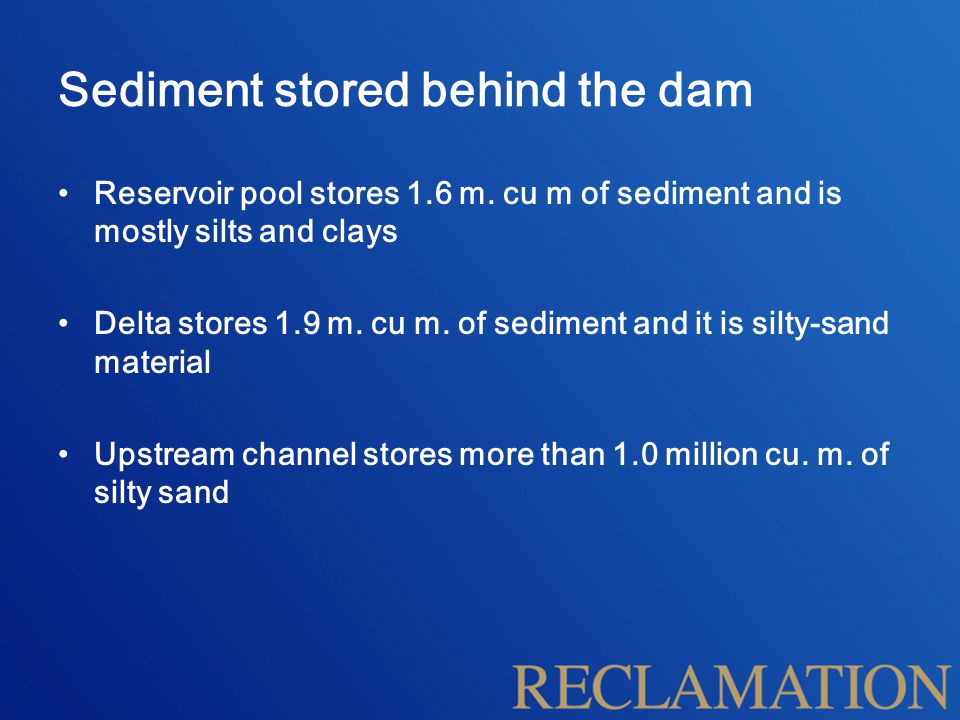

23 Sediment stored behind the dam Reservoir pool stores 1.6 m. cu m of sediment and is mostly silts and clays Delta stores 1.9 m. cu m. of sediment and it is silty-sand material Upstream channel stores more than 1.0 million cu. m. of silty sand

24 GSTARS-1D was used to model sediment transport Greimann modeled the dam removal project with a combination of the Parker equation for gravel and the Engelund and Hansen formula for sand load Three scenarios were modeled and included complete dam removal in one notch, removal of the dam to an elevation of 317 m, and no dam removal

25 Matilija Sediment Modeling Scenarios modeled with the 20 year peak flood 396 cu m/s

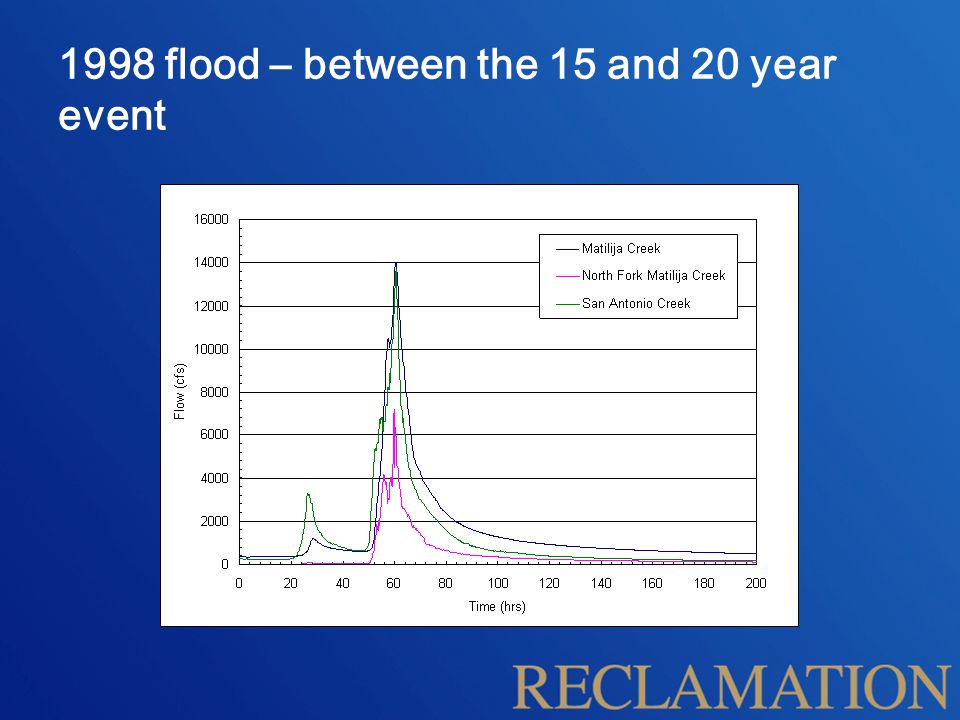

26 1998 flood – between the 15 and 20 year event

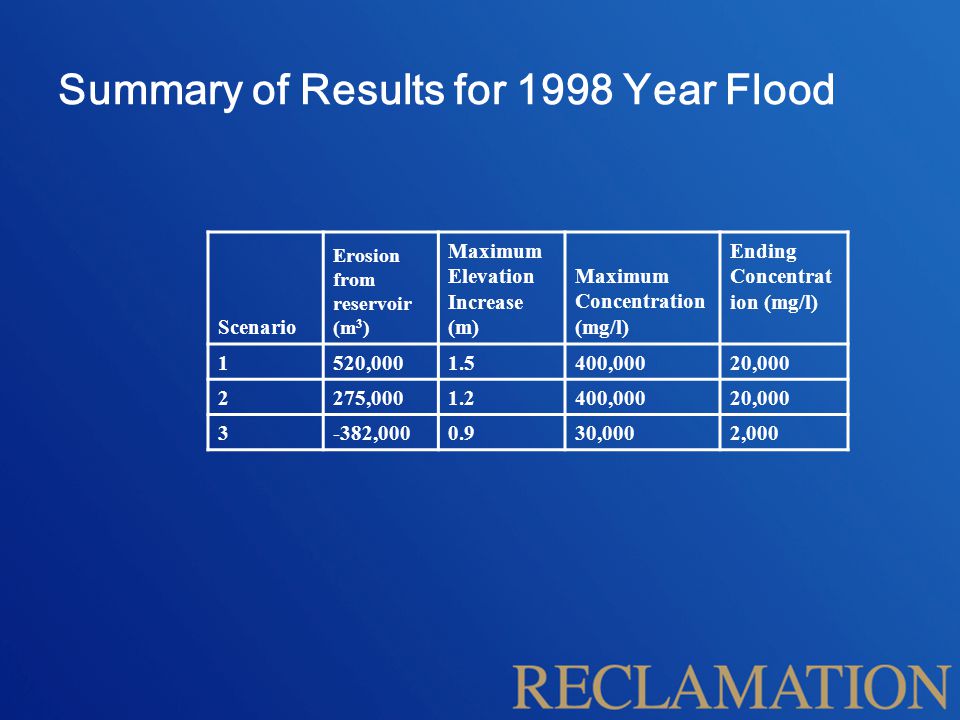

27 Summary of Results for 1998 Year Flood Scenario Erosion from reservoir (m 3 ) Maximum Elevation Increase (m) Maximum Concentration (mg/l) Ending Concentrat ion (mg/l) 1520,0001.5400,00020,000 2275,0001.2400,00020,000 3-382,0000.930,0002,000

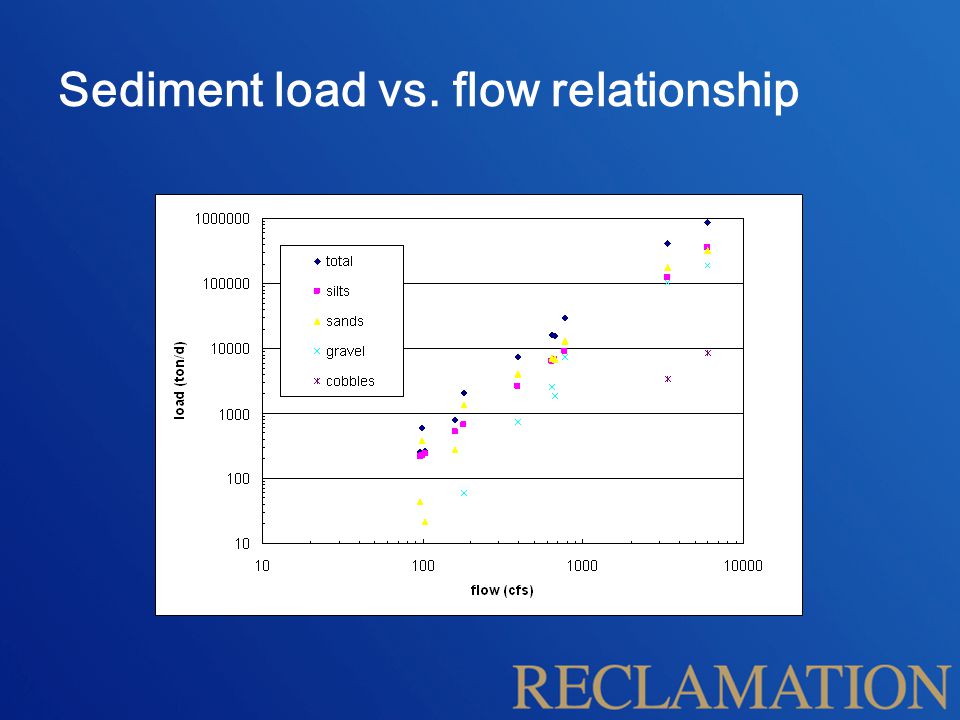

28 Sediment load vs. flow relationship

29 Concentrations downstream after 1998 flood for the No Action Alternative

30 Change in thalweg elevation for 1998 storm in reach 7 at various times from start of simulation of alternative 2a.

31 Change in thalweg elevation for 1998 storm in one of the reaches at various times from start of simulation for one of the dam removal alternatives

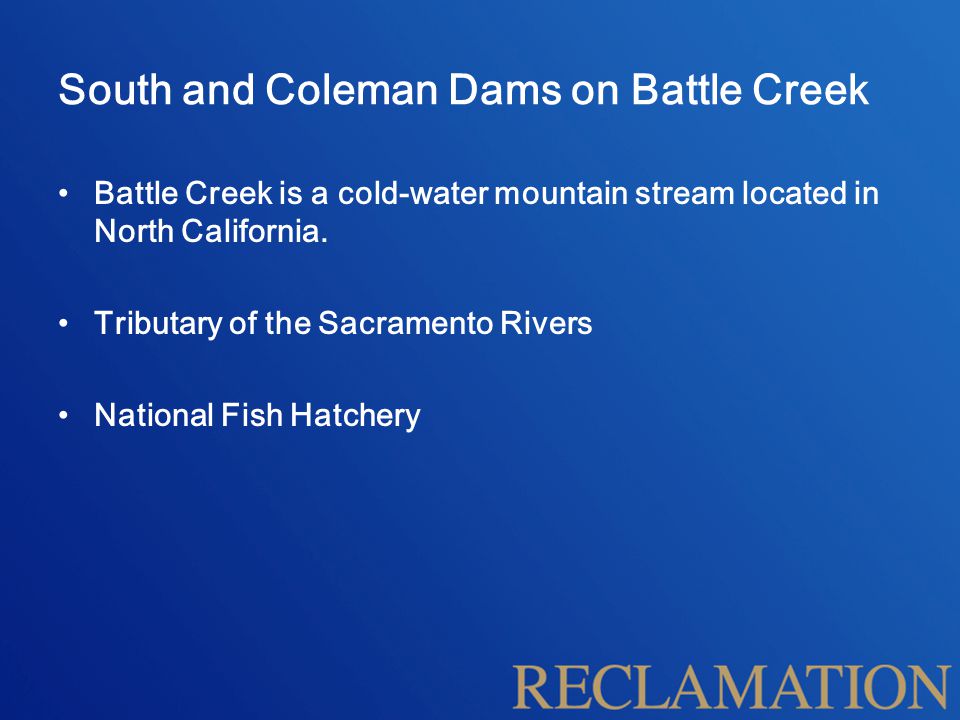

32 South and Coleman Dams on Battle Creek Battle Creek is a cold-water mountain stream located in North California. Tributary of the Sacramento Rivers National Fish Hatchery

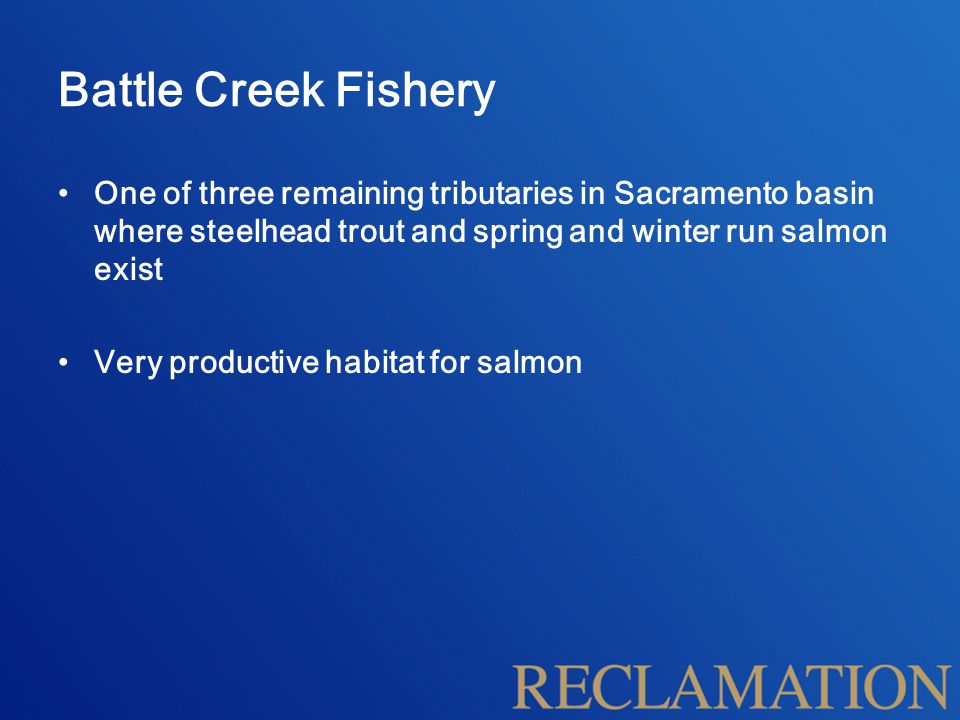

33 Battle Creek Fishery One of three remaining tributaries in Sacramento basin where steelhead trout and spring and winter run salmon exist Very productive habitat for salmon

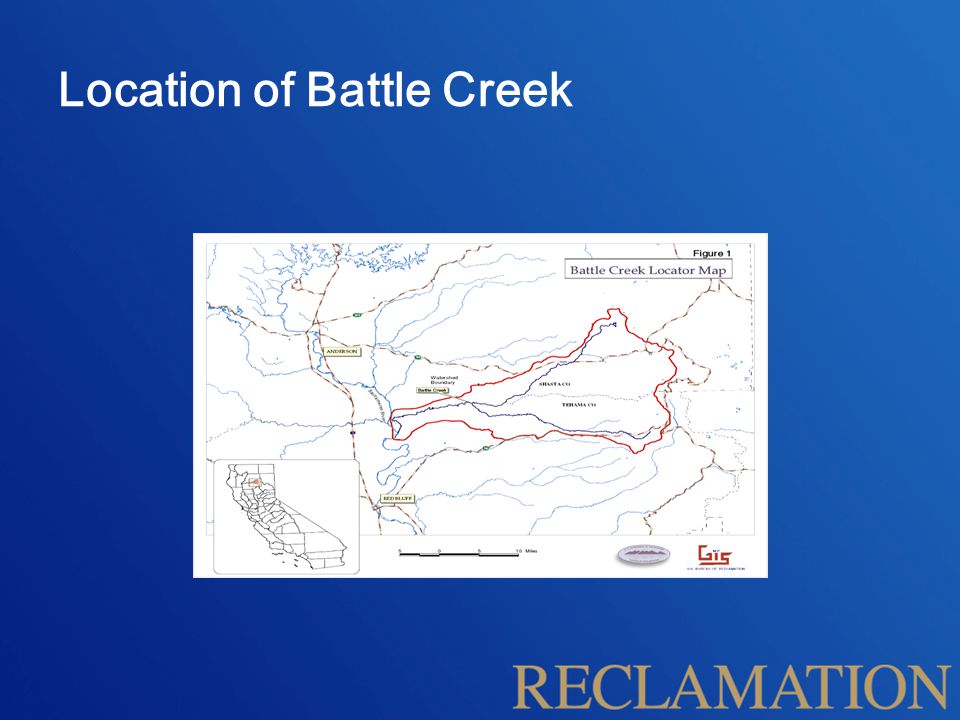

34 Location of Battle Creek

35 Large material stored behind South Diversion Dam

36 Example of bed material size data stored in the bed

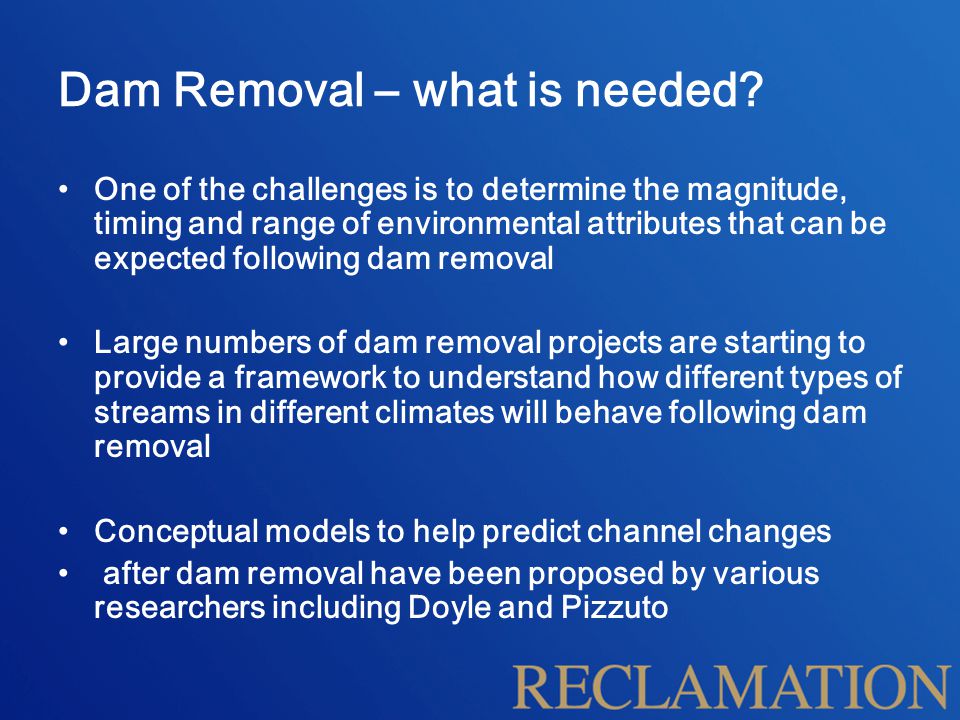

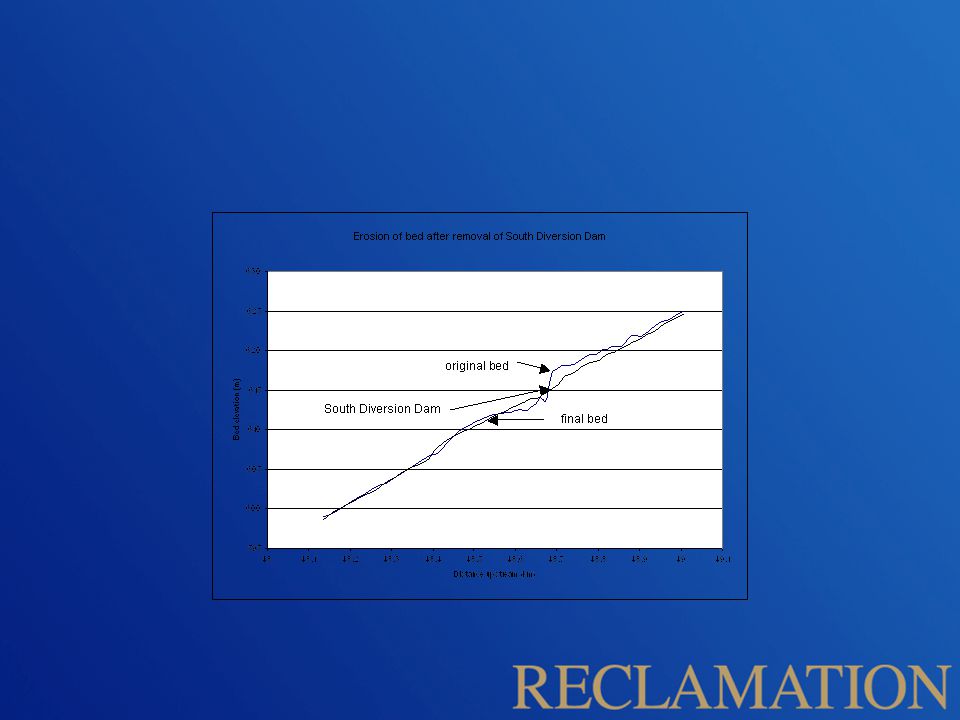

38 Dam Removal – what is needed? One of the challenges is to determine the magnitude, timing and range of environmental attributes that can be expected following dam removal Large numbers of dam removal projects are starting to provide a framework to understand how different types of streams in different climates will behave following dam removal Conceptual models to help predict channel changes after dam removal have been proposed by various researchers including Doyle and Pizzuto

39 Collection of data post dam removal More and more dams are being removed A larger volume of studies are now available to help the designer determine responses post-dam removal Additional guidelines and technical reports should be prepared to help the practitioner Shifts in sediment movement have been one of the most prominent responses

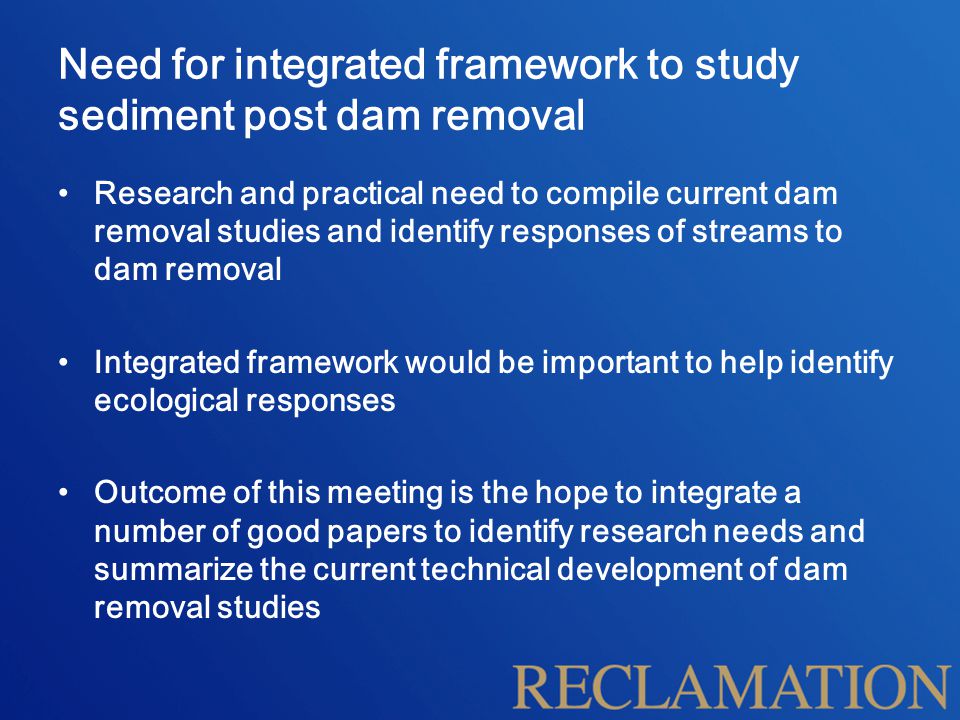

40 Need for integrated framework to study sediment post dam removal Research and practical need to compile current dam removal studies and identify responses of streams to dam removal Integrated framework would be important to help identify ecological responses Outcome of this meeting is the hope to integrate a number of good papers to identify research needs and summarize the current technical development of dam removal studies

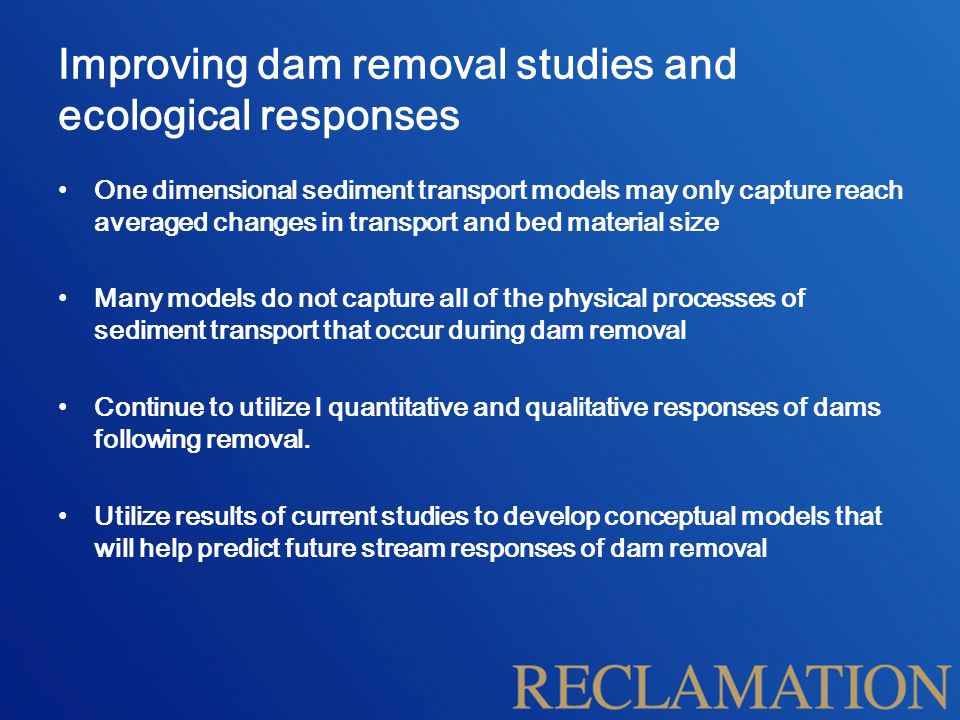

41 Improving dam removal studies and ecological responses One dimensional sediment transport models may only capture reach averaged changes in transport and bed material size Many models do not capture all of the physical processes of sediment transport that occur during dam removal Continue to utilize l quantitative and qualitative responses of dams following removal. Utilize results of current studies to develop conceptual models that will help predict future stream responses of dam removal

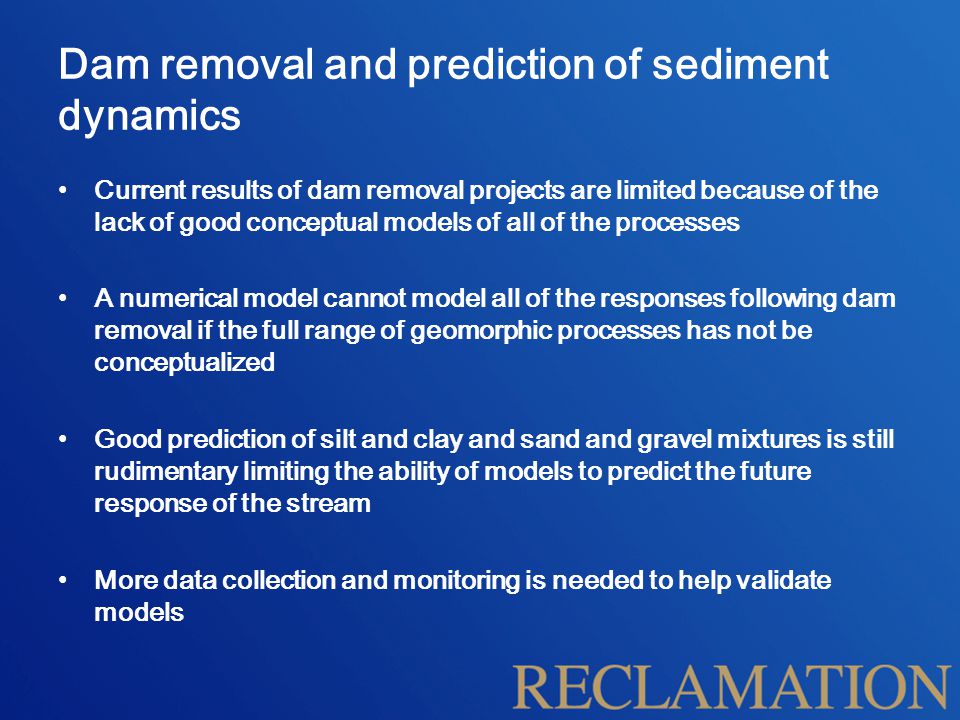

42 Dam removal and prediction of sediment dynamics Current results of dam removal projects are limited because of the lack of good conceptual models of all of the processes A numerical model cannot model all of the responses following dam removal if the full range of geomorphic processes has not be conceptualized Good prediction of silt and clay and sand and gravel mixtures is still rudimentary limiting the ability of models to predict the future response of the stream More data collection and monitoring is needed to help validate models
