1 Development and Validation of Residual Stress Test for Concrete Pavement David Marks, Daniel Castaneda and David A. Lange University of Illinois at Urbana-Champaign FAA Worldwide Airport Technology Transfer Conference Atlantic City, New Jersey April 2010

2 Acknowledgments Sponsored by FAA through Center of Excellence for Airport Technology Idea for this new test originated with Edward Guo David Marks finished his MS at UIUC Daniel Castaneda is currently extending this work for his MS at UIUC

3 Introduction What are residual stresses? Residual stress may diminish capacity to sustain designed load Problem: No standard method to measure residual stress in concrete Inspiration: Residual stress test method for steel –ASTM E Standard Test Method for Determining Residual Stresses by the Hole-Drilling Strain-Gage Method –A strain gage measures the change in strain reading as a small hole (~2mm) is drilled in the vicinity. The change in strain reading is correlated to a residual stress

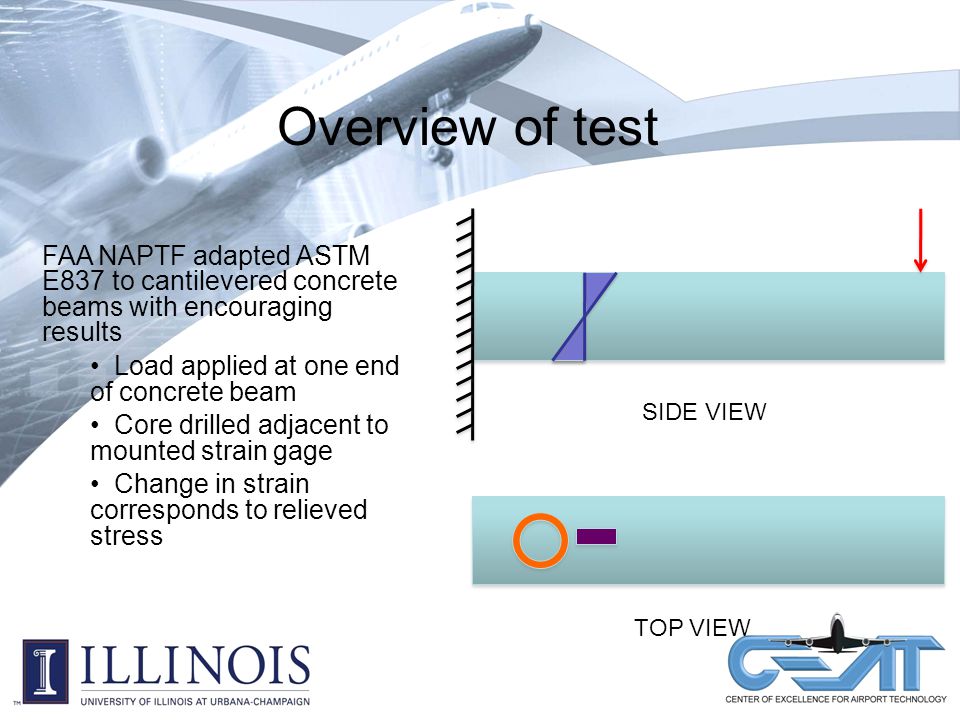

4 TOP VIEW SIDE VIEW Overview of test FAA NAPTF adapted ASTM E837 to cantilevered concrete beams with encouraging results Load applied at one end of concrete beam Core drilled adjacent to mounted strain gage Change in strain corresponds to relieved stress

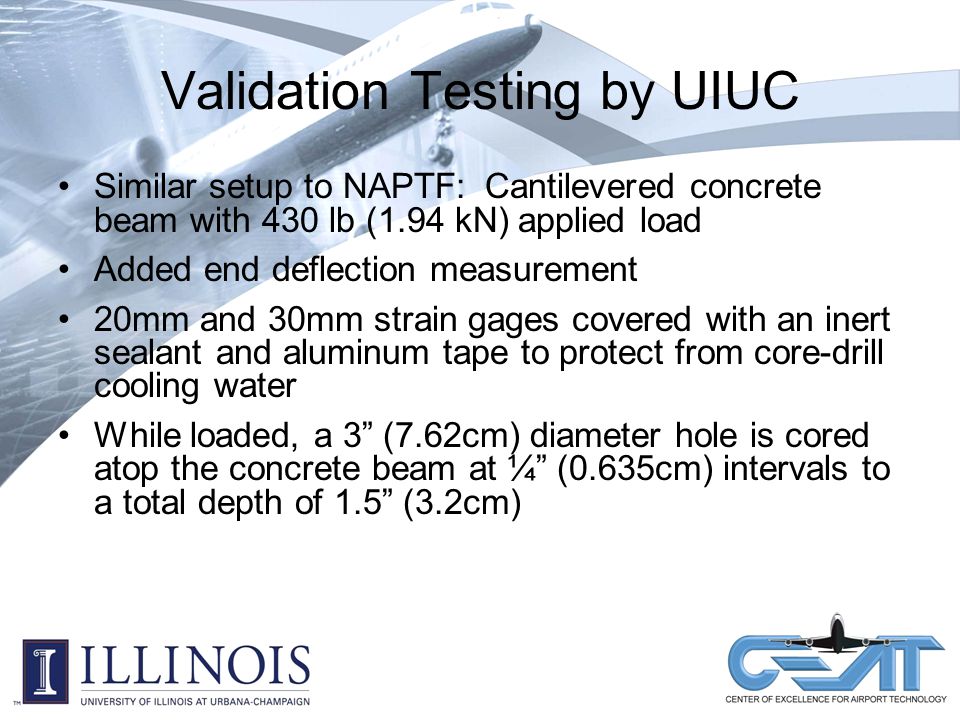

5 Validation Testing by UIUC Similar setup to NAPTF: Cantilevered concrete beam with 430 lb (1.94 kN) applied load Added end deflection measurement 20mm and 30mm strain gages covered with an inert sealant and aluminum tape to protect from core-drill cooling water While loaded, a 3” (7.62cm) diameter hole is cored atop the concrete beam at ¼” (0.635cm) intervals to a total depth of 1.5” (3.2cm)

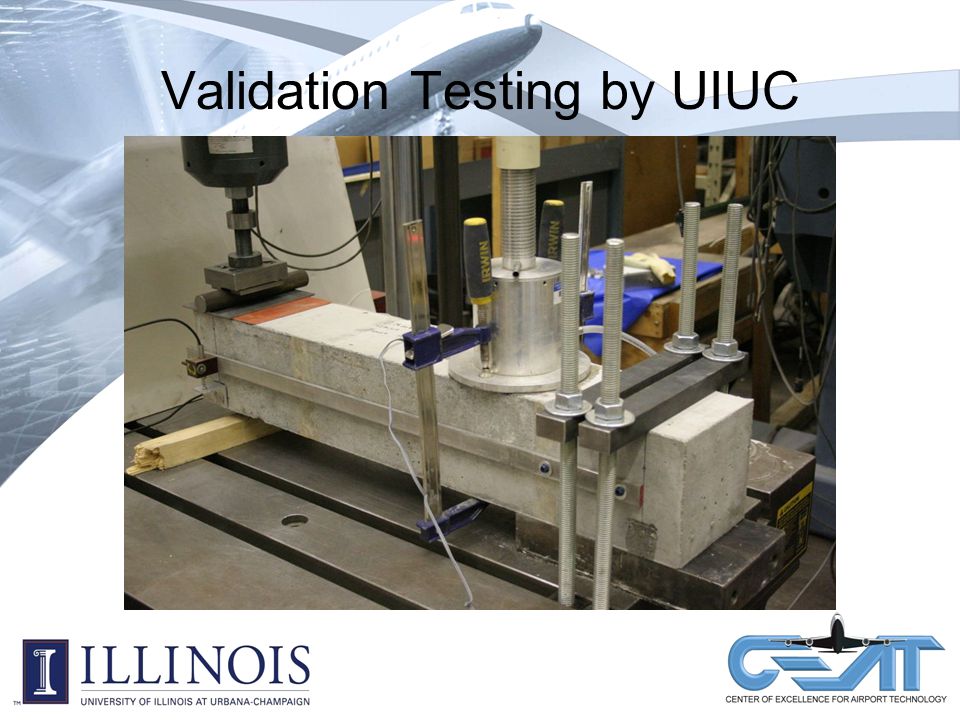

6 Validation Testing by UIUC Core drill

7 Validation Testing by UIUC

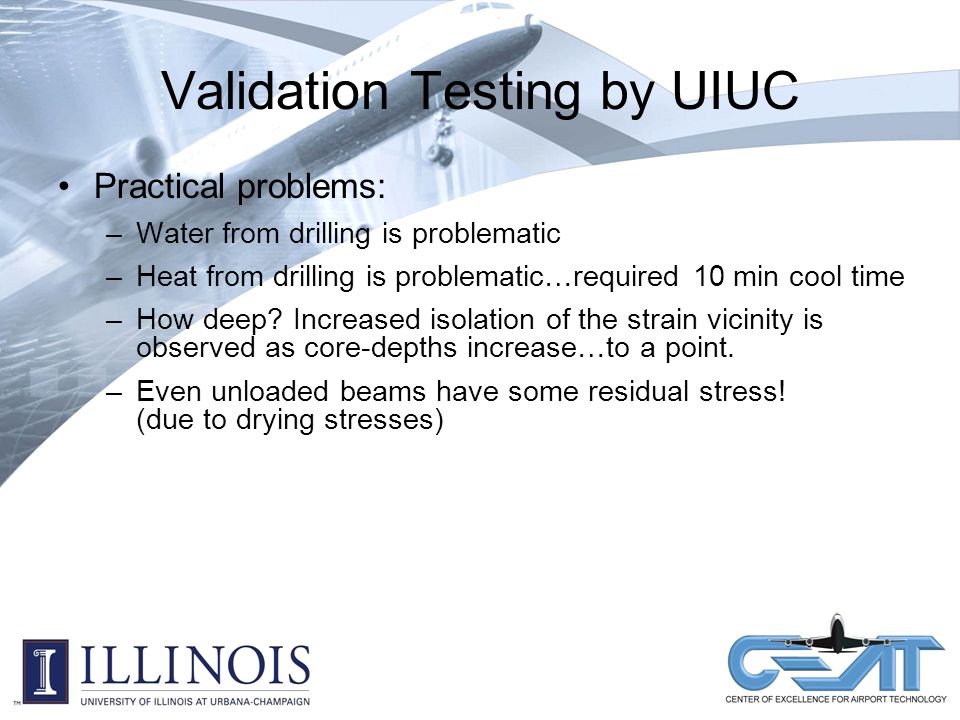

8 Practical problems: –Water from drilling is problematic –Heat from drilling is problematic…required 10 min cool time –How deep? Increased isolation of the strain vicinity is observed as core-depths increase…to a point. –Even unloaded beams have some residual stress! (due to drying stresses)

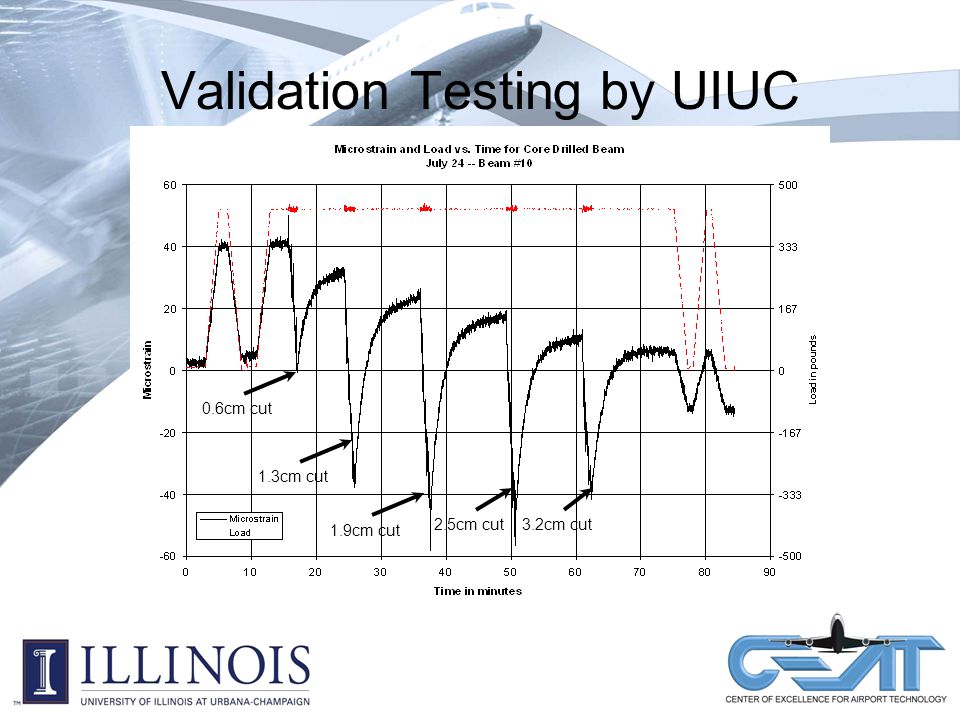

9 Validation Testing by UIUC 0.6cm cut 1.3cm cut 1.9cm cut 2.5cm cut3.2cm cut

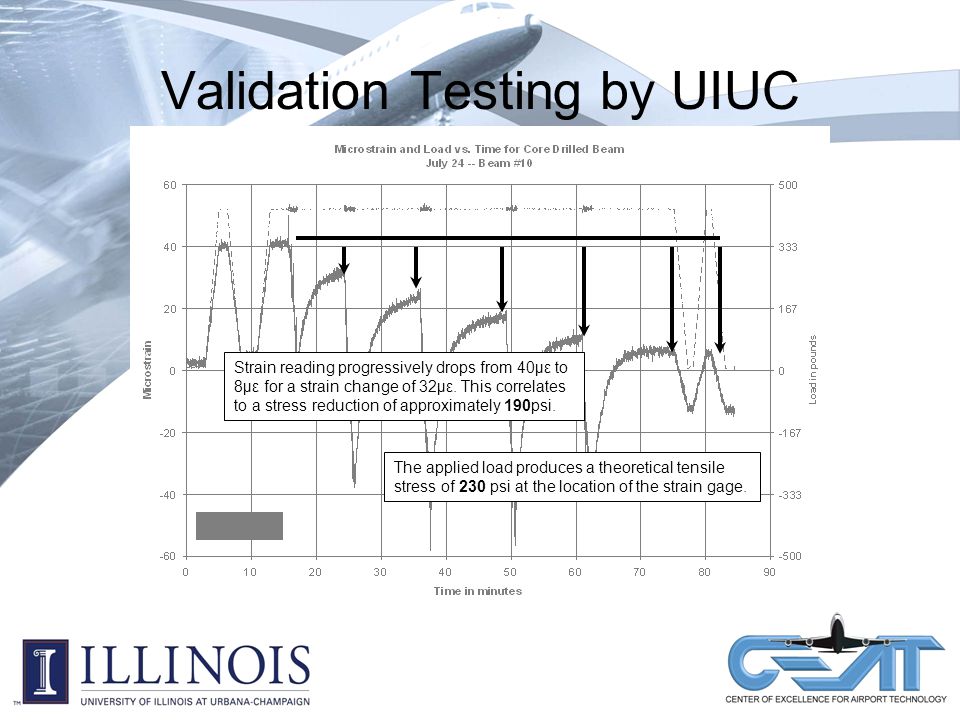

10 Validation Testing by UIUC Strain reading progressively drops from 40με to 8με for a strain change of 32με. This correlates to a stress reduction of approximately 190psi. The applied load produces a theoretical tensile stress of 230 psi at the location of the strain gage.

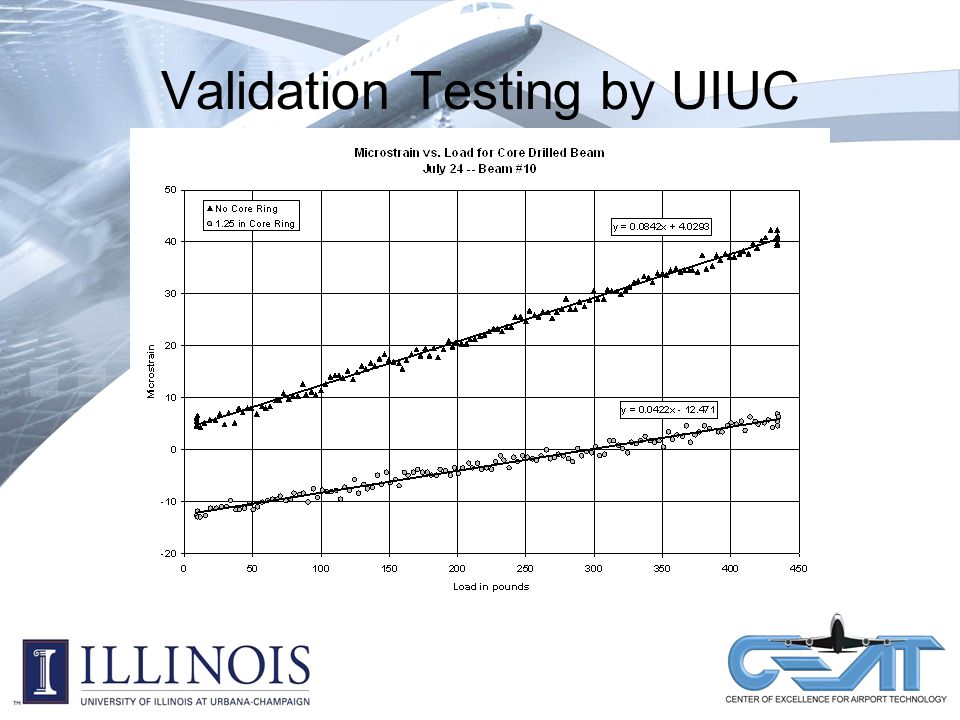

11 Validation Testing by UIUC

12 The load-strain response of the concrete beam is diminished as the depth of the core is increased, suggesting partial isolation of the applied load.

13 So, a new approach…sawcut Testing was modified by replacing the core-drill with a circular saw fitted with a masonry blade and cutting linear notches on either side of the strain gage Concrete beams were either singly notched or doubly notched –Progressive depths of 1.27cm, 2.54cm and 3.56cm Wooden spacers placed over the strain gage to serve as guide and to prevent contact with underside of circular saw

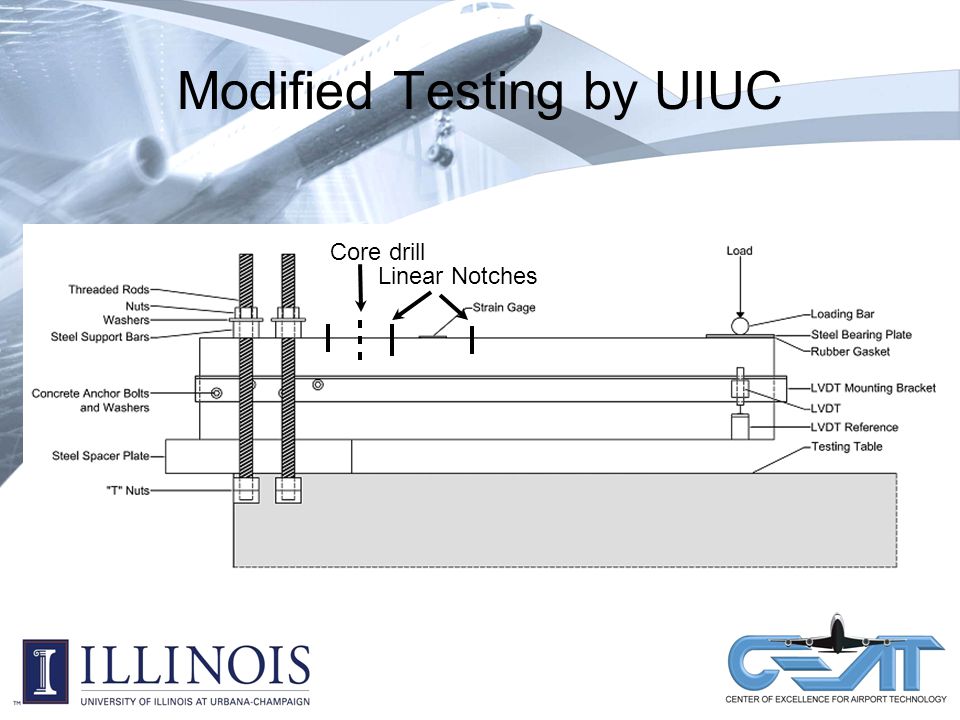

14 Modified Testing by UIUC Core drill Linear Notches

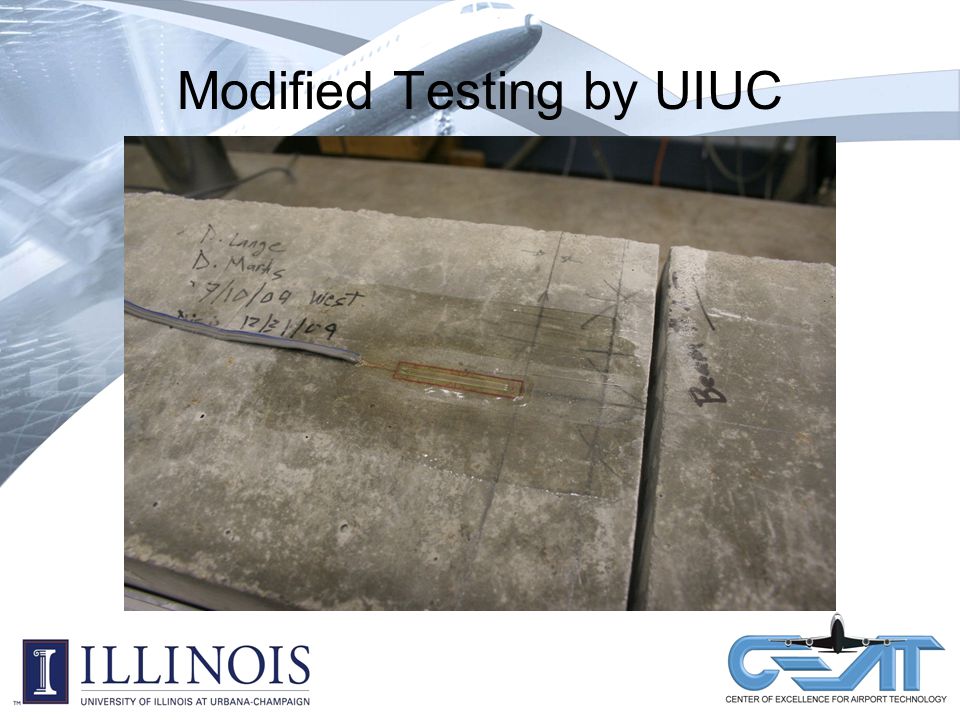

15 Modified Testing by UIUC

16

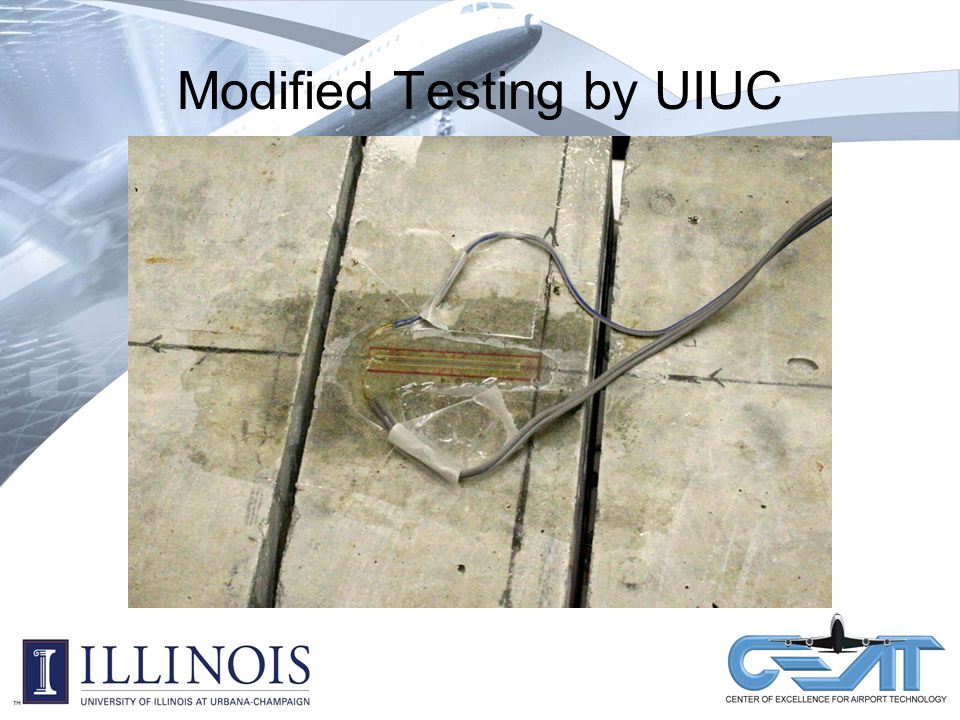

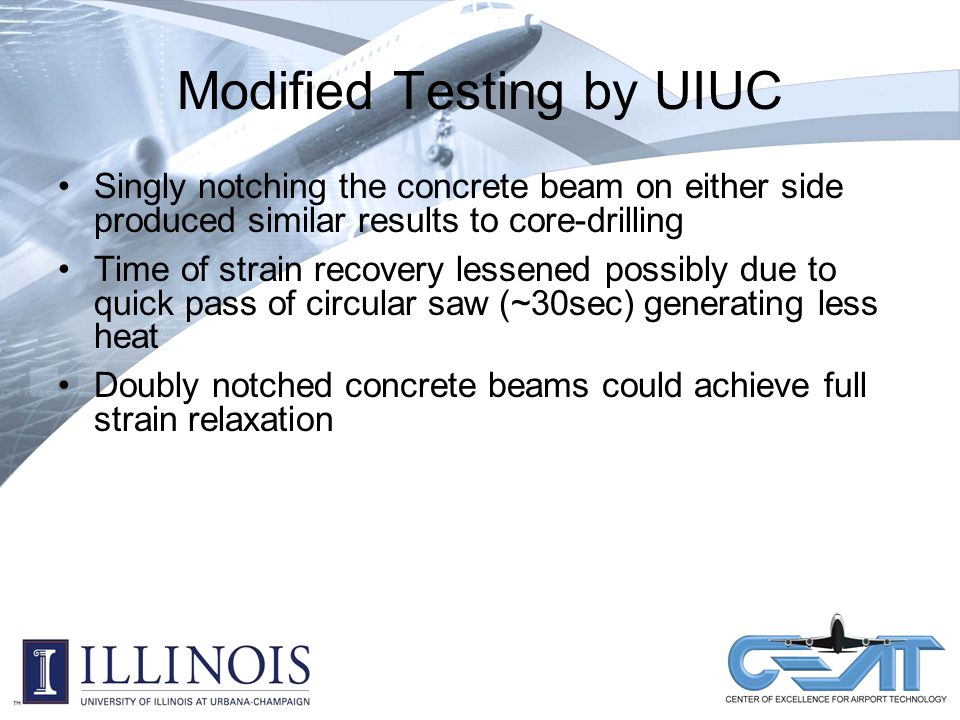

17 Singly notching the concrete beam on either side produced similar results to core-drilling Time of strain recovery lessened possibly due to quick pass of circular saw (~30sec) generating less heat Doubly notched concrete beams could achieve full strain relaxation

18 Modified Testing by UIUC 1.27cm 1s cut 2.54cm 1 st cut 3.56cm 1 st cut 0.64cm 2 nd cut 1.27cm 2 nd cut 0.64cm 1 st cut 3.56cm 2 nd cut

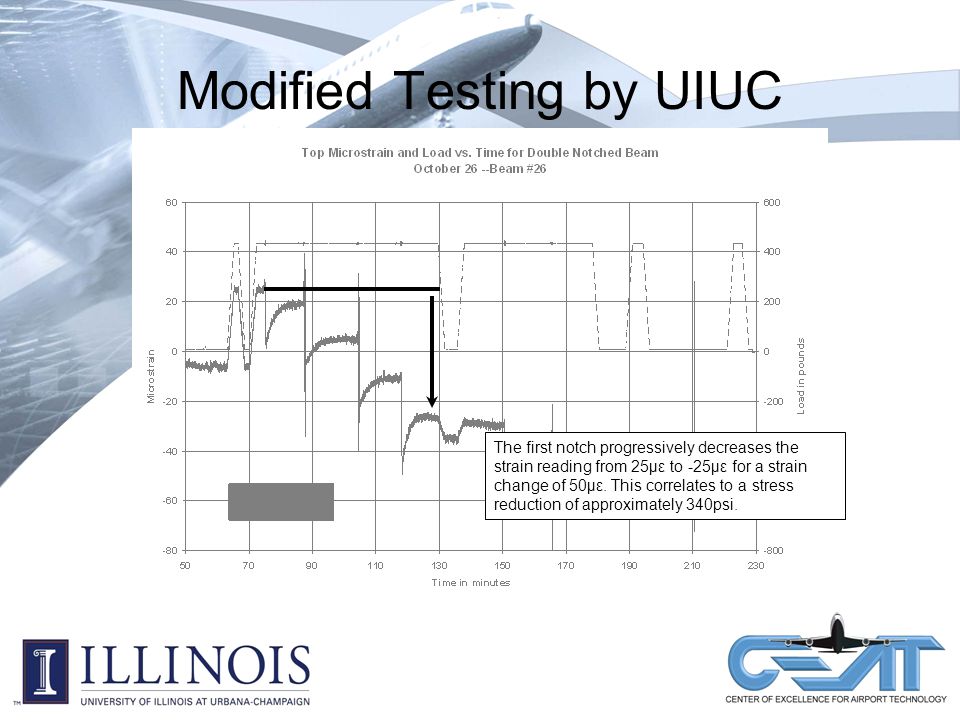

19 Modified Testing by UIUC The first notch progressively decreases the strain reading from 25με to -25με for a strain change of 50με. This correlates to a stress reduction of approximately 340psi.

20 Modified Testing by UIUC The second notch progressively decreases the strain reading from -25με to -40με for an additional strain change of 15με. This correlates to a stress reduction of approximately 102psi.

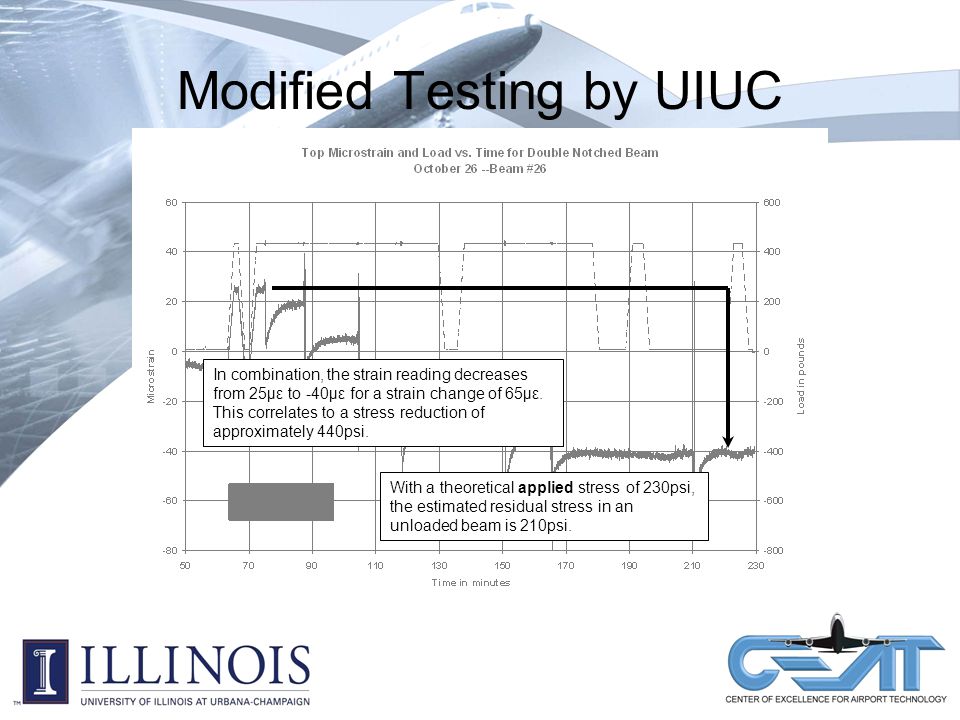

21 Modified Testing by UIUC In combination, the strain reading decreases from 25με to -40με for a strain change of 65με. This correlates to a stress reduction of approximately 440psi. With a theoretical applied stress of 230psi, the estimated residual stress in an unloaded beam is 210psi.

22 Modified Testing by UIUC As the load is removed and applied, there is no response in the concrete beam suggesting that full isolation has been accomplished.

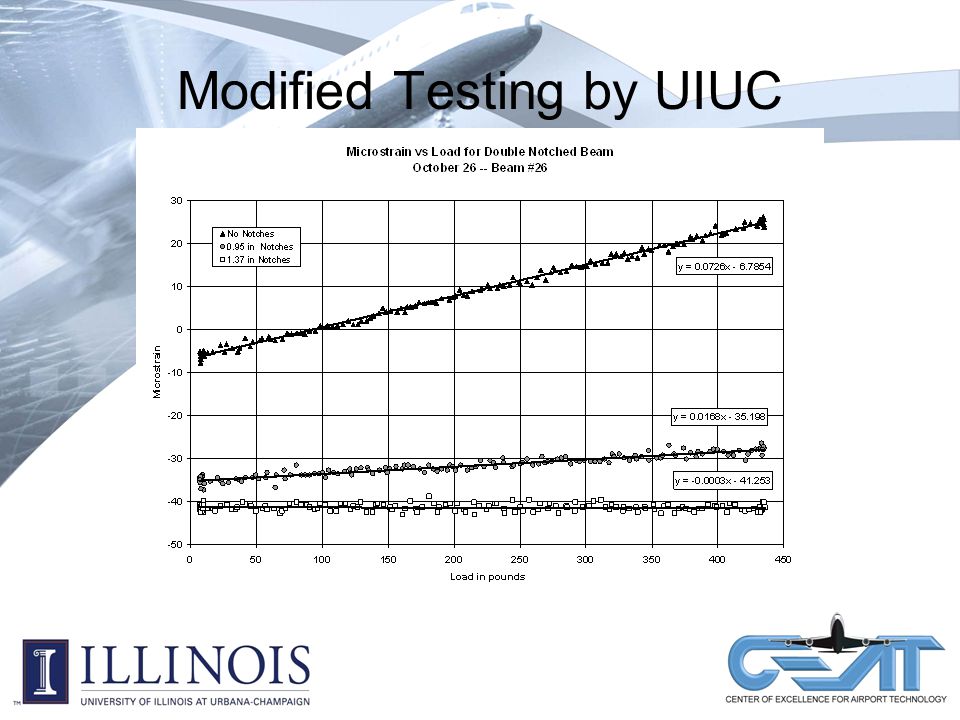

23 Modified Testing by UIUC

24 Validation Testing by UIUC The load-strain response of the concrete beam is diminished as the depth of the notch is increased. For a doubly notched beam, a flat, non-responsive line is observed indicating full relaxation of stresses.

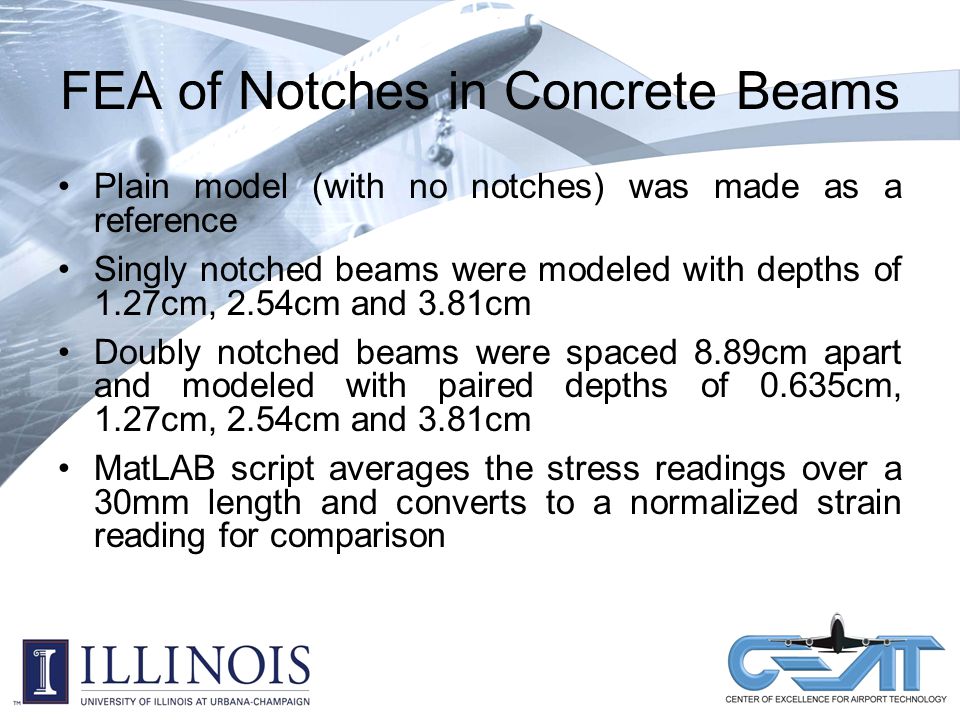

25 FEA of Notches in Concrete Beams Plain model (with no notches) was made as a reference Singly notched beams were modeled with depths of 1.27cm, 2.54cm and 3.81cm Doubly notched beams were spaced 8.89cm apart and modeled with paired depths of 0.635cm, 1.27cm, 2.54cm and 3.81cm MatLAB script averages the stress readings over a 30mm length and converts to a normalized strain reading for comparison

26 FEA of Notches in Concrete Beams Good agreement between theoretical strain values and experiment strain values Full relaxation of strains occurs when… –Higher ratios give worse results with small compressive stresses created in the strain gage area

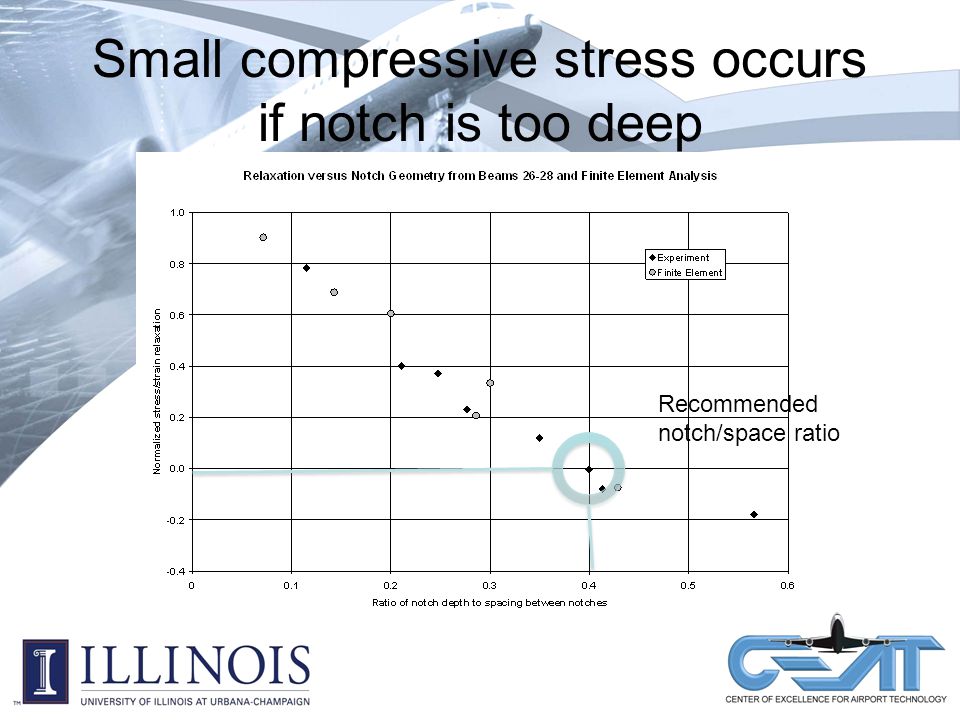

27 Small compressive stress occurs if notch is too deep Recommended notch/space ratio

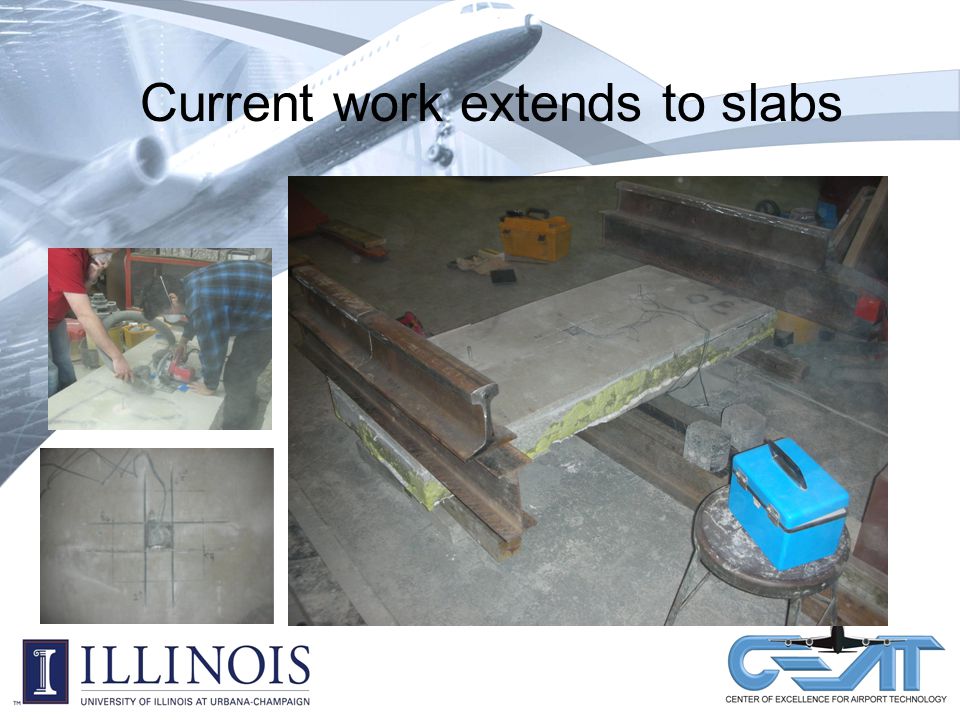

28 Current work extends to slabs

29 Conclusions “An elegant solution” Measuring residual stress by saw notching is effective and simple to implement Full-scale slab tests are encouraging Goal is to develop new ASTM test method
