1
Assumptions

2
“Essentially, all models are wrong, but some are useful” George E.P. Box Your model has to be wrong… … but that’s o.k. if it’s illuminating!

3
Linear Model Assumptions Absence of Collinearity Normality of Errors Homoskedasticity of Errors No influential data points Independence

4

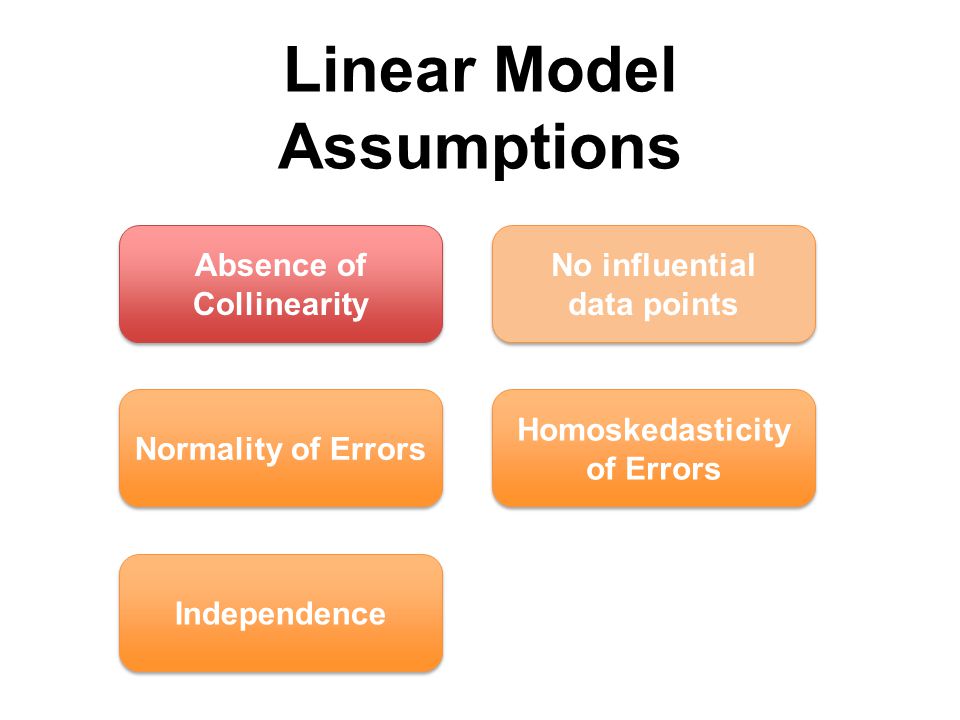

Linear Model Assumptions Absence of Collinearity Normality of Errors Homoskedasticity of Errors No influential data points Independence

5
Absence of Collinearity Baayen (2008: 182)

6

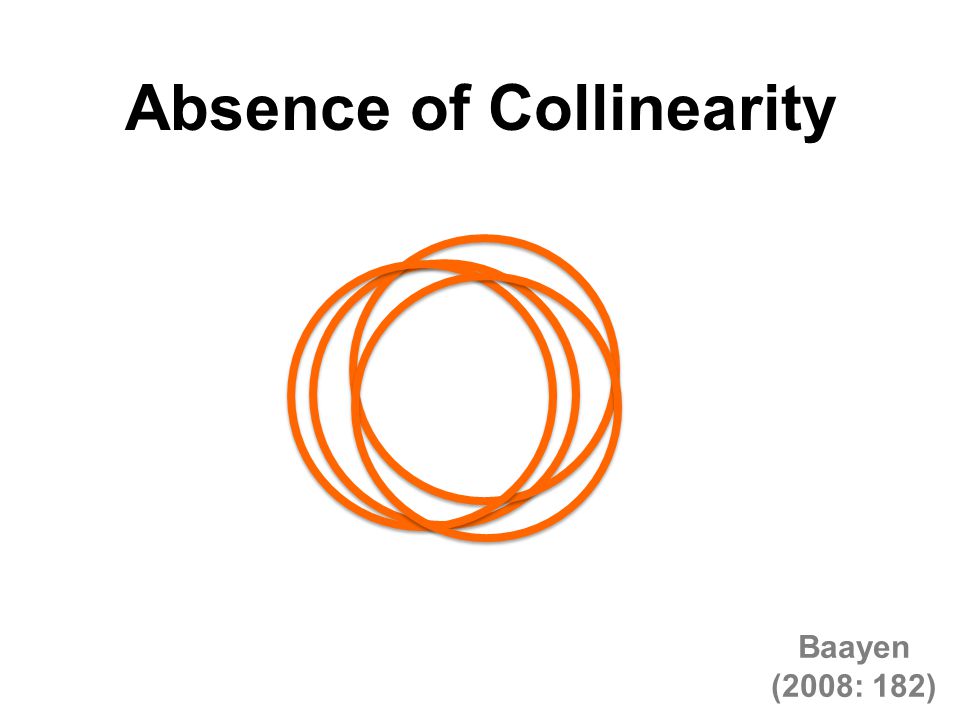

Absence of Collinearity Baayen (2008: 182)

7
Where does collinearity come from? …most often, correlated predictor variables Demo

8

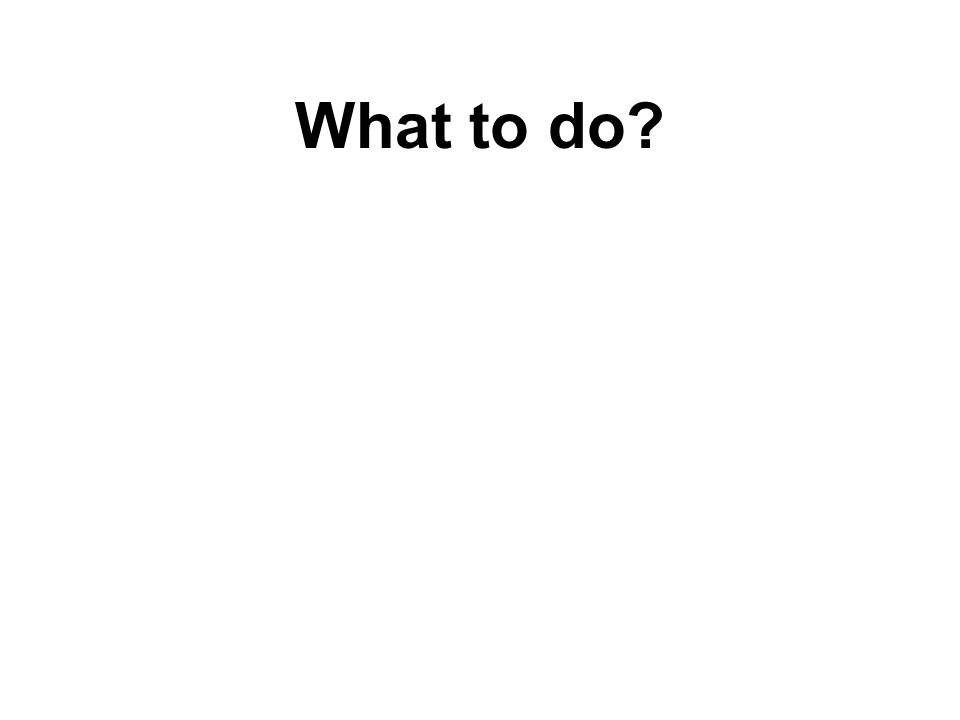

What to do?

9

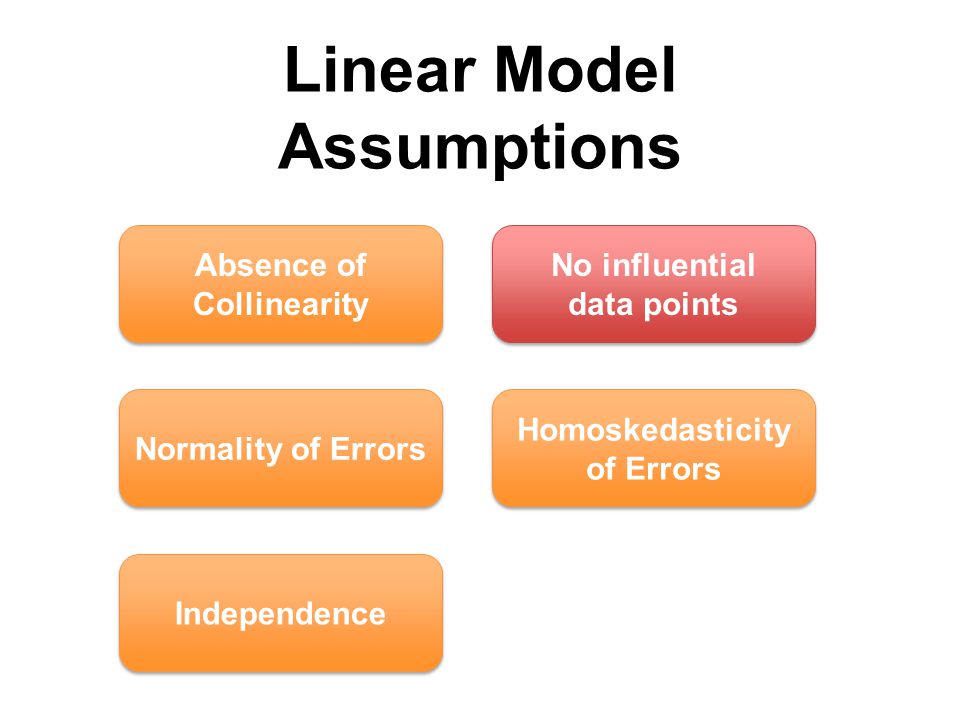

Linear Model Assumptions Absence of Collinearity Normality of Errors Homoskedasticity of Errors No influential data points Independence

10
Baayen (2008: 189-190)

15
DFbeta (…and much more) Leave-one-out Influence Diagnostics

16

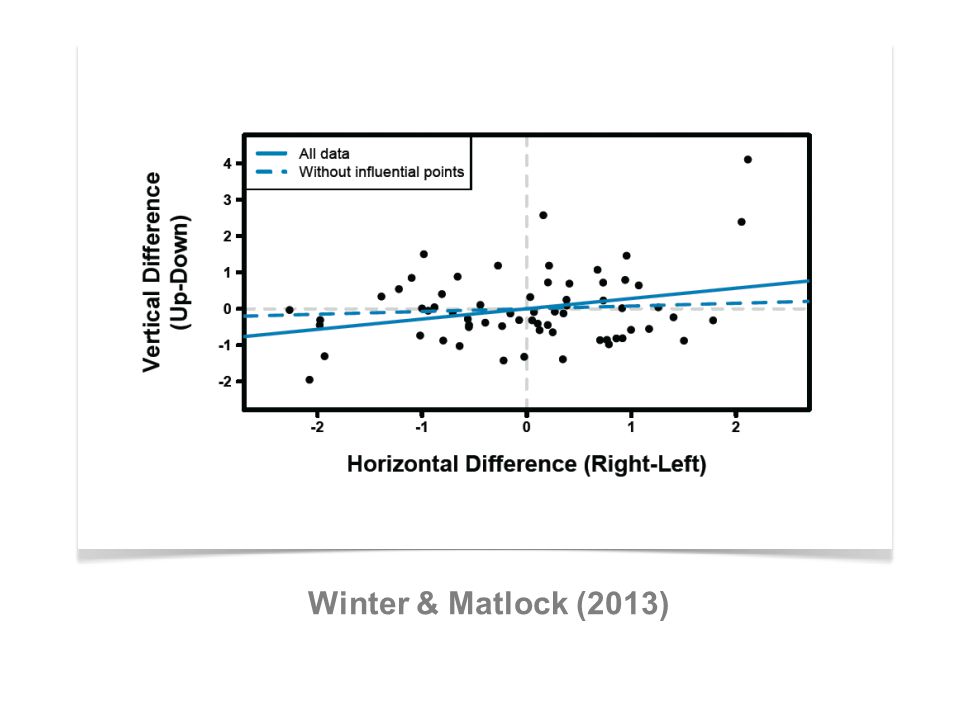

Winter & Matlock (2013)

17
Linear Model Assumptions Absence of Collinearity Normality of Errors Homoskedasticity of Errors No influential data points Independence

18
Normality of Error The error (not the data!) is assumed to be normally distributed So, the residuals should be normally distributed

19
xmdl = lm(y ~ x) hist(residuals(xmdl)) ✔

20

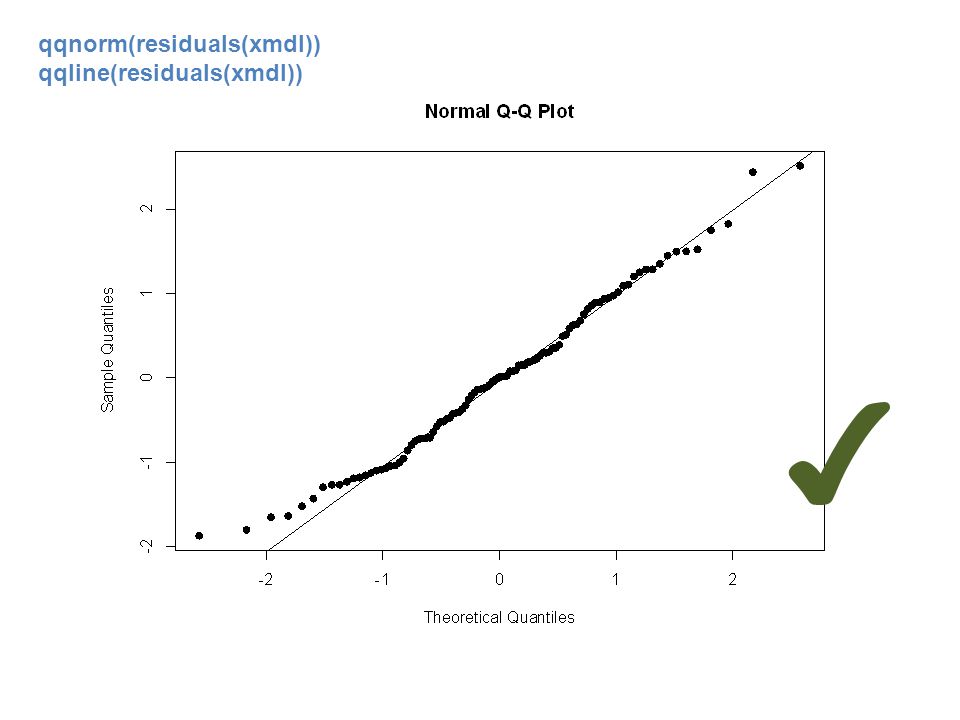

qqnorm(residuals(xmdl)) qqline(residuals(xmdl)) ✔

21
qqnorm(residuals(xmdl)) qqline(residuals(xmdl)) ✗

22

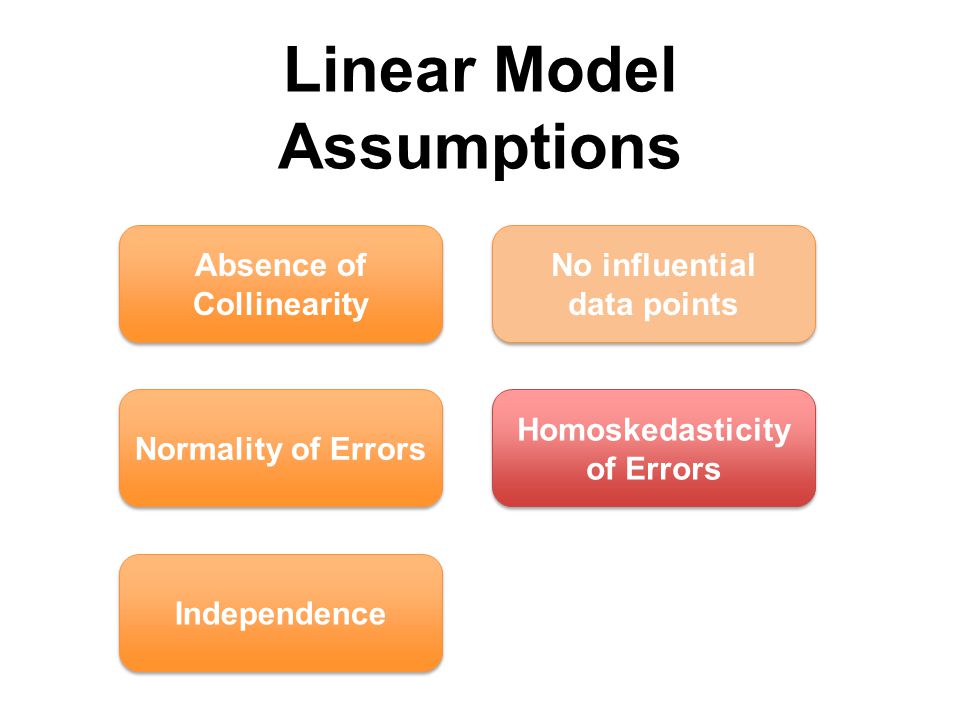

Linear Model Assumptions Absence of Collinearity Normality of Errors Homoskedasticity of Errors No influential data points Independence

23

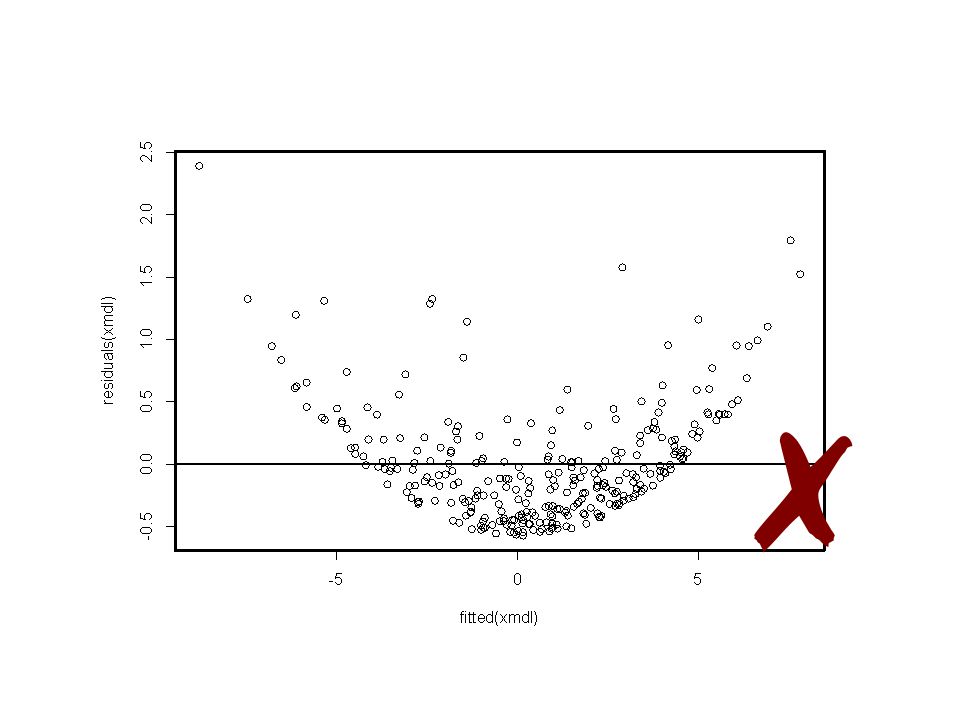

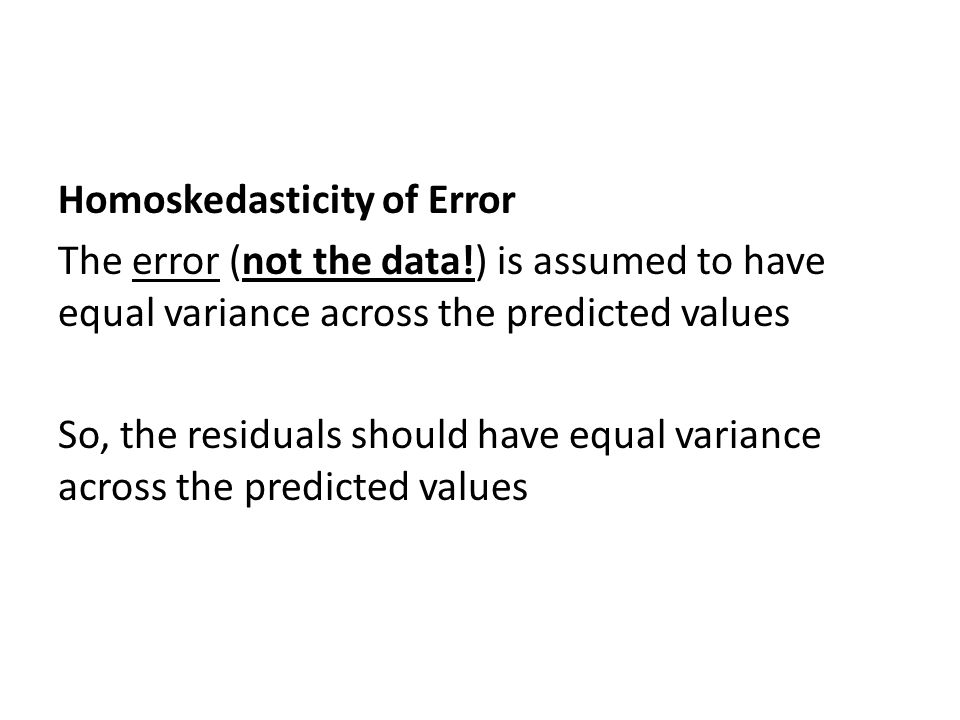

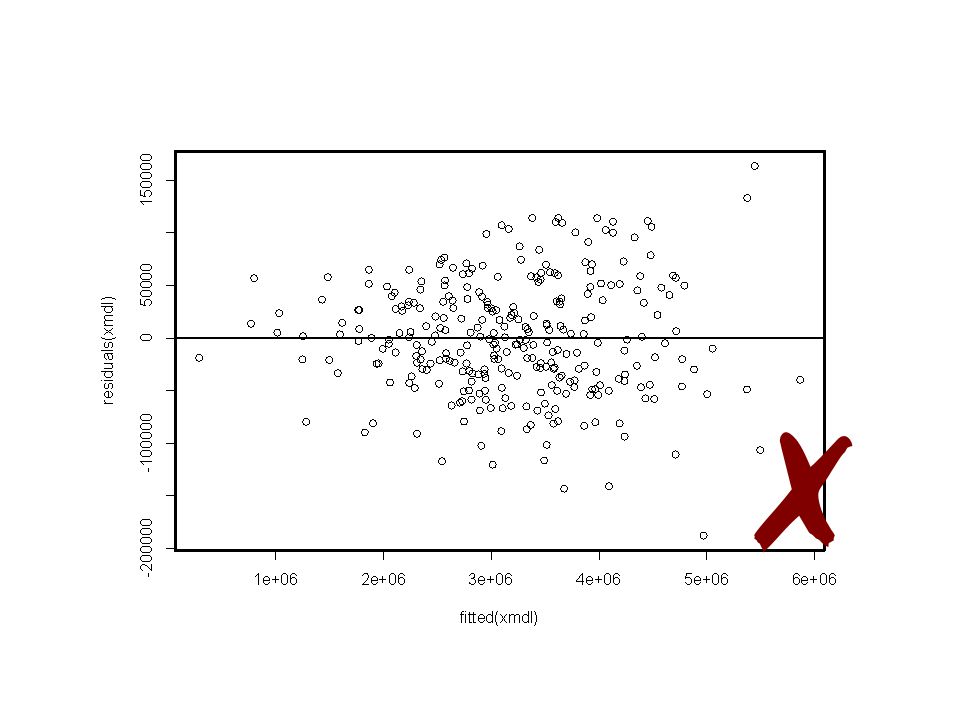

Homoskedasticity of Error The error (not the data!) is assumed to have equal variance across the predicted values So, the residuals should have equal variance across the predicted values

25
✔

26
✗

27
✗

28
WHAT TO IF NORMALITY/HOMOSKEDASTI CITY IS VIOLATED? Either: nothing + report the violation Or: report the violation + transformations

29

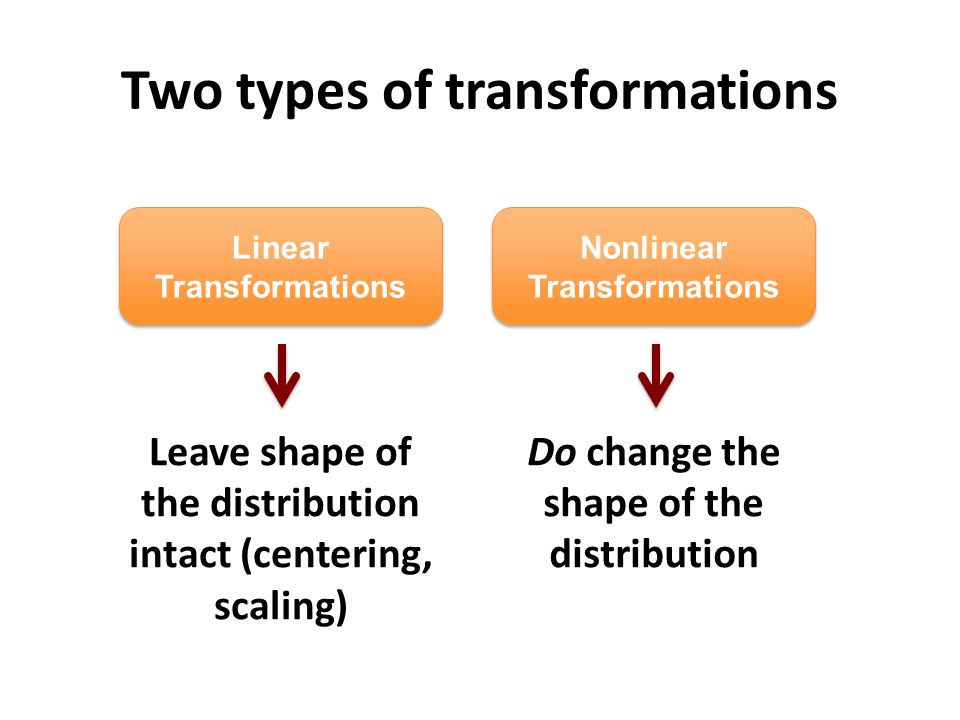

Two types of transformations Linear Transformations Nonlinear Transformations Leave shape of the distribution intact (centering, scaling) Do change the shape of the distribution

32
Before transformation

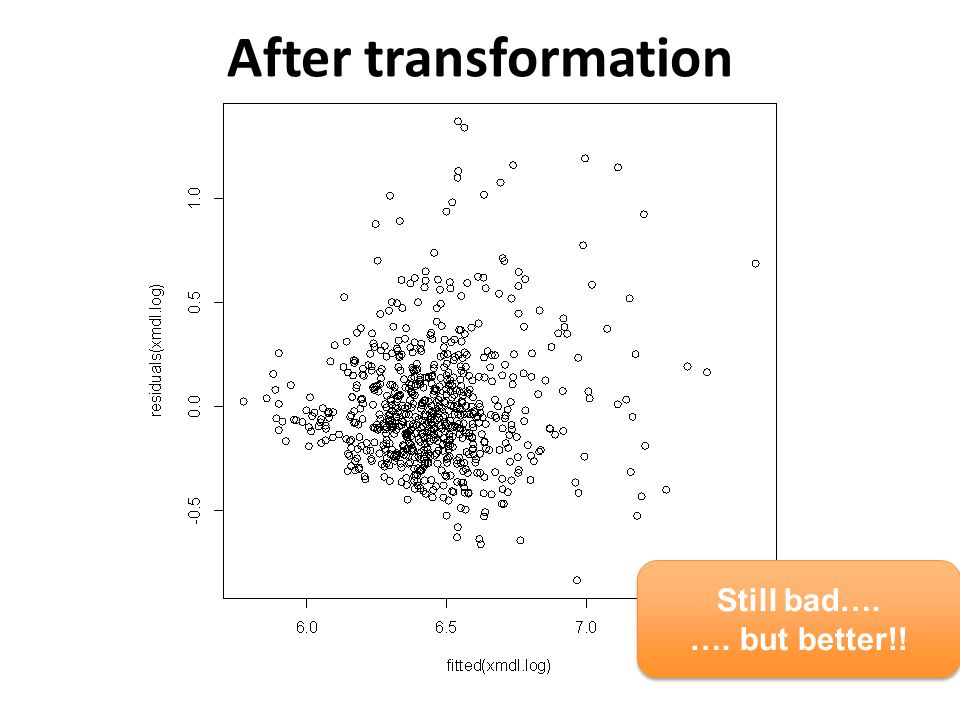

33
After transformation Still bad…. …. but better!! Still bad…. …. but better!!

34

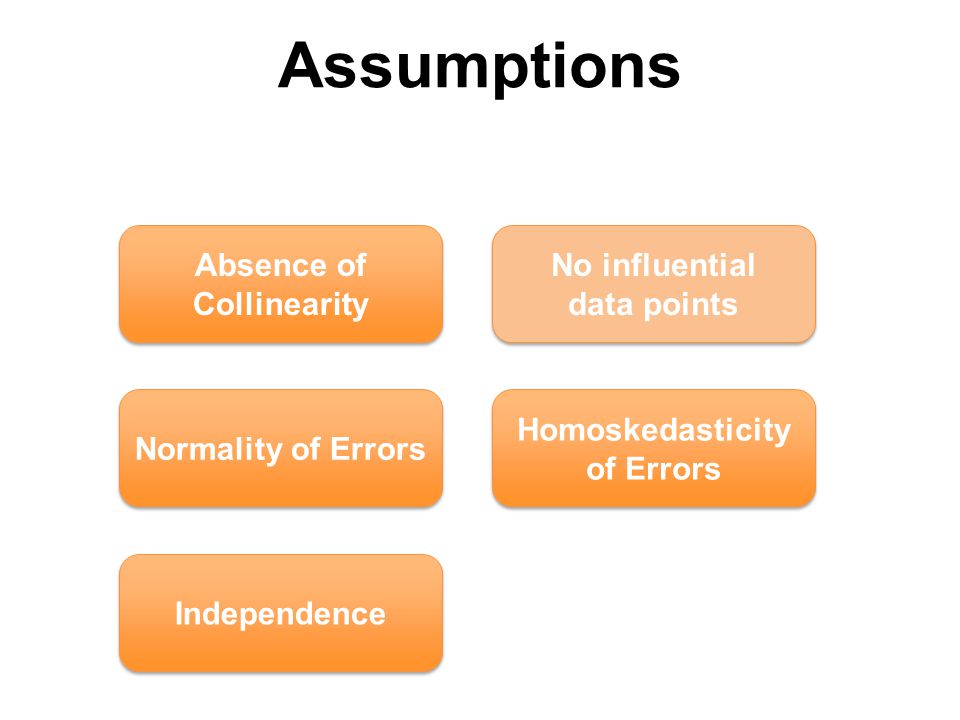

Assumptions Absence of Collinearity Normality of Errors Homoskedasticity of Errors No influential data points Independence

35
Normality of Errors Homoskedasticity of Errors (Histogram of Residuals) Q-Q plot of Residuals Residual Plot Assumptions

36
Absence of Collinearity No influential data points Independence Normality of Errors Homoskedasticity of Errors Assumptions

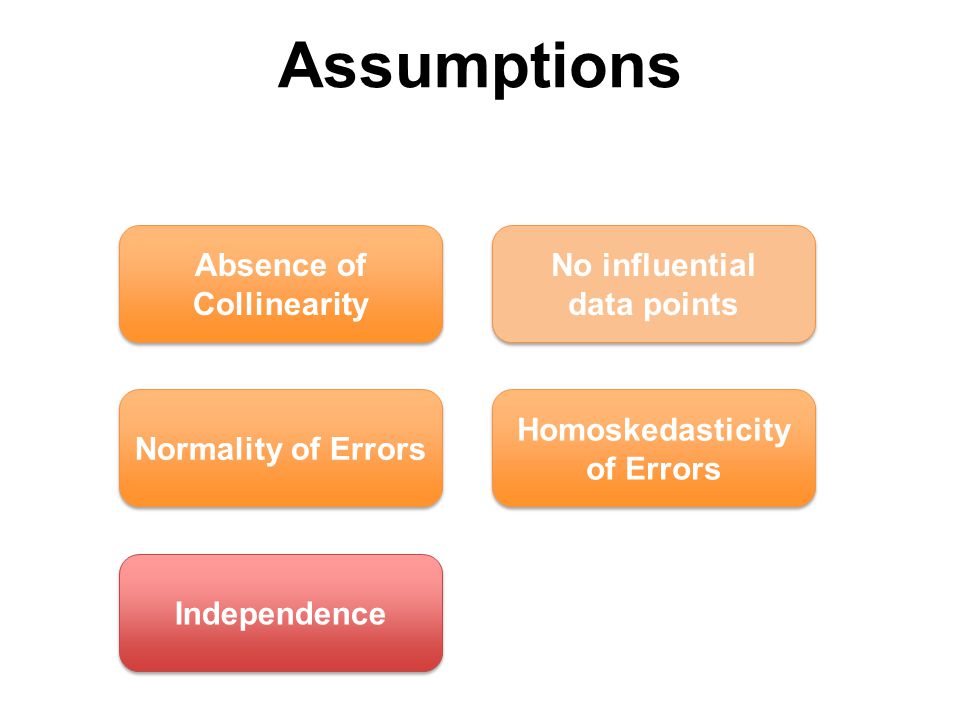

37
Absence of Collinearity Normality of Errors Homoskedasticity of Errors No influential data points Independence Assumptions

39
What is independence?

40

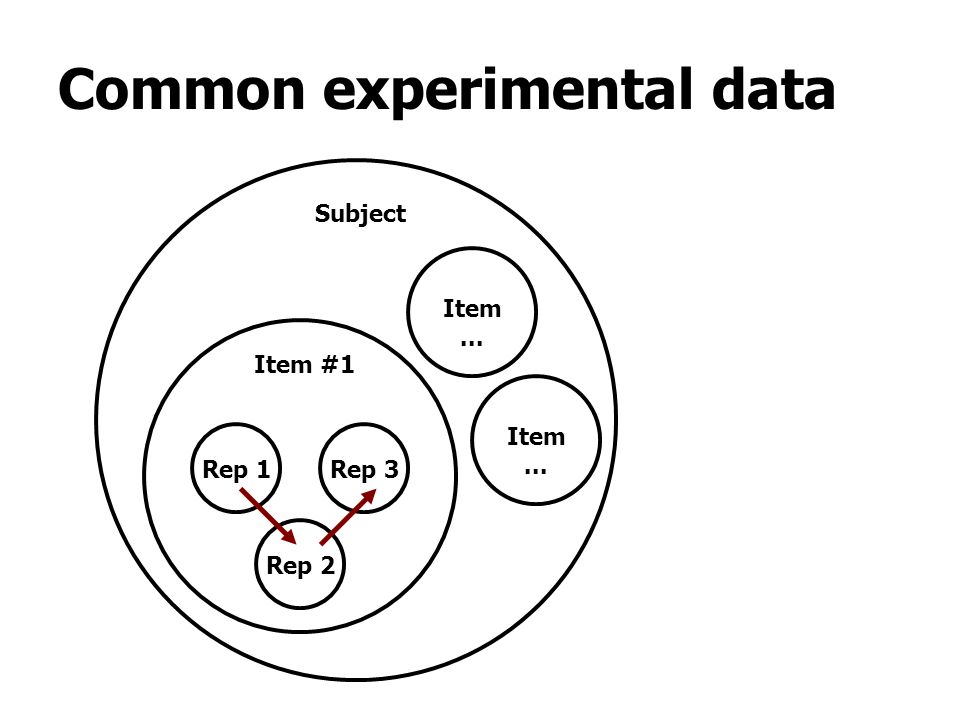

Rep 1 Rep 2 Rep 3 Item #1 Subject Common experimental data Item...

41

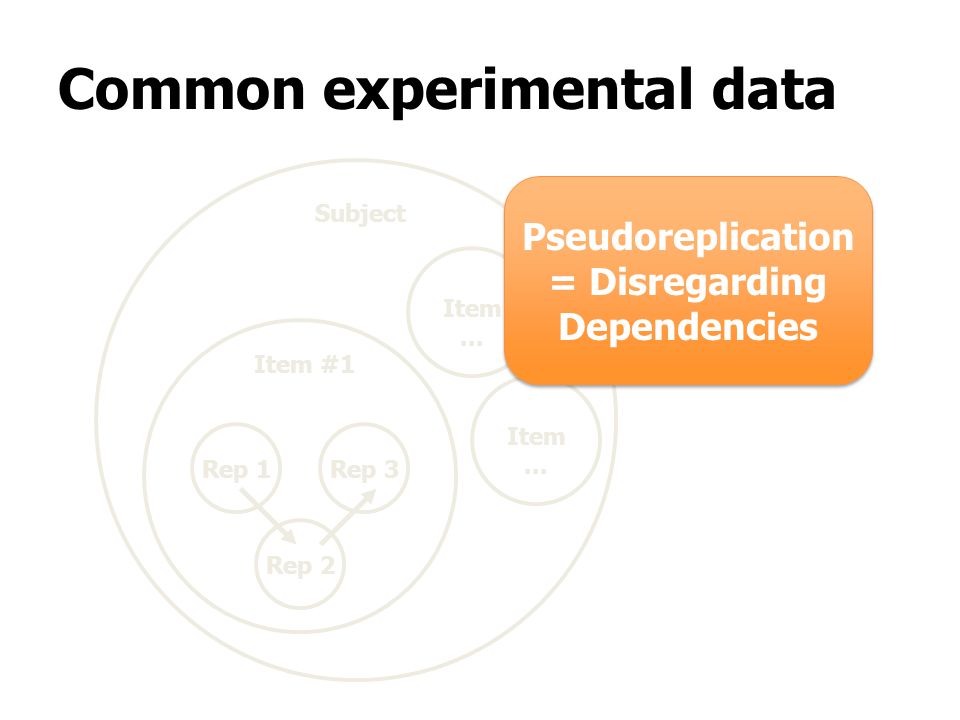

Rep 1 Rep 2 Rep 3 Item #1 Subject Common experimental data Pseudoreplication = Disregarding Dependencies Pseudoreplication = Disregarding Dependencies Item...

42

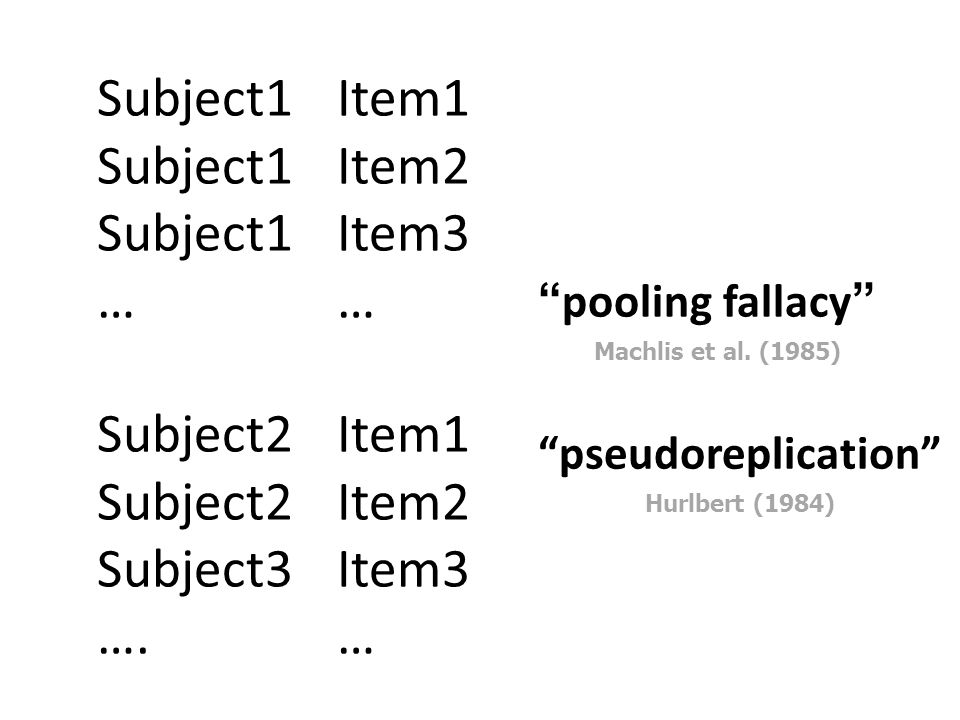

Subject1Item1 Subject1Item2 Subject1Item3… Subject2Item1 Subject2Item2 Subject3Item3 ….… Machlis et al. (1985) “ pooling fallacy ” Hurlbert (1984) “pseudoreplication”

43

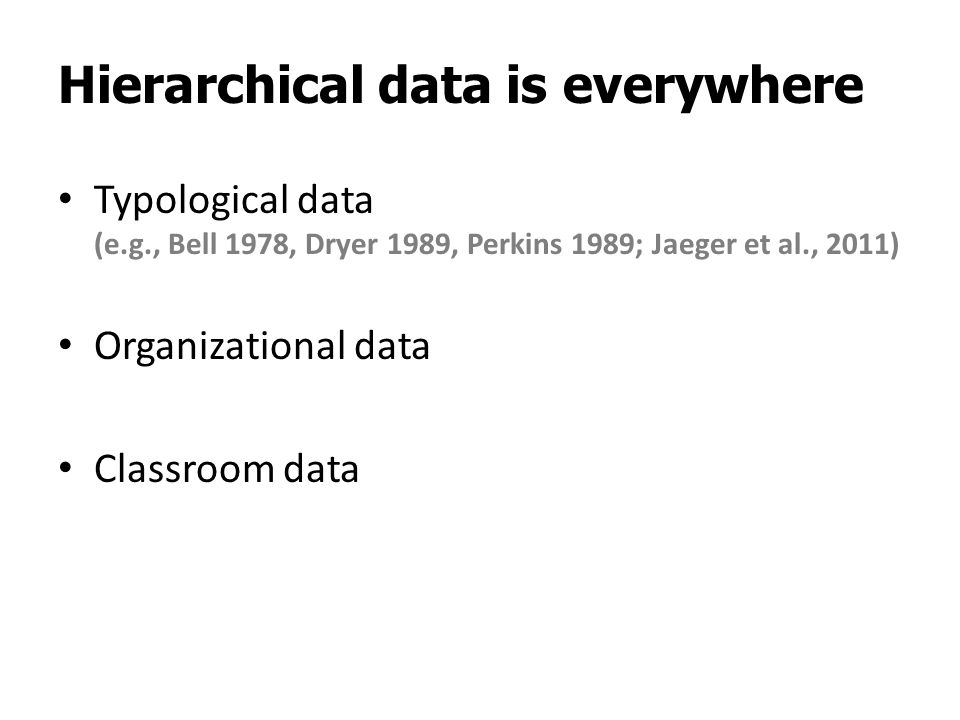

Hierarchical data is everywhere Typological data (e.g., Bell 1978, Dryer 1989, Perkins 1989; Jaeger et al., 2011) Organizational data Classroom data

44

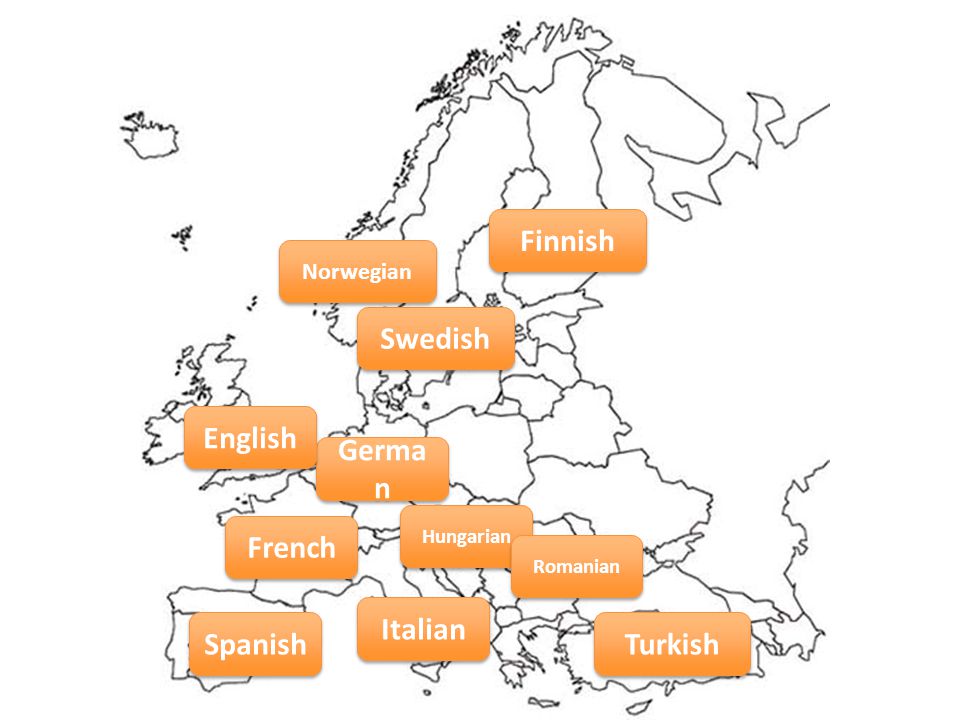

Germa n French English Spanish Italian Swedish Norwegian Finnish Hungarian Turkish Romanian

45
Germa n French English Spanish Italian Swedish Norwegian Finnish Hungarian Turkish Romanian

46

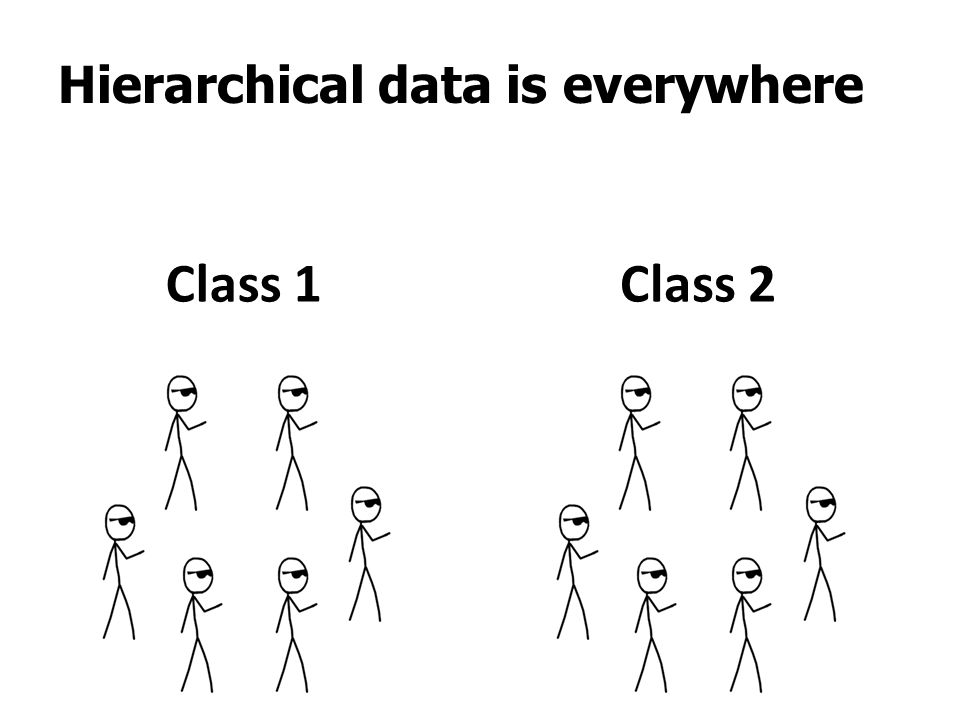

Class 1Class 2 Hierarchical data is everywhere

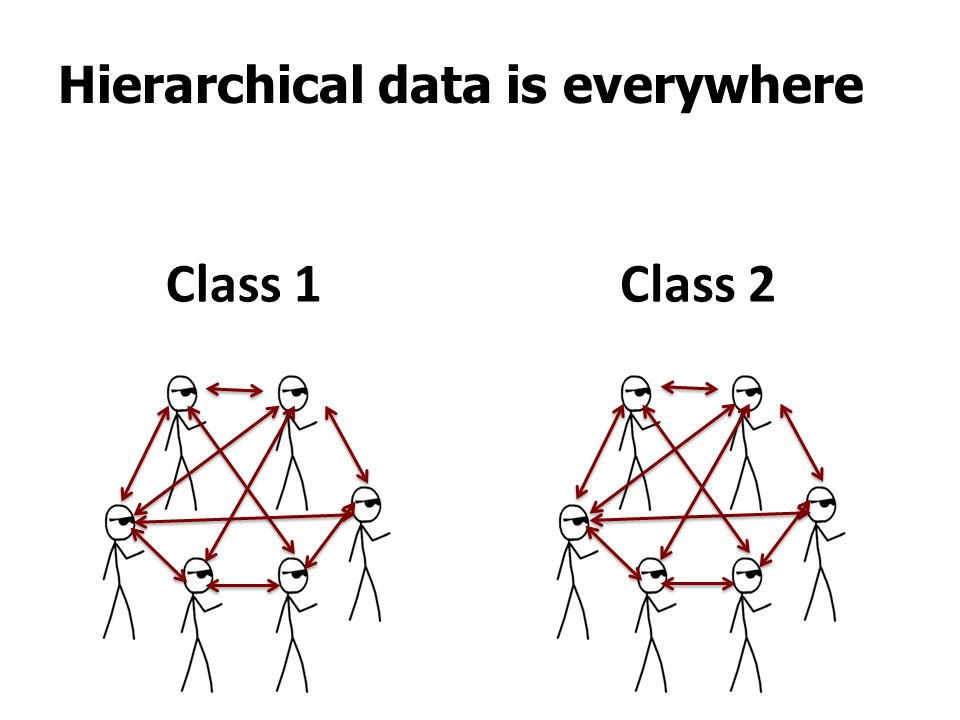

47
Class 1Class 2 Hierarchical data is everywhere

48
Class 1Class 2 Hierarchical data is everywhere

50

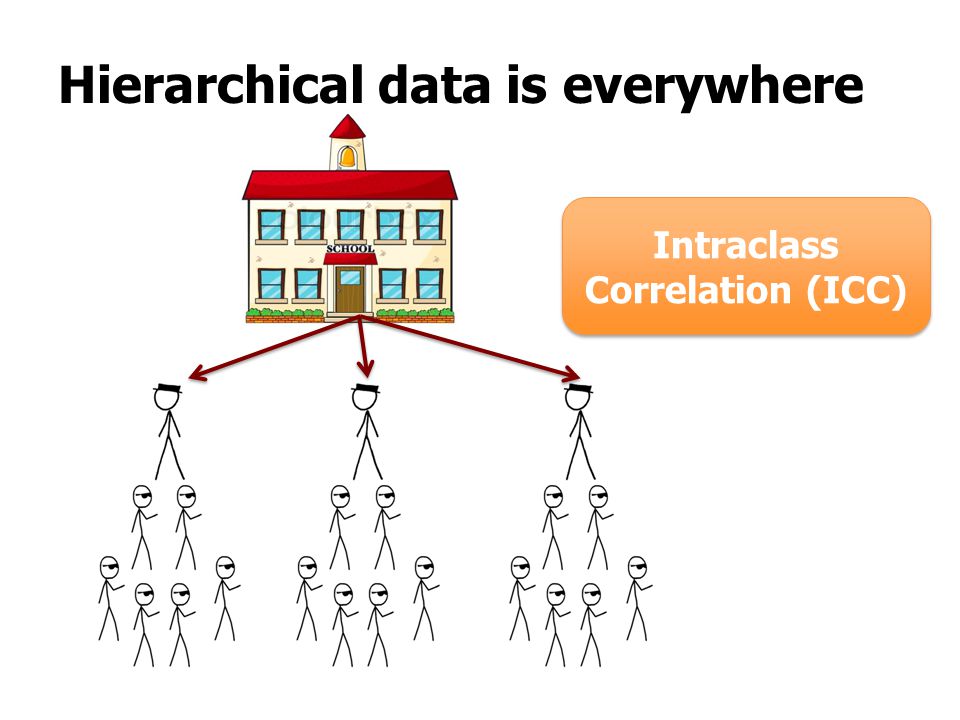

Intraclass Correlation (ICC) Hierarchical data is everywhere

51
Simulation for 16 subjects pseudoreplication items analysis Type I error rate

52
Interpretational Problem: What’s the population for inference? Interpretational Problem: What’s the population for inference?

53
Violating the independence assumption makes the p-value… …meaningless

54
S1 S2

55
S1 S2

56

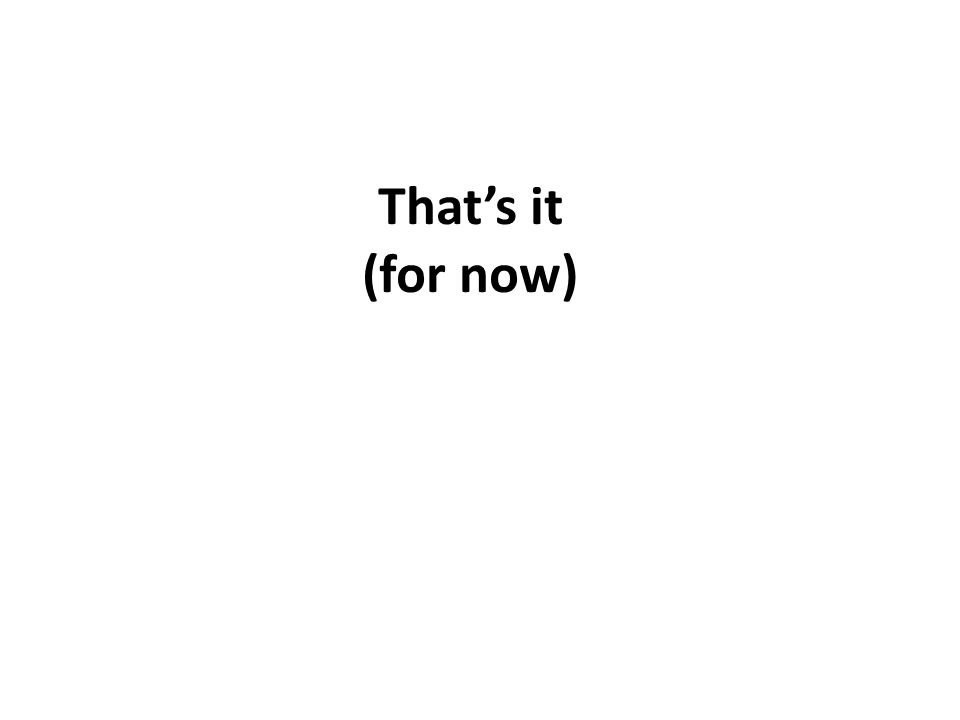

That’s it (for now)
