CS 330 Programming Languages 09 / 27 / 2007 Instructor: Michael Eckmann

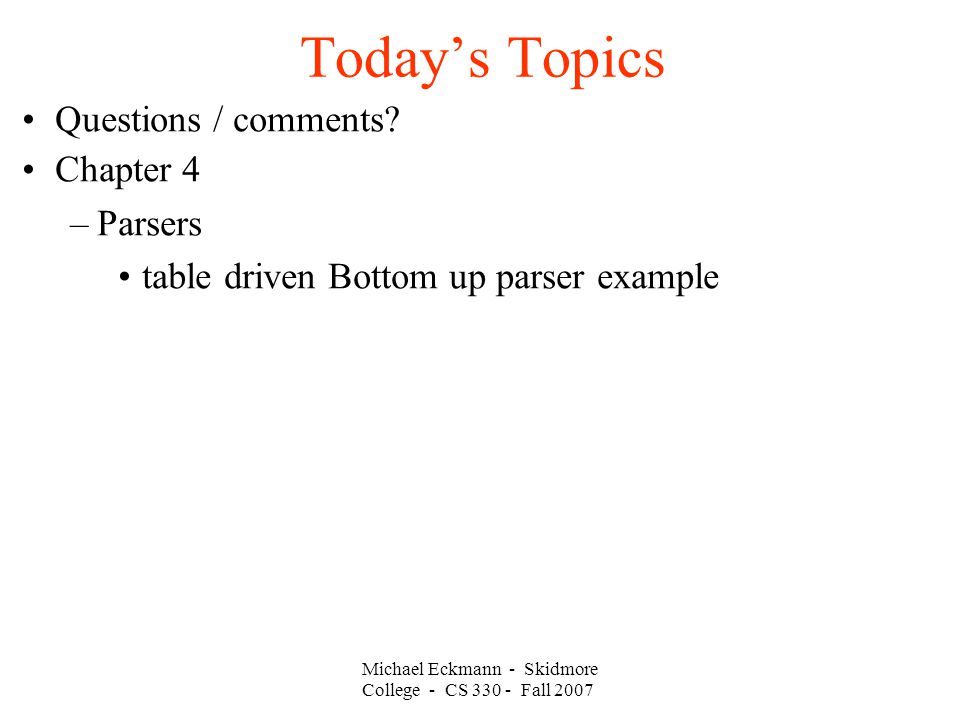

Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Today’s Topics Questions / comments? Chapter 4 –Parsers table driven Bottom up parser example

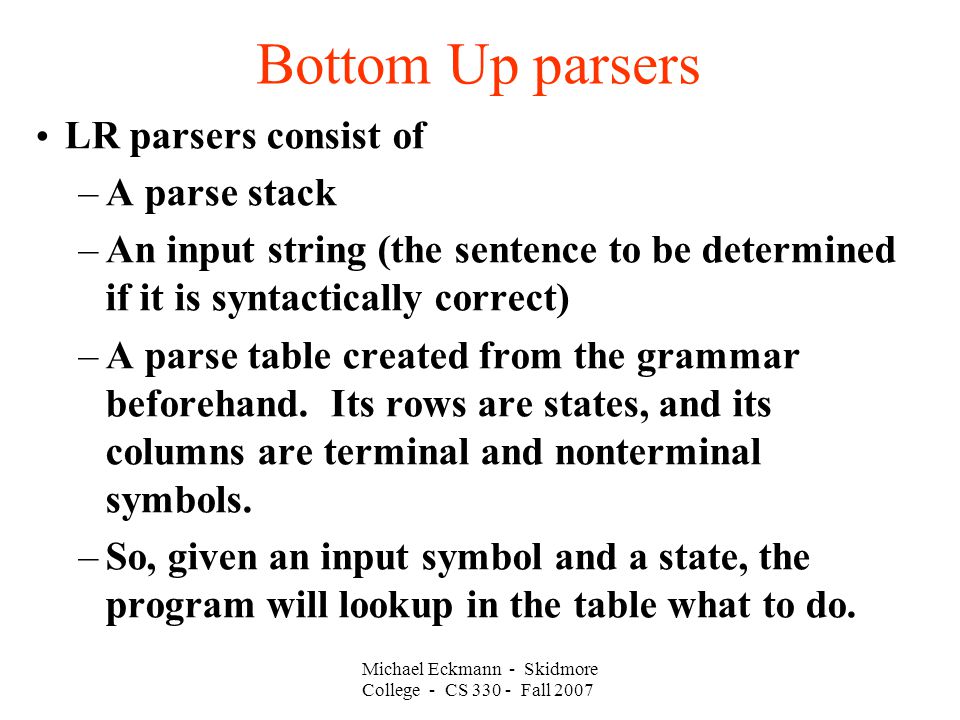

Bottom Up parsers Michael Eckmann - Skidmore College - CS 330 - Fall 2007 LR parsers consist of –A parse stack –An input string (the sentence to be determined if it is syntactically correct) –A parse table created from the grammar beforehand. Its rows are states, and its columns are terminal and nonterminal symbols. –So, given an input symbol and a state, the program will lookup in the table what to do.

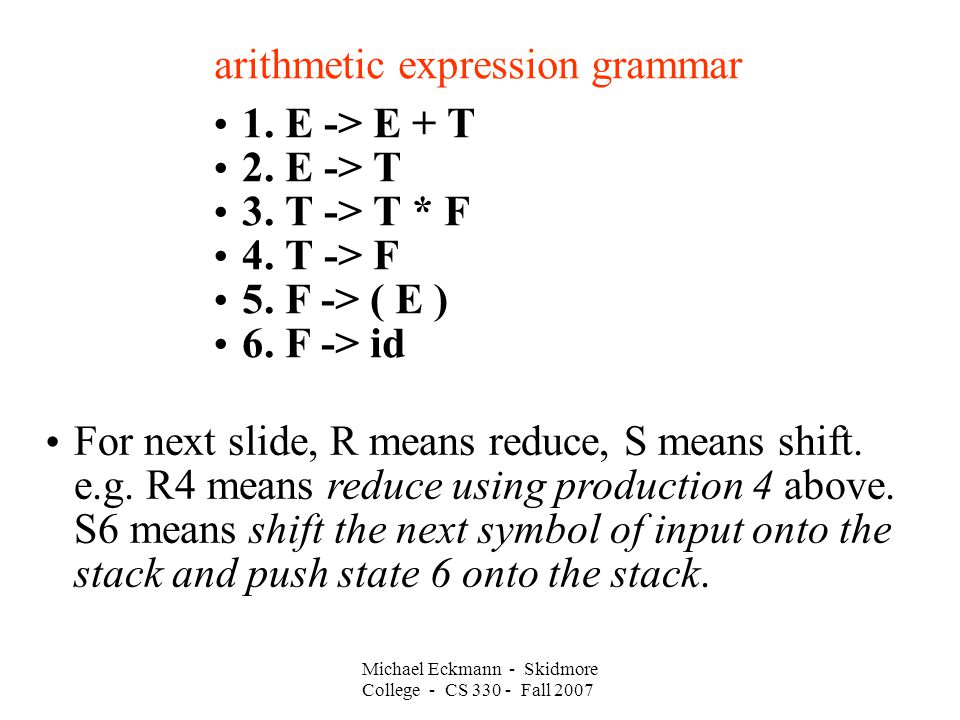

arithmetic expression grammar Michael Eckmann - Skidmore College - CS 330 - Fall 2007 1. E -> E + T 2. E -> T 3. T -> T * F 4. T -> F 5. F -> ( E ) 6. F -> id For next slide, R means reduce, S means shift. e.g. R4 means reduce using production 4 above. S6 means shift the next symbol of input onto the stack and push state 6 onto the stack.

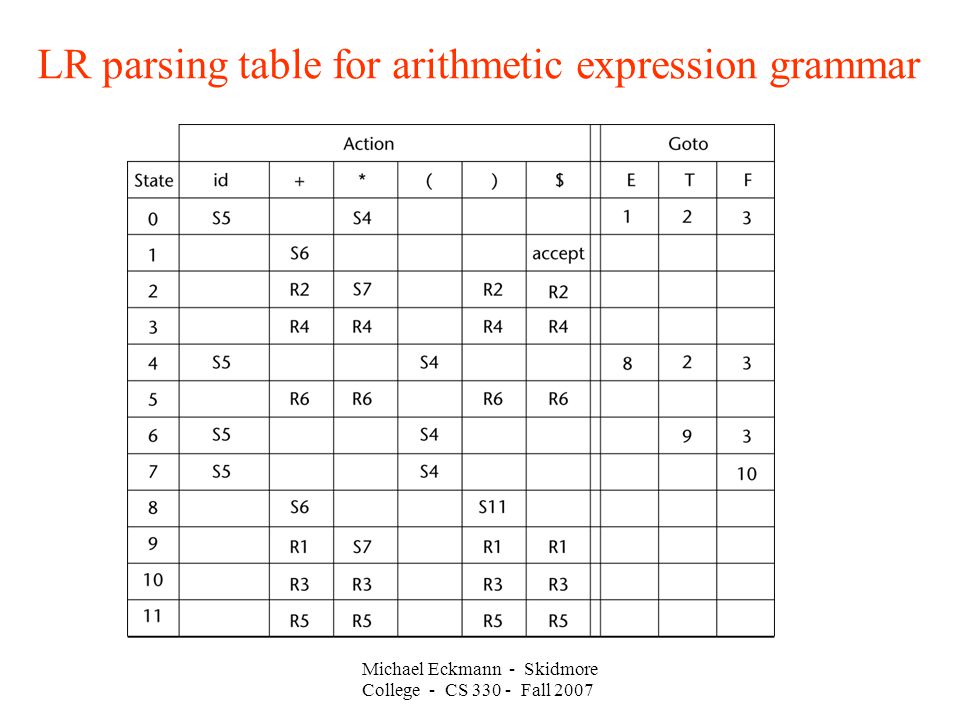

LR parsing table for arithmetic expression grammar Michael Eckmann - Skidmore College - CS 330 - Fall 2007

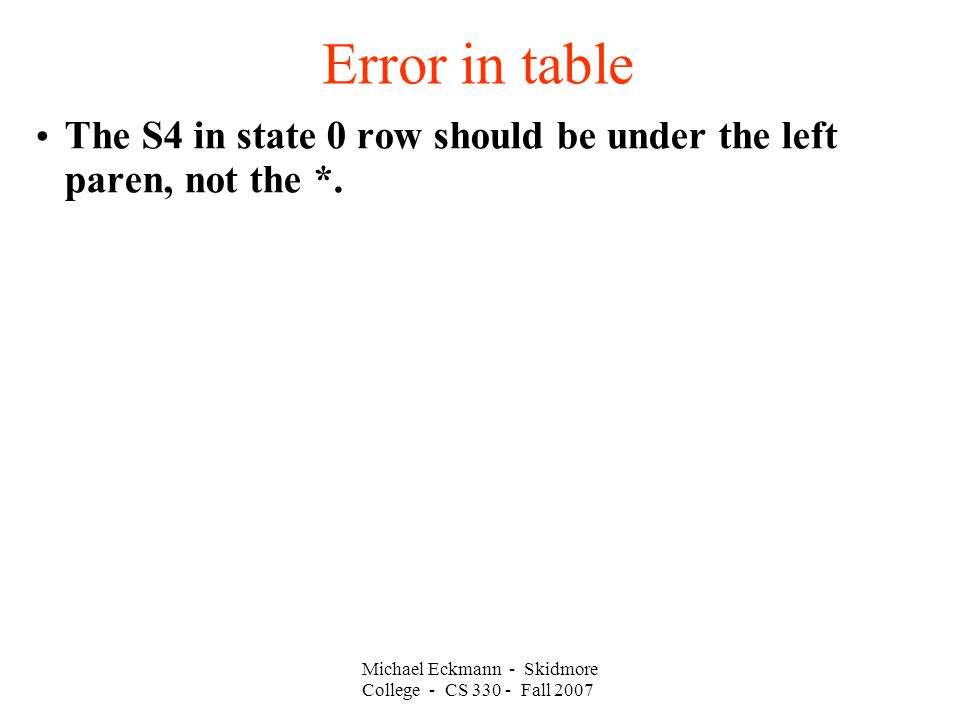

Error in table Michael Eckmann - Skidmore College - CS 330 - Fall 2007 The S4 in state 0 row should be under the left paren, not the *.

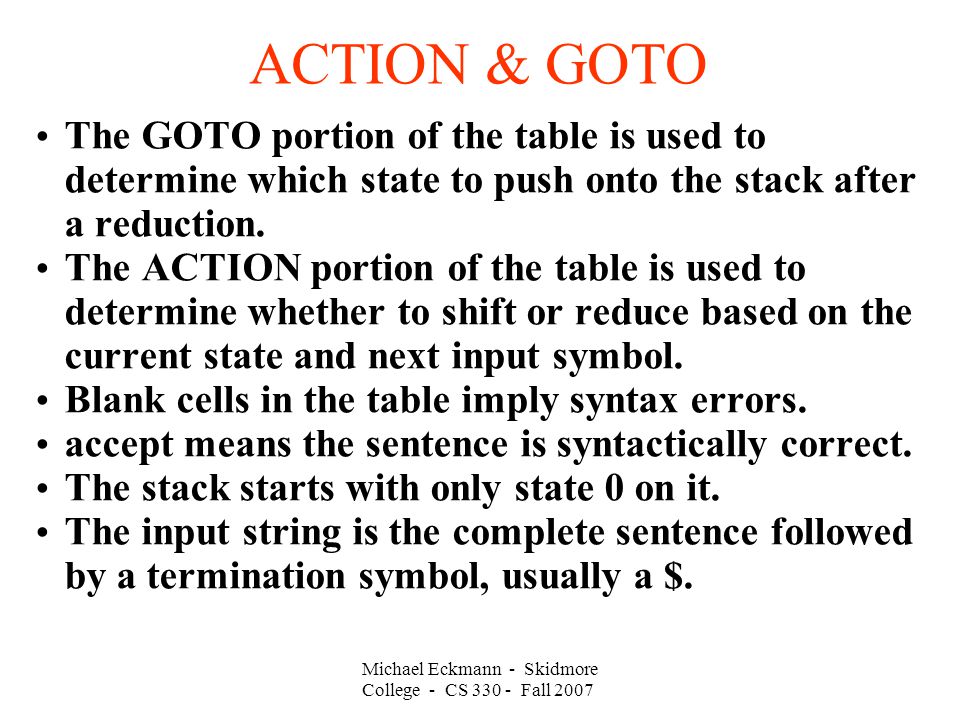

ACTION & GOTO Michael Eckmann - Skidmore College - CS 330 - Fall 2007 The GOTO portion of the table is used to determine which state to push onto the stack after a reduction. The ACTION portion of the table is used to determine whether to shift or reduce based on the current state and next input symbol. Blank cells in the table imply syntax errors. accept means the sentence is syntactically correct. The stack starts with only state 0 on it. The input string is the complete sentence followed by a termination symbol, usually a \$.

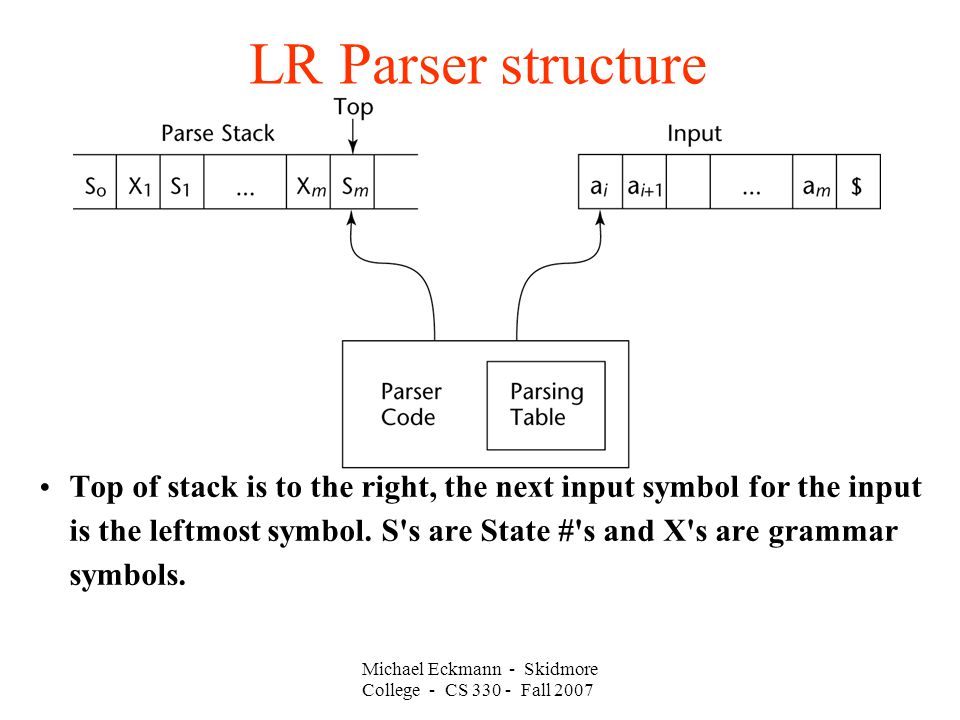

LR Parser structure Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Top of stack is to the right, the next input symbol for the input is the leftmost symbol. S's are State #'s and X's are grammar symbols.

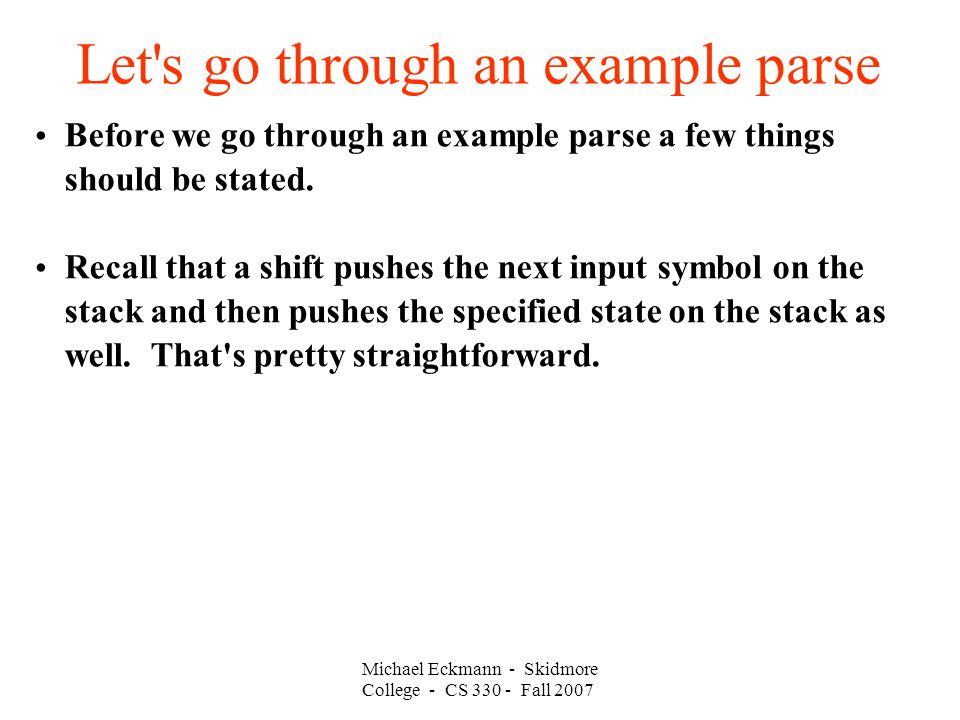

Let's go through an example parse Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Before we go through an example parse a few things should be stated. Recall that a shift pushes the next input symbol on the stack and then pushes the specified state on the stack as well. That's pretty straightforward.

Let's go through an example parse Michael Eckmann - Skidmore College - CS 330 - Fall 2007 A reduce is more complex. When a reduce occurs, 1. the handle (the whole RHS) is popped off the stack (along with each state per symbol in the handle) 2. then the LHS is pushed onto the stack 3. followed by another state pushed onto the stack. The state to be pushed is determined by the GOTO portion of the parse table. –column is the LHS just pushed –row is the state that was on the top of the stack after the handle and it's associated states were popped.

Let's go through an example parse Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Now we're ready to go through an example. We'll determine if id + id * id is syntactically correct for the example grammar a few slides ago. We'll do this by viewing the table on screen and I'll show the stack and input and action on the board. Also, I'll write on the board what happens during a shift and a reduce.

Let's go through an example parse Michael Eckmann - Skidmore College - CS 330 - Fall 2007 How about we determine if ( id ) id + id is syntactically correct for the example grammar a few slides ago. We'll do this by viewing the table on screen and I'll show the stack and input and action on the board. Also, I'll write on the board what happens during a shift and a reduce.

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 You have two options Get Perl on your own machine. Download Perl (version 5.003 or higher.) –recommend ActivePerl from ActiveState for Mac OS and Windows –Perl is installed by default under most linuxes AND/OR Use the Linux machines in the Linux lab.

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Perl (developed by Larry Wall and many others) is a language that has as it's ancestors C, sed, awk and others. Sed is short for stream editor, awk is named for it's authors (of which K is for Kernighan famous for his work on C.) Sed and awk are good for pattern matching, editing and reporting on text files. Perl has these capabilities too. Some of Perl's syntax is C-like. PHP and JavaScript are “descendents” of Perl.

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 How it's going to be “taught” in this course. We're going to dive in and see a lot of stuff so you get a general overview of the language quickly. We will go in more depth later on several topics. I suggest you go through a tutorial with and learn from your peers. We will not learn all there is to know about Perl.

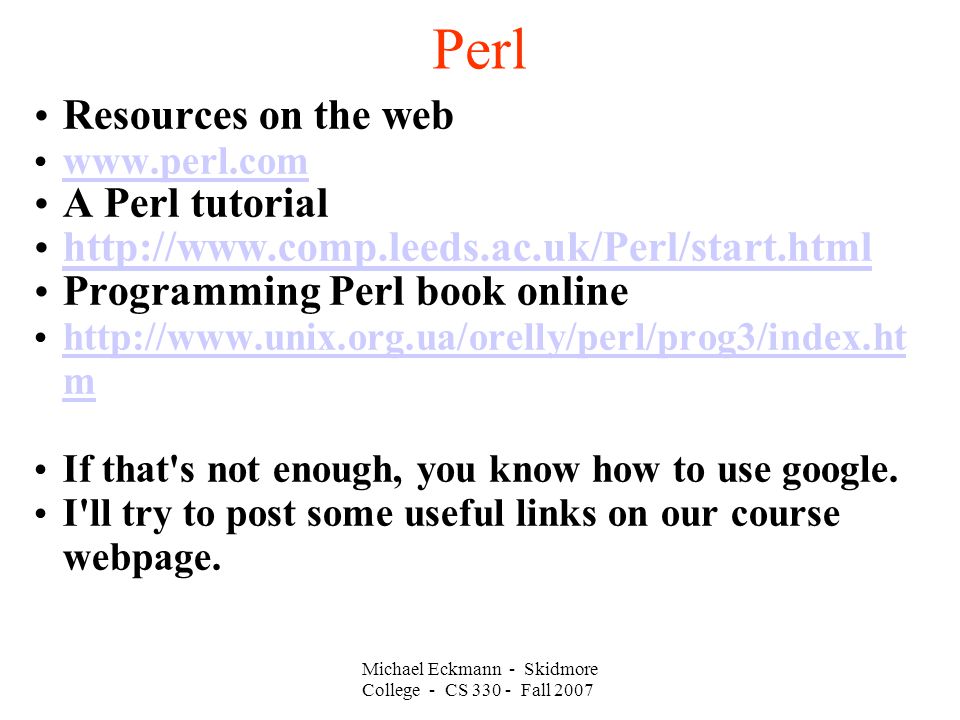

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Resources on the web www.perl.com A Perl tutorial http://www.comp.leeds.ac.uk/Perl/start.html Programming Perl book online http://www.unix.org.ua/orelly/perl/prog3/index.ht m http://www.unix.org.ua/orelly/perl/prog3/index.ht m If that's not enough, you know how to use google. I'll try to post some useful links on our course webpage.

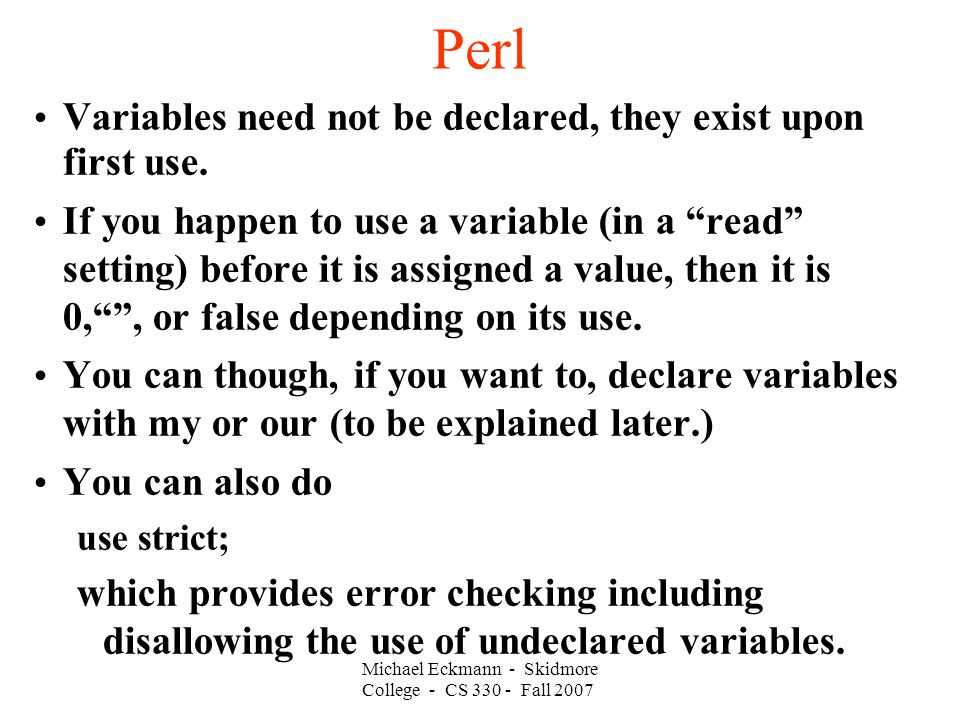

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Variables need not be declared, they exist upon first use. If you happen to use a variable (in a “read” setting) before it is assigned a value, then it is 0,“”, or false depending on its use. You can though, if you want to, declare variables with my or our (to be explained later.) You can also do use strict; which provides error checking including disallowing the use of undeclared variables.

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 –Scalars (hold a single value) Names start with a \$ –Arrays Names start with an @ –Hashes (keyed lists aka associative arrays) Names start with a % –Subroutines Names start with an &

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 More about hashes –They consist of pairs of data. The first in each pair is the key and the second is the value. –Values can be returned based on their keys. –We'll see an example in a couple of slides

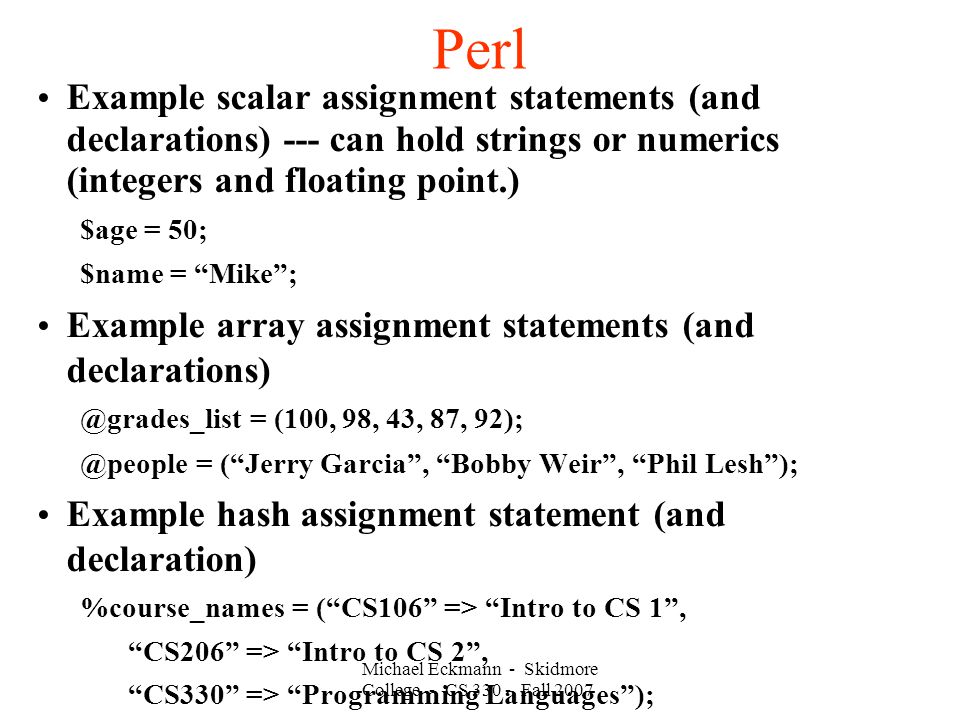

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Example scalar assignment statements (and declarations) --- can hold strings or numerics (integers and floating point.) \$age = 50; \$name = “Mike”; Example array assignment statements (and declarations) @grades_list = (100, 98, 43, 87, 92); @people = (“Jerry Garcia”, “Bobby Weir”, “Phil Lesh”); Example hash assignment statement (and declaration) %course_names = (“CS106” => “Intro to CS 1”, “CS206” => “Intro to CS 2”, “CS330” => “Programming Languages”);

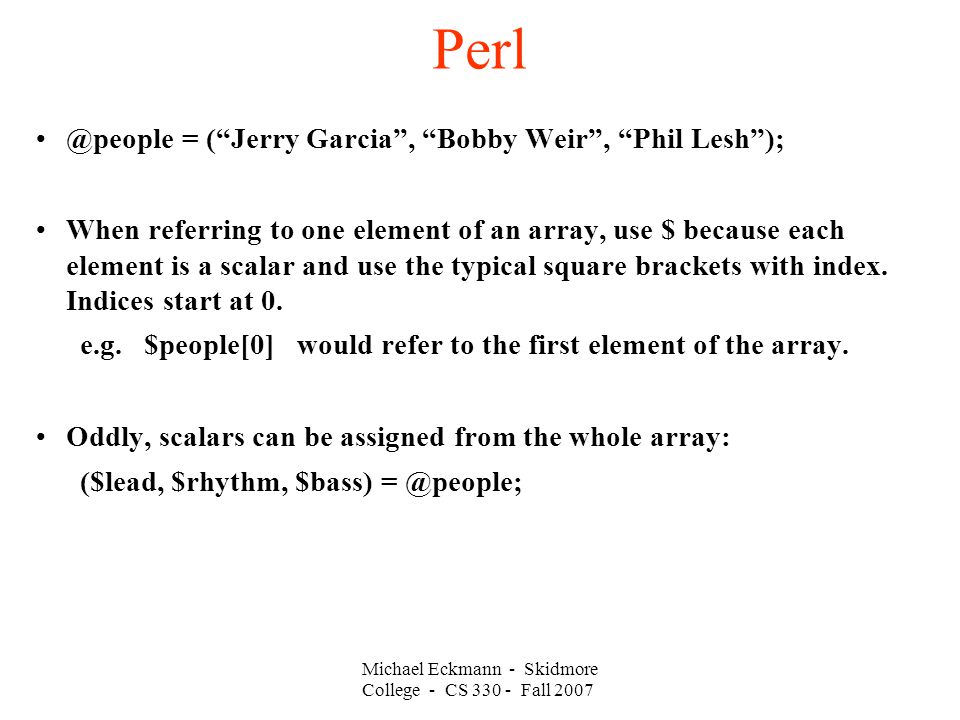

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 @people = (“Jerry Garcia”, “Bobby Weir”, “Phil Lesh”); When referring to one element of an array, use \$ because each element is a scalar and use the typical square brackets with index. Indices start at 0. e.g. \$people[0] would refer to the first element of the array. Oddly, scalars can be assigned from the whole array: (\$lead, \$rhythm, \$bass) = @people;

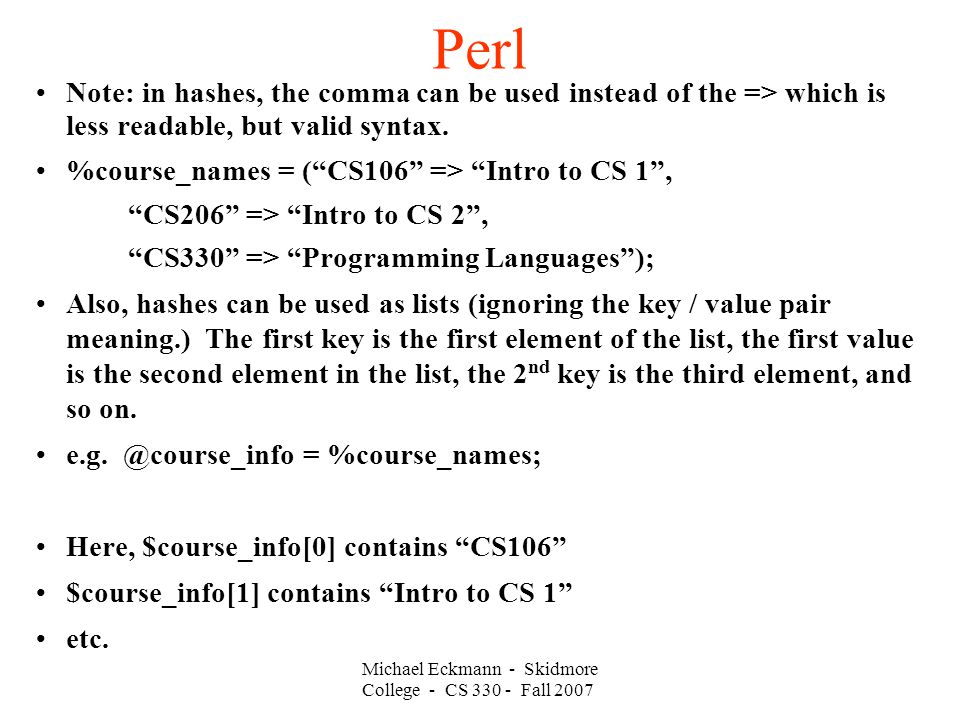

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Note: in hashes, the comma can be used instead of the => which is less readable, but valid syntax. %course_names = (“CS106” => “Intro to CS 1”, “CS206” => “Intro to CS 2”, “CS330” => “Programming Languages”); Also, hashes can be used as lists (ignoring the key / value pair meaning.) The first key is the first element of the list, the first value is the second element in the list, the 2 nd key is the third element, and so on. e.g. @course_info = %course_names; Here, \$course_info[0] contains “CS106” \$course_info[1] contains “Intro to CS 1” etc.

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 %course_names = (“CS106” => “Intro to CS 1”, “CS206” => “Intro to CS 2”, “CS330” => “Programming Languages”); To get a value out of a hash, you can use it's key inside { } e.g. \$name = \$course_names{“CS330”}; \$name would contain the string “Programming Languages”.

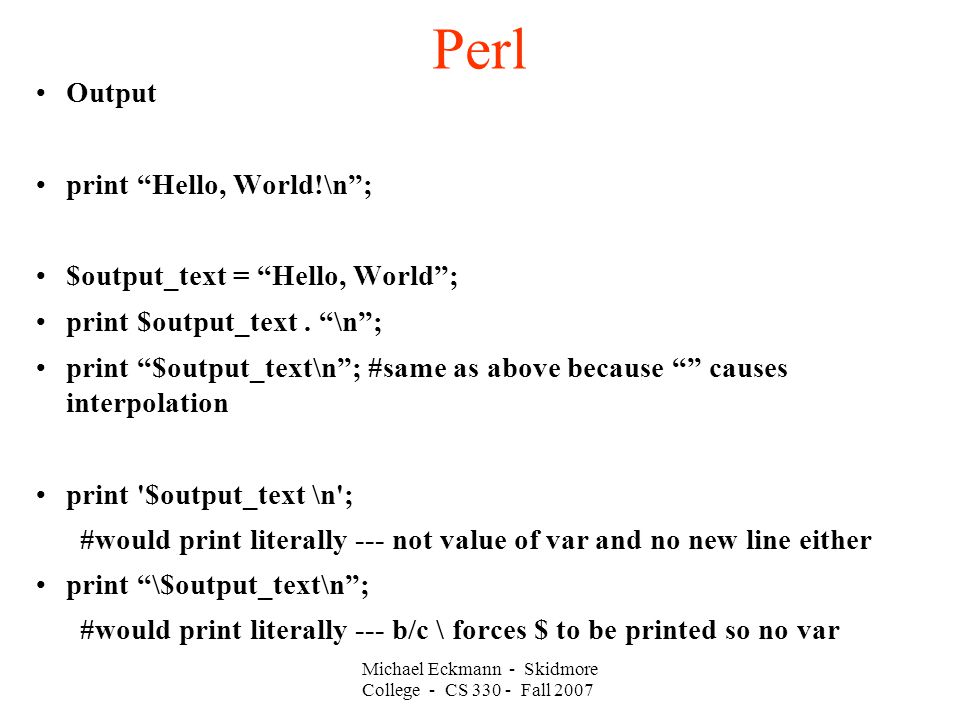

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Output print “Hello, World!\n”; \$output_text = “Hello, World”; print \$output_text. “\n”; print “\$output_text\n”; #same as above because “” causes interpolation print '\$output_text \n'; #would print literally --- not value of var and no new line either print “\\$output_text\n”; #would print literally --- b/c \ forces \$ to be printed so no var

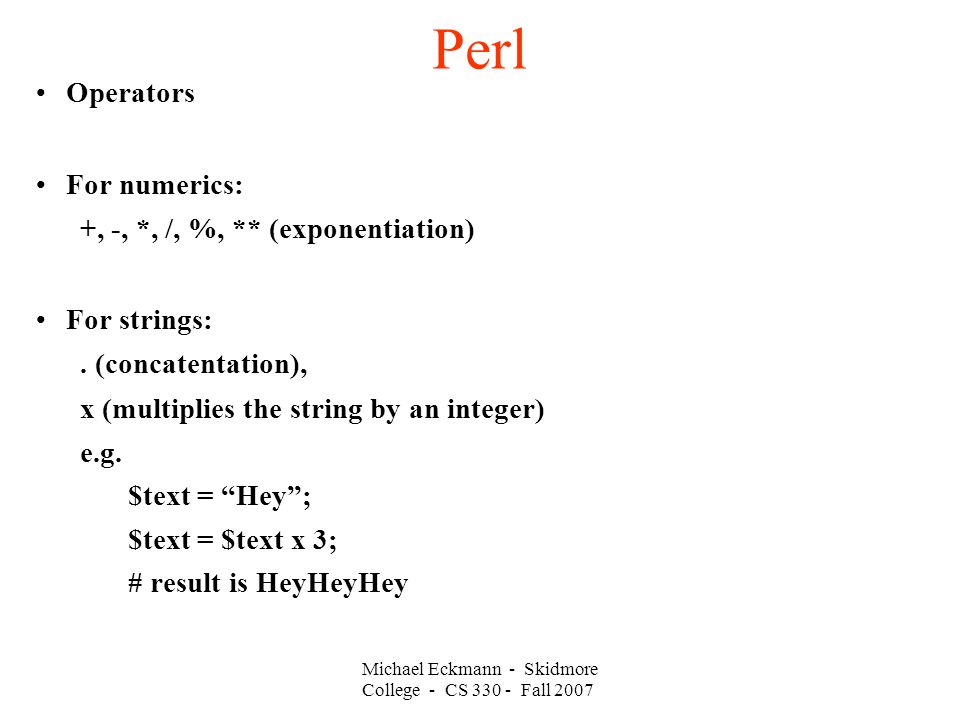

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Operators For numerics: +, -, *, /, %, ** (exponentiation) For strings:. (concatentation), x (multiplies the string by an integer) e.g. \$text = “Hey”; \$text = \$text x 3; # result is HeyHeyHey

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Assignment operators (more than just the =) Here are some examples *=, +=, ||=, x=, etc... e.g. \$text = “Hey”; \$text x= 3; # same as if we did \$text = \$text x 3;

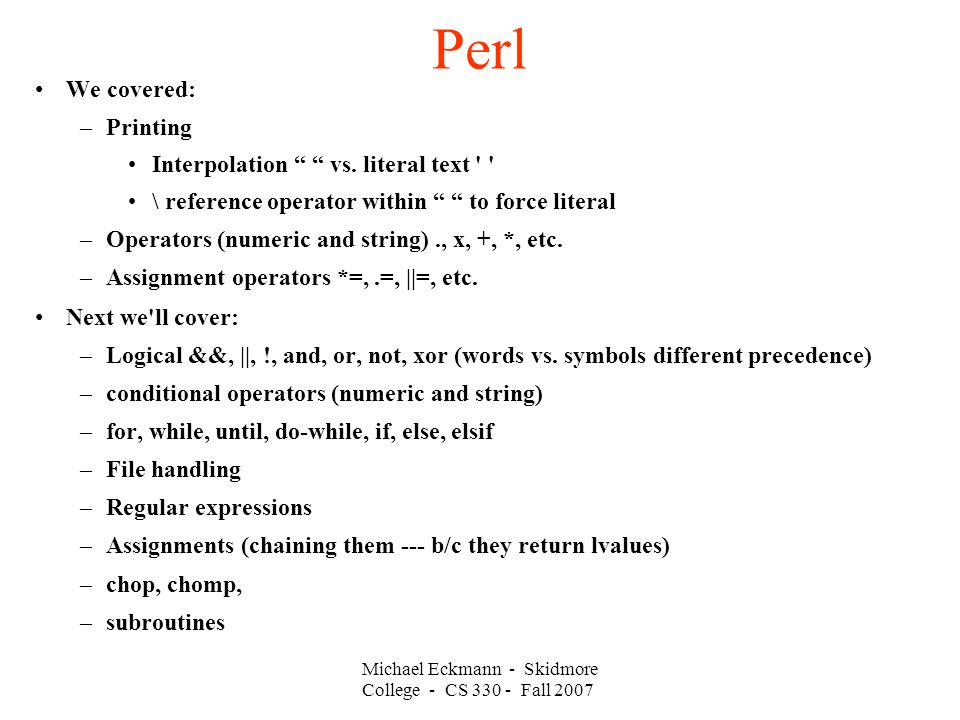

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 We covered: –Printing Interpolation “ “ vs. literal text ' ' \ reference operator within “ “ to force literal –Operators (numeric and string)., x, +, *, etc. –Assignment operators *=,.=, ||=, etc. Next we'll cover: –Logical &&, ||, !, and, or, not, xor (words vs. symbols different precedence) –conditional operators (numeric and string) –for, while, until, do-while, if, else, elsif –File handling –Regular expressions –Assignments (chaining them --- b/c they return lvalues) –chop, chomp, –subroutines

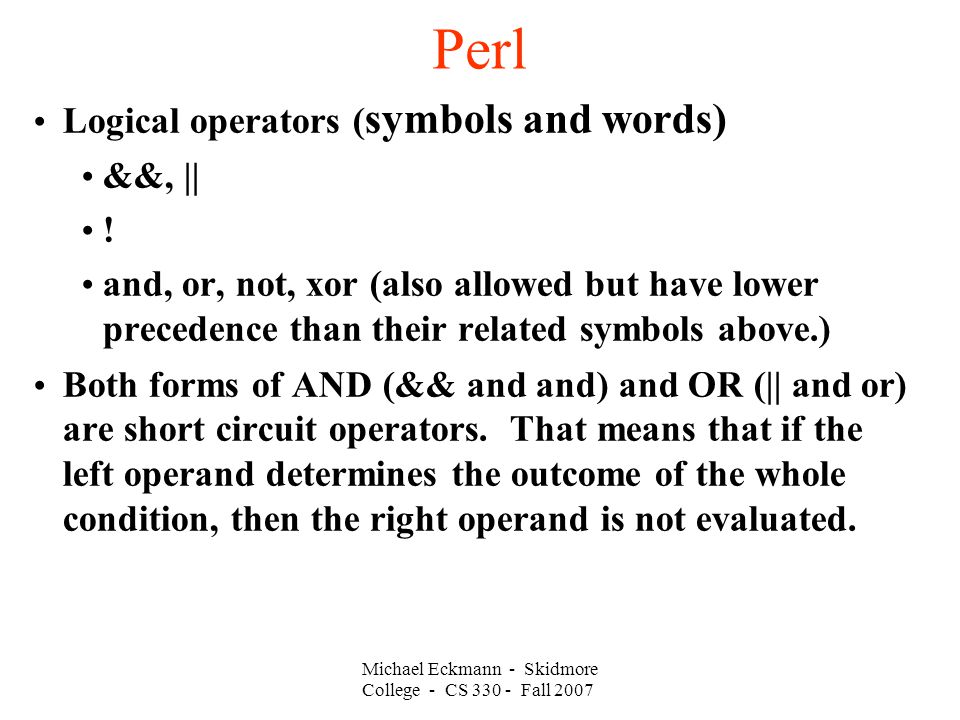

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Logical operators ( symbols and words) &&, || ! and, or, not, xor (also allowed but have lower precedence than their related symbols above.) Both forms of AND (&& and and) and OR (|| and or) are short circuit operators. That means that if the left operand determines the outcome of the whole condition, then the right operand is not evaluated.

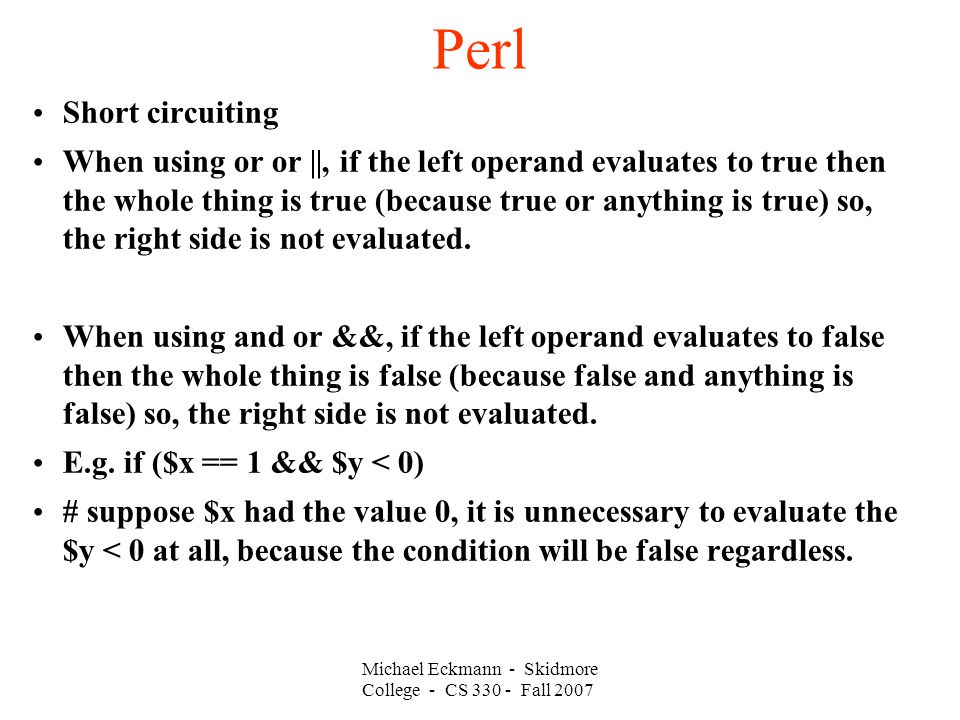

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Short circuiting When using or or ||, if the left operand evaluates to true then the whole thing is true (because true or anything is true) so, the right side is not evaluated. When using and or &&, if the left operand evaluates to false then the whole thing is false (because false and anything is false) so, the right side is not evaluated. E.g. if (\$x == 1 && \$y < 0) # suppose \$x had the value 0, it is unnecessary to evaluate the \$y < 0 at all, because the condition will be false regardless.

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Short circuiting E.g. if (\$z == 0 || \$y < 0) # suppose \$z had the value 0, it is unnecessary to evaluate the \$y < 0 at all, because the condition will be true regardless.

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Example of how Perl programmers use this short circuit feature to their advantage to make concise readable code. open(FILEHAND, “<“, \$fname) or die “can’t open file.\n”; The open function returns false if the file can’t be opened. Because of the short circuit, the above works in the following way: if open returns false, the die function is called (see the or operator) which prints the error to STDERR. If the file can be opened, then true is returned and the or part is not evaluated (executed.)

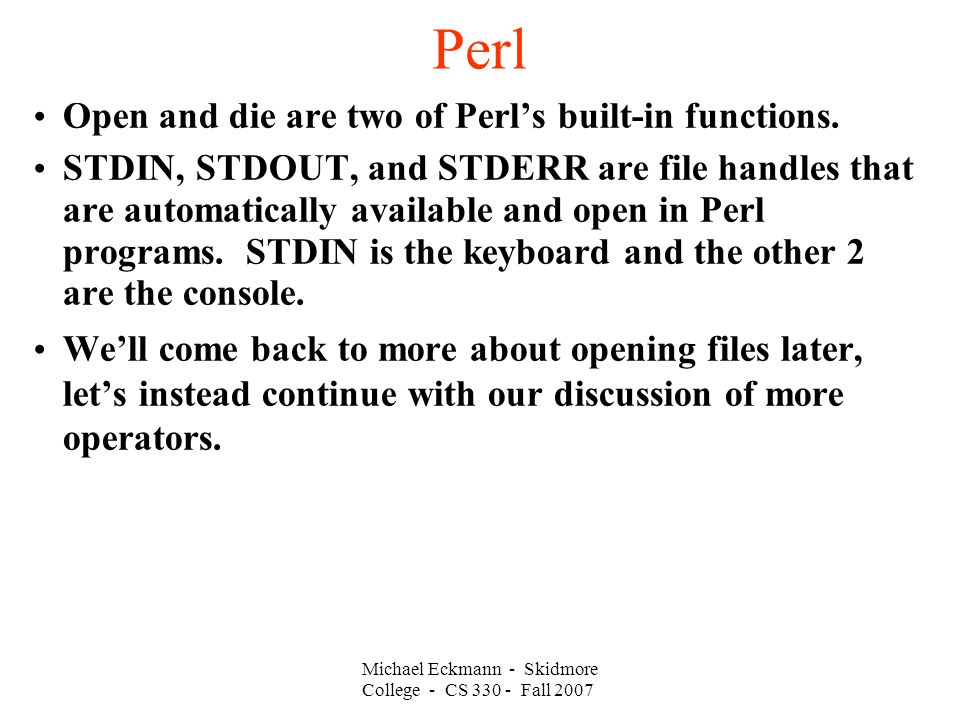

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Open and die are two of Perl’s built-in functions. STDIN, STDOUT, and STDERR are file handles that are automatically available and open in Perl programs. STDIN is the keyboard and the other 2 are the console. We’ll come back to more about opening files later, let’s instead continue with our discussion of more operators.

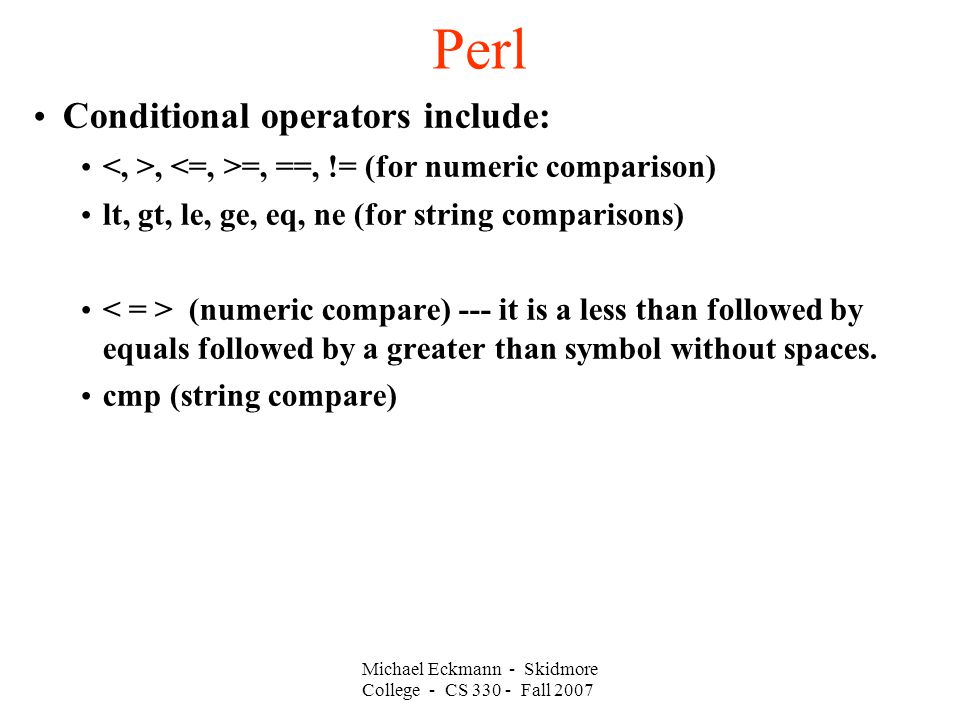

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Conditional operators include:, =, ==, != (for numeric comparison) lt, gt, le, ge, eq, ne (for string comparisons) (numeric compare) --- it is a less than followed by equals followed by a greater than symbol without spaces. cmp (string compare)

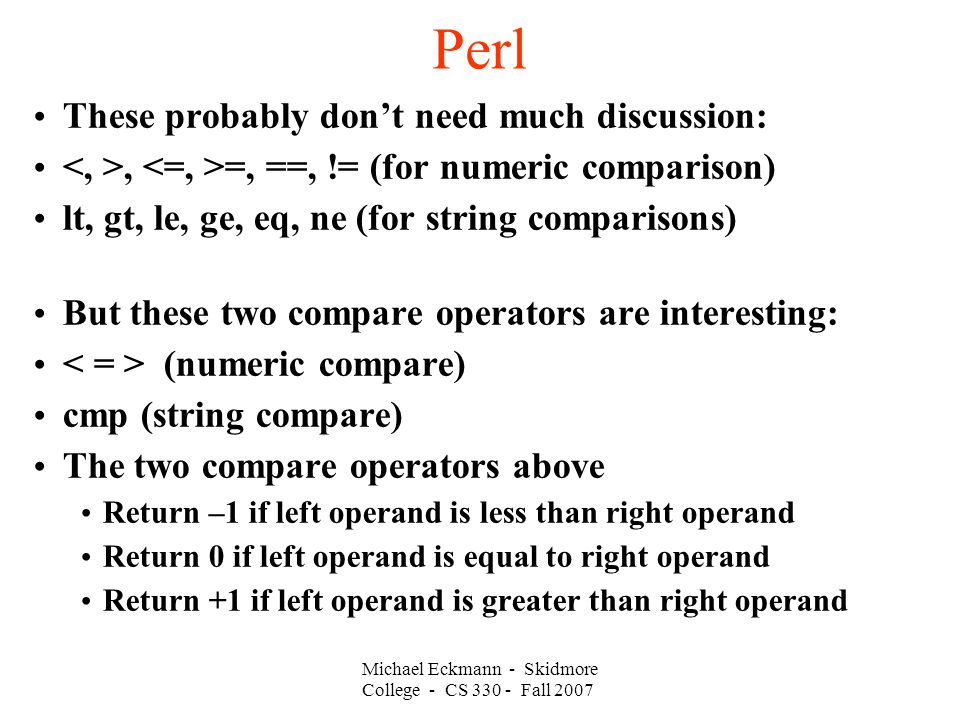

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 These probably don’t need much discussion:, =, ==, != (for numeric comparison) lt, gt, le, ge, eq, ne (for string comparisons) But these two compare operators are interesting: (numeric compare) cmp (string compare) The two compare operators above Return –1 if left operand is less than right operand Return 0 if left operand is equal to right operand Return +1 if left operand is greater than right operand

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 if, elsif, else structures (notice the odd spelling of elsif --- there is no “e” in it.) Why do you think? As expected, the elsif and else portions of the if structure are optional. You can have an if, followed by zero or more elsif’s, followed by zero or one else’s. Also, there’s an unless that can be used instead of the if (but still can use the elsif’s and else portions.) unless reverses the test if you had used if

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 if (\$count < 10) { # do something here } Is the same as: unless (\$count >= 10) { # do something here }

Perl (example of if/elsif/else) Michael Eckmann - Skidmore College - CS 330 - Fall 2007 if (\$count < 10) { # do something here } elsif (\$count >100) { # do something here } else { # do something here }

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Previous slides showed how to use if and unless on blocks of code. Interestingly, if, unless, while, until and foreach can all be used as modifiers to a simple statement. Examples: print “Hello” unless \$printing_is_off; \$total++ if \$increase_total;

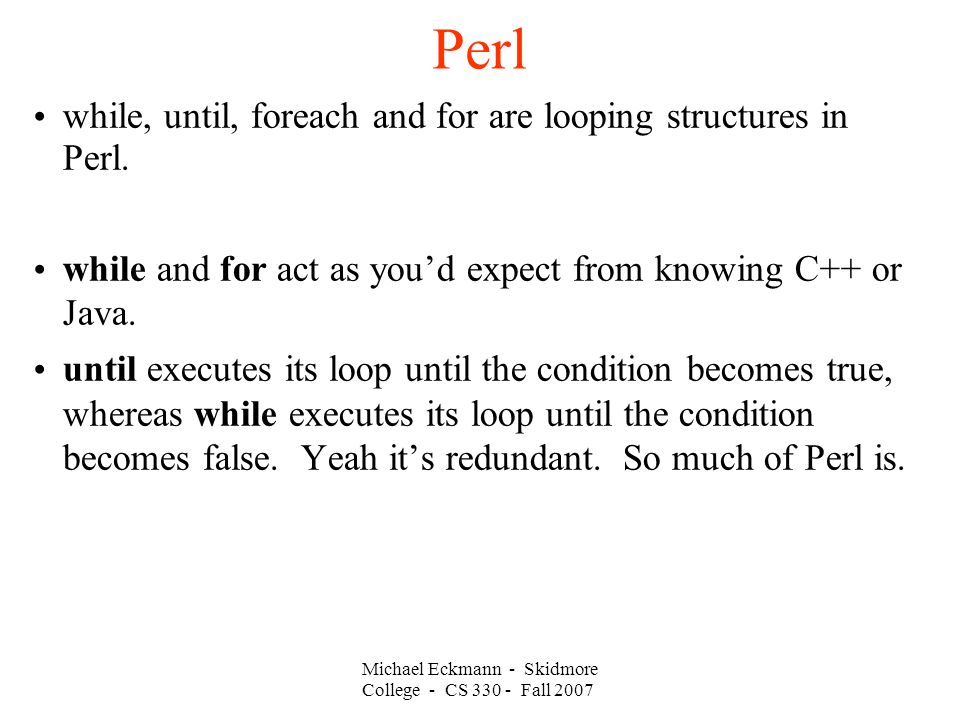

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 while, until, foreach and for are looping structures in Perl. while and for act as you’d expect from knowing C++ or Java. until executes its loop until the condition becomes true, whereas while executes its loop until the condition becomes false. Yeah it’s redundant. So much of Perl is.

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 foreach works on list data (e.g. arrays.) Example: foreach \$element (@people) { print “\$element is a person in the array\n”; } # foreach iterates through all values of the array in the parens and uses the variable just after the word foreach to temporarily store the value. Then the code in the { }’s executes once for every element of the array. Note: \$element and @people are user-defined names (not special to Perl)

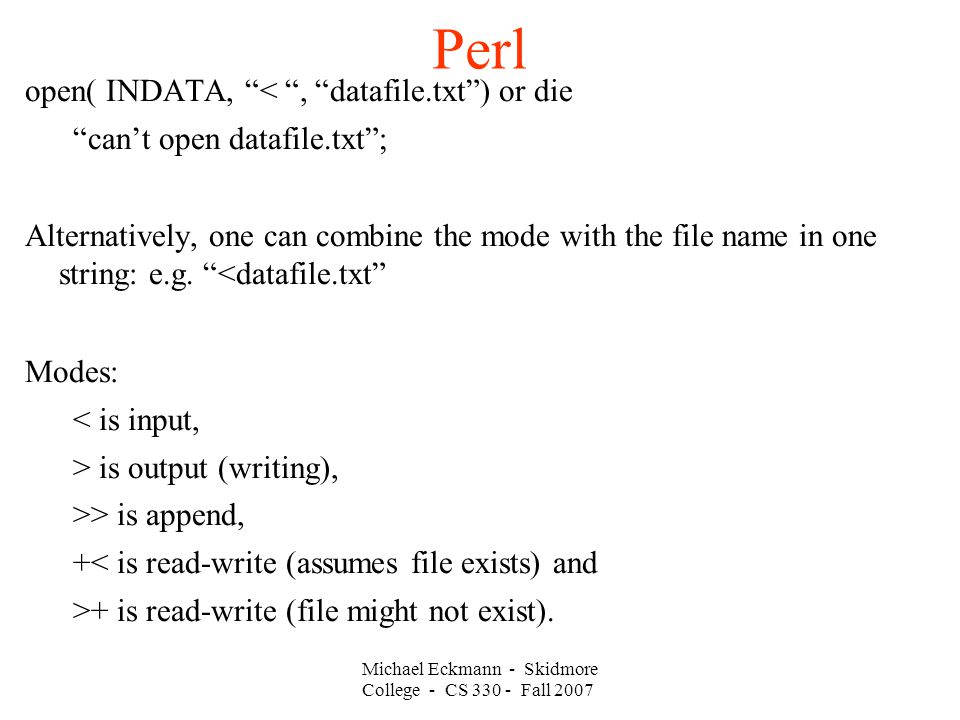

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 open( INDATA, “< “, “datafile.txt”) or die “can’t open datafile.txt”; Alternatively, one can combine the mode with the file name in one string: e.g. “ is output (writing), >> is append, +< is read-write (assumes file exists) and >+ is read-write (file might not exist).

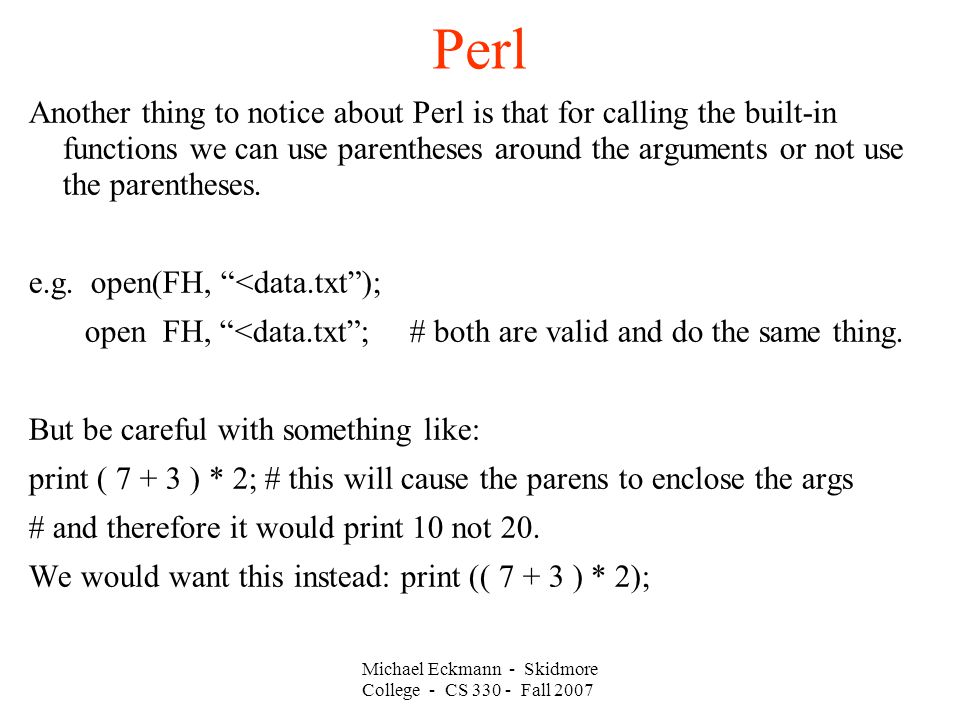

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Another thing to notice about Perl is that for calling the built-in functions we can use parentheses around the arguments or not use the parentheses. e.g. open(FH, “ { "@context": "http://schema.org", "@type": "ImageObject", "contentUrl": "http://images.slideplayer.com/14/4219217/slides/slide_42.jpg", "name": "Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Another thing to notice about Perl is that for calling the built-in functions we can use parentheses around the arguments or not use the parentheses.", "description": "e.g. open(FH,

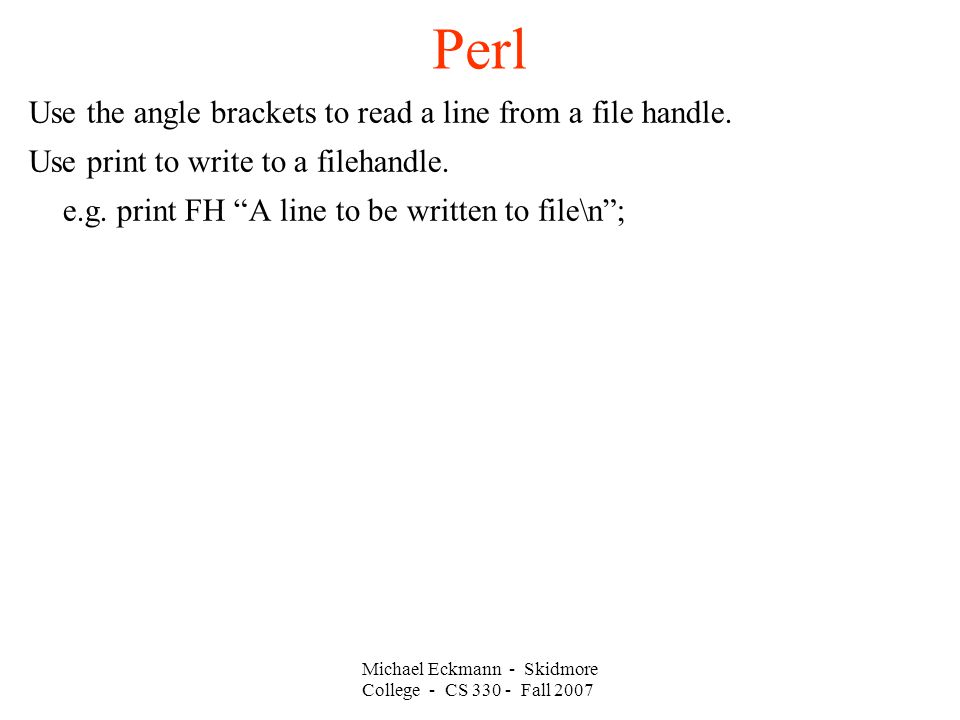

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 Use the angle brackets to read a line from a file handle. Use print to write to a filehandle. e.g. print FH “A line to be written to file\n”;

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 When reading lines from STDIN or a file, the line will contain a \n at the end. It is often the case that you wish to get rid of it. Use chomp function to do this. \$inline = ; chomp(\$inline); Or chomp(\$inline = ); Chomp removes the end of record marker and returns the # of chars removed. chop is also a function. It removes the last character regardless if it is \n or not and returns the character.

Perl Michael Eckmann - Skidmore College - CS 330 - Fall 2007 An interesting thing about return values: The assignment operators are interesting in that they return the variable on the LHS of the assignment as an lvalue. An lvalue is something that can have a value assigned to it. This allows chaining of assignments like: \$num1 = \$num2 = \$num3 = 0; # 0 is assigned to num3, then num3 to num2 … And (\$temp -= 32) *= 5/9; # the -= in parens returns the \$temp as an lvalue which is assigned # a new value with the *= assignment.
