PANDA Ulrich Wiedner, FAIR PAC meeting, March 14, 2005.

Similar presentations


Presentation on theme: "PANDA Ulrich Wiedner, FAIR PAC meeting, March 14, 2005."— Presentation transcript:

1 PANDA Ulrich Wiedner, FAIR PAC meeting, March 14, 2005.

2

3 PANDA Collaboration At present a group of 340 physicists from 46 institutions of 14 countries Basel, Beijing, Bochum, Bonn, Catania, Cracow, Dresden, Edinburg, Erlangen, Ferrara, Frankfurt, Genova, Giessen, Glasgow, GSI, Inst. of Physics Helsinki, FZ Jülich, JINR, Katowice, Lanzhou, LNF, Mainz, Milano, Minsk, TU München, Münster, Northwestern, BINP Novosibirsk, Pavia, Piemonte Orientale, IPN Orsay, IHEP Protvino, PNPI St. Petersburg, Stockholm, Dep. A. Avogadro Torino, Dep. Fis. Sperimentale Torino, Torino Politecnico,Trieste, TSL Uppsala, Tübingen, Uppsala, Valencia, SINS Warsaw, TU Warsaw, AAS Wien Spokesperson: Ulrich Wiedner - Uppsala Austria – Belaruz - China - Finland - France - Germany – Italy – Poland – Russia – Spain - Sweden – Switzerland - U.K. – U.S.A.. 3 new members Unfortunately we lost KVI.

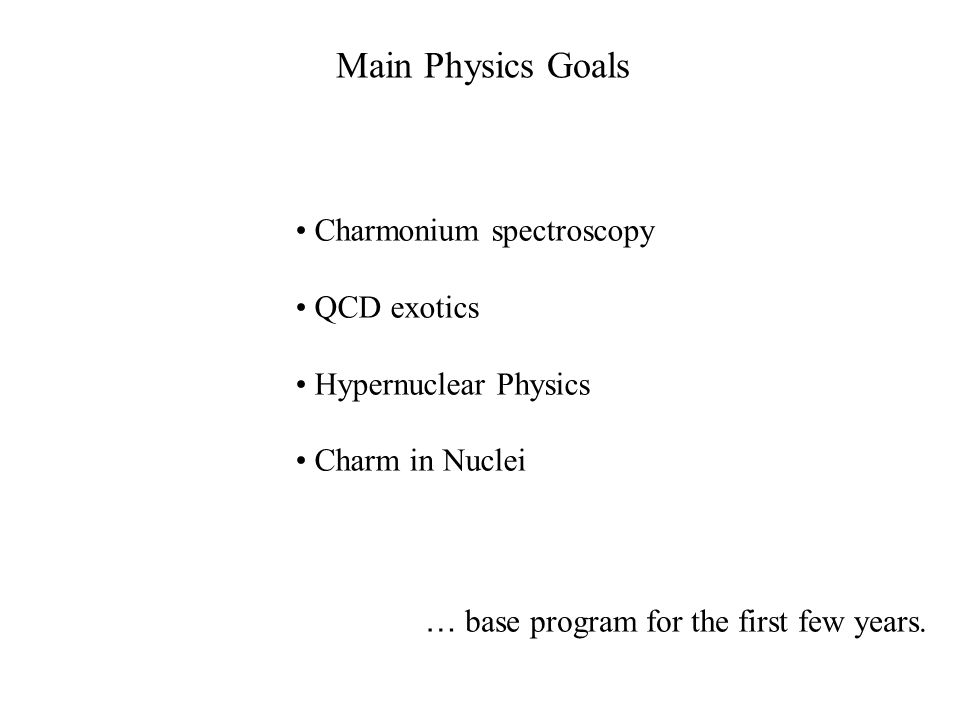

4 Main Physics Goals Charmonium spectroscopy QCD exotics Hypernuclear Physics Charm in Nuclei … base program for the first few years.

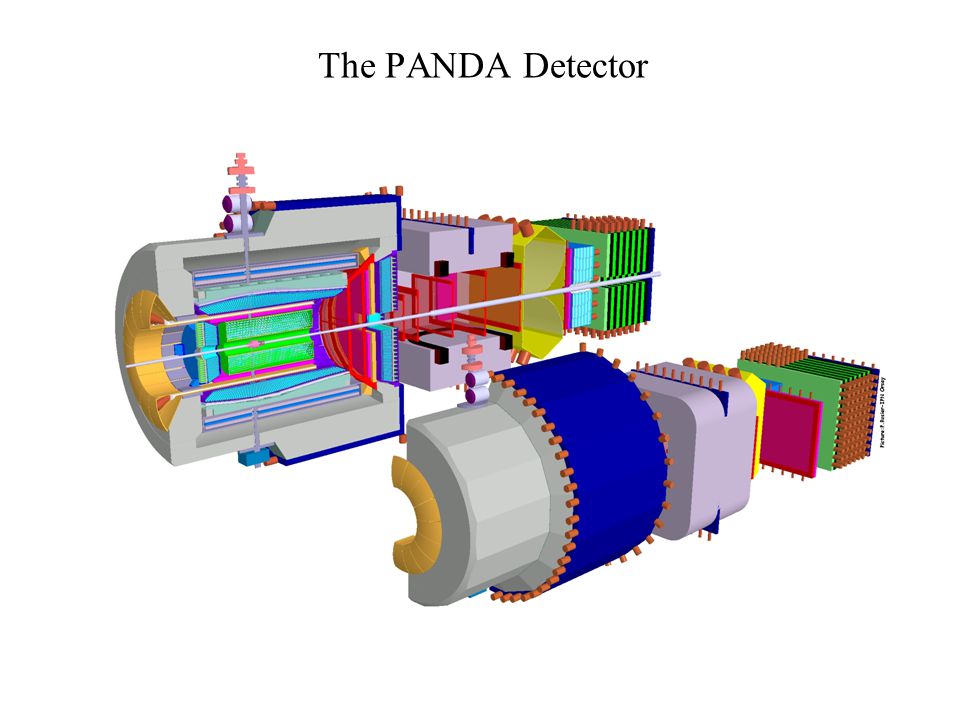

5 The PANDA Detector

6 Layout of the detector (top view)

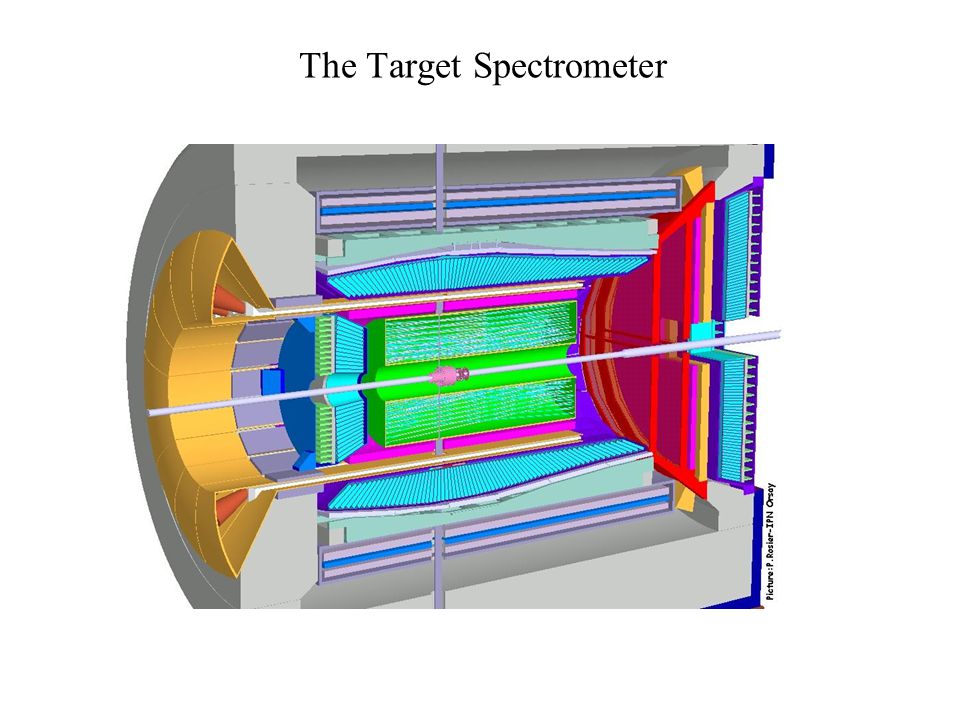

7 The Target Spectrometer

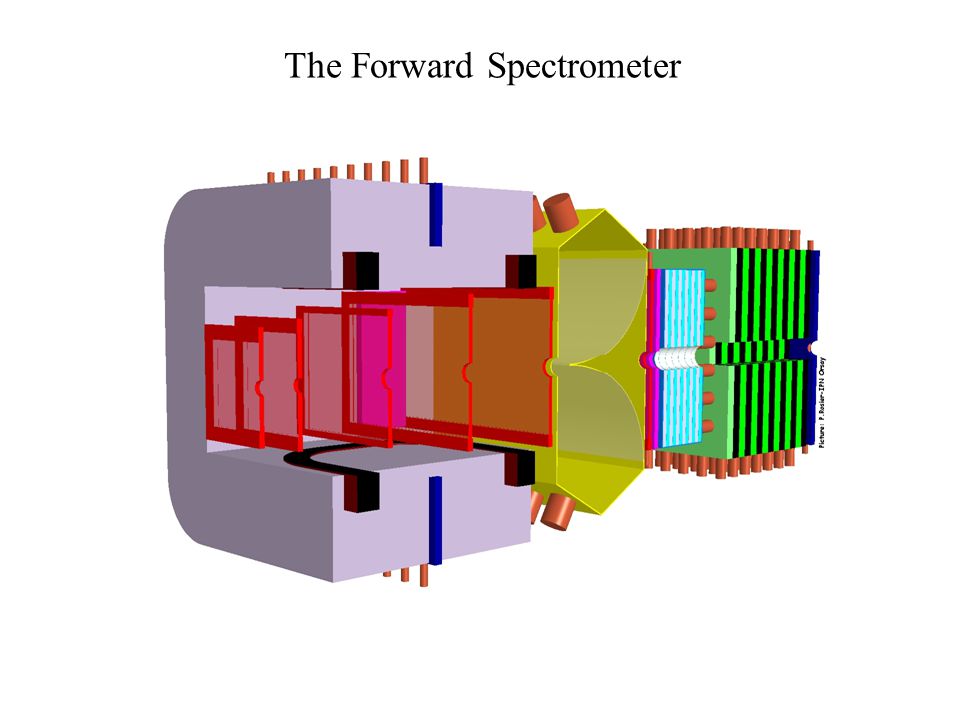

8 The Forward Spectrometer

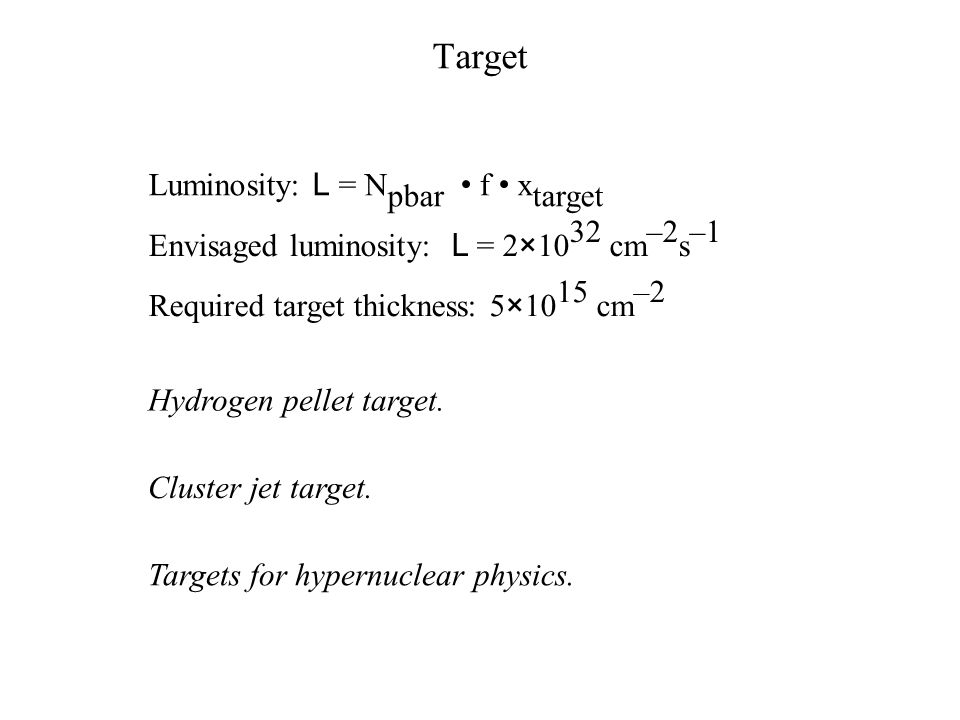

9 Target Envisaged luminosity: L = 2 × cm –2 s –1 Required target thickness: 5 × cm –2 Luminosity: L = N pbar f x target Cluster jet target. Hydrogen pellet target. Targets for hypernuclear physics.

10

11

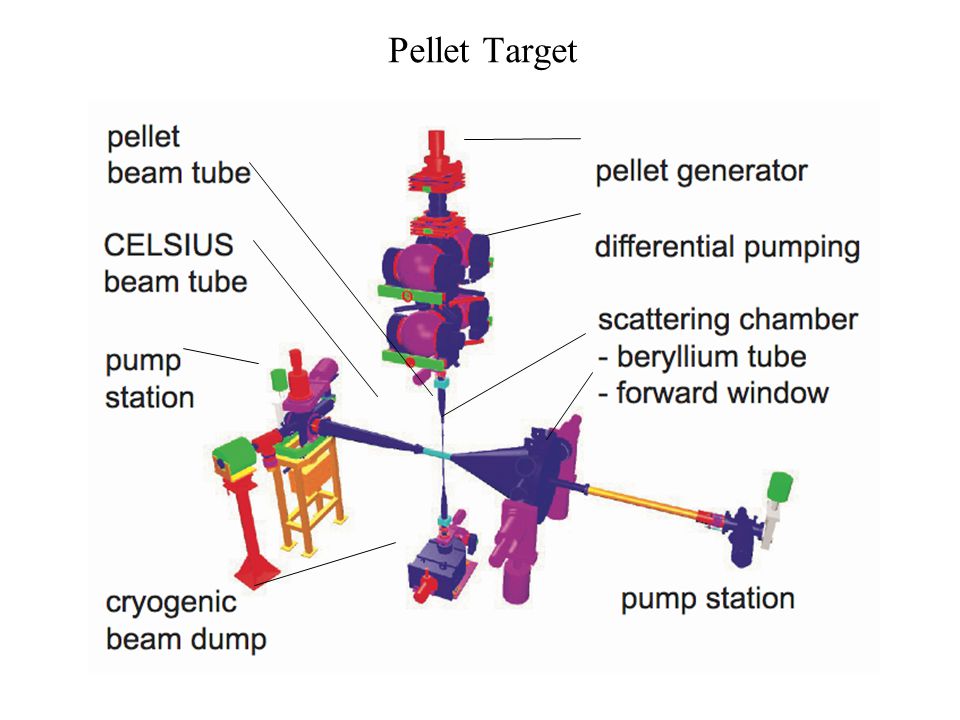

12 Pellet Target

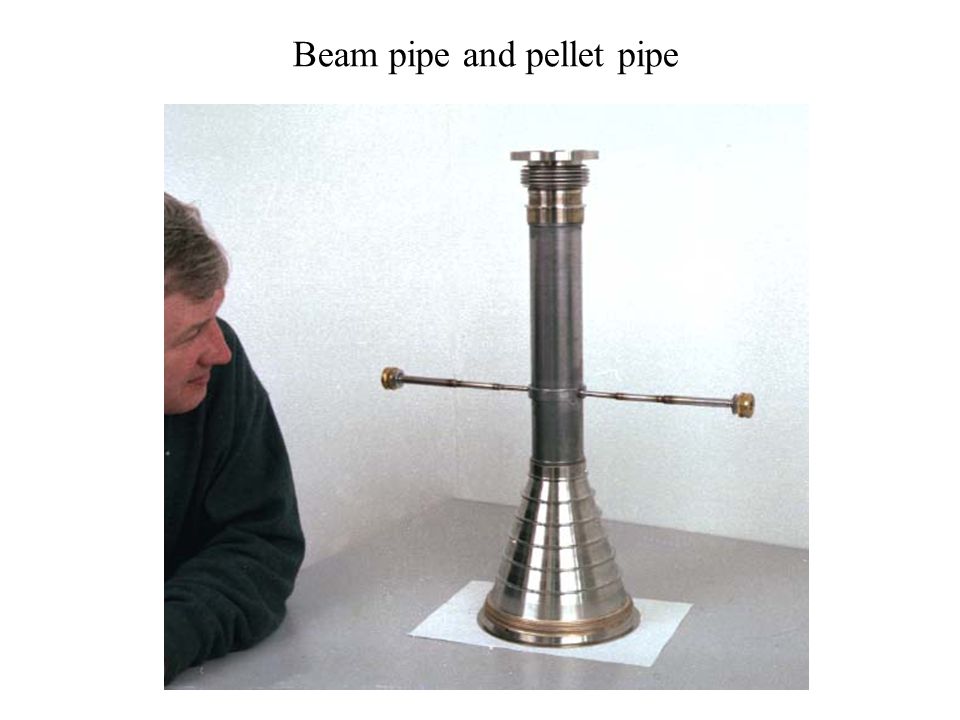

13 Beam pipe and pellet pipe

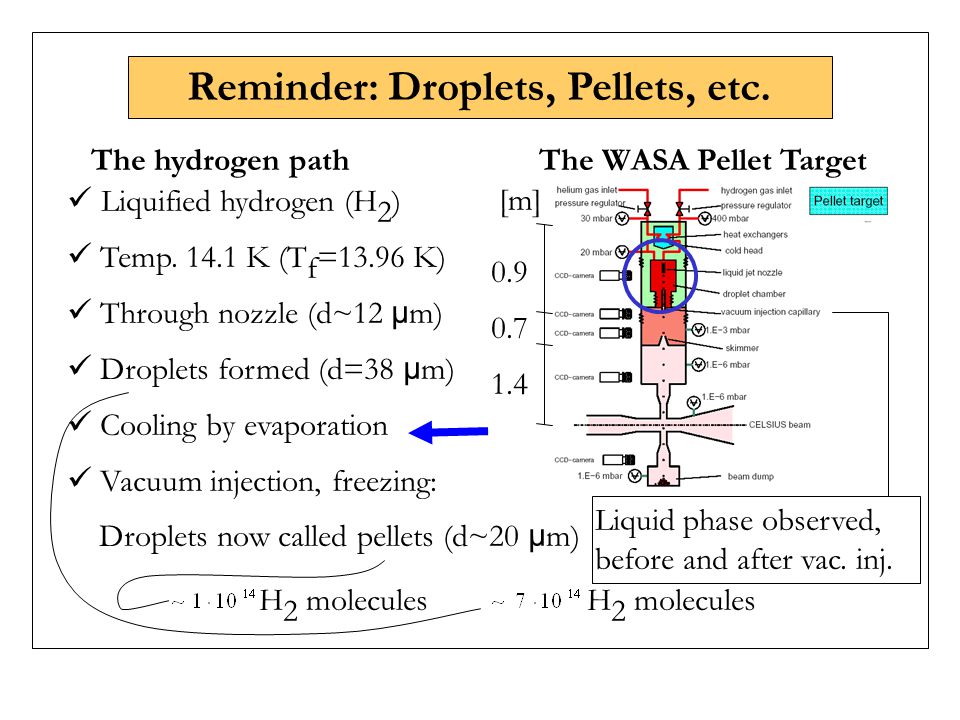

14 Reminder: Droplets, Pellets, etc. Liquified hydrogen (H 2 ) Temp K (T f =13.96 K) Through nozzle (d~12 μ m) Droplets formed (d=38 μ m) Cooling by evaporation Vacuum injection, freezing: Droplets now called pellets (d~20 μ m) H 2 molecules The WASA Pellet TargetThe hydrogen path Liquid phase observed, before and after vac. inj. [m]

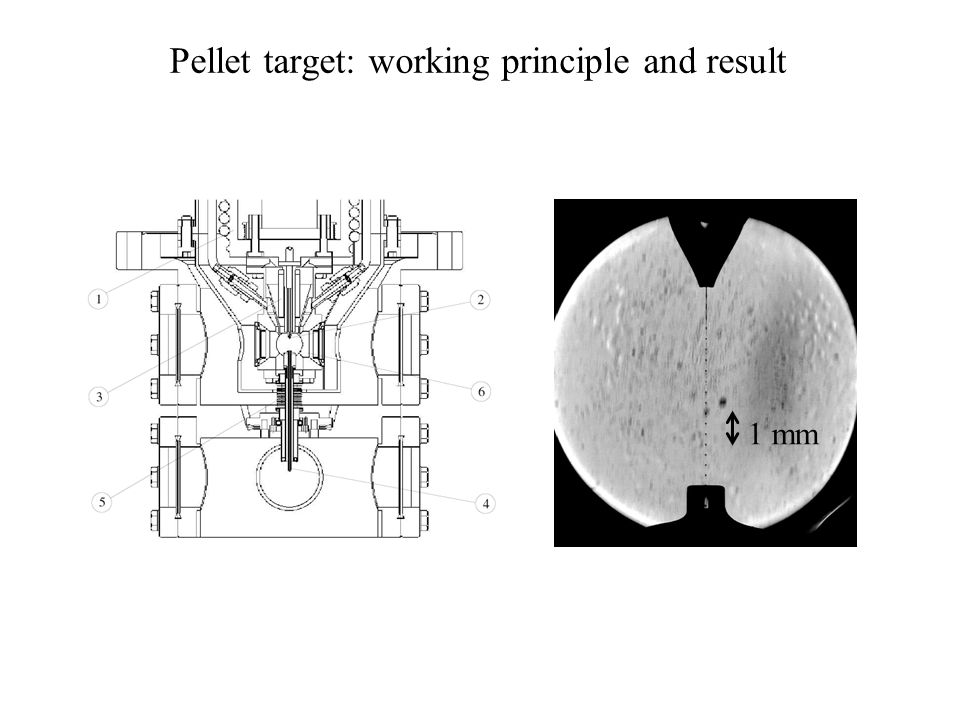

15 Pellet target: working principle and result 1 mm

16 Pellet test station

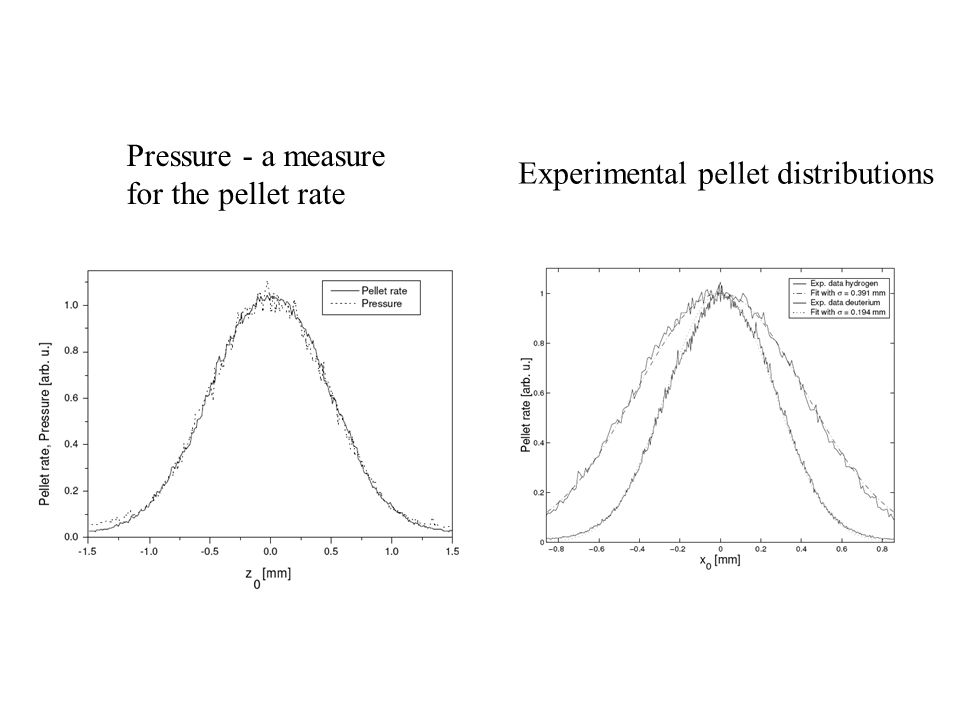

17 Pressure - a measure for the pellet rate Experimental pellet distributions

18 Vacuum measurements

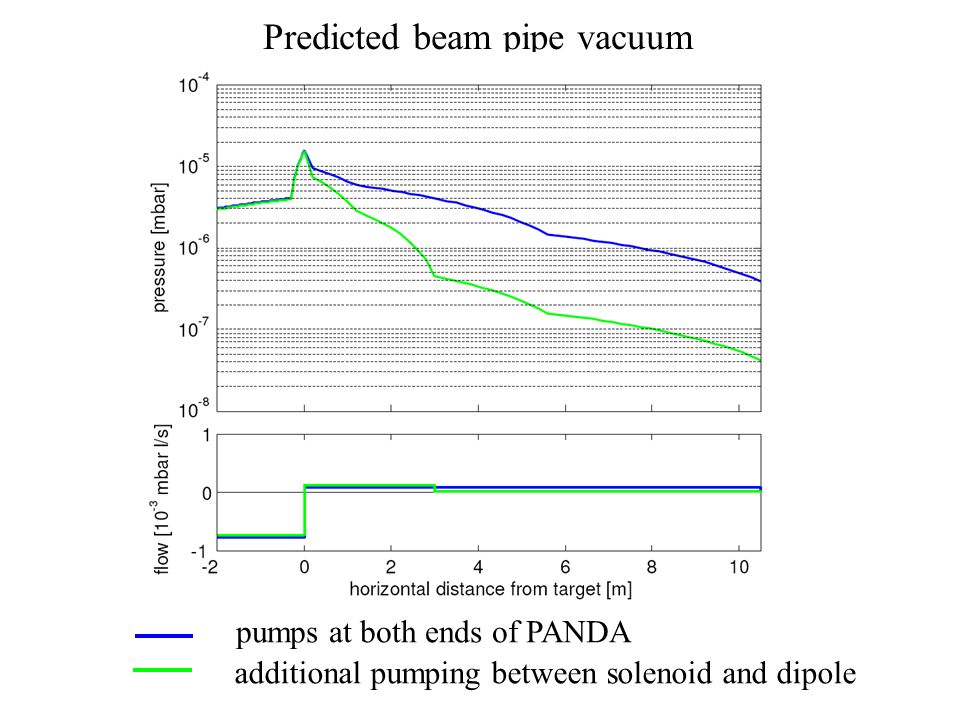

19 Predicted beam pipe vacuum pumps at both ends of PANDA additional pumping between solenoid and dipole

20 Pellet tracking system under investigation: line scan camera provides online information on pellet position <100 µ m

21 Beam pipe pumping scheme

22 The Cluster Jet Target

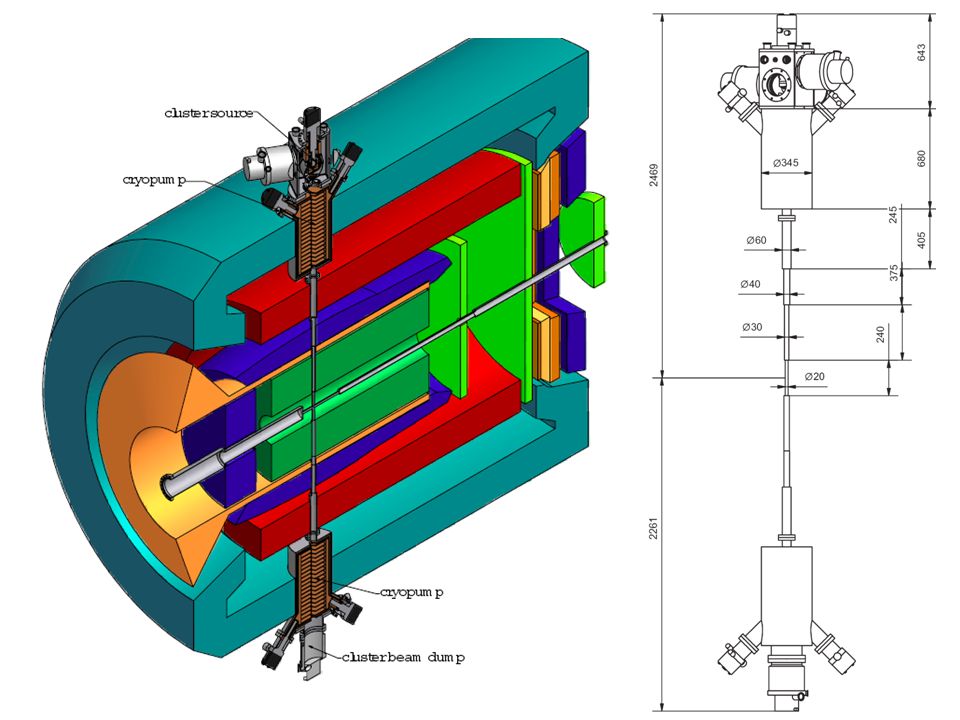

23

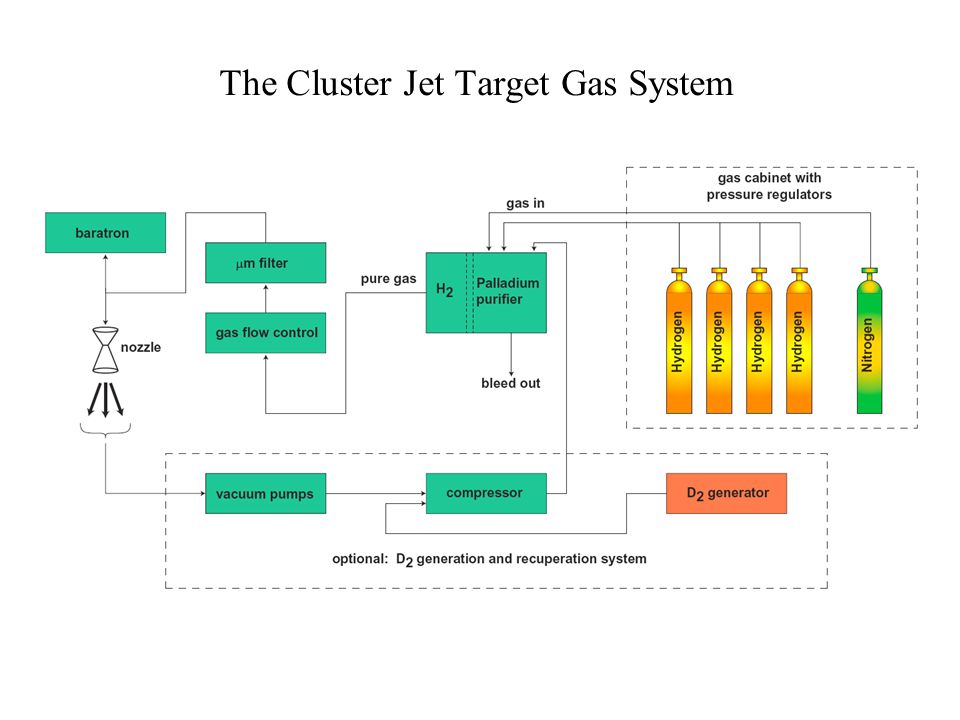

24 The Cluster Jet Target Gas System

25 Slow Control

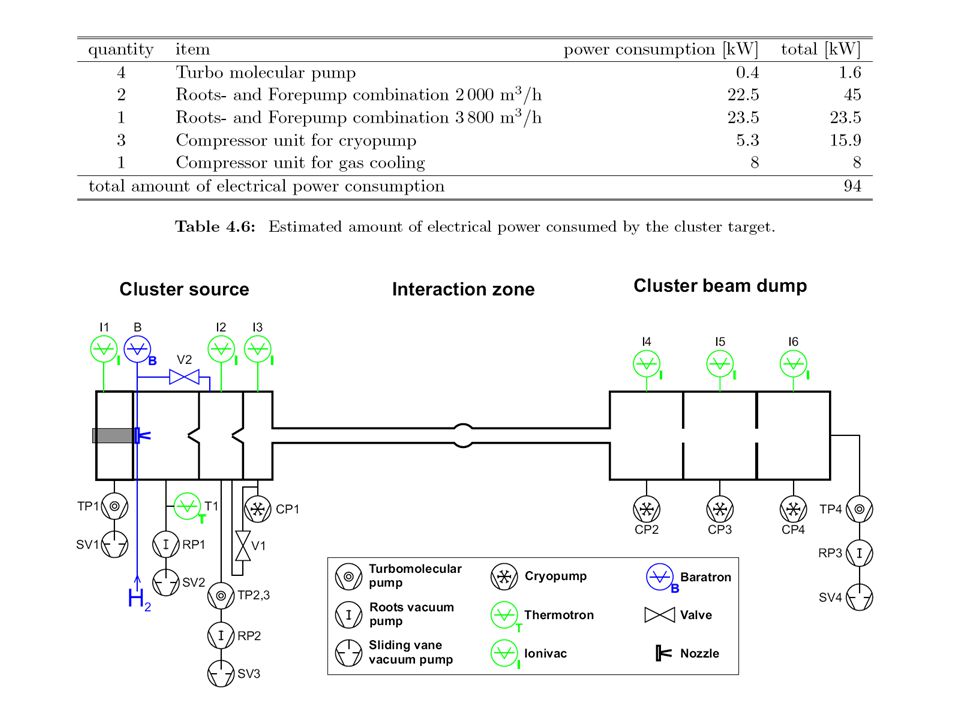

26

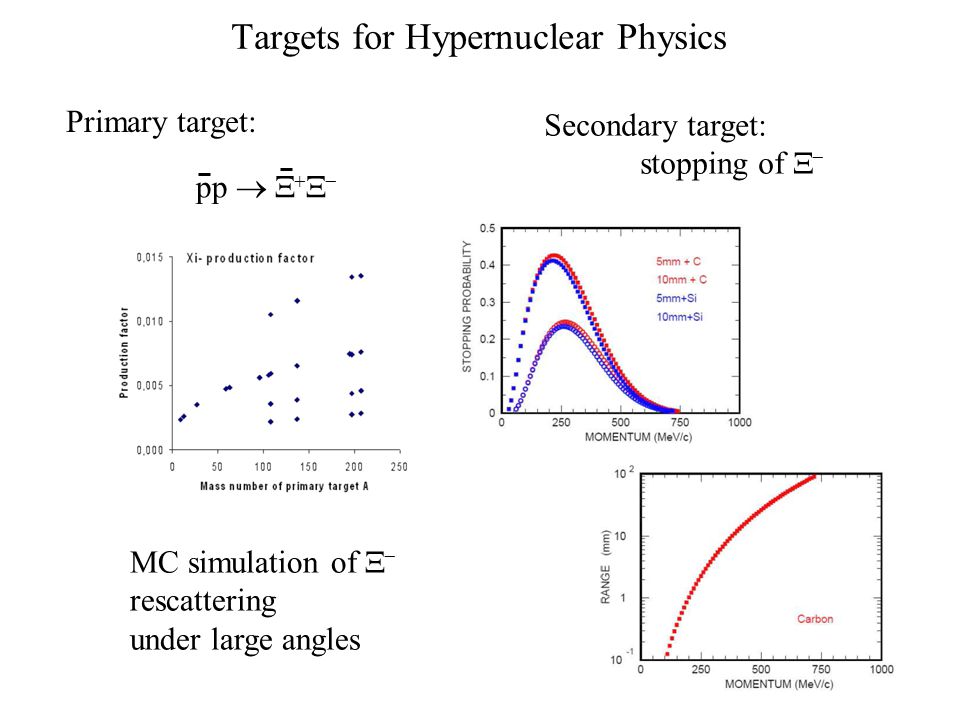

27 Targets for Hypernuclear Physics pp      MC simulation of   rescattering under large angles Primary target: Secondary target: stopping of  

28 Stopping points for   (INC calulations)

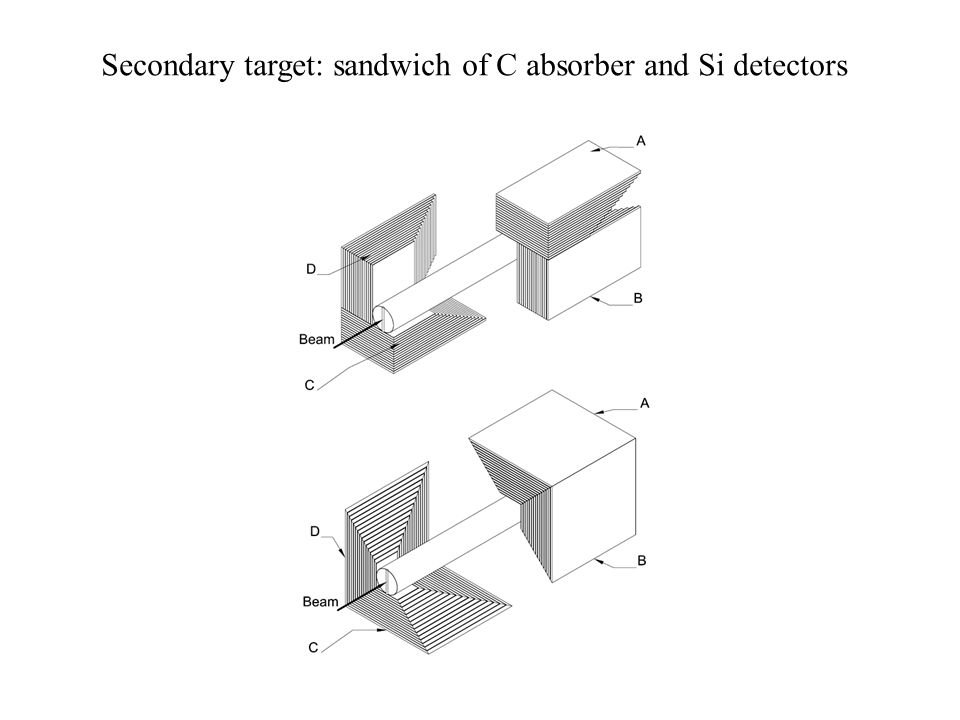

29 Secondary target: sandwich of C absorber and Si detectors

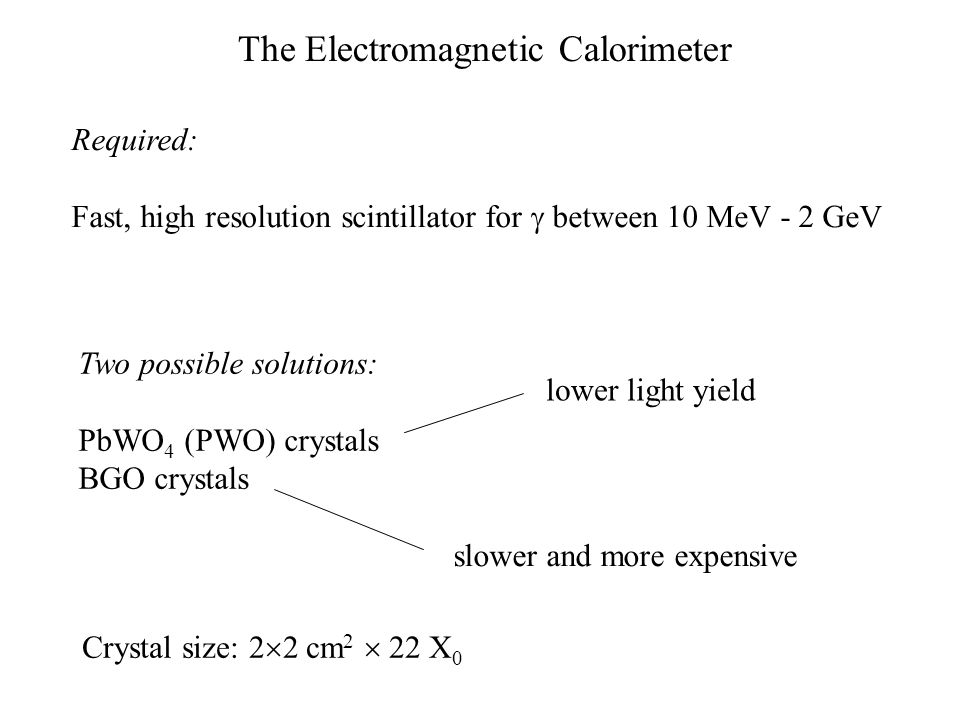

30 The Electromagnetic Calorimeter Required: Fast, high resolution scintillator for  between 10 MeV - 2 GeV Two possible solutions: PbWO 4 (PWO) crystals BGO crystals lower light yield slower and more expensive Crystal size: 2  2 cm 2  22 X 0

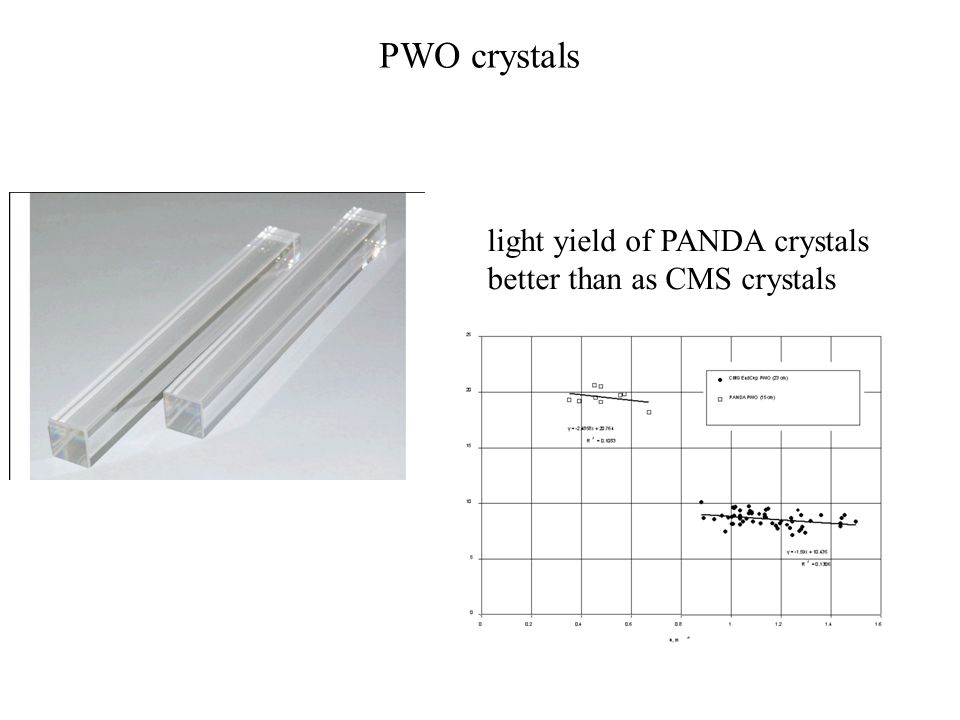

31 PWO crystals light yield of PANDA crystals better than as CMS crystals

32 Light yield: temperature dependant

33 Optical Transmission of crystals from different suppliers

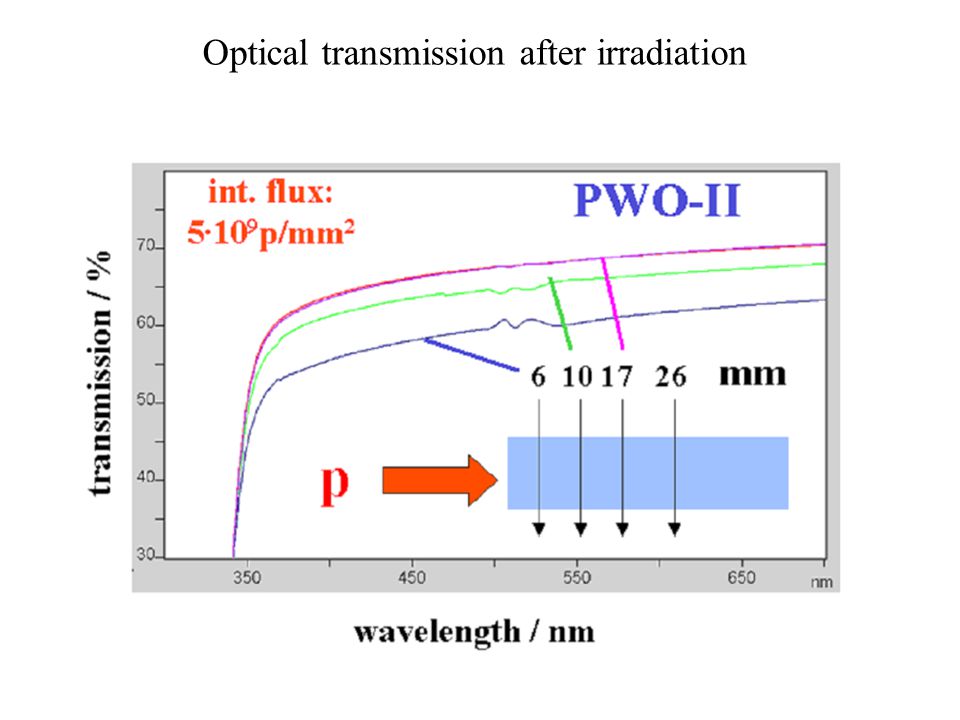

34 Optical transmission after irradiation

35 For comparison: BGO crystals 60 Co Light yield ~ 8 times higher than PWO

36 Readout device: APD CMS uses 5x5 mm 2 APDs For PANDA: 10x10 mm 2 APDs being developed by Hamamatsu Preliminary tests show no significant differences. Alternative readout devices like the PLANACON hybrid photomultiplier have been tested but show sensitivity to magnetic fields.

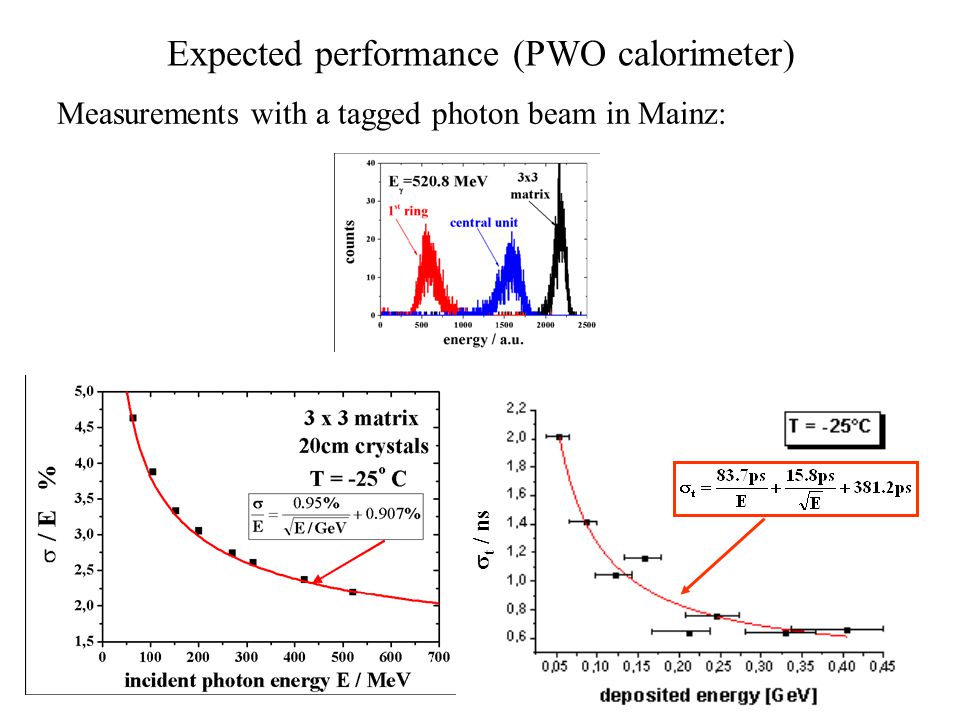

37 Expected performance (PWO calorimeter) Measurements with a tagged photon beam in Mainz: deposited energy / GeV  t / ns

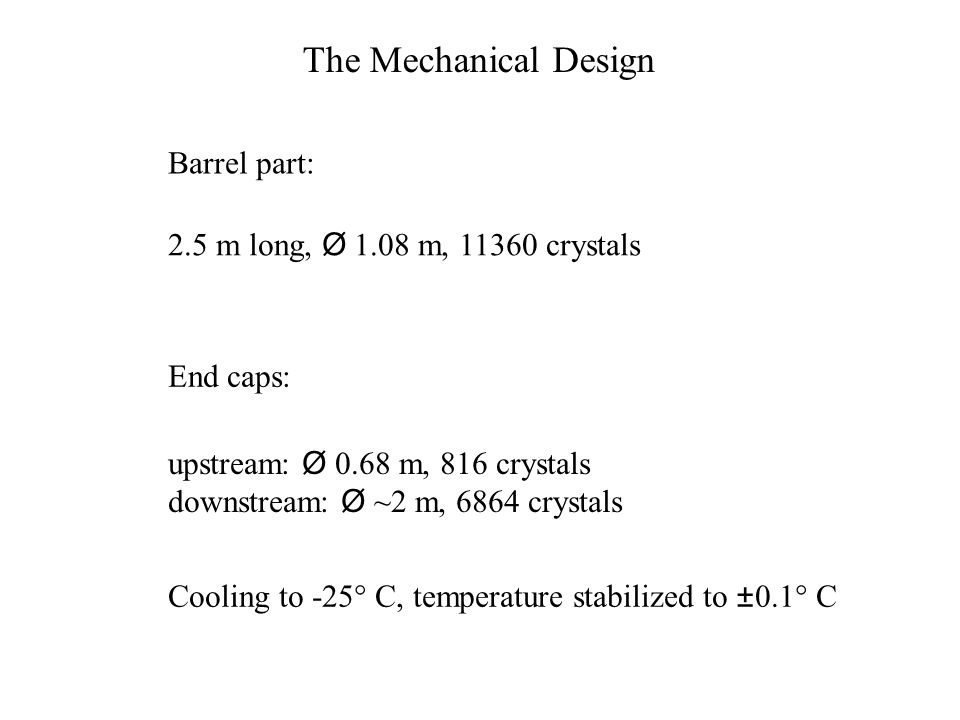

38 The Mechanical Design Barrel part: 2.5 m long, Ø 1.08 m, crystals End caps: upstream: Ø 0.68 m, 816 crystals downstream: Ø ~2 m, 6864 crystals Cooling to -25  C, temperature stabilized to ±0.1  C

39 Overall Integration

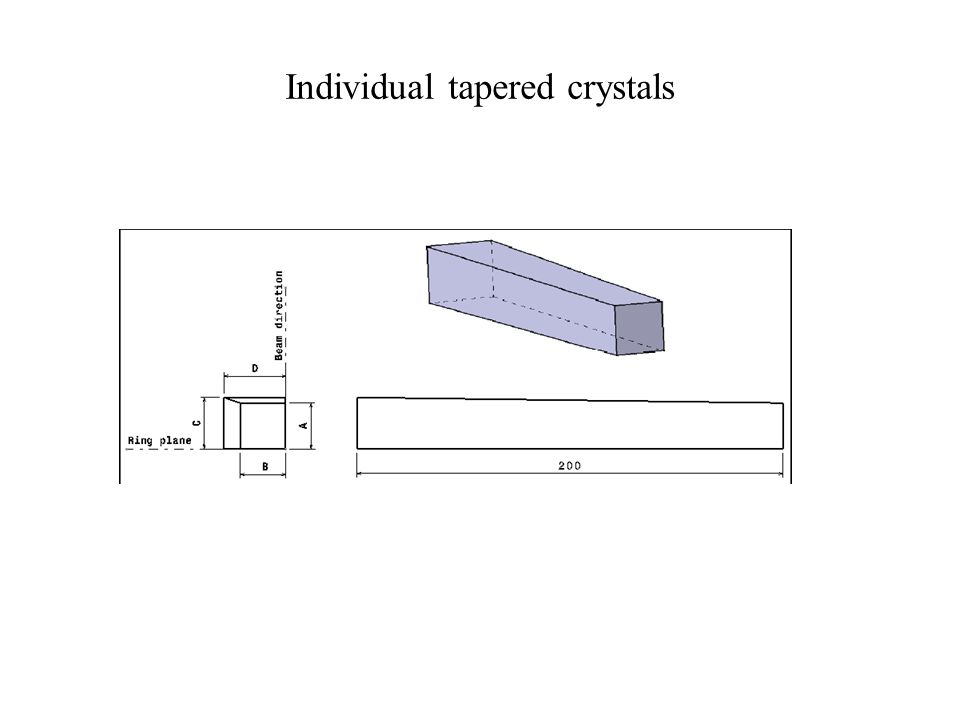

40 Individual tapered crystals

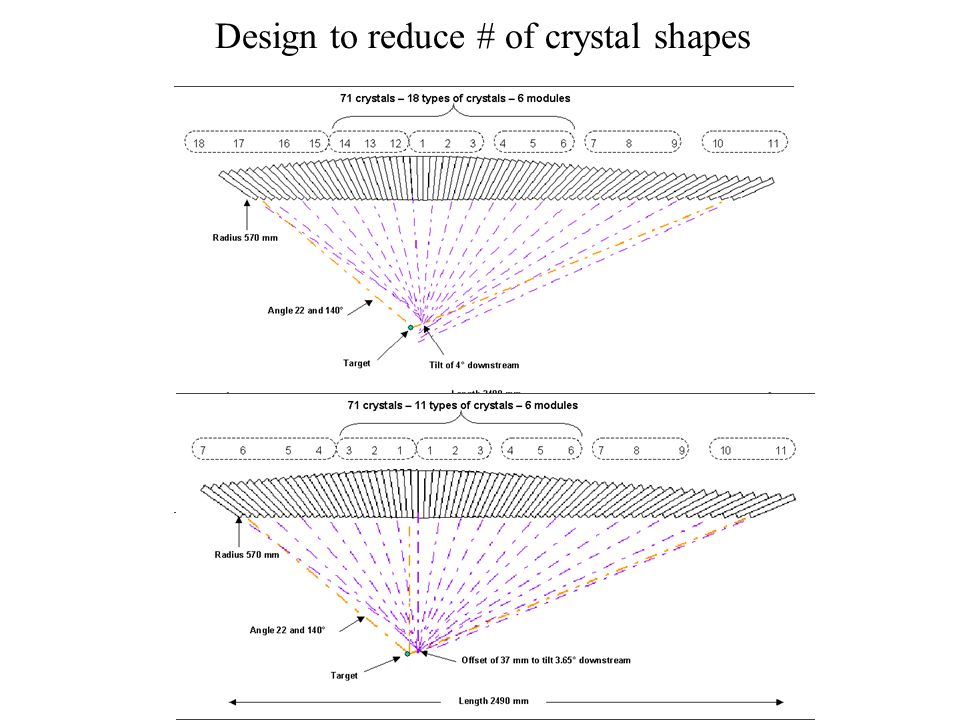

41 Design to reduce # of crystal shapes

42 segmentation of the 160 crystals into 16 slices

43 Single alveoli pack

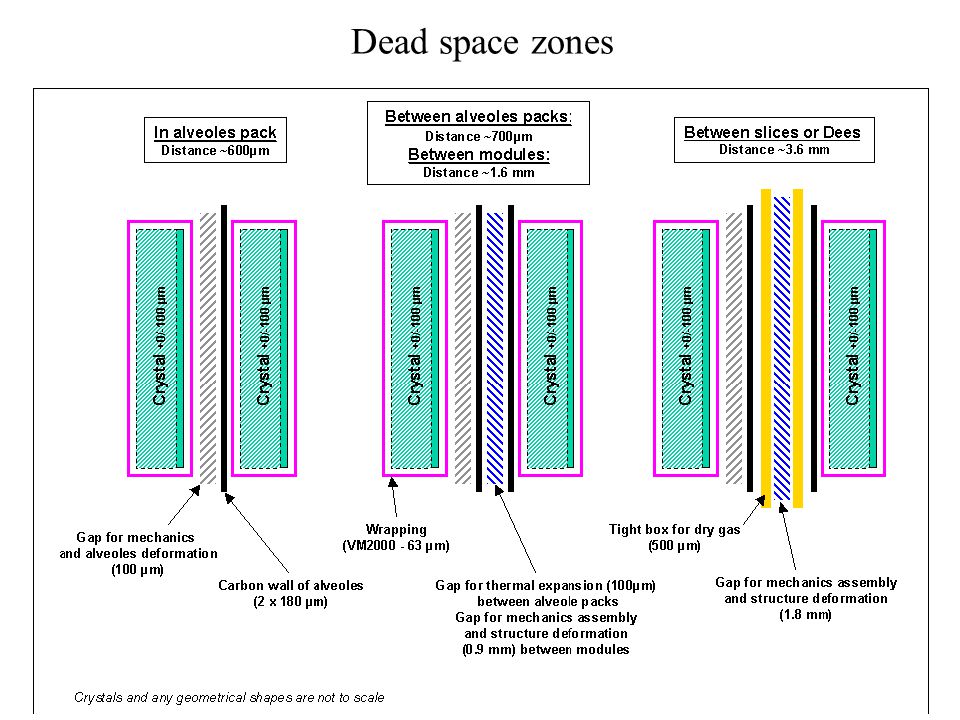

44 Dead space zones

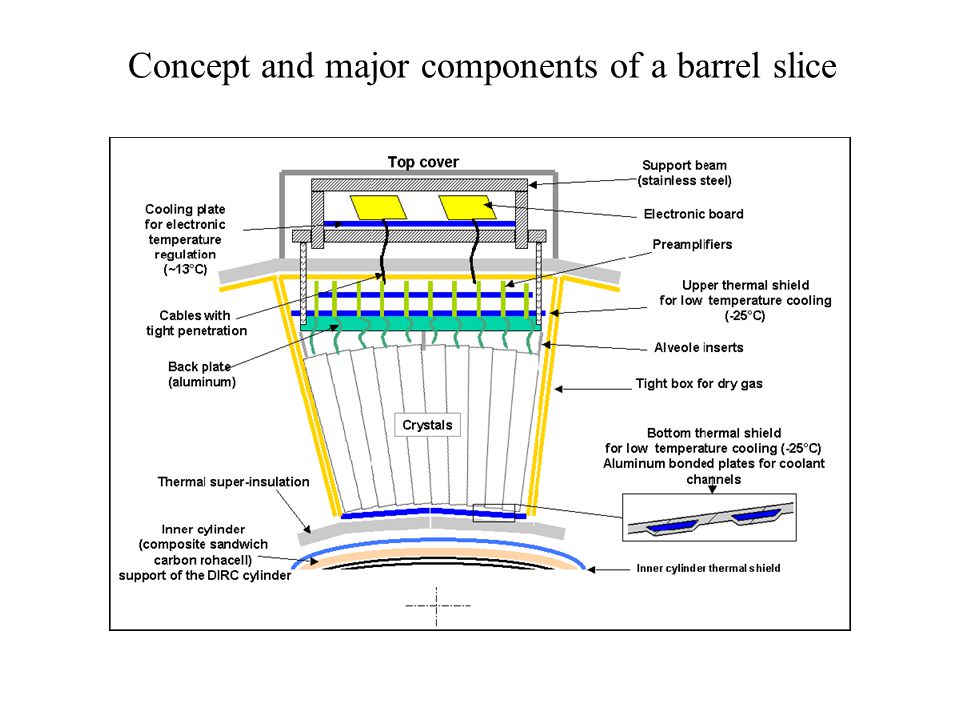

45 Concept and major components of a barrel slice

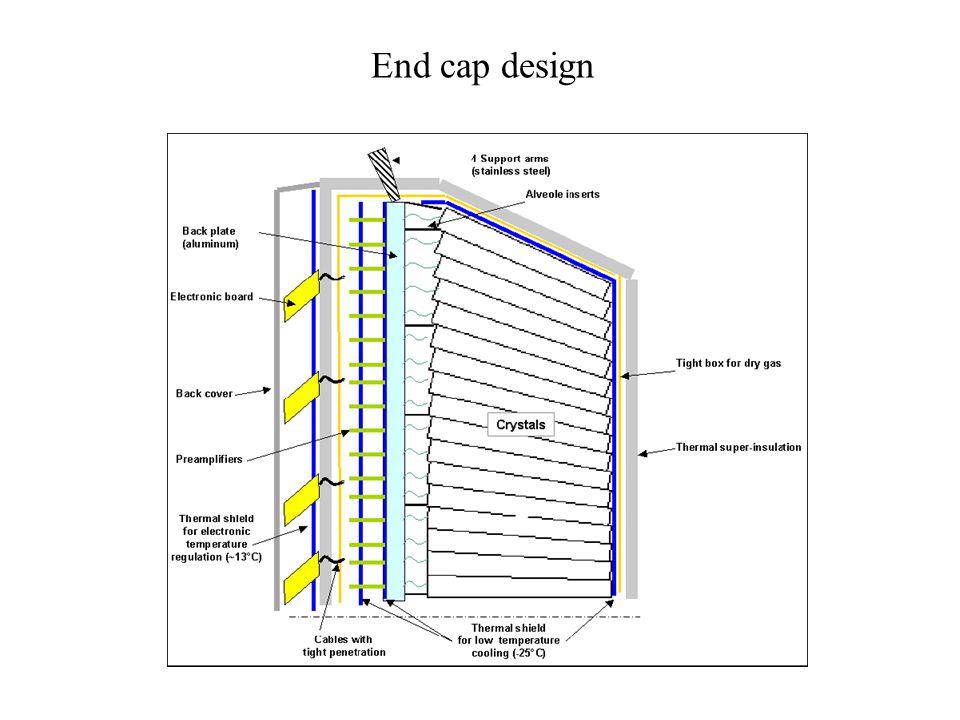

46 End cap design

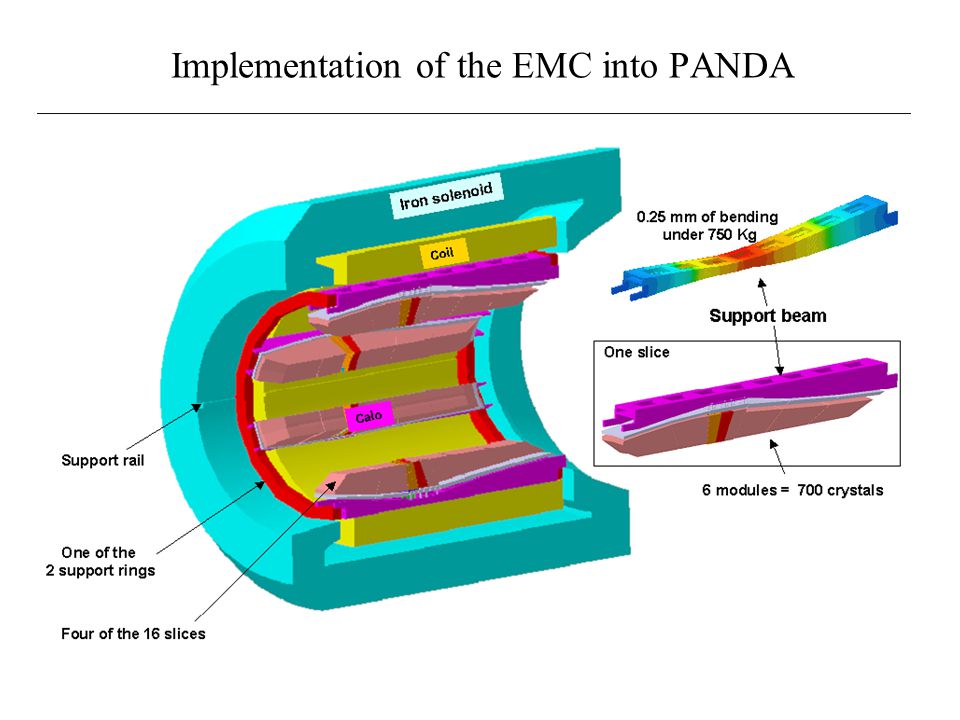

47 Implementation of the EMC into PANDA

48 The Forward EMC Shashlyk modules composed of lead absorbers and scintillators

49 Some benchmark channel simulation results

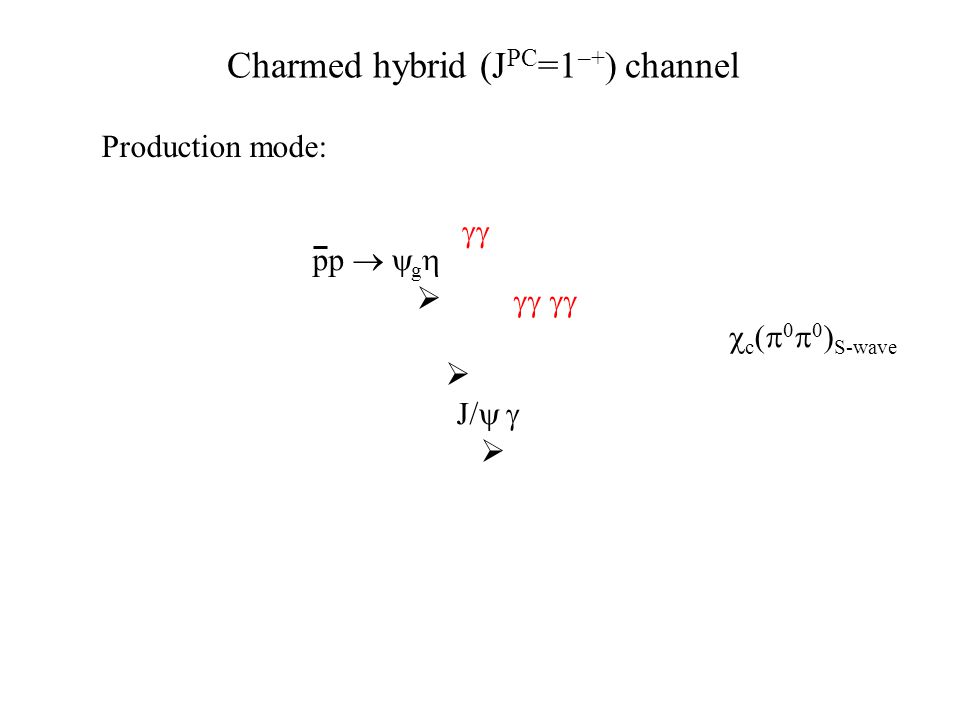

50 Charmed hybrid (J PC =1 –+ ) channel Production mode: pp   g      c (     ) S-wave  J/     e + e – (µ + µ – )  

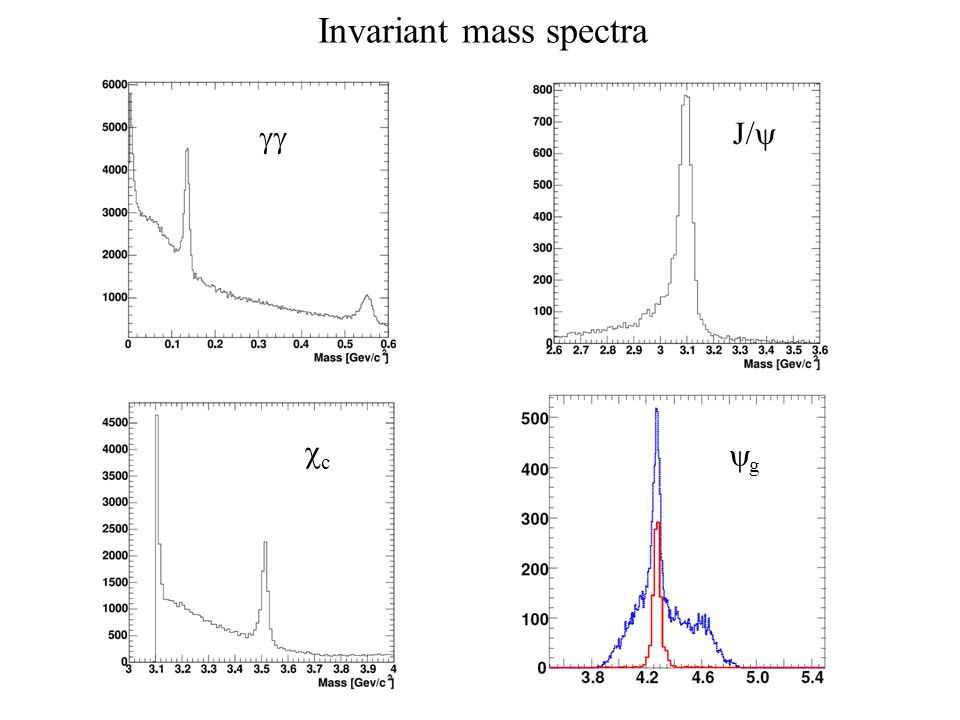

51 Invariant mass spectra  J/  cc gg

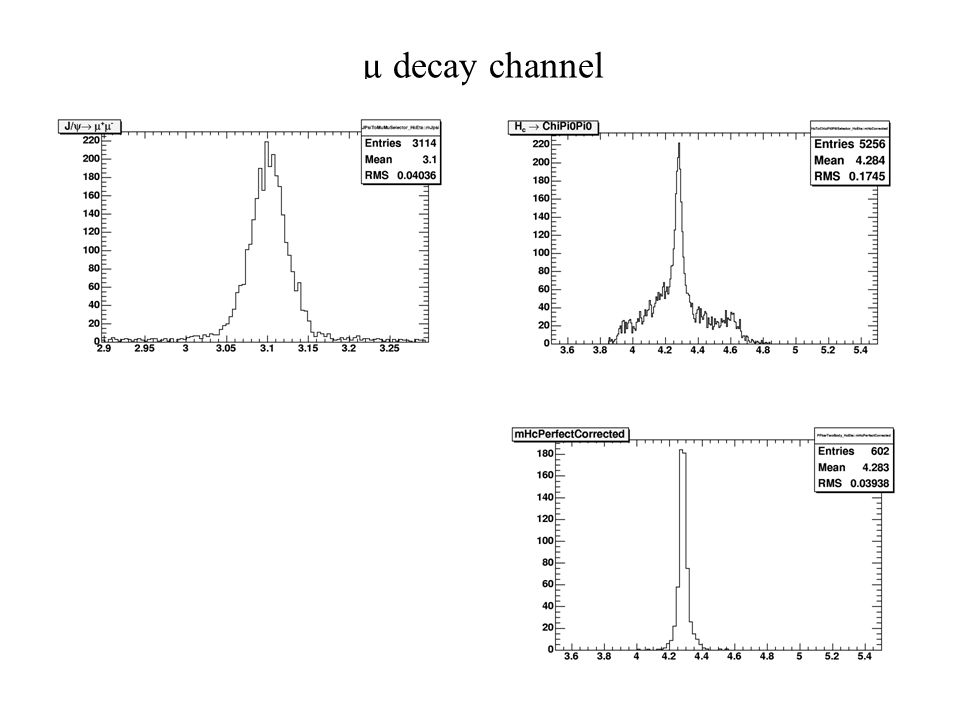

52 µ decay channel

53 Reconstruction efficiencies

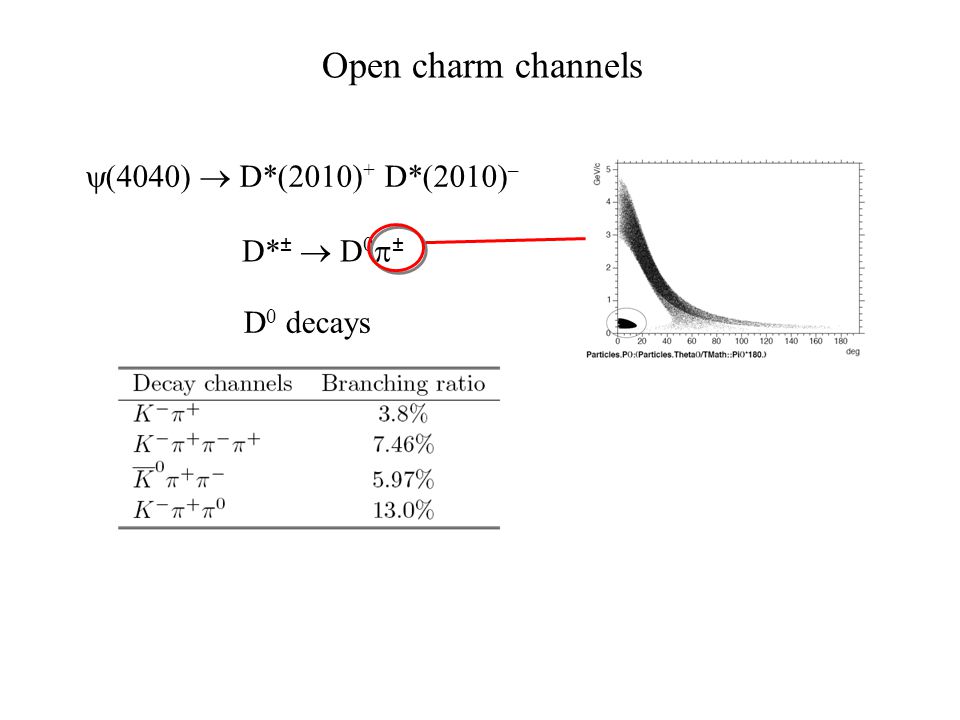

54 Open charm channels  D*(2010) + D*(2010) – D* ±  D 0  ± D 0 decays

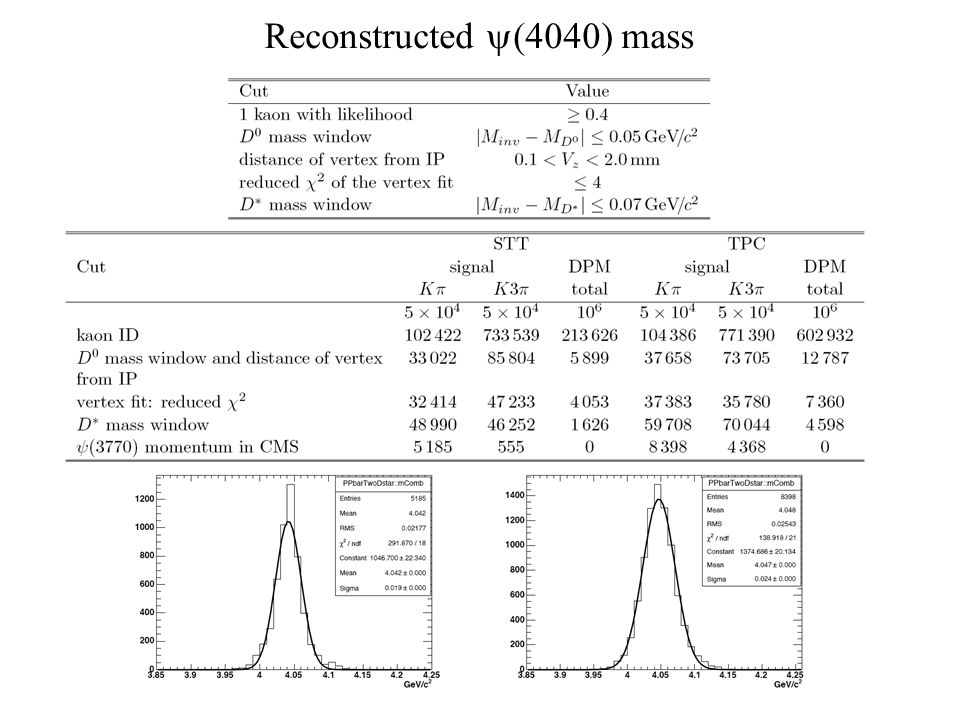

55 Reconstructed  (4040) mass

56 Summary The PANDA collaboration is healthy and eagerly waiting to build up the experiment and to do world-class physics.
