Presentation on theme: "Le Chatelier’s Principle Ways to change rate of reaction: 1. Change concentration 2. Change temperature 3. Add a catalyst 4. Increase the surface area."— Presentation transcript:

1

2 Le Chatelier’s Principle

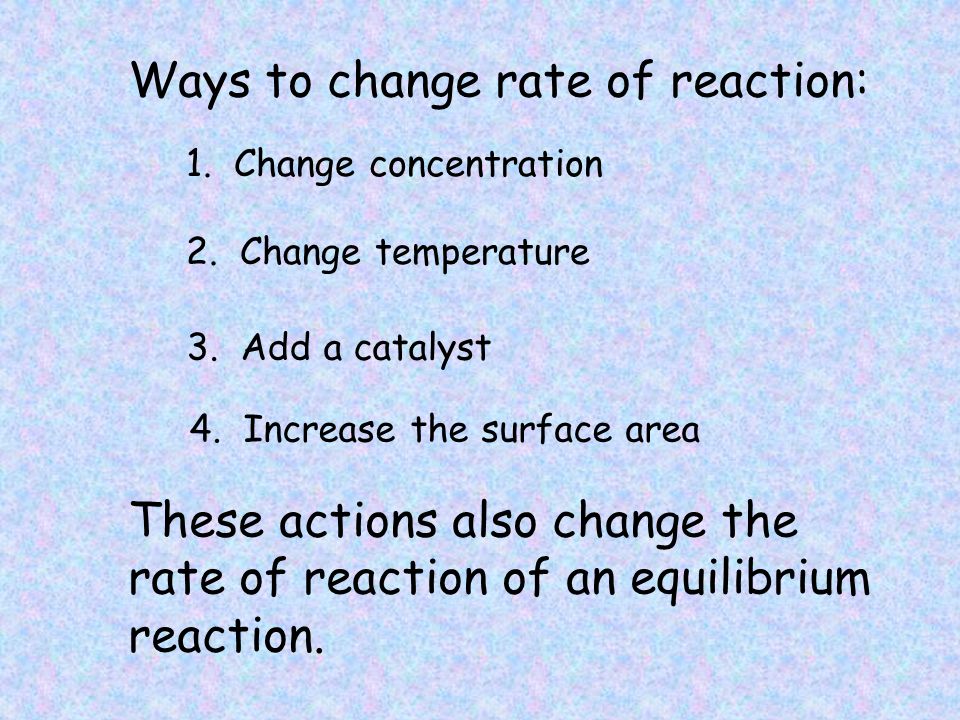

3 Ways to change rate of reaction: 1. Change concentration 2. Change temperature 3. Add a catalyst 4. Increase the surface area These actions also change the rate of reaction of an equilibrium reaction.

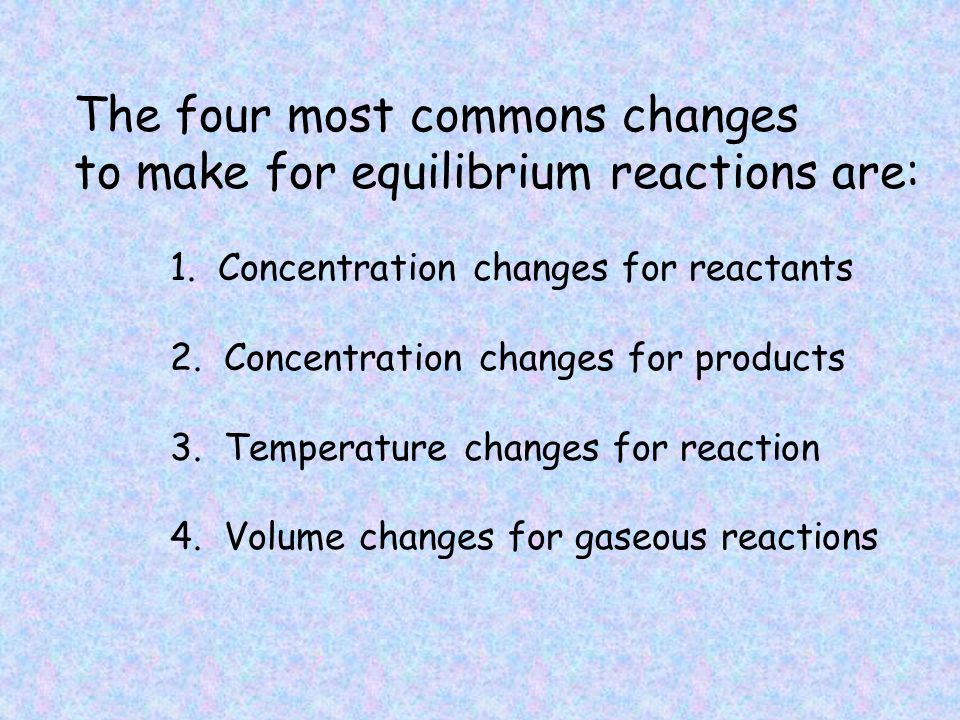

4 The four most commons changes to make for equilibrium reactions are: 1. Concentration changes for reactants 2. Concentration changes for products 3. Temperature changes for reaction 4. Volume changes for gaseous reactions

5 Concentration changes for Reactants and Products

6 Think of equilibrium as a big seesaw. At equilibrium, the seesaw is balanced. To the eye, no changes are occurring to the amount of reactants on the left or to the amount of product on the right. A + BC + D

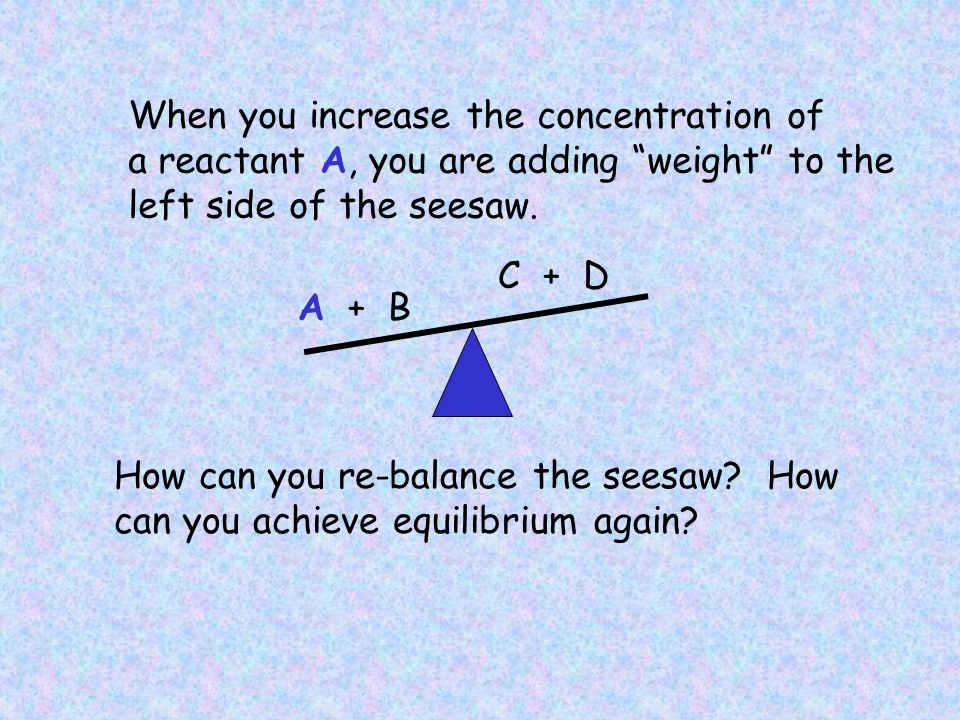

7 When you increase the concentration of a reactant A, you are adding “weight” to the left side of the seesaw. A + B C + D How can you re-balance the seesaw? How can you achieve equilibrium again?

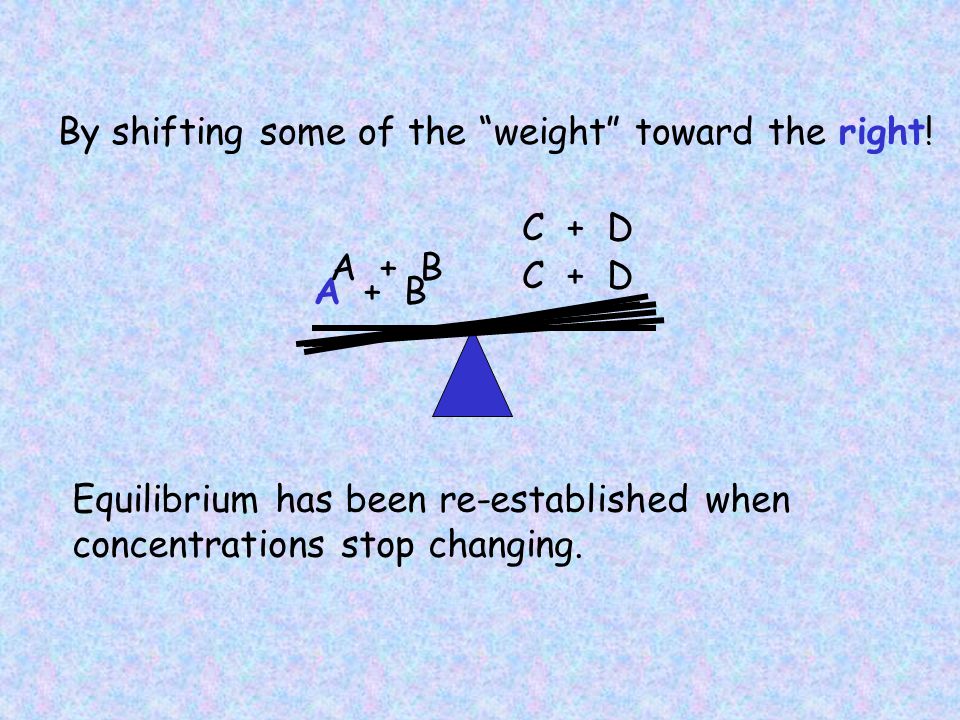

8 By shifting some of the “weight” toward the right! A + B C + D A + B C + D Equilibrium has been re-established when concentrations stop changing.

9 Before A was added, the system was at equilibrium. A + BC + D

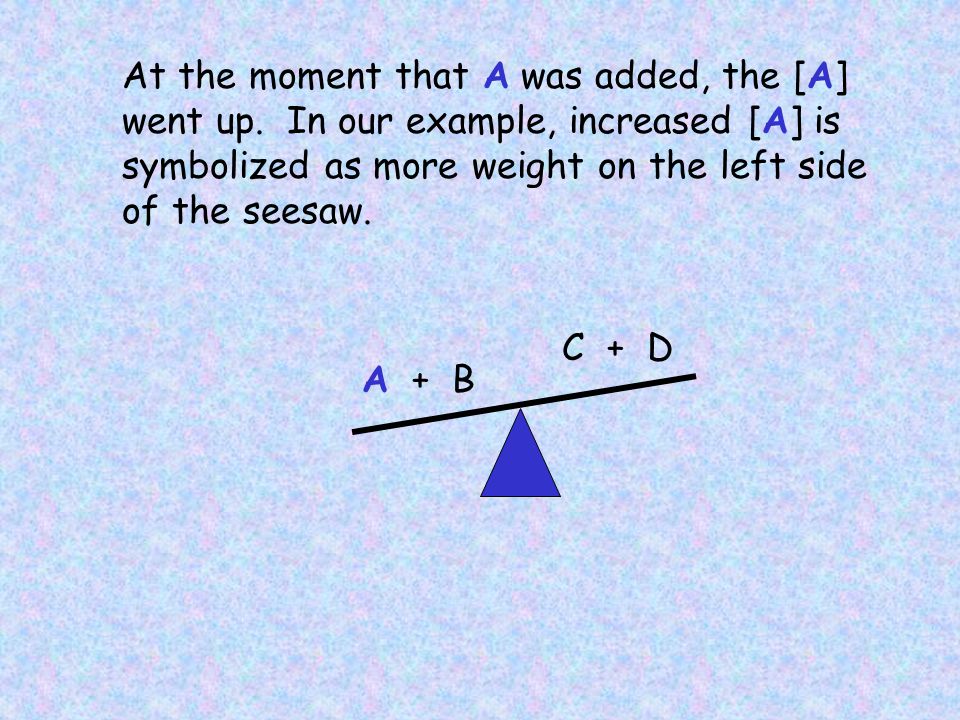

10 At the moment that A was added, the [A] went up. In our example, increased [A] is symbolized as more weight on the left side of the seesaw. A + B C + D

11 In the process of re-establishing equilibrium, the concentration of C and D went up. In our example, increased concentration is symbolized as more weight on the right side of the seesaw. A + B C + D A + B C + D

12 In the process of re-establishing equilibrium, the concentration of C and D went up. In one sense, the equilibrium concentrations of all substances shifted to the right side of the equilibrium. A + B C + D A + B C + D

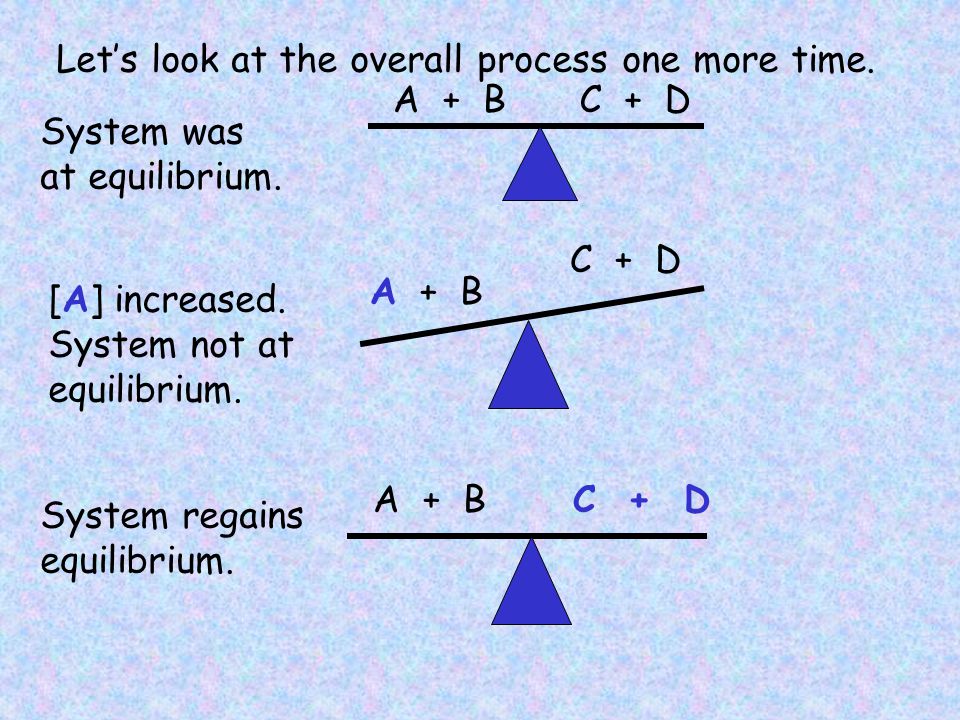

13 A + B C + D A + BC + D A + BC + D Let’s look at the overall process one more time. System was at equilibrium. [A] increased. System not at equilibrium. System regains equilibrium.

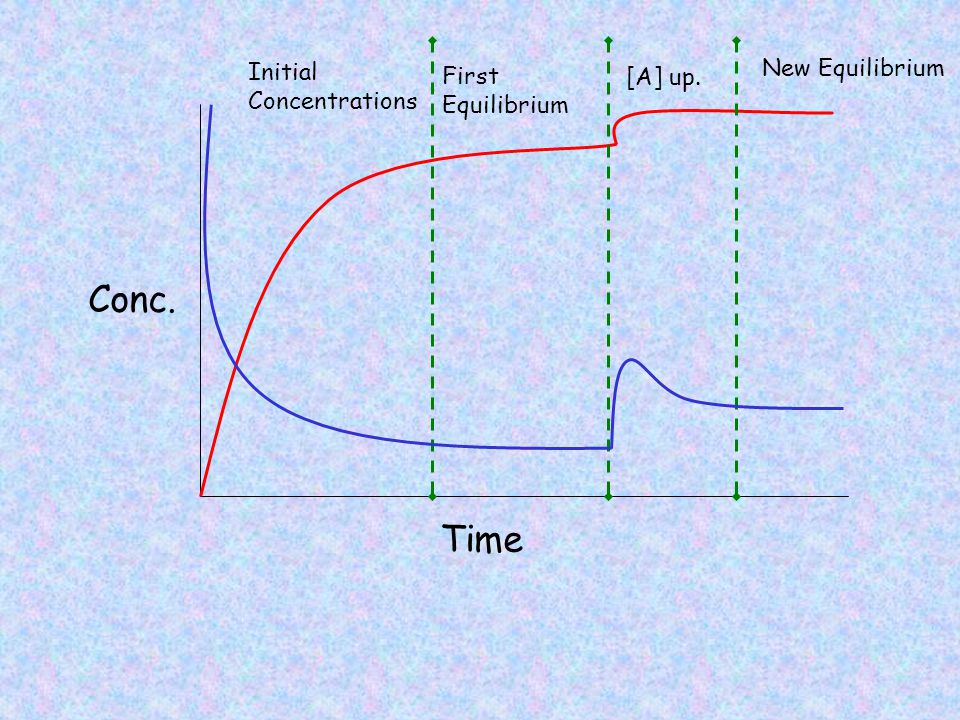

14 Conc. Time Initial Concentrations First Equilibrium [A] up. New Equilibrium

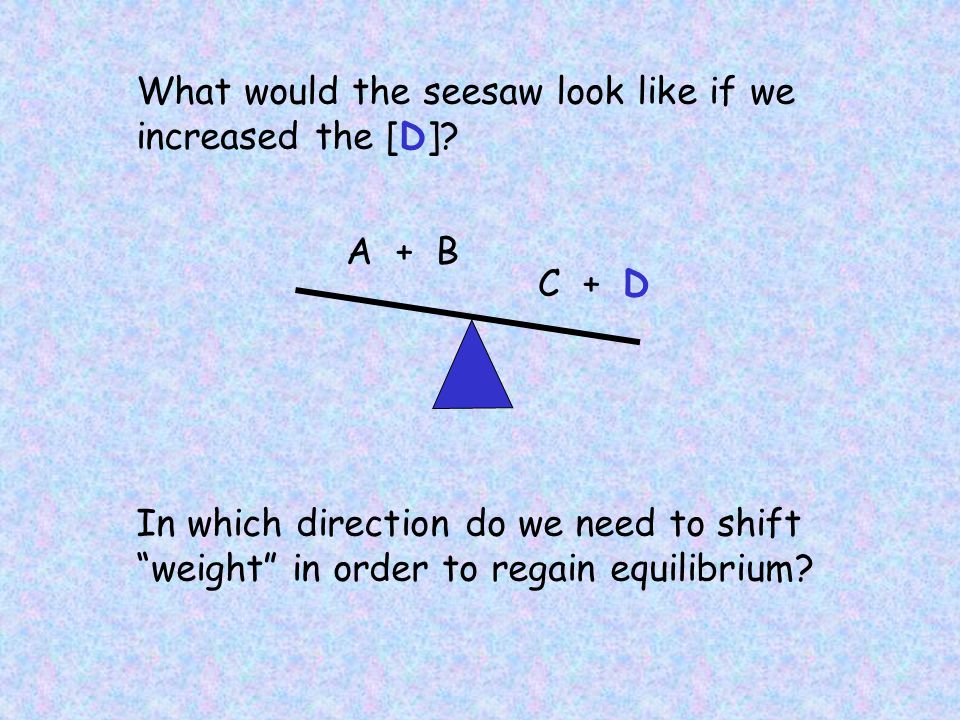

15 What would the seesaw look like if we increased the [D]? A + B C + D In which direction do we need to shift “weight” in order to regain equilibrium?

16 What would the seesaw look like if we increased the [D]? A + B C + D In which direction do we need to shift “weight” in order to regain equilibrium? Shift to the LEFT !

17 A + B C + D A + B C + D Caused by increasing [A]. Shift RIGHT to regain equilibrium. [C] and [D] increase. Caused by increasing [D]. Shift LEFT to regain equilibrium. [A] and [B] increase. Result:

18 What if we removed D as it was formed? This would be the same as decreasing [D]. What would the seesaw look like? A + B C + D When you decrease the [D], you are removing “weight” from that side of the seesaw.

19 How would you re-establish equilibrium? A + B C + D Shift “weight” to the right. More products will form. This is a common way to make an equilibrium reaction go to “completion.”

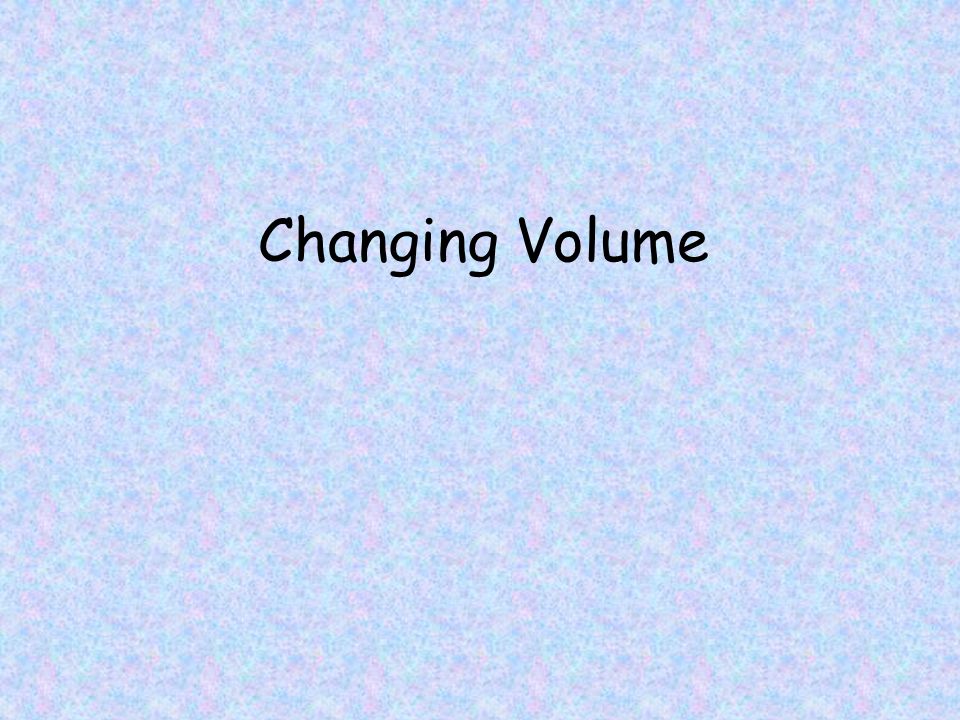

20 Changing Volume

21 When you have gaseous reactants or products and you change volume, you are changing concentration: PV = nRT Pressure and volume are inversely related.

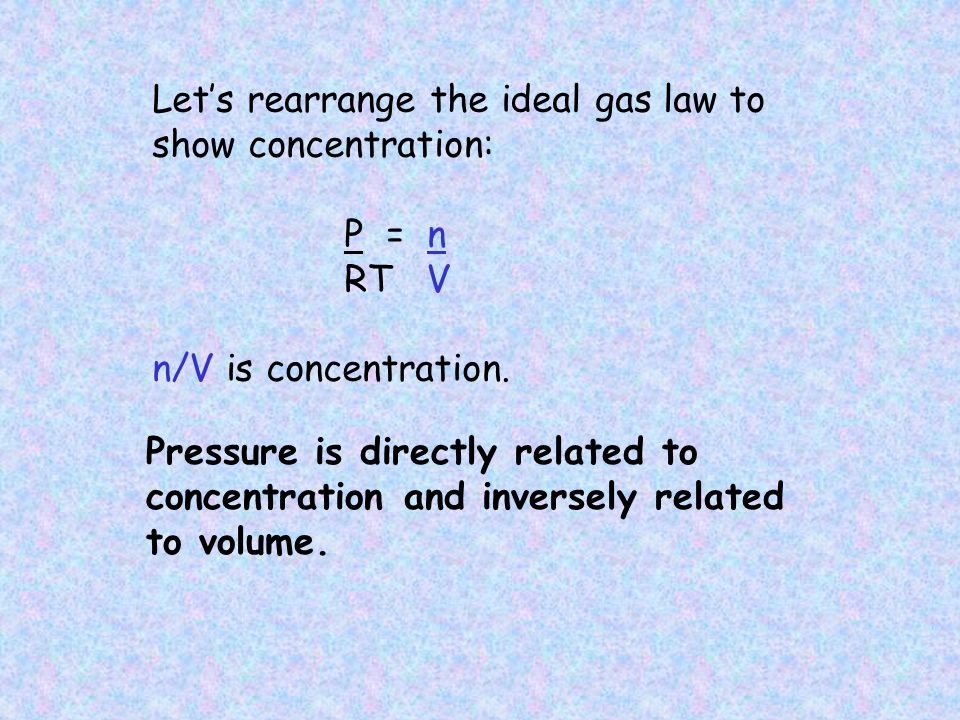

22 Let’s rearrange the ideal gas law to show concentration: P = n RT V n/V is concentration. Pressure is directly related to concentration and inversely related to volume.

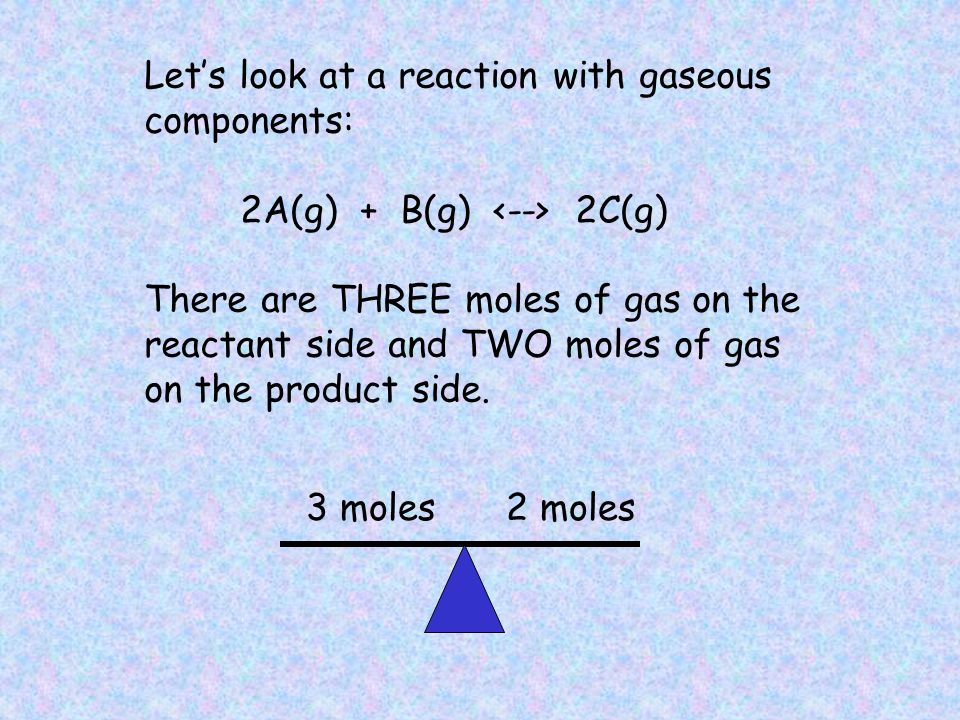

23 Let’s look at a reaction with gaseous components: 2A(g) + B(g) 2C(g) There are THREE moles of gas on the reactant side and TWO moles of gas on the product side. 3 moles2 moles

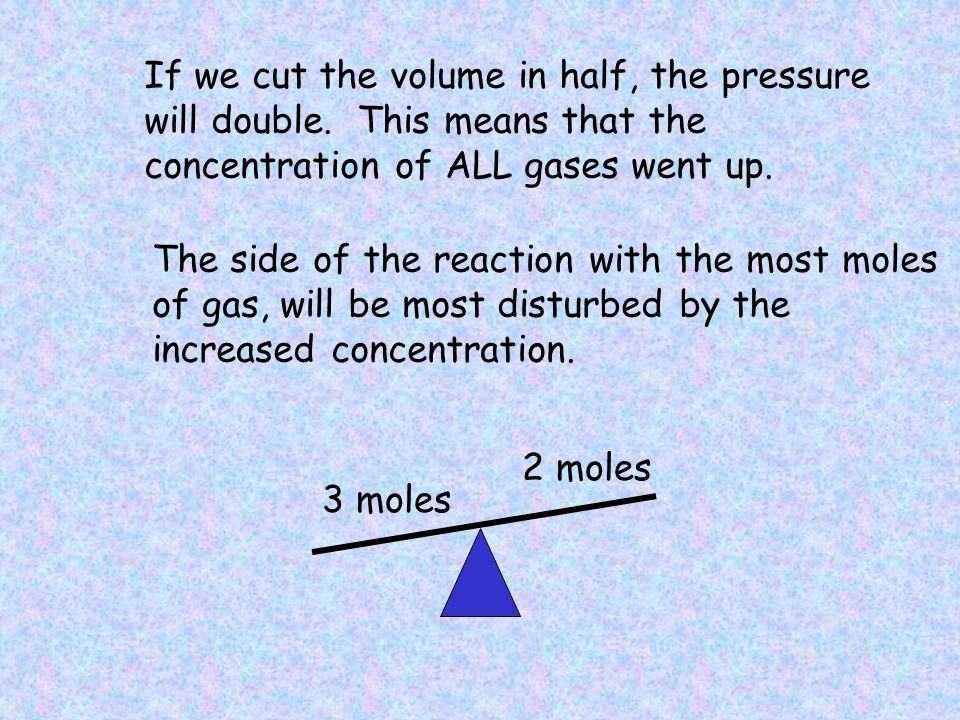

24 If we cut the volume in half, the pressure will double. This means that the concentration of ALL gases went up. The side of the reaction with the most moles of gas, will be most disturbed by the increased concentration. 3 moles 2 moles

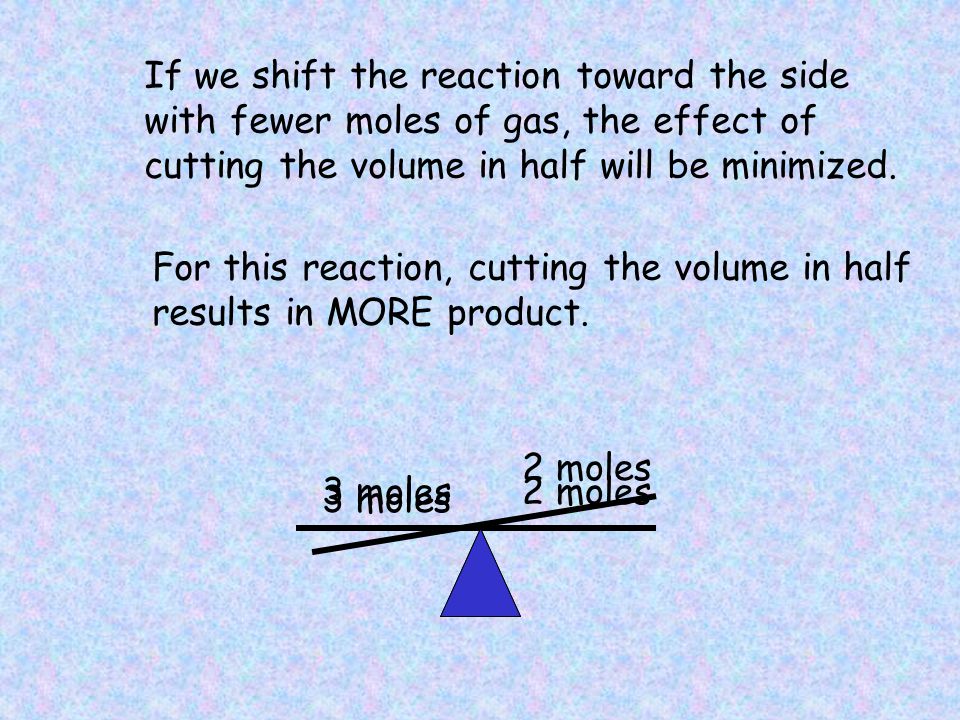

25 If we shift the reaction toward the side with fewer moles of gas, the effect of cutting the volume in half will be minimized. 3 moles 2 moles For this reaction, cutting the volume in half results in MORE product. 3 moles2 moles

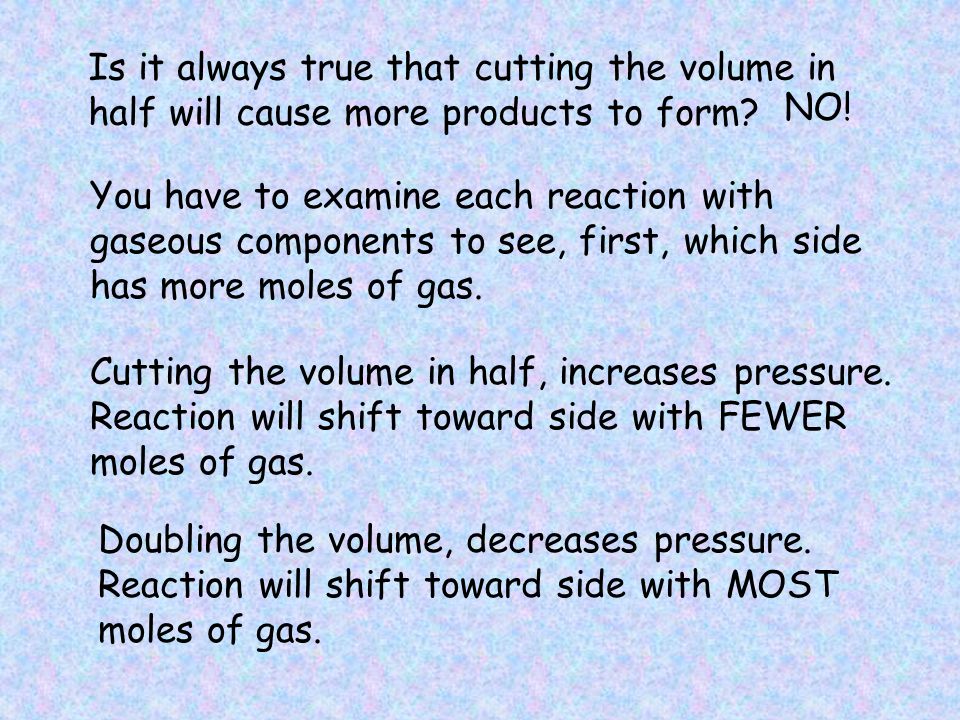

26 Is it always true that cutting the volume in half will cause more products to form? NO! You have to examine each reaction with gaseous components to see, first, which side has more moles of gas. Cutting the volume in half, increases pressure. Reaction will shift toward side with FEWER moles of gas. Doubling the volume, decreases pressure. Reaction will shift toward side with MOST moles of gas.

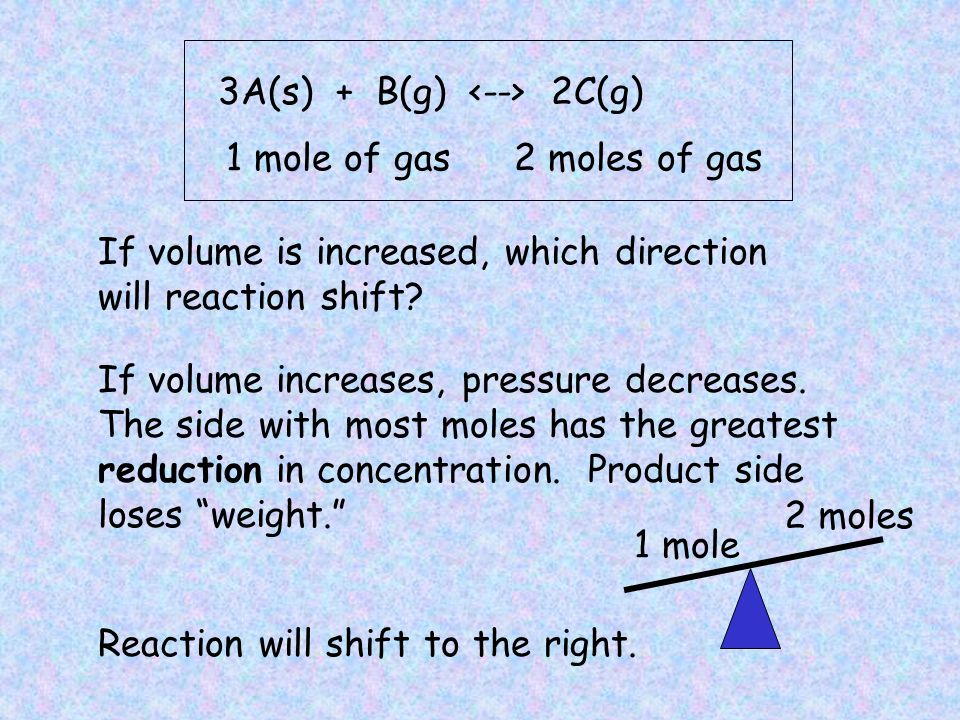

27 If volume is increased, which direction will reaction shift? If volume increases, pressure decreases. The side with most moles has the greatest reduction in concentration. Product side loses “weight.” Reaction will shift to the right. 3A(s) + B(g) 2C(g) 1 mole of gas2 moles of gas 1 mole 2 moles

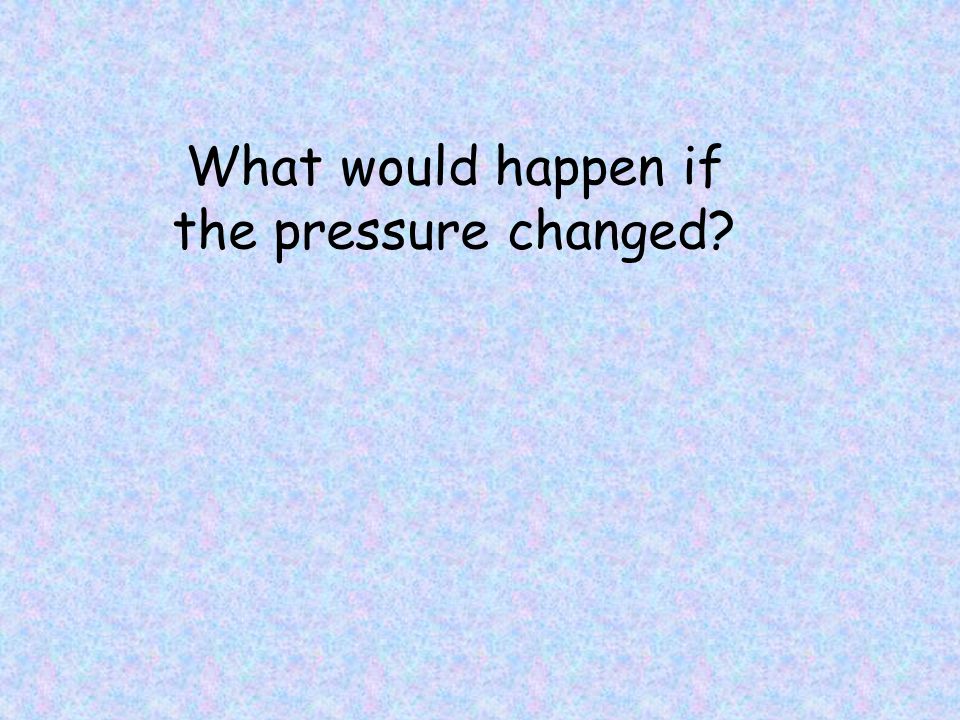

28 What would happen if the pressure changed?

29 What would happen to the equilibrium position of a reaction if the pressure change was created by adding an inert gas such as argon?

30 What would happen to the equilibrium position of a reaction if the pressure change was created by adding an inert gas such as argon? The answer may surprise you – Nothing!

31 Change in Temperature

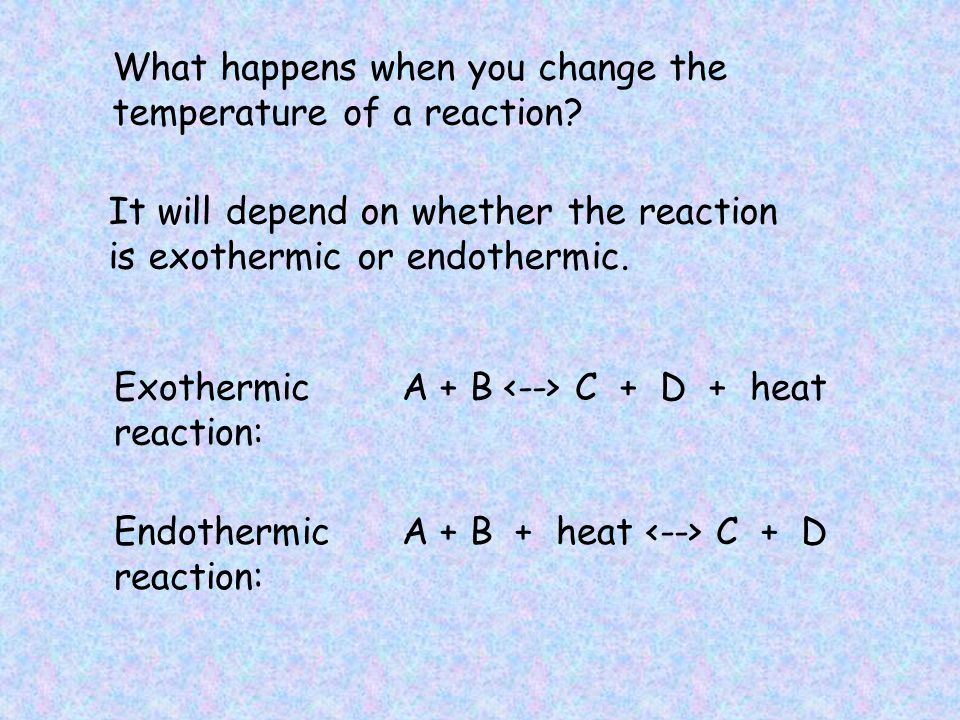

32 What happens when you change the temperature of a reaction? It will depend on whether the reaction is exothermic or endothermic. ExothermicA + B C + D + heat reaction: EndothermicA + B + heat C + D reaction:

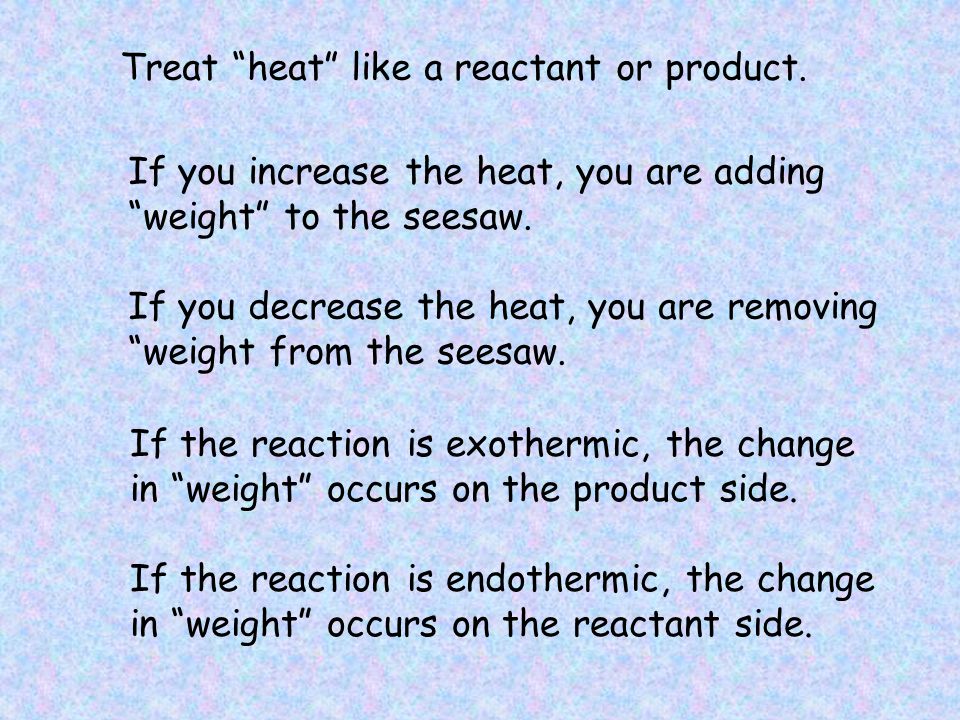

33 Treat “heat” like a reactant or product. If you increase the heat, you are adding “weight” to the seesaw. If you decrease the heat, you are removing “weight from the seesaw. If the reaction is exothermic, the change in “weight” occurs on the product side. If the reaction is endothermic, the change in “weight” occurs on the reactant side.

34 Exothermic Reaction with increased temperature. A + B C + D + Heat Exothermic Reaction with decreased temperature. A + B C + D + heat Shift Left! More Reactants Shift Right! More Products

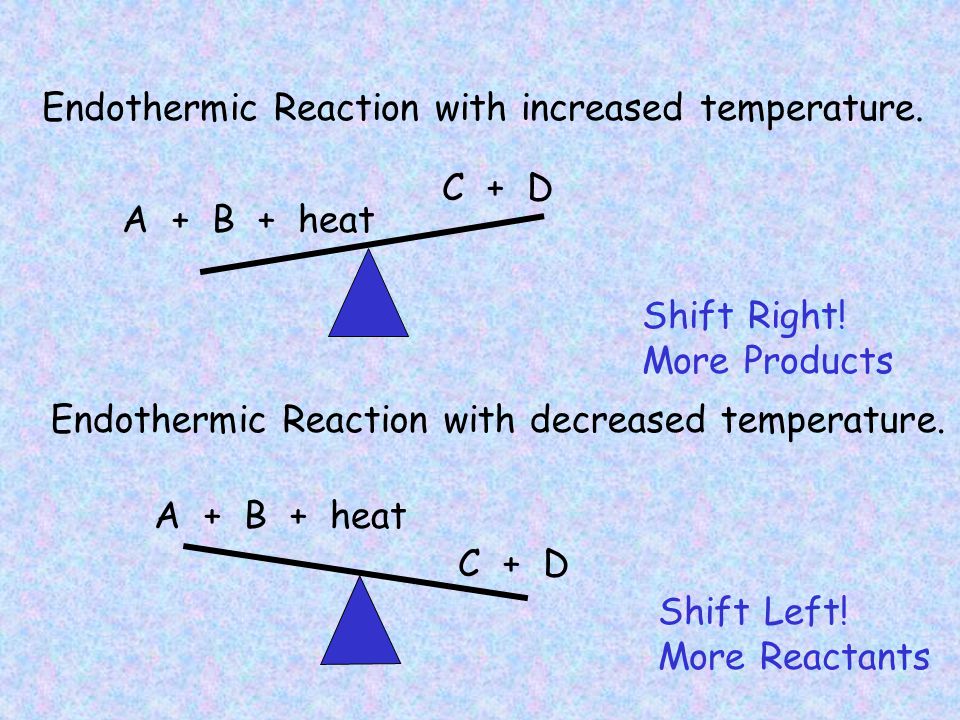

35 Endothermic Reaction with increased temperature. A + B + heat C + D Endothermic Reaction with decreased temperature. A + B + heat C + D Shift Right! More Products Shift Left! More Reactants

36 Let’s see if you can put it all together,

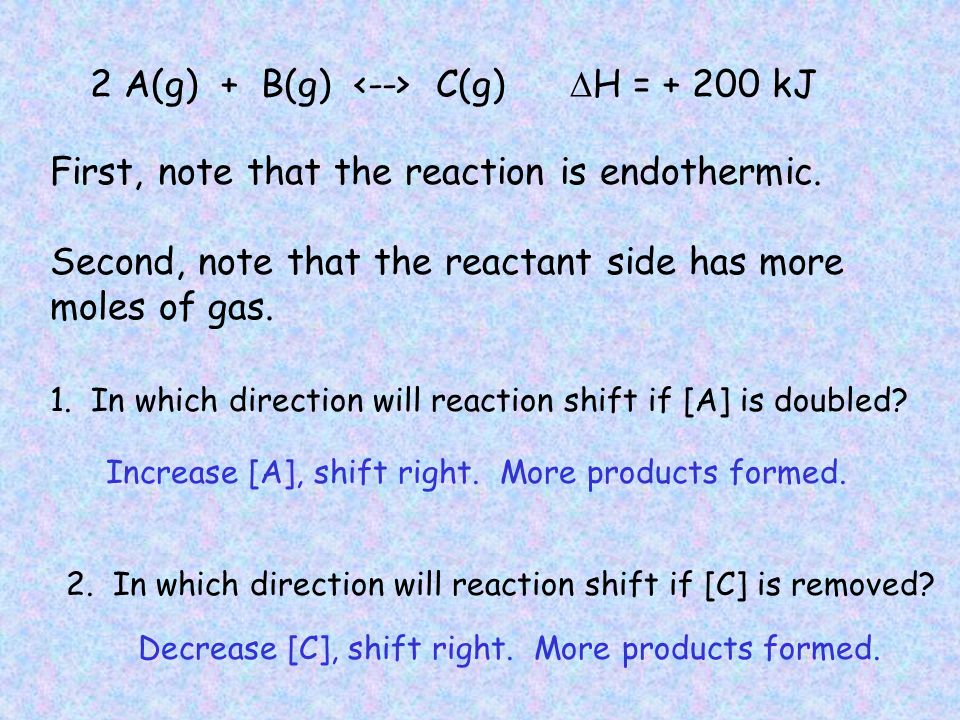

37 2 A(g) + B(g) C(g)  H = kJ Increase [A], shift right. More products formed. 2. In which direction will reaction shift if [C] is removed? Decrease [C], shift right. More products formed. 1. In which direction will reaction shift if [A] is doubled? First, note that the reaction is endothermic. Second, note that the reactant side has more moles of gas.

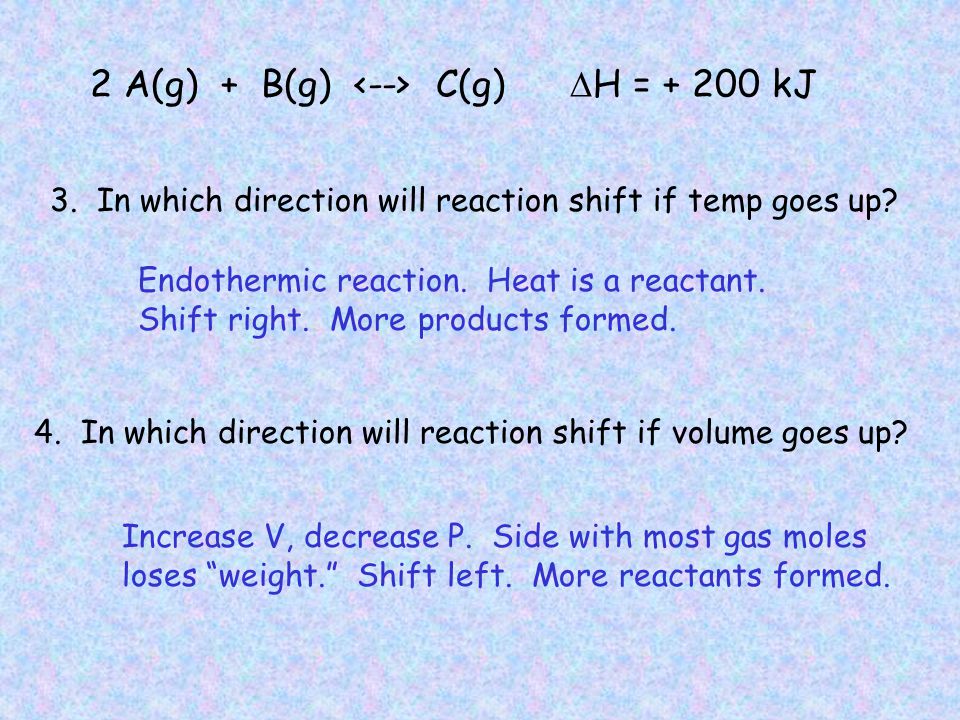

38 2 A(g) + B(g) C(g)  H = kJ 3. In which direction will reaction shift if temp goes up? Endothermic reaction. Heat is a reactant. Shift right. More products formed. 4. In which direction will reaction shift if volume goes up? Increase V, decrease P. Side with most gas moles loses “weight.” Shift left. More reactants formed.
