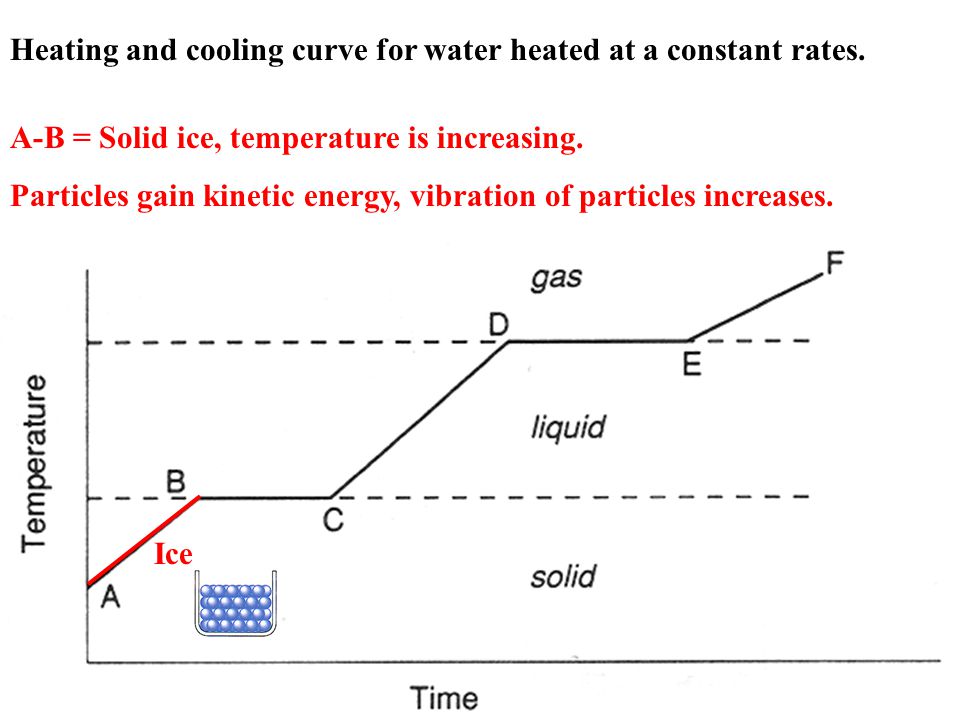

1 A-B = Solid ice, temperature is increasing. Particles gain kinetic energy, vibration of particles increases. Heating and cooling curve for water heated at a constant rates. Ice

2 B-C = Solid starts to change state from solid to liquid. Temperature remains constant as energy is used to break inter- molecular bonds. H 2 O (s)  H 2 O (  ) energy required  6 kJ/mol 0ºC

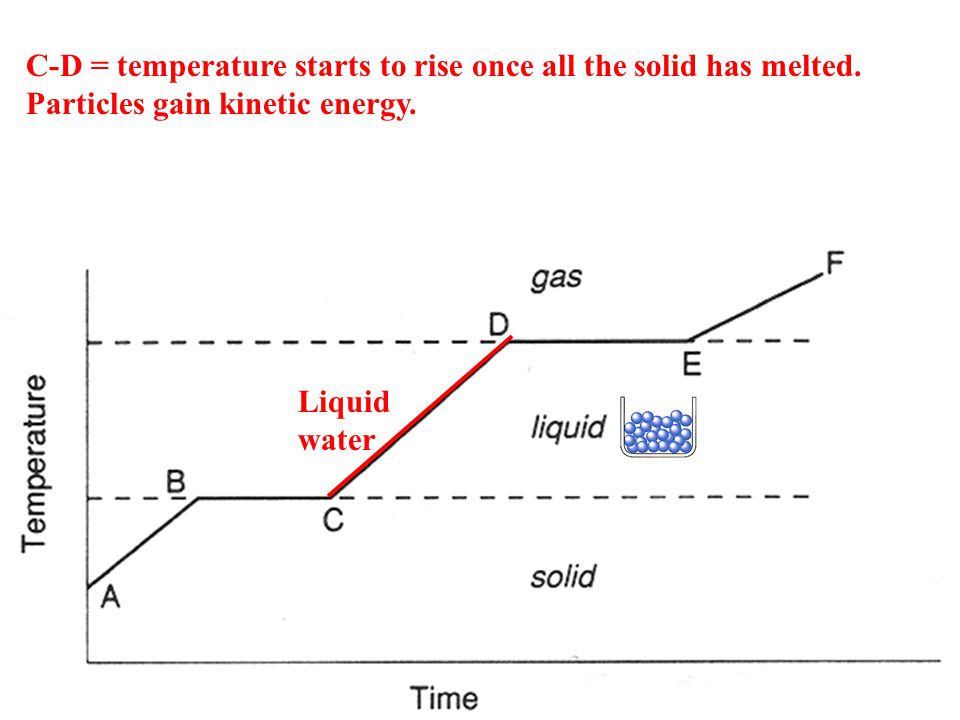

3 C-D = temperature starts to rise once all the solid has melted. Particles gain kinetic energy. Liquid water

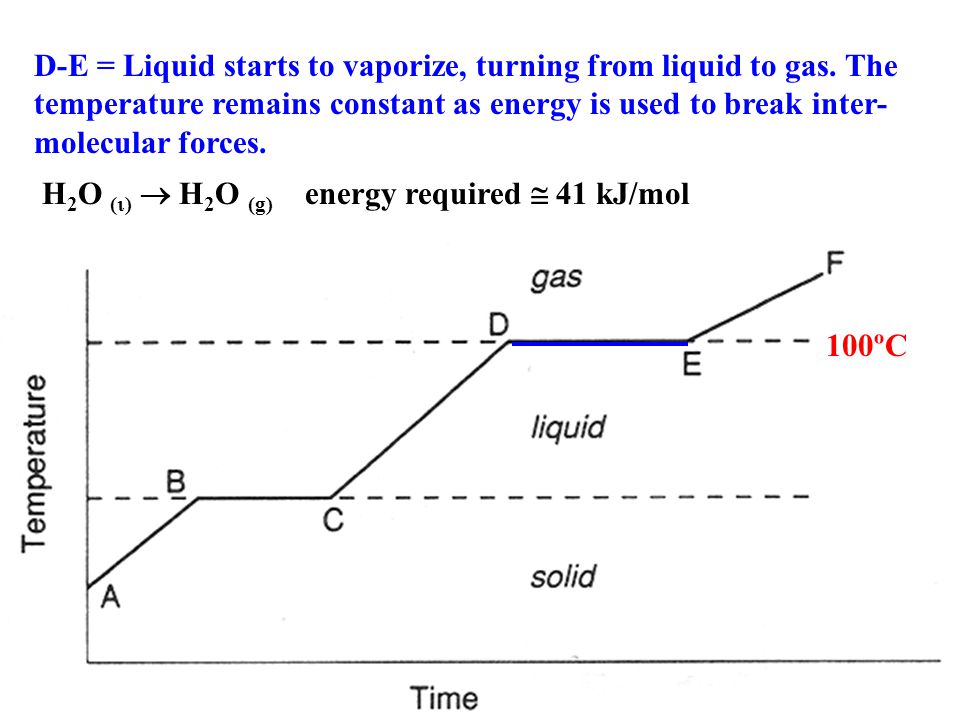

4 D-E = Liquid starts to vaporize, turning from liquid to gas. The temperature remains constant as energy is used to break inter- molecular forces. H 2 O (  )  H 2 O (g) energy required  41 kJ/mol 100ºC

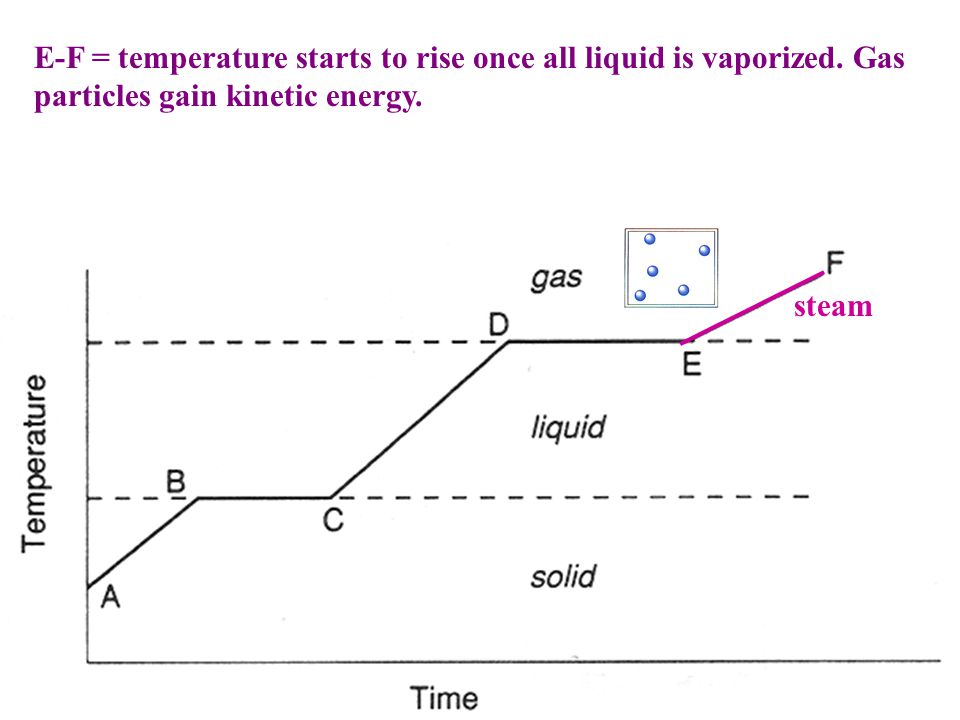

5 E-F = temperature starts to rise once all liquid is vaporized. Gas particles gain kinetic energy. steam

6 Heating and Cooling Curve of Water freezing vaporization condensation

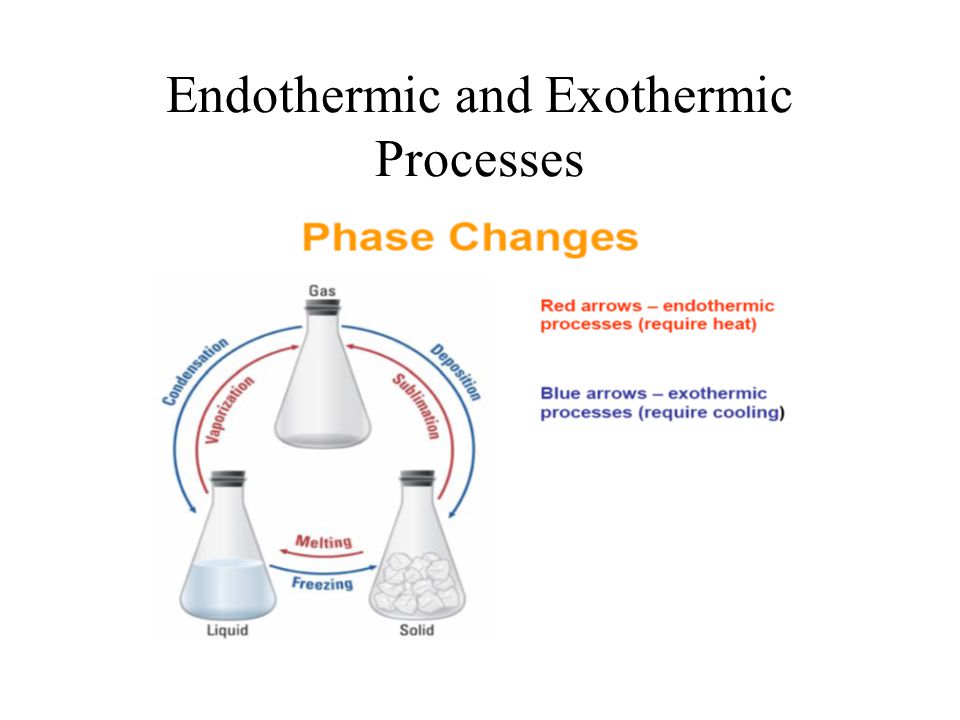

7 Endothermic and Exothermic Processes

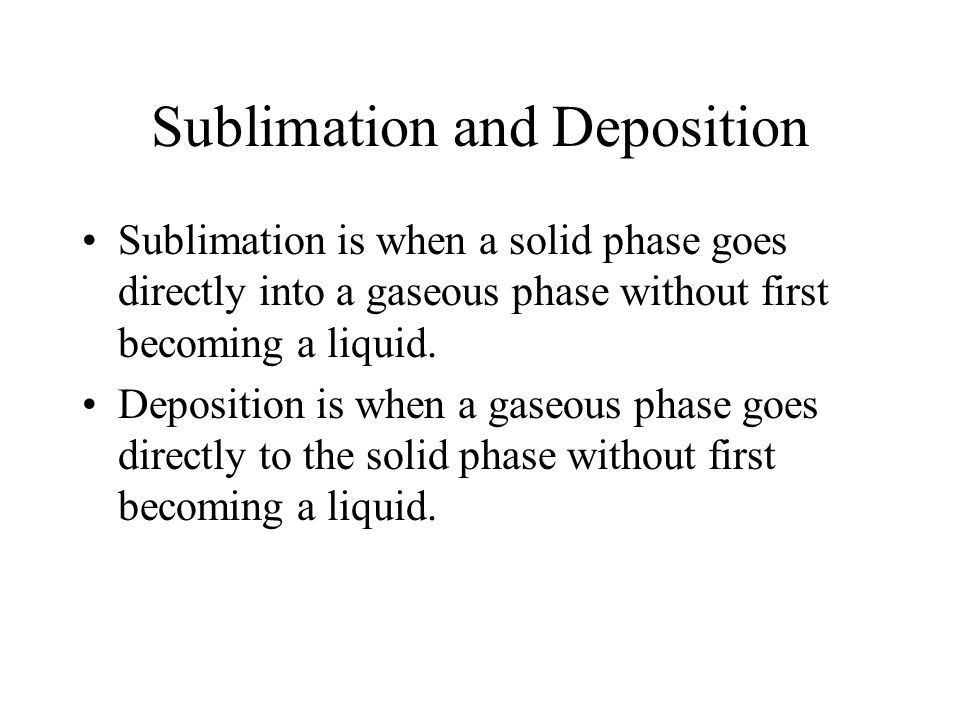

8 Sublimation and Deposition Sublimation is when a solid phase goes directly into a gaseous phase without first becoming a liquid. Deposition is when a gaseous phase goes directly to the solid phase without first becoming a liquid.

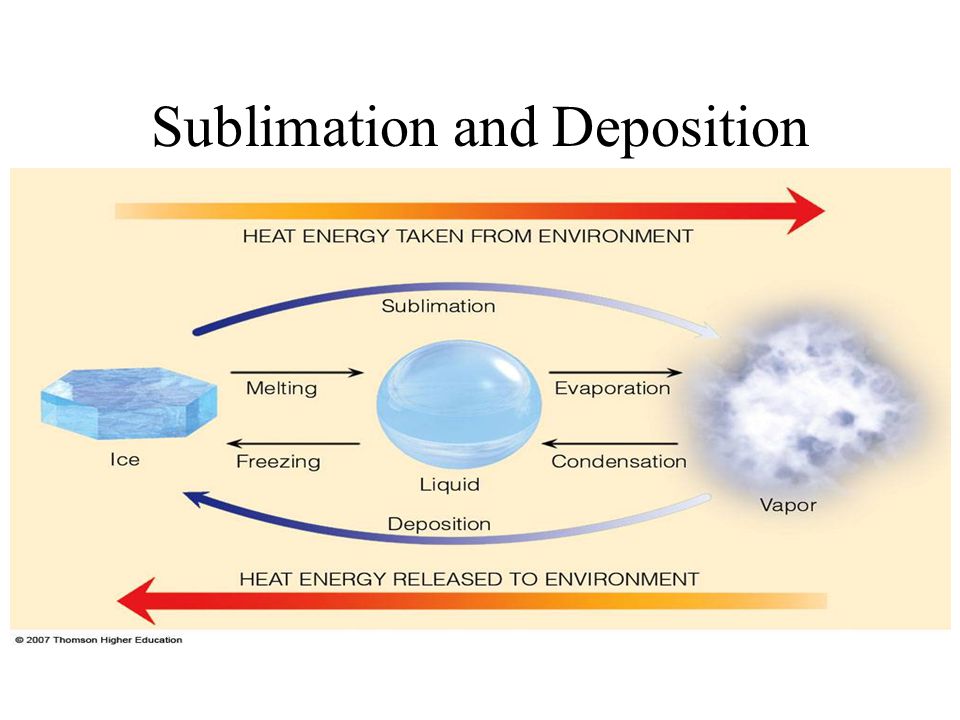

9 Sublimation and Deposition

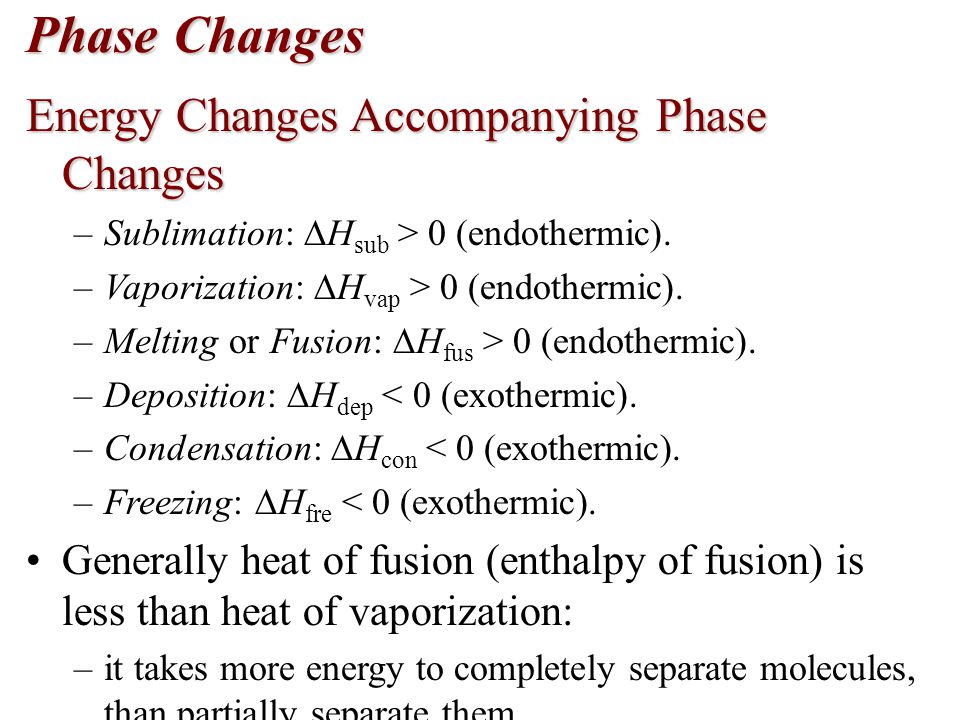

10 Phase Changes Energy Changes Accompanying Phase Changes –Sublimation:  H sub > 0 (endothermic). –Vaporization:  H vap > 0 (endothermic). –Melting or Fusion:  H fus > 0 (endothermic). –Deposition:  H dep < 0 (exothermic). –Condensation:  H con < 0 (exothermic). –Freezing:  H fre < 0 (exothermic). Generally heat of fusion (enthalpy of fusion) is less than heat of vaporization: –it takes more energy to completely separate molecules, than partially separate them.

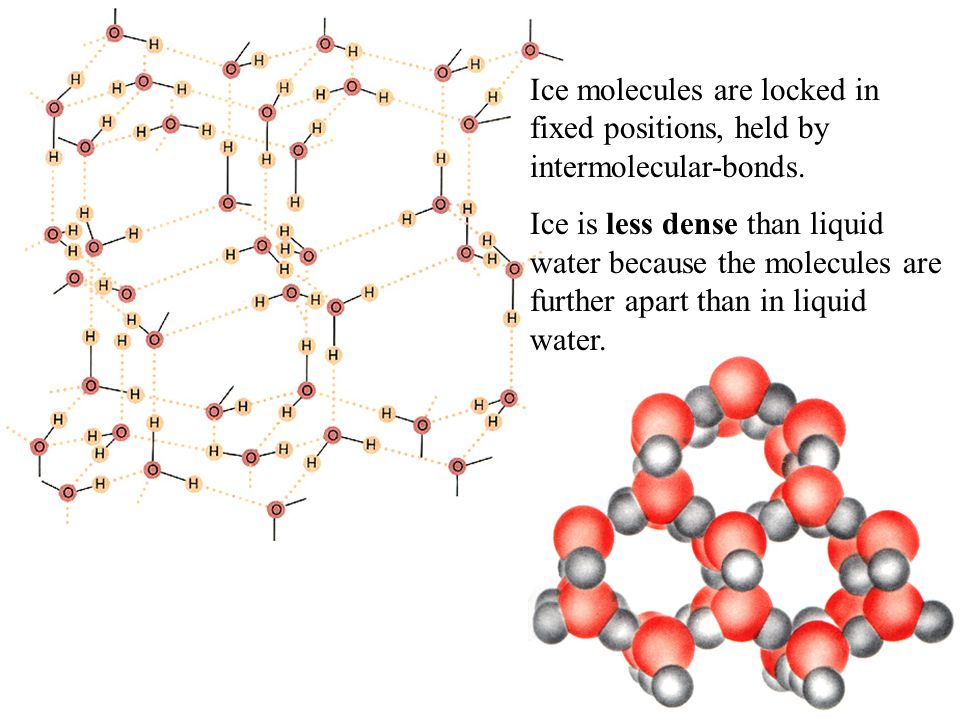

11 Ice molecules are locked in fixed positions, held by intermolecular-bonds. Ice is less dense than liquid water because the molecules are further apart than in liquid water.

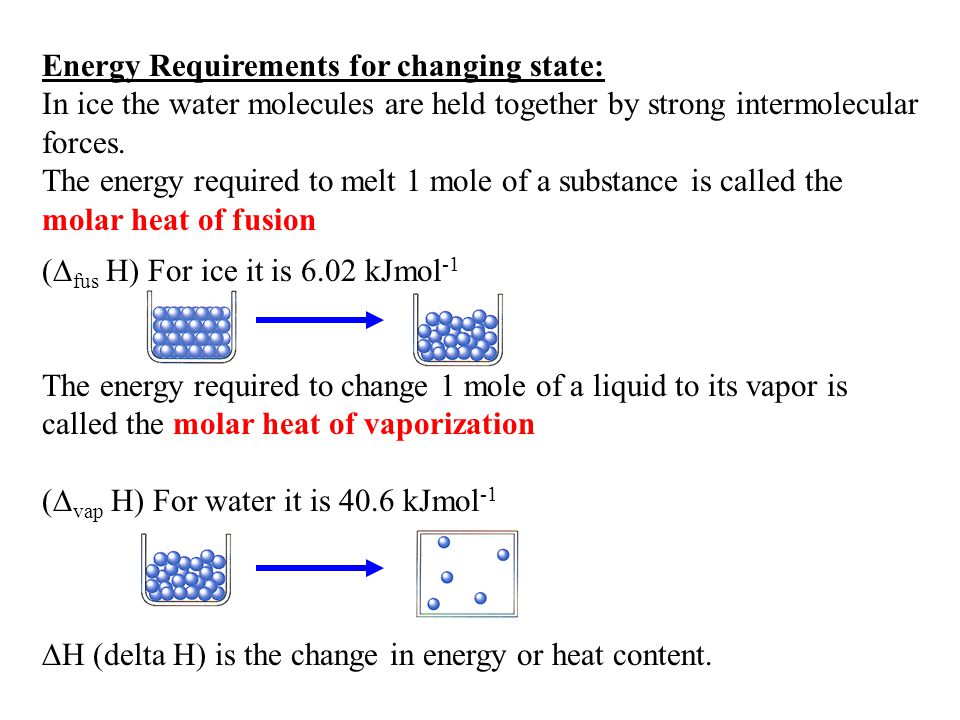

12 Energy Requirements for changing state: In ice the water molecules are held together by strong intermolecular forces. The energy required to melt 1 mole of a substance is called the molar heat of fusion (  fus H) For ice it is 6.02 kJmol -1 The energy required to change 1 mole of a liquid to its vapor is called the molar heat of vaporization (  vap H) For water it is 40.6 kJmol -1  H (delta H) is the change in energy or heat content.

13 It takes more energy to vaporize water than to melt it. This is because in melting you weaken the intermolecular forces. Here about 1/6 of the hydrogen bonds are broken. In vaporization you totally break them. All the hydrogen bonds are broken Fusion is when a solid melts to form a liquid Vaporization is when a liquid evaporates to form a gas.  vap H is always greater than  fus H.

14 Calculating Energy Changes: Solid to liquid How much energy is required to melt 8.5 g of ice at 0  C? The molar heat of fusion for ice is 6.02 kJmol -1 Step 1: How many moles of ice do we have? n = m/Mn = 8.5g / 18gmol -1 = 0.47 mol H 2 O Step 2: Use the equivalence statement to work the energy (6.02 kJ is required for 1 mol H 2 O) kJ = 0.47 mol H 2 O  6.02 kJ / mol H 2 O = 2.8kJ

15 What is specific heat capacity? The amount of energy required to change the temperature of one gram of a substance by 1  C. Another name for specific heat is a calorie (1 calorie = Joules) Specific heat capacity of liquid water (H 2 O (L) ) is 4.18 J g -1  C –1. Water (s) = 2.03 J g -1  C –1  0.5 cal/g to break up ice Water (g) = 2.0 J g -1  C –1 10  C11  C

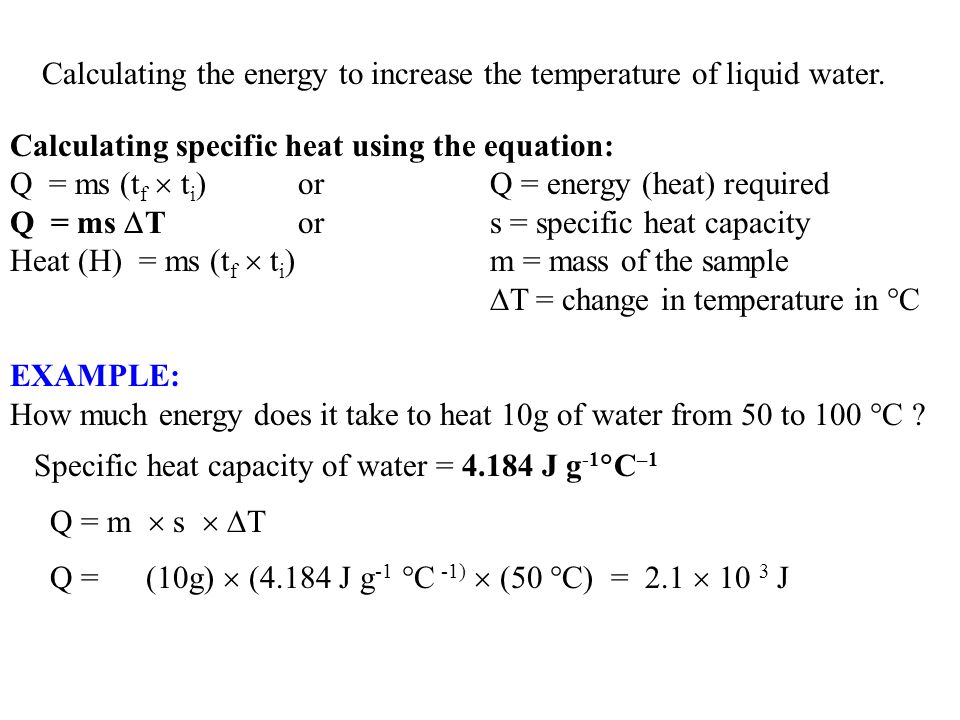

16 Calculating the energy to increase the temperature of liquid water. Calculating specific heat using the equation: Q = ms (t f  t i ) orQ = energy (heat) required Q = ms  T ors = specific heat capacity Heat (H) = ms (t f  t i )m = mass of the sample  T = change in temperature in  C EXAMPLE: How much energy does it take to heat 10g of water from 50 to 100  C ? Specific heat capacity of water = J g -1  C –1 Q = m  s   T Q = (10g)  (4.184 J g -1  C -1)  (50  C) = 2.1  10 3 J

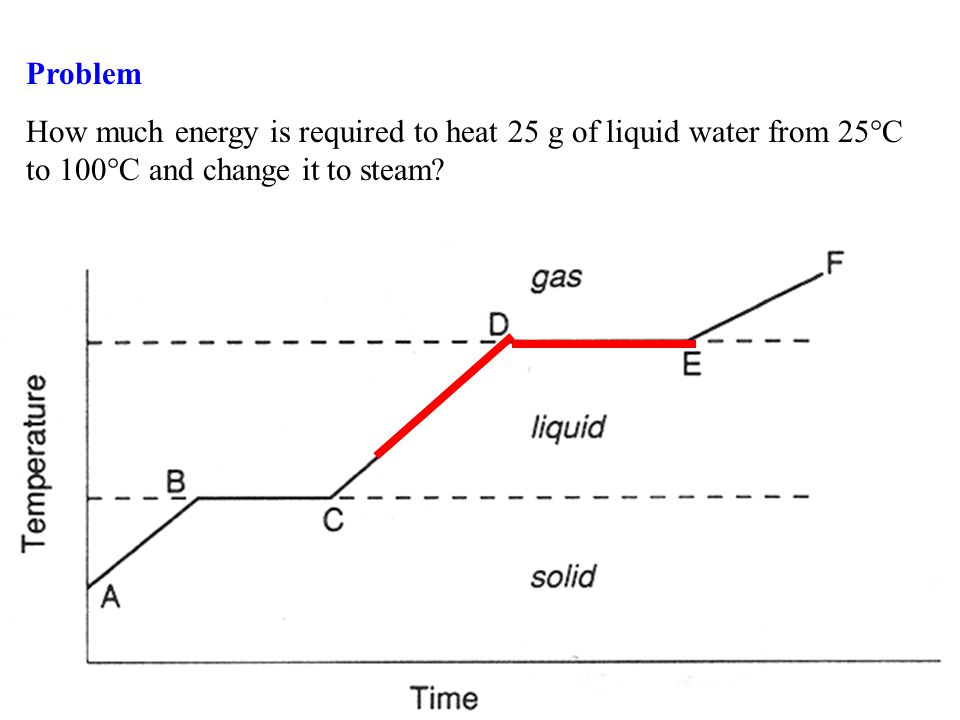

17 Problem How much energy is required to heat 25 g of liquid water from 25  C to 100  C and change it to steam?

18 Step 1: Calculate the energy needed to heat the water from 25  C to 100  C Q = 25g  J g -1  C -1  75  C =7.8  10 3 J Q = m  s   T

19 Step 2: Vaporization: Use the  vap H to calculate the energy required to vaporize 25g of water at 100  C.25g  1mol H 2 O / 18g mol -1 H 2 O = 1.4 mol H 2 O  vap H (H 2 O) = 1.4 mol H 2 O  40.6kJ/mol = 57 kJ Molar heat of vaporization of water is 40.6 kJmol - The  vap H is per mole, not per gram. So first you have to convert the grams into moles.

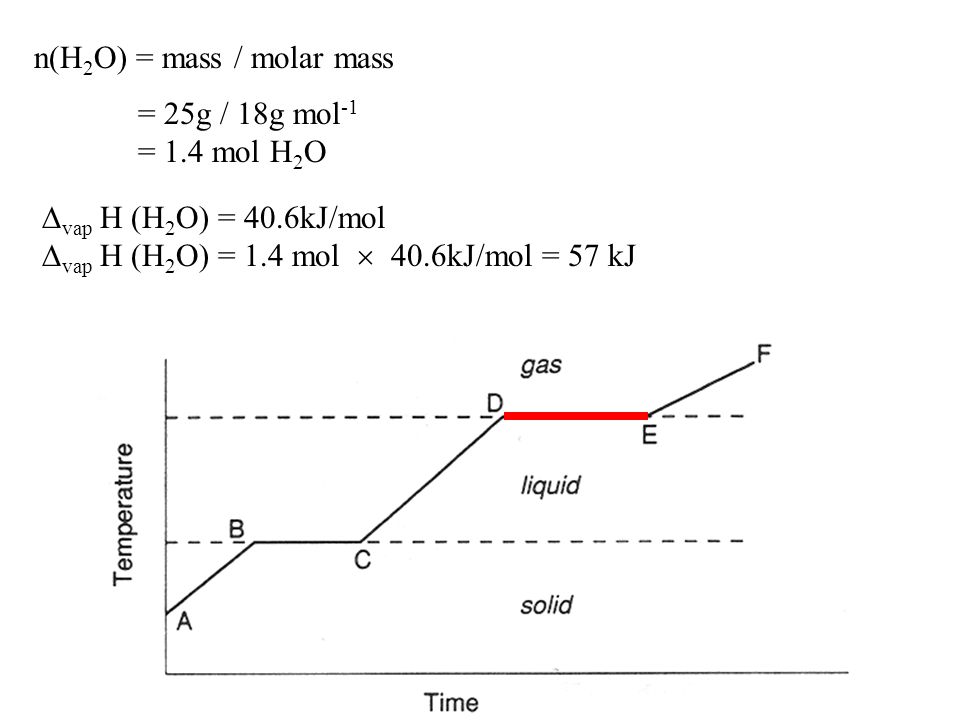

20 n(H 2 O) = mass / molar mass = 25g / 18g mol -1 = 1.4 mol H 2 O  vap H (H 2 O) = 40.6kJ/mol  vap H (H 2 O) = 1.4 mol  40.6kJ/mol = 57 kJ

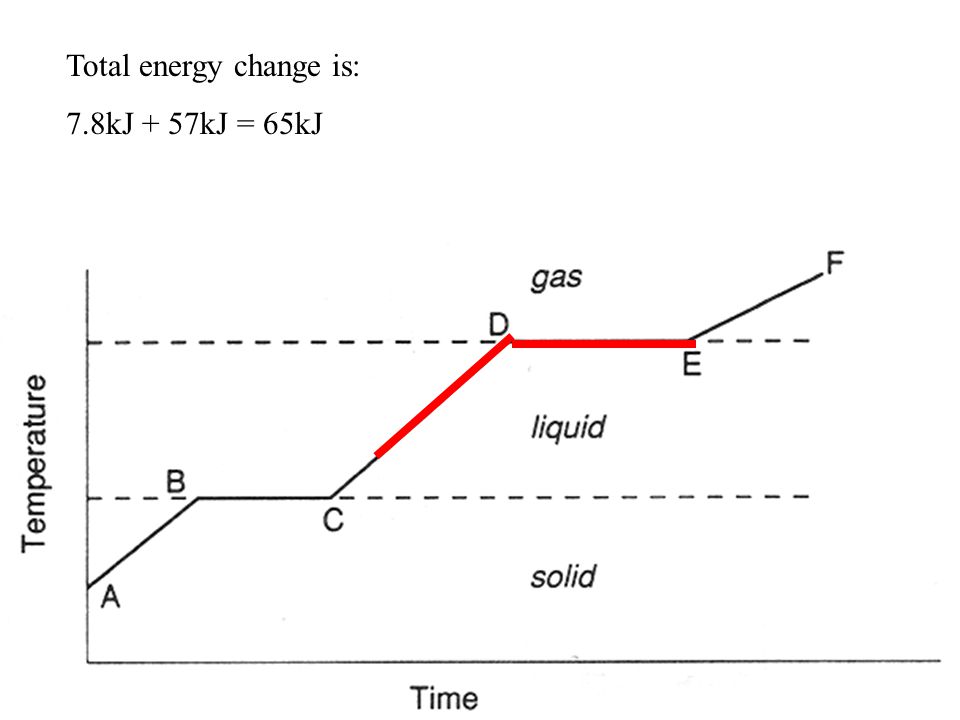

21 Total energy change is: 7.8kJ + 57kJ = 65kJ
