1 SBR Sequential Batch Reactor

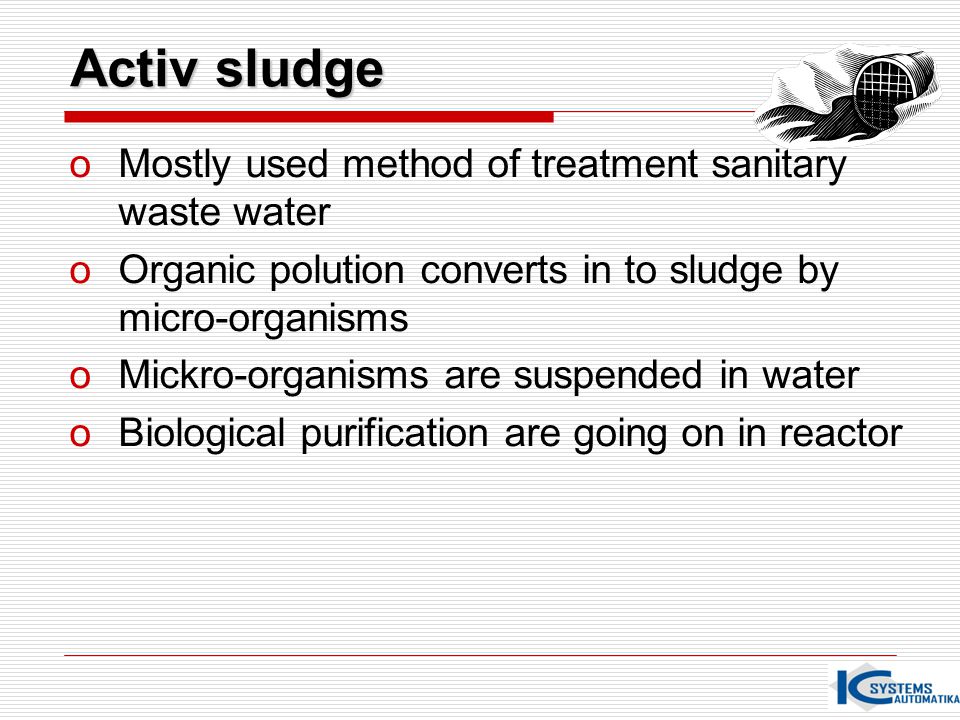

2 Activ sludge oMostly used method of treatment sanitary waste water oOrganic polution converts in to sludge by micro-organisms oMickro-organisms are suspended in water oBiological purification are going on in reactor

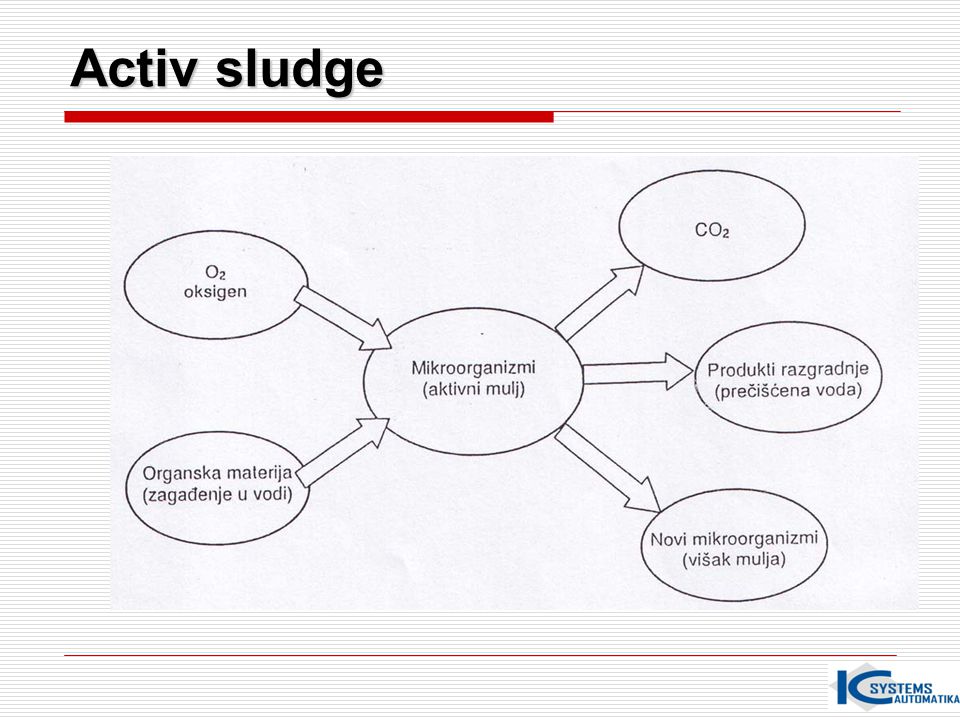

3 Activ sludge

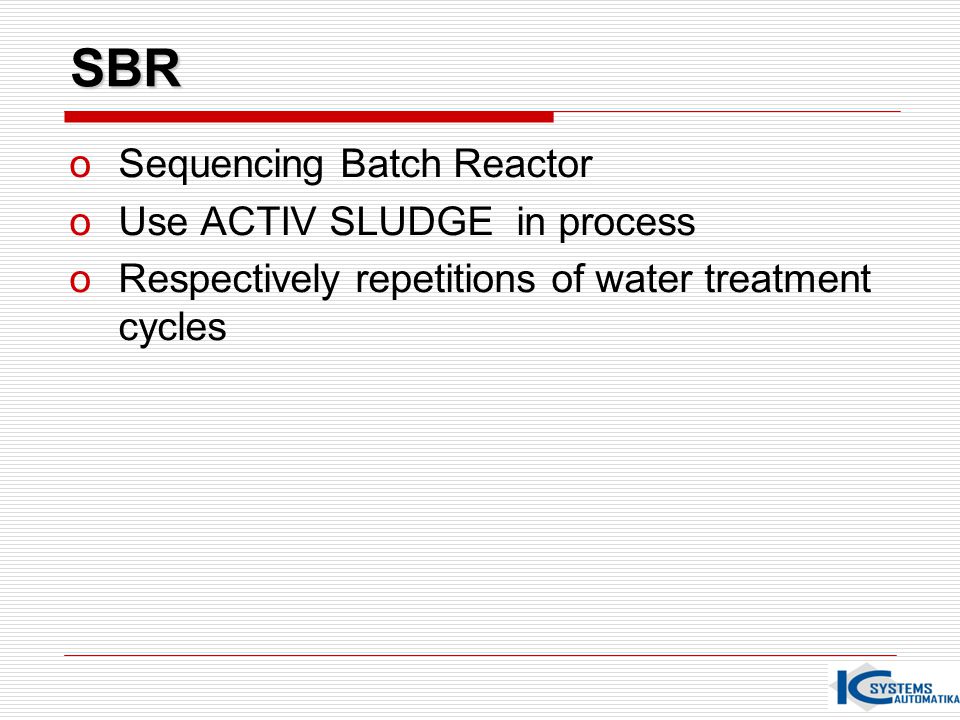

4 SBR oSequencing Batch Reactor oUse ACTIV SLUDGE in process oRespectively repetitions of water treatment cycles

5 SBR – system of operation oCycle of water treatment consists of: oFilling oReaction oSettling oDecanting of treated water o(Idle/separation of excess sludge)

6 SBR – system of operation Settling Idle/Separation of excess sludgea Decanting Filling Reaction Efluent Slud ge Waste water Slud ge Start End

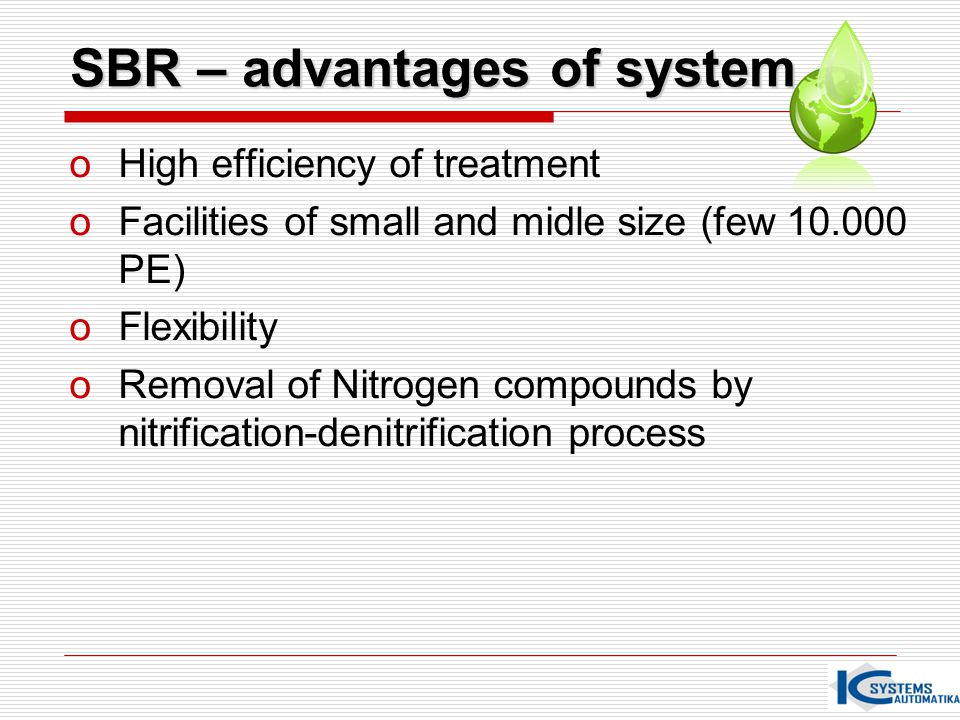

7 SBR – advantages of system oHigh efficiency of treatment oFacilities of small and midle size (few PE) oFlexibility oRemoval of Nitrogen compounds by nitrification-denitrification process

8 Thanks on your attention!!!
