N2H5+N2H5+ N2N2 HNO 2 +30-2 Oxidation States of Nitrogen Oxidation HNO 3 N2ON2O +1 +5-3 NO +2 NH 3 -1/3 HN 3 Reduction.

Similar presentations


Presentation on theme: "N2H5+N2H5+ N2N2 HNO 2 +30-2 Oxidation States of Nitrogen Oxidation HNO 3 N2ON2O +1 +5-3 NO +2 NH 3 -1/3 HN 3 Reduction."— Presentation transcript:

1 N2H5+N2H5+ N2N2 HNO Oxidation States of Nitrogen Oxidation HNO 3 N2ON2O NO +2 NH 3 -1/3 HN 3 Reduction

2 HClO HClO Oxidation States of Chlorine Oxidation HClO 4 HClO ClO 2 +4 HCl 0 Cl 2 Reduction

3 S 8 or S SO Oxidation States of Sulfur Oxidation S 2 O 8 2- SO S 2 O H2SH2S Reduction S 2 O

4 Naming Some Inorganic Compounds Binary compounds are made of two elements. metal + nonmetal = ionic compound nonmetal + nonmetal = covalent compound Name the more metallic element first. Use the element’s name. Name the less metallic element second. Add the suffix “ide” to the element’s stem.

5 Naming Some Inorganic Compounds LiBr lithium bromide Li 2 S lithium sulfide Al 2 O 3 aluminum oxide Na 3 P sodium phosphide Mg 3 N 2 magnesium nitride

6 Naming Some Inorganic Compounds Binary ionic compounds containing metals that exhibit more than one oxidation state Binary ionic compounds containing metals that exhibit more than one oxidation state There are two methods to name these compounds. 1. Older method add suffix “ic” to element’s Latin name for higher oxidation state add suffix “ous” to element’s Latin name for lower oxidation state 2. Modern method use Roman numerals in parentheses to indicate Transition Metal’s oxidation state

7 Naming Some Inorganic Compounds CompoundOld SystemModern System FeBr 2 ferrous bromideiron(II) bromide FeBr 3 ferric bromideiron(III) bromide TiCl 2 titanous chloridetitanium(II) chloride TiCl 3 titanic chloridetitanium(III) chloride does not work TiCl 4 does not worktitanium(IV) chloride

8 Naming Some Inorganic Compounds Binary Acids Binary Acids are binary compounds consisting of hydrogen and a nonmetal. Compounds are usually gases at room temperature and pressure. Nomenclature for the gaseous compounds is hydrogen (stem)ide. When the compounds are dissolved in water they form acidic solutions. Nomenclature for the acidic solutions is hydro (stem)ic acid.

9 Naming Some Inorganic Compounds FormulaNameAqueous solution HFhydrogen fluoridehydrofluoric acid HCl hydrogen chloride hydrochloric acid HBr hydrogen bromide hydrobromic acid H 2 S hydrogen sulfidehydrosulfuric acid

10 Naming Some Inorganic Compounds Binary covalent molecular compounds composed of two nonmetals other than hydrogen Binary covalent molecular compounds composed of two nonmetals other than hydrogen Nomenclature must include prefixes that specify the number of atoms of each element in the compound.

11 Naming Some Inorganic Compounds FormulaName CO(mono)carbon monoxide CO 2 carbon dioxide SO 3 sulfur trioxide OF 2 oxygen difluoride P 4 O 6 tetraphosphorus hexoxide

12 Naming Some Inorganic Compounds FormulaOld Name Modern Name N 2 O nitrous oxidedinitrogen monoxide NO nitric oxidenitrogen monoxide N 2 O 3 nitrogen trioxidedinitrogen trioxide NO 2 nitrogen dioxidenitrogen dioxide N 2 O 4 nitrogen tetroxidedinitrogen tetroxide N 2 O 5 nitrogen pentoxidedinitrogen pentoxide

13 Naming Some Inorganic Compounds Ternary Acids and Their Salts Ternary Acids and Their Salts are made of three elements. The elements are H, O & a nonmetal. Two of the compounds are chosen as the basis for the nomenclature system. Higher oxidation state for nonmetal is named (stem)ic acid. Lower oxidation state for nonmetal is named (stem)ous acid Salts are named based on the acids. Anions of -ic acids make “ate” salts. Anions of -ous acids make “ite” salts.

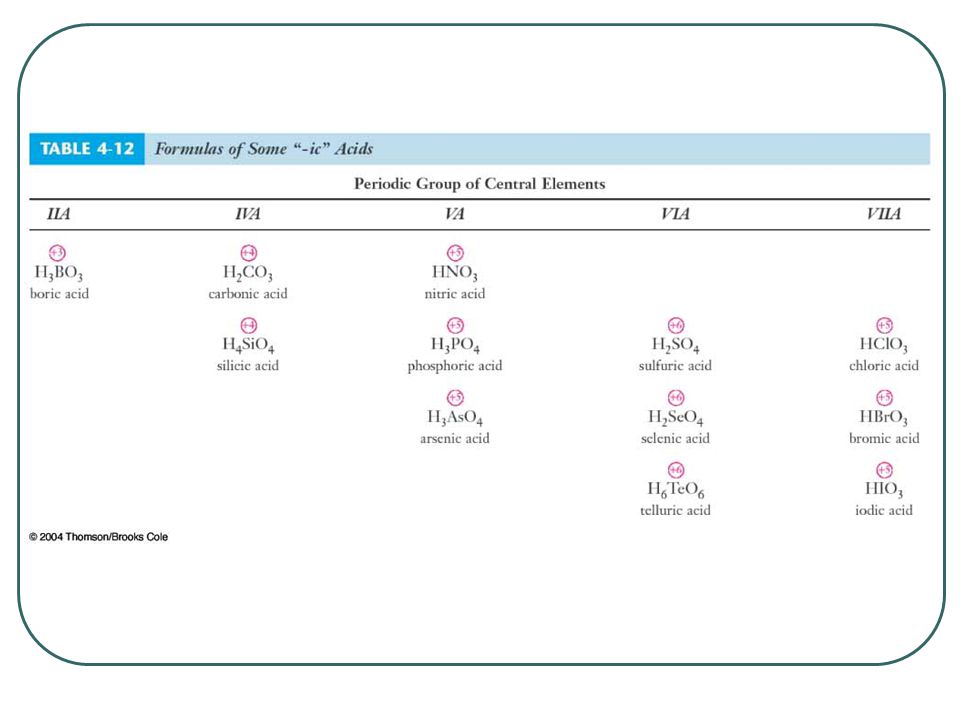

14

15 Naming Some Inorganic Compounds NameFormula carbonic acidH 2 CO 3 nitric acidHNO 3 boric acidH 3 BO 3 phosphoric acidH 3 PO 4 sulfuric acidH 2 SO 4 chloric acidHClO 3 bromic acidHBrO 3 iodic acidHIO 3 silicic acidH 4 SiO 4

16 Naming Some Inorganic Compounds Salts are formed by the reaction of the acid with a strong base. AcidSalt HNO 2 NaNO 2 nitrous acid sodium nitrite HNO 3 NaNO 3 nitric acid sodium nitrate H 2 SO 3 Na 2 SO 3 sulfurous acidsodium sulfite

17 Naming Some Inorganic Compounds Acids that have a higher oxidation state than the “ic” acid are given the prefix “per”. These acids and salts will have one more O atom than the “ic” acid. Acids that have a lower oxidation state than the “ous” acid are given the prefix “hypo”. These acids and salts will have one less O atom than the “ic” acid.

18

19 Naming Some Inorganic Compounds AcidNa Salt HClO NaClO hypochlorous acid sodium hypochlorite HClO 2 NaClO 2 chlorous acid sodium chlorite HClO 3 NaClO 3 chloric acid sodium chlorate HClO 4 NaClO 4 perchloric acid sodium perchlorate

20 Naming Some Inorganic Compounds Acidic Salts Acidic Salts are made from ternary acids that retain one or more of their acidic hydrogen atoms. Made from acid base reactions where there is an insufficient amount of base to react with all of the hydrogen atoms. “bi” Old system used the prefix “bi” to denote the hydrogen atom. Modern system uses prefixes and the word hydrogen.

21 Naming Some Inorganic Compounds NaHCO 3 Old system sodium bicarbonate Modern system sodium hydrogen carbonate KHSO 4 Old system potassium bisulfate Modern system potassium hydrogen sulfate KH 2 PO 4 Old system potassium bis biphosphate Modern system potassium dihydrogen phosphate K 2 HPO 4 Old systempotassium biphosphate Modern system potassium hydrogen phosphate

22 Q59, P 168. Write formulas for the compounds that are expected to be formed by the following pairs of ions:
