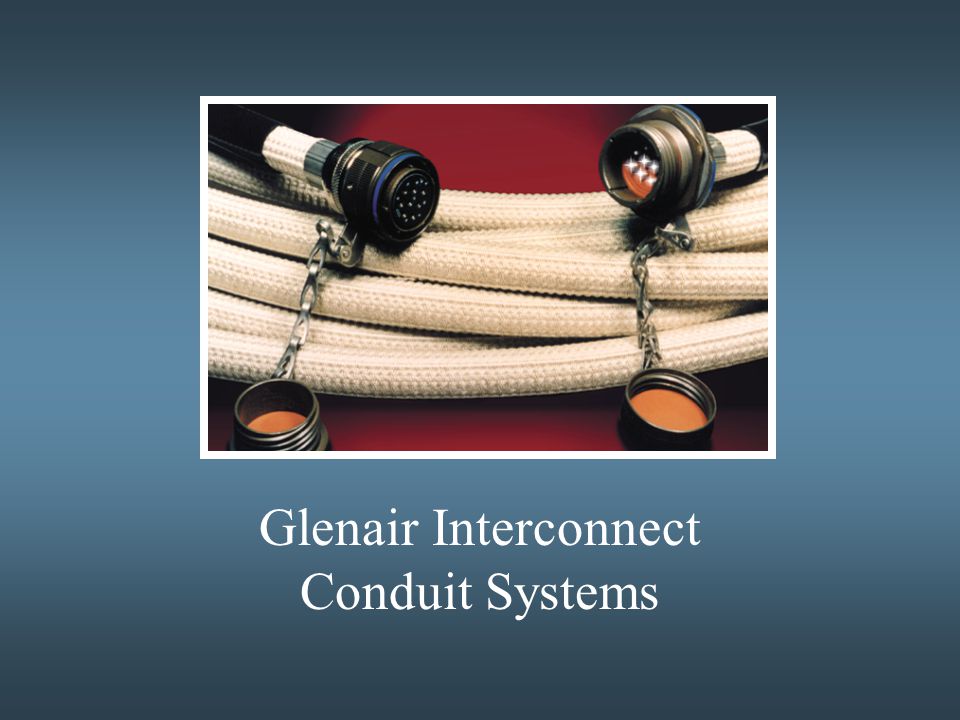

1 Glenair Interconnect Conduit Systems

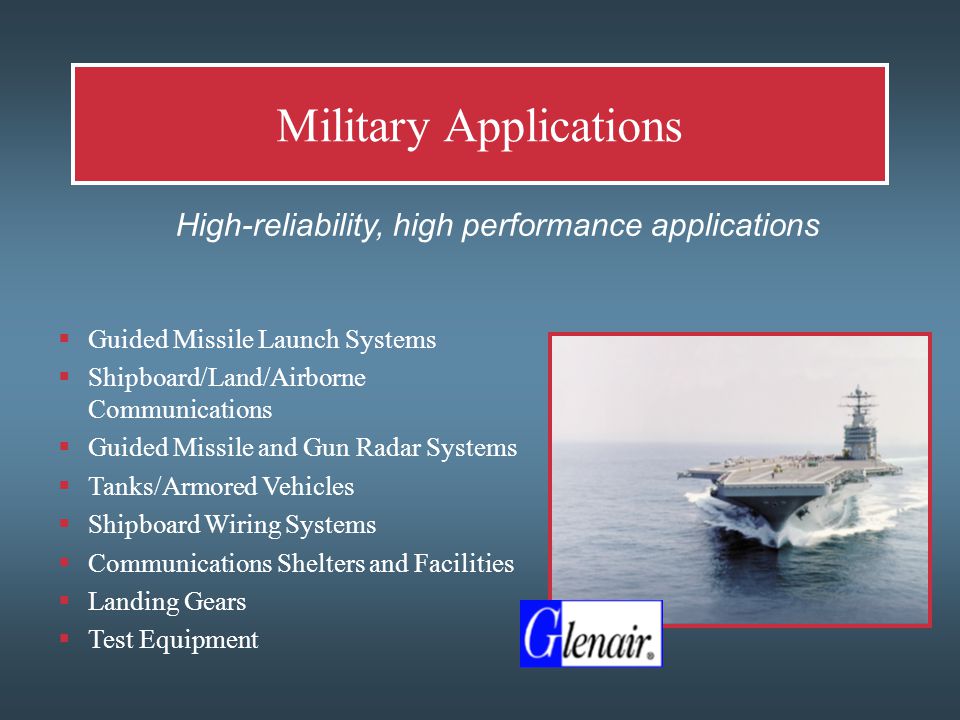

2 Military Applications  High-reliability, high performance applications  Guided Missile Launch Systems  Shipboard/Land/Airborne Communications  Guided Missile and Gun Radar Systems  Tanks/Armored Vehicles  Shipboard Wiring Systems  Communications Shelters and Facilities  Landing Gears  Test Equipment

3 Commercial/Industrial Applications  High Volume, High Performance Applications  Test Equipment  Space Applications  Wheel Wells  High Temperature Automotive  Engine Nacelles  Industrial Robotics  Gaming  Border/customs inspection  Rail and Heavy Equipment  Mining and Utilities

4 Thermoplastic and Metal-Core Conduit Systems  Factory Terminated or User Installable Assemblies Built from Bulk Tubing Products, Connector Fittings and Adapters  High-Temperature Thermoplastic Convoluted Tubing  Flexible Metal-Core Conduit: Brass, Nickel-Iron, and Stainless Steel  Turnkey Factory Assembly or User Installable Fittings  Overbraiding and Jacketing  Unique Transitions, Adapters and Bulkhead Fittings  Mil-Spec and Commercial Applications

5 Why Choose Conduit for Wire Protection?  Ease of Installation and Repair  Repairability: Field and factory  On-site/premise ease of installation  Prototyping and mock ups  Expandability

6 Why Choose Conduit for Wire Protection?  Advanced EMI protection  Optimal EMI/RFI shielding across all frequencies: H and E fields  Tempest (Transient Electromagnetic Pulse Emanation Standard)  Lightning strike  EMP

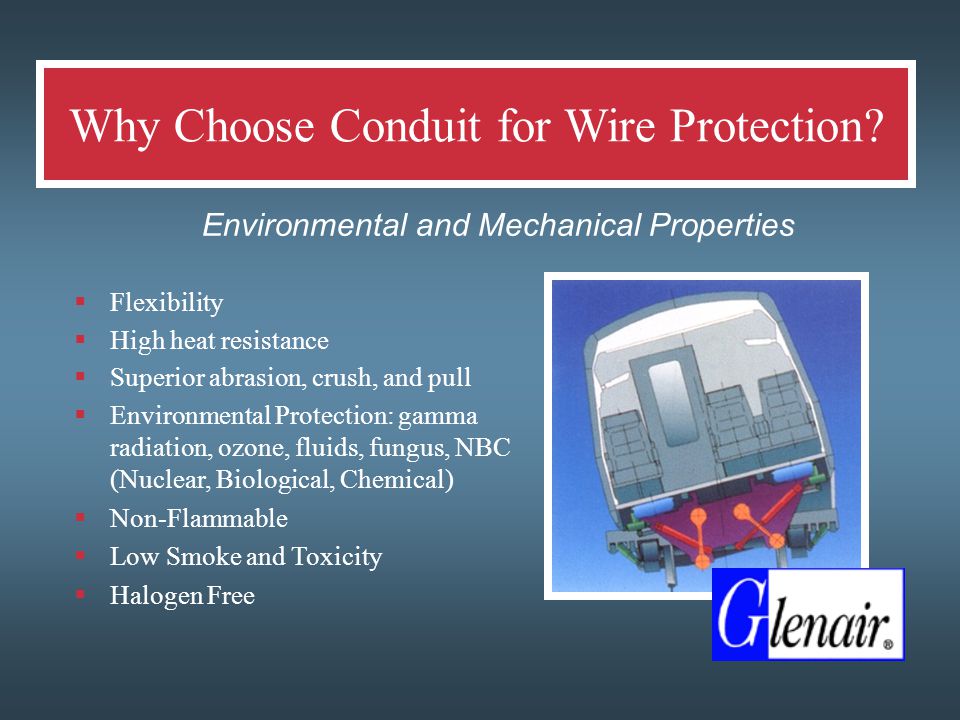

7 Why Choose Conduit for Wire Protection?  Environmental and Mechanical Properties  Flexibility  High heat resistance  Superior abrasion, crush, and pull  Environmental Protection: gamma radiation, ozone, fluids, fungus, NBC (Nuclear, Biological, Chemical)  Non-Flammable  Low Smoke and Toxicity  Halogen Free

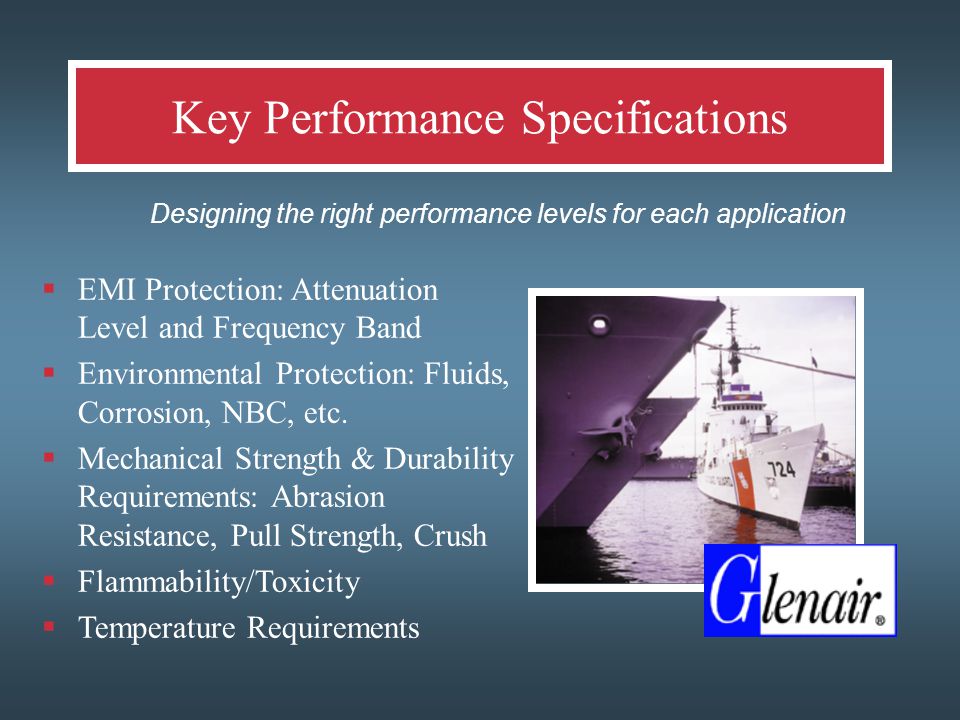

8 Key Performance Specifications  Designing the right performance levels for each application  EMI Protection: Attenuation Level and Frequency Band  Environmental Protection: Fluids, Corrosion, NBC, etc.  Mechanical Strength & Durability Requirements: Abrasion Resistance, Pull Strength, Crush  Flammability/Toxicity  Temperature Requirements

9  Step-by-Step Specification of the Application’s Performance Requirements

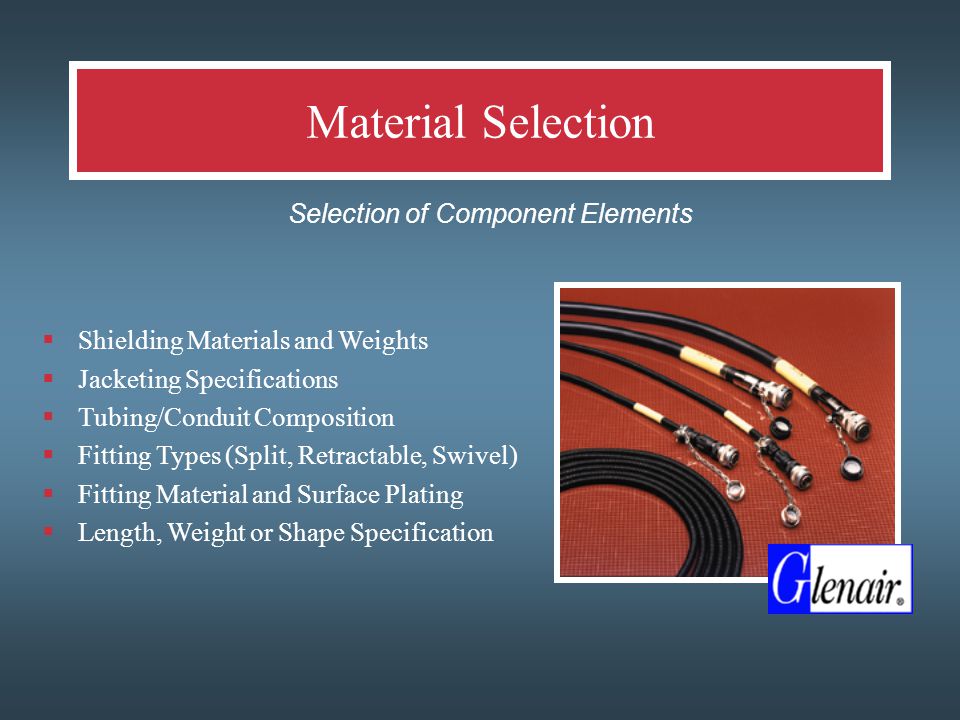

10 Material Selection  Selection of Component Elements  Shielding Materials and Weights  Jacketing Specifications  Tubing/Conduit Composition  Fitting Types (Split, Retractable, Swivel)  Fitting Material and Surface Plating  Length, Weight or Shape Specification

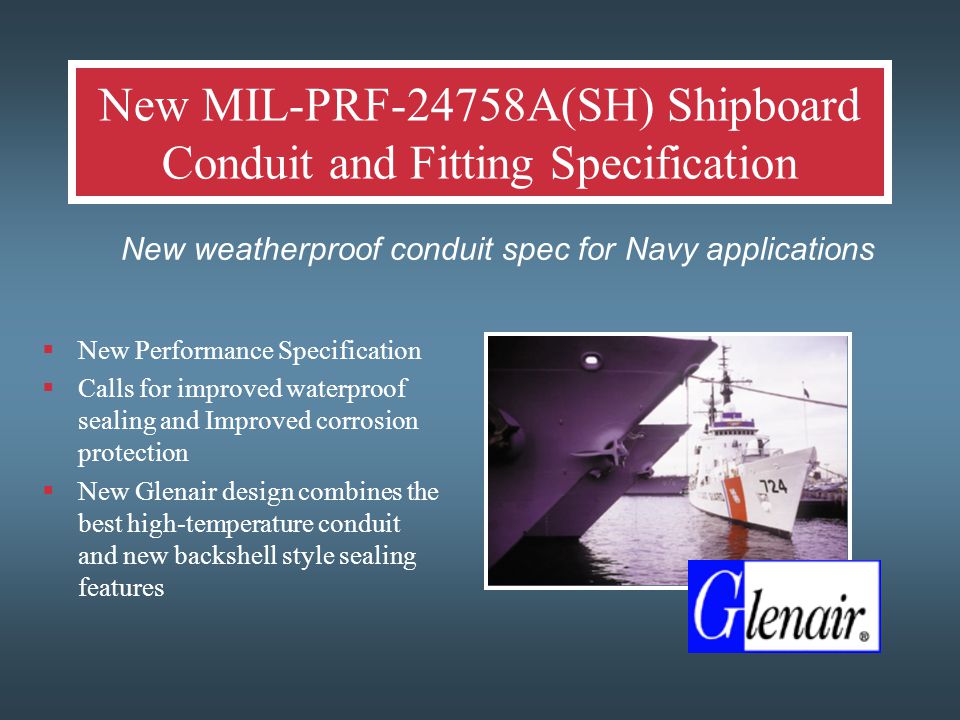

11 New MIL-PRF-24758A(SH) Shipboard Conduit and Fitting Specification  New weatherproof conduit spec for Navy applications  New Performance Specification  Calls for improved waterproof sealing and Improved corrosion protection  New Glenair design combines the best high-temperature conduit and new backshell style sealing features

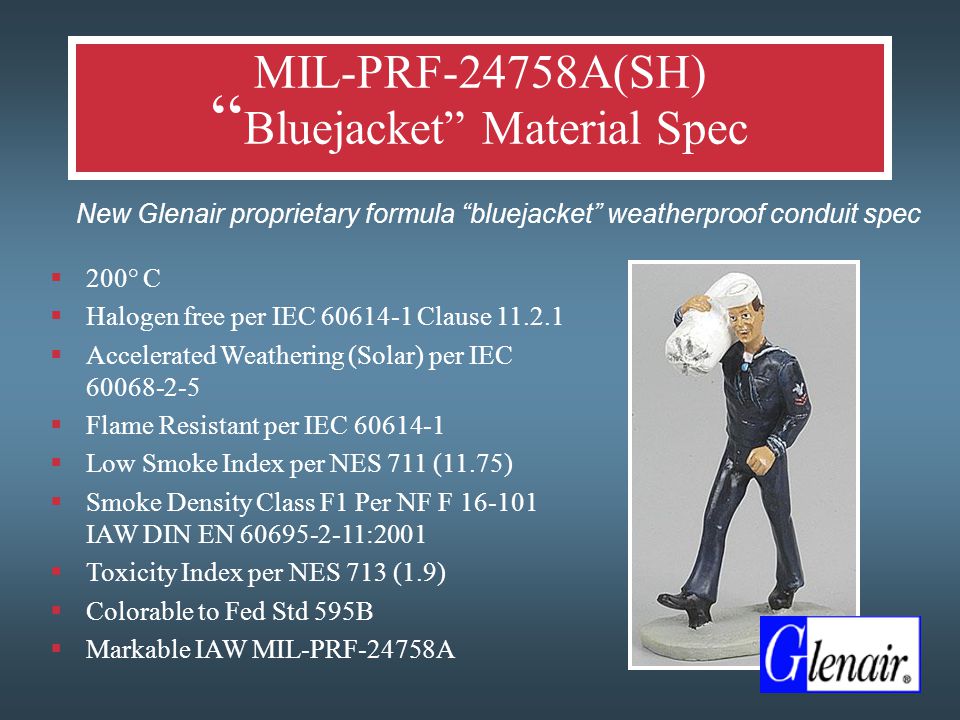

12 MIL-PRF-24758A(SH) “ Bluejacket” Material Spec  New Glenair proprietary formula “bluejacket” weatherproof conduit spec  200° C  Halogen free per IEC Clause  Accelerated Weathering (Solar) per IEC  Flame Resistant per IEC  Low Smoke Index per NES 711 (11.75)  Smoke Density Class F1 Per NF F IAW DIN EN :2001  Toxicity Index per NES 713 (1.9)  Colorable to Fed Std 595B  Markable IAW MIL-PRF-24758A

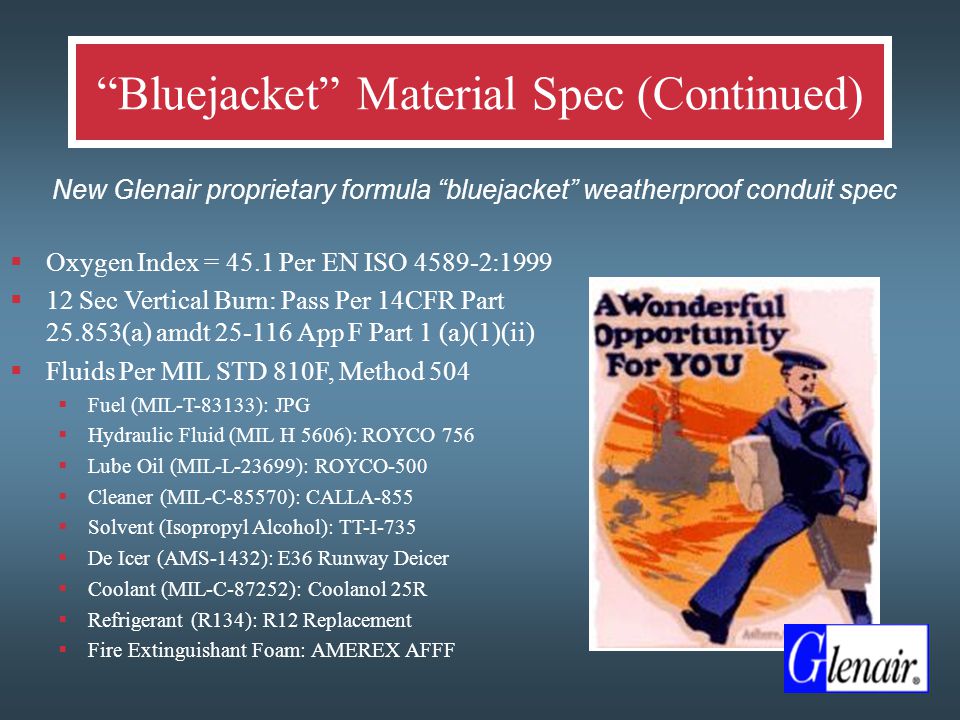

13 “Bluejacket” Material Spec (Continued)  New Glenair proprietary formula “bluejacket” weatherproof conduit spec  Oxygen Index = 45.1 Per EN ISO :1999  12 Sec Vertical Burn: Pass Per 14CFR Part (a) amdt App F Part 1 (a)(1)(ii)  Fluids Per MIL STD 810F, Method 504  Fuel (MIL-T-83133): JPG  Hydraulic Fluid (MIL H 5606): ROYCO 756  Lube Oil (MIL-L-23699): ROYCO-500  Cleaner (MIL-C-85570): CALLA-855  Solvent (Isopropyl Alcohol): TT-I-735  De Icer (AMS-1432): E36 Runway Deicer  Coolant (MIL-C-87252): Coolanol 25R  Refrigerant (R134): R12 Replacement  Fire Extinguishant Foam: AMEREX AFFF

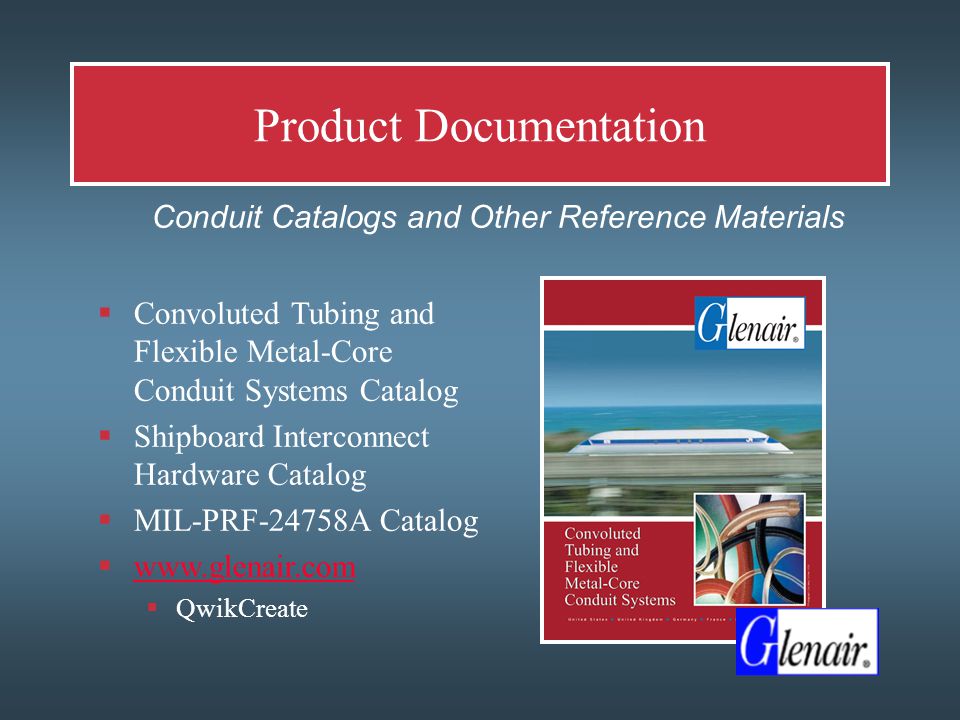

14 Product Documentation  Conduit Catalogs and Other Reference Materials  Convoluted Tubing and Flexible Metal-Core Conduit Systems Catalog  Shipboard Interconnect Hardware Catalog  MIL-PRF-24758A Catalog   QwikCreate

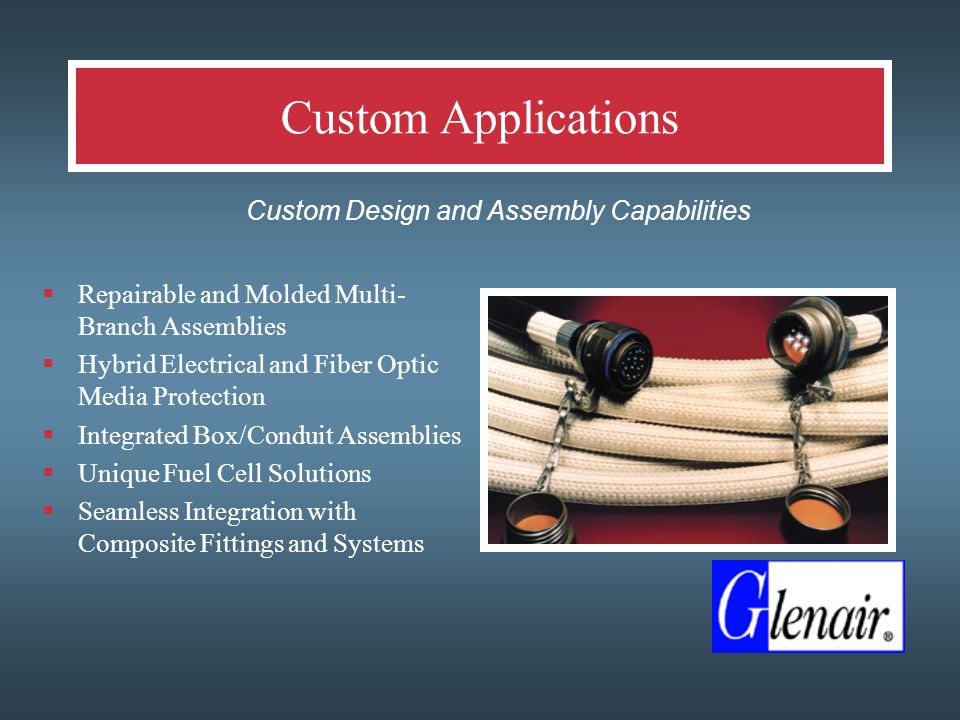

15 Custom Applications  Custom Design and Assembly Capabilities  Repairable and Molded Multi- Branch Assemblies  Hybrid Electrical and Fiber Optic Media Protection  Integrated Box/Conduit Assemblies  Unique Fuel Cell Solutions  Seamless Integration with Composite Fittings and Systems

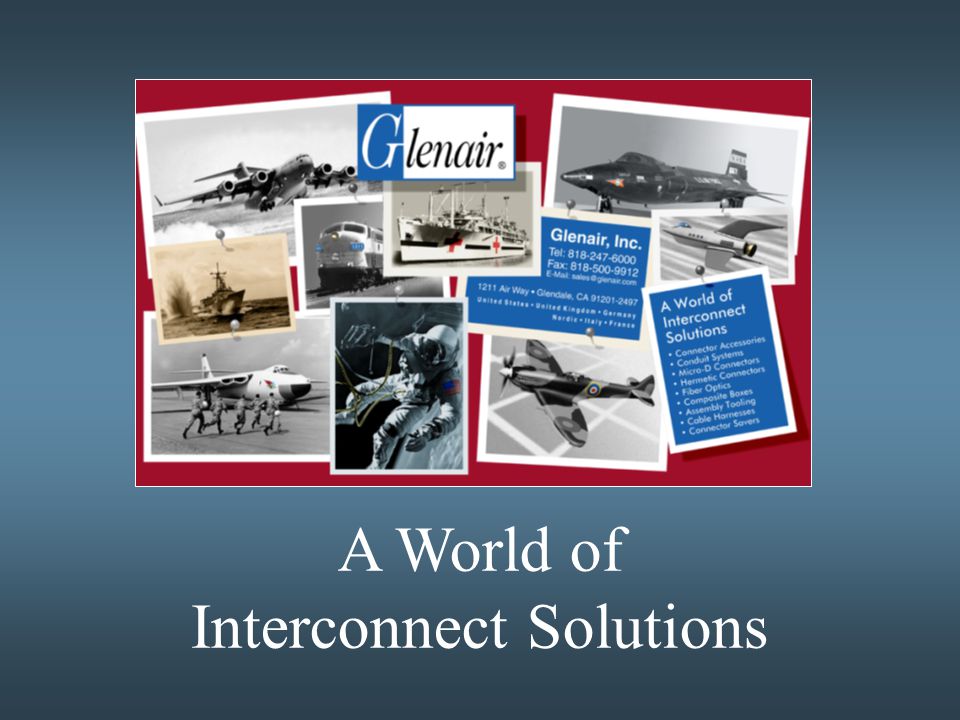

16 A World of Interconnect Solutions
