2 During electrolysis positive ions (cations) move to negatively charged electrode (catode) and negative ions (anions) to positively charged electrode (anode) For the case of NaCl we have: cathodic reduction: Na + + electron = Na and anodic oxidation: Cl - - electron = Cl

3 Faraday laws: 1.The mass of product formed in an electrolysis is directly proportional to the electric charge moved during the process. 2.The masses of different compounds formed by the same electric charge are chemically equivalent. The amount of electric charge needed for formation of 1 gramion of a substance: N. e (N is Avogadro number, e electron charge) N. e = F (Faraday constant, 1Faraday = 96 494 Coulomb) Work produced by electric current: w = F. 

4 Electrochemical cell is composed of two half-cells, realized e.g. as metal electrode immersed in the solution of its salt. The half-cells are conductively connected, e.g. by salt bridge. Each half-cell contains oxidized and reduced component, which create a redox couple

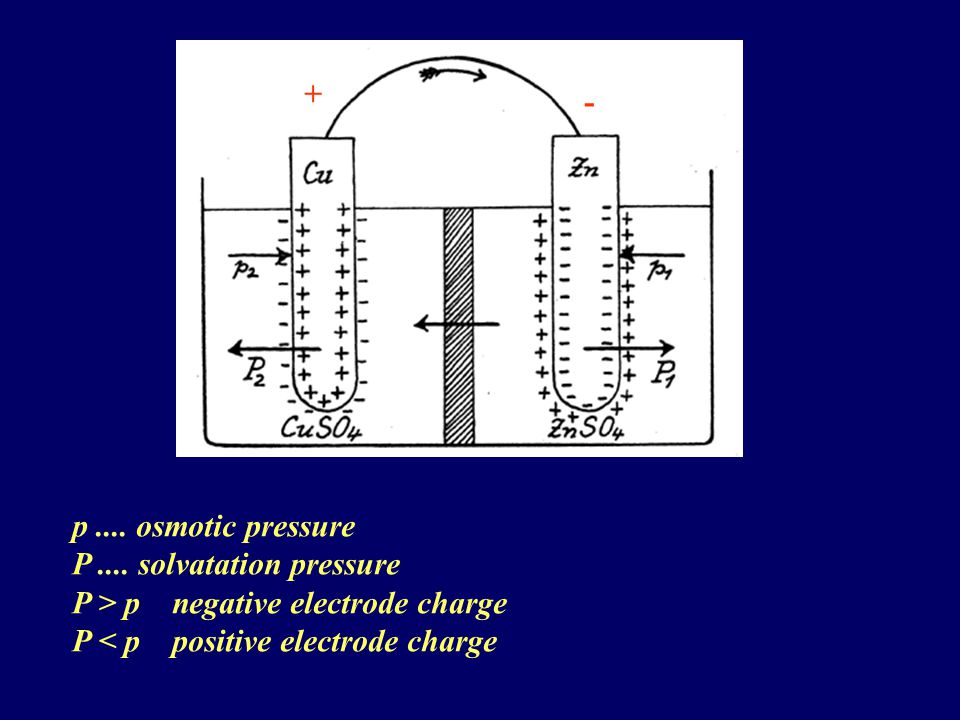

5 p.... osmotic pressure P.... solvatation pressure P > p negative electrode charge P < p positive electrode charge + -

6 Hydrogen electrode Precious metals such as platinum or palladium absorb vigorously hydrogen. A solid solution is formed, analogical to the metal alloys. Here we have hydrogen present in its atomic form, not as a two atom molecule. Thus, in this state hydrogen has properties of a metal. If we saturate a platinum electrode coated with platinum black by a stream of hydrogen and immerse this electrode to the solution, protons will be released into the solution due to the solvatation pressure until they balance the proton osmotic pressure. This leads to the generation of a potential, dependent on hydrogen partial pressure. Standard hydrogen electrode is realized under conditions of [ H + ] = 1 (i.e. pH = 0) and hydrogen pressure 1 atm. By convention its potential = 0

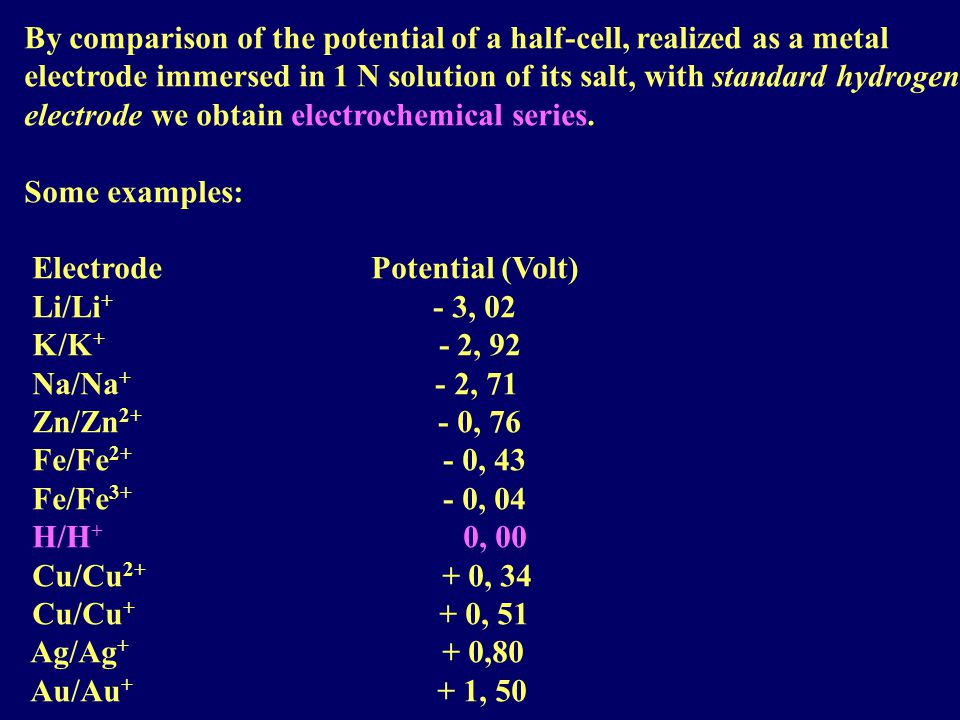

7 By comparison of the potential of a half-cell, realized as a metal electrode immersed in 1 N solution of its salt, with standard hydrogen electrode we obtain electrochemical series. Some examples: Electrode Potential (Volt) Li/Li + - 3, 02 K/K + - 2, 92 Na/Na + - 2, 71 Zn/Zn 2+ - 0, 76 Fe/Fe 2+ - 0, 43 Fe/Fe 3+ - 0, 04 H/H + 0, 00 Cu/Cu 2+ + 0, 34 Cu/Cu + + 0, 51 Ag/Ag + + 0,80 Au/Au + + 1, 50

8 Metals, placed above hydrogen in this table, have a tendency to form positive cations and with distance from hydrogen, their electropositivity increases. More electropositive metal displaces less electropositive metal from the solution. Potential of a metal electrode dissolving metal cations into solution is given by Nernst equation: E = - RT/nF. ln c where R...universal gas constant n... number of electrons representing the difference between the metal and its ion c... concentration of the ions in solution

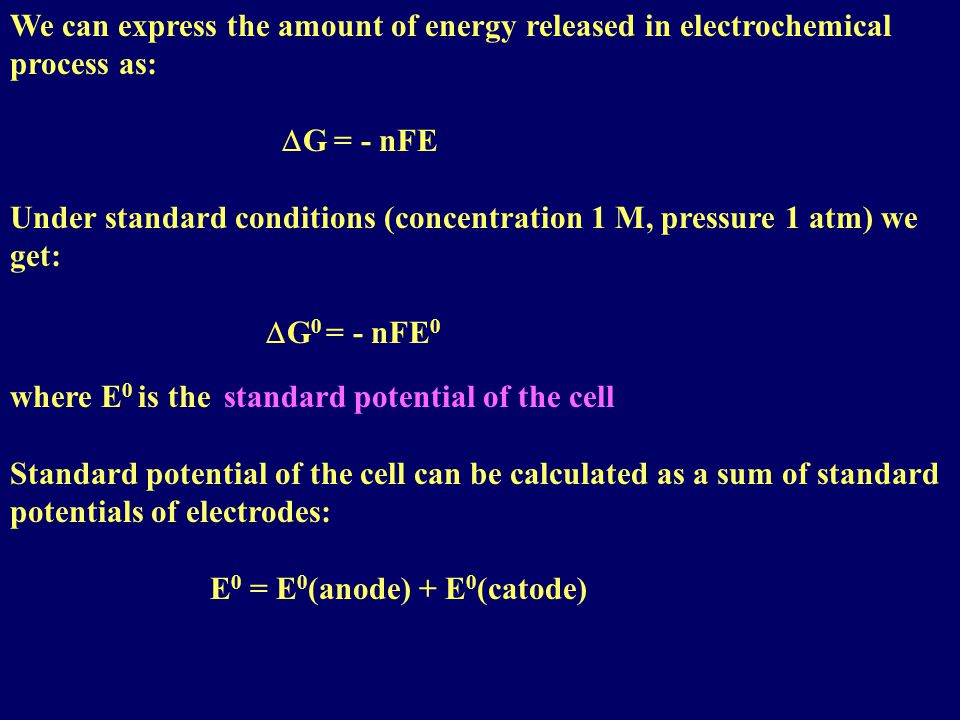

9 We can express the amount of energy released in electrochemical process as:  G = - nFE Under standard conditions (concentration 1 M, pressure 1 atm) we get:  G 0 = - nFE 0 where E 0 is the standard potential of the cell Standard potential of the cell can be calculated as a sum of standard potentials of electrodes: E 0 = E 0 (anode) + E 0 (catode)

10 We can express the amount of energy released under standard conditions in a general form:  G 0 = - RT lnK Another expression can be used for the electrochemical process:  G 0 = - nFE 0  If we consider a real process out of standard conditions we get:   G =  G 0 + RT lnQ  where Q corresponds to the actual ratio of products and reactants  For electrode potential we get:  -nFE = -nFE 0 + RT lnQ and hence  E = E 0 - RT/nF ln Q  This is an important expression of Nernst equation

11 Concentration cell E = E 0 – RT/2F ln (c 2 /c 1 )

12 We can use Nernst equation for the calculation of a potential generated in redox reactions in the living cell. The reaction: reductant + oxidant = oxidized reductant + reduced oxidant can be simplified: electron donor = electron acceptor + electron then      acceptor) -   (donor) as  G 0 = - nF   we get: E = E 0 + RT/nF ln( [acceptor]/[donor] )

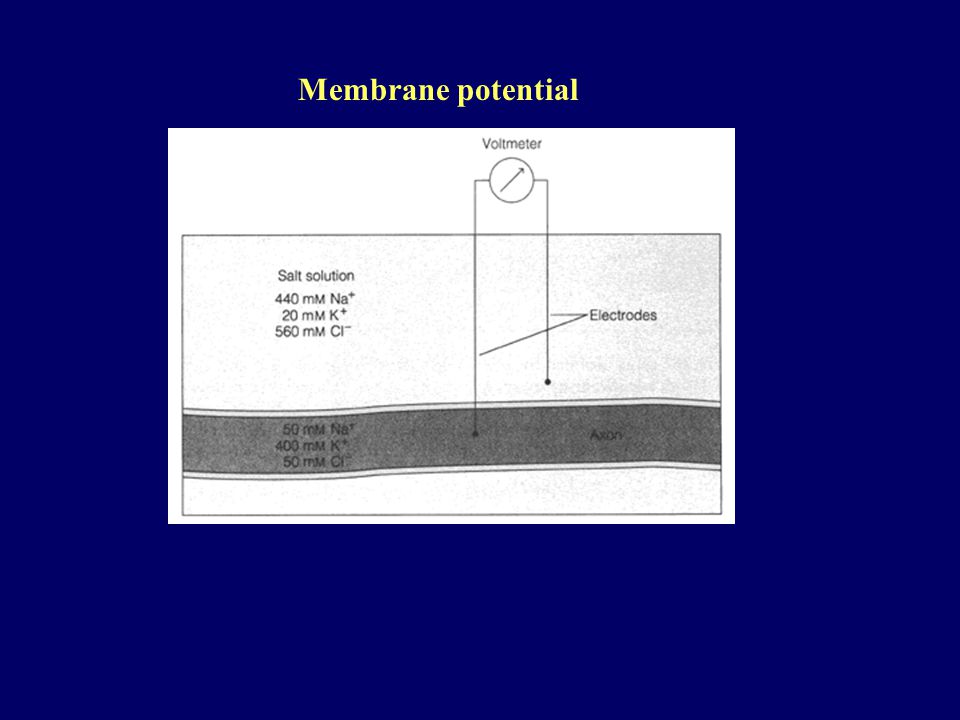

13 Membrane potential

14 To calculate membrane potential we first consider the amount of energy needed for the transport of a substance across the membrane. For the transport of 1 mol of a substance from the region of concentration c 1 to the region of concentration c 2 we get:  G = RT ln (c 2 / c 1 ) When c 2 is lower than c 1,  G is negative and the transport proceeds. Under equilibrium  G = 0, concentrations are equal and transport is stopped. If we have an ion with a charge Z, the change of Gibbs function during its transport will contain two components – a concentration part and a part describing charge movement:  G = RT ln (c 2 / c 1 ) + ZF   where  is the membrane potential in Volts
