© GCSE Jul-13
PRODUCTION OF AMMONIA NH 3 Millions of tonnes per year
cleaning fluid fertiliser MAKING AMMONIA
RAW MATERIALS N 2 (g) + 3 H 2 (g) 2 NH 3 (g) air methane + steam ammonianitrogenhydrogen © GCSE Jul-13
MAKING AMMONIA N 2 (g) + 3 H 2 (g) 2 NH 3 (g) exothermic endothermic 4 molecules 2 molecules more pressure less pressure © GCSE Jul-13
N 2 (g) + 3 H 2 (g) 2 NH 3 (g) Temperature450ºCLower temperature → more NH 3 Reaction exothermic Higher temperature → faster Compromise between yield & rate Pressure200 atmHigher pressure → more NH 3 4 molecules → 2 molecules Higher pressure → very expensive Compromise between yield & cost CatalystironSpeeds up reaction No effect on yield of NH 3 © GCSE Jul-13

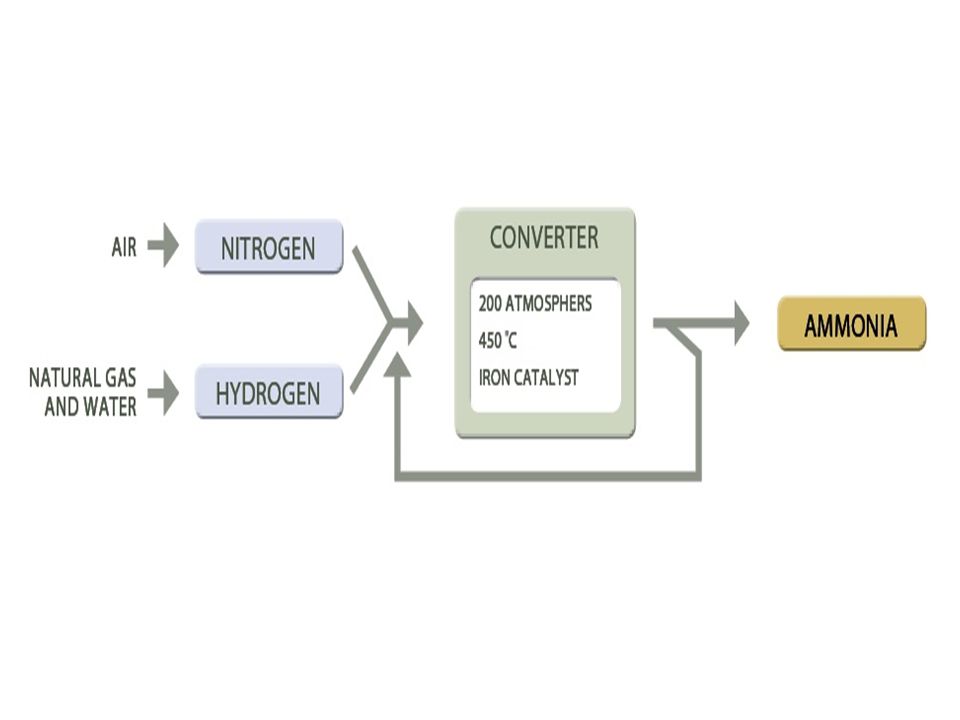

MAKING AMMONIA N 2 (g) + 3 H 2 (g) 2 NH 3 (g) NH 3 is removed by cooling (forms a liquid). Less than 30% yield, so the unreacted H 2 and N 2 are recycled. © GCSE Jul-13
