1
Geometry 9-12.G.SRT.7 Explain and use the relationship between the sine and cosine of complementary angles the relationship of sine and cosine in complementary angles

2

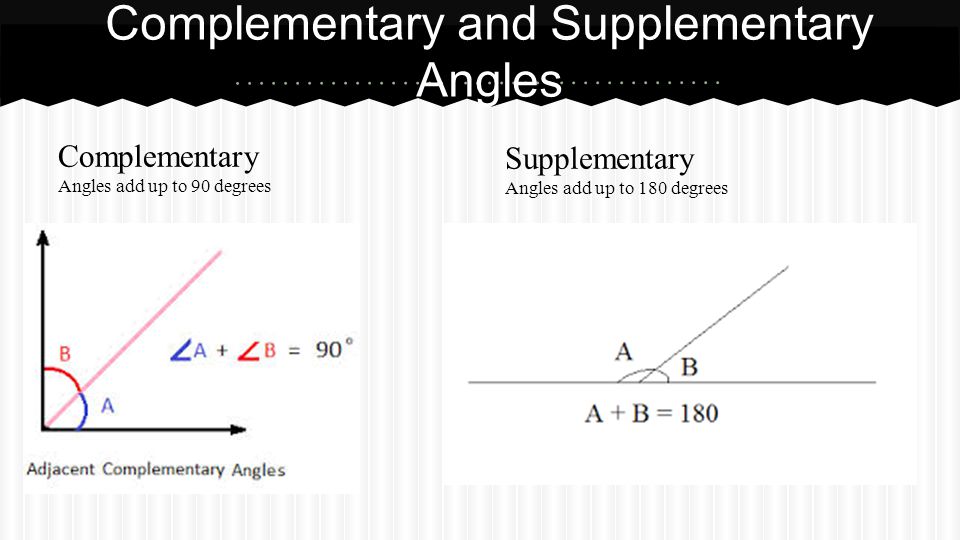

Complementary Angles add up to 90 degrees Complementary and Supplementary Angles Supplementary Angles add up to 180 degrees

3
In this diagram, we assume our angle is sitting on the positive x-axis and opening up toward the positive y-axis. Sine and Cosine As We Know Them…. i

4
Take a look at this pair of complementary angles and notice they have ray b in common. Sine and Cosine of a Complementary Angle a b c

5

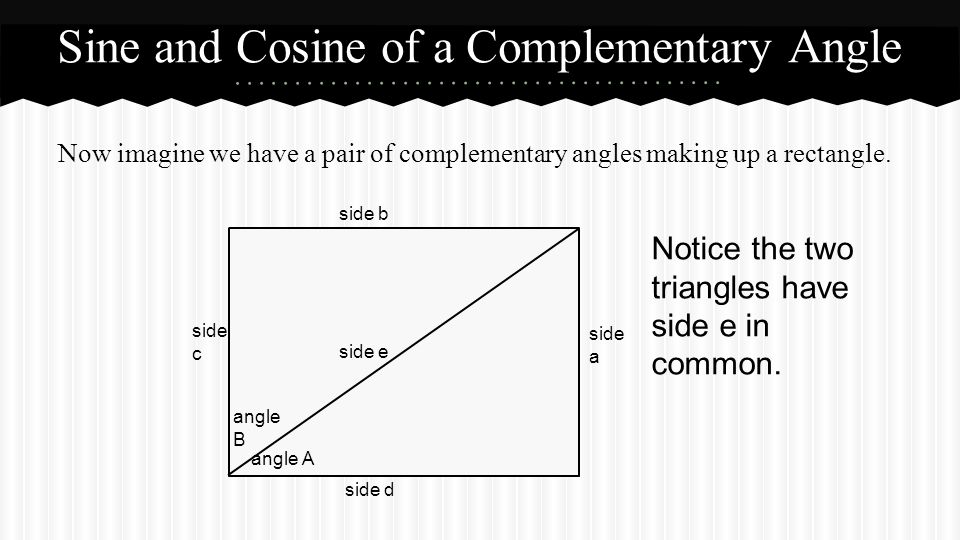

Now imagine we have a pair of complementary angles making up a rectangle. Sine and Cosine of a Complementary Angle angle A angle B side d side c side b side a side e Notice the two triangles have side e in common.

6

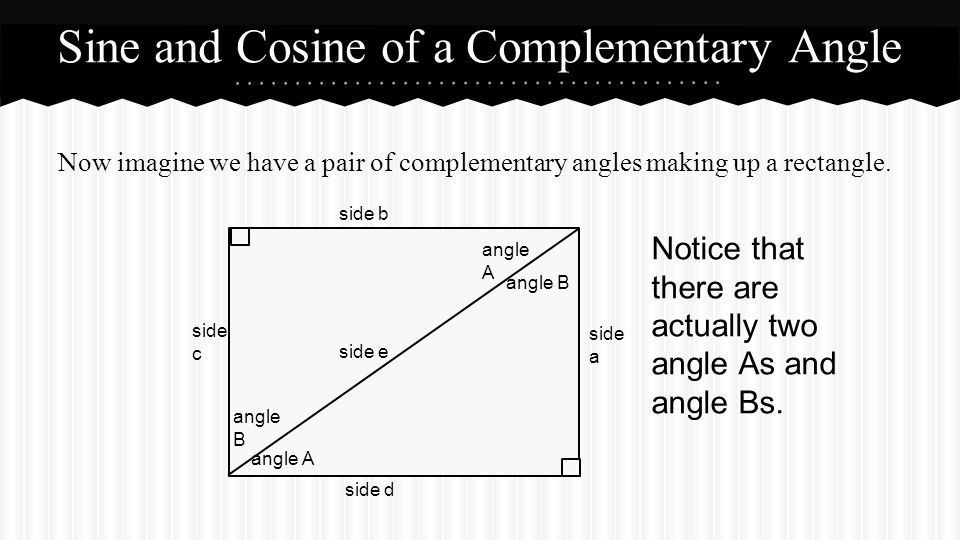

Now imagine we have a pair of complementary angles making up a rectangle. Sine and Cosine of a Complementary Angle angle A angle B side d side c side b side a side e Notice that there are actually two angle As and angle Bs. angle B angle A

7
So every time we have a right triangle, we have a pair of complementary angles, even though they aren’t adjacent. Sine and Cosine of Complementary Angles angle A angle B From this diagram we know that angle A is 90°-B And we know angle B is 90°- A

8

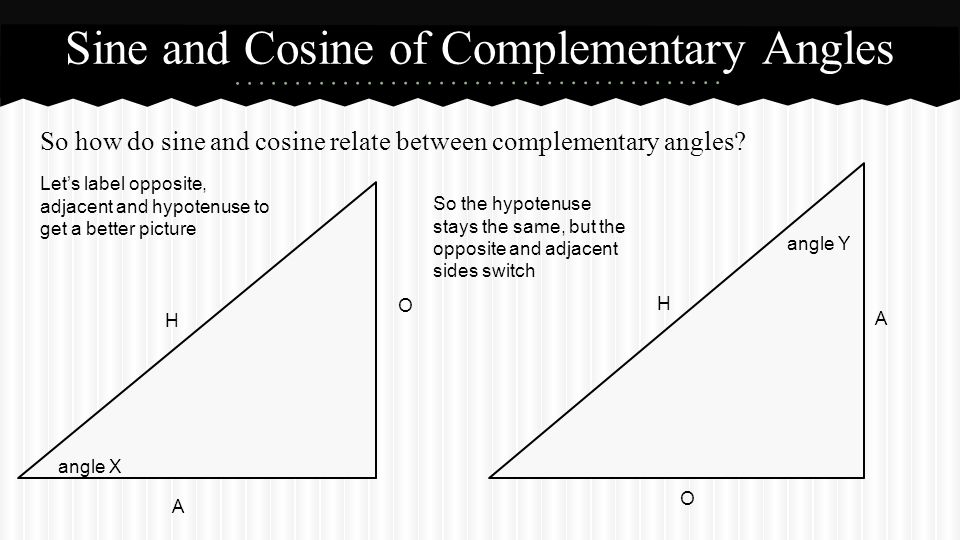

So how do sine and cosine relate between complementary angles? Sine and Cosine of Complementary Angles Let’s label opposite, adjacent and hypotenuse to get a better picture angle X angle Y H O A H A O So the hypotenuse stays the same, but the opposite and adjacent sides switch

9
Using real numbers, let’s look at the difference between sine and cosine in complementary angles. Sine and Cosine of Complementary Angles angle X angle Y For angle X: Cos(X)= ⅘ Sin(X)= ⅗ Tan(X)=¾ For angle Y: Cos(Y)= ⅗ Sin(Y)= ⅘ Tan(Y)=4/3 5 4 3 Notice that Cos(X)=Sin(Y) Sin(X)=Cos(Y)

10
At your desk, find cosine, sine, and tangent of both complementary angles. Try This One! angle X angle Y 13 12 5

11

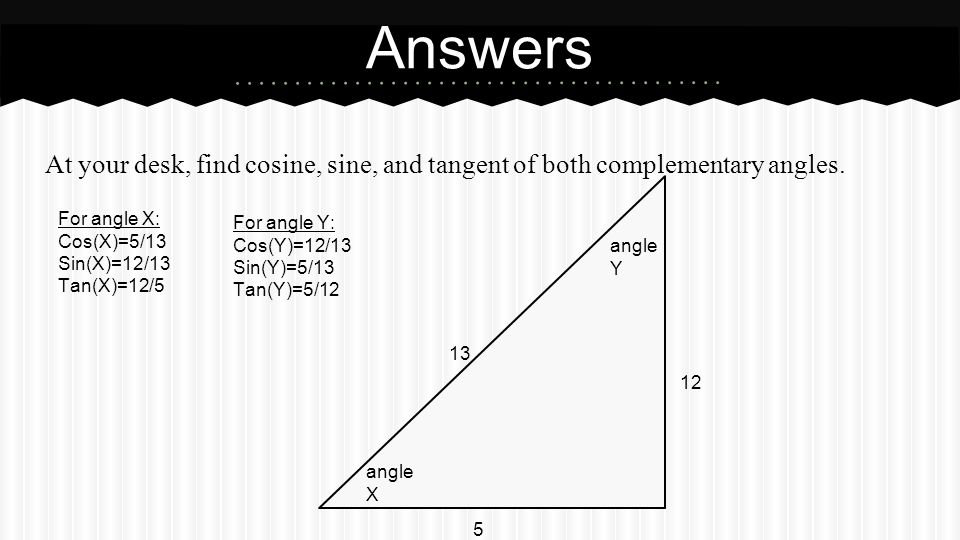

Answers At your desk, find cosine, sine, and tangent of both complementary angles. angle X angle Y 13 12 5 For angle X: Cos(X)=5/13 Sin(X)=12/13 Tan(X)=12/5 For angle Y: Cos(Y)=12/13 Sin(Y)=5/13 Tan(Y)=5/12
