5.3 Apply the SINE and COSINE ratios 5.1, 5.3 HW Quiz: Wednesday Quiz: Friday Midterm: Oct. 6
Sine and Cosine Ratios Are trigonometric ratios for acute angles that involve the lengths of a leg and the hypotenuse of a right triangle. Acute angles measure less than 90 o

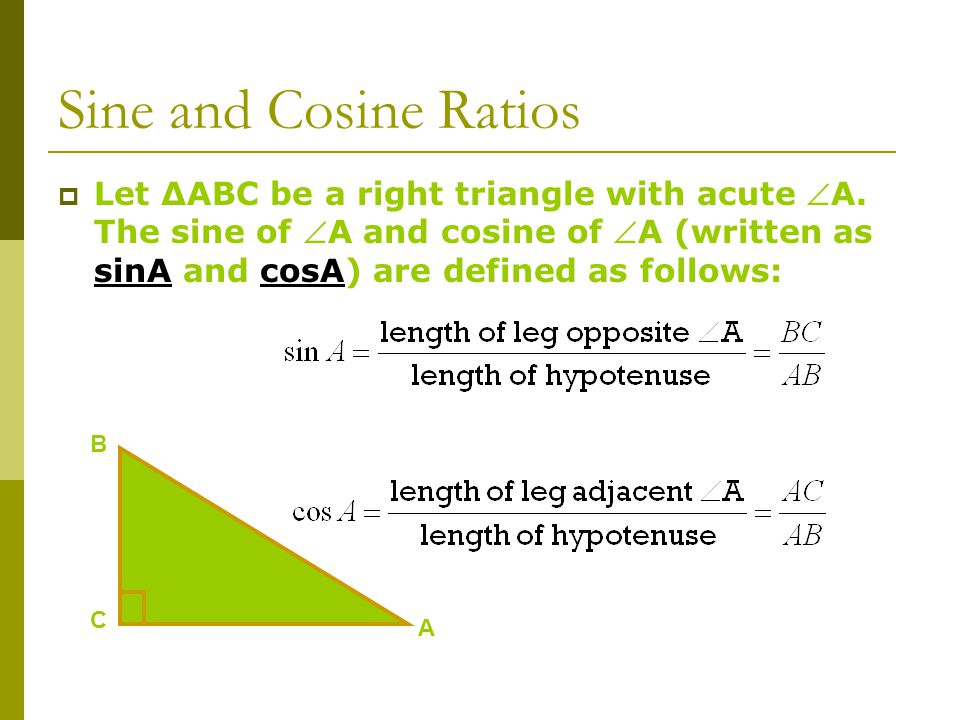

Sine and Cosine Ratios Let ΔABC be a right triangle with acute A. The sine of A and cosine of A (written as sinA and cosA) are defined as follows: A B C

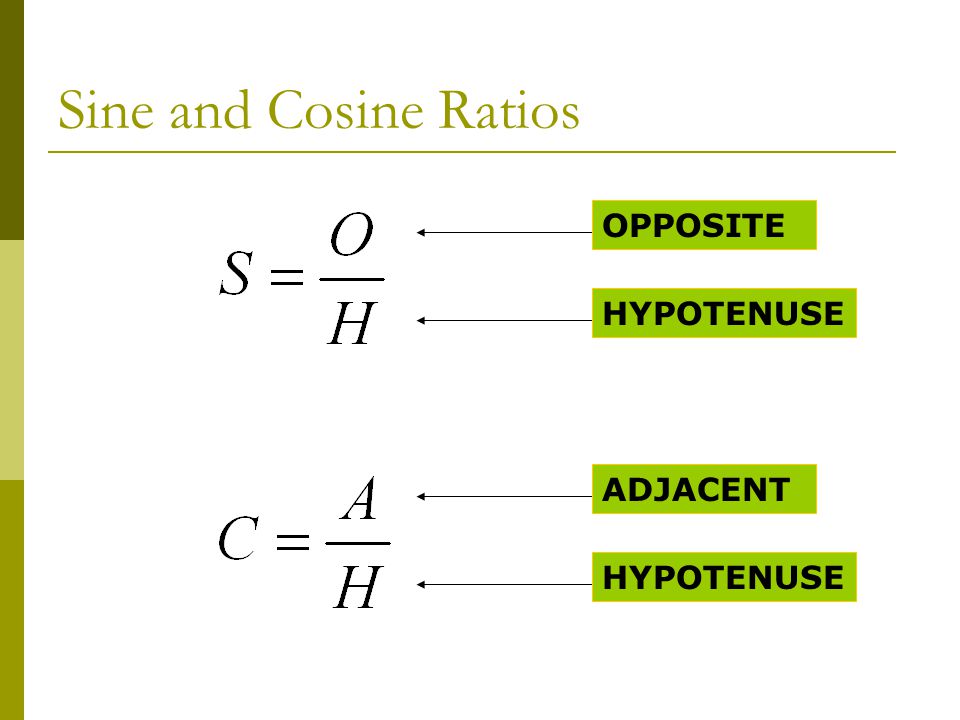

Sine and Cosine Ratios OPPOSITE HYPOTENUSE ADJACENT HYPOTENUSE
Find SINE ratios Find sinX and sinY. Write each answer as a fraction and as a decimal rounded to four places (the ten-thousandth place)

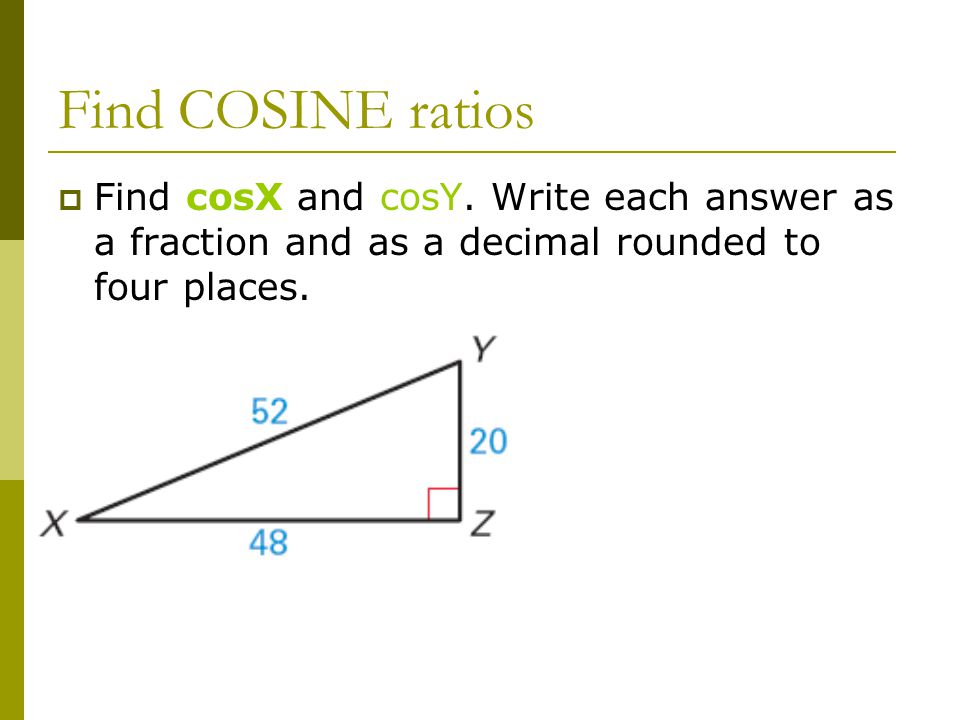

Find COSINE ratios Find cosX and cosY. Write each answer as a fraction and as a decimal rounded to four places.

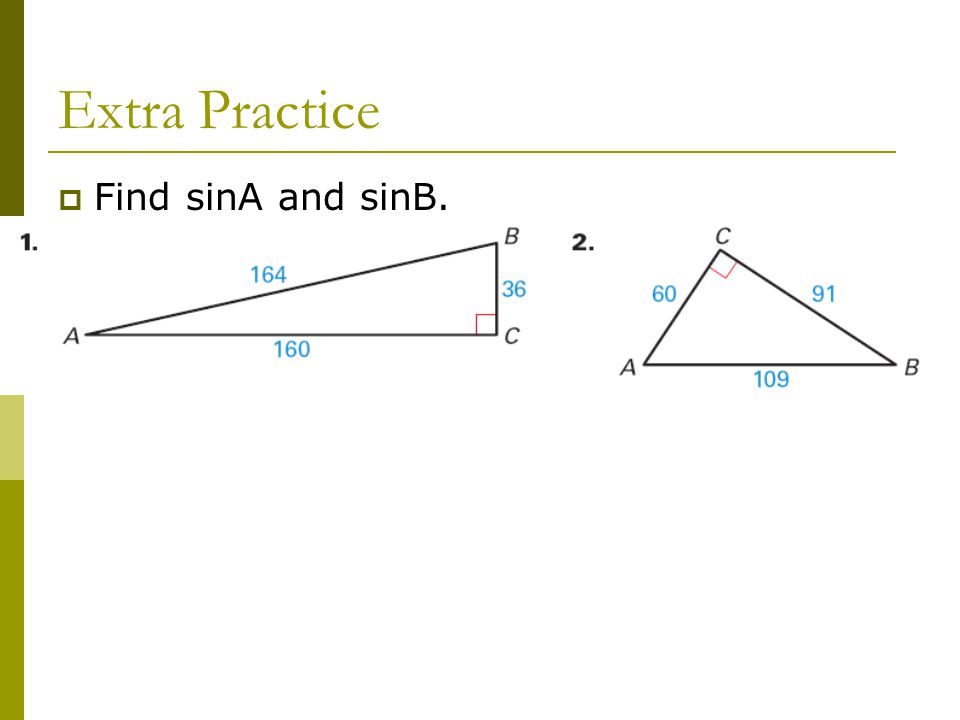

Extra Practice Find sinA and sinB.
Extra Practice Find cosA and cosB.

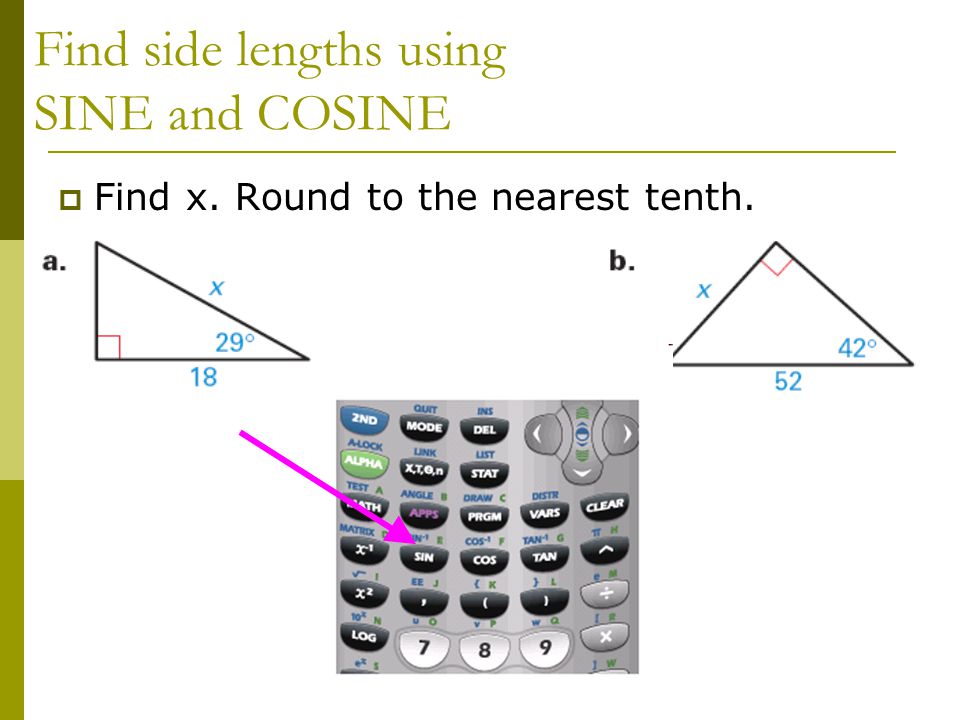

Find side lengths using SINE and COSINE Find x. Round to the nearest tenth.

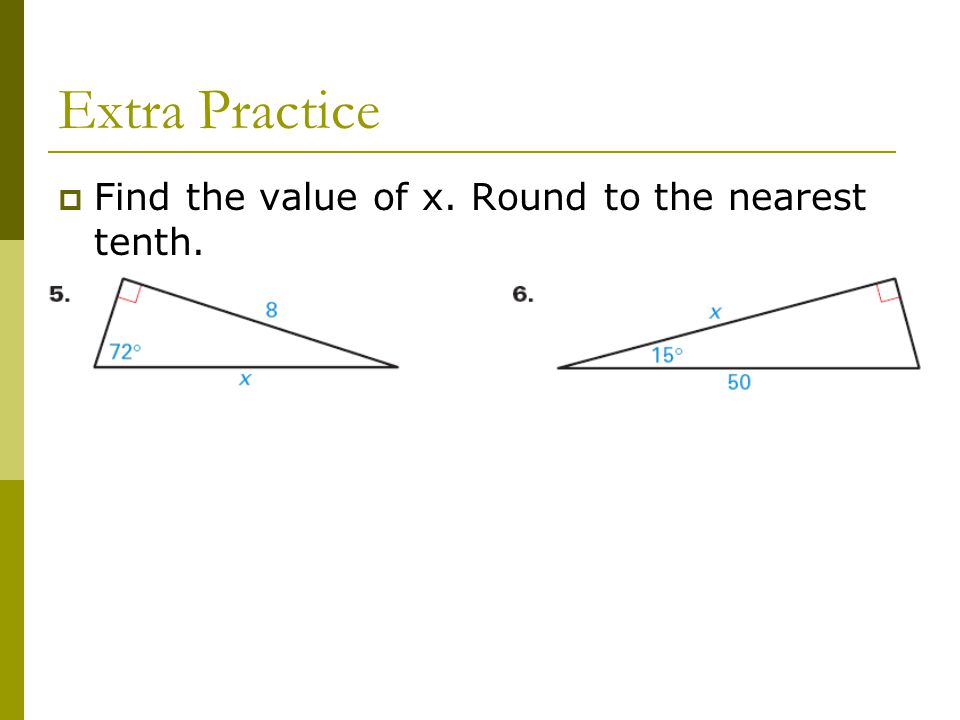

Extra Practice Find the value of x. Round to the nearest tenth.
Homework P #1-12, 15-17, 21-26
5.3 Apply the SINE and COSINE ratios We will look at the TANGENT ratio tomorrow!
