Tis a Puzzlement...

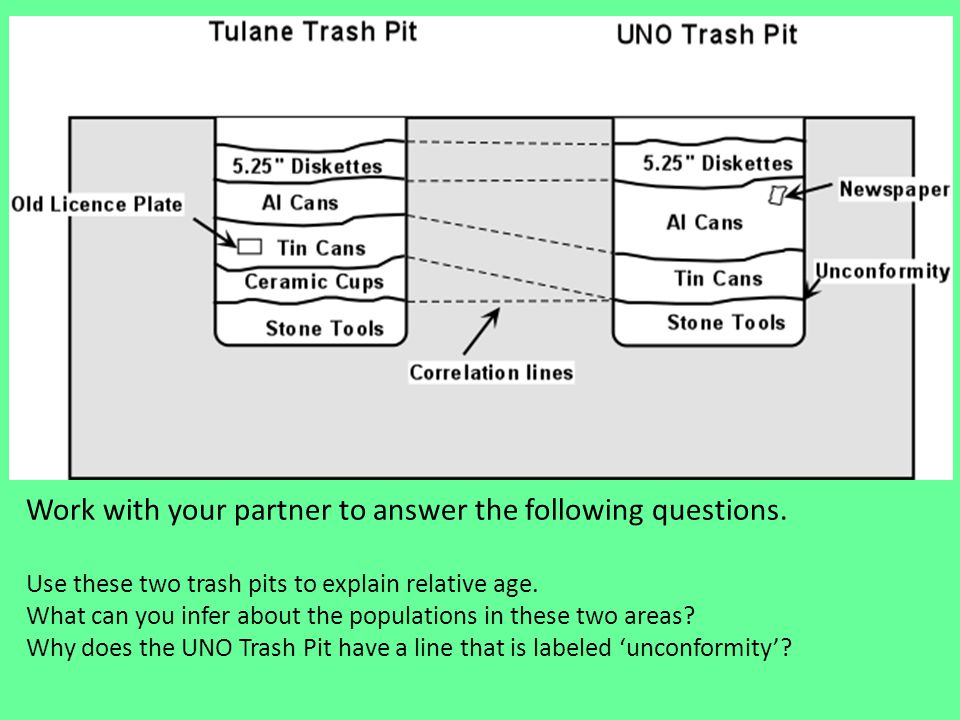

Work with your partner to answer the following questions. Use these two trash pits to explain relative age. What can you infer about the populations in these two areas? Why does the UNO Trash Pit have a line that is labeled ‘unconformity’?

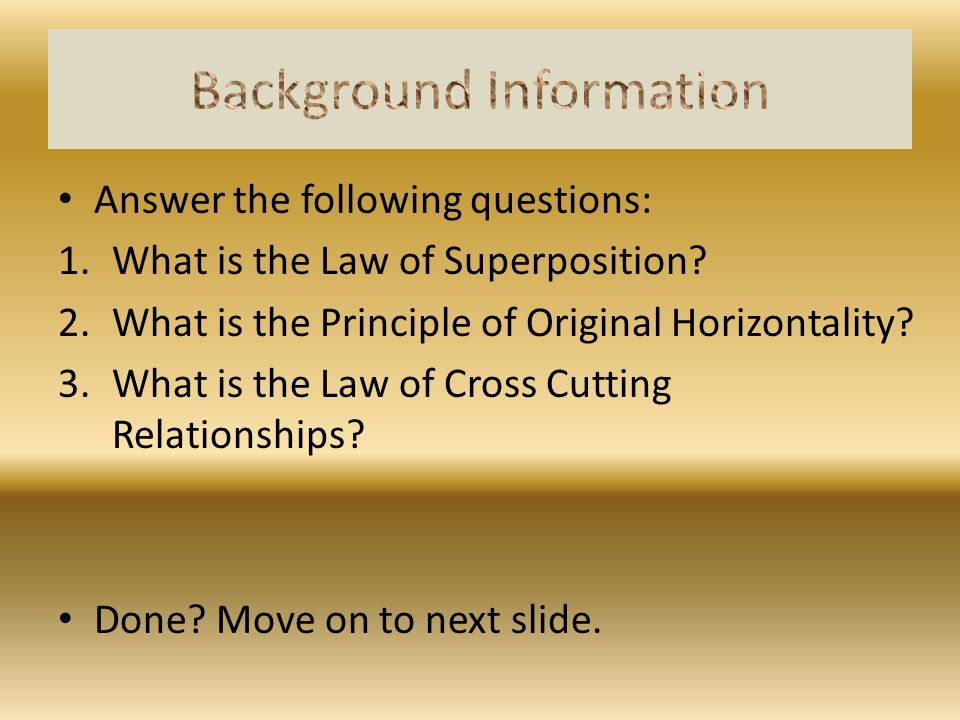

Answer the following questions: 1.What is the Law of Superposition? 2.What is the Principle of Original Horizontality? 3.What is the Law of Cross Cutting Relationships? Done? Move on to next slide.

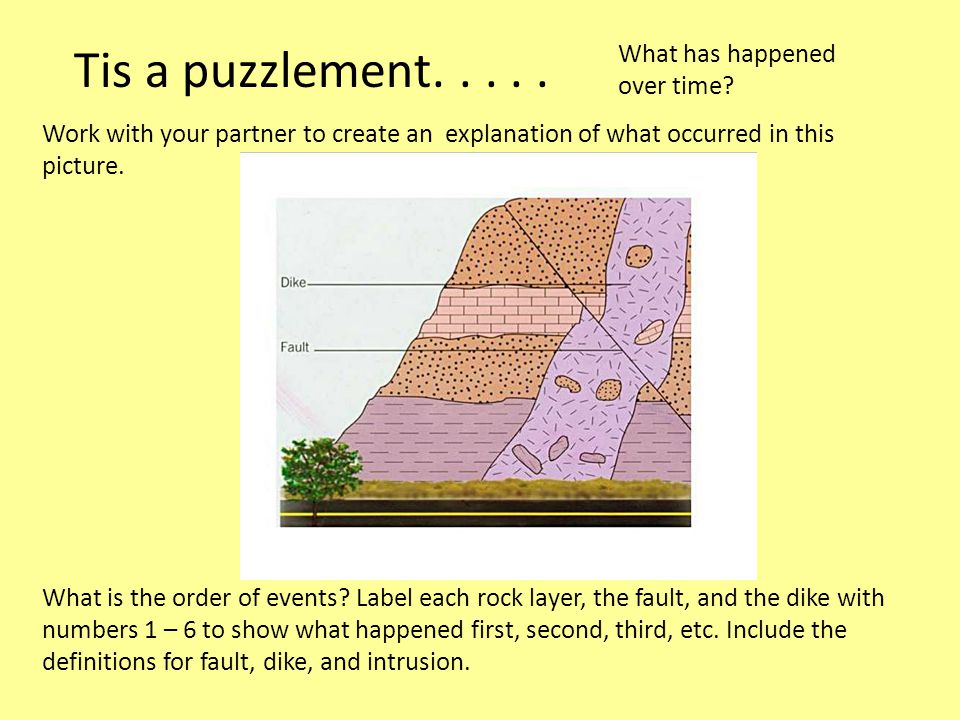

Tis a puzzlement..... What has happened over time? Work with your partner to create an explanation of what occurred in this picture. What is the order of events? Label each rock layer, the fault, and the dike with numbers 1 – 6 to show what happened first, second, third, etc. Include the definitions for fault, dike, and intrusion.
Additional Knowledge Needed What is an unconformity? (Put answer in notes.) There are three types of unconformities. Write a definition and a sketch for each in your notes.
What is the order of events? Number each layer, intrusion (granite), fault, uplift, erosion, and dike to show the order in which the rocks were formed.

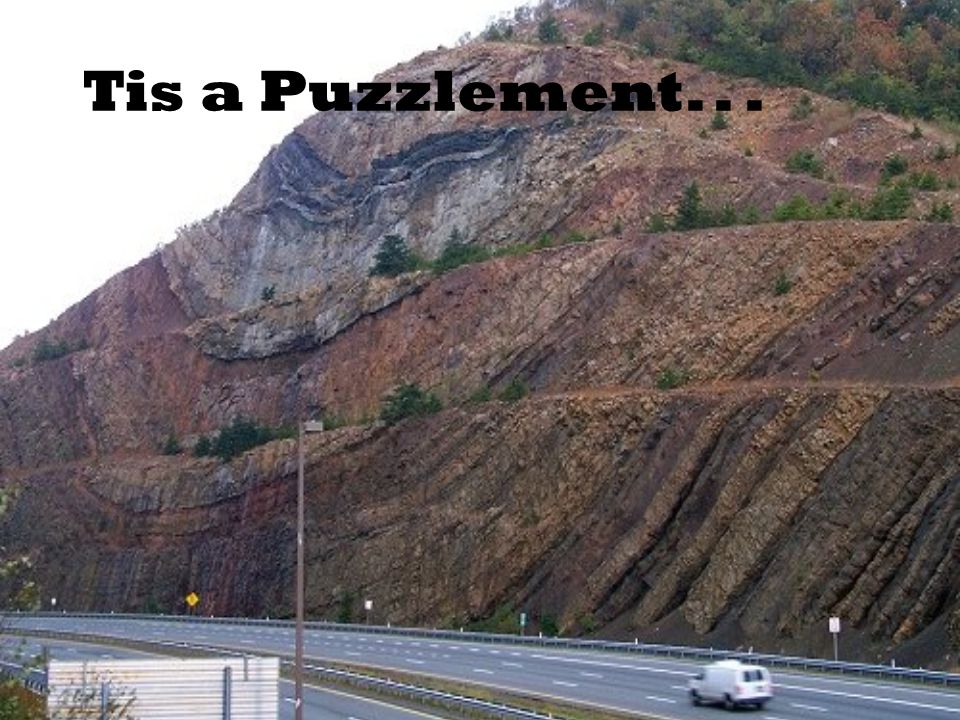

What has caused the rock to bend upwards on either side? What is the name of this rock feature? What would the feature be called if the rocks were bending down? ( )Did the bending occur before or after the layers of rock were deposited?
What is the order of events? Number each layer and event (uplift, erosion, unconformity, intrusion, & fault) to show the order in which it occurred. Write an explanation to support your decision.

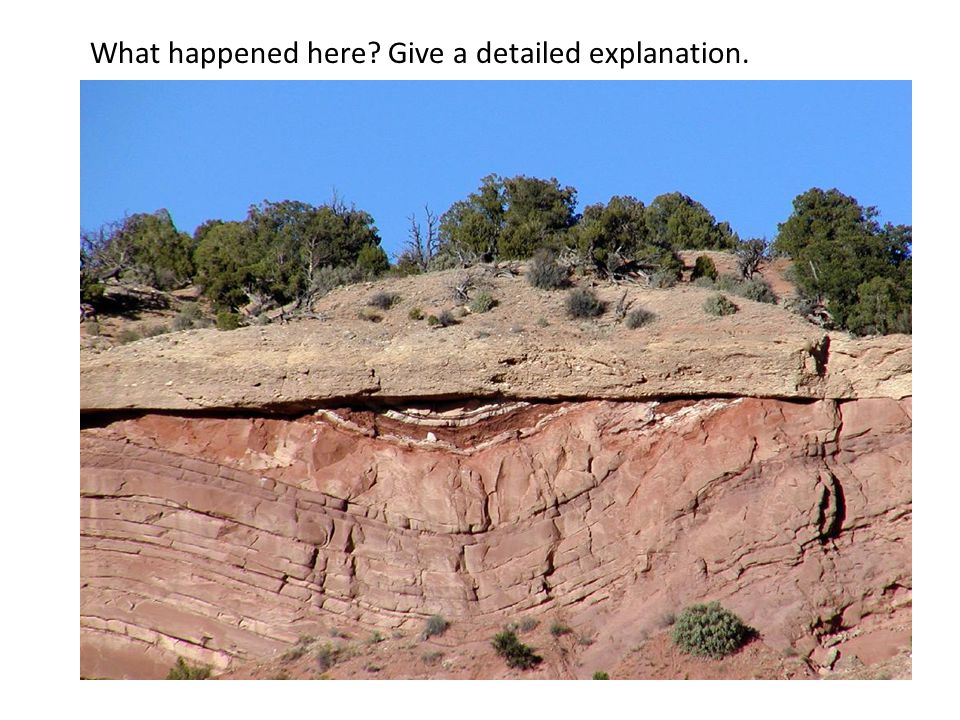

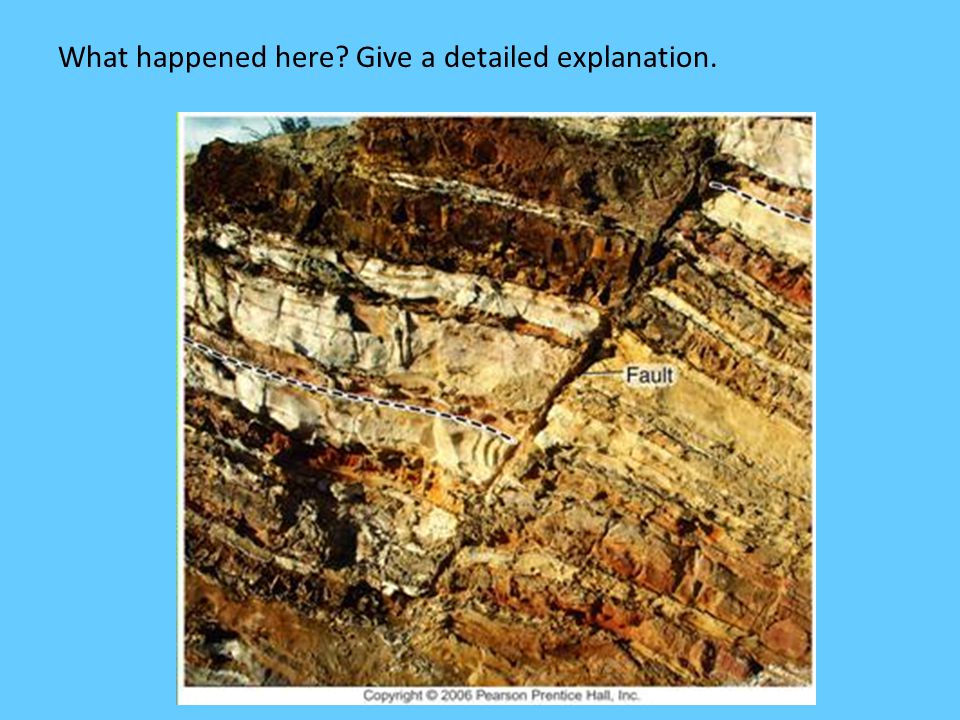

What happened here? Give a detailed explanation.
Fossils Add the following information to your notes. How do geologists use fossils to determine relative age? What is an index fossil?

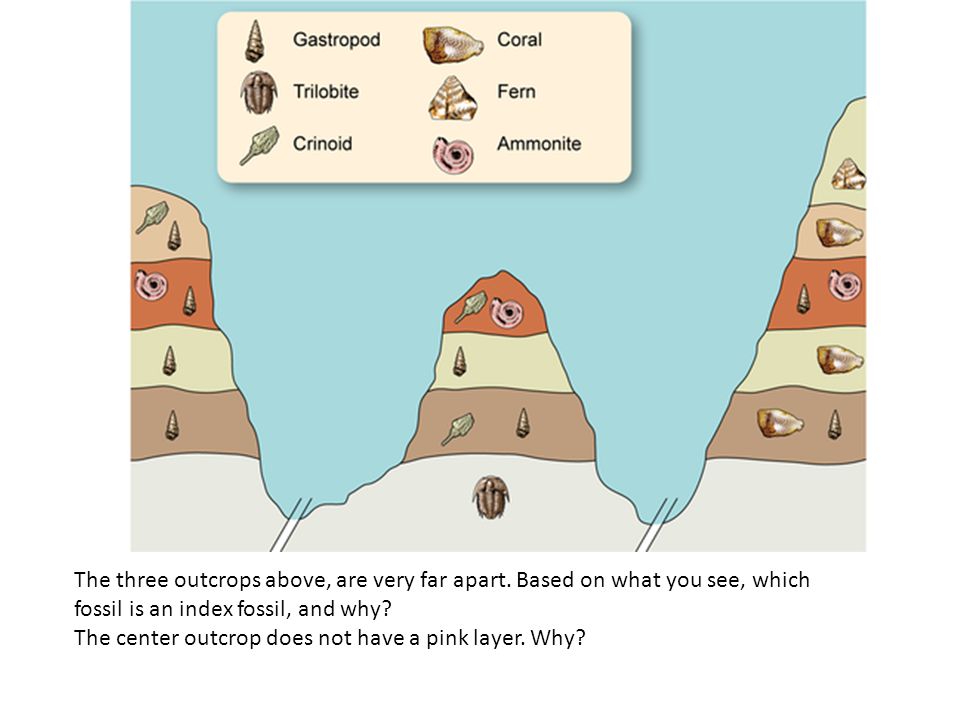

The three outcrops above, are very far apart. Based on what you see, which fossil is an index fossil, and why? The center outcrop does not have a pink layer. Why?
