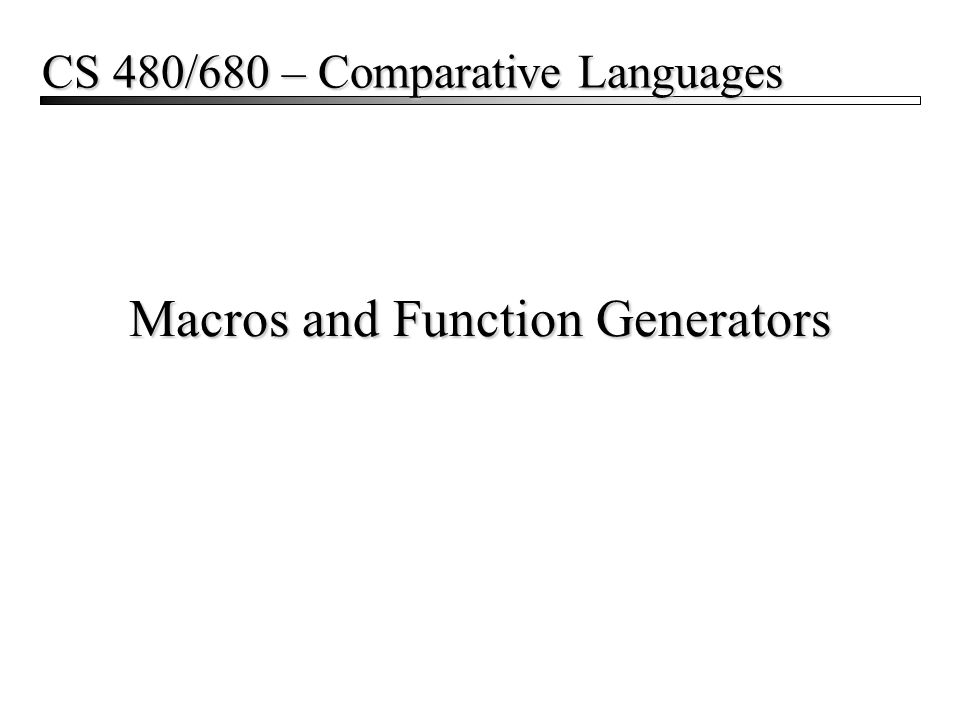

1 Macros and Function Generators CS 480/680 – Comparative Languages

2 Macros2 List Structures  When we have a list like this: ’( ) we know the structure looks like this:  Likewise, when you create code like this: (+ 2 3) you end up with a structure like this:

3 Macros3 Creating Code  A powerful feature of Scheme is the ability to create code on the fly: (define a ‘(+ 3 2)) (list a a a) >> ((+ 2 3) (+ 2 3) (+ 2 3)) (eval (cons ‘begin (list a a a))) >> 5  begin only returns the result of the last subform evaluated. However, here (+ 2 3) was evaluated three times

4 Macros4 Macros  A Scheme macro is a function that: Produces a list, and then Evaluates the list  Differs from an ordinary function, in that the list that is produced is evaluated The macro returns whatever the evaluated list returns

5 Macros5 Macro Shortcuts  Within a macro, you can use a list template: Starts with a backquote: ` Inside the template: ,symbol – replaced by a macro parameter – replaced by a spliced parameter. That is, a parameter with the outer set of parentheses removed

6 Macros6 A simple example  Arguments to lambda are collected in the list: ((display “hi”) (newline))  Template creates: (begin (display “hi”) (newline) (display “hi”) (newline) (display “hi”) (newline)) (require (lib ”defmacro.ss”)) (define-macro do3 (lambda code (do3 (display "hi") (newline)) hi Notice the lack of quotes!

7 Macros7 A more complicated example  Suppose we wanted a function called “when”, that would take as arguments a test and multiple subforms If the test is true, all the subforms are executed Like ‘if’, but: (if (test) (begin (form1) (form2) (form3)… ) )

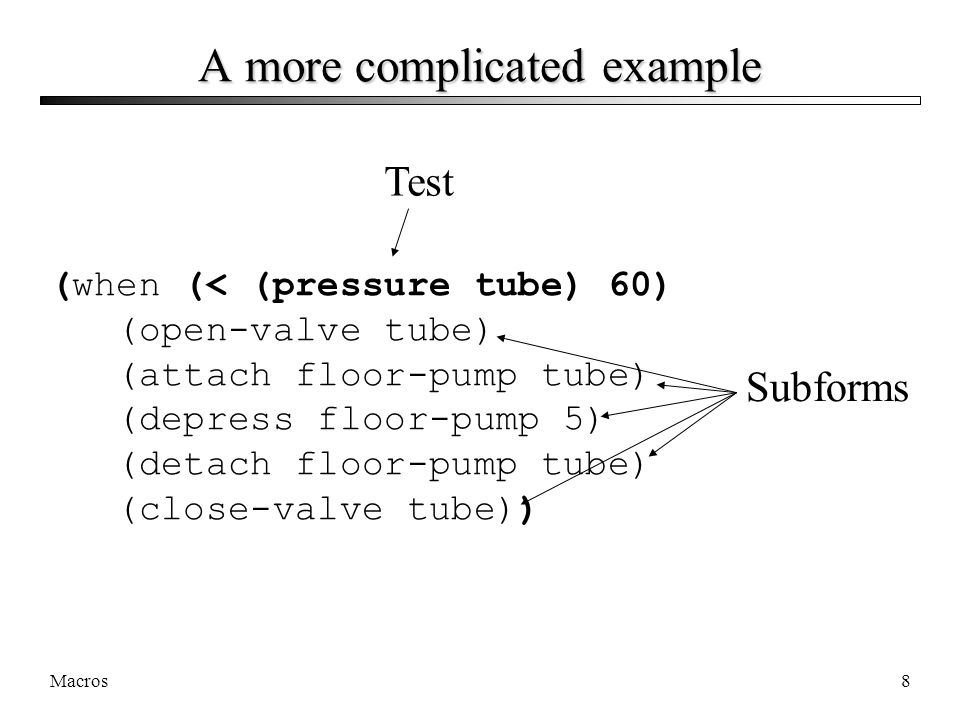

8 Macros8 A more complicated example (when (< (pressure tube) 60) (open-valve tube) (attach floor-pump tube) (depress floor-pump 5) (detach floor-pump tube) (close-valve tube)) Test Subforms

9 Macros9 A more complicated example (define-macro when (lambda (test. branch) (list 'if test (cons 'begin branch)))) (when (< (pressure tube) 60) (open-valve tube) (attach floor-pump tube) (depress floor-pump 5) (detach floor-pump tube) (close-valve tube))

10 Macros10 A more complicated example (define-macro when (lambda (test. branch) (list 'if test (cons 'begin branch)))) test = (when (< (pressure tube) 60) branch = ((open-valve tube) (attach floor-pump tube) (depress floor-pump 5) (detach floor-pump tube) (close-valve tube))

11 Macros11 A more complicated example (define-macro when (lambda (test. branch) (list 'if test (cons 'begin branch)))) test = (< (pressure tube) 60) branch = ((open-valve tube) (attach floor-pump tube) (depress floor-pump 5) (detach floor-pump tube) (close-valve tube)) >> (if (< (pressure tube) 60) (begin (open-valve tube) … )

12 Macros12 Variable Capture  Since a macro is a textual translation, it does not introduce a new local scope!  If a macro uses a local variable name (via let) that is the same as a variable of a higher scope, the higher scoped variable cannot be passed as a macro parameter Can leave quite a mess  Solution – (gensym) creates a unique symbol name that can be used with,name in a template
