Chapter 7 Cyclic Compounds. Stereochemistry of Reactions.

Similar presentations

Presentation on theme: "Chapter 7 Cyclic Compounds. Stereochemistry of Reactions."— Presentation transcript:

1 Chapter 7 Cyclic Compounds. Stereochemistry of Reactions

2 Monocyclic Compounds Compounds containing a single ring Relative stabilities are determined from heats of formation (  H f °) All have the same empirical formula: CH 2 Thus, stabilities can be readily compared on a per carbon basis 2 7.1 Relative Stabilities of the Monocyclic Alkanes

3 Cycloalkane Heats of Formation per CH 2 3 7.1 Relative Stabilities of the Monocyclic Alkanes

4 Strain Theory Cycloalkanes encounter three types of strain: – Angle Strain – Torsional Strain – Steric Strain 4

5 Angle Strain Angle strain: strain due to expansion or compression of bond angles – Recall: tetrahedral C likes bond angles of 109.5° 5

6 Torsional Strain Torsional Strain: strain due to eclipsing bonds on neighboring atom Neighboring C-H bonds eclipse each other in cyclopropane 6

7 Steric Strain Steric Strain: strain due to repulsive interactions due to atoms that approach each other too closely – Occurs between non-bonded atoms 7

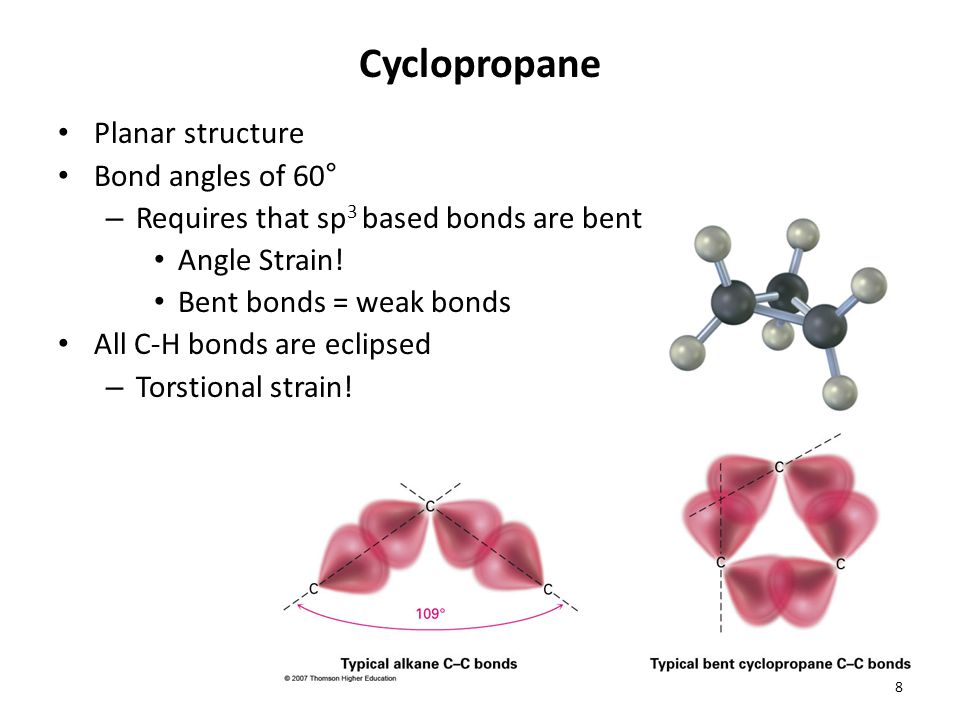

8 Cyclopropane Planar structure Bond angles of 60° – Requires that sp 3 based bonds are bent Angle Strain! Bent bonds = weak bonds All C-H bonds are eclipsed – Torstional strain! 8

9 Cyclobutane Less angle strain than cyclopropane More torsional strain – larger number of ring hydrogens Slightly bent out of plane – One carbon atom is about 25° above – Increases angle strain but decreases torsional strain 9

10 Cyclopentane Conformations of cyclopentane are nonplanar – reduces torsional strain – Planar cyclopentane would have almost no angle strain but very high torsional strain Envelope – Four carbon atoms plane – The fifth carbon atom is above or below the plane 10

11 Cyclohexane Adopts a non-planar, puckered conformation – Chair conformation Free of angle strain and torsional strain – Very stable! – Same stability as a typical unbranched alkane 11

12 Cyclohexane Prevalent in many naturally occurring organic compounds 12 Menthol Morphine

13 13

14 The Chair Conformation 14

15 Drawing Cyclohexane 15

16 Problems Practice drawing both chair conformations of cyclohexane 16

17 17

18 Adding the Hydrogens 18

19 Conformational Mobility of Cyclohexane Chair conformations readily interconvert, resulting in the exchange of axial and equatorial positions by a ring-flip 19

20 20

21 21

22 22

23 Relative Enthalpies 23 7.2 Conformations of Cyclohexane
