Design Of Vertical Knock-Out Vessel With No Internals Favorable Inlet 2 phase flow regime Particle Dynamics – Separation of Liquid Droplets in Vapor Stream.

Similar presentations


Presentation on theme: "Design Of Vertical Knock-Out Vessel With No Internals Favorable Inlet 2 phase flow regime Particle Dynamics – Separation of Liquid Droplets in Vapor Stream."— Presentation transcript:

1 Design Of Vertical Knock-Out Vessel With No Internals Favorable Inlet 2 phase flow regime Particle Dynamics – Separation of Liquid Droplets in Vapor Stream Chem Eng Handbook, Perry VI Eq 5-263, page 5-66 Liquid Retention Time Pressure Vessel Economics

2 Types of Vertical KO Vessels Vertical – No Internals Vertical – With Demister Mesh Peerless - In-line or Vari-line Vanes Peerless Vane Type Line Separator FWG – Vertical Flow Chevron Vanes Cyclone With Tangential Inlet Entry Porta-Test Centripetal Flow Type

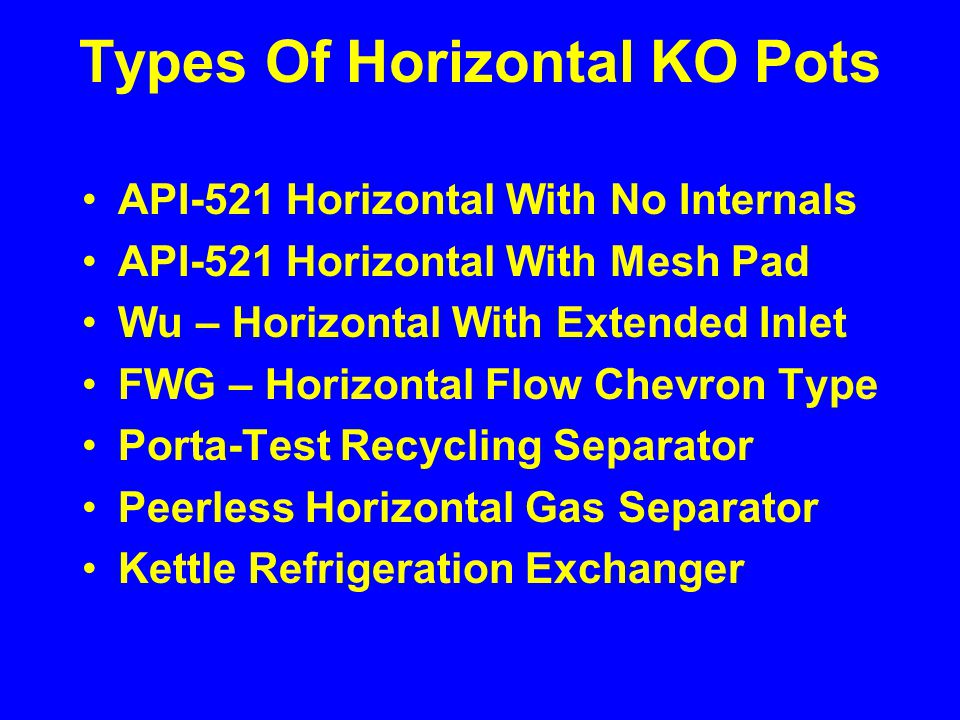

3 Types Of Horizontal KO Pots API-521 Horizontal With No Internals API-521 Horizontal With Mesh Pad Wu – Horizontal With Extended Inlet FWG – Horizontal Flow Chevron Type Porta-Test Recycling Separator Peerless Horizontal Gas Separator Kettle Refrigeration Exchanger

4 This Presentation Considers Vertical KO Vessel With No Internals Vertical KO With Mesh Pad

5 Problem Statement Design a KO Pot to separate 49,423 lb/hr of vapor from 382,290 lb/hr of liquid. Working Range liquid level holdup shall be +/- 2 minutes on normal liquid level. Provide 2 minutes liquid holdup from high opg LL to Max LL. Provide 2 minutes liquid holdup from low opg LL to Min. LL. Total Liquid Retention time = 8 minutes.

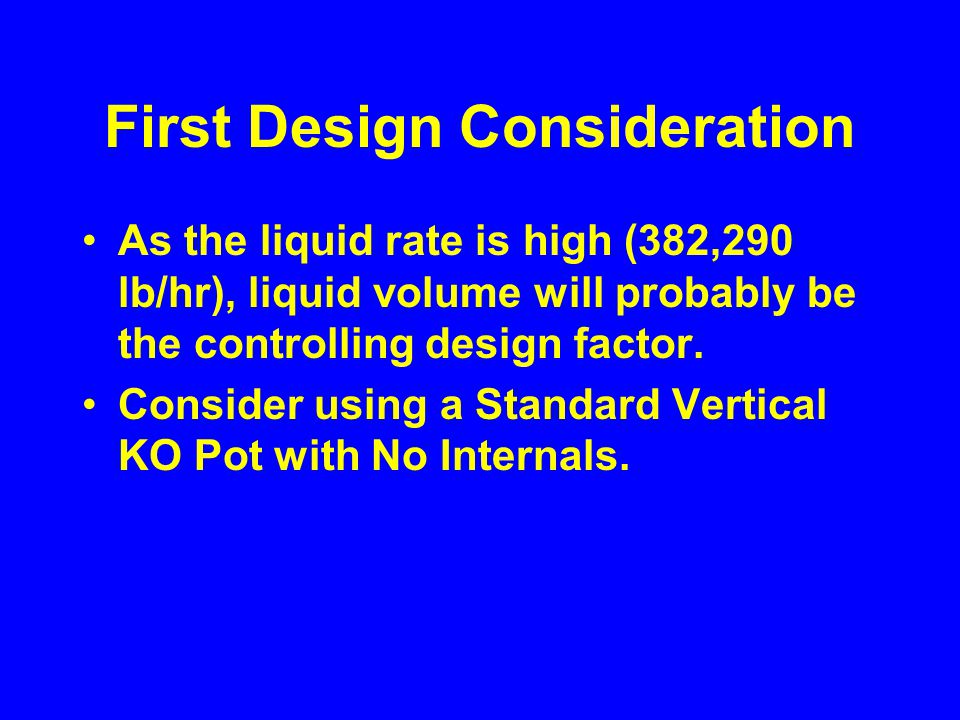

6 First Design Consideration As the liquid rate is high (382,290 lb/hr), liquid volume will probably be the controlling design factor. Consider using a Standard Vertical KO Pot with No Internals.

7

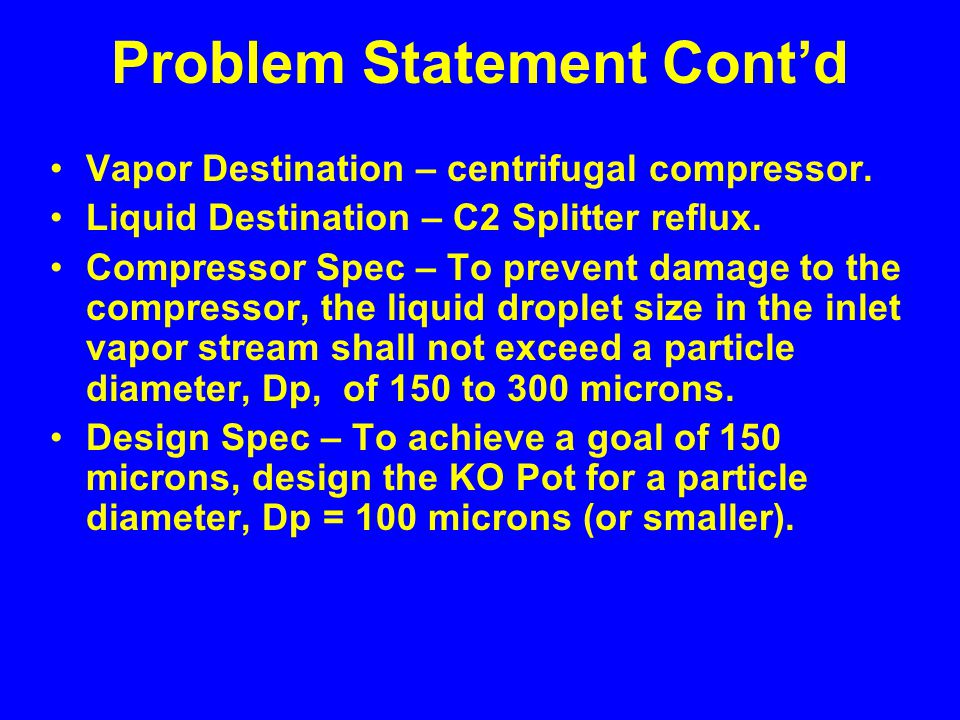

8 Problem Statement Cont’d Vapor Destination – centrifugal compressor. Liquid Destination – C2 Splitter reflux. Compressor Spec – To prevent damage to the compressor, the liquid droplet size in the inlet vapor stream shall not exceed a particle diameter, Dp, of 150 to 300 microns. Design Spec – To achieve a goal of 150 microns, design the KO Pot for a particle diameter, Dp = 100 microns (or smaller).

9 Summary Of All Req’d Input

10 Step (1): Calc CFS Of Vapor CFS = Vapor cubic feet per second. CFS Vapor = Wv / 3600 / Dv. CFS Vapor = cubic ft. per sec.

11 Step (2): Calc ( C )( Re^2 ) CRe^2 from Perry VI - Eq CRe^2 = (A)( Constant) A = (Dp/304800)^3 (DL - Dv)(Dv) / cP^2 Constant = (4*32.2/3/ ^2) CRe^2 = 1, Where C = Drag Coefficient Re = Particle Reynolds Number

12 Step (3): Calc Drag Coefficient, C Table 5-22, Perry VI, Page 5-67, gives C values versus CRe^2. These values have been curve fitted to a polynomial for the Re range 0.1 to 2,000 as follows: C = EXP( *LN(CRe^2) *LN(CRe^2)^ *LN(CRe^2)^3) C = 2.35 for the example presented

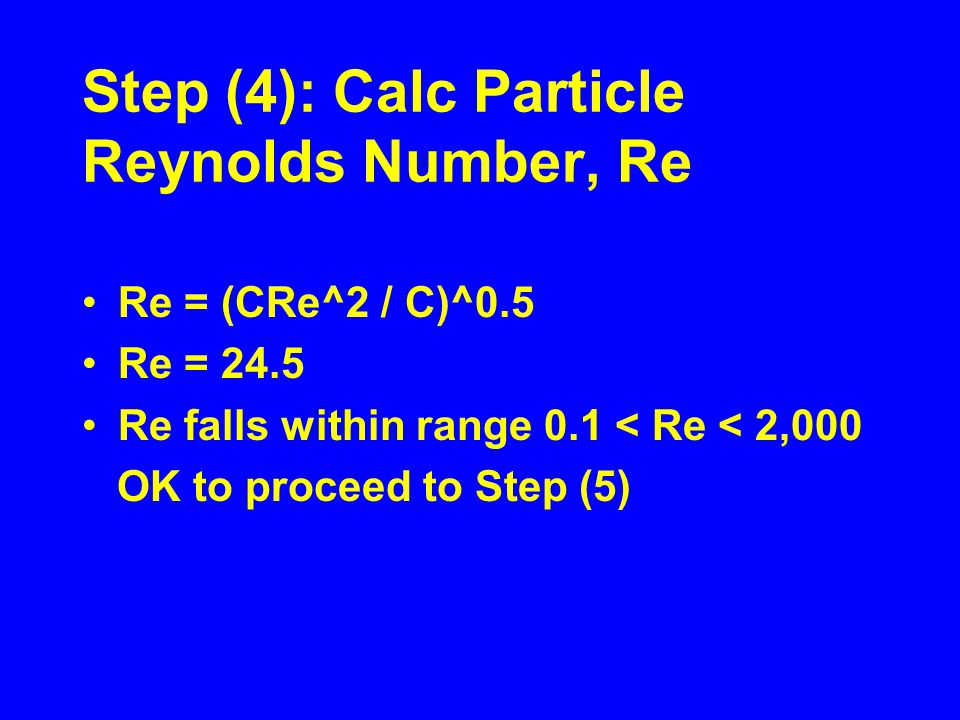

13 Step (4): Calc Particle Reynolds Number, Re Re = (CRe^2 / C)^0.5 Re = 24.5 Re falls within range 0.1 < Re < 2,000 OK to proceed to Step (5)

14 Step (5): Calc Drop Out Velocity Drop Out velocity, ut, from Perry VI - Eq Ut = [Re / C*4*32.2 *cP* *(DL-Dv) / 3 / Dv^2]^ Ut = ft./sec.

15 Step (6): Calc Vessel Diameter Area = (CFS / ut) = (3.14 / 4 )(D)^2. KO Dia = (CFS / ut /0.785)^0.5. KO Dia = 6.67 ft. Round Diameter to Nearest 3.” Rounded Diameter = 7’ 0.”

16 Step (7): Calc Ht. Above C.L. Of Inlet Nozzle, L1 L1 Vapor ht. Referenced to C.L. Of inlet nozzle. L1 Vapor ht. = 3 ft (Noz Diam.). L1 Vapor ht. = 3.83 ft. (C.L. to top t-L). See Design Uncertainty at end of this report for future addition of a demister pad, if required.

17 Step (8): Calc Liquid Vol, L3, For Specified Retention Time Cubic Ft. Of Liquid = Vol L3. Vol L3 = (WL)(Ø min.) / DL / 60 cu. ft. Vol L3 = 1, cu. Ft.

18 Step (9): Calc Liq Vol for minimum of 2 ft. Liquid. Liq Vol For 2 Ft. Minimum Liq Vol = Vol L2 ft. = (  )(2)(Dia)^2 / 4. Vol L2 ft. = cu. Ft.

19 Step (10): Select Maximum of L3 Vol or L2 ft. Vol. Vol L3 = 1, cu. Ft. Vol L2 = ft. cu. Ft. = cu. Ft. Max Liquid Vol = 1, cu. Ft.

20 Step (11): calculate L3, ft. L3 = (Vol L3)(4) / (  )(Vessel Dia)^2. L3 = ft. This makes the vessel roughly 7 ft. in diam with an unusually high liquid level (L3).

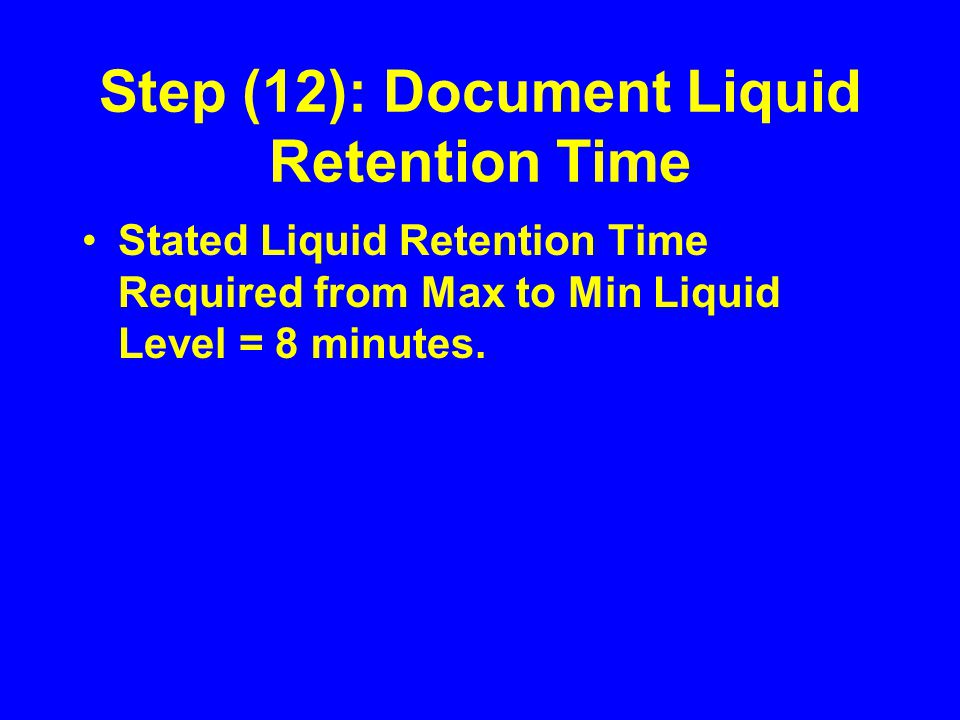

21 Step (12): Document Liquid Retention Time Stated Liquid Retention Time Required from Max to Min Liquid Level = 8 minutes.

22 Step (13): Calculate L2 L2 is the height from the C.L. of the inlet nozzle to the max Liquid level. L2 = 0.25(L3) + 0.5(Inlet Nozzle dia.). L2 = (0.25)(42.33) + (0.5)(20/12) =11.42 ft.

23 Step (14): Calculate t-t Length L total t-t = L1 + L2 + L3. L total t-t = L total t-t = L/D = / 6.67 = Economic L/D range between 3 to 4. Repeat Process with lower Dp to increase dia and lower t-t length. Second Pass. Try Dp = 50 microns.

24 Summary

25 Vertical KO Pot with Demister Pad

26 Design Basis Design is vapor liquid systems with lower liquid rates. The particl size is usually set at a default value of 500 microns, which is rain drop sized particles. The wire mesh demister pad is usually 6 to 12 inches thick. The vapor stream will exit with liquid drops no greater than 3 microns.

27 Design Procedure The design procedure is exactly the same as for KO Pots without internals. Set the particle size at 500 microns and proceed as before till an economic vessel with and L/D range of 3 to 4 is found.

28 Design Uncertainty If the design is based on a vertical vessel with no internals and there is some uncertainty that the KO Pot will achieve the desired liquid particle size, provision can be made to add a wire mesh demister pad at a later date.

29 Future Demister Pad Make L1 a minimum of 3 ft (inlet nozzle dia.) for vessel diameters 4 ft. and smaller. For vessels larger than 4 ft. in dia., make L 1 = 0.75(Vessel dia.). This will allow room to add a demister at a later date, if needed.
