1 CSA LPG AND FUEL SERVICES

2 COMPANY PROFILE Csa Ltd.Sti founded in 1980 with 3 partners. Its main job was production of industrial electronic devices on order. In 1982 started to develop electronic counter for gasoline dispensing pumps and started production of it in 1985, eventually left all other subjecs. In 1994 CSA started to manufacture complete dispensing pumps for export purposes. It established a joint-venture organization in Moscow and got all nessecary certificates to sell in Russia. On demand at domestic marked it started to sell the complete pumps in Turkey after CSA started to manufacture LPG dispensers in year CSA has experience on card and self service systems for gasoline stations. CSA automation system is in operation in 48 new stations in Moscow. CSA also has systems and dispensers in Irkutsk, Pyatigorsk, Soçi in Russia. CSA Company also export products to Netherland, Iraq,Nigeria and many other countries According to experiences CSA Company is known as a world leader in Petroleum, LPG and CNG. Because of our high quality leaders of our sector prefers CSA's products,such as TOTAL,TECO,POAS,LUKOIL,MILANGAZ, IPRAGAZ, BP, HABAS, TURNAGAZ..., to solve their problems and best solutions.

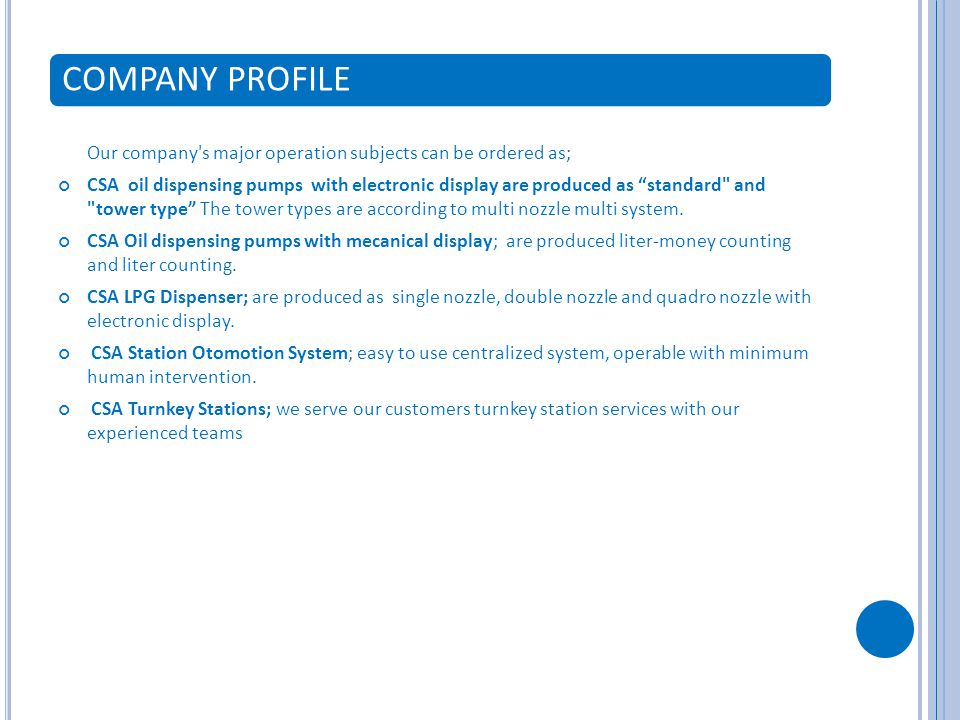

3 COMPANY PROFILE Our company's major operation subjects can be ordered as; CSA oil dispensing pumps with electronic display are produced as “standard" and "tower type” The tower types are according to multi nozzle multi system. CSA Oil dispensing pumps with mecanical display; are produced liter-money counting and liter counting. CSA LPG Dispenser; are produced as single nozzle, double nozzle and quadro nozzle with electronic display. CSA Station Otomotion System; easy to use centralized system, operable with minimum human intervention. CSA Turnkey Stations; we serve our customers turnkey station services with our experienced teams

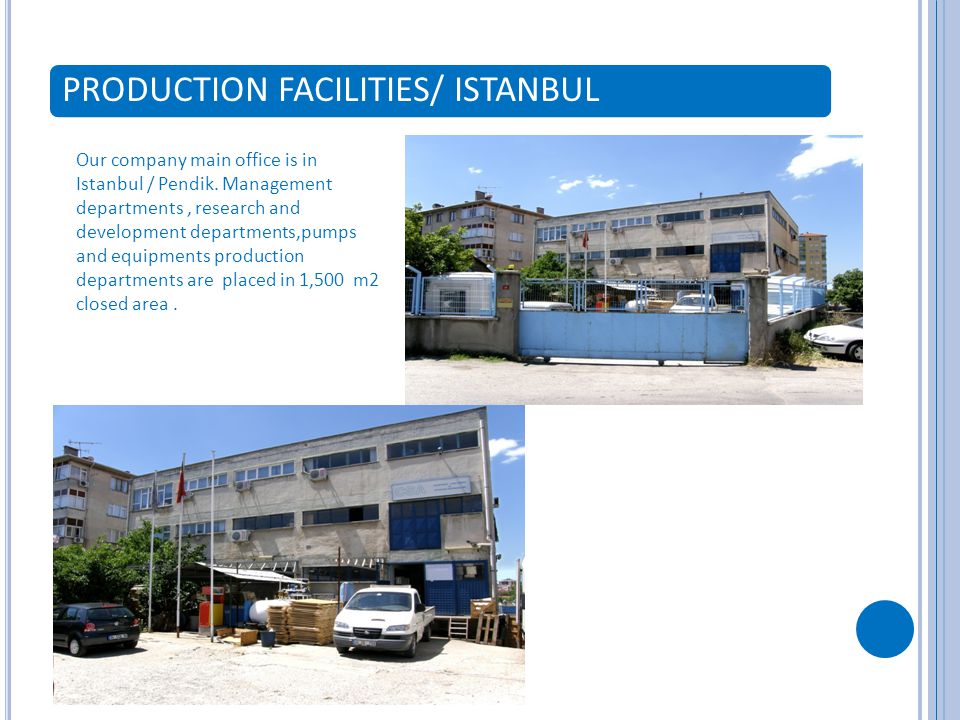

4 PRODUCTION FACILITIES/ ISTANBUL Our company main office is in Istanbul / Pendik. Management departments, research and development departments,pumps and equipments production departments are placed in 1,500 m2 closed area.

5 PRODUCTION FACILITIES/ AFYON FACTORY To satisfy the customer requests in a better way we bought a new 8500 m2 production area in Afyon industrial region.The existing 1400 m2 building on this area is going to be expanded to 4320 m2 including the support and management divisions. Our aim is to increase our production capacity, decrease our serice time and have a better efficiency by this way.

6 CSA LPG Dispencer CSA brand LPG dispencers allow the gas stations to work with high sensivity and a well qualified working chance With the help of modern software, electronic that makes no error is totally adapted with all otomation systems.

7 CSA LPG Dispenser Specification LPG Dispenser Technical Specifications :1,2 and 4 nozzle Pump : Submersible pump or overground pump Volumeter: 0.5 lt/tur, positive displacement type Accuracy: +/- % 0.5 (may vary according to regulations) Electric valve: 24V DC, 2 speed Fast flow rate: 45 lt/min Slow flow rate: 5 lt/min Pulser: 2x50 pulse/rev, optical reading Nozzle: According to customers spec Other : Two displays at two sides Service to two vehicles from both sides (one at a time), Service to two vehicles from both sides at same time and Service to four vehicles from both sides at same time. Operation voltage range : V AC. Power consumption: 20 W. Electric Valve Output : V DC, 450 Ma. Motor Output : 220 V AC. 6 A Display : 25 mm. LCD display. 6 digits money, 6 digits liter, 4 digits unit price Adjustments : With buttons password enabled Programming : With 4 button in liter and money. Precision : 10 ml. Counting Rate : lt/min. Totalizor : Min 6 digits in liter. Operating Temperature : deg.C Operating humudity : 0... %95. Connections : With appropriate sockets Various Functions : 100 hour display on power failure (min 1 hour ) Total liter and price can be obsered electronically. Previous sales can be observed. Flowrate can be observed.Connectable to central control computer and otomotion,tank control,accounting, shifts, control, stock control with smartcard and ibutton. Displays the errors in the system and stops operation in case of error. Stops operation when no flow is detected for a certain period. Adjustable slow flow value and other parameters. Easy connections only with 5 sockets.

8 CSA OIL DISPENSING PUMPS The electronic equipments which are used in our products are completely our CSA electronic R&D department’s design (Hardware and Software) and produced by us. Our equipments proved by Turkey and all over the world.

9 CSA TOWER MODEL OIL DISPENSING PUMPS Operation voltage range: V AC Power consumption: 20 W Electric valve output: V DC, 450 mA Motor output : 220 V AC 6 A / 380 V AC 3x3 A Display: 25 mm. LCD display 6 digits money, 6 digits liter, 4 digits unit price Adjustments: With buttons, password enabled Presetting: With 4 buttons in liter or Money Precision: 10 ml Counting rate: liters/min Totalizor: Min. 6 digits in liters Operating temperature: deg. C Operating humidity: 0... %95 Electric connections : With appropriate sockets Various functions: Total liter and money can be observed electronically.Previous sales can be observed.Flow rate can be observed.Connectable to central control computer, otomationand accounting with smartcard or iButton Able to continue delivery after powerdown.Displays the errors in the system and stops operation in case of error.Stops operation when no flow is detected for a certain period.Adjustable slow flow value and other parameters.Simple connection with 3 sockets. Multi-system Oil Dispensing Pump Technical Specifications:2,4,6 and 8 nozzle Motor: 0.5 hp. single or three phase Pumping unit:max. 70 lt/min star pump or submergible pump Volumeter: 0.5 lt/rev, positive displacement type Accuracy: +/- % 0.25 Electric valve: 24V DC, 2 speed Fast flow rate: 45 lt/min (single nozzle) Slow flow rate: 4 lt/min Pulser: 2x50 pulse/rev, optical reading Nozzle: Automatic, thin or thick types Other: Different counters and display at front and rear sides.Single or or different productsService to two vehicles from both sides

10 CSA VICTORY MODEL OIL DISPENSING PUMPS Oil Dispensing Pump Technical Specifications:1,2 and 4 nozzle Motor: 0.5 hp. single or three phase Pumping unit:max. 70 lt/min star pump or submergible pump Volumeter: 0.5 lt/rev, positive displacement type Accuracy: +/- % 0.25 Electric valve: 24V DC, 2 speed Fast flow rate: 45 lt/min (single nozzle) Slow flow rate: 4 lt/min Pulser: 2x50 pulse/rev, optical reading Nozzle: Automatic, thin or thick types Other: Different counters and display at front and rear sides.Single or or different productsService to two vehicles from both sides Operation voltage range: V AC Power consumption: 20 W Electric valve output: V DC, 450 mA Motor output : 220 V AC 6 A / 380 V AC 3x3 A Display: 25 mm. LCD display 6 digits money, 6 digits liter, 4 digits unit price Adjustments: With buttons, password enabled Presetting: With 4 buttons in liter or Money Precision: 10 ml Counting rate: liters/min Totalizor: Min. 6 digits in liters Operating temperature: deg. C Operating humidity: 0... %95 Electric connections : With appropriate sockets Various functions: Total liter and money can be observed electronically.Previous sales can be observed.Flow rate can be observed.Connectable to central control computer, otomationand accounting with smartcard or iButton Able to continue delivery after powerdown.Displays the errors in the system and stops operation in case of error.Stops operation when no flow is detected for a certain period.Adjustable slow flow value and other parameters.Simple connection with 3 sockets.

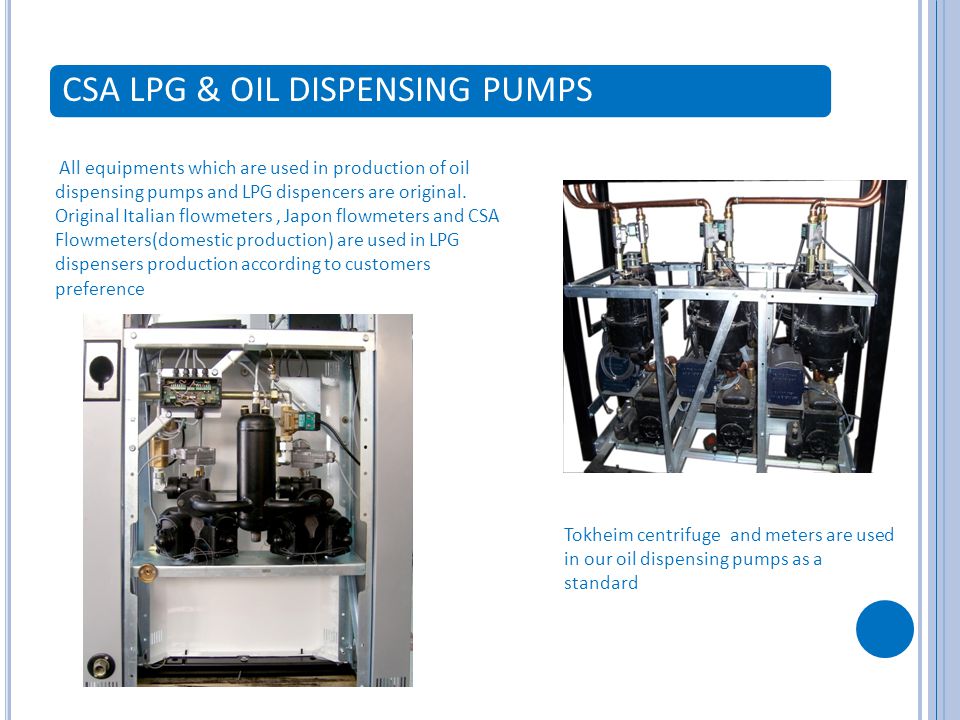

11 CSA LPG & OIL DISPENSING PUMPS All equipments which are used in production of oil dispensing pumps and LPG dispencers are original. Original Italian flowmeters, Japon flowmeters and CSA Flowmeters(domestic production) are used in LPG dispensers production according to customers preference.. Tokheim centrifuge and meters are used in our oil dispensing pumps as a standard

12 CSA LPG CONTROL PANEL For LPG delivery systems, PLC-SCADA based monitoring acquires; systems switch on-system switch off, synchorization,transferring, transfer of goods, security applications, reporting all the data and with GPRS non stop back up without disconnection.

13 CSA LPG SYSTEM CONTROL PANEL

14 TURNKEY STATIONS CSA, one of the most important LPG and oil dispensing pump producers of Türkiye, is also giving set up and design service During the explaring and constroction period, also in all the stages including the starting period of the system to functioning period of the system, CSA becomes a solution partner according to the law and standards Explore Construction of tank and station area Mechanic Setup Electric Setup Functioning the system and delivery

15 TURNKEY STATIONS/SURVEY To detect the suitable area for the setup The project for the station area Calculating the measures Selection of dispencer and pump Saving the explaring reports Making the project

16 TURNKEY STATIONS /MECHANIC MECHANIC INSTALLATION Acquiring the recquired tools for setup Creating the connection of the pump tank Building the tank area and construction in the tank area Building the tank area and construction connection between dispencer Making dispencer connections Making the connection of all cash registers and automation

17 TURNKEY STATIONS/ ELECTRONIC ELECTRONIC INSTALLATION Electric panel design and production Required supply of materials Connecting all the electric wires in the project Making grounding Making the cathodic protection

18 Station Installations/ FUNCTIONING THE SYSTEM AND DELIVERY Testing the system with possible pressures Clean up tanks First filling processing Functioning the station and delivery Filling the files and forms about the applications

19 MOBILE STATIONS MOBILE STATIONS SOLUTIONS Our mobile stations are fast, ideal and simple solutions for the temporary and for usual LPG delivery. No installations neden for our mobile stations. Where there is a power source, there is fast solution. To derive an economic solutions than stable stations For mobil stations normally the systems produced with 5m³ and 10m³, can also be produced up to your needs with different dimensions and measures Filling up forms

20 OTHER SERVICES PERİODİC CONTROL Fast periodic controls economically with service and expert crew all around the Turkey. Periodic controls are made with a pre-plan. Periodic controls are made once or twice a year A record is filled about the detected problems After the control, the neccessary forms and records are prepared DISPENCER AND TANK CALIBRATION Measuring is made more often in dispencer standarts or according to your will. Calibration is made by the personnels promated by ministry of industry. All the work is recorded within the forms for the ministry of industry and the distributer company Our Company prepares the master meter for calibration and also the certification and controlling.

21 OTHER SERVICES EQUIPMENTS AMENDMENT Your functional used equipments is changed with new ones and rechecked to be used in our company’s control and repair departmant. These equipments are ; Dispencer LPG Pumps Equipments such as piston meters RESTORATION OF STATION After the periodic control if it is needed to restorate the station, the neccessary plans are made. The neccessary operations are made according to a plan System is refunctioned after restoration with the neccessary forms and records

22 REFERENCES Our Company an expert for fuel and LPG pumps and dispencers, is both in Turkiye and internationally, proved itself and made a name in international markets. Our products are seen as the best by very important brands such as POAS, IPRAGAZ, TECO, LUKOIL, MILANGAZ,BP,SHELL,TURNAGAZ,TOTAL…

23 STATION INSTALLATIONS

24

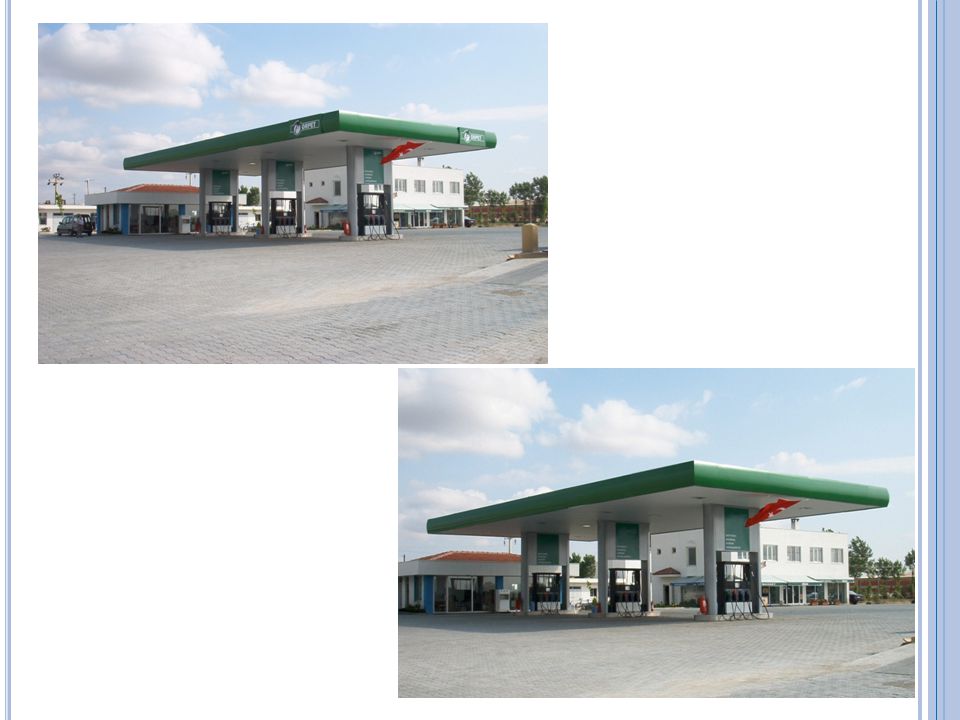

25
