1 Development of the Controlled Assessment task for 2015 By: Helen Robertson FSC London 21 October 2013

2 The Task What’s different? Making sense of the task statement The enquiry process Possible fieldwork techniques (primary & secondary data) Potential investigations...

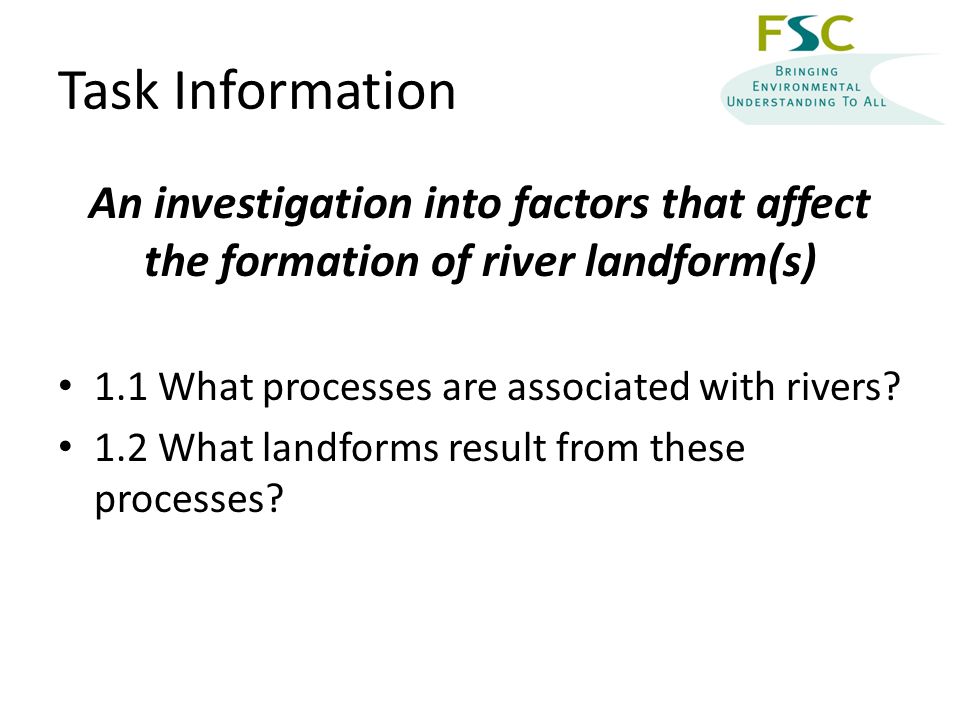

3 Task Information An investigation into factors that affect the formation of river landform(s) 1.1 What processes are associated with rivers? 1.2 What landforms result from these processes?

4 What’s different? More traditional than 2014 Not a classic ‘downstream change’ study Not river management Focus instead on processes e.g. – Erosion – Deposition – Transportation Example – meanders

5 Unpacking the title An investigation into factors that affect the formation of river landform(s) Must include primary data collection. A variety of secondary sources also available. Processes such as erosion, transportation and deposition. Distance downstream as a factor discouraged. Making the link between processes and landforms e.g. How increases in velocity might influence bedload size on a point bar or how the width of the channel may influence meander wavelength etc Meanders, associated features, channel and bankfull dimensions, floodplains, oxbow lakes, V-shaped valleys, waterfalls & gorges.

6 The enquiry process Involve the candidates in the enquiry process. – What are they aiming to achieve? – involve candidates in posing enquiry questions – What is the wider geographical concept / theory that is being tested? – How might candidates take some ownership for selecting or collecting data? How will they demonstrate independence?

7 Location?

8 London’s Lost Rivers

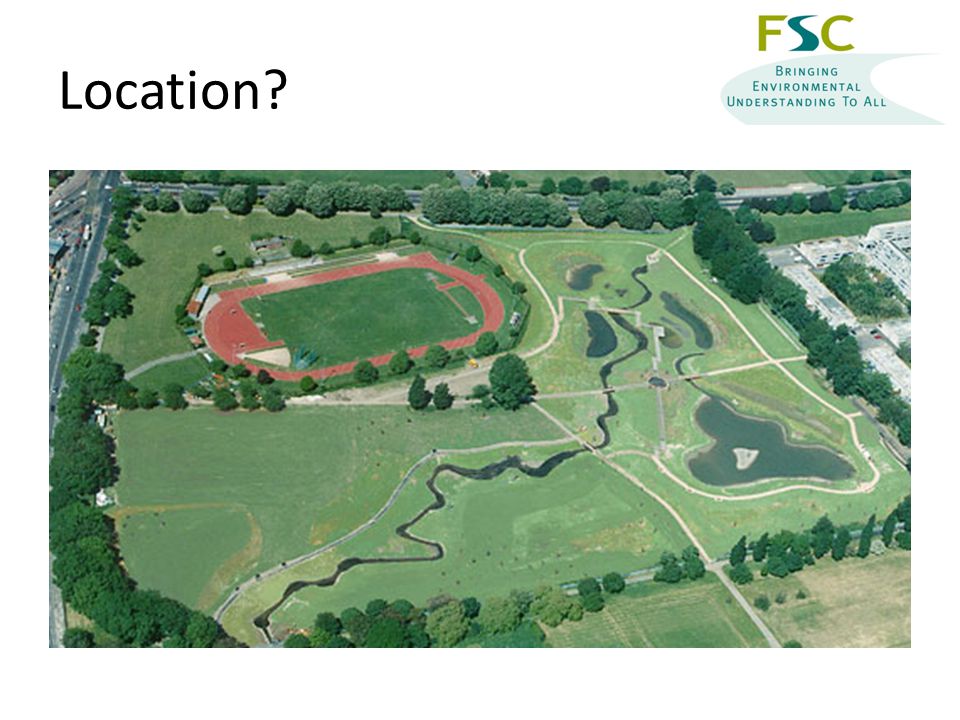

9 Location?

10 Some suggestions… a range of data collection techniques opportunities for your students to meet the criteria in the mark scheme.

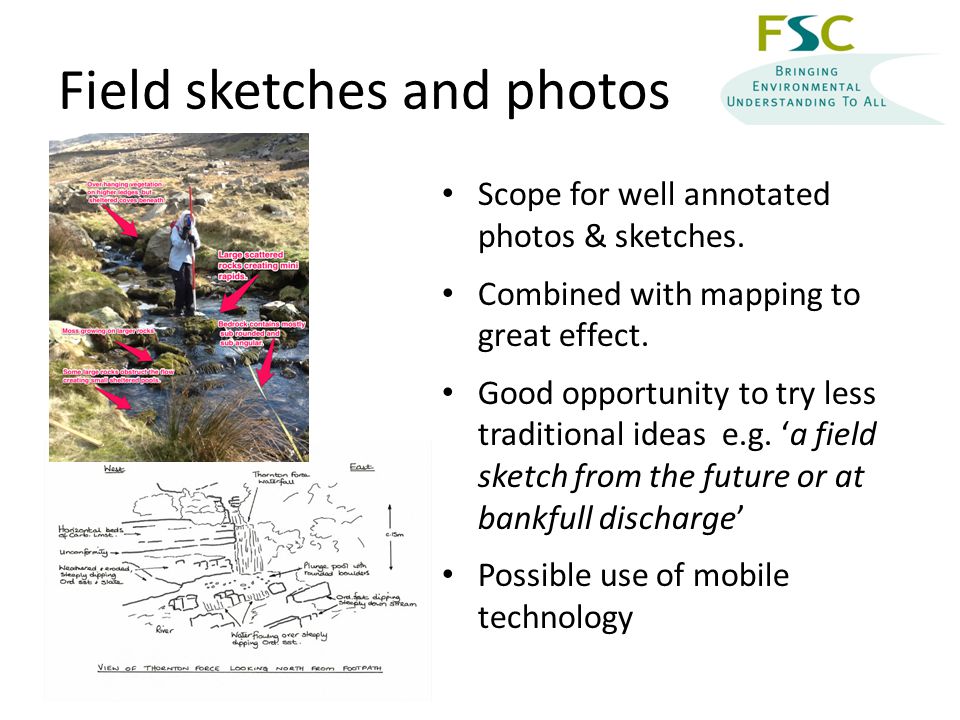

11 Field sketches and photos Scope for well annotated photos & sketches. Combined with mapping to great effect. Good opportunity to try less traditional ideas e.g. ‘a field sketch from the future or at bankfull discharge’ Possible use of mobile technology

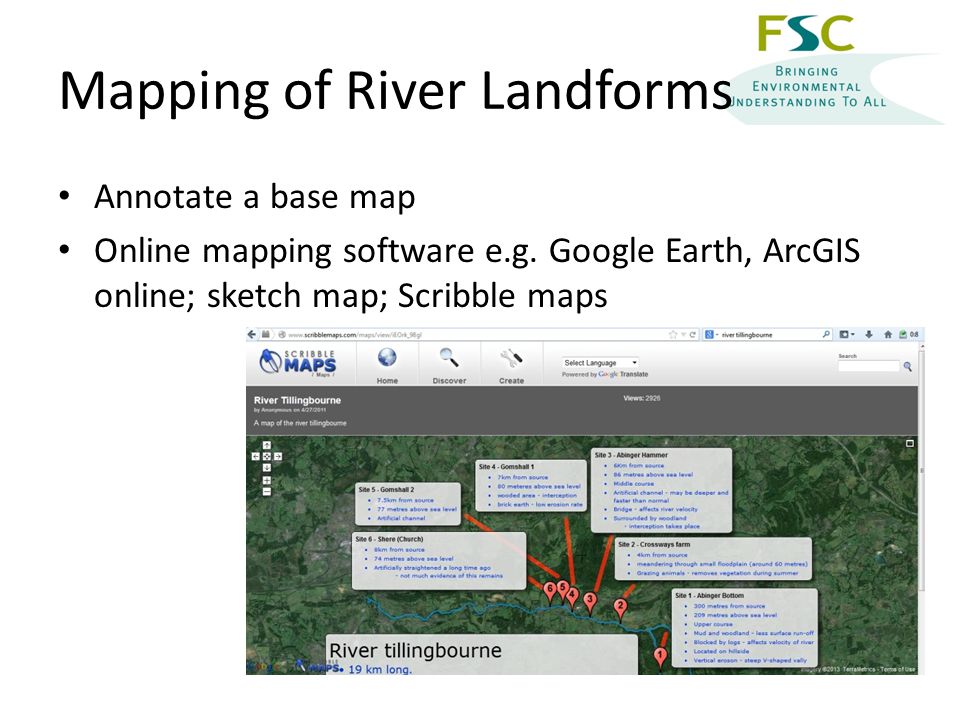

12 Mapping of River Landforms Annotate a base map Online mapping software e.g. Google Earth, ArcGIS online; sketch map; Scribble maps

13 Mapping of River Landforms Hand drawn sketch map Choropleth landforms Historical Maps / Images Geology Maps

14 The Hjulstrum curve Can processes occurring on a meander be linked to this theory? Straight section vs a meander? Pool vs a riffle? Two sites with same width but a different depth?

15 Bedload Measurements Size and angularity assessments

16 Bedload Measurements Measuring any sorting of bedload on point bars possible. Bedload size across a cross profile in a straight and meandering channel?

17 Bankfull measurements width and depth

18 Valley profiles, sketches and photos Link to geology? Comparison of sides?

19 Measurements of the landforms Length and height of river cliffs Gradients of slip off slopes Both could be related to variables like water speed or channel width/depth

20 Measurements of the landforms Sinuosity = river length/linear distance

21 Measurements of the landforms Meander wavelength and amplitude

22 Does CSA of Bankfull C = CSA of Bankfull A + CSA of Bankfull B C B A

23 Step pools and comparing gradients Distance between steps? Height of steps? Bedload analysis? Site important... Comparison using slope angle possible…

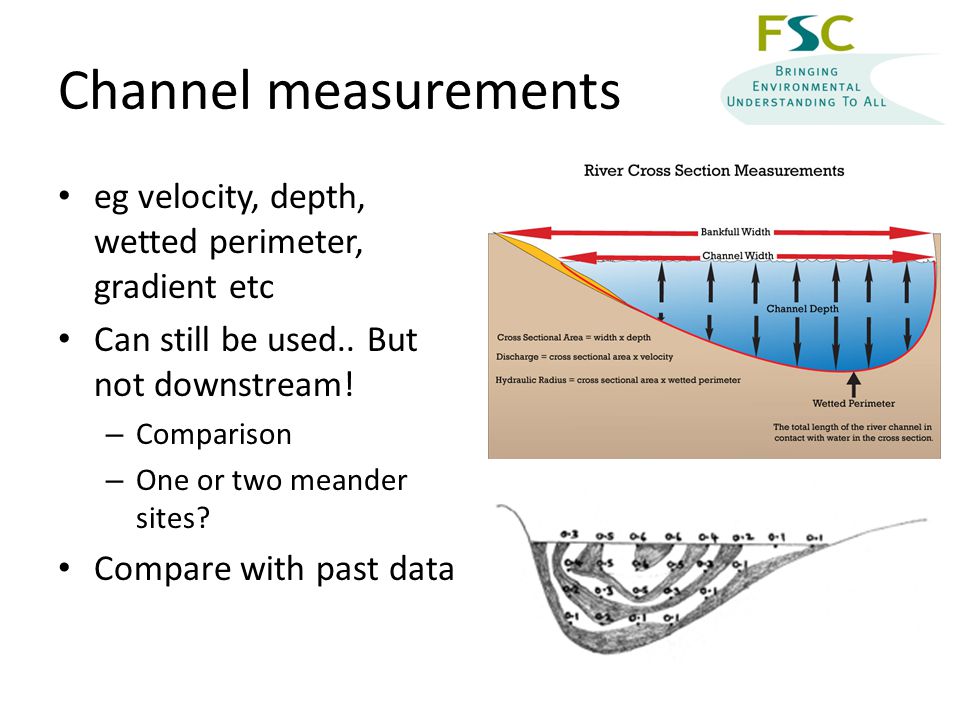

24 Channel measurements eg velocity, depth, wetted perimeter, gradient etc Can still be used.. But not downstream! – Comparison – One or two meander sites? Compare with past data

25 Example investigations Comparison of a meander and a straight channel – channel shape, velocity, bedload etc In depth study of a meander – dimensions, velocity, bedload, bankfull and associated features The effect of channel characteristics on river cliff/point bar size and length The effect of slope angle on step-pool or pool-riffle characteristics Channel characteristics & their influence on meander wavelength/sinuosity Channel A + Channel B = Channel C

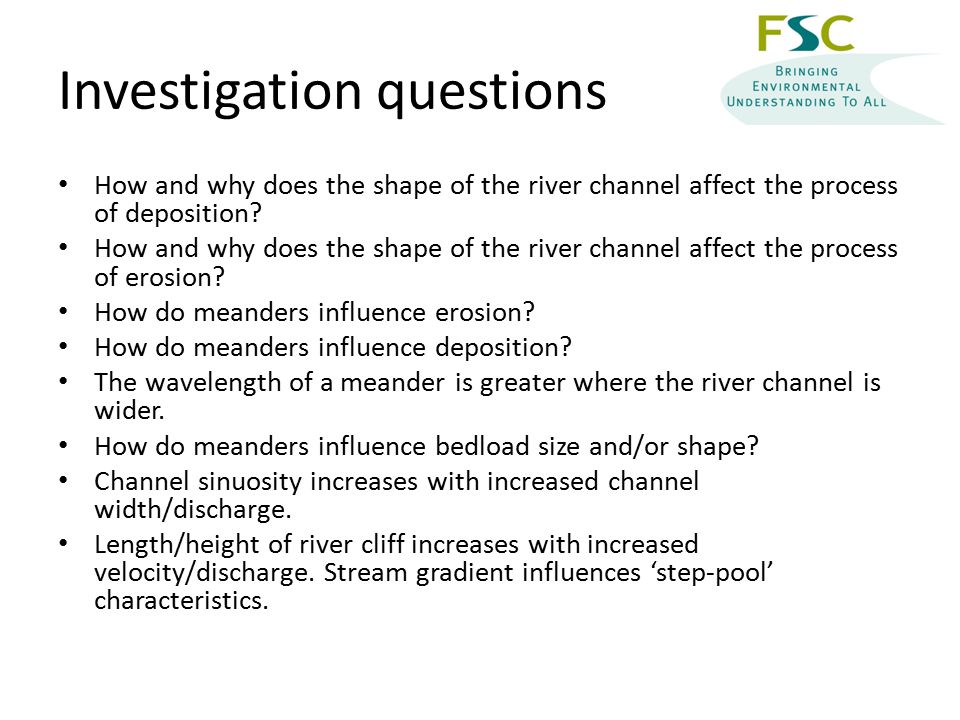

26 Investigation questions How and why does the shape of the river channel affect the process of deposition? How and why does the shape of the river channel affect the process of erosion? How do meanders influence erosion? How do meanders influence deposition? The wavelength of a meander is greater where the river channel is wider. How do meanders influence bedload size and/or shape? Channel sinuosity increases with increased channel width/discharge. Length/height of river cliff increases with increased velocity/discharge. Stream gradient influences ‘step-pool’ characteristics.

27 Questions? Contact: – Helen Robertson – FSC London – –
