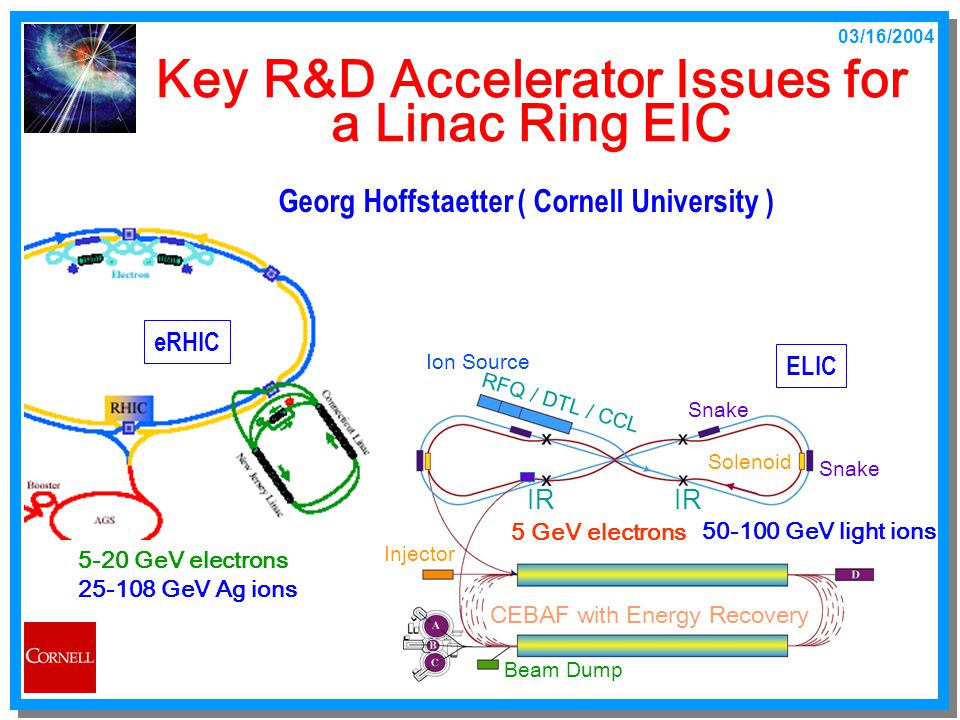

1 03/16/2004 Key R&D Accelerator Issues for a Linac Ring EIC Georg Hoffstaetter ( Cornell University ) Ion Source RFQ / DTL / CCL IR Beam Dump Snake CEBAF with Energy Recovery 5 GeV electrons GeV light ions Solenoid Injector 5-20 GeV electrons GeV Ag ions eRHIC ELIC

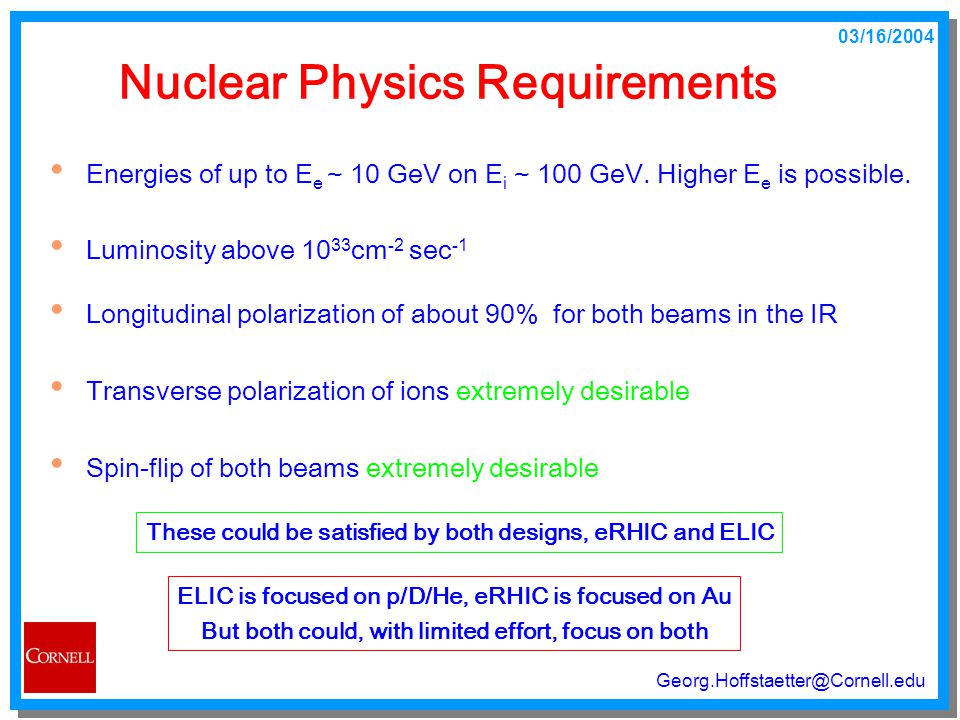

2 03/16/2004 Nuclear Physics Requirements Energies of up to E e ~ 10 GeV on E i ~ 100 GeV. Higher E e is possible. Luminosity above cm -2 sec -1 Longitudinal polarization of about 90% for both beams in the IR Transverse polarization of ions extremely desirable Spin-flip of both beams extremely desirable These could be satisfied by both designs, eRHIC and ELIC ELIC is focused on p/D/He, eRHIC is focused on Au But both could, with limited effort, focus on both

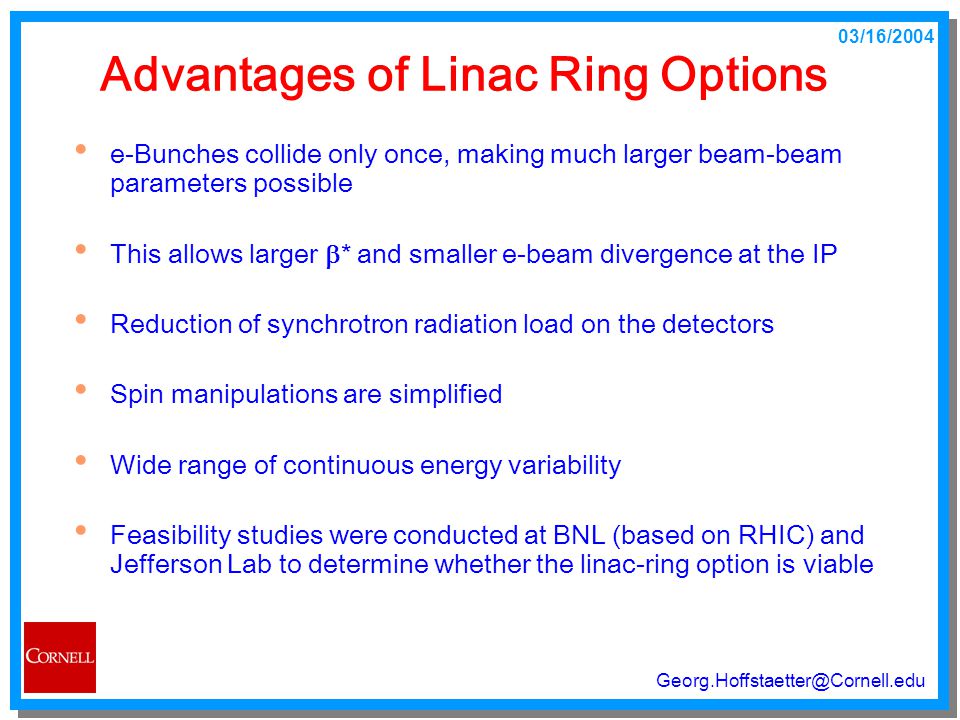

3 03/16/2004 Advantages of Linac Ring Options e-Bunches collide only once, making much larger beam-beam parameters possible This allows larger  * and smaller e-beam divergence at the IP Reduction of synchrotron radiation load on the detectors Spin manipulations are simplified Wide range of continuous energy variability Feasibility studies were conducted at BNL (based on RHIC) and Jefferson Lab to determine whether the linac-ring option is viable

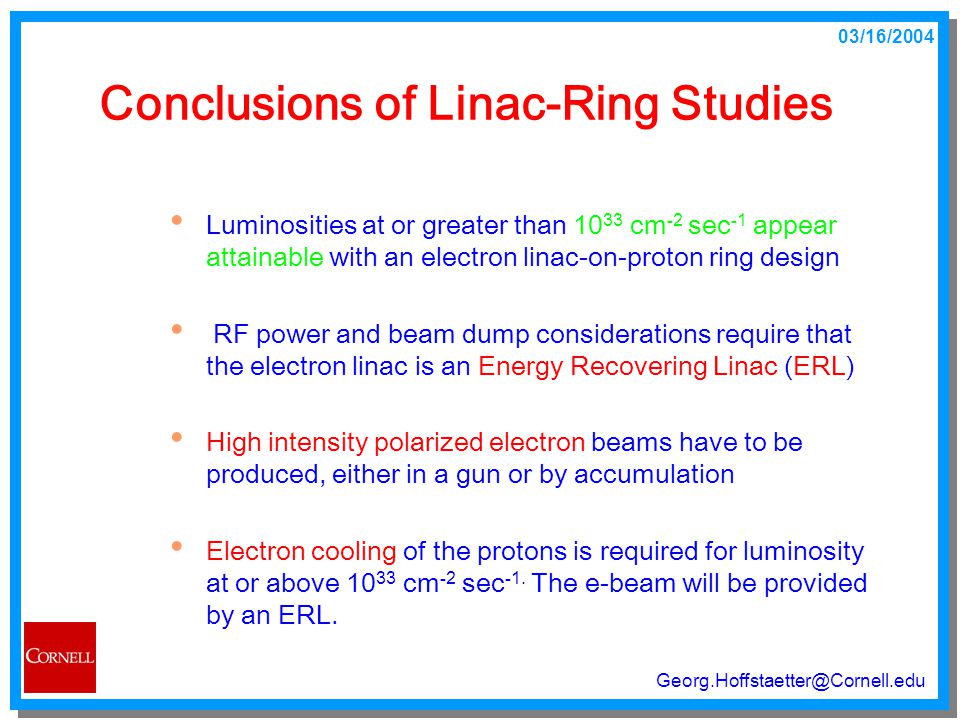

4 03/16/2004 Conclusions of Linac-Ring Studies Luminosities at or greater than cm -2 sec -1 appear attainable with an electron linac-on-proton ring design RF power and beam dump considerations require that the electron linac is an Energy Recovering Linac (ERL) High intensity polarized electron beams have to be produced, either in a gun or by accumulation Electron cooling of the protons is required for luminosity at or above cm -2 sec -1. The e-beam will be provided by an ERL.

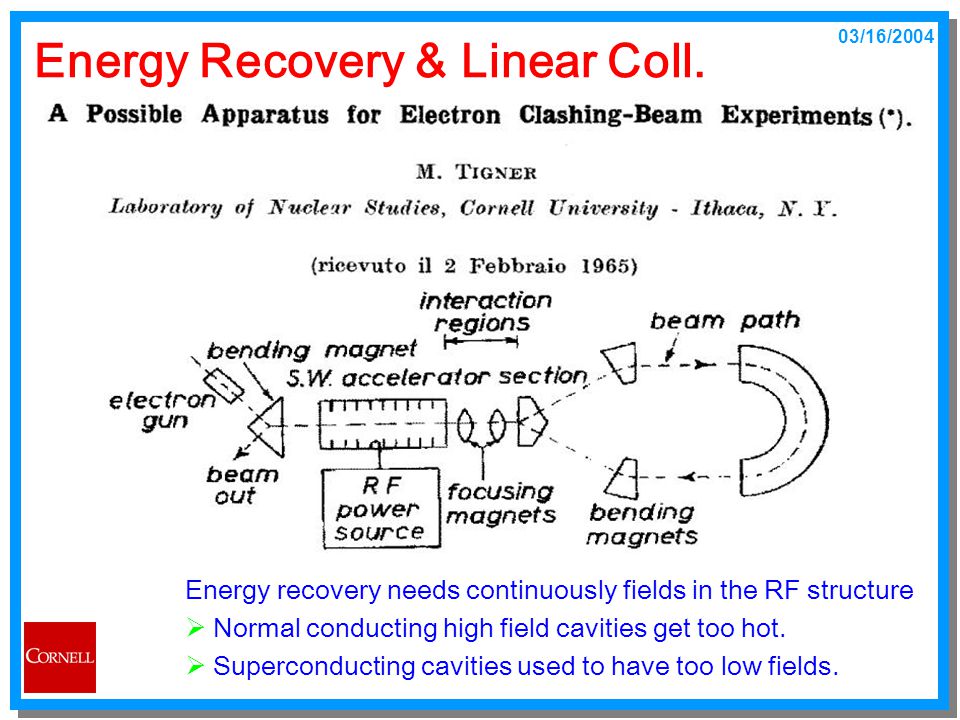

5 03/16/2004 Energy Recovery & Linear Coll. Energy recovery needs continuously fields in the RF structure  Normal conducting high field cavities get too hot.  Superconducting cavities used to have too low fields.

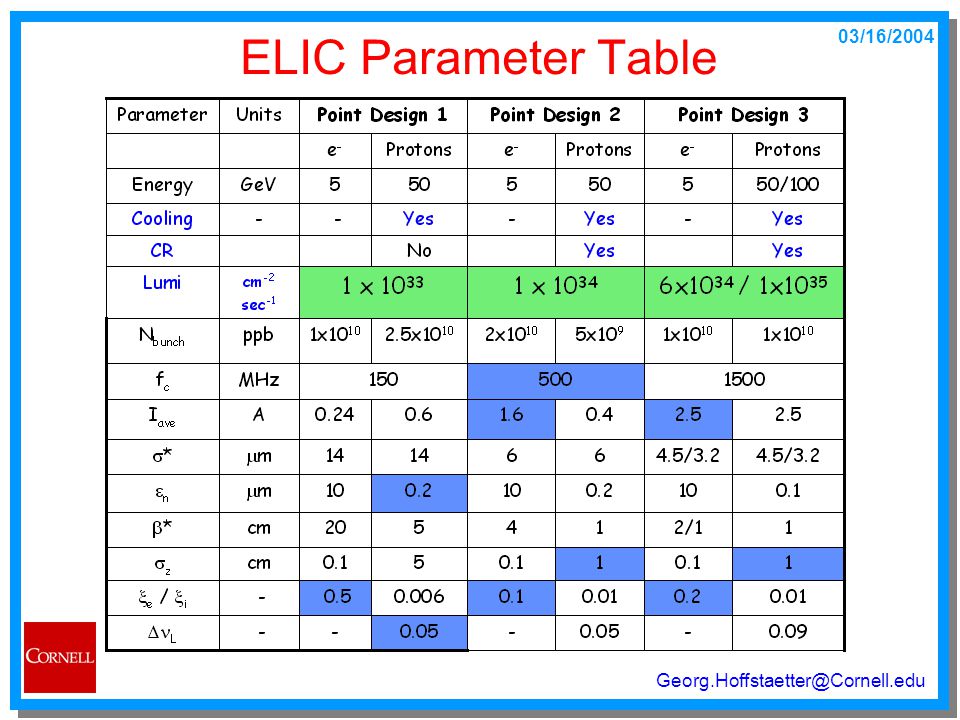

6 03/16/2004 ELIC Parameter Table

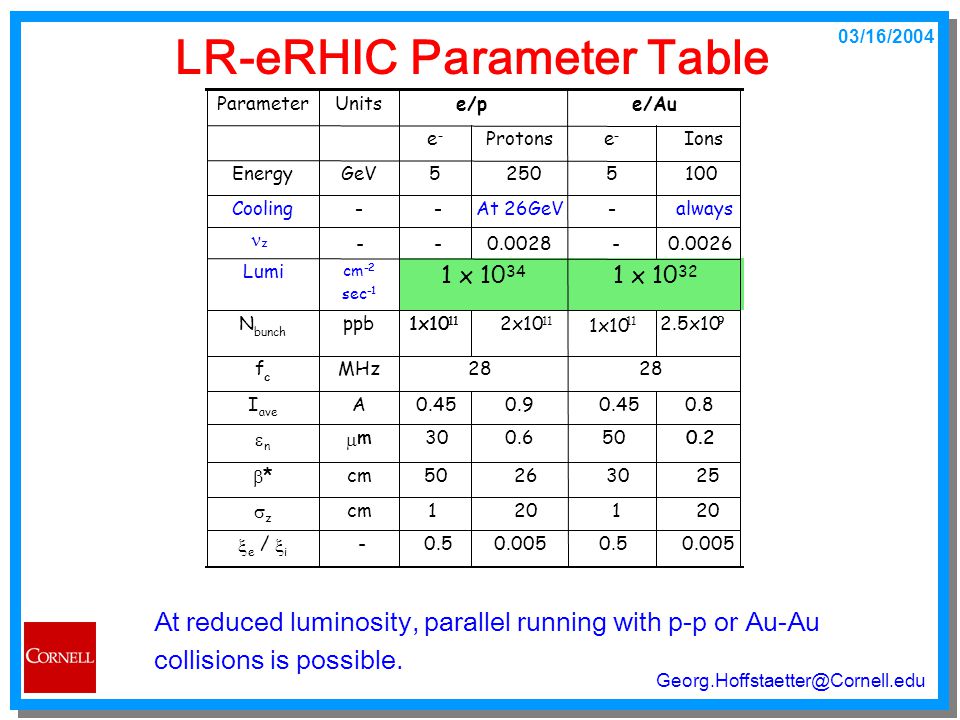

7 03/16/2004 LR-eRHIC Parameter Table z 1 x x cm -2 sec -1 Lumi  z cm  *  m  n AI ave 28MHzf c 2.5x10 9 1x10 2x101x10 11 ppbN bunch always-At 26GeV--Cooling GeVEnergy e - Protonse - UnitsParameter 1 x x * 0.2m 28 c 911 1x e/Aue/p Ions  e /  i cm At reduced luminosity, parallel running with p-p or Au-Au collisions is possible.

8 03/16/2004 ELIC Layout One accelerating & one decelerating pass through CEBAF Ion Source RFQ DTL CCL IR Beam Dump Snake CEBAF with Energy Recovery 5 GeV electrons GeV light ions Solenoid Injector

9 03/16/2004 Linac Ring eRHIC Layout Two accelerating & two decelerating pass through the two main lincas Beam Dump 1 GeV electrons 3.25 GeV 10 GeV Beam Dump 7.75GeV 5.5GeV 0.5 GeV

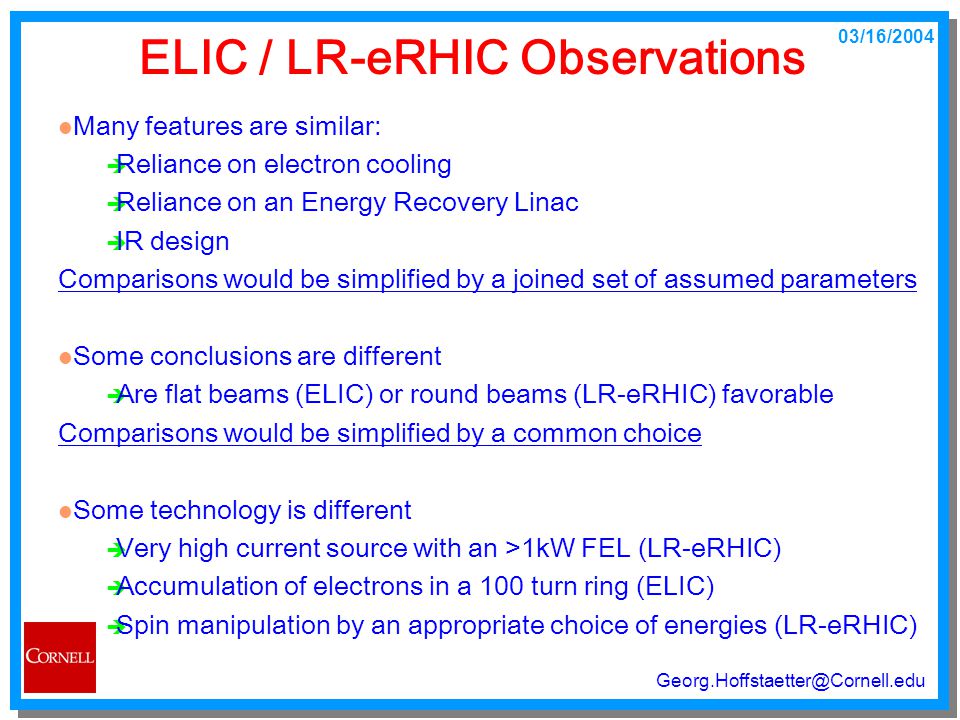

10 03/16/2004 ELIC / LR-eRHIC Observations l Many features are similar: è Reliance on electron cooling è Reliance on an Energy Recovery Linac è IR design Comparisons would be simplified by a joined set of assumed parameters l Some conclusions are different è Are flat beams (ELIC) or round beams (LR-eRHIC) favorable Comparisons would be simplified by a common choice l Some technology is different è Very high current source with an >1kW FEL (LR-eRHIC) è Accumulation of electrons in a 100 turn ring (ELIC) è Spin manipulation by an appropriate choice of energies (LR-eRHIC) è Solenoids as spin rotators (ELIC)

11 03/16/2004 CEBAF with Energy Recovery Install 50 Upgrade CEBAF cryomodules at ~20 MV/m in both linacs Single-pass CEBAF energy ~ 5-7 GeV Electrons are decelerated for energy recovery

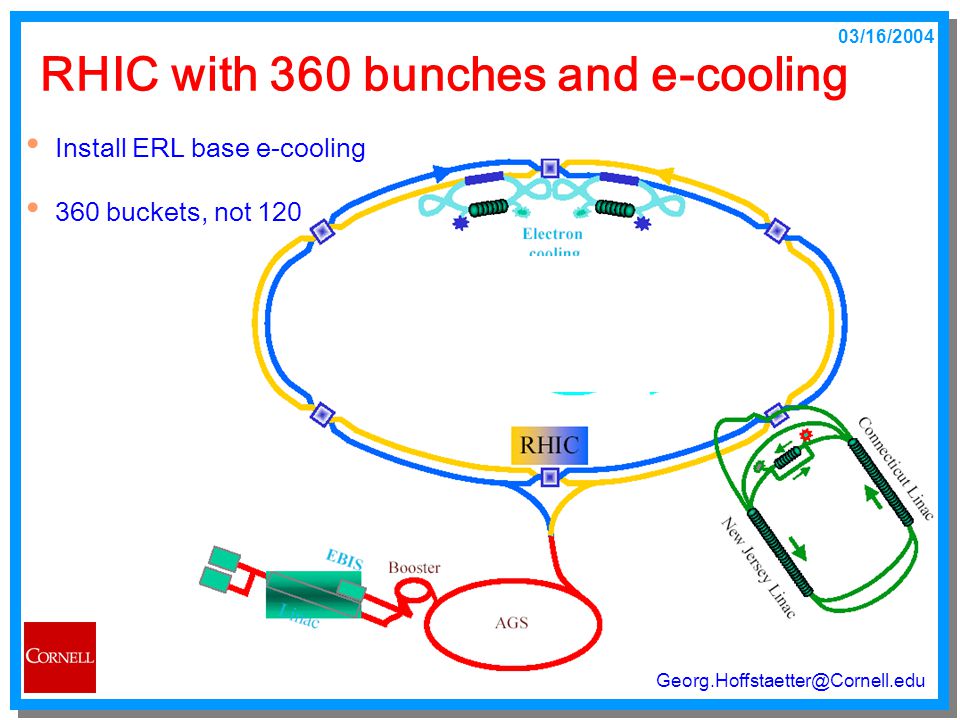

12 03/16/2004 RHIC with 360 bunches and e-cooling Install ERL base e-cooling 360 buckets, not 120

13 03/16/2004 High Polarization e-gun Electrons are produced by photoemission from GaAs A Cs layer produces a dipole barrier and negative electron affinity Due to the symmetric crystal, degenerate energy levels limit P to 40% Lz = - 3/2- 1/21/23/2 - 1/21/2 L = 3/2 L = 1/2 Lz = - 1/2Lz = 1/2 Lz = - 3/2- 1/21/23/2 - 1/21/2 L = 3/2 L = 1/2 Lz = - 1/2Lz = 1/2 An asymmetry in the crystal can break this degeneracy, P > 80% è alternating sections of InGaAs and AlGaAs è strain on GaAs by growing a thin layer on GaAs + GaP (GaAsP)

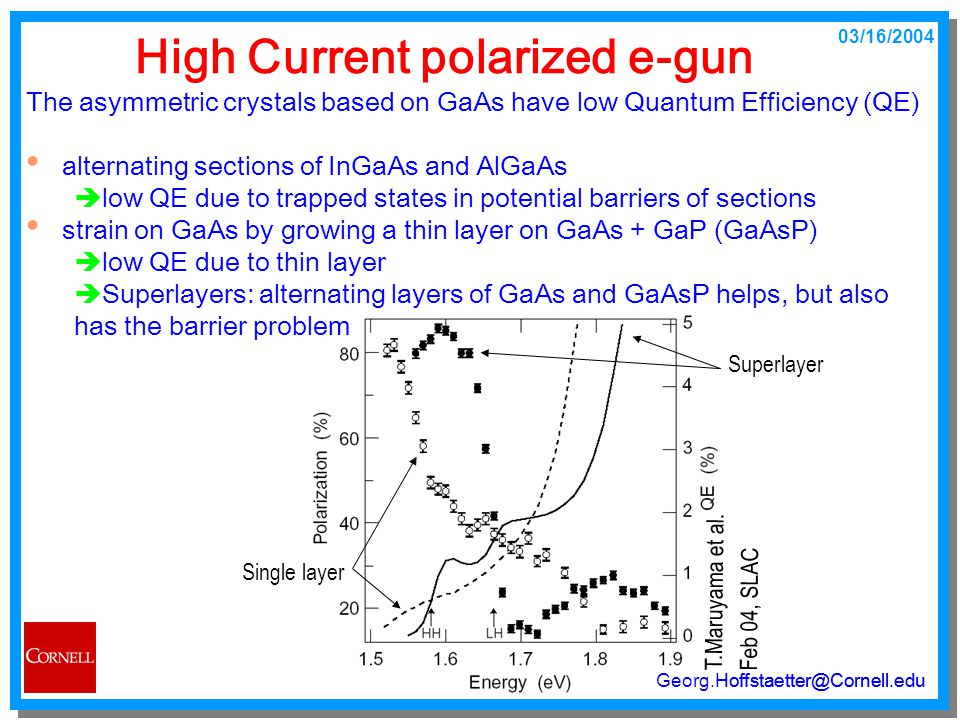

14 03/16/2004 High Current polarized e-gun The asymmetric crystals based on GaAs have low Quantum Efficiency (QE) alternating sections of InGaAs and AlGaAs  low QE due to trapped states in potential barriers of sections strain on GaAs by growing a thin layer on GaAs + GaP (GaAsP)  low QE due to thin layer  Superlayers: alternating layers of GaAs and GaAsP helps, but also has the barrier problem T.Maruyama et al. Feb 04, SLAC Superlayer Single layer

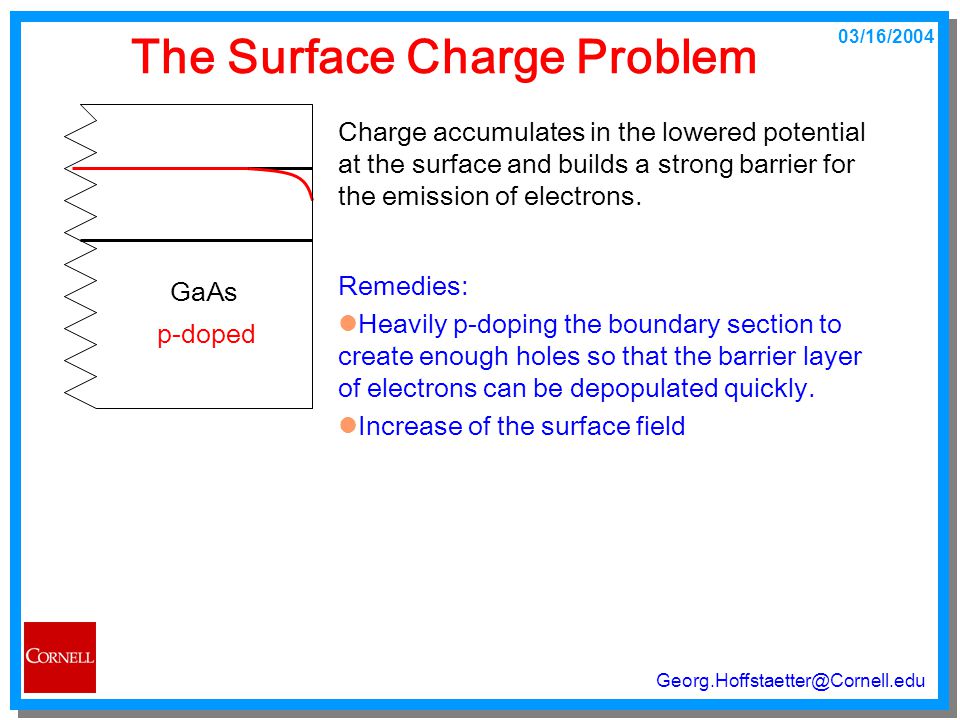

15 03/16/2004 The Surface Charge Problem GaAs p-doped Charge accumulates in the lowered potential at the surface and builds a strong barrier for the emission of electrons. Remedies: lHeavily p-doping the boundary section to create enough holes so that the barrier layer of electrons can be depopulated quickly. lIncrease of the surface field

16 03/16/2004 Circulator Ring (currently for ELIC) Different filling patterns are possible. Challenge: The beam has to be very stable immediately after injection.

17 03/16/2004 Current operation experience The horizontal tune has to be small for good polarization Tails of the e-beam on synchro beta resonance leads to proton background Core e-tune on synchro beta resonance leads to electron loss

18 03/16/2004 Lasing for the gun at LR-eRHIC Energy = 17MeV in 3.5m acceleration FEL : = ~22  m not 840nm as needed Bunch charge =500pC Bunch length = ~15ps (FWHM) Bunch rep. = 10.4MHz Average current = 5.2mA Thermionic 230kVE-gun, 5.2mA 10.4MHz grid pulser (1.25MV,50kW)x2 undulator 500MHz SCA (7.25MV x 2) 2.5MeV Injector 17MeV Loop beam dump 20m Example: JAERI FEL for 2kW

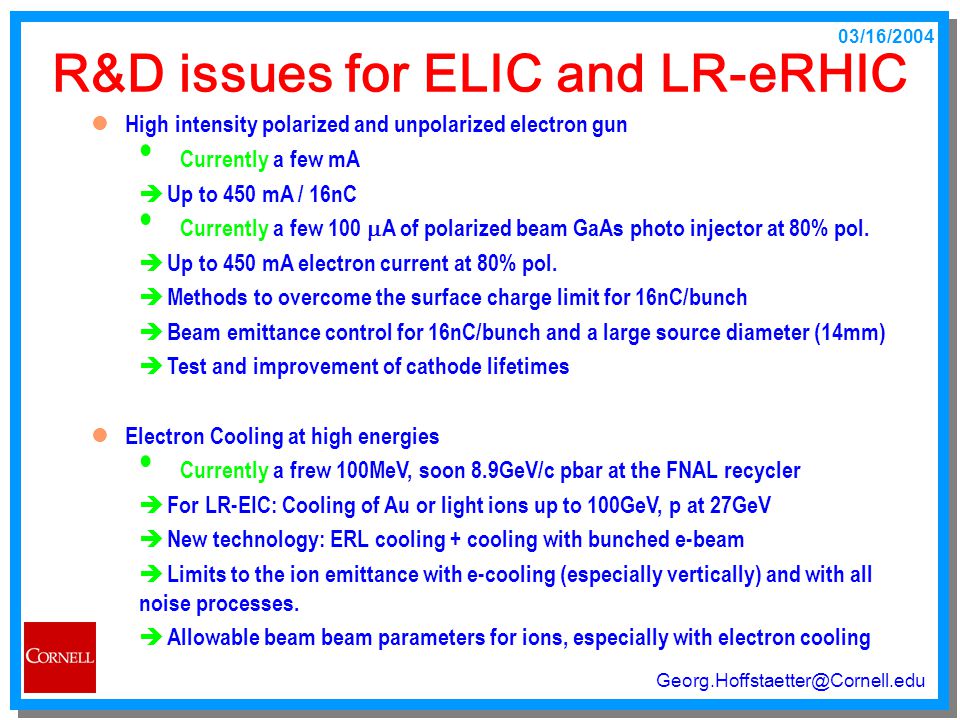

19 03/16/2004 R&D issues for ELIC and LR-eRHIC l High intensity polarized and unpolarized electron gun Currently a few mA è Up to 450 mA / 16nC Currently a few 100  A of polarized beam GaAs photo injector at 80% pol. è Up to 450 mA electron current at 80% pol. è Methods to overcome the surface charge limit for 16nC/bunch è Beam emittance control for 16nC/bunch and a large source diameter (14mm) è Test and improvement of cathode lifetimes l Electron Cooling at high energies Currently a frew 100MeV, soon 8.9GeV/c pbar at the FNAL recycler è For LR-EIC: Cooling of Au or light ions up to 100GeV, p at 27GeV è New technology: ERL cooling + cooling with bunched e-beam è Limits to the ion emittance with e-cooling (especially vertically) and with all noise processes. è Allowable beam beam parameters for ions, especially with electron cooling

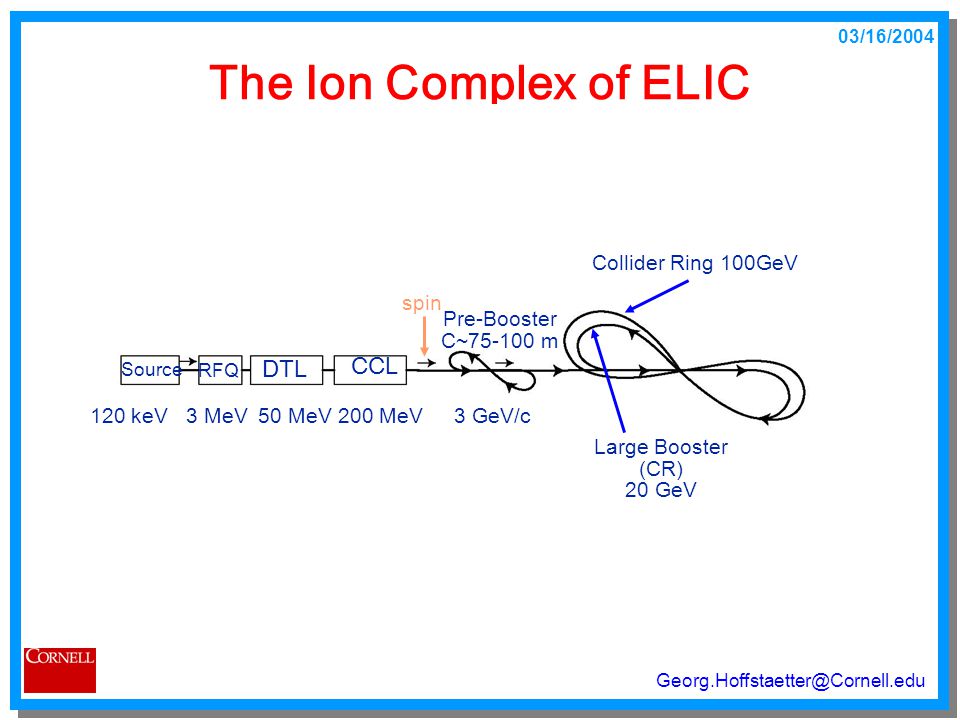

20 03/16/2004 The Ion Complex of ELIC Source 120 keV 3 MeV RFQ DTL 50 MeV CCL 200 MeV Pre-Booster 3 GeV/c C~ m Large Booster (CR) 20 GeV Collider Ring Source 120 keV3 MeV RFQ DTL 50 MeV CCL 200 MeV3 GeV/c Large Booster (CR) 20 GeV Collider Ring 100GeV spin Pre-Booster C~ m

21 03/16/2004 Short bunches make feasible the Crab Crossing SRF deflectors 1.5 GHz can be used to create a proper bunch tilt SRF dipole Final lens F F Crab Crossing for ELIC Parasitic collisions are avoided without loss of luminosity

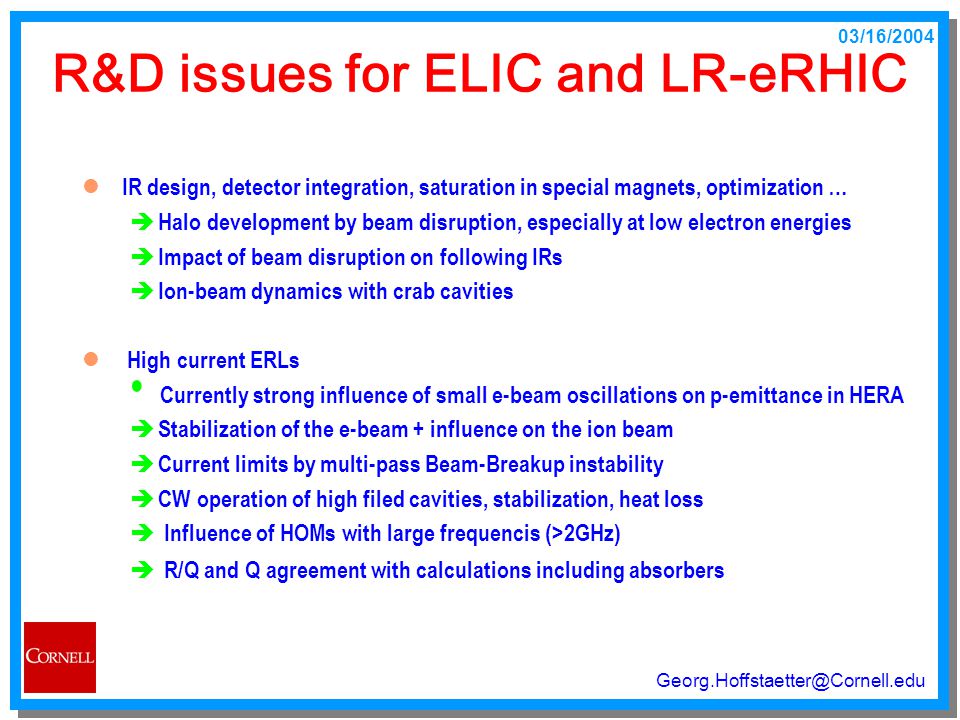

22 03/16/2004 R&D issues for ELIC and LR-eRHIC l IR design, detector integration, saturation in special magnets, optimization … è Halo development by beam disruption, especially at low electron energies è Impact of beam disruption on following IRs è Ion-beam dynamics with crab cavities l High current ERLs Currently strong influence of small e-beam oscillations on p-emittance in HERA è Stabilization of the e-beam + influence on the ion beam è Current limits by multi-pass Beam-Breakup instability è CW operation of high filed cavities, stabilization, heat loss è Influence of HOMs with large frequencis (>2GHz)  R/Q and Q agreement with calculations including absorbers

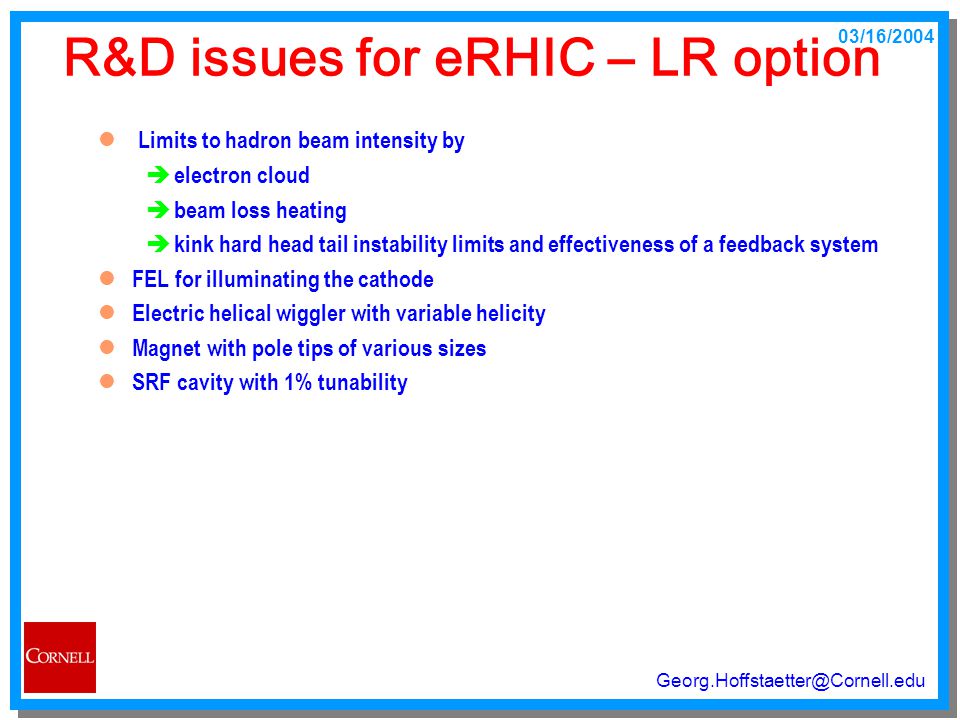

23 03/16/2004 R&D issues for eRHIC – LR option l Limits to hadron beam intensity by è electron cloud è beam loss heating è kink hard head tail instability limits and effectiveness of a feedback system l FEL for illuminating the cathode l Electric helical wiggler with variable helicity l Magnet with pole tips of various sizes l SRF cavity with 1% tunability

24 03/16/2004 R&D specific to ELIC l Spin resonances in Figure 8 rings l Stability of non-vertical polarization in figure 8 rings and in the ERL l Stable beam in a 100 turn circulator ring l Crab cavity R&D and crab cavity beam dynamics l Beam beam resonance enhancement when operating close to the hourglass effect l Limits to the bunch length, since this limits the beta function R&D specific to LR-eRHIC l 1kW FEL at 840nm l Heating of the cathod / problems associated with large spot size (14mm) l Production of very high polarized e-beam

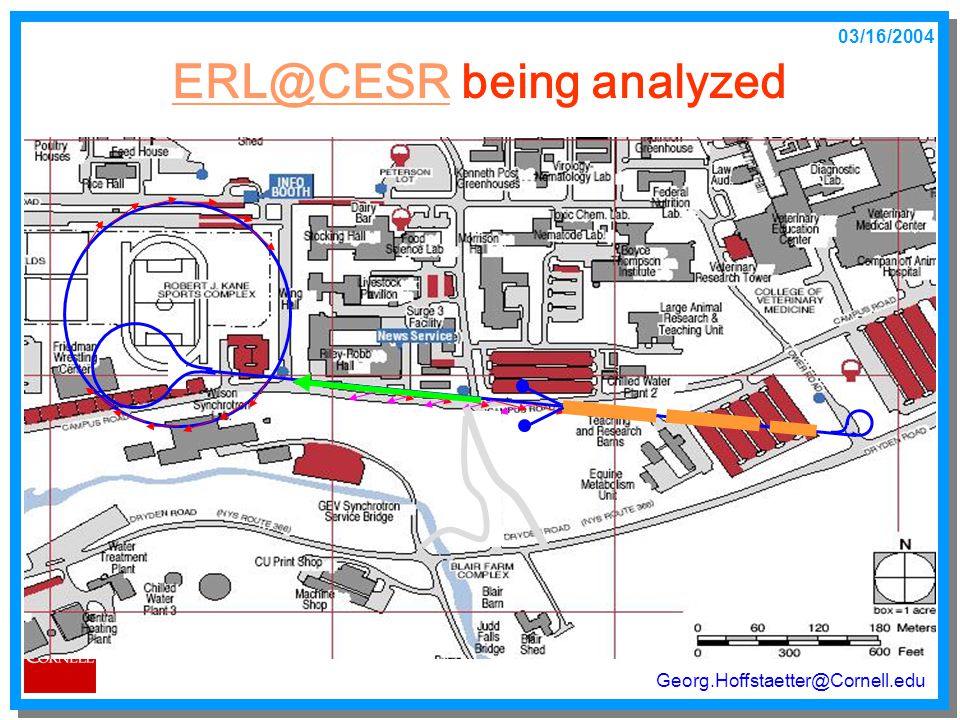

25 03/16/2004 being analyzed
