1. Upper Ouachita National Wildlife Refuge GRS Abutments for Replacement Bridges Michael Adams- FHWA Scott A. Saunders – FHWA/ EFLHD

2. Ouachita Bridge Replacement GRS Abutments l Introduction l BOF Program l Design and GRS Technology l Construction l Instrumentation l Performance/Conclusion

3. Ouachita Bridge Replacement Introduction l Replace 3 bridges in National Wildlife Refuge l Alternative foundation and abutment design l Evaluate cost, constructability and performance

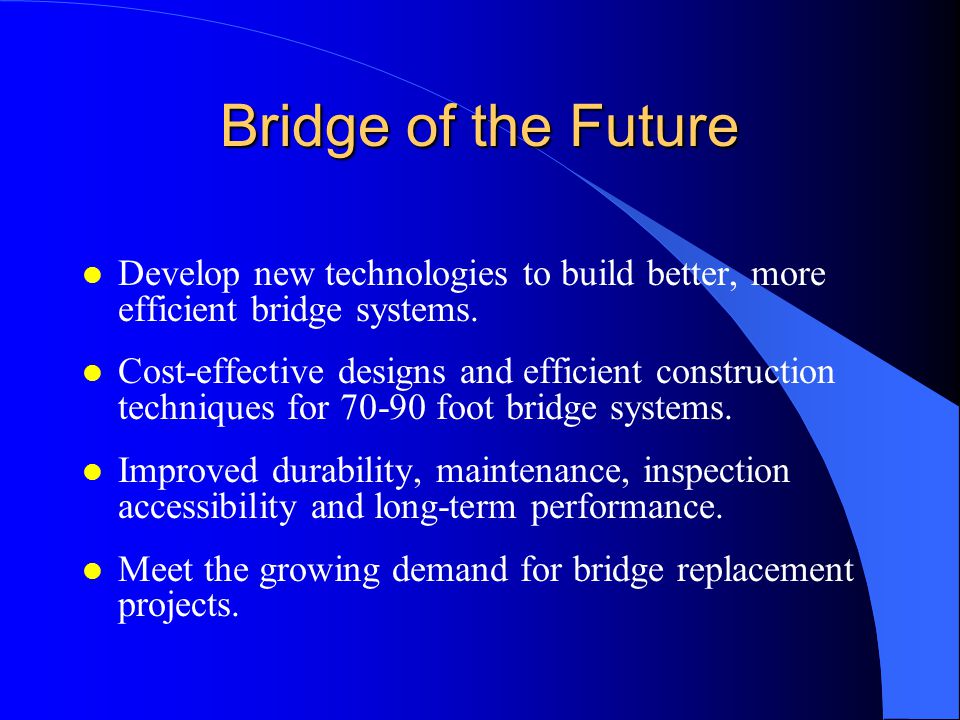

4. Bridge of the Future l Develop new technologies to build better, more efficient bridge systems. l Cost-effective designs and efficient construction techniques for 70-90 foot bridge systems. l Improved durability, maintenance, inspection accessibility and long-term performance. l Meet the growing demand for bridge replacement projects.

5. Upper Ouachita National Wildlife Refuge

6. Bridge Sites

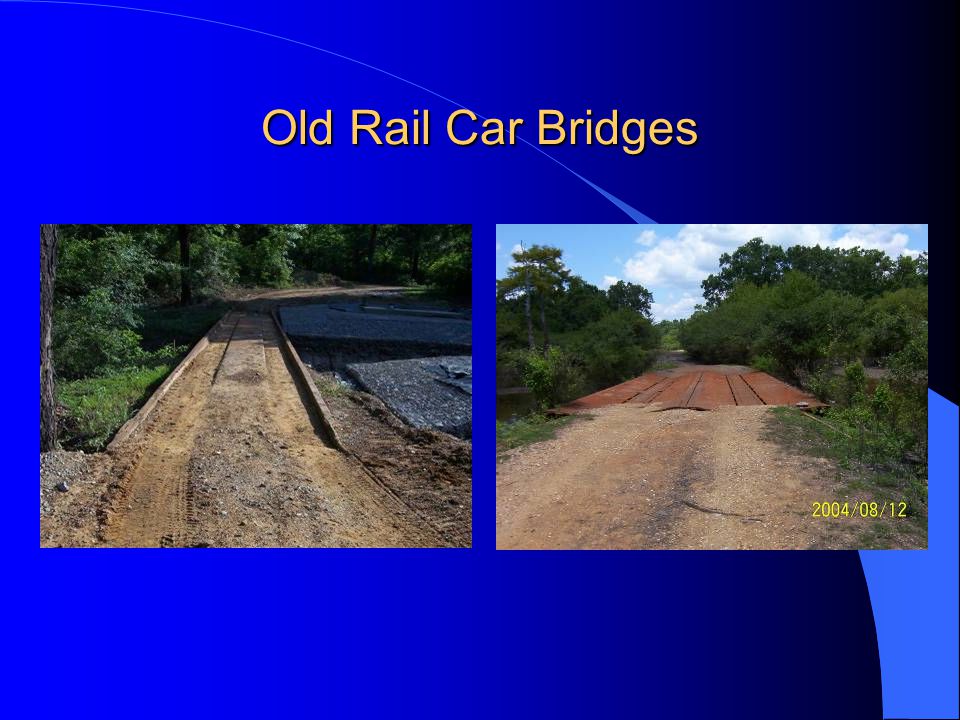

7. Old Rail Car Bridges

8. Site Conditions Bottomland Bayous

9. Cecil Creek Subsurface Profile

10. GRS Technology l What is it? (MSE vs. GRS) l Design l FHWA GRS Research l An alternative to driven pile foundations

11. GRS Technology GRS Walls and Abutments l Built with readily available materials l Common construction equipment l Without highly skilled labor

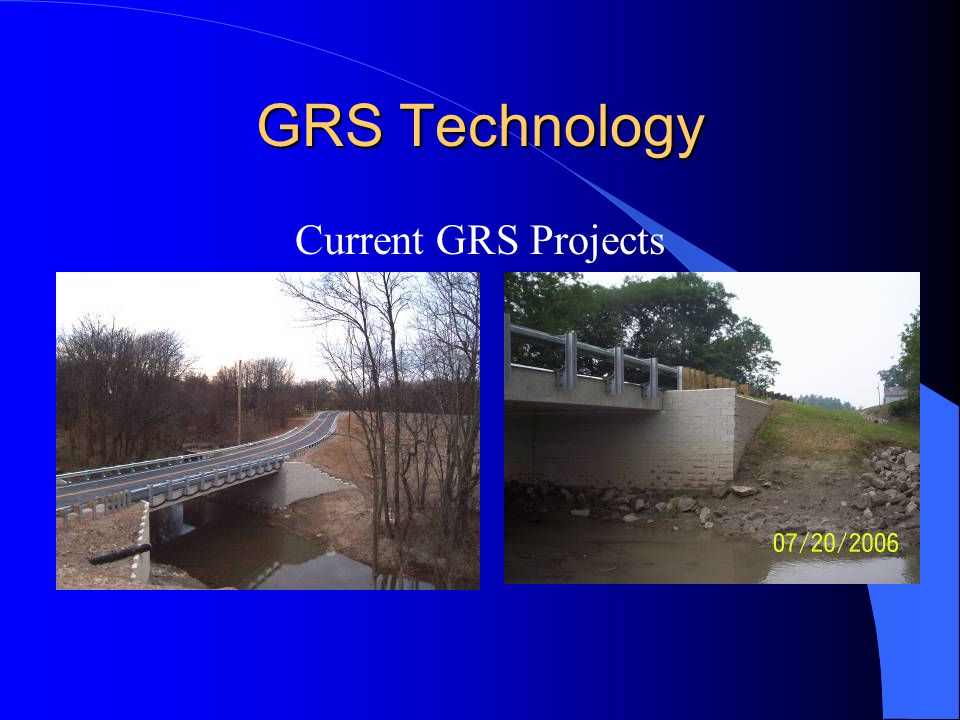

12. GRS Technology Current GRS Projects

13. 2 Factors for Internal Stability l Good compaction with quality fill l Close reinforcement spacing Bulging wall face indicates that the two factors were not practiced; It is not an excuse to use mechanical connection between blocks

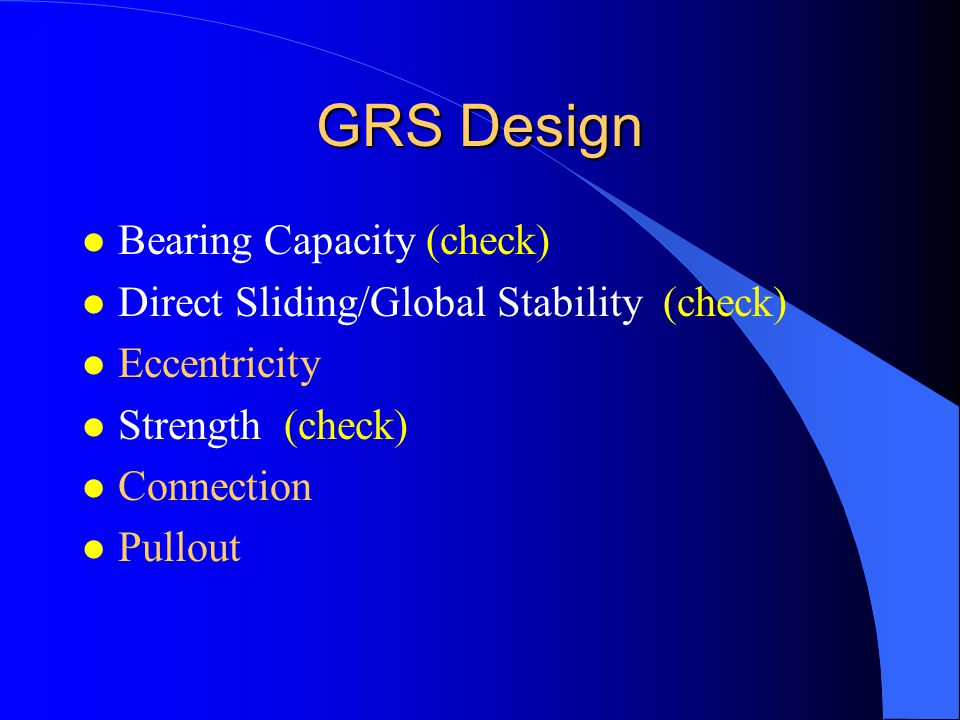

14. GRS Design l Bearing Capacity (check) l Direct Sliding/Global Stability (check) l Eccentricity l Strength (check) l Connection l Pullout

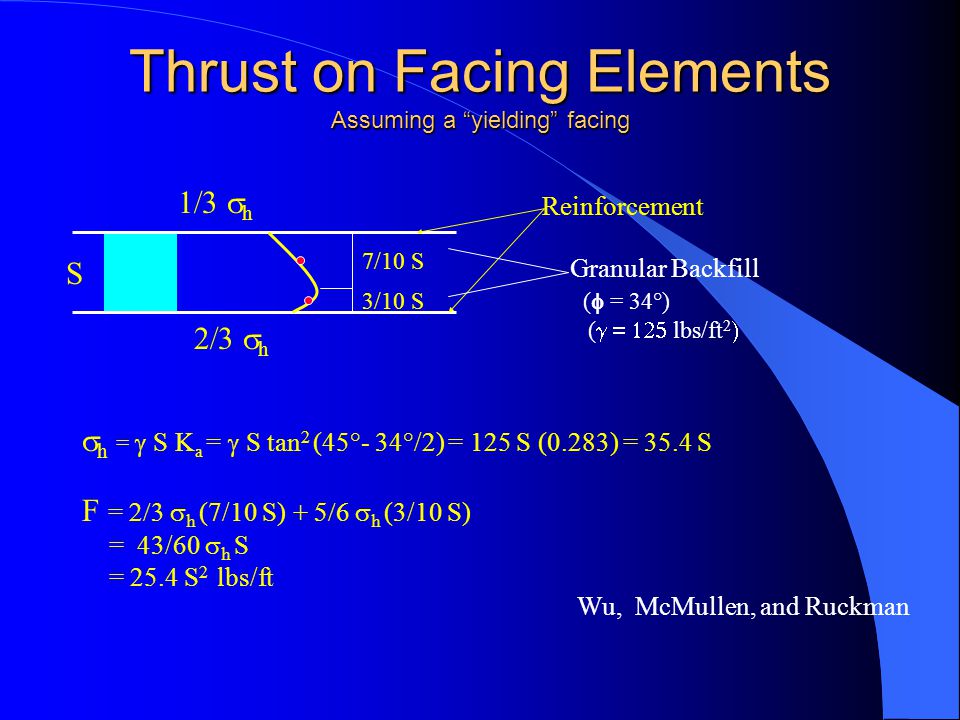

15. Thrust on Facing Elements Assuming a “yielding” facing  h  h 7/10 S 3/10 S S Reinforcement Granular Backfill (  = 34°) (  lbs/ft 2   h =  S K a =  S tan 2 (45°- 34°/2) = 125 S (0.283) = 35.4 S F =  h (7/10 S) +  h (3/10 S) = 43/60  h S = 25.4 S 2 lbs/ft Wu, McMullen, and Ruckman

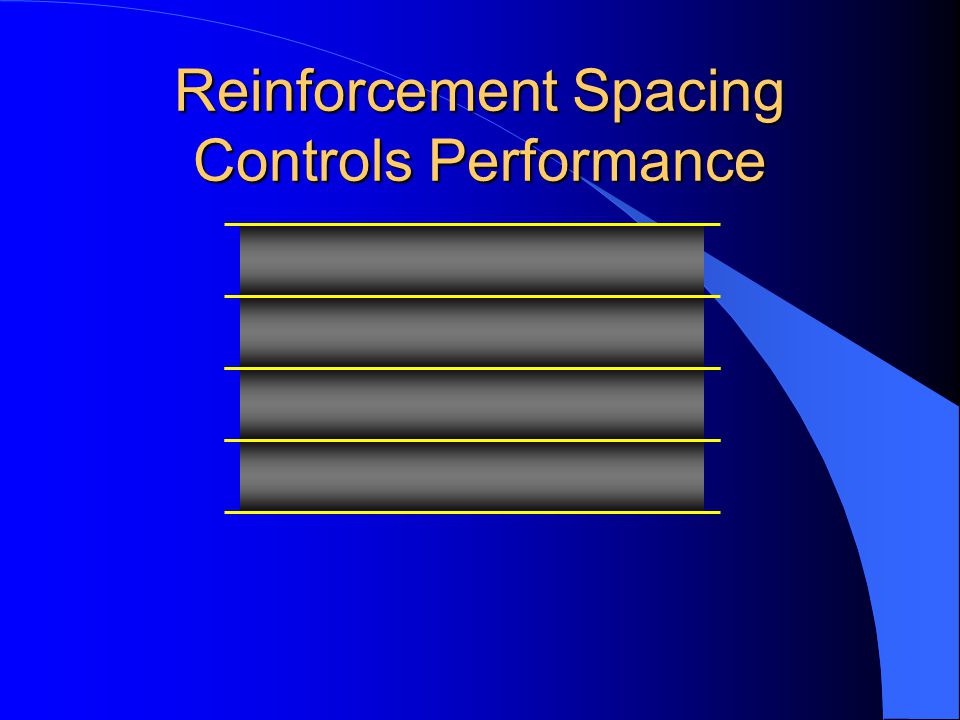

16. Reinforcement Spacing Controls Performance

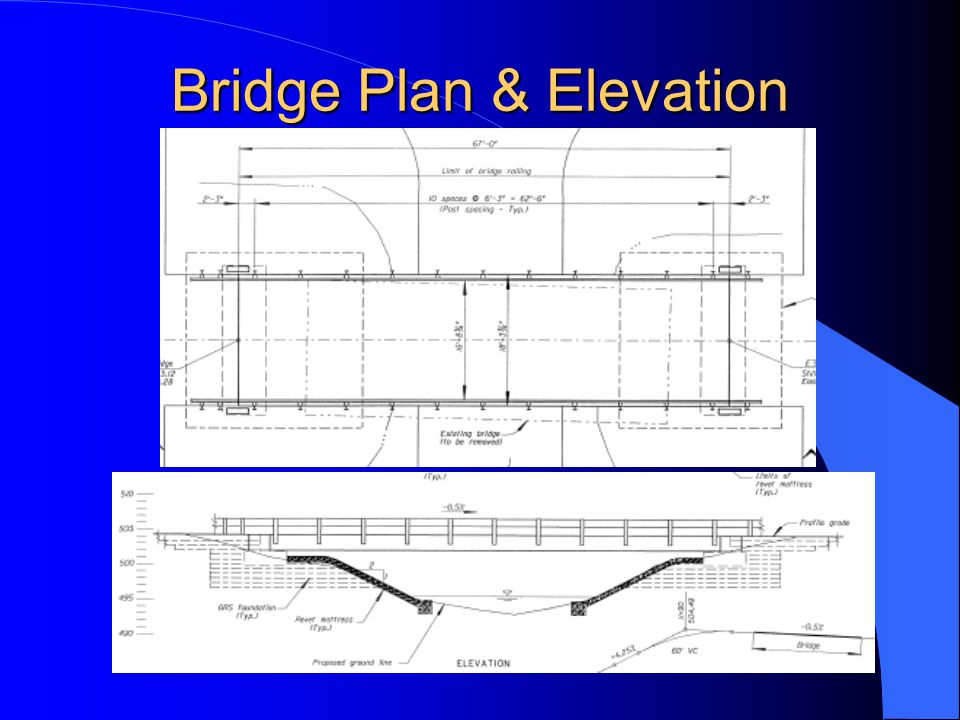

17. Bridge Plan & Elevation

18. GRS Abutment

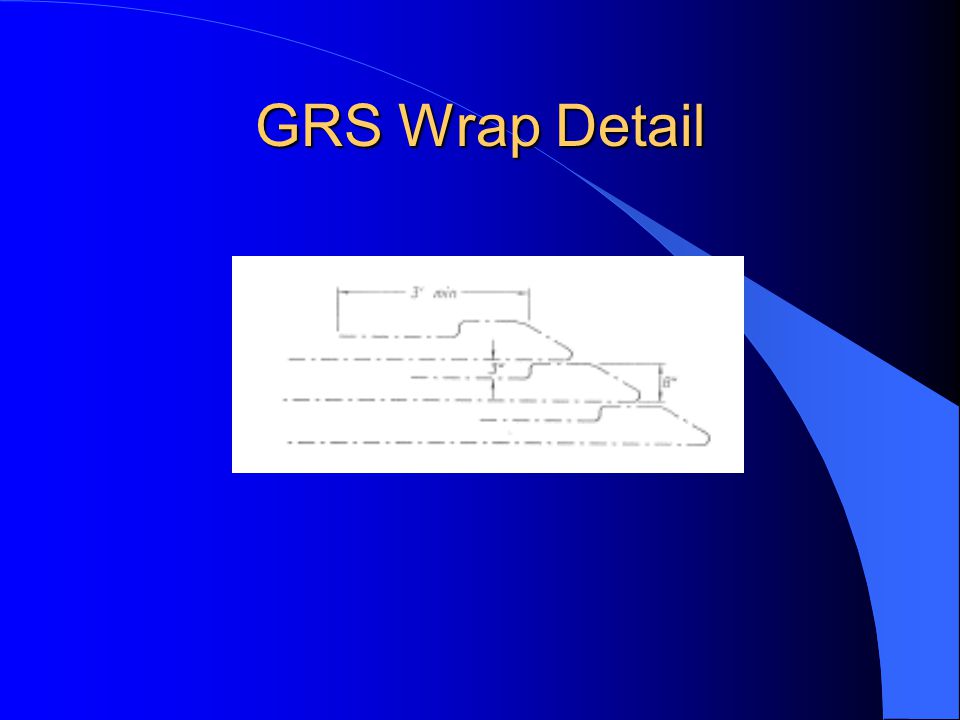

19. GRS Wrap Detail

20. GRS Abutment Materials l Geotextile Woven Polypropylene Type VIIA Contech C400 Type VIIB Contech C300 Wide Width Tensile Strength 4800 lb/ft & 2100 lb/ft l Aggregate Backfill Arkansas DOT - Aggregate Base Course Class 7: 1½ Maximum grain size

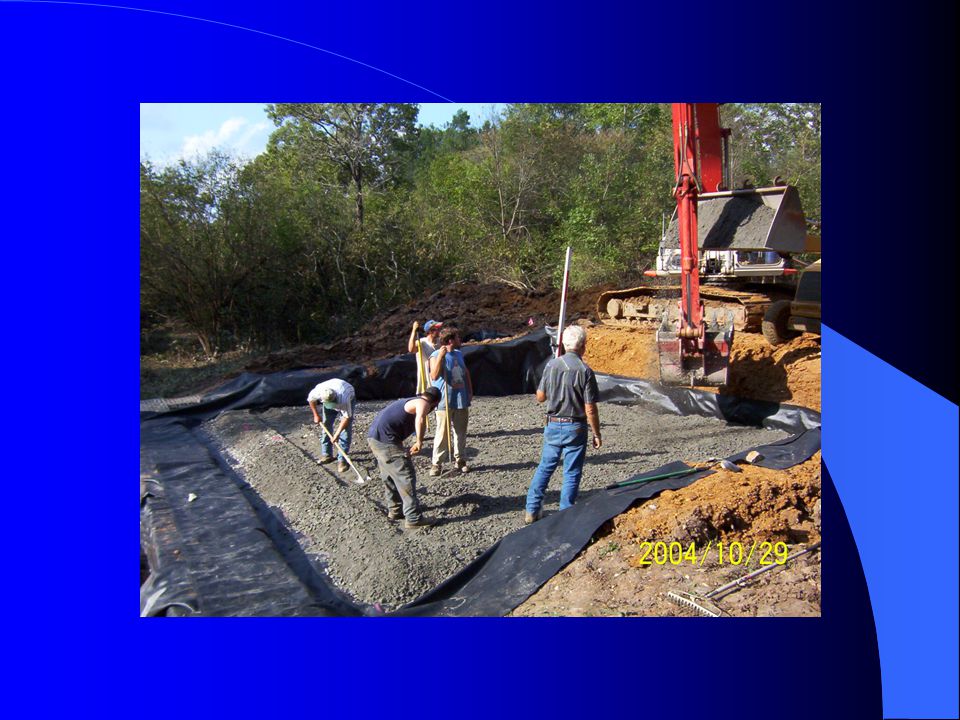

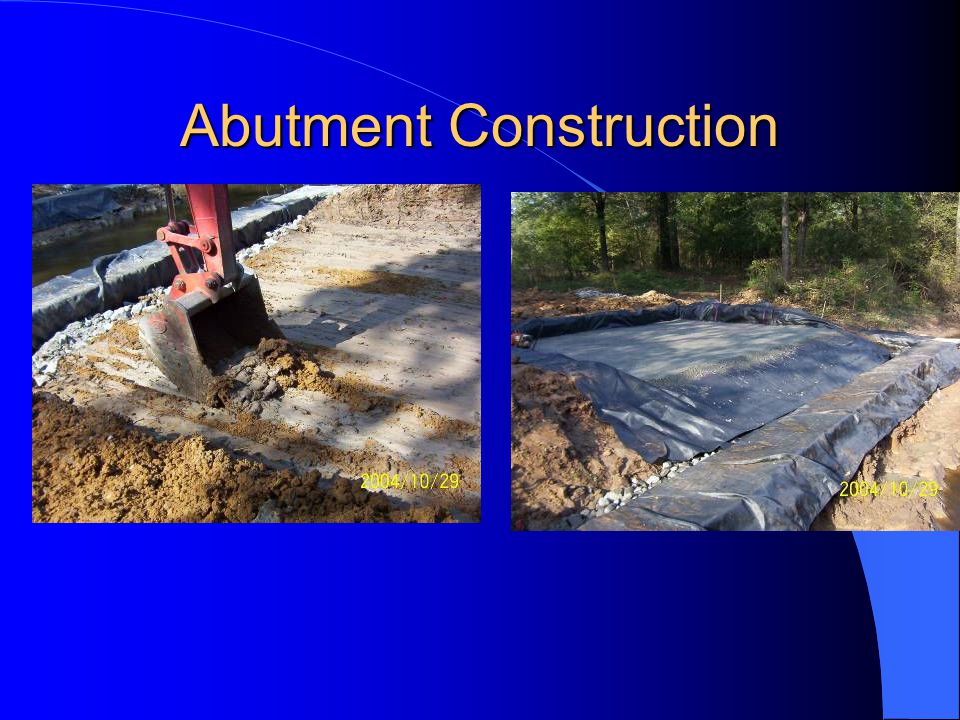

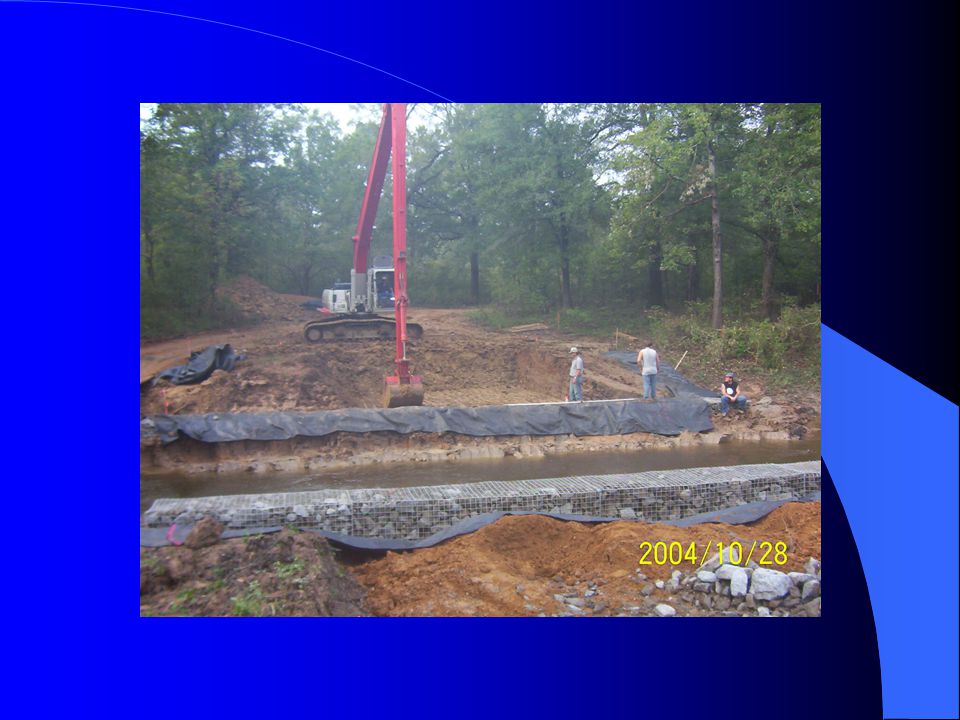

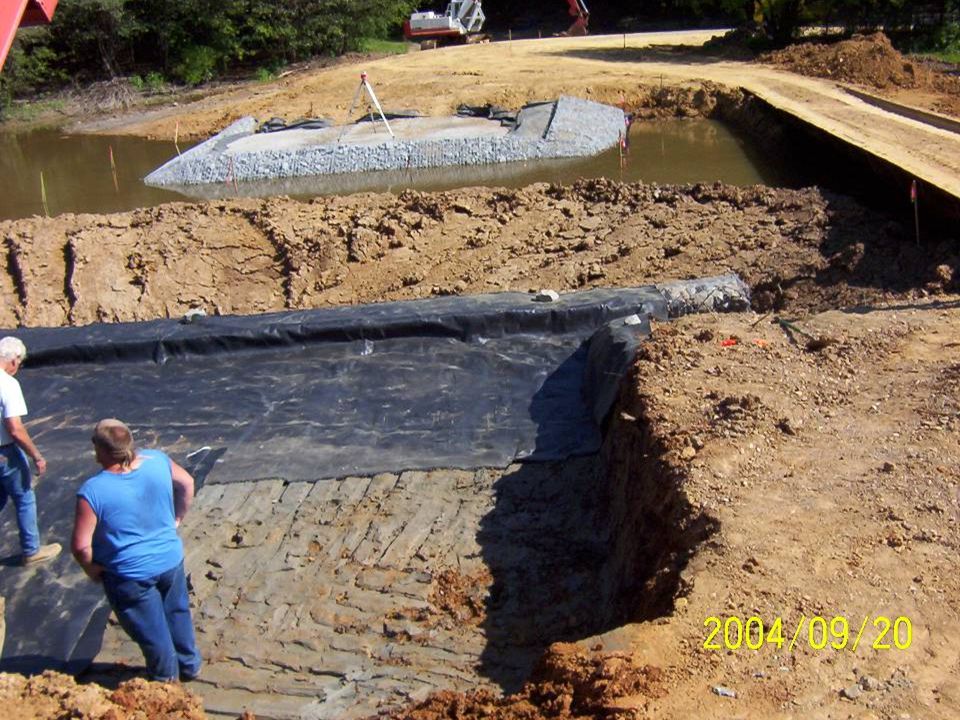

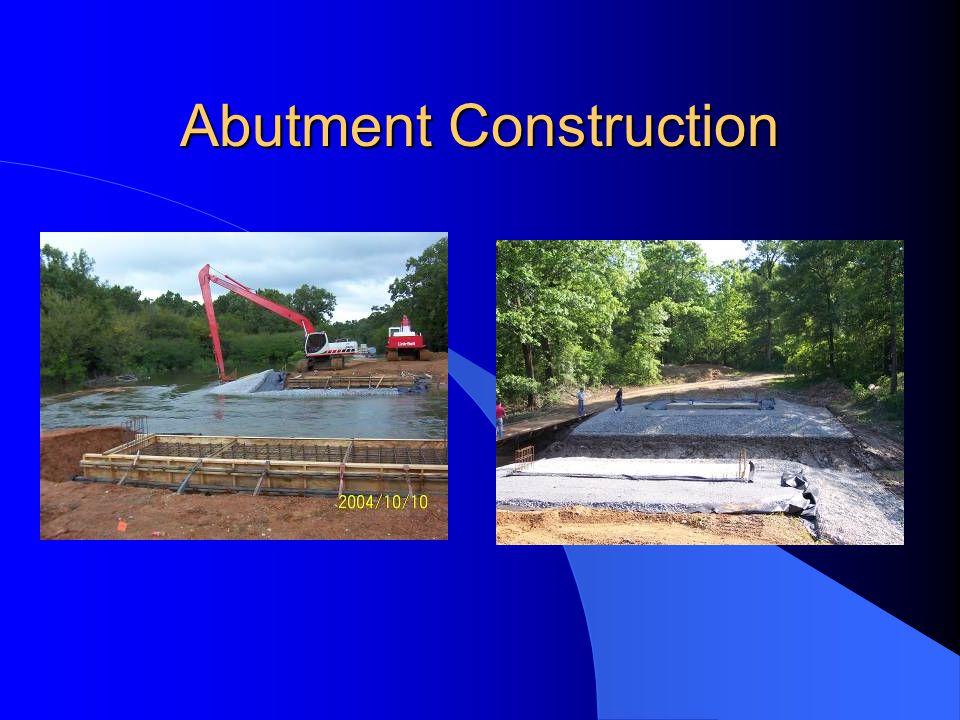

21. Abutment Construction

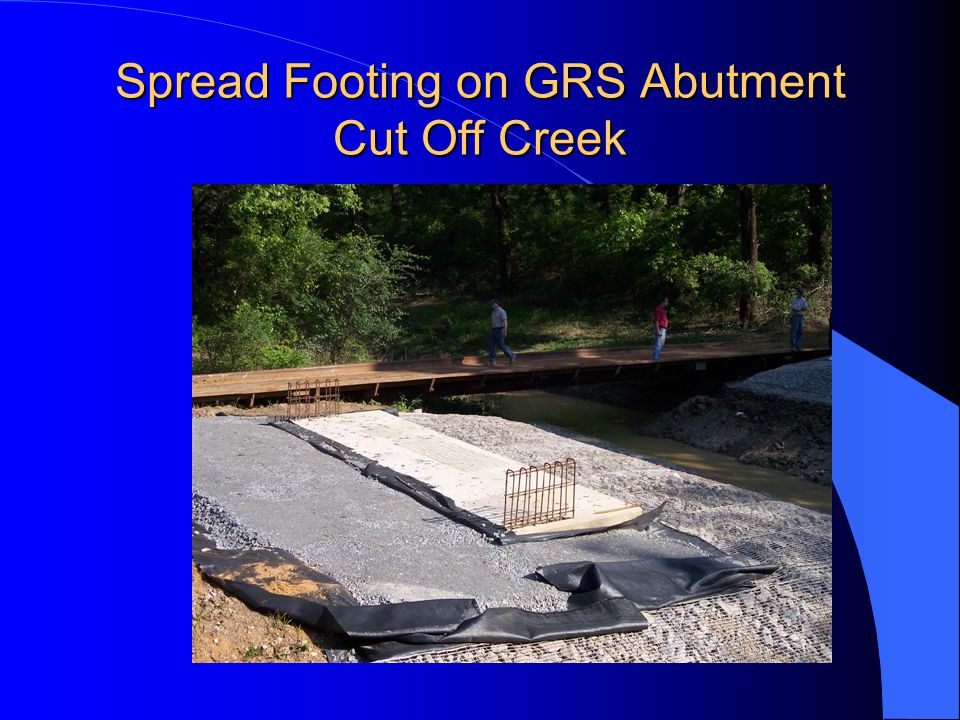

27. Spread Footing on GRS Abutment Cut Off Creek

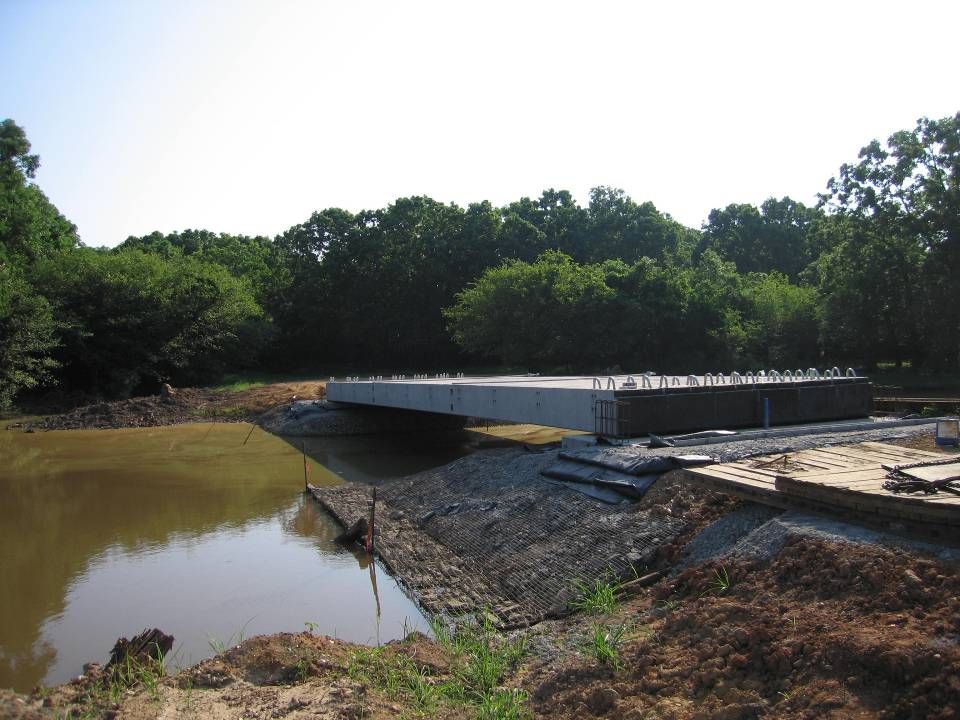

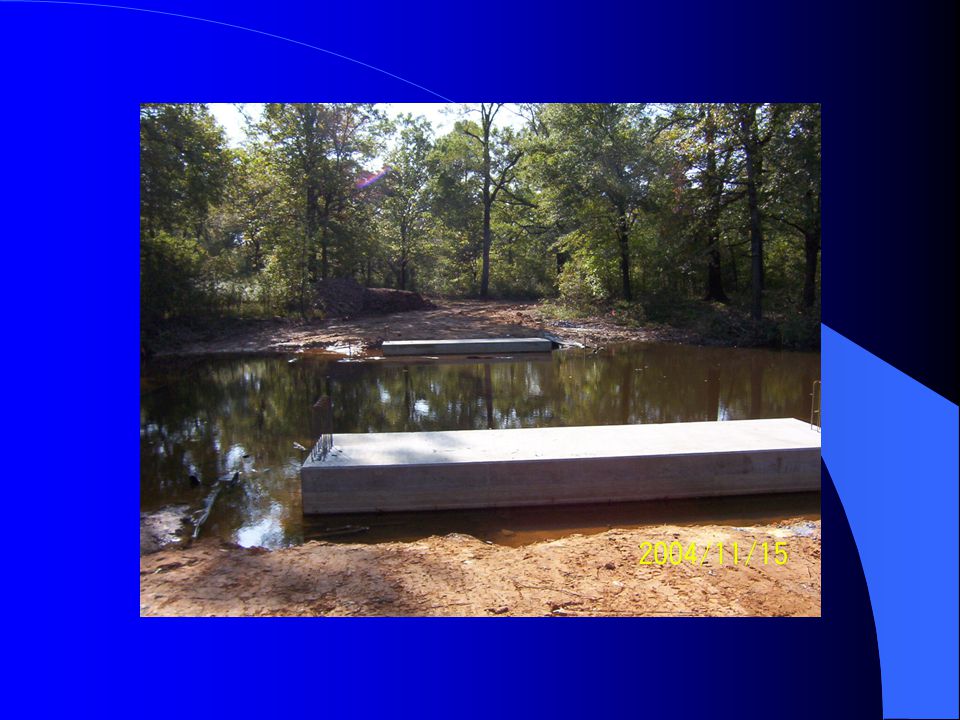

33. Bridge Construction

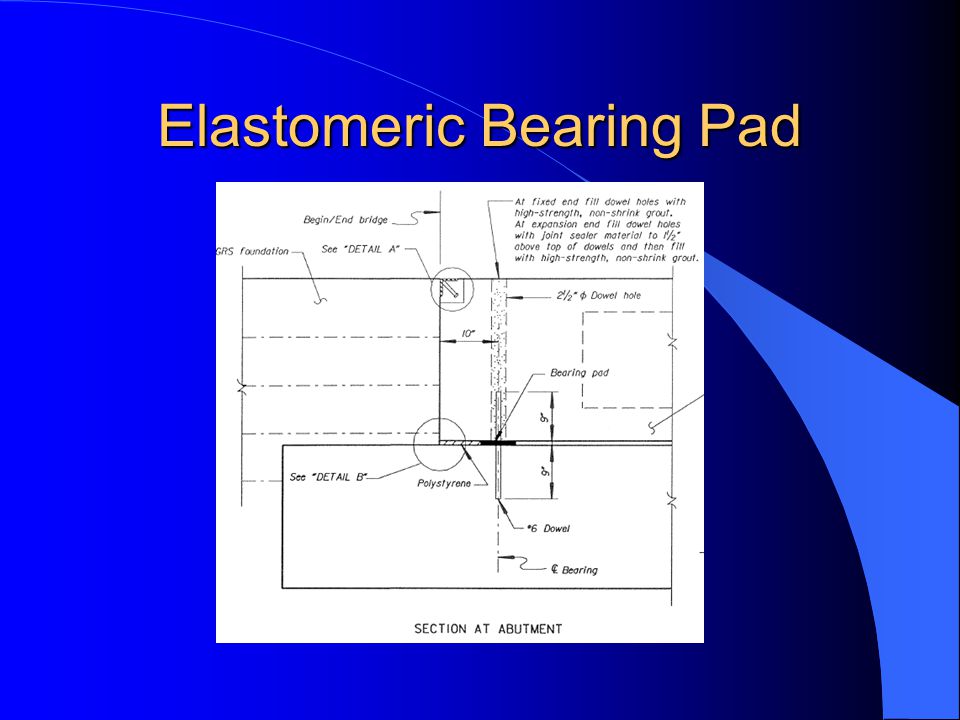

35. Elastomeric Bearing Pad

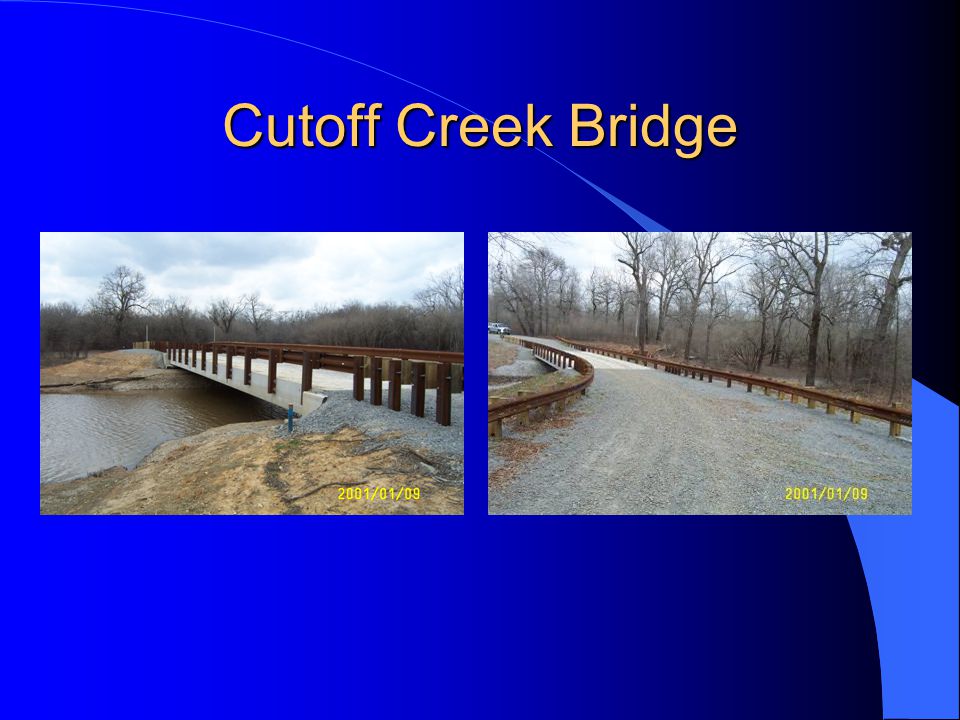

38. Cutoff Creek Bridge

39. Cecil Creek Bridge

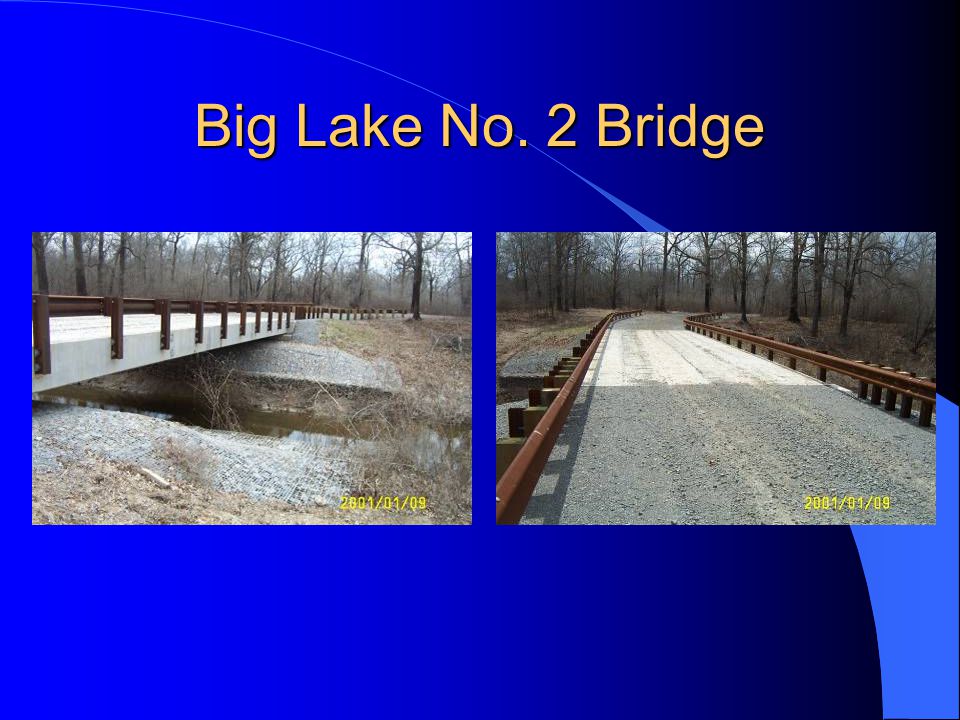

40. Big Lake No. 2 Bridge

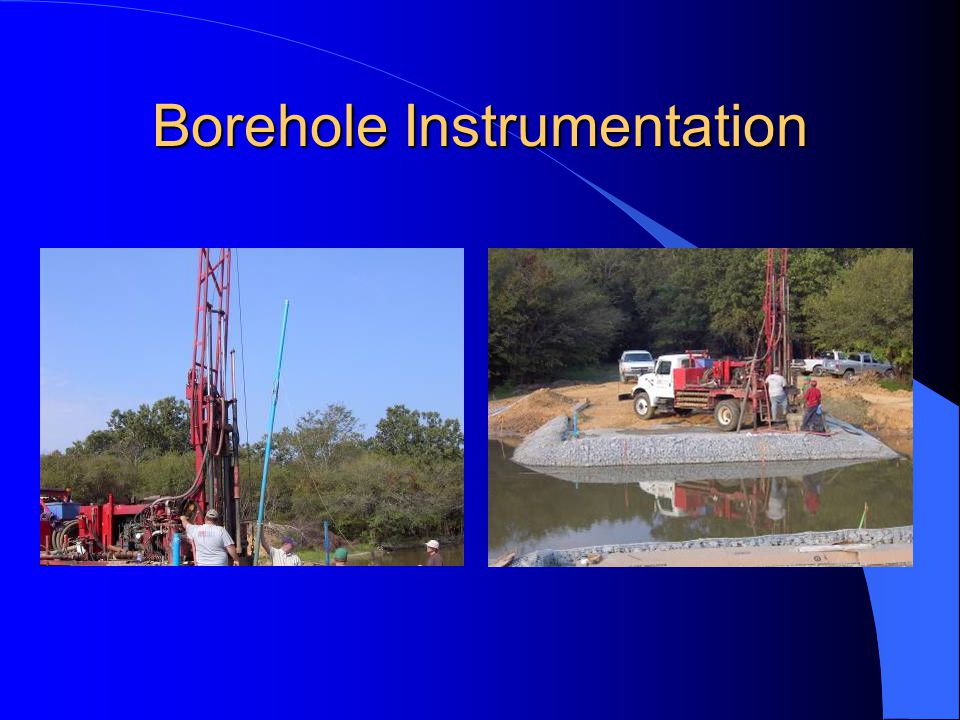

41. Borehole Instrumentation

44. Instrumentation/Monitoring l Magnetic Extensometers l Inclinometer l Survey

45. Instrumentation 1C2C Magnetic Extensometer

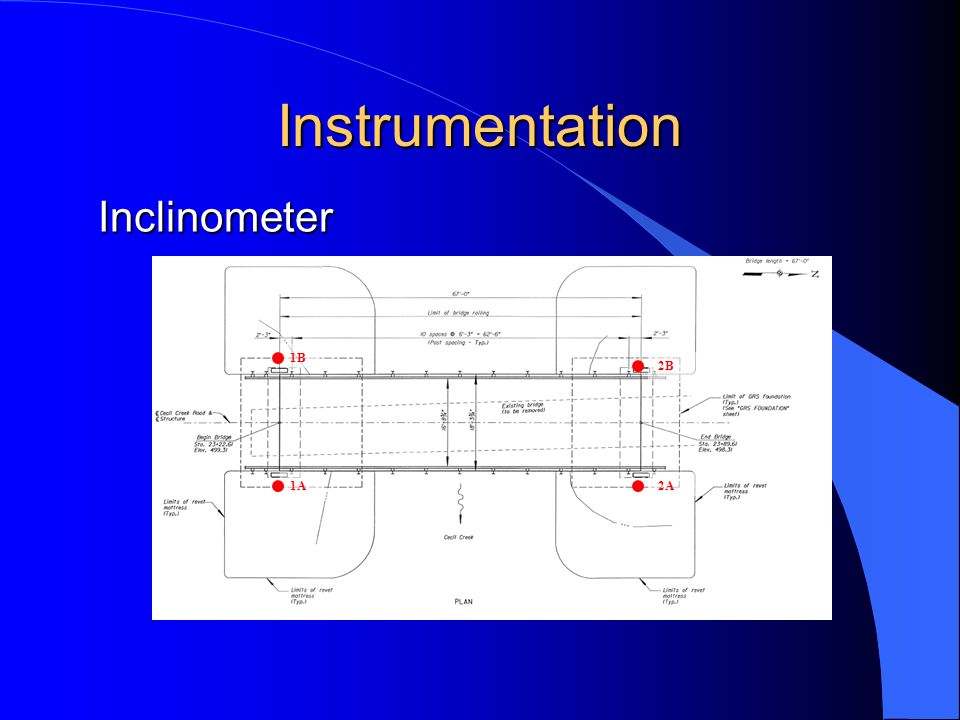

46. Instrumentation 1A2A 2B 1B Inclinometer

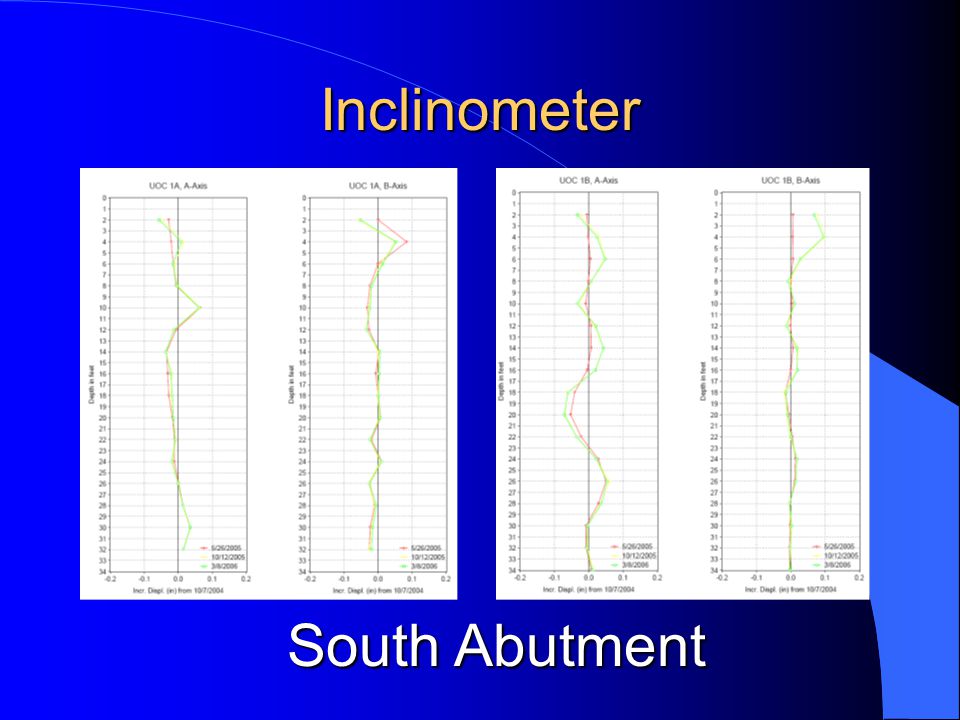

47. Inclinometer South Abutment

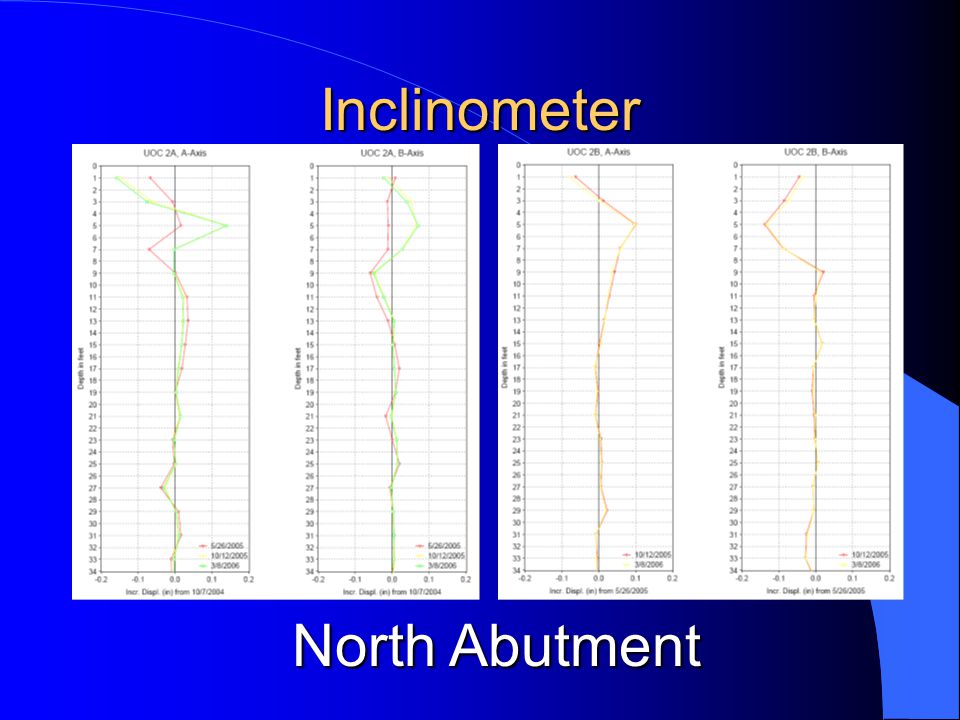

48. Inclinometer North Abutment

49. Settlement Data settlementangular distortion averagedifferential(differential/L) BridgeL= 67 ft Cecil Creek0.780.270.0003 1.05 Big Lake0.690.0330.00041 0.36 Cutoff Creek0.06 0.03 0.00004 AASHTO Criteria = 0.005

50. Lab Testing l Comparison w/ field instrumentation results l Consolidation tests on Cecil Creek samples l South Abutment – Running Sands

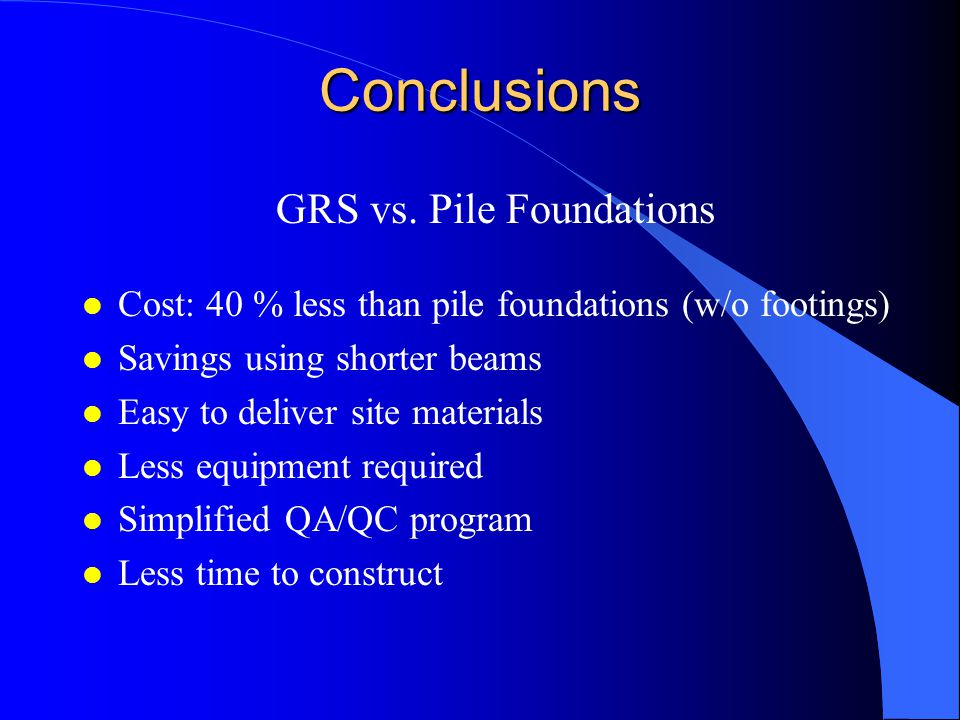

51. Conclusions GRS vs. Pile Foundations l Cost: 40 % less than pile foundations (w/o footings) l Savings using shorter beams l Easy to deliver site materials l Less equipment required l Simplified QA/QC program l Less time to construct

52. Performance l Total settlement < 1.5 inches l Differential Settlement: 0.5 inches l No “bump” at the bridge/road interface l Continued Performance Monitoring
