1
Stemming Algorithms 資訊擷取與推薦技術：期中報告 指導教授：黃三益 老師 學生： 9142608 黃哲修 9142609 張家豪

2
Outline Introduction Types of stemming algorithms Experimental evaluations of stemming Stemming to compress inverted files Summary Appendix

3
Introduction Stemming is one technique to provide ways of finding morphological variants of search terms. Used to improve retrieval effectiveness and to reduce the size of indexing files. Taxonomy for stemming algorithms

4
Introduction (con ’ t) Criteria for judging stemmers Correctness Overstemming: too much of a term is removed. Understemming: too little of a term is removed. Retrieval effectiveness measured with recall and precision, and on their speed, size, and so on compression performance

5
Type of stemming algorithms Table lookup approach Successor Variety n-gram stemmers Affix Removal Stemmers

6
Table lookup approach Store a table of all index terms and their stems, so terms from queries and indexes could be stemmed very fast. Problems There is no such data for English. Or some terms are domain dependent. The storage overhead for such a table, though trading size for time is sometimes warranted.

7
Successor Variety approach Determine word and morpheme boundaries based on the distribution of phonemes in a large body of utterances. The successor variety of a string is the number of different characters that follow it in words in some body of text. The successor variety of substrings of a term will decrease as more characters are added until a segment boundary is reached.

8

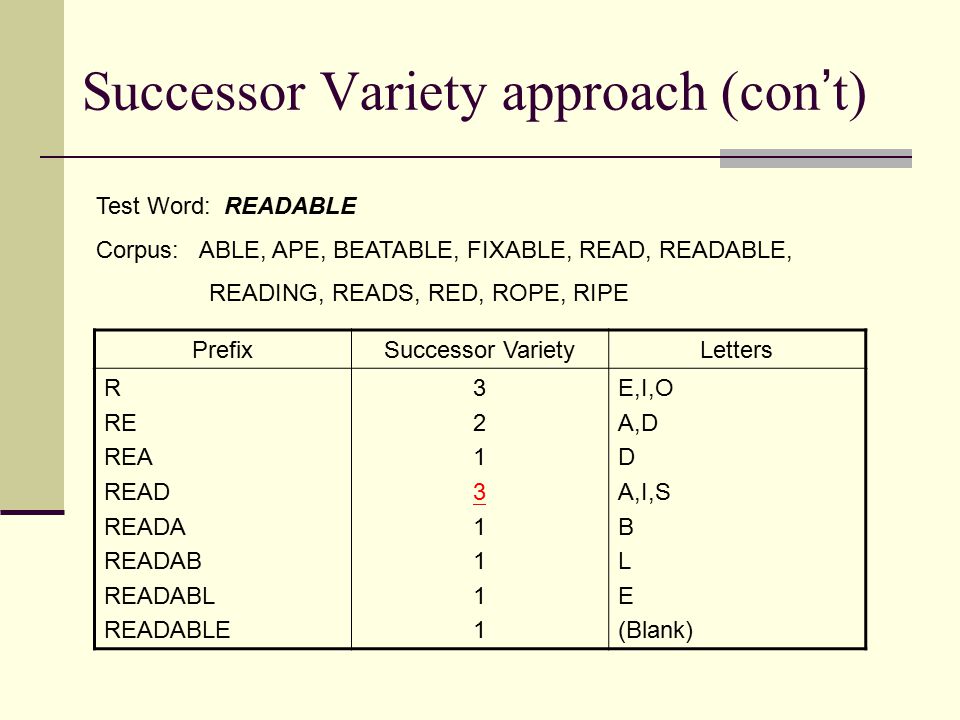

PrefixSuccessor VarietyLetters R RE REA READ READA READAB READABL READABLE 3213111132131111 E,I,O A,D D A,I,S B L E (Blank) Test Word: READABLE Corpus: ABLE, APE, BEATABLE, FIXABLE, READ, READABLE, READING, READS, RED, ROPE, RIPE Successor Variety approach (con ’ t)

9
cutoff method some cutoff value is selected and a boundary is identified whenever the cutoff value is reached peak and plateau method segment break is made after a character whose successor variety exceeds that of the characters immediately preceding and following it complete method

10
Successor Variety approach (con ’ t) entropy method : the number of words in a text body beginning with the i length sequence of letters : the number of words in with the successor j The probability that a member of number of words in has the successor j is given by The entropy of is

11
Successor Variety approach (con ’ t) Two criteria used to evaluate various segmentation methods 1. the number of correct segment cuts divided by the total number of cuts 2. the number of correct segment cuts divided by the total number of true boundaries After segmenting, if the first segment occurs in more than 12 words in the corpus, it is probably a prefix.

12
Successor Variety approach (con ’ t) The successor variety stemming process has three parts 1. determine the successor varieties for a word 2. segment the word using one of the methods 3. select one of the segments as the stem

13
n-gram stemmers Association measures are calculated between pairs of terms based on shared unique digrams. statistics => st ta at ti is st ti ic cs unique digrams = at cs ic is st ta ti statistical => st ta at ti is st ti ic ca al unique digrams = al at ca ic is st ta ti Dice’s coefficient (similarity) A and B are the numbers of unique digrams in the first and the second words. C is the number of unique digrams shared by A and B.

14
n-gram stemmers (con ’ t) Similarity measures are determined for all pairs of terms in the database, forming a similarity matrix Once such a similarity matrix is available, terms are clustered using a single link clustering method (as described in Ch.16)

15
Affix Removal Stemmers Affix removal algorithms remove suffixes and/or prefixes from terms leaving a stem If a word ends in “ies” but not ”eies” or ”aies ” (Harman 1991) Then “ies” -> “y” If a word ends in “es” but not ”aes”, or ”ees ” or “oes” Then “es” -> “e” If a word ends in “s” but not ”us” or ”ss ” Then “s” -> “NULL”

16
The Porter algorithm The Porter algorithm consists of a set of condition/action rules. The condition fall into three classes Conditions on the stem Conditions on the suffix Conditions on rules

17
Conditions on the stem 1.The measure, denoted m,of a stem is based on its alternate vowel-consonant sequences. Measure Example M=0 M=1 M=2 TR,EE,TREE,Y,BY TROUBLE,OATS,TREES,IVY TROUBLES,PRIVATE,OATEN

18
Conditions on the stem (con ’ t) 2.* ---the stem ends with a given letter X 3.*v*---the stem contains a vowel 4.*d ---the stem ends in double consonant 5.*o ---the stem ends with a consonant-vowel- consonant,sequence,where the final consonant is not w, x or y Suffix conditions take the form: (current_suffix == pattern)

19
Conditions on the rules The rules are divided into steps. The rules in a step are examined in sequence, and only one rule from a step can apply { step1a(word); step1b(stem); if (the second or third rule of step 1b was used) step1b1(stem); step1c(stem); step2(stem); step3(stem); step4(stem); step5a(stem); step5b(stem); }

26
Experimental Evaluations of stemming

28
Stemming Studies : Conclusion The majority of stemming’s affection on retrieval performance have been positive Stemming is as effective as manual conflation The effect of stemming is dependent on the nature of vocabulary used There appears to be little difference between the retrieval effectiveness of different full stemmers

29
Stemming to compress inverted files Lennon et al. report the following compression percentages for various stemmers and databases. It is obvious that the savings in storage can be substantial. Compression rates also increase for affix removal stemmers as the number of suffixes increases.

30
Summary Stemmers are used to conflate terms to improve retrieval effectiveness and /or to reduce the size of indexing file. Stemming will increase recall at the cost of decreased precision. Stemming can have marked effect on the size of indexing files,sometimes decreasing the size of file as much as 50 percent.
