1. Yip, X. Wang, N. Zeldovich, M. F. Kaashoek MIT CSAIL Reading Group by Theo 06 Oct 2009

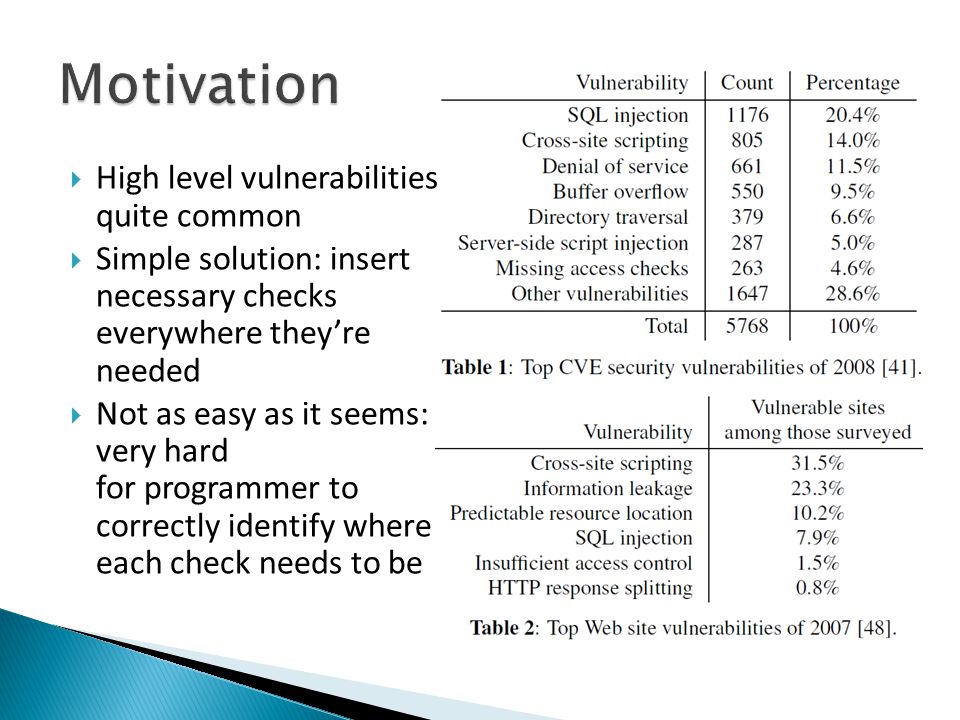

2.  High level vulnerabilities quite common  Simple solution: insert necessary checks everywhere they’re needed  Not as easy as it seems: very hard for programmer to correctly identify where each check needs to be

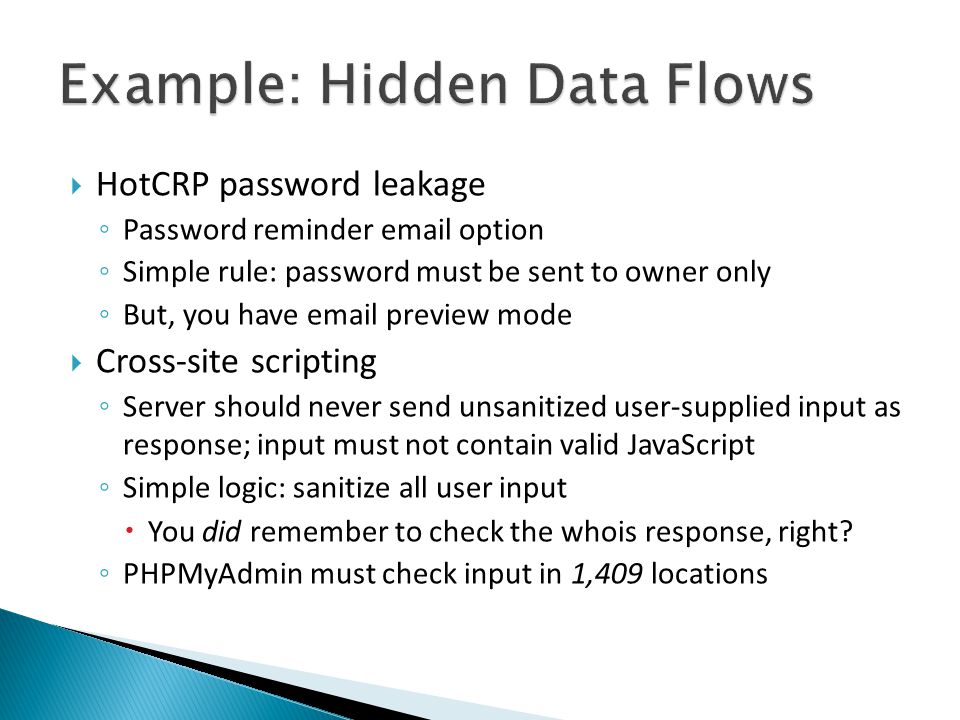

3.  HotCRP password leakage ◦ Password reminder email option ◦ Simple rule: password must be sent to owner only ◦ But, you have email preview mode  Cross-site scripting ◦ Server should never send unsanitized user-supplied input as response; input must not contain valid JavaScript ◦ Simple logic: sanitize all user input  You did remember to check the whois response, right? ◦ PHPMyAdmin must check input in 1,409 locations

4.  Data are automatically assigned policy objects (metadata) ◦ E.g., trusted, user-supplied, private  Policy objects are automatically propagated according to specified rules (propagation handlers)  Prior to leaving the system, policy objects must pass through filter objects (syscall handlers) ◦ E.g., going to SQL, user, disk ◦ Exception thrown on disallowed actions

5.  Motivation  Resin ◦ Policy Objects ◦ Filter Objects ◦ Persistent Policies  Evaluation ◦ Vulnerabilities Detected ◦ Microkernel Overheads

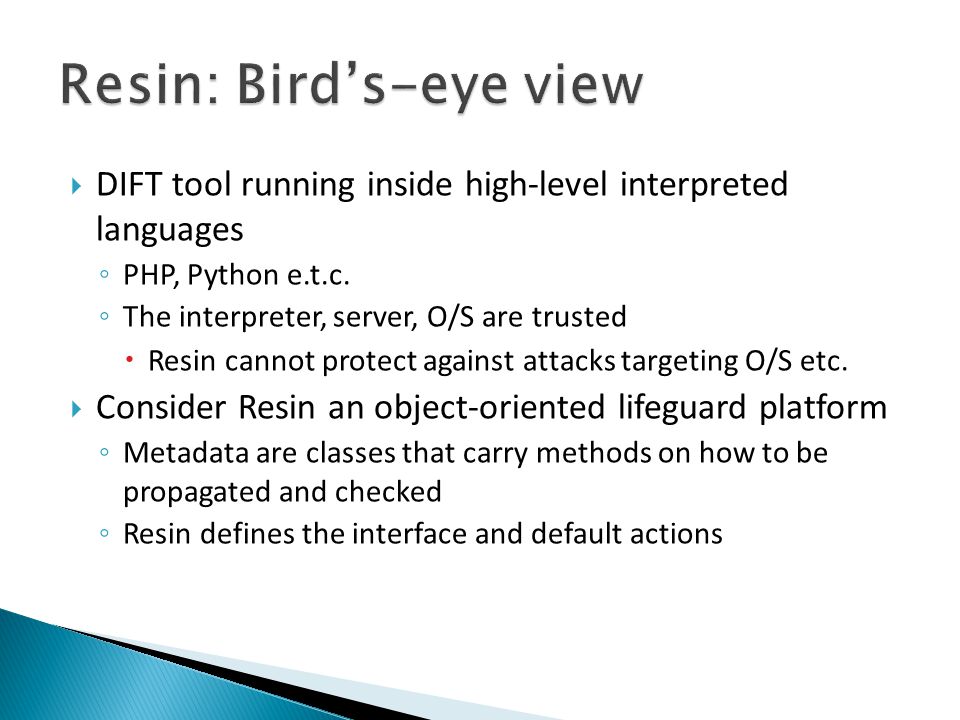

6.  DIFT tool running inside high-level interpreted languages ◦ PHP, Python e.t.c. ◦ The interpreter, server, O/S are trusted  Resin cannot protect against attacks targeting O/S etc.  Consider Resin an object-oriented lifeguard platform ◦ Metadata are classes that carry methods on how to be propagated and checked ◦ Resin defines the interface and default actions

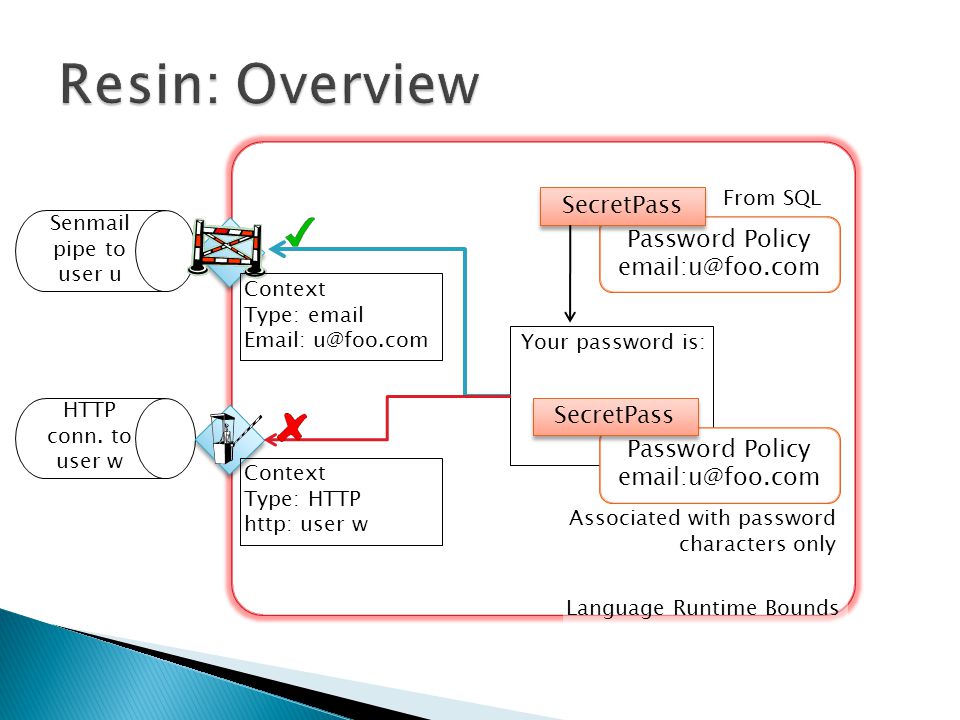

7. Senmail pipe to user u HTTP conn. to user w Context Type: email Email: u@foo.com Context Type: HTTP http: user w Language Runtime Bounds Password Policy email:u@foo.com SecretPass Your password is: Password Policy email:u@foo.com SecretPass From SQL Associated with password characters only

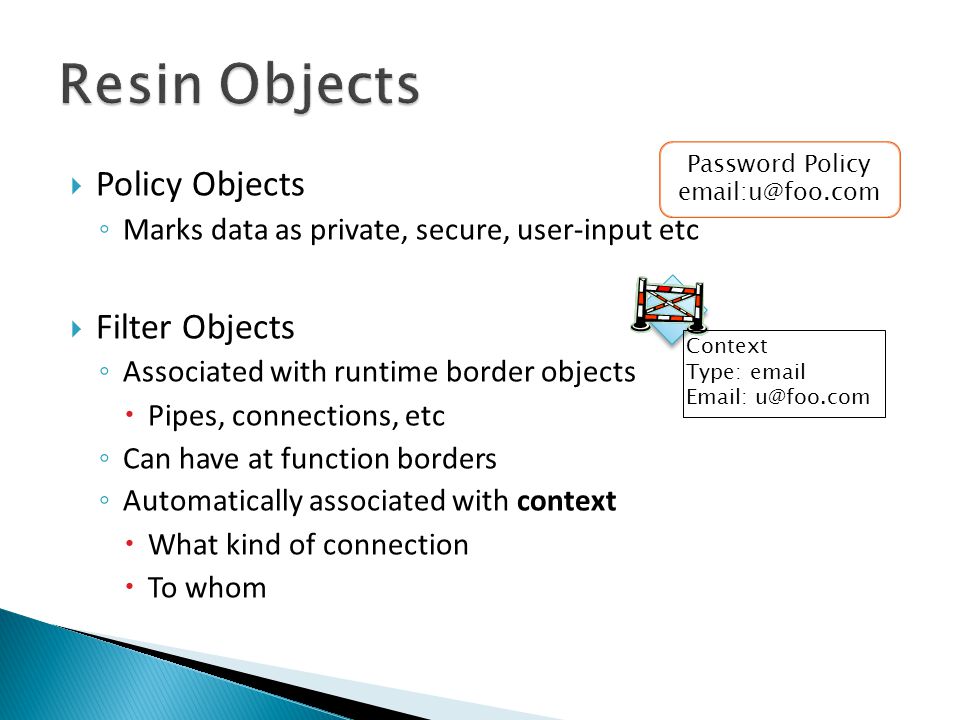

8.  Policy Objects ◦ Marks data as private, secure, user-input etc  Filter Objects ◦ Associated with runtime border objects  Pipes, connections, etc ◦ Can have at function borders ◦ Automatically associated with context  What kind of connection  To whom Password Policy email:u@foo.com Context Type: email Email: u@foo.com

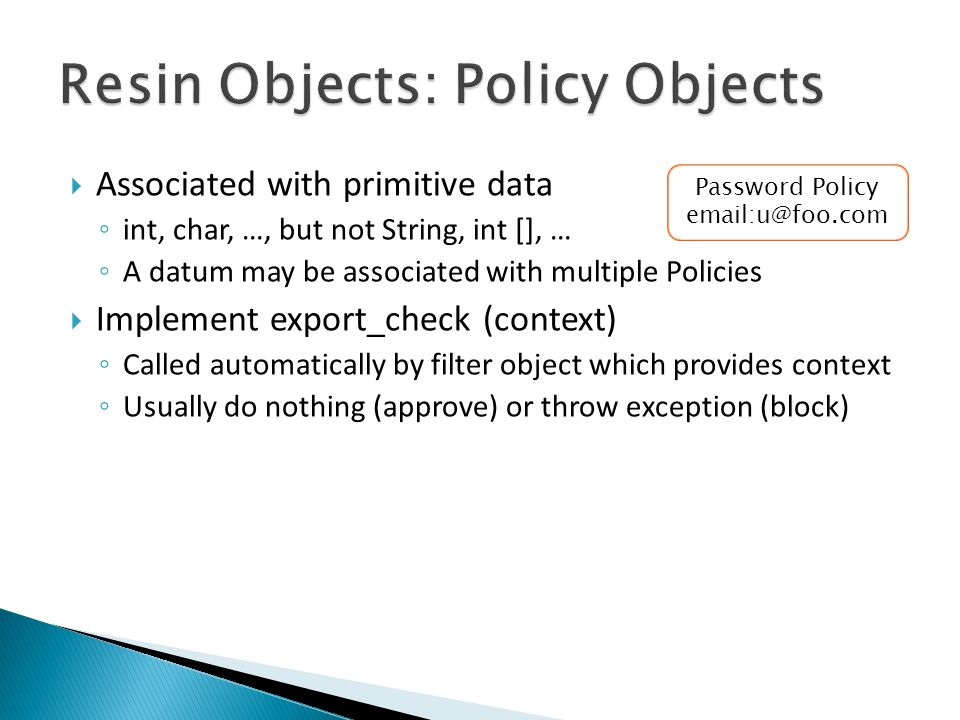

9.  Associated with primitive data ◦ int, char, …, but not String, int [], … ◦ A datum may be associated with multiple Policies  Implement export_check (context) ◦ Called automatically by filter object which provides context ◦ Usually do nothing (approve) or throw exception (block) Password Policy email:u@foo.com

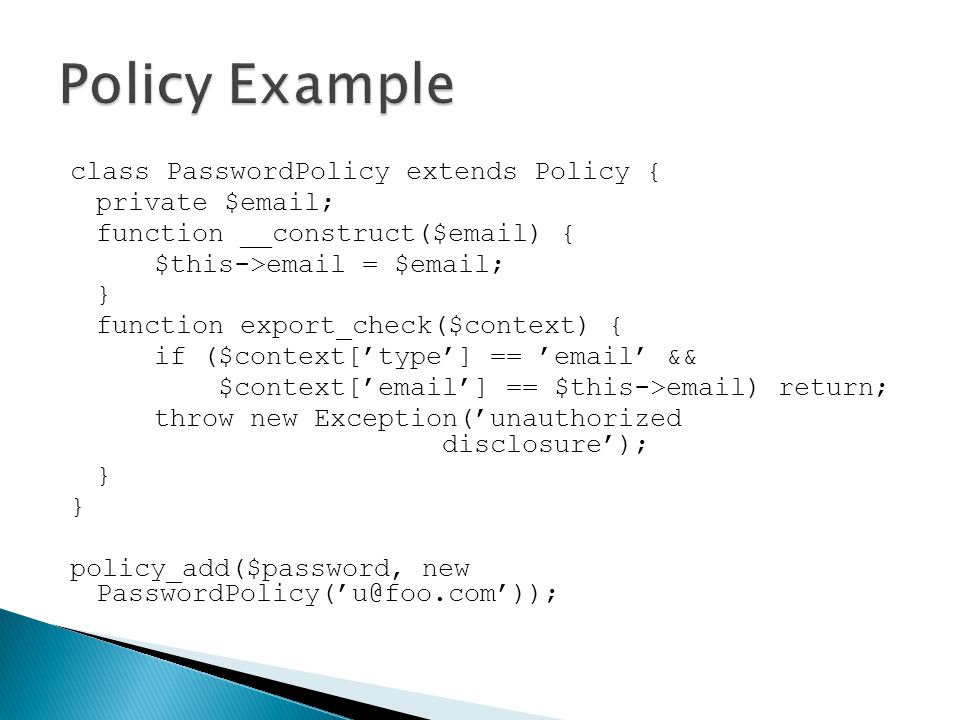

10. class PasswordPolicy extends Policy { private $email; function __construct($email) { $this->email = $email; } function export_check($context) { if ($context[’type’] == ’email’ && $context[’email’] == $this->email) return; throw new Exception(’unauthorized disclosure’); } policy_add($password, new PasswordPolicy(’u@foo.com’));

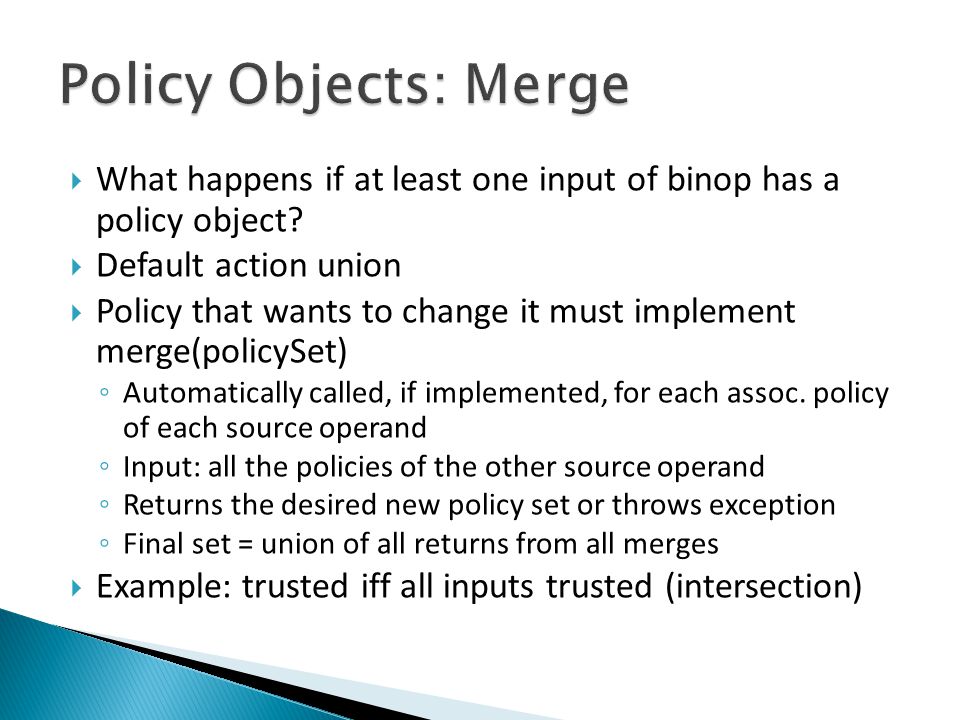

11.  What happens if at least one input of binop has a policy object?  Default action union  Policy that wants to change it must implement merge(policySet) ◦ Automatically called, if implemented, for each assoc. policy of each source operand ◦ Input: all the policies of the other source operand ◦ Returns the desired new policy set or throws exception ◦ Final set = union of all returns from all merges  Example: trusted iff all inputs trusted (intersection)

12.  Automatically at runtime boundaries ◦ Pipes to SQL or Sendmail, HTTP to users  Manually at specific functions ◦ E.g. before signer to remove Secret policy from signature  Default behavior: call every export_check it sees ◦ Pass this filter’s context ◦ If no export_check, approve data flow  Default behavior override ◦ Block flow of data not associated with TrustedByRootPolicy  Prevents server-side scripting Context Type: email Email: u@foo.com

13. class DefaultFilter(Filter): def __init__(self): self.context = {} def filter_write(self, buf): for p in policy_get(buf): if hasattr(p, ’export_check’): p.export_check(self.context) return buf

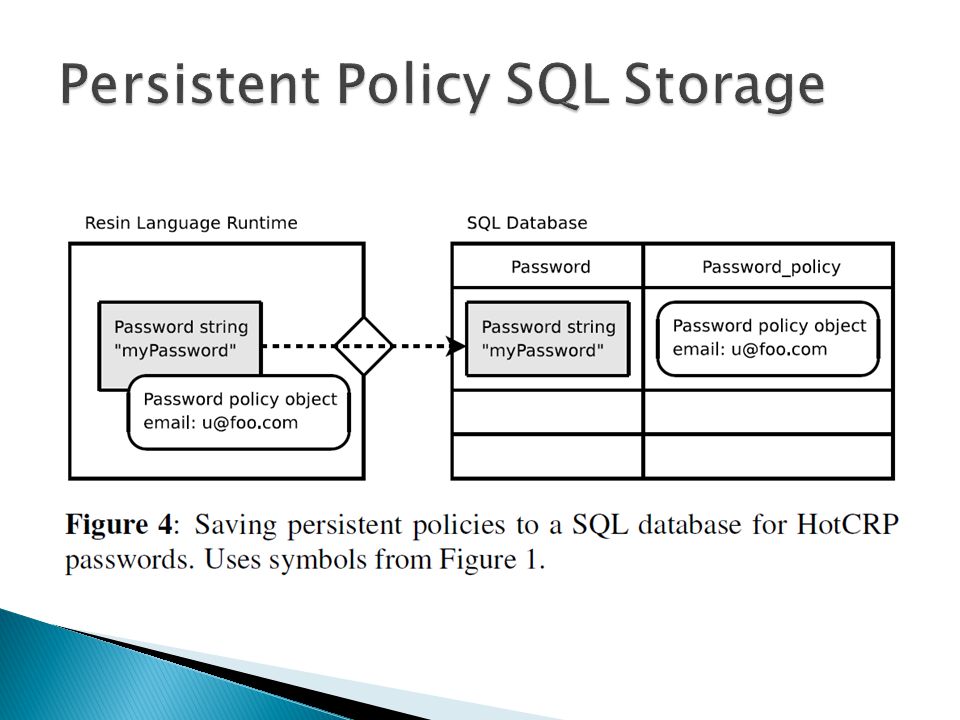

14.  Persistent I/O rewritten on-the-fly by filter objects ◦ Disk, SQL ◦ Disk I/O automatically reads/writes policies in file’s extended attributes ◦ SQL queries rewritten to query/update policies  Modified: create table, select, update, etc  Resin only stores names of policies and private data, not binary implementation ◦ Implementation can change easily

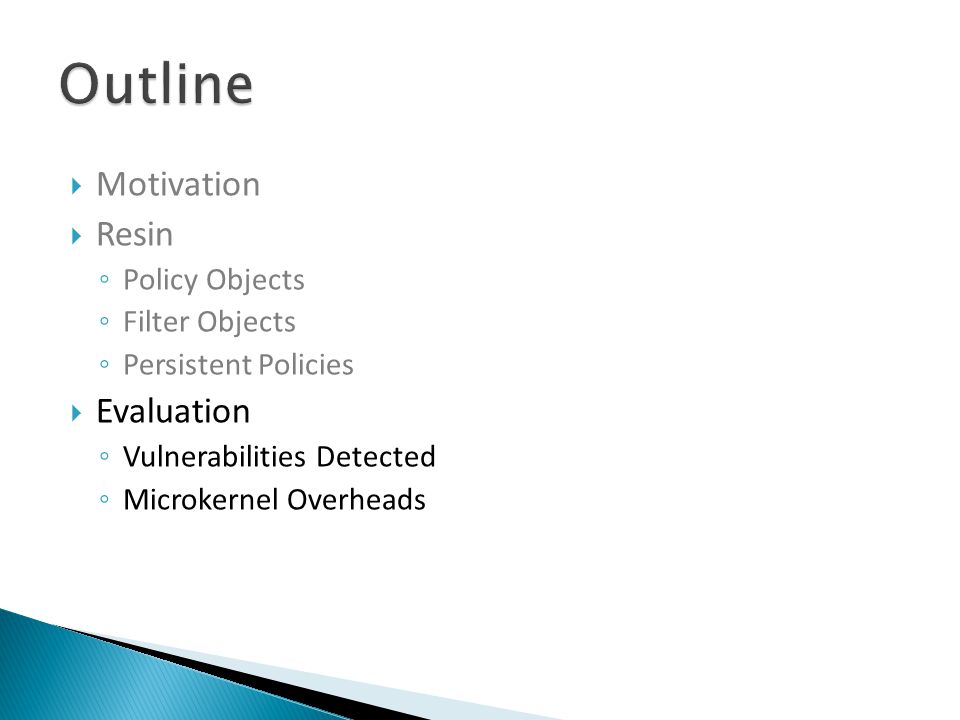

16.  Motivation  Resin ◦ Policy Objects ◦ Filter Objects ◦ Persistent Policies  Evaluation ◦ Vulnerabilities Detected ◦ Microkernel Overheads

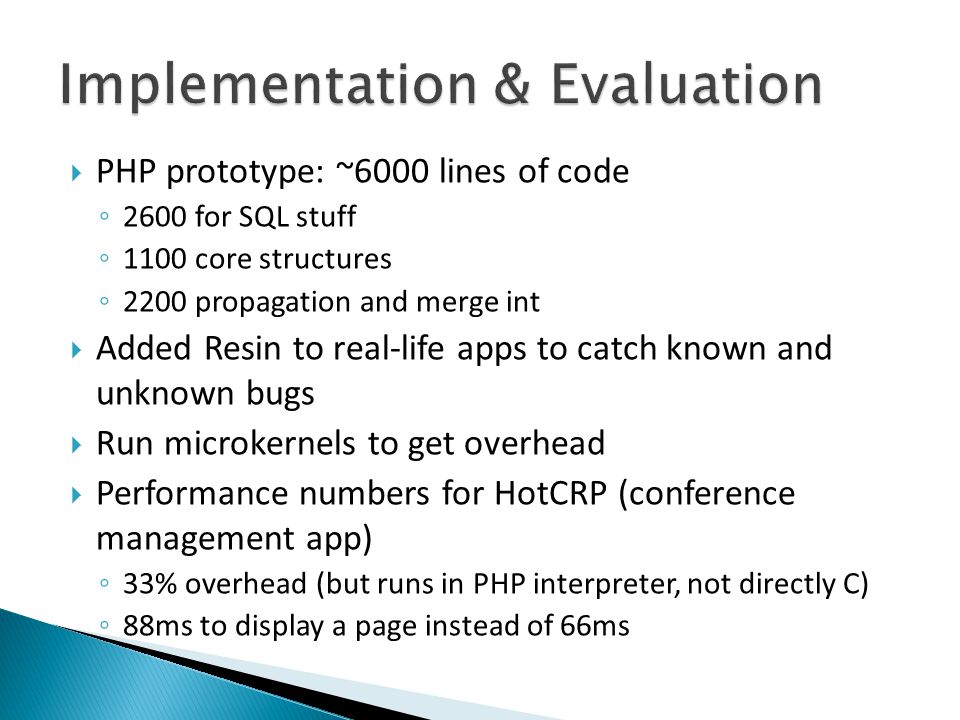

17.  PHP prototype: ~6000 lines of code ◦ 2600 for SQL stuff ◦ 1100 core structures ◦ 2200 propagation and merge int  Added Resin to real-life apps to catch known and unknown bugs  Run microkernels to get overhead  Performance numbers for HotCRP (conference management app) ◦ 33% overhead (but runs in PHP interpreter, not directly C) ◦ 88ms to display a page instead of 66ms

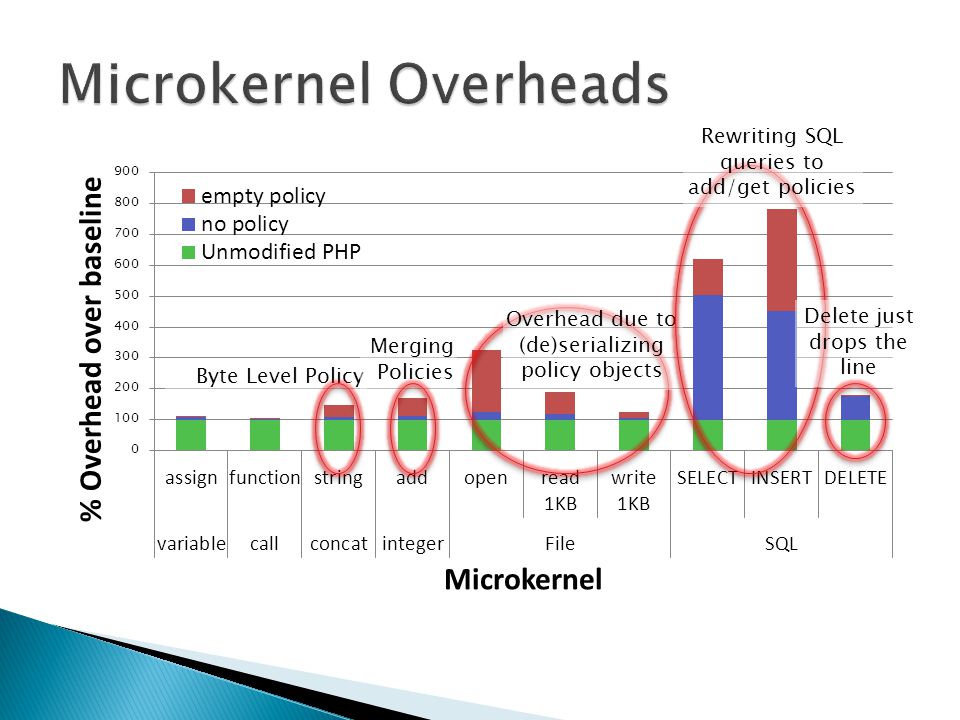

19. Byte Level Policy Merging Policies Overhead due to (de)serializing policy objects Rewriting SQL queries to add/get policies Delete just drops the line
