Online Videos - Fake or Not? Stuff from the InterWebs Rhett Allain Dot Physics (dotphys.net) Southeastern Louisiana University

2

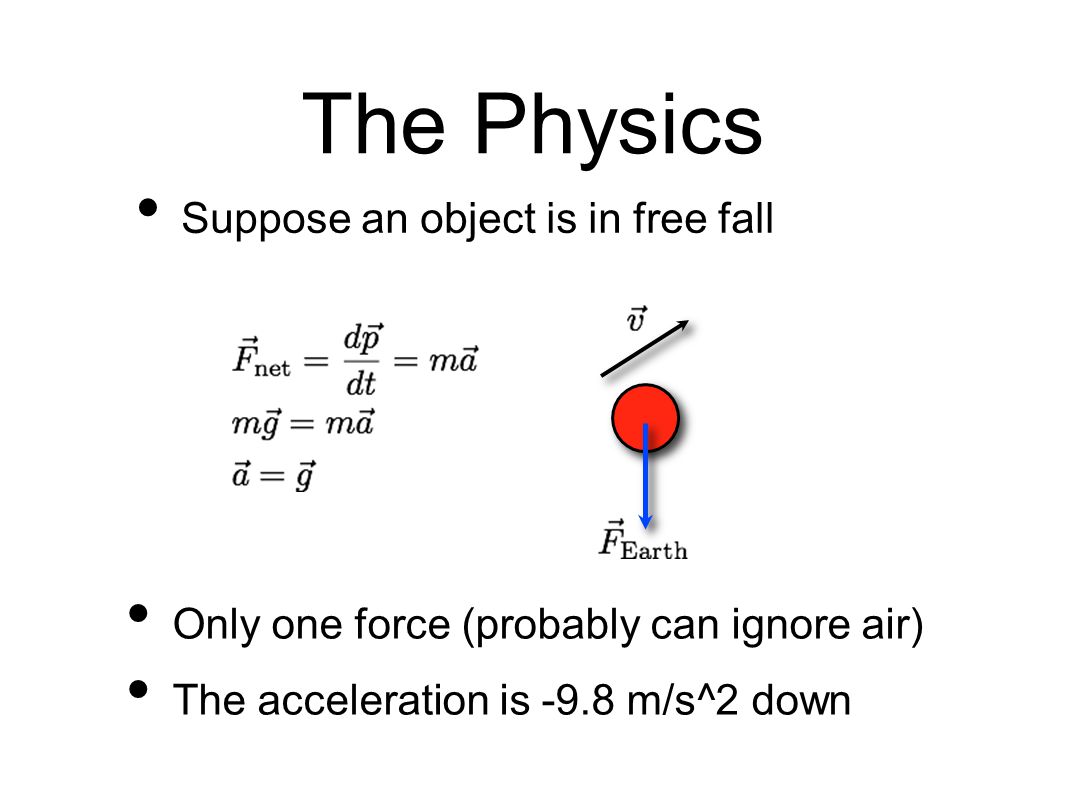

The Physics Suppose an object is in free fall Only one force (probably can ignore air) The acceleration is -9.8 m/s^2 down

3

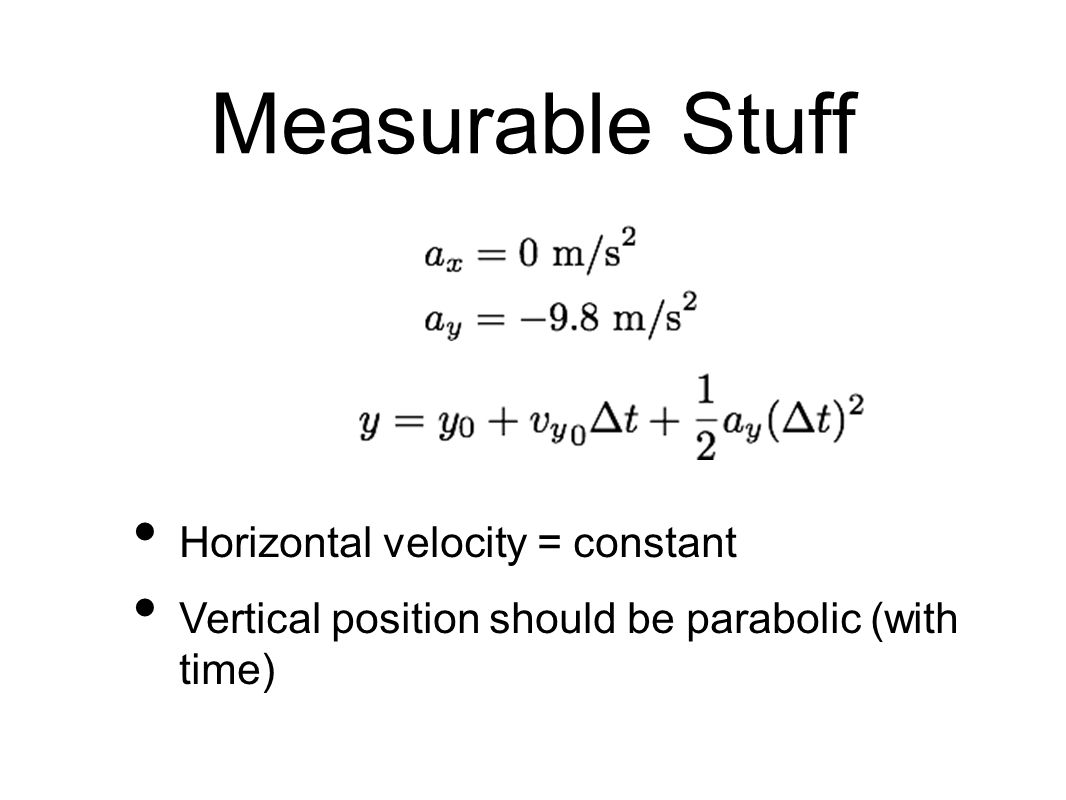

Measurable Stuff Horizontal velocity = constant Vertical position should be parabolic (with time)

4

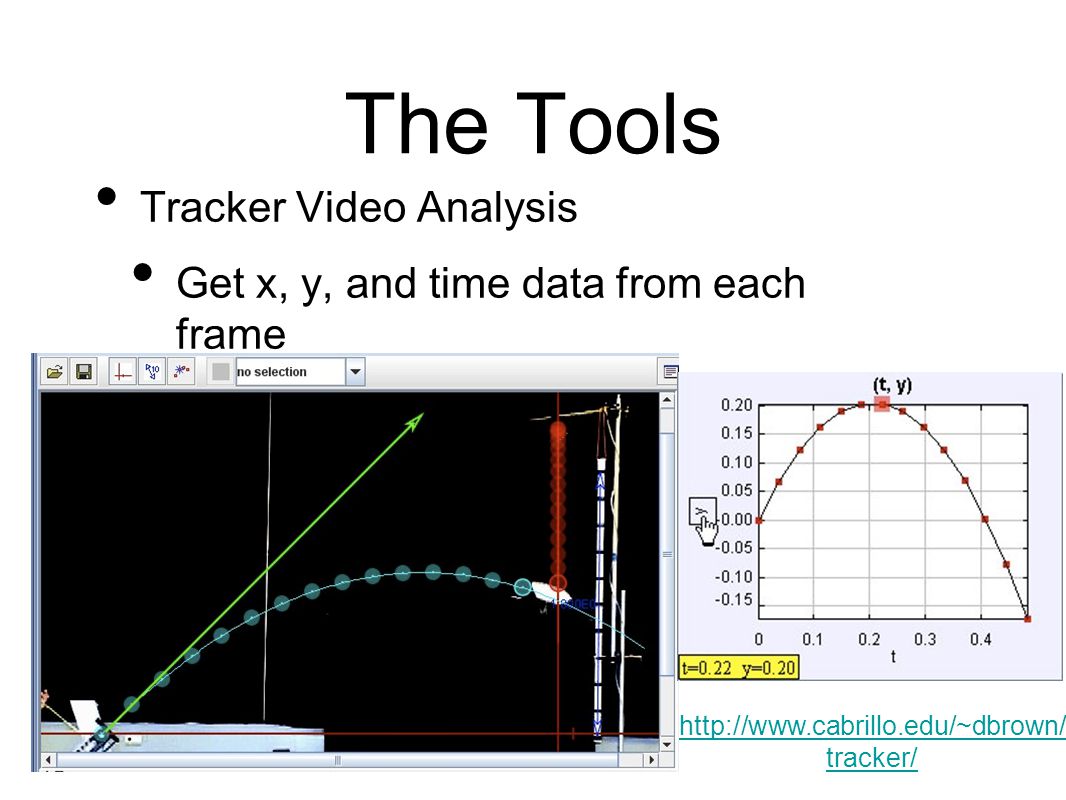

The Tools Tracker Video Analysis Get x, y, and time data from each frame http://www.cabrillo.edu/~dbrown/ tracker/

5
Video Analysisability Score Stationary camera and background Camera does not zoom Motion perpendicular to the camera You can see the object in each frame No repeating frames Downloadable Interlacing

6
Case 1: Elephant on a trampoline

7
Analysis Scale = 1 trampoline

8

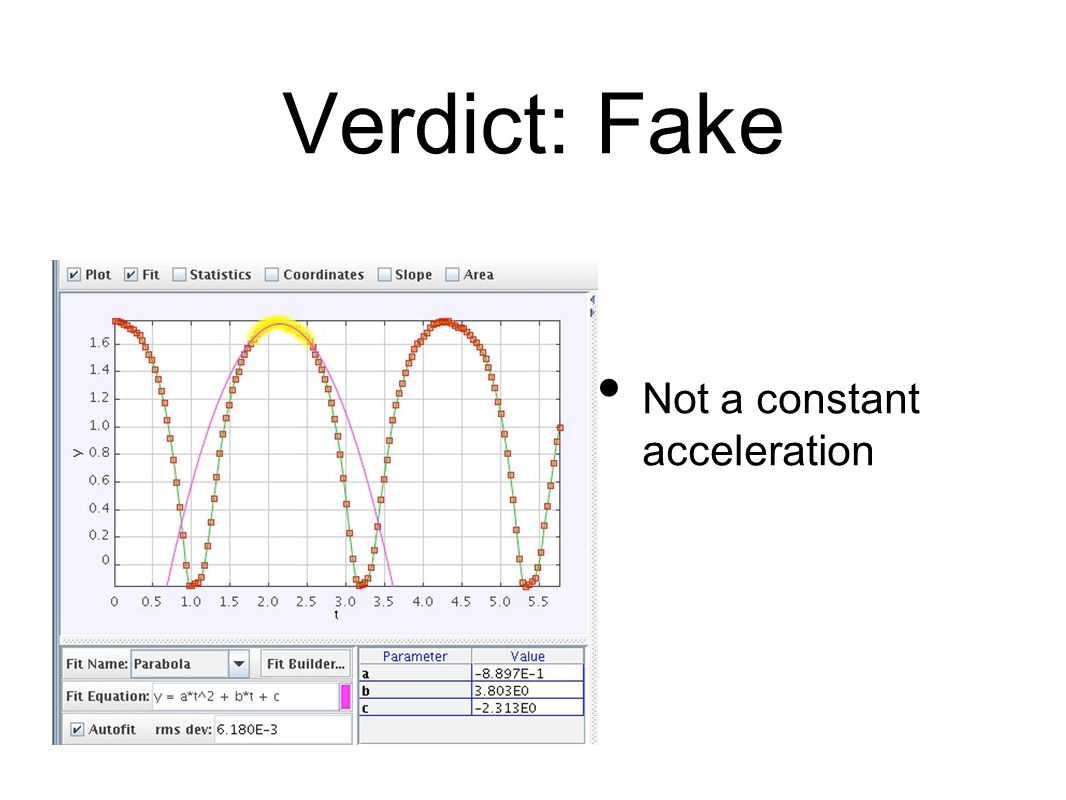

Verdict: Fake Not a constant acceleration

9
Case 2: Kobe number 1

10

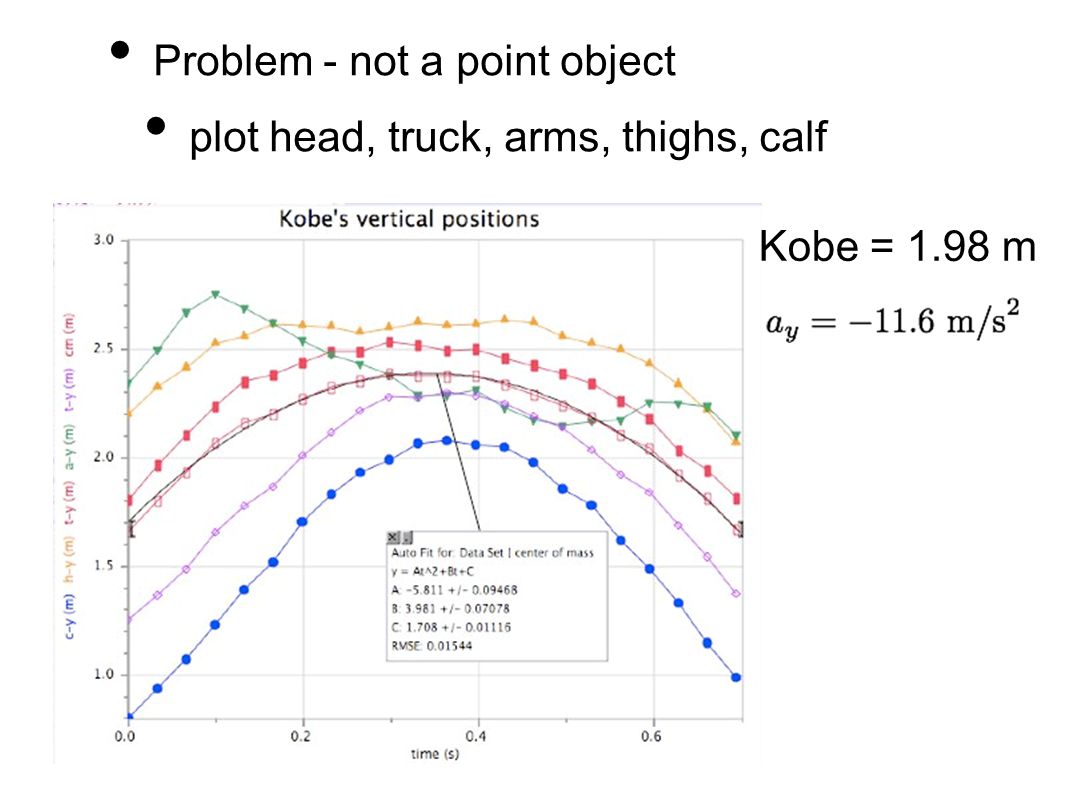

Problem - not a point object plot head, truck, arms, thighs, calf Kobe = 1.98 m

11

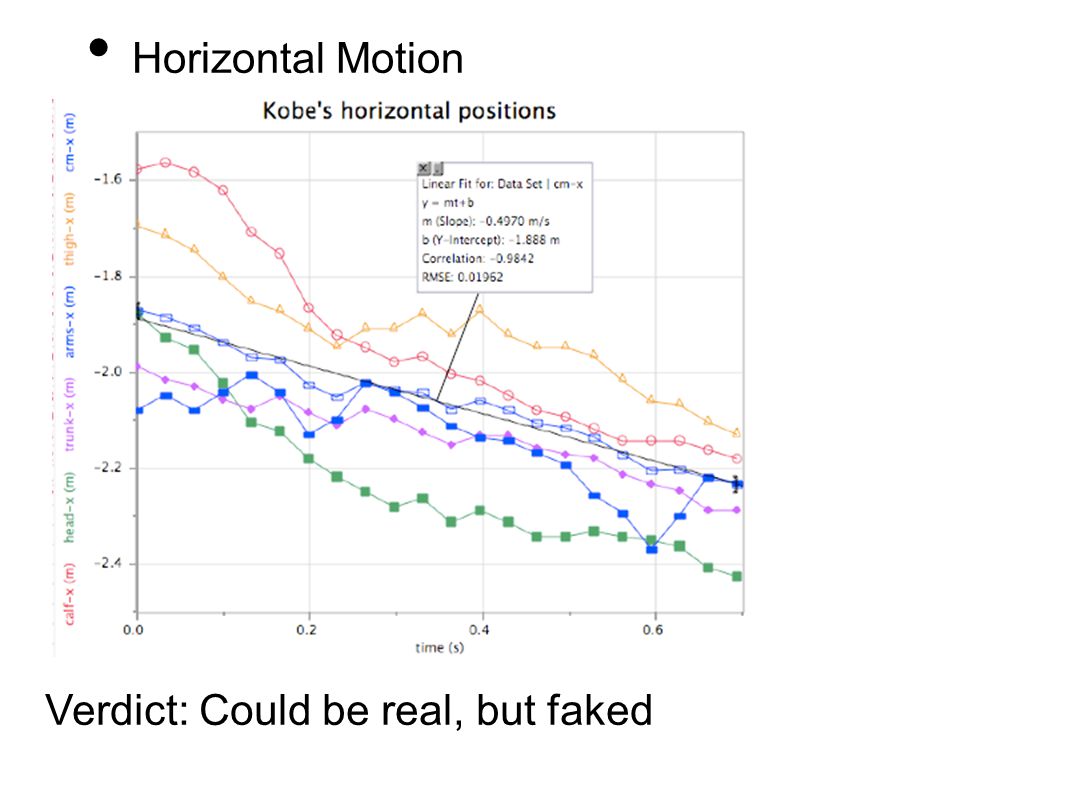

Horizontal Motion Verdict: Could be real, but faked

12
Case 3: Kobe number 2 Jumping over a pool of snakes

13
vertical motion

14
horizontal motion Verdict: No reason to say it is fake (except that it is crazy)

15
Case 4: Movie Up! Boy throws out GPS Verdict: Hello? Fake.

16

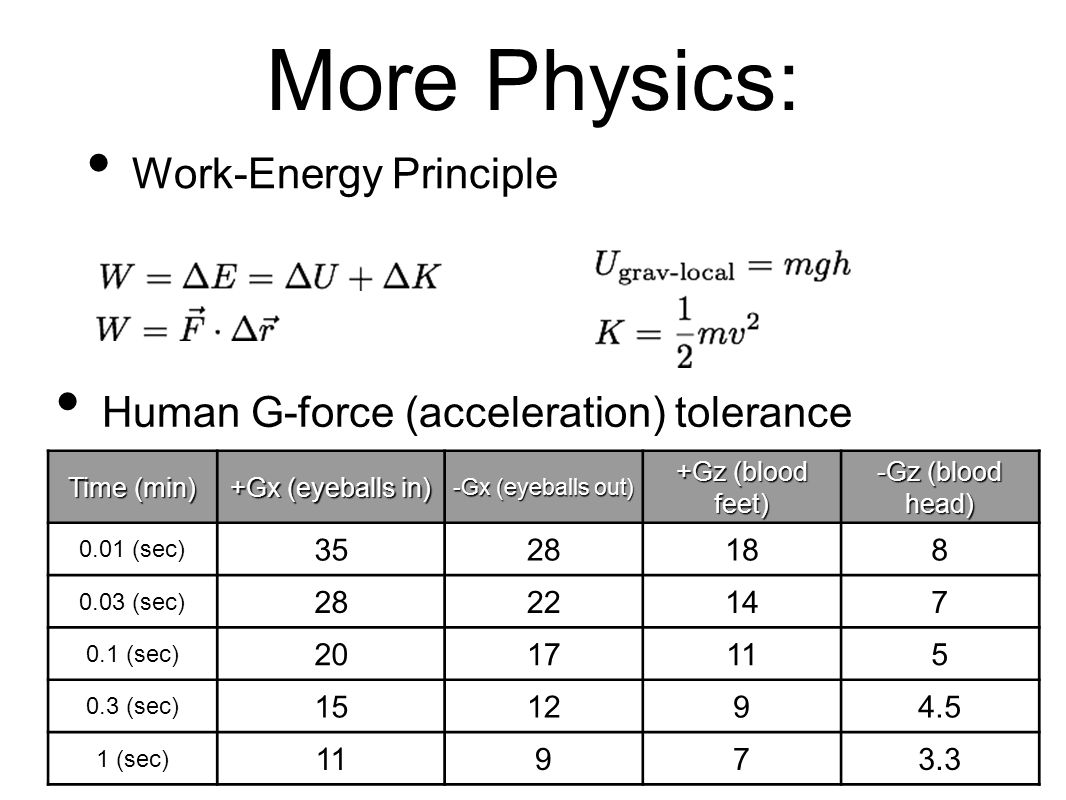

More Physics: Work-Energy Principle Human G-force (acceleration) tolerance Time (min) +Gx (eyeballs in) -Gx (eyeballs out) +Gz (blood feet) -Gz (blood head) 0.01 (sec) 3528188 0.03 (sec) 2822147 0.1 (sec) 2017115 0.3 (sec) 151294.5 1 (sec) 11973.3

17
Case 5: Hancock Not nice to call people names Not nice to throw people like that

18
The boy was in the air for 23 seconds. So, how fast did Hancock throw him? What if there is no air resistance? if acceleration = g, and no air resistance - then initial speed = final speed v initial = 113 m/s or 250 mph If the boy is accelerated over 2 meters, what would it be?

19
Air Resistance At 250 mph, air resistance plays an important role C is a coefficient of air resistance Force is in the opposite direction as v Depends on other stuff also density of air cross section area shape

20
Finding C Assume that the boy would fall at a terminal velocity similar to an adult. For a falling person: At terminal velocity, air resistance = gravity

21

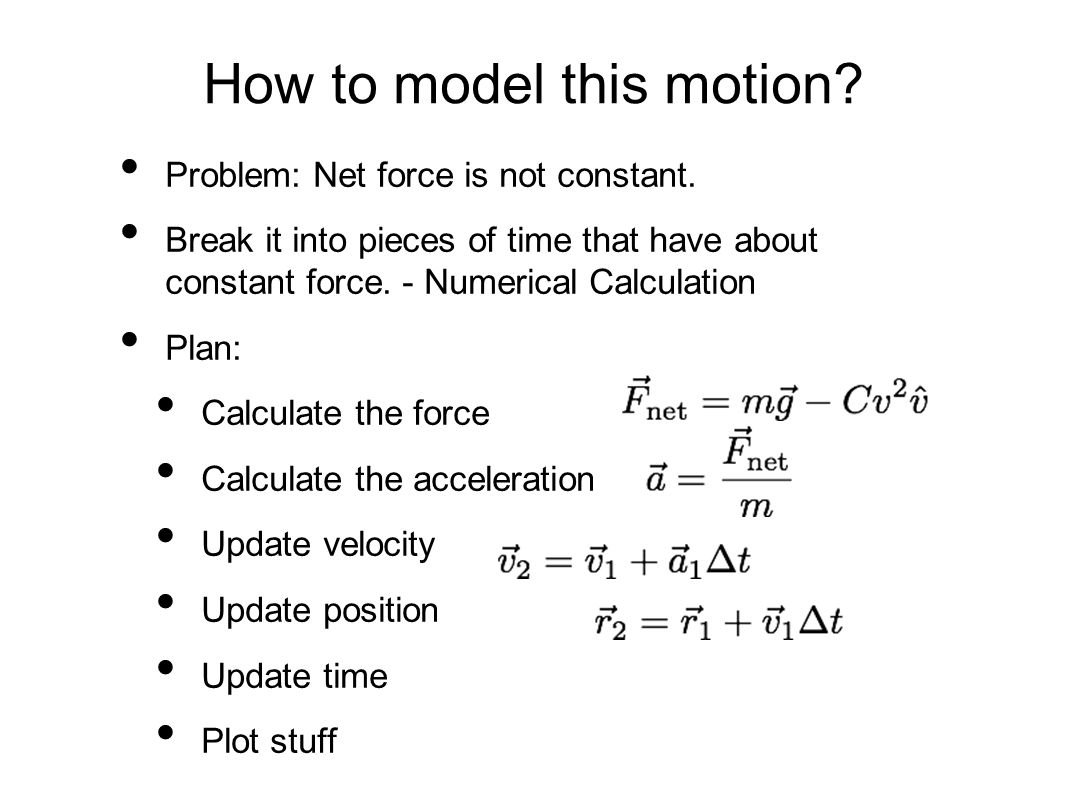

How to model this motion? Problem: Net force is not constant. Break it into pieces of time that have about constant force. - Numerical Calculation Plan: Calculate the force Calculate the acceleration Update velocity Update position Update time Plot stuff

22
How fast to be in the air for 23 seconds? What if v-initial = 113 m/s with air? No air resistance air resistance

23

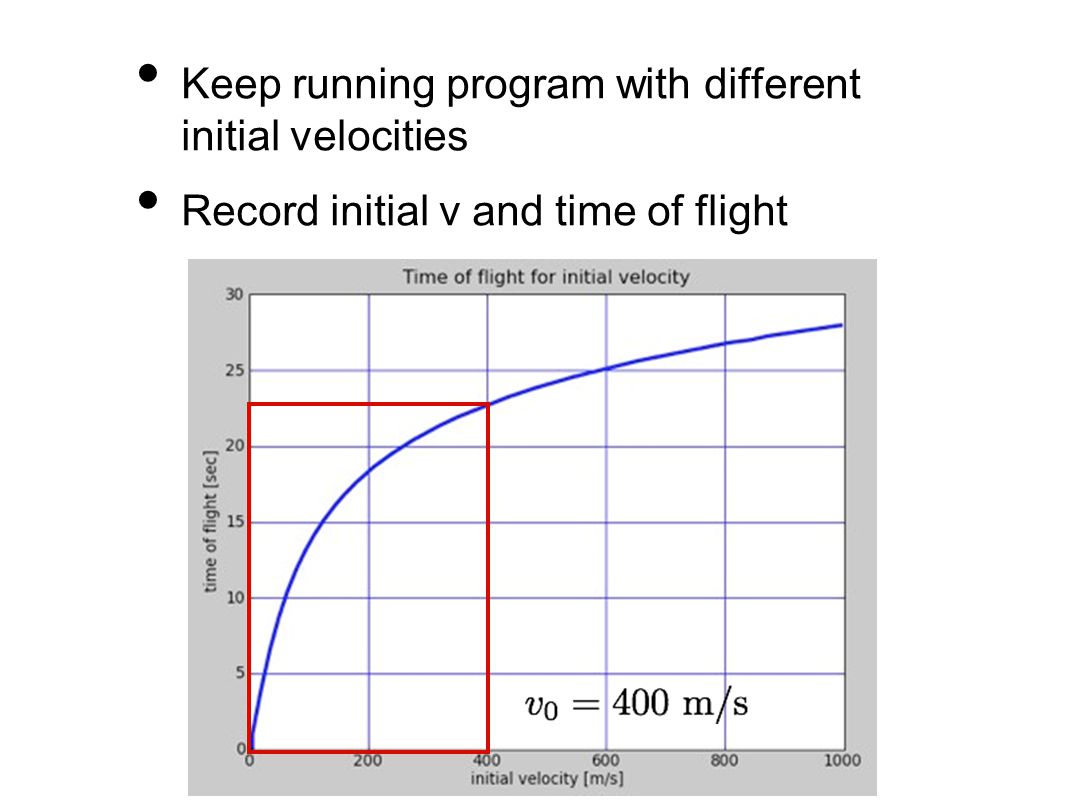

Keep running program with different initial velocities Record initial v and time of flight

24

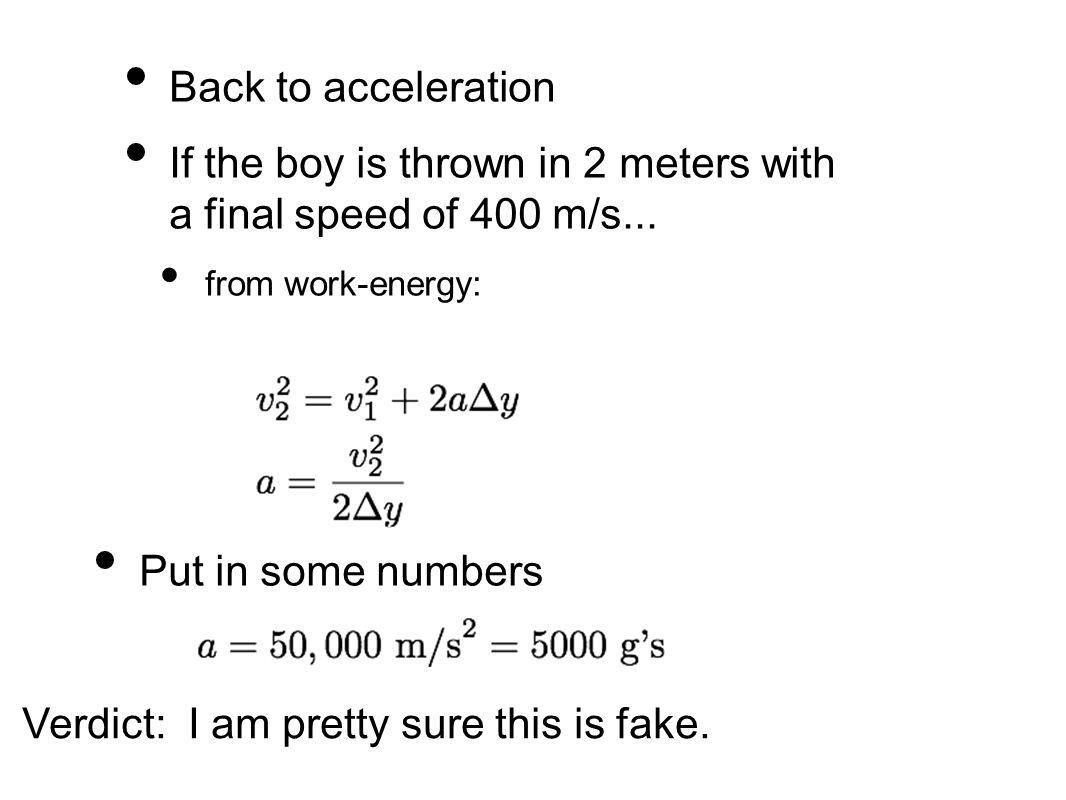

Back to acceleration If the boy is thrown in 2 meters with a final speed of 400 m/s... from work-energy: Put in some numbers Verdict: I am pretty sure this is fake.

25
Case 6: Prof Splash

26

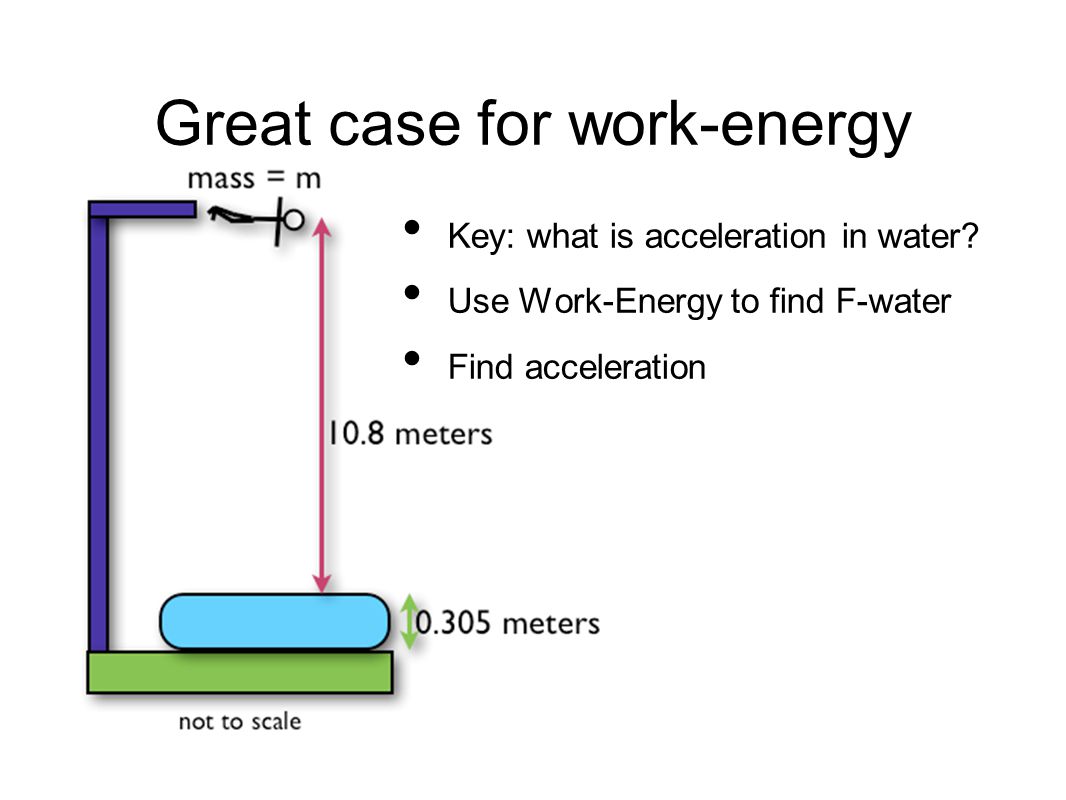

Great case for work-energy Key: what is acceleration in water? Use Work-Energy to find F-water Find acceleration

27
Findings v at water = 14.55 m/s Avg acceleration in water = 347 m/s^2 This is 35.4 g’s Verdict: NASA - Approved, real

28
Case 7: Giant Water slide jump

29
Vertical Motion Motion not always perpendicular Unknown slide height length scale = ramp

30
Other stuff Horizontal speed seems constant Accelerates in 3 seconds down the ramp - ok Risky, but possible Verdict: Fake (sometimes I get fooled also)

31
Conclusion Really, all I have to say is there are more videos at http://blog.dotphys.net
