1 Does it have to be that complicated? Thoughts on a next-generation Internet Henning Schulzrinne Internet Real Time Laboratory Computer Science Dept., Columbia University, New York

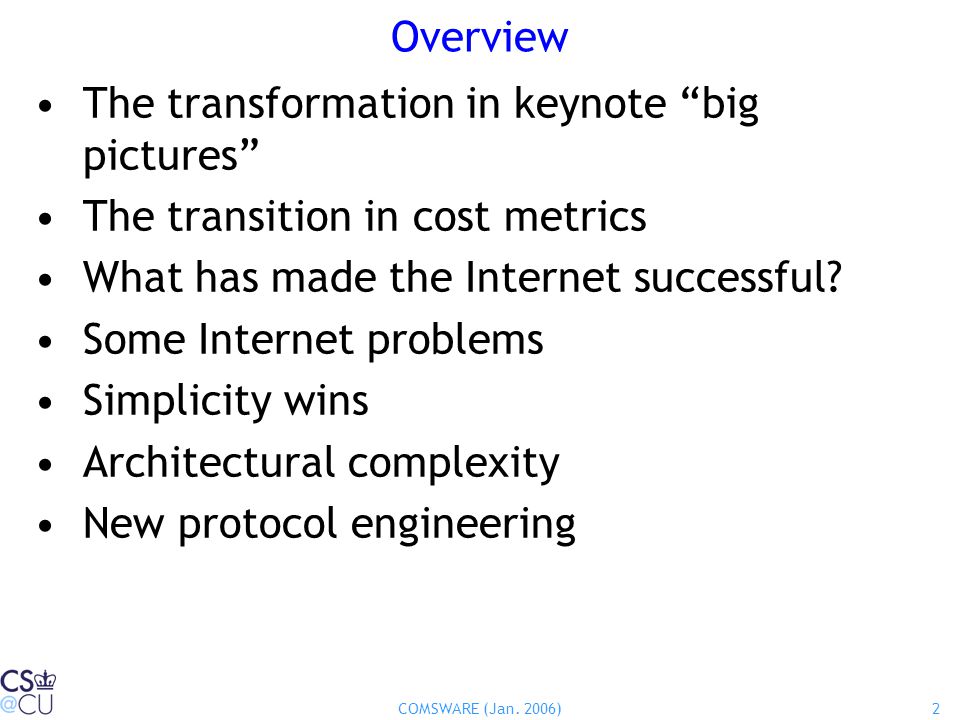

2 COMSWARE (Jan. 2006) 2 Overview The transformation in keynote “big pictures” The transition in cost metrics What has made the Internet successful? Some Internet problems Simplicity wins Architectural complexity New protocol engineering

3 COMSWARE (Jan. 2006) 3 Philosophy transition One computer/phone, many users One computer/phone, one user Many computers/phones, one user anywhere, any time any media right place (device), right time, right media ~ ubiquitous computing mainframe era home phone party line PC era cell phone era

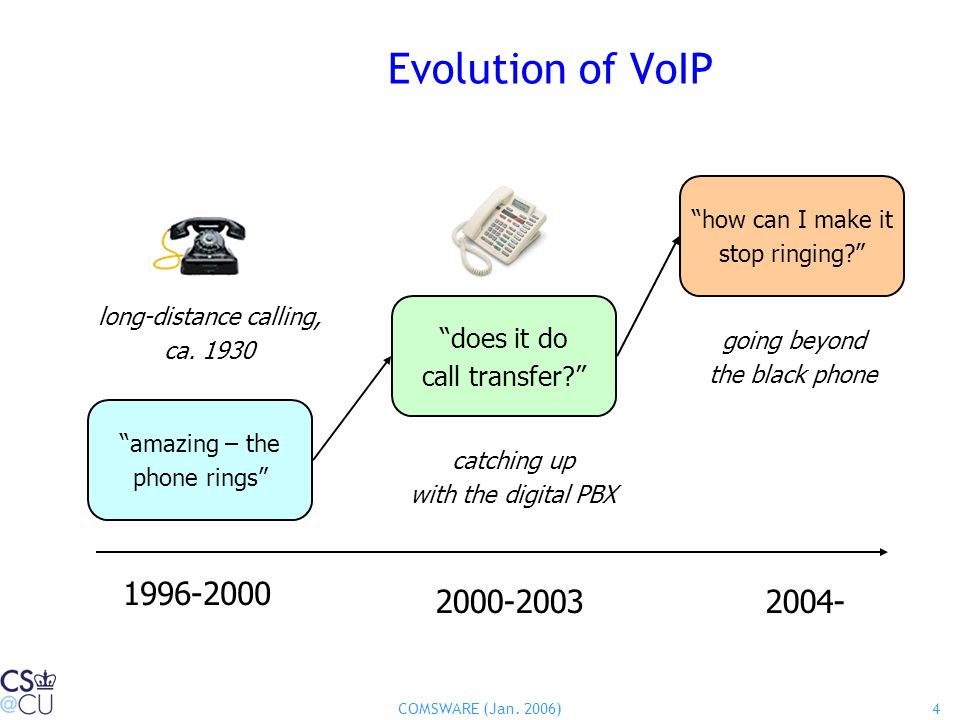

4 COMSWARE (Jan. 2006) 4 Evolution of VoIP “amazing – the phone rings” “does it do call transfer?” “how can I make it stop ringing?” 1996-2000 2000-20032004- catching up with the digital PBX long-distance calling, ca. 1930 going beyond the black phone

5 COMSWARE (Jan. 2006) 5 Transition in cost balance Total cost of ownership –Ethernet port cost  $10 –about 80% of Columbia CS’s system support cost is staff cost about $2500/person/year  2 new PCs/year much of the rest is backup & license for spam filters Does not count hours of employee or son/daughter time PC, Ethernet port and router cost seem to have reached plateau –just that the $10 now buys a 100 Mb/s port instead of 10 Mb/s

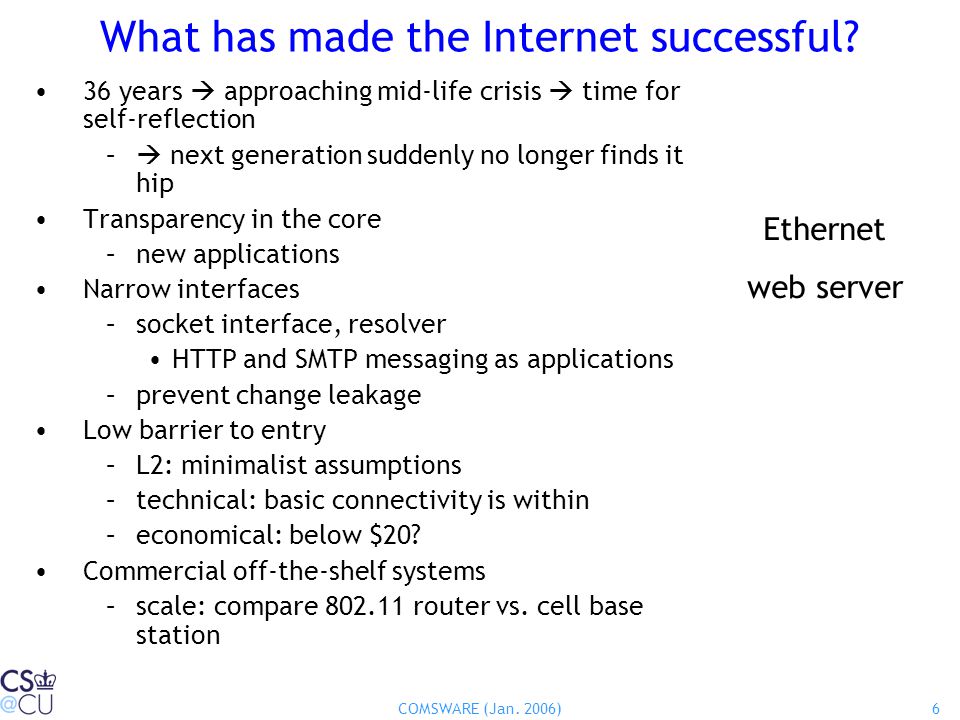

6 COMSWARE (Jan. 2006) 6 What has made the Internet successful? 36 years  approaching mid-life crisis  time for self-reflection –  next generation suddenly no longer finds it hip Transparency in the core –new applications Narrow interfaces –socket interface, resolver HTTP and SMTP messaging as applications –prevent change leakage Low barrier to entry –L2: minimalist assumptions –technical: basic connectivity is within –economical: below $20? Commercial off-the-shelf systems –scale: compare 802.11 router vs. cell base station Ethernet web server

7 COMSWARE (Jan. 2006) 7 IP “hourglass” email WWW phone... SMTP HTTP RTP... TCP UDP… IP ethernet PPP… CSMA async sonet... copper fiber radio... Steve Deering, IETF Aug. 2001

8 COMSWARE (Jan. 2006) 8 User issues (guesses) Lack of trust –small mistakes  identity gone –waste time on spam, viruses, worms, spyware, … Lack of reliability –99.5% instead of 99.999% –even IETF meeting can’t get reliable 802.11 connectivity Lack of symmetry –asymmetric bandwidth: ADSL –asymmetric addressing: NAT, firewalls  client(-server) only, packet relaying via TURN or p2p Users as “Internet mechanics” –why does a user need to know whether to use IMAP or POP? –navigate circle of blame

9 COMSWARE (Jan. 2006) 9 Technical infrastructure issues Sensor networks –addressing mechanisms not suitable  geographic addressing, self-routing packets –TCP model –partial and temporal connectivity Mobile ad-hoc networks (MANET –address acquisition? Mobile networks (e.g., plane [Connexion], train, car, …) –routing granularity: each plane a BGP AS? –network merging and splitting

10 COMSWARE (Jan. 2006) 10 Technical infrastructure issues Multi-homing and mobility –address vs. locator issues Large-scale Internet –secure routing –routing scaling (60,000 AS) Architecture –standardization delays  now routinely 3-5 years for minor extensions –resistance to change at ≤ L4 –difficulty in deploying new applications: Internet service = outbound port 80 and 443

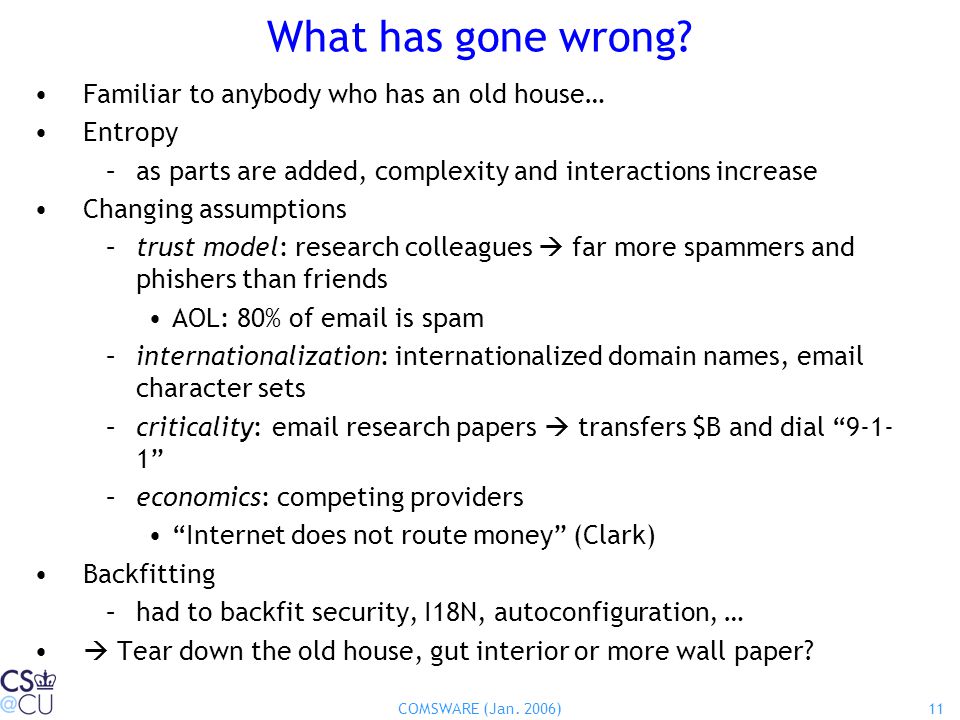

11 COMSWARE (Jan. 2006) 11 What has gone wrong? Familiar to anybody who has an old house… Entropy –as parts are added, complexity and interactions increase Changing assumptions –trust model: research colleagues  far more spammers and phishers than friends AOL: 80% of email is spam –internationalization: internationalized domain names, email character sets –criticality: email research papers  transfers $B and dial “9-1- 1” –economics: competing providers “Internet does not route money” (Clark) Backfitting –had to backfit security, I18N, autoconfiguration, …  Tear down the old house, gut interior or more wall paper?

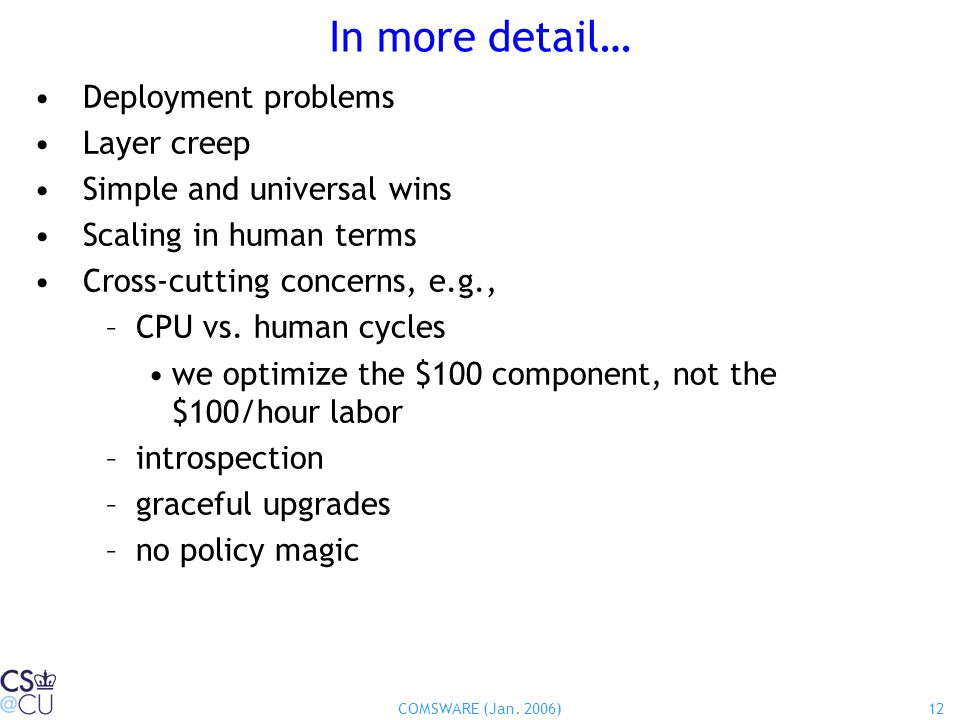

12 COMSWARE (Jan. 2006) 12 In more detail… Deployment problems Layer creep Simple and universal wins Scaling in human terms Cross-cutting concerns, e.g., –CPU vs. human cycles we optimize the $100 component, not the $100/hour labor –introspection –graceful upgrades –no policy magic

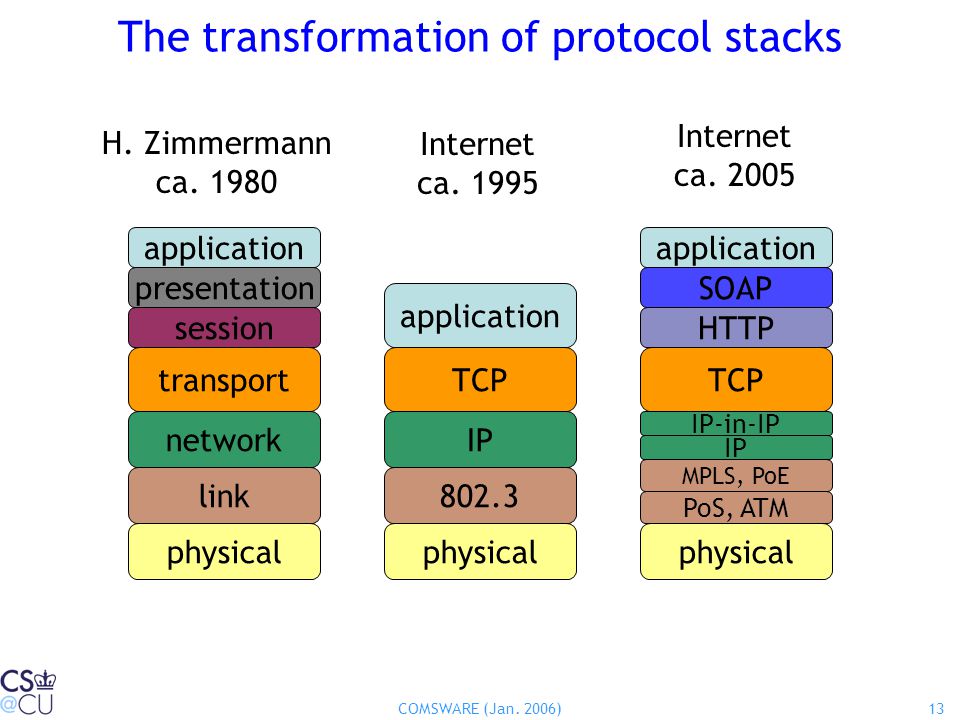

13 COMSWARE (Jan. 2006) 13 The transformation of protocol stacks application network transport presentation session link physical H. Zimmermann ca. 1980 application IP TCP 802.3 physical Internet ca. 1995 application IP TCP SOAP HTTP PoS, ATM physical MPLS, PoE IP-in-IP Internet ca. 2005

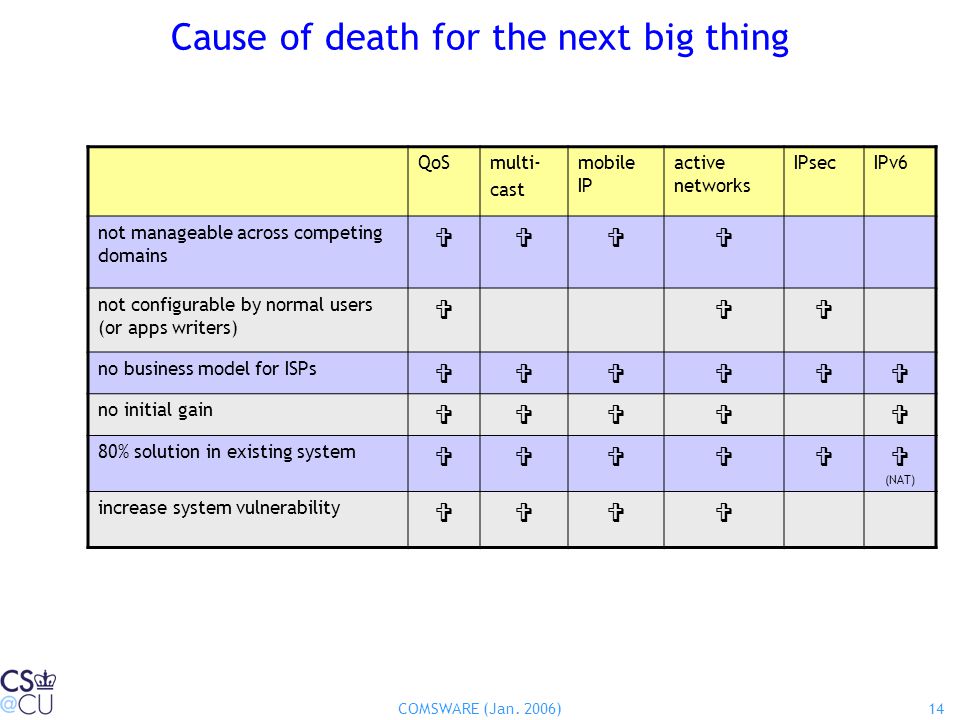

14 COMSWARE (Jan. 2006) 14 Cause of death for the next big thing QoSmulti- cast mobile IP active networks IPsecIPv6 not manageable across competing domains  not configurable by normal users (or apps writers)  no business model for ISPs  no initial gain  80% solution in existing system  (NAT) increase system vulnerability 

15 COMSWARE (Jan. 2006) 15 Simple wins (mostly) Examples: –Ethernet vs. all other L2 technologies –HTTP vs. HTTPng and all the other hypertext attempts –SMTP vs. X.400 –SDP vs. SDPng –TLS vs. IPsec (simpler to re-use) –no QoS & MPLS vs. RSVP –DNS-SD (“Bonjour”) vs. SLP –SIP vs. H.323 (but conversely: SIP vs. Jabber, SIP vs. Asterisk) –the failure of almost all middleware –future: demise of 3G vs. plain SIP Efficiency is not important –BitTorrent, P2P searching, RSS, …

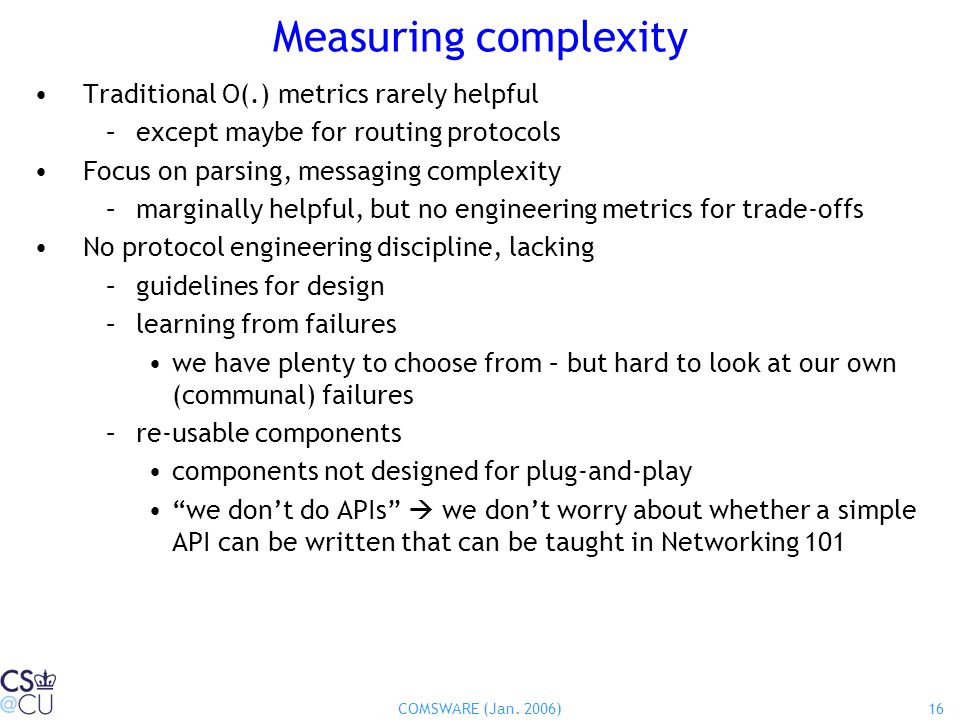

16 COMSWARE (Jan. 2006) 16 Measuring complexity Traditional O(.) metrics rarely helpful –except maybe for routing protocols Focus on parsing, messaging complexity –marginally helpful, but no engineering metrics for trade-offs No protocol engineering discipline, lacking –guidelines for design –learning from failures we have plenty to choose from – but hard to look at our own (communal) failures –re-usable components components not designed for plug-and-play “we don’t do APIs”  we don’t worry about whether a simple API can be written that can be taught in Networking 101

17 COMSWARE (Jan. 2006) 17 Measuring complexity Conceptual complexity –can I explain the protocol operation in one class? –e.g., counter examples PIM-SM, MADCAP, OSPF Observable vs. hidden –one side can see, without “god box” –hidden state and actions increase information complexity unknown variables can have any state Number of system interfaces –see BISDN, 3GPP, NGN, …

18 COMSWARE (Jan. 2006) 18 Possible complexity metrics new code needed (vs. reuse)  less likely to be buggy or have buffer overflows –e.g., new text format almost the same –numerous binary formats –security components new identities and identifiers needed number of configurable options + parameters –must be configured & can be configured (with interop impact) –discoverable vs. manual/unspecified –SIP experience: things that shouldn’t be configurable will be –RED experience: parameter robustness –mute programmer interop test: two implementations, no side channel number of “left-to-local policy” –DSCP confusion start-up latency (“protocol boot time”) –IPv4 DAD, IGMP

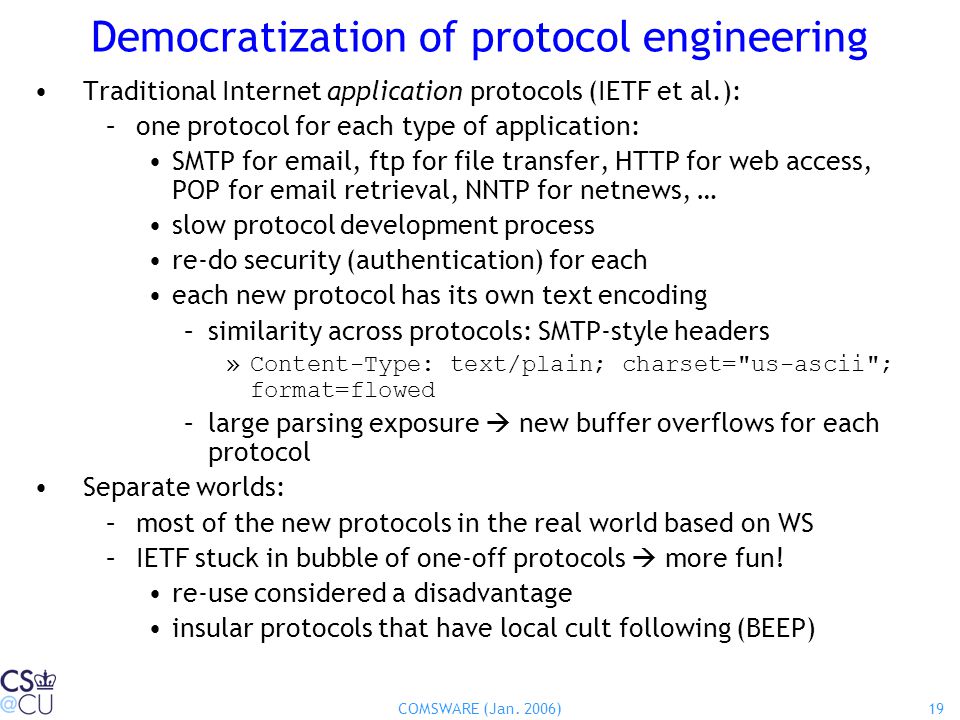

19 COMSWARE (Jan. 2006) 19 Democratization of protocol engineering Traditional Internet application protocols (IETF et al.): –one protocol for each type of application: SMTP for email, ftp for file transfer, HTTP for web access, POP for email retrieval, NNTP for netnews, … slow protocol development process re-do security (authentication) for each each new protocol has its own text encoding –similarity across protocols: SMTP-style headers »Content-Type: text/plain; charset="us-ascii"; format=flowed –large parsing exposure  new buffer overflows for each protocol Separate worlds: –most of the new protocols in the real world based on WS –IETF stuck in bubble of one-off protocols  more fun! re-use considered a disadvantage insular protocols that have local cult following (BEEP)

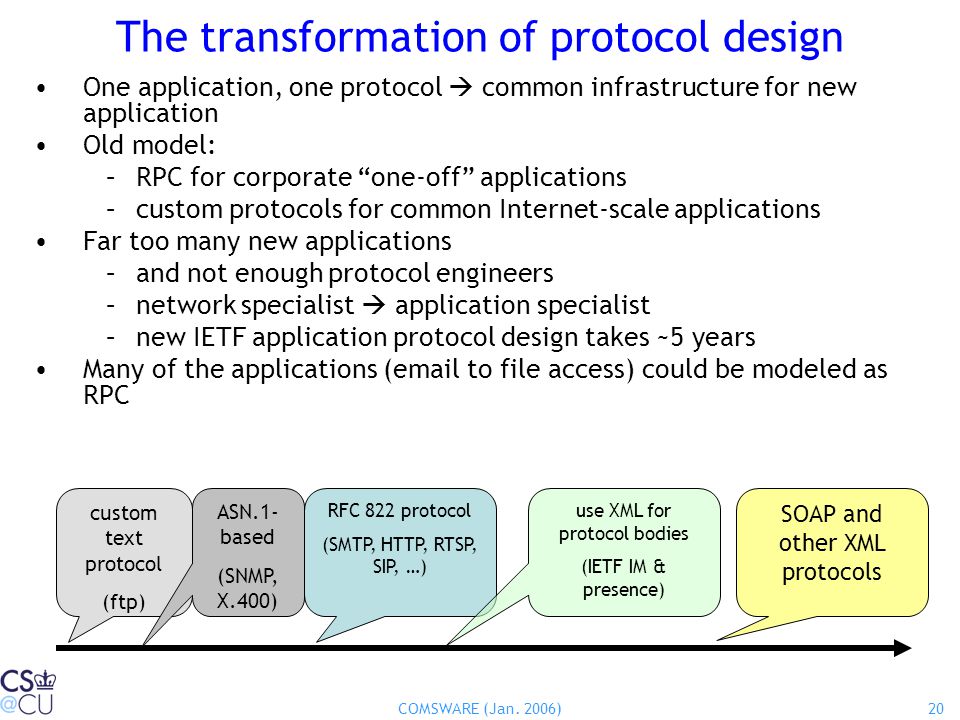

20 COMSWARE (Jan. 2006) 20 The transformation of protocol design One application, one protocol  common infrastructure for new application Old model: –RPC for corporate “one-off” applications –custom protocols for common Internet-scale applications Far too many new applications –and not enough protocol engineers –network specialist  application specialist –new IETF application protocol design takes ~5 years Many of the applications (email to file access) could be modeled as RPC custom text protocol (ftp) RFC 822 protocol (SMTP, HTTP, RTSP, SIP, …) use XML for protocol bodies (IETF IM & presence) SOAP and other XML protocols ASN.1- based (SNMP, X.400)

21 COMSWARE (Jan. 2006) 21 Why are web services succeeding(*) after RPC failed? SOAP = just another remote procedure call mechanism –plenty of predecessors: SunRPC, DCE, DCOM, Corba, … –“client-server computing” –all of them were to transform (enterprise) computing, integrate legacy applications, end world hunger, … Why didn’t they? Speculation: –no web front end (no three-tier applications) –few open-source implementations –no common protocol between PC client (Microsoft) and backend (IBM mainframes, Sun, VMS) –corporate networks local only (one site), with limited backbone bandwidth (*) we hope

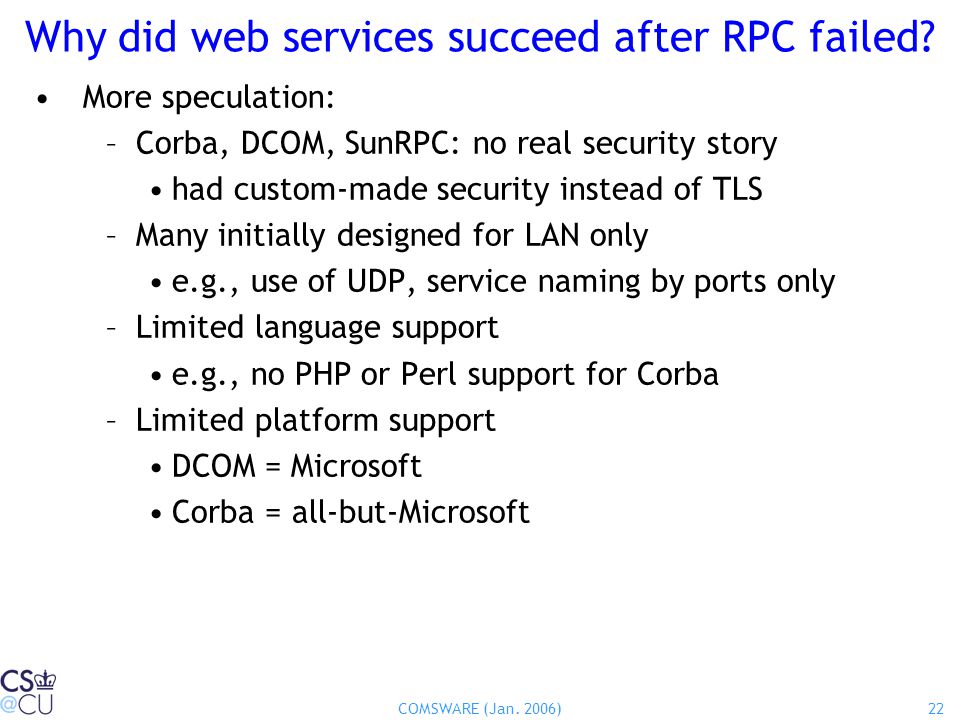

22 COMSWARE (Jan. 2006) 22 Why did web services succeed after RPC failed? More speculation: –Corba, DCOM, SunRPC: no real security story had custom-made security instead of TLS –Many initially designed for LAN only e.g., use of UDP, service naming by ports only –Limited language support e.g., no PHP or Perl support for Corba –Limited platform support DCOM = Microsoft Corba = all-but-Microsoft

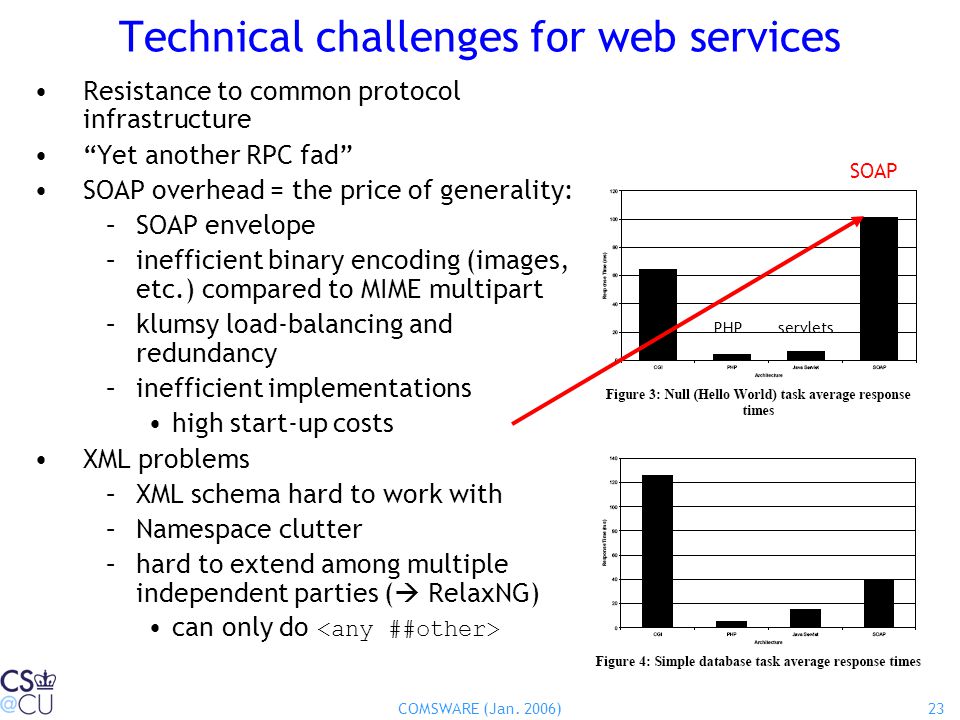

23 COMSWARE (Jan. 2006) 23 Technical challenges for web services Resistance to common protocol infrastructure “Yet another RPC fad” SOAP overhead = the price of generality: –SOAP envelope –inefficient binary encoding (images, etc.) compared to MIME multipart –klumsy load-balancing and redundancy –inefficient implementations high start-up costs XML problems –XML schema hard to work with –Namespace clutter –hard to extend among multiple independent parties (  RelaxNG) can only do servlets SOAP PHP

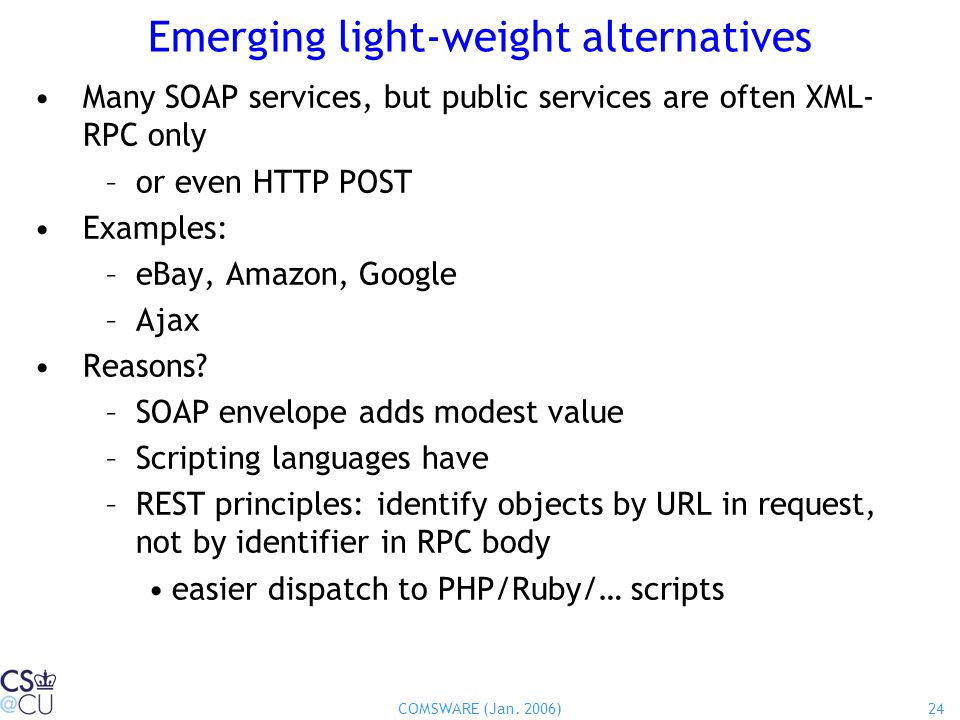

24 COMSWARE (Jan. 2006) 24 Emerging light-weight alternatives Many SOAP services, but public services are often XML- RPC only –or even HTTP POST Examples: –eBay, Amazon, Google –Ajax Reasons? –SOAP envelope adds modest value –Scripting languages have –REST principles: identify objects by URL in request, not by identifier in RPC body easier dispatch to PHP/Ruby/… scripts

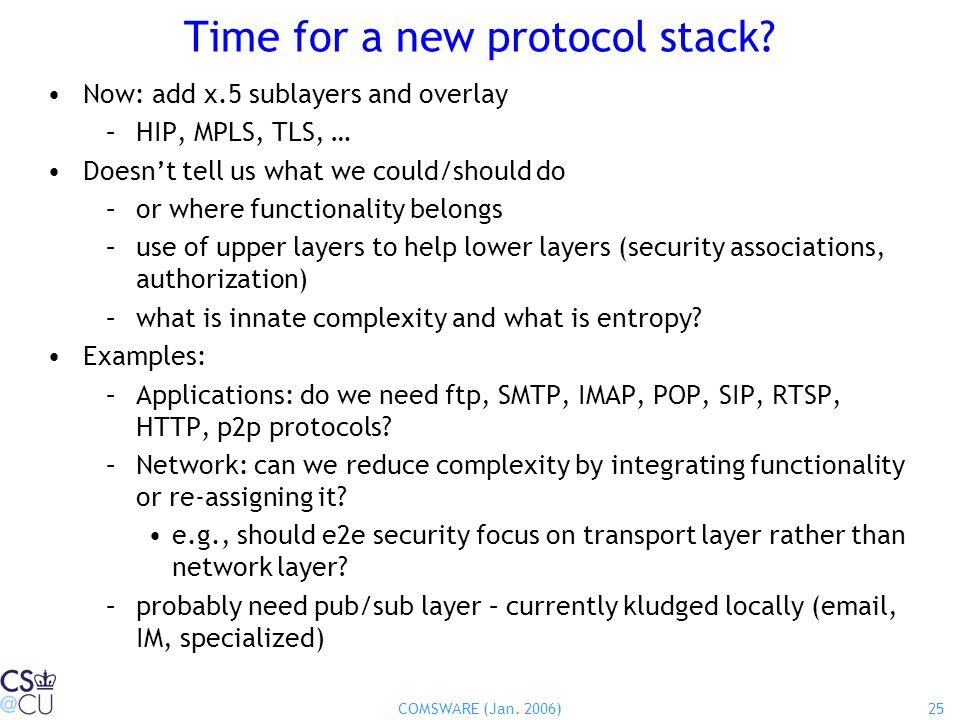

25 COMSWARE (Jan. 2006) 25 Time for a new protocol stack? Now: add x.5 sublayers and overlay –HIP, MPLS, TLS, … Doesn’t tell us what we could/should do –or where functionality belongs –use of upper layers to help lower layers (security associations, authorization) –what is innate complexity and what is entropy? Examples: –Applications: do we need ftp, SMTP, IMAP, POP, SIP, RTSP, HTTP, p2p protocols? –Network: can we reduce complexity by integrating functionality or re-assigning it? e.g., should e2e security focus on transport layer rather than network layer? –probably need pub/sub layer – currently kludged locally (email, IM, specialized)

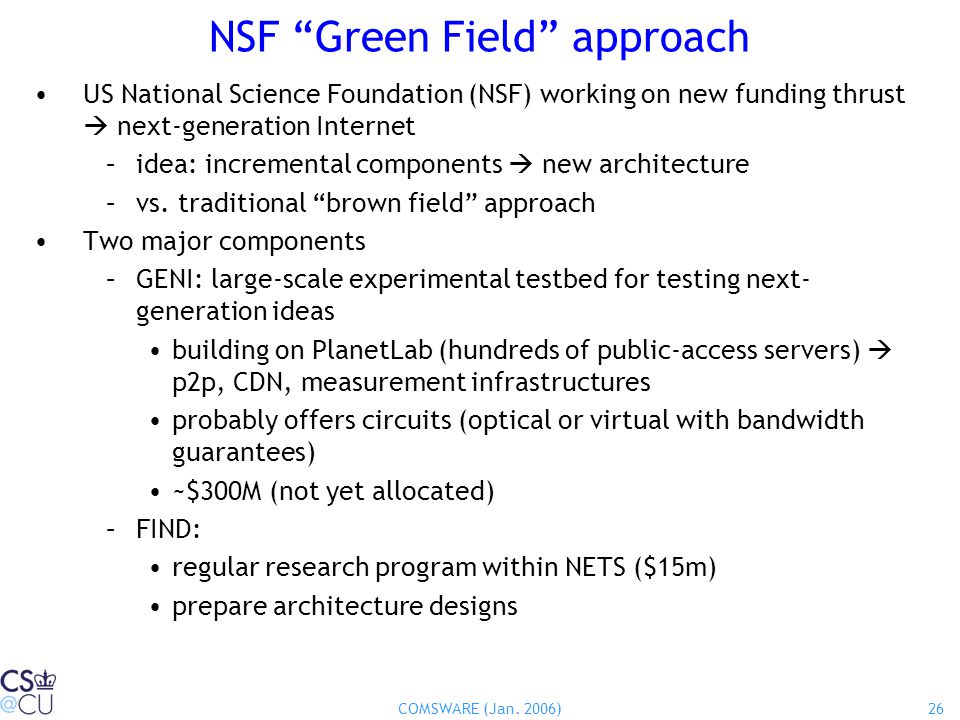

26 COMSWARE (Jan. 2006) 26 NSF “Green Field” approach US National Science Foundation (NSF) working on new funding thrust  next-generation Internet –idea: incremental components  new architecture –vs. traditional “brown field” approach Two major components –GENI: large-scale experimental testbed for testing next- generation ideas building on PlanetLab (hundreds of public-access servers)  p2p, CDN, measurement infrastructures probably offers circuits (optical or virtual with bandwidth guarantees) ~$300M (not yet allocated) –FIND: regular research program within NETS ($15m) prepare architecture designs

27 COMSWARE (Jan. 2006) 27 NSF: FIND and GENI, cont’d Fundamental notions: –not constrained by existing Internet architecture Difficulties: –not coordinated  too many moving pieces? –no single research team can do everything –point optimization: Internet for –benchmarks missing how do you compare architectures? are there quantifiable requirements? are there metrics to compare different approaches? Cynic’s prediction based on the past: –IPv6: “you’ll get security, QoS, autoconfiguration, mobility, …” –IPv4: “good ideas, I’ll do those, too”

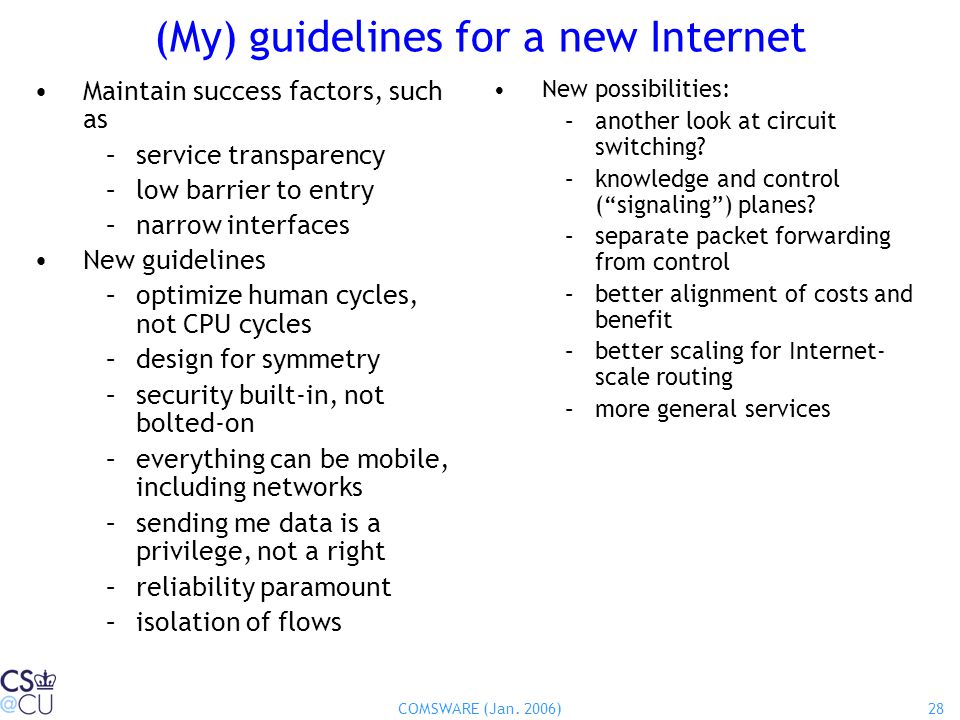

28 COMSWARE (Jan. 2006) 28 (My) guidelines for a new Internet Maintain success factors, such as –service transparency –low barrier to entry –narrow interfaces New guidelines –optimize human cycles, not CPU cycles –design for symmetry –security built-in, not bolted-on –everything can be mobile, including networks –sending me data is a privilege, not a right –reliability paramount –isolation of flows New possibilities: –another look at circuit switching? –knowledge and control (“signaling”) planes? –separate packet forwarding from control –better alignment of costs and benefit –better scaling for Internet- scale routing –more general services

29 COMSWARE (Jan. 2006) 29 More “network” services Currently, very specialized and limited –packet forwarding –DNS for identifier lookup –DHCP for configuration New opportunities –packet forwarding with control –general identifier storage and lookup both server-based and peer-to-peer –SLP/Jini/UDDI service location  ontology-based data store –network file storage  for temporarily-disconnected mobiles –network computation  translation, relaying –trust services (  IRT trust paths work)

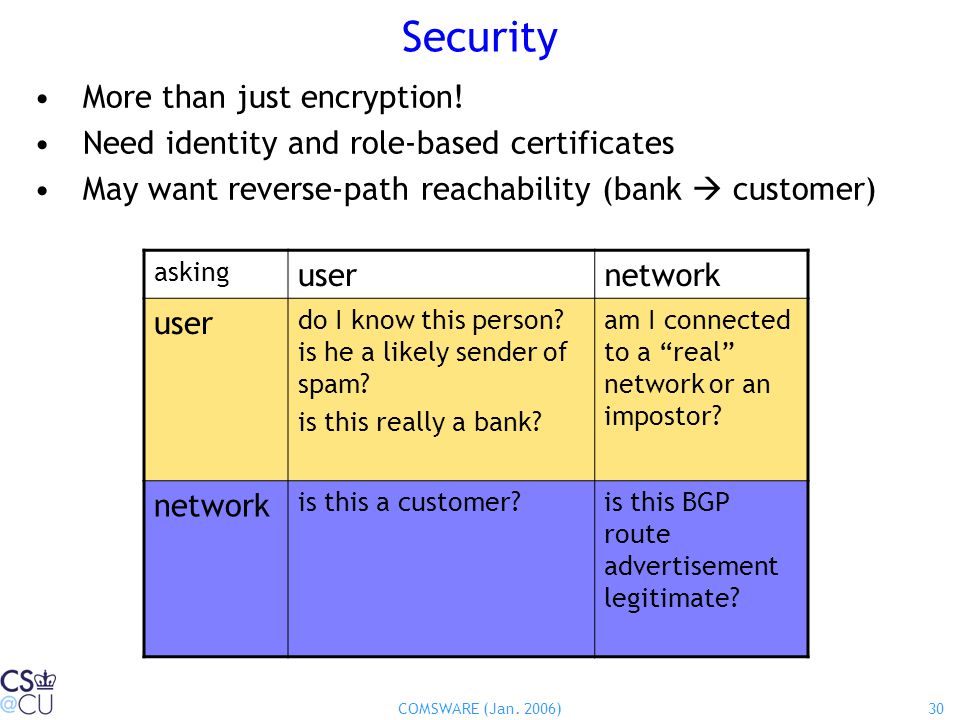

30 COMSWARE (Jan. 2006) 30 Security More than just encryption! Need identity and role-based certificates May want reverse-path reachability (bank  customer) asking usernetwork user do I know this person? is he a likely sender of spam? is this really a bank? am I connected to a “real” network or an impostor? network is this a customer?is this BGP route advertisement legitimate?

31 COMSWARE (Jan. 2006) 31 Summary Traditional protocol engineering –“must do congestion control” –“must do security” –“must be efficient” New module engineering –must reduce operations cost –out-of-the-box experience –re-usable components most protocol design will be done by domain experts (cf. PHP vs. C++) What would a clean-room design look like? –keep what made Internet successful –generalize & adjust to new conditions

32 Managing (VoIP) Applications – DYSWIS Henning Schulzrinne Dept. of Computer Science Columbia University July 2005

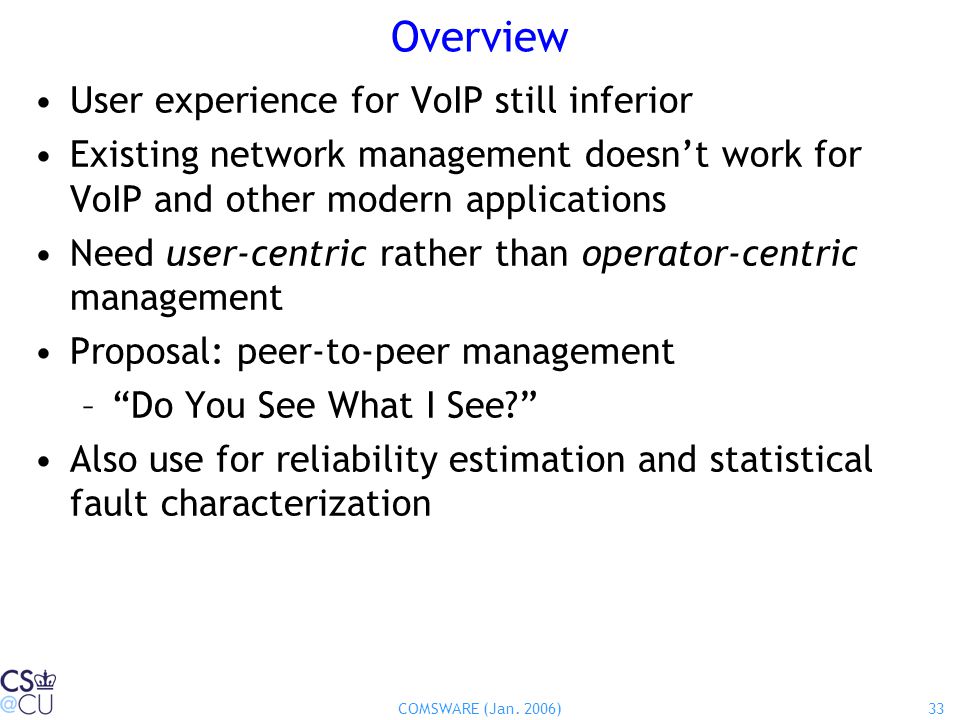

33 COMSWARE (Jan. 2006) 33 Overview User experience for VoIP still inferior Existing network management doesn’t work for VoIP and other modern applications Need user-centric rather than operator-centric management Proposal: peer-to-peer management –“Do You See What I See?” Also use for reliability estimation and statistical fault characterization

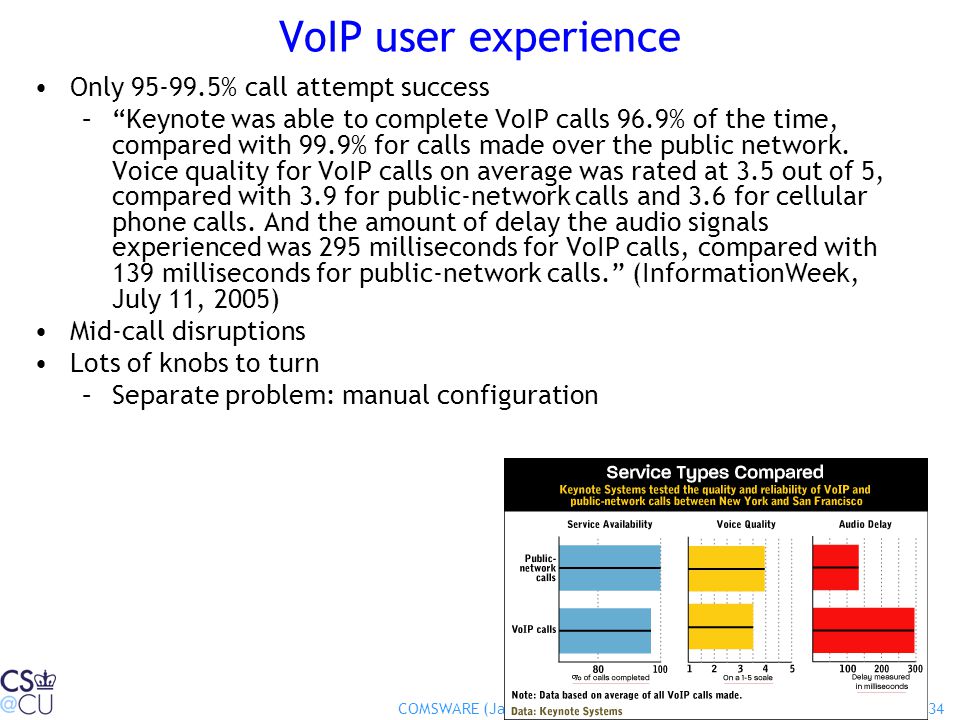

34 COMSWARE (Jan. 2006) 34 VoIP user experience Only 95-99.5% call attempt success –“Keynote was able to complete VoIP calls 96.9% of the time, compared with 99.9% for calls made over the public network. Voice quality for VoIP calls on average was rated at 3.5 out of 5, compared with 3.9 for public-network calls and 3.6 for cellular phone calls. And the amount of delay the audio signals experienced was 295 milliseconds for VoIP calls, compared with 139 milliseconds for public-network calls.” (InformationWeek, July 11, 2005) Mid-call disruptions Lots of knobs to turn –Separate problem: manual configuration

35 COMSWARE (Jan. 2006) 35 Diagnostic undecidability symptom: “cannot reach server” more precise: send packet, but no response causes: –NAT problem (return packet dropped)? –firewall problem? –path to server broken? –outdated server information (moved)? –server dead? 5 causes  very different remedies –no good way for non-technical user to tell Whom do you call?

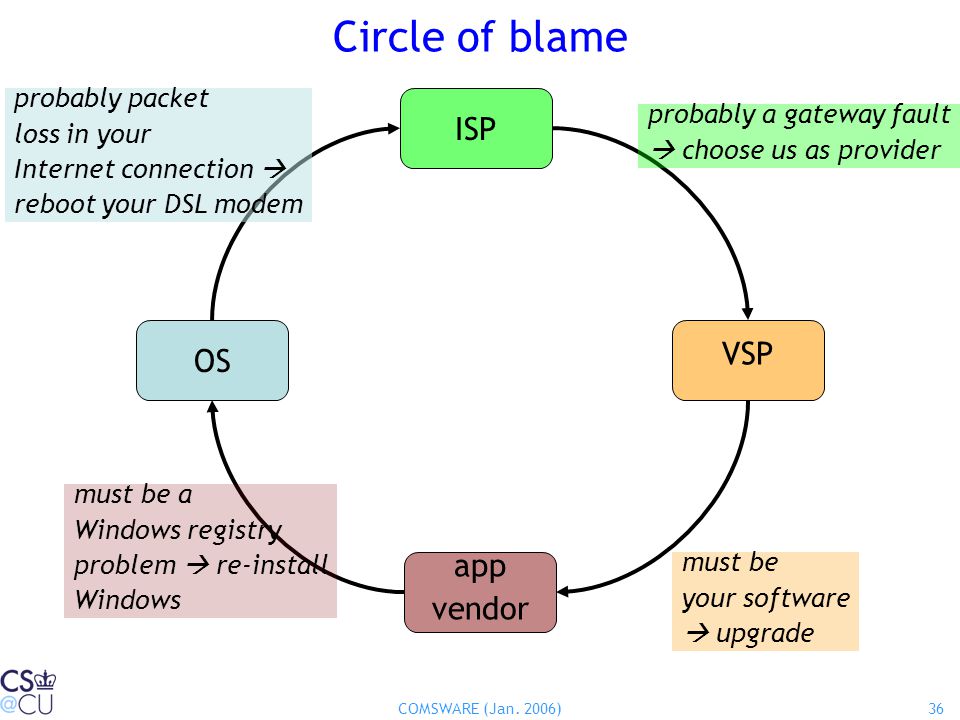

36 COMSWARE (Jan. 2006) 36 Circle of blame OS VSP app vendor ISP must be a Windows registry problem  re-install Windows probably packet loss in your Internet connection  reboot your DSL modem must be your software  upgrade probably a gateway fault  choose us as provider

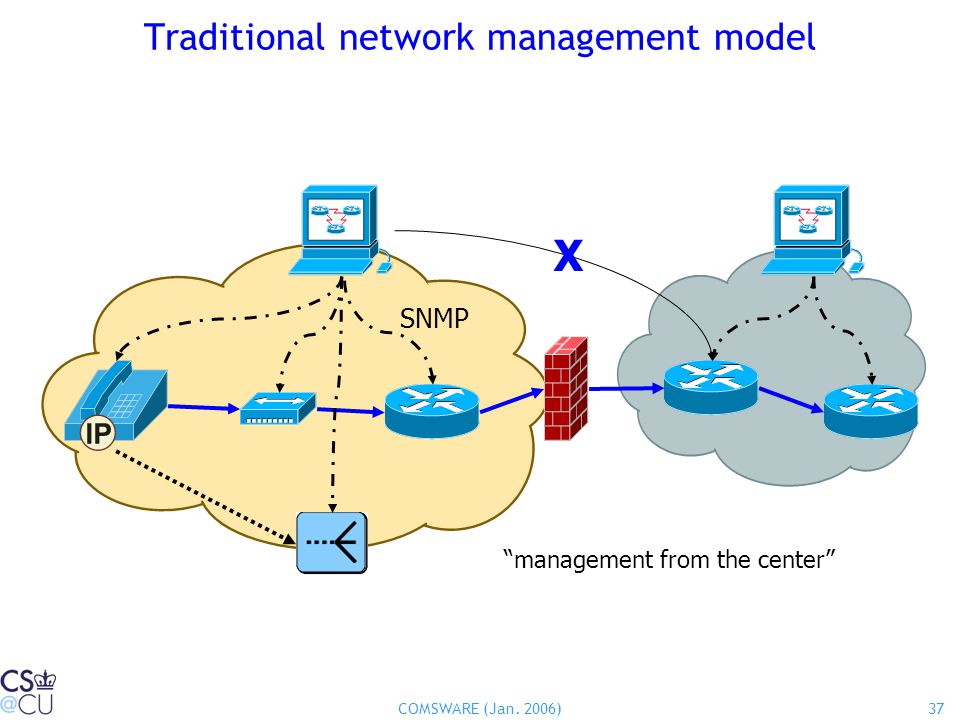

37 COMSWARE (Jan. 2006) 37 Traditional network management model SNMP X “management from the center”

38 COMSWARE (Jan. 2006) 38 Old assumptions, now wrong Single provider (enterprise, carrier) –has access to most path elements –professionally managed Typically, hard failures or aggregate problems –element failures –substantial packet loss Mostly L2 and L3 elements –switches, routers –rarely 802.11 APs Indirect detection –MIB variable vs. actual protocol performance No real end system management –DMI & SNMP never succeeded –each application does its own updates

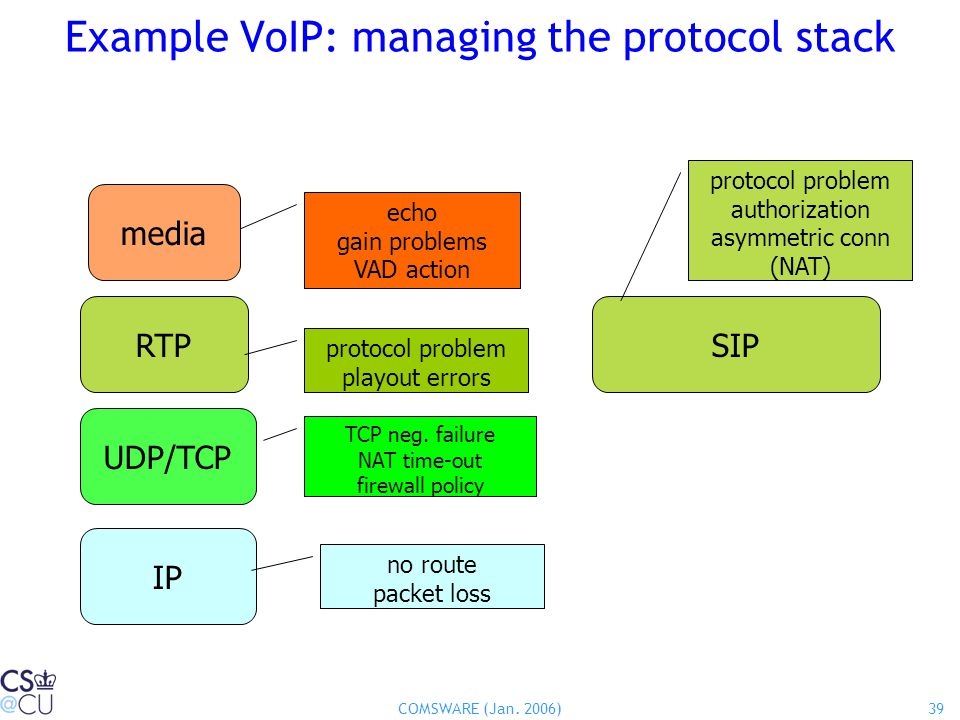

39 COMSWARE (Jan. 2006) 39 Example VoIP: managing the protocol stack RTP UDP/TCP IP SIP no route packet loss TCP neg. failure NAT time-out firewall policy protocol problem playout errors media echo gain problems VAD action protocol problem authorization asymmetric conn (NAT)

40 COMSWARE (Jan. 2006) 40 Example VoIP: call lifecycle view get addresses SIP INVITE get 200 OK REGISTER exchange media terminate call STUN failure auth? registrar ? outbound proxy? dest. proxy? loss? gain? silence suppression?

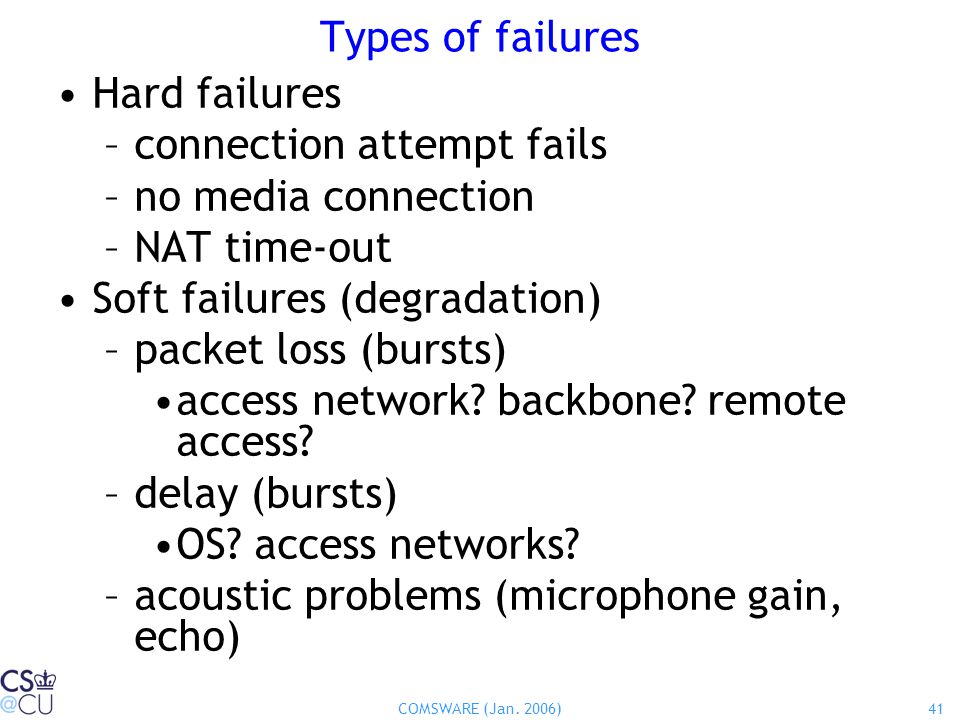

41 COMSWARE (Jan. 2006) 41 Types of failures Hard failures –connection attempt fails –no media connection –NAT time-out Soft failures (degradation) –packet loss (bursts) access network? backbone? remote access? –delay (bursts) OS? access networks? –acoustic problems (microphone gain, echo)

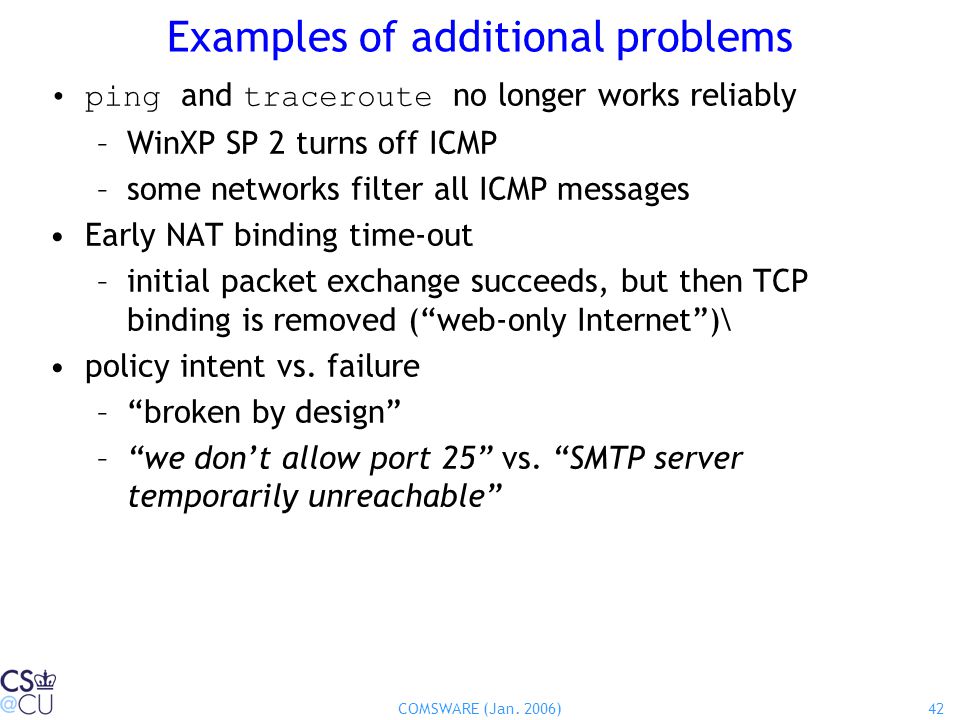

42 COMSWARE (Jan. 2006) 42 Examples of additional problems ping and traceroute no longer works reliably –WinXP SP 2 turns off ICMP –some networks filter all ICMP messages Early NAT binding time-out –initial packet exchange succeeds, but then TCP binding is removed (“web-only Internet”)\ policy intent vs. failure –“broken by design” –“we don’t allow port 25” vs. “SMTP server temporarily unreachable”

43 COMSWARE (Jan. 2006) 43 “Do You See What I See?” Each node has a set of active and passive measurement tools Use intercept (NDIS, pcap) –to detect problems automatically e.g., no response to HTTP or DNS request –gather performance statistics (packet jitter) –capture RTCP and similar measurement packets Nodes can ask others for their view –possibly also dedicated “weather stations” Iterative process, leading to: –user indication of cause of failure –in some cases, work-around (application-layer routing)  TURN server, use remote DNS servers Nodes collect statistical information on failures and their likely causes

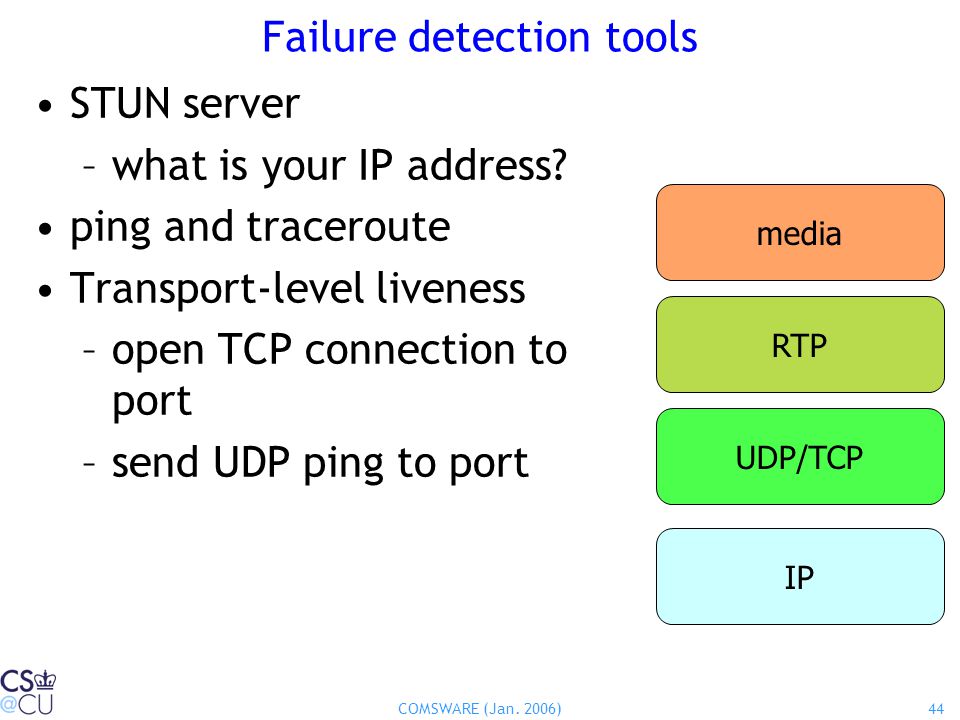

44 COMSWARE (Jan. 2006) 44 Failure detection tools STUN server –what is your IP address? ping and traceroute Transport-level liveness –open TCP connection to port –send UDP ping to port media RTP UDP/TCP IP

45 COMSWARE (Jan. 2006) 45 How to find management peers? Use carrier-provided bootstrap list Previous session partners –e.g., address book Watcher list

46 COMSWARE (Jan. 2006) 46 Need failure statistics Which parts of the network are most likely to fail (or degrade) –access network –network interconnects –backbone network –infrastructure servers (DHCP, DNS) –application servers (SIP, RTSP, HTTP, …) –protocol failures/incompatibility Currently, mostly guesses End nodes can gather and accumulate statistics

47 COMSWARE (Jan. 2006) 47 Conclusion Internet middle-aged  time for reflection can we keep what has worked and re-consider the others? need to work on control, management and reflection opportunity for new building blocks vs. classical middleware opportunity
