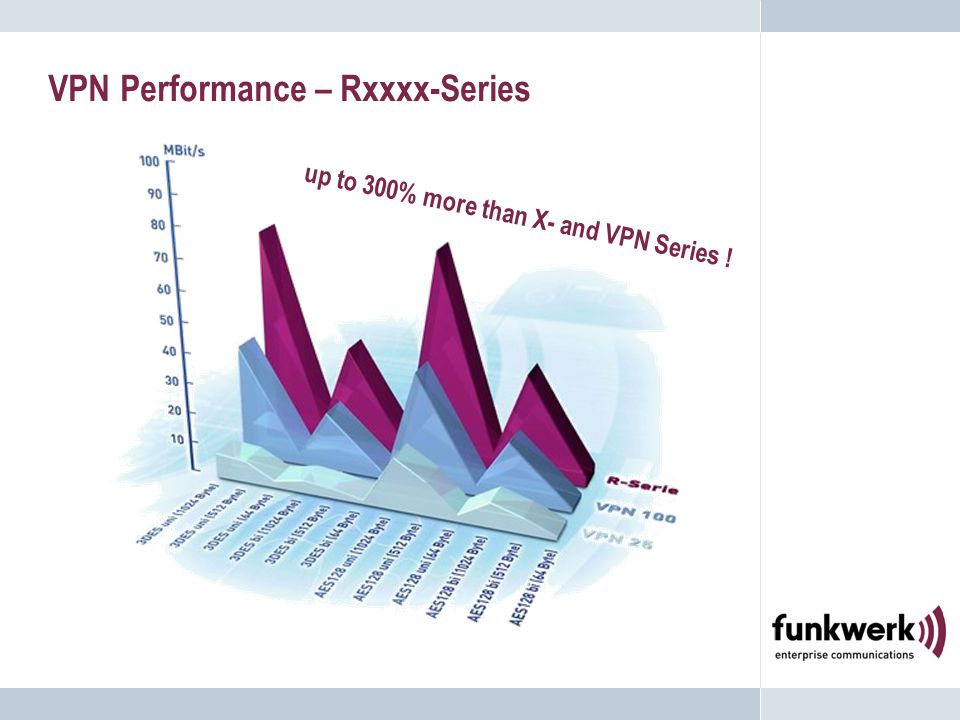

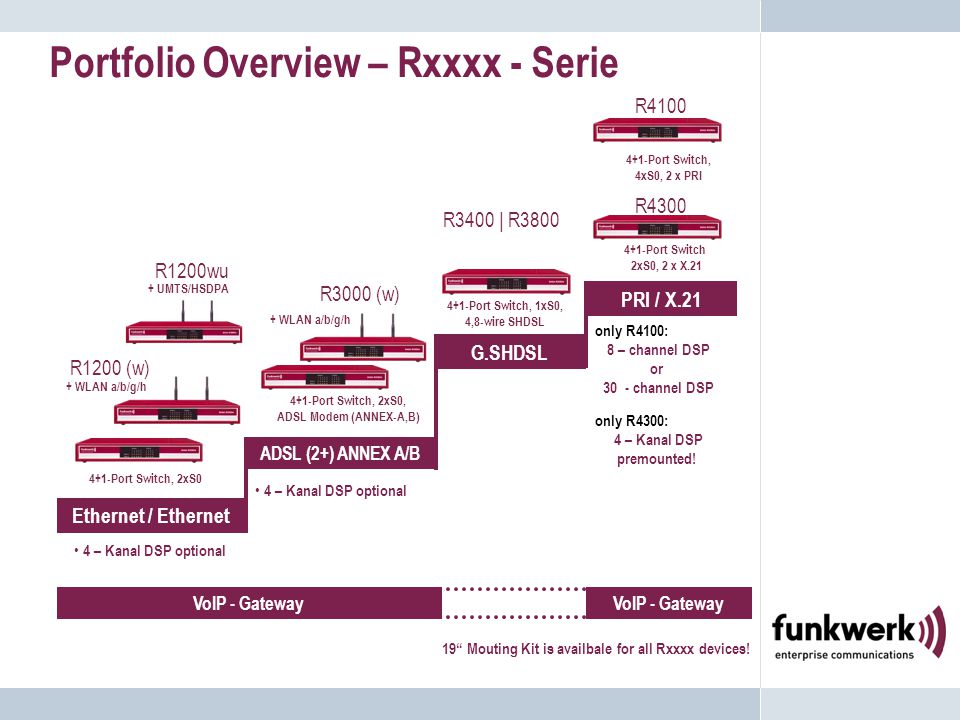

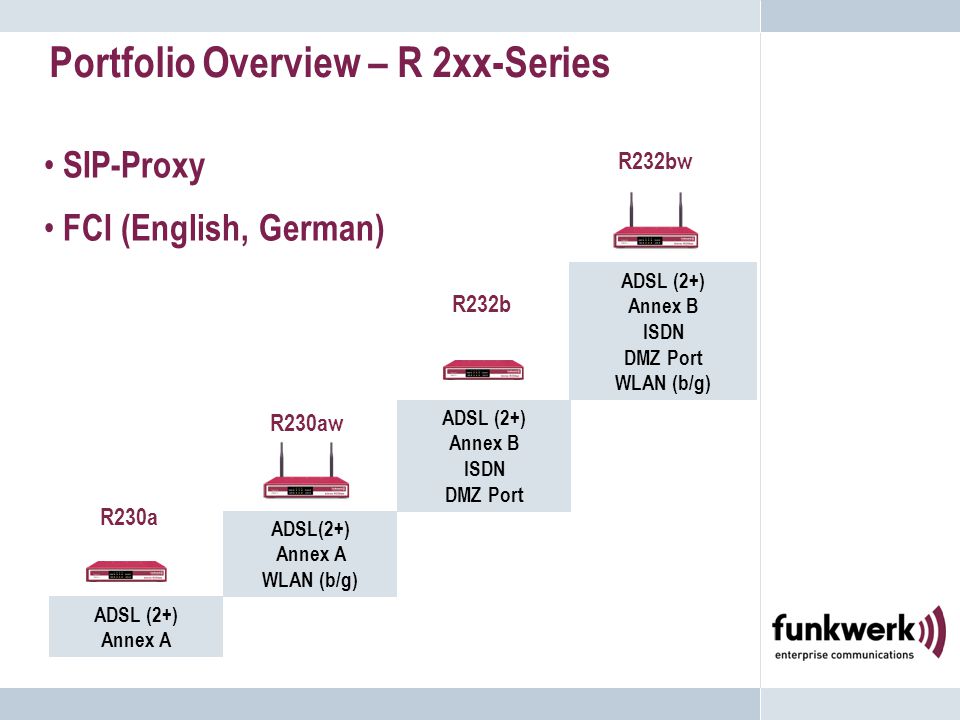

VPN Performance – Rxxxx-Series up to 300% more than X- and VPN Series !
Comparison – R-Series (short version) available at www.funkwerk-ec.com ! www.funkwerk-ec.com
Comparison – R-Series (long version) available at www.funkwerk-ec.com ! www.funkwerk-ec.com
Current Product Maintenance avtivities (PM) Introduction of wide range Power-Supplies (110V-240V, EU and UK) Rxxx and Rxxxx – Series (only one PSU for Rxxx and one for Rxxxx) New antennas with improved mechanical behavior for Rxxxx WLAN devices Change of labels & material of the Rxxxx series Unused LEDs will be hidden Renaming of ISDN to BRI Rearlabel will get the device name in the upper left corner Mechanical Improvements (SHDSL-Module, New Packaging, etc.) R3000w

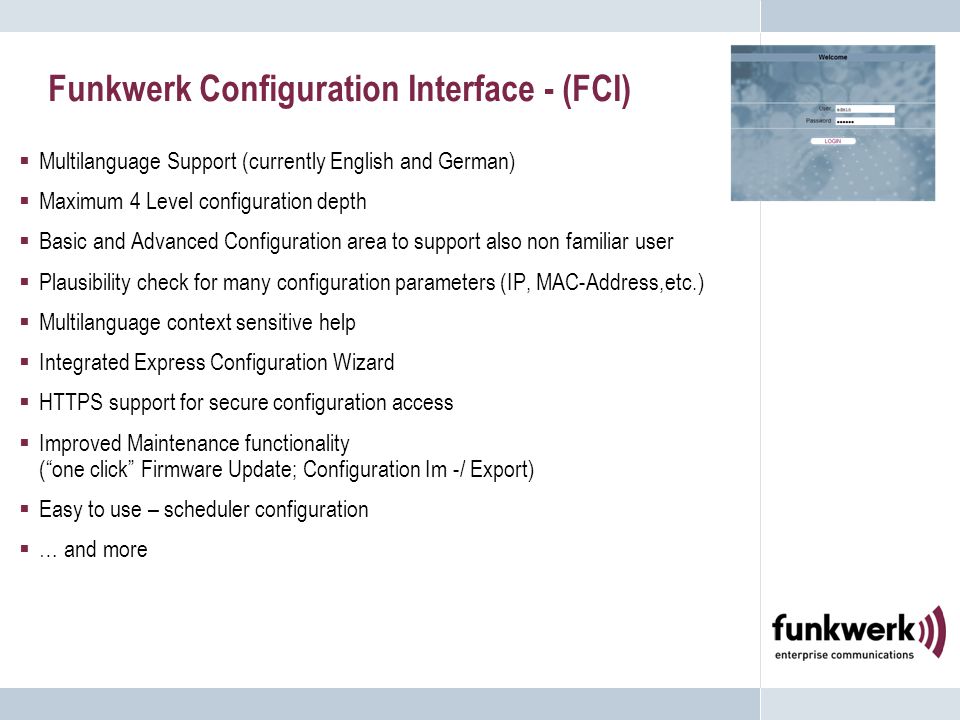

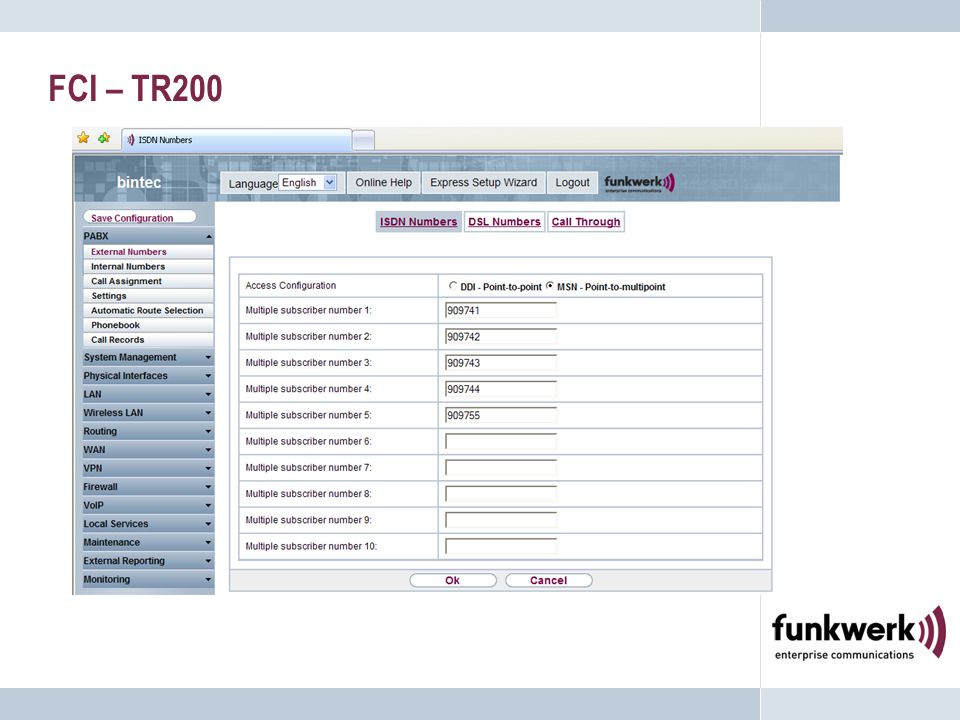

Multilanguage Support (currently English and German) Maximum 4 Level configuration depth Basic and Advanced Configuration area to support also non familiar user Plausibility check for many configuration parameters (IP, MAC-Address,etc.) Multilanguage context sensitive help Integrated Express Configuration Wizard HTTPS support for secure configuration access Improved Maintenance functionality (“one click” Firmware Update; Configuration Im -/ Export) Easy to use – scheduler configuration … and more Funkwerk Configuration Interface - (FCI)
IP-Access – Release 7.5 Product Marketing February 2007

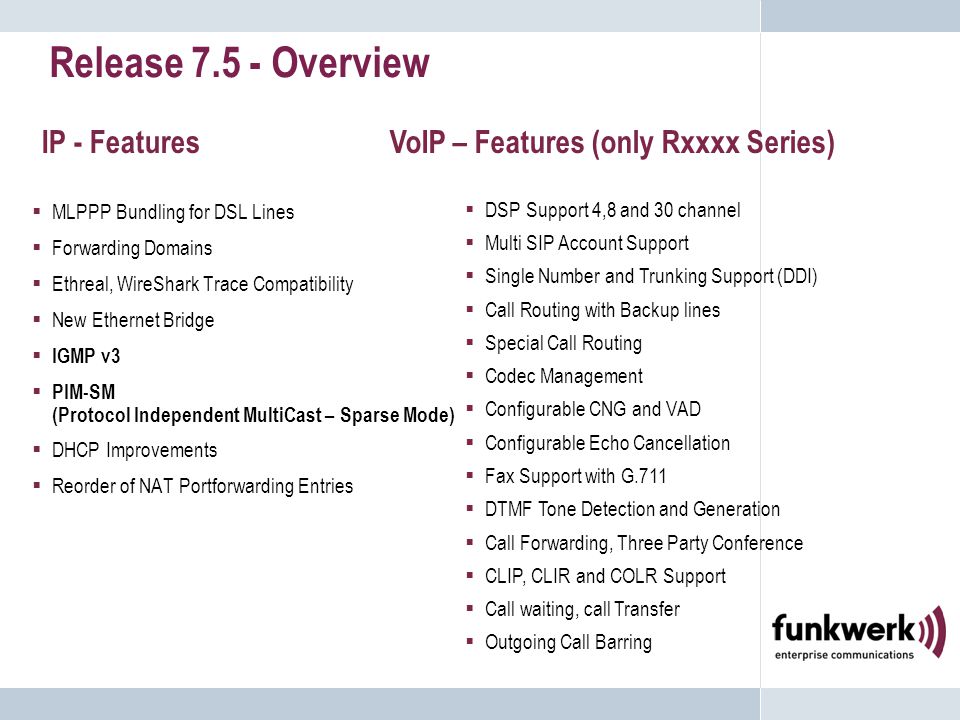

Release 7.5 - Overview IP - FeaturesVoIP – Features (only Rxxxx Series) MLPPP Bundling for DSL Lines Forwarding Domains Ethreal, WireShark Trace Compatibility New Ethernet Bridge IGMP v3 PIM-SM (Protocol Independent MultiCast – Sparse Mode) DHCP Improvements Reorder of NAT Portforwarding Entries DSP Support 4,8 and 30 channel Multi SIP Account Support Single Number and Trunking Support (DDI) Call Routing with Backup lines Special Call Routing Codec Management Configurable CNG and VAD Configurable Echo Cancellation Fax Support with G.711 DTMF Tone Detection and Generation Call Forwarding, Three Party Conference CLIP, CLIR and COLR Support Call waiting, call Transfer Outgoing Call Barring

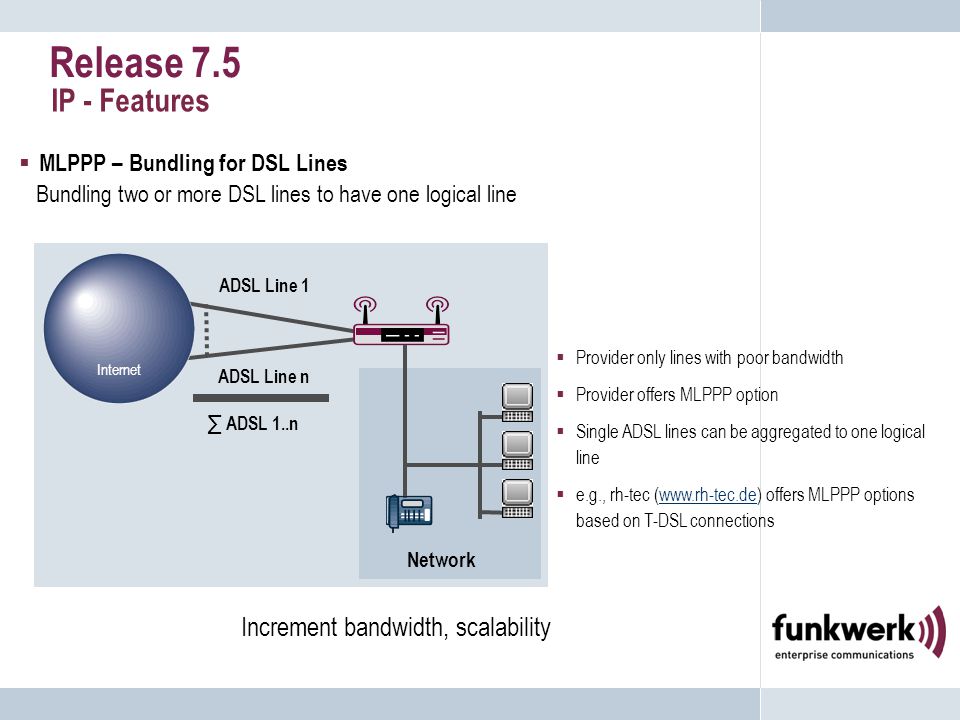

Release 7.5 IP - Features MLPPP – Bundling for DSL Lines ADSL Line 1 Provider only lines with poor bandwidth Provider offers MLPPP option Single ADSL lines can be aggregated to one logical line e.g., rh-tec (www.rh-tec.de) offers MLPPP options based on T-DSL connectionswww.rh-tec.de Bundling two or more DSL lines to have one logical line Internet ADSL Line n ∑ ADSL 1..n IP-Phone Network Increment bandwidth, scalability
Release 7.5 IP - Features Domain Forwarding Name resolution is managed by different DNS Serves, e.g. dependant on location Requests for sub-x.corp.com can be forwarded to the dedicated DNSserver(s), also through VPN Different name-spaces are controlled by different DNS-Servers HQ DNS-Server Internal DNS-Server www.funkwerk-ec.com VPN Media-Gateway Internet Subsidiaries intranet.corp.com sub-x.corp.com DNS fexible concept for name resolution requests, more scalable, more reliable
Release 7.5 IP - Features Ethreal, WireShark Trace Compatibility Device offers trace data for all interfaces (also ADSL) Data can be stored as a file out of the BRICK- Ware tools and imported into WireShark Many application filters are available Analyzer tool and Plug-Ins are free of charge VoIP calls can be analyzed also in a graphical manner Powerful traceability to a common analyzer format PC graphical analysis of VoIP- Calls dataflow analysis down to packet level
Release 7.5 IP - Features IGMPv3, (RTSP-Proxy), PIM-SM Provider Carrier Backbone Set-Top Box WLAN Streaming Client MultiCast IGMP-Messages Provider offers Multi-Cast Data (e.g. IP-TV, VoD) Data must be forwarded to the Set-Top Box, WLAN Streaming Client or PC User controls the Data Flow with Remote Control Unit from the Set-Top Box to Switch between different TV channels CPE act as a proxy / forwarder and send / receive the IGMP messages to control the dataflow from the provider to the customer e.g. video surveillance (multiple sources to dedicated subscribers) PC bandwidth preservation, data-flow control, data-distribution

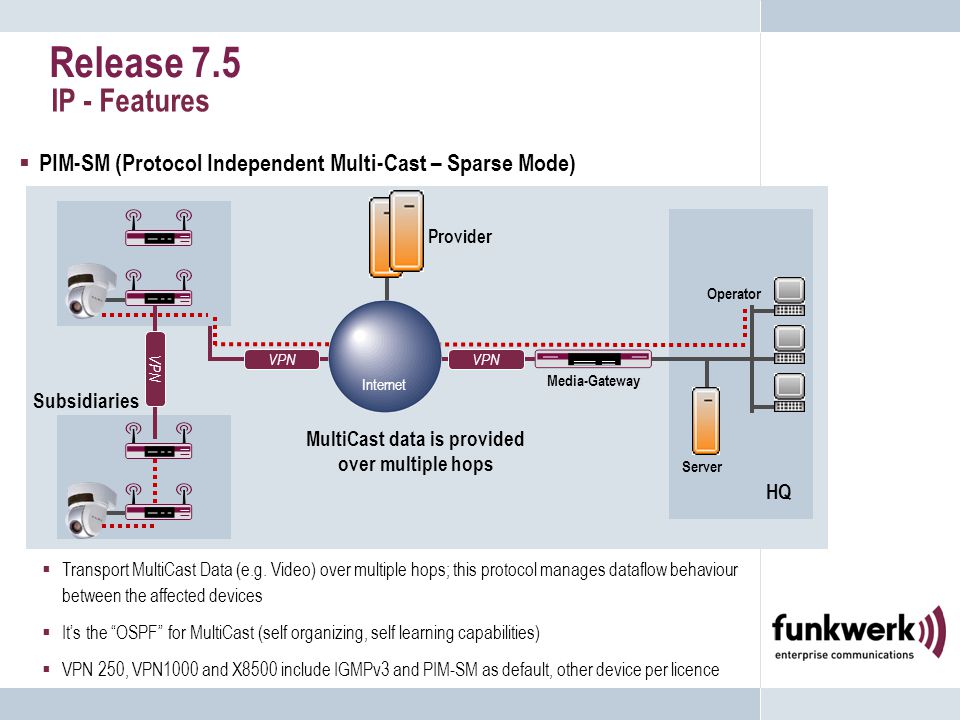

Release 7.5 IP - Features PIM-SM (Protocol Independent Multi-Cast – Sparse Mode) HQ Provider Server VPN Media-Gateway Subsidiaries MultiCast data is provided over multiple hops Transport MultiCast Data (e.g. Video) over multiple hops; this protocol manages dataflow behaviour between the affected devices It’s the “OSPF” for MultiCast (self organizing, self learning capabilities) VPN 250, VPN1000 and X8500 include IGMPv3 and PIM-SM as default, other device per licence Internet VPN Operator

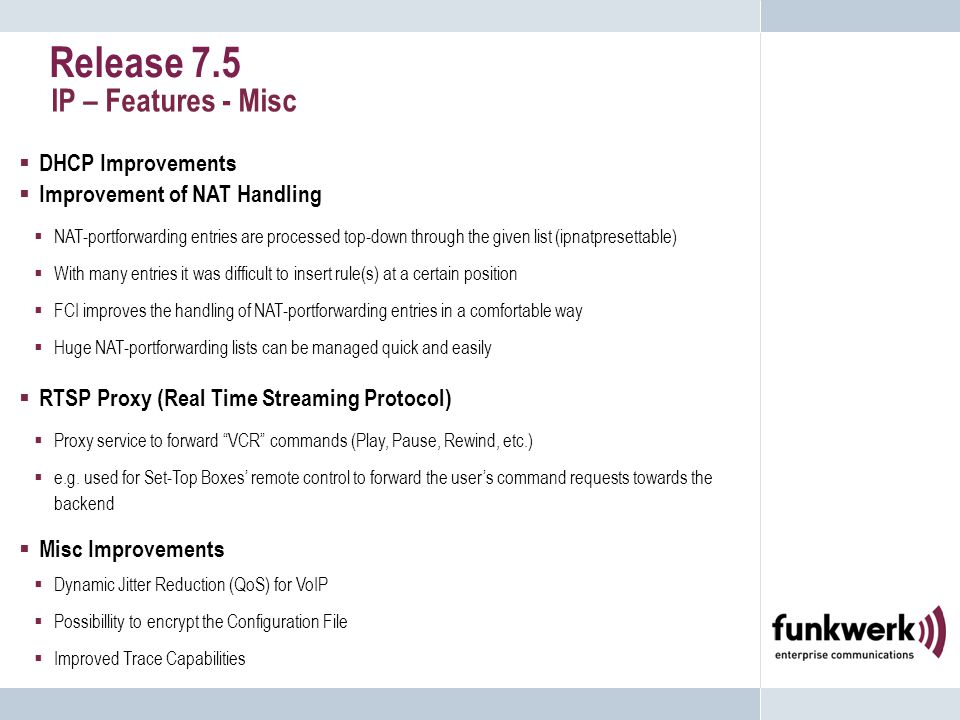

Release 7.5 IP – Features - Misc DHCP Improvements NAT-portforwarding entries are processed top-down through the given list (ipnatpresettable) With many entries it was difficult to insert rule(s) at a certain position FCI improves the handling of NAT-portforwarding entries in a comfortable way Huge NAT-portforwarding lists can be managed quick and easily Improvement of NAT Handling RTSP Proxy (Real Time Streaming Protocol) Proxy service to forward “VCR” commands (Play, Pause, Rewind, etc.) e.g. used for Set-Top Boxes’ remote control to forward the user’s command requests towards the backend Misc Improvements Dynamic Jitter Reduction (QoS) for VoIP Possibillity to encrypt the Configuration File Improved Trace Capabilities
Release 7.5 VoIP – Features Hardware & Licenses ArtNr. DescriptionPublic Price 24267 R1200x/R3000x-4DSP 129,00€ (User has already bought a 1BRI License) 24268 R1200x-4DSP-1BRI 249,00€ (User has neither 1BRI nor DSP) 24468 R3000x-4DSP-1BRI 249,00€ (User has neither 1BRI nor DSP) 24567 R4100-8DSP 239,00€ (User has already bought a 2BRI License) 24568 R4100-8DSP-2BRI 749,00€ (User has neither 2BRI nor DSP)

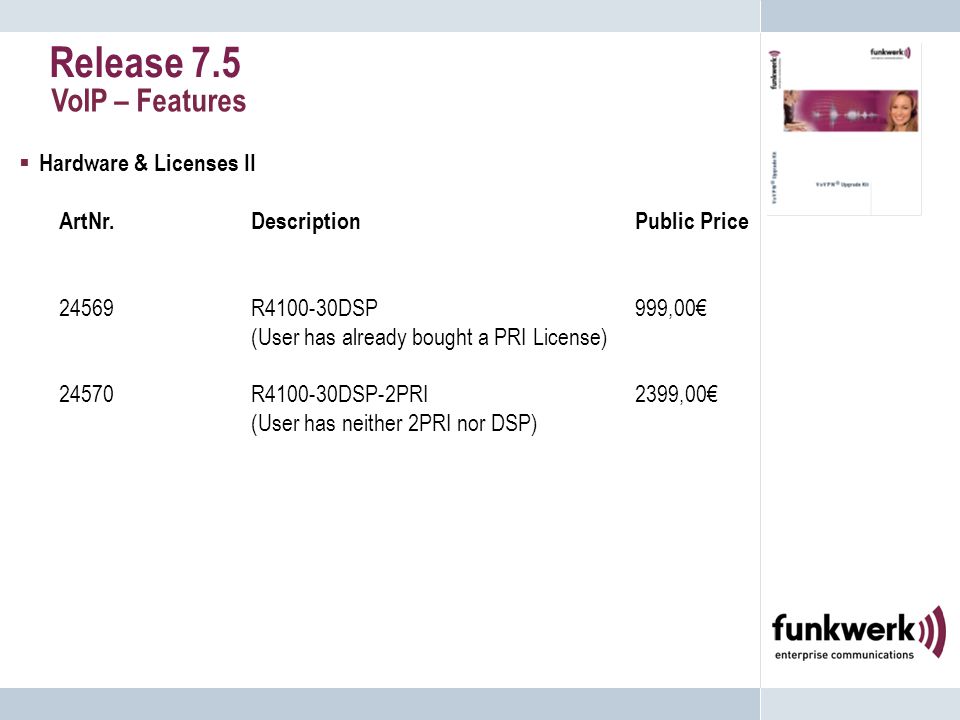

Release 7.5 VoIP – Features Hardware & Licenses II ArtNr. DescriptionPublic Price 24569 R4100-30DSP 999,00€ (User has already bought a PRI License) 24570R4100-30DSP-2PRI 2399,00€ (User has neither 2PRI nor DSP)

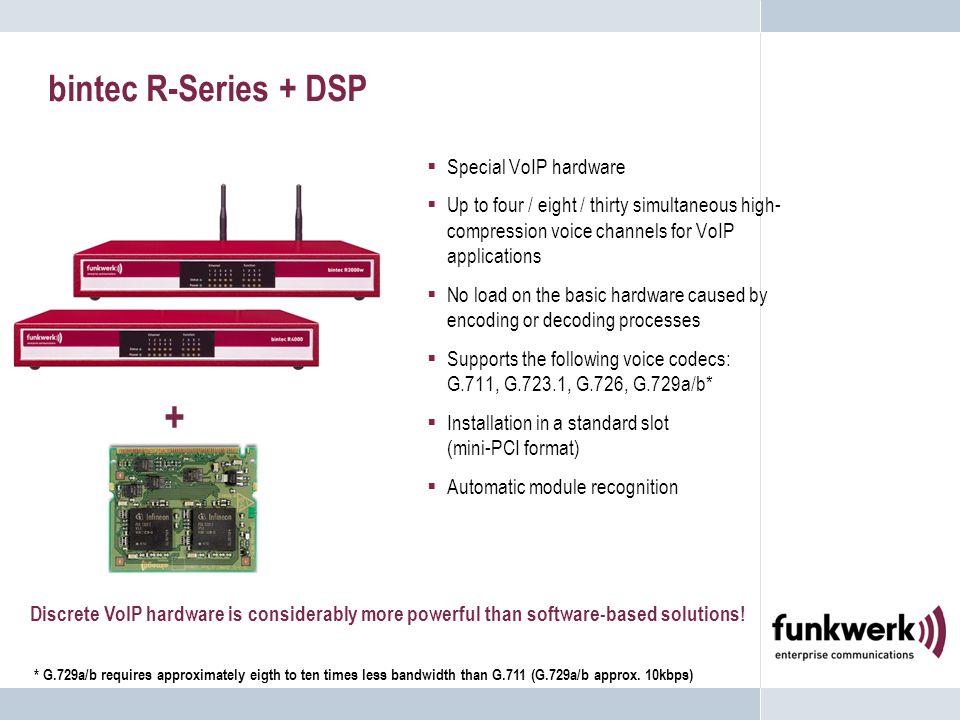

bintec R-Series + DSP + Special VoIP hardware Up to four / eight / thirty simultaneous high- compression voice channels for VoIP applications No load on the basic hardware caused by encoding or decoding processes Supports the following voice codecs: G.711, G.723.1, G.726, G.729a/b* Installation in a standard slot (mini-PCI format) Automatic module recognition * G.729a/b requires approximately eigth to ten times less bandwidth than G.711 (G.729a/b approx. 10kbps) Discrete VoIP hardware is considerably more powerful than software-based solutions!
bintec R-Series + DSP + Every VoIP Gateway product is already prepared with a cover inside sticker which shows how to do the jumper settings to configure ISDN interface modes!
Release 7.5 VoIP – Features Multi SIP Account, Single Number, SIP Trunking S0S0 Media-Gateway LAN IP-Phone VoIP Provider IP-Phone ISDN-Phone S 0 phones connected (registered) to the Media-Gateway IP-Phones phones connected (registerede) to the Media-Gateway (LAN) internal calls between ISDN-Phones and IP-Phones (with or without SIP Provider interaction/availability!) calling from IP-Phones / ISDN Phones ISDN or via SIP-Provider calling to IP-Phones / ISDN Phones from ISDN or SIP-Provider Internet VoIP Provider IP-Phone
Release 7.5 VoIP – Features Echo Cancellation, CNG (Comfort Noise Generation), VAD (Voice Activity Detection) Speech quality parameters are configurable with dedicated settings Codec Management (Priority sequence, Codec priorisation, packet length) S0S0 Media-Gateway LAN IP-Phone VoIP Provider IP-Phone ISDN-Phone Internet VoIP Provider IP-Phone
Release 7.5 VoIP – Features “Basic” Call Routing with Backup Lines Up to two „voice backup routes“ can be configured for every extension (e.g. SIP, SIP, ISDN) S0S0 Media-Gateway S0S0 LAN IP-Phone VoIP Provider Internet ISDN-Phone PSTN IP-Phone ISDN-Phone VoIP Provider IP-Phone default 1st backup 2nd backup
Release 7.5 VoIP – Features Advanced Call Routing / Call Mapping Dedicated numbers or number ranges can be routed to dedicated lines Wildcard capability (e.g. 0033# via SIP Provider) Routing of emergency numbers (110, 112, 911, etc.) ISDN B-channel can be forced to drop an existing connection if emergency number is dialled Incoming call can be mapped to specific extension (LAN, ISDN, etc.) depending on the dialled number Outgoing calls to unwanted destinations can be processed, also with wildcard and exceptions e.g. 0900# is not allowed as destination, but 090012345678 is allowed
Release 7.5 VoIP – Features “Legacy” telephony features support DTMF Tone Detection and Generation (Inband / Outband) CLIP ( Calling Line Identification Presentation ) CLIR ( Calling Line Identification Restriction ) COLR ( Connected Line Identification Restriction ) Call Waiting Call Transfer Three party conference (will be processed by the DSP) ….

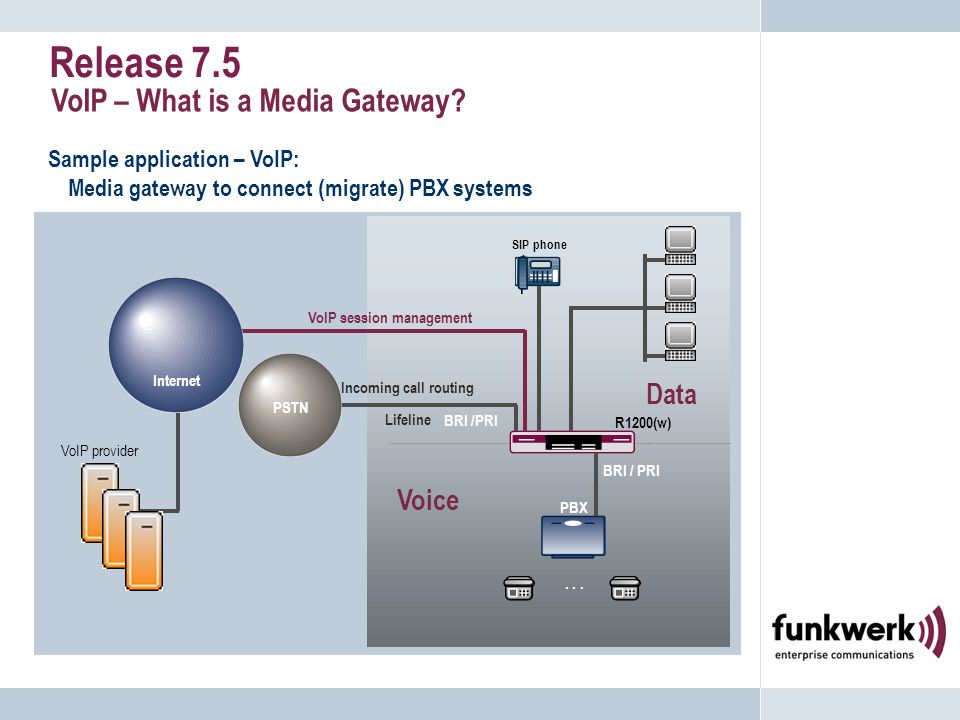

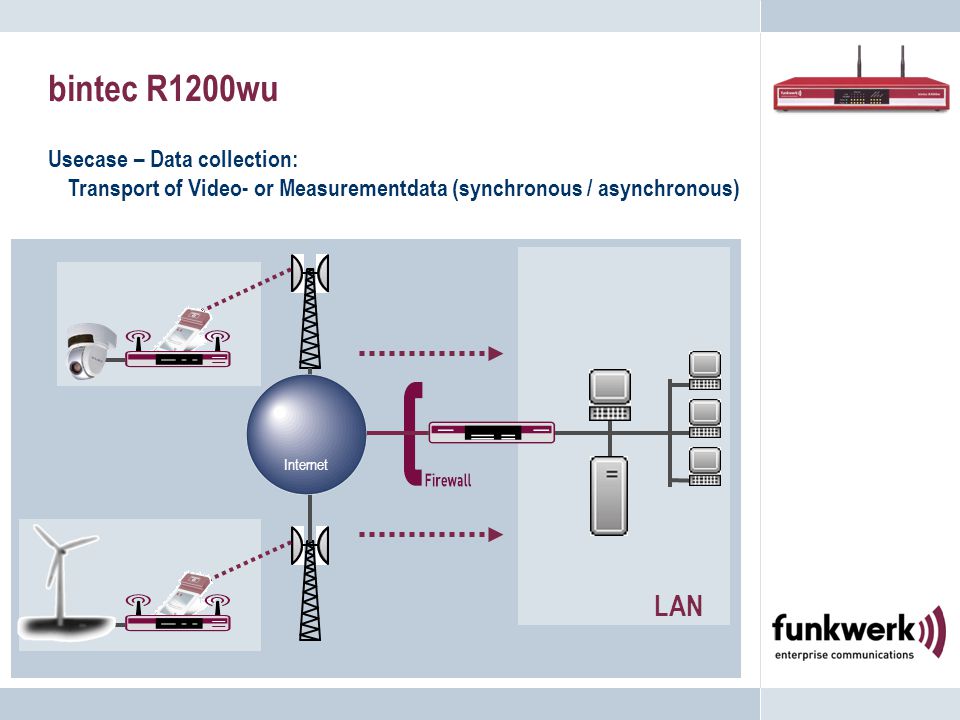

Sample application – VoIP: Media gateway to connect (migrate) PBX systems Data SIP phone VoIP session management PBX... BRI / PRI Voice PSTN Incoming call routing Lifeline R1200(w) BRI /PRI VoIP provider Internet Release 7.5 VoIP – What is a Media Gateway?
Release 7.5 VoIP – Solutions I S0S0 S 0 / S2m LAN IP-Phone Fax ISDN-Phone ISDN-PBX analogue Phone Media-Gateway Internet VoIP Provider IP-Phone PSTN ISDN-Phone Media-Gateway as a subordinate device to the PABX – internally connected ISDN and analogue Phones / Fax connected to the PABX IP-Phones phones connected to the Media-Gateway (LAN) Internal calls between ISDN / analogue-Phones and IP-Phones (with or without SIP Provider interaction/availability!) calling from IP-Phones / ISDN / analogue Phones ISDN or via SIP-Provider calling to IP-Phones / ISDN / analogue Phones from ISDN or SIP-Provider
Release 7.5 VoIP – Solutions II S 0 / S2m Media-Gateway S 0 / S2m Fax ISDN-Phone ISDN-PBX analogue Phone LAN IP-Phone VoIP Provider Internet IP-Phone ISDN-Phone PSTN Media-Gateway as a superior device to the PABX ISDN and analogue Phones / Fax connected to the PABX IP-Phones phones connected to the Media-Gateway (LAN) Internal calls between ISDN / analogue-Phones and IP-Phones (with or without SIP Provider interaction/availability!) calling from IP-Phones / ISDN / analogue Phones ISDN or via SIP-Provider calling to IP-Phones / ISDN / analogue Phones from ISDN or SIP-Provider
Release 7.5 VoIP – Solutions III S 0 / S2m Media-Gateway S 0 / S2m Fax ISDN-Phone ISDN-PBX analogue Phone LAN IP-Phone Fax ISDN-Phone LAN IP-Phone S 0 / S2m Media-Gateway ISDN-PBX S 0 / S2m VoIP Provider Internet VPN ISDN-Phone PSTN IP-Phone analogue Phone Site to Site connection via VPN (two or more connected sites) ISDN and analogue Phones / Fax connected to the PABX IP-Phones phones connected to the Media-Gateway (LAN) Internal / Site to Site calls between ISDN / analogue-Phones and IP-Phones (with or without SIP Provider interaction/availability! – SIP Provider is not mandatory) calling from IP-Phones / ISDN / analogue Phones ISDN or via SIP-Provider calling to IP-Phones / ISDN / analogue Phones from ISDN or SIP-Provider Unification of Telephone Numbers
IP-Access – New Products Product Marketing February 2007
Funkwerk FEC Secure IPSec Client V2.0 Availability – CeBit 2007 Windows Vista (only 32bit versions) compatible 64 bit Version, approx. Q3-4/2007 Will provided on the next version of Companion CD Registration process (Online Activation)! German / English version will be available Will be handled as “Major Upgrade” No additional license fee if Version 1.3x License was purchased after 1.12.2006

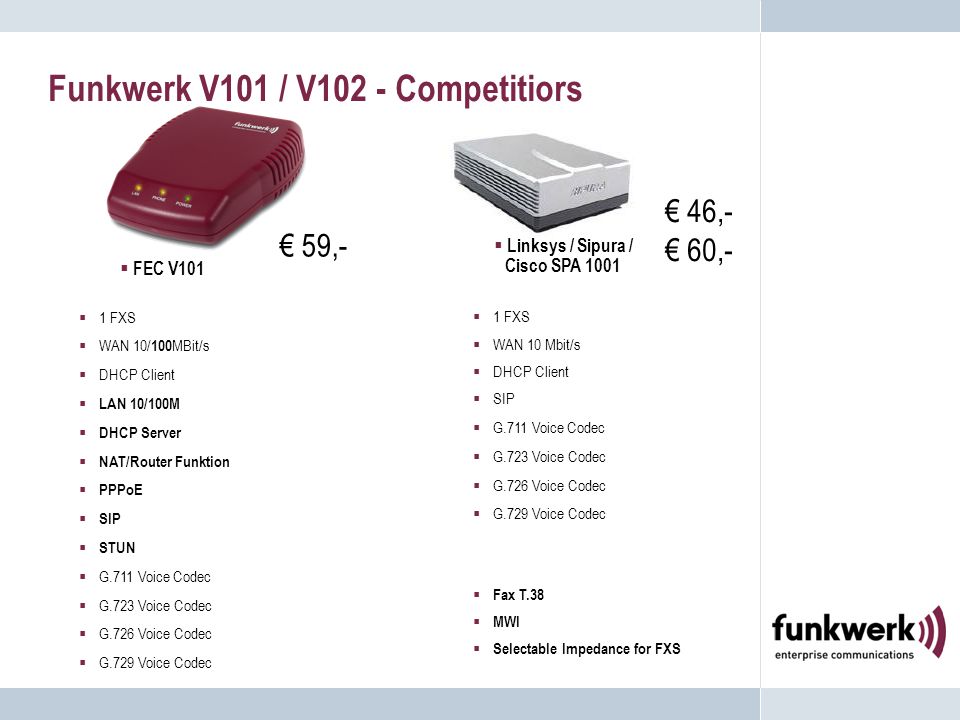

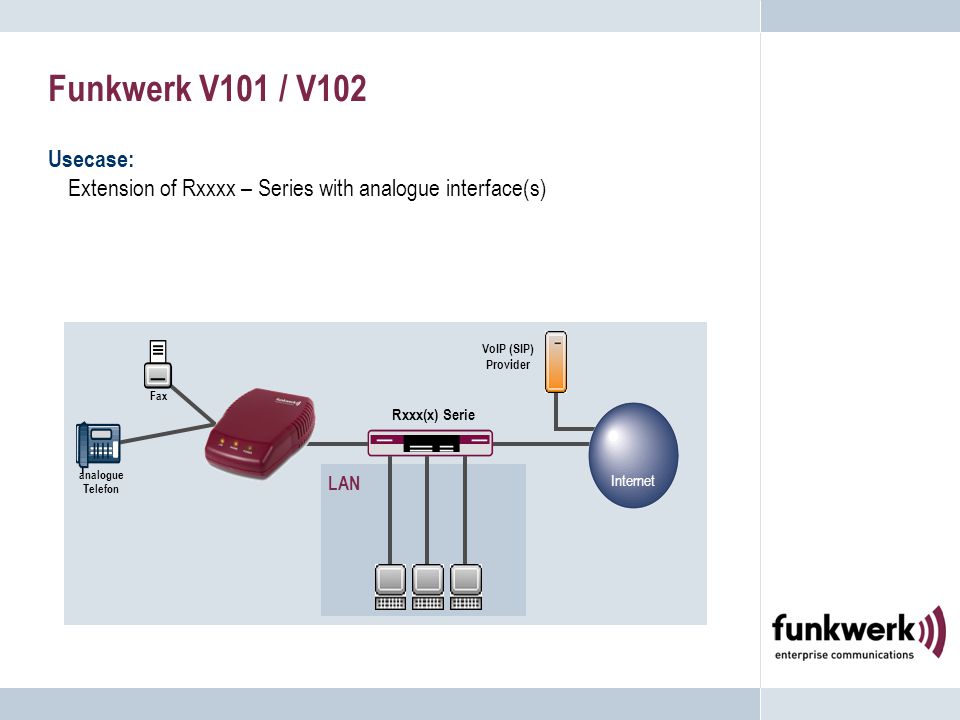

bintec R2xx V101/V102 EUMEX 800 Funkwerk TR200xw VoIP Voice Data WLAN artem Butterfly Funkwerk TR200xw – Full convergent device
WLAN (TI-1350A) 802.11 b/g – one external antenna ADSL 2/2+ modem integrated (ANNEX A/B with separate devices) 2-S0 (internal / external fixed) LAN 4 ports 10/100 (can be separated) 2 FXS 1 FXO with relais for lifeline in case of power loss 4 channel DSP integrated metal housing – like X2300 non compact series PBX features from EUMEX 800-V (German Telekom) full IP-Access features from bintec R2xxw Series Funkwerk TR200xw
USPs & Highlights Telefonie Rückfrage, Halten, Makeln, 3er Konferenz Rufnummerunterdrückung (CLIP, CLIR) Anrufweiterschaltung (CFU, CFB, CFNR) Anrufschutz (Ruhe vor dem Telefon), Spontane Amtsholung Pick Up (Ruf heranholen) Call Deflection - Rufe weiterleiten vor Annahme Call Through CCBS, CCNR - Autom. Rückruf bei - Besetzt, - Nichtmelden Direktruf (Babyruf/Seniorenruf) Mehrgeräteanschluss (P-MP), Durchwahl/Anlagenanschluss (P-P) Follow me (AWS nachziehend) Message Waiting Indication extern/intern (nur ISDN) Notrufnummern/-vorrangschaltung Amtsberechtigung für interne Teilnehmer (6 Stufen) Sperrwerke und Freiwerke Telefonbuch, Kurzwahl aus dem Telefonbuch Wiederanruf nach Zeit dreistellige Rufnummern-Länge – frei konfigurierbar 10 Notrufnummern, 10 Direktrufnummern Interner Kalender mit zwei Schaltzeitpunkten 50 Telefonbucheinträge 2 Interne Wartemusiken Diskrete DSP Kanäle für Medienübergang
Funkwerk TR200xw Usecase – IP-Access: VPN to the HQ via IPSec, local telephony ADSL (2+) DSL Modem IPSec Tunnel Subsidaries, Home-OfficesHQ ISDN Internet ISDN telephoneAnalogue telephone

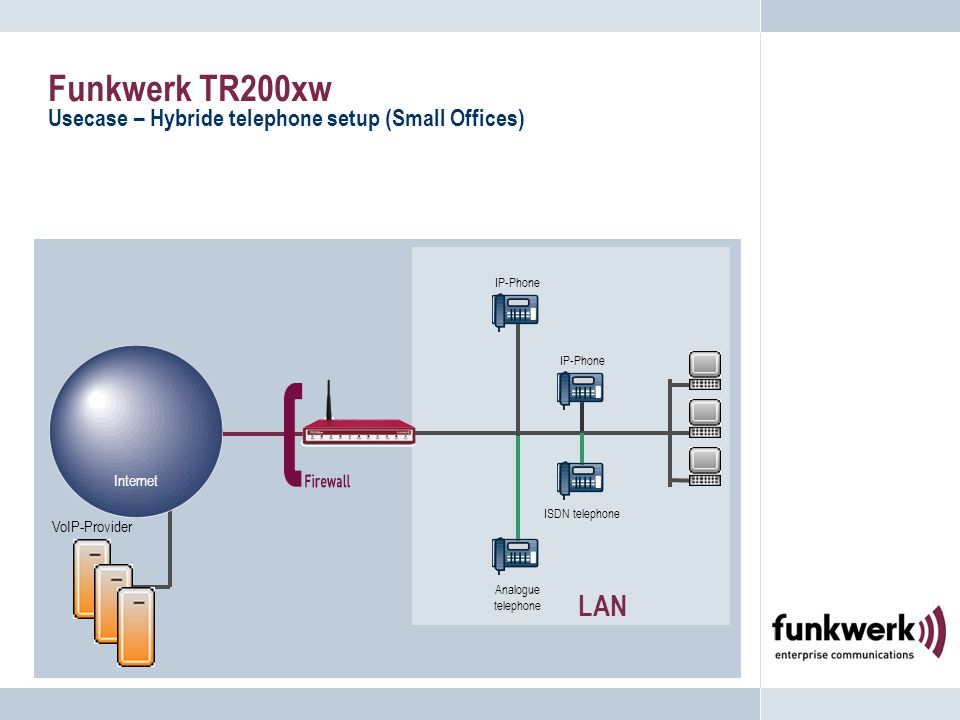

Funkwerk TR200xw Usecase – Hybride telephone setup (Small Offices) LAN IP-Phone ISDN telephone VoIP-Provider Internet Analogue telephone IP-Phone

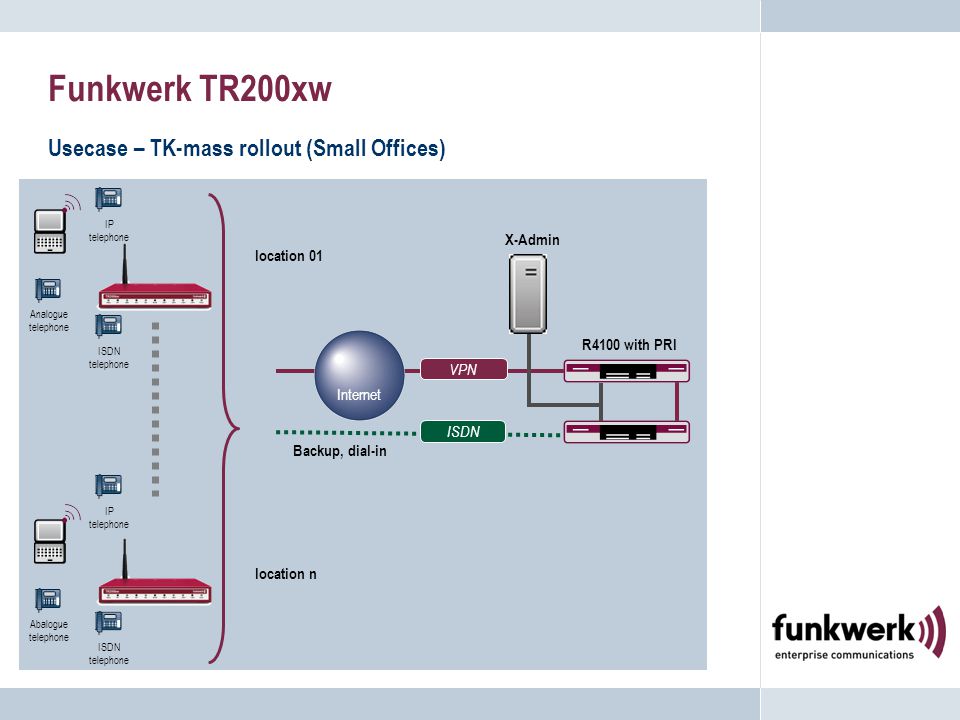

Funkwerk TR200xw Usecase – TK-mass rollout (Small Offices) VPN X-Admin Internet R4100 with PRI Backup, dial-in ISDN location 01 location n Analogue telephone ISDN telephone IP telephone Abalogue telephone ISDN telephone IP telephone

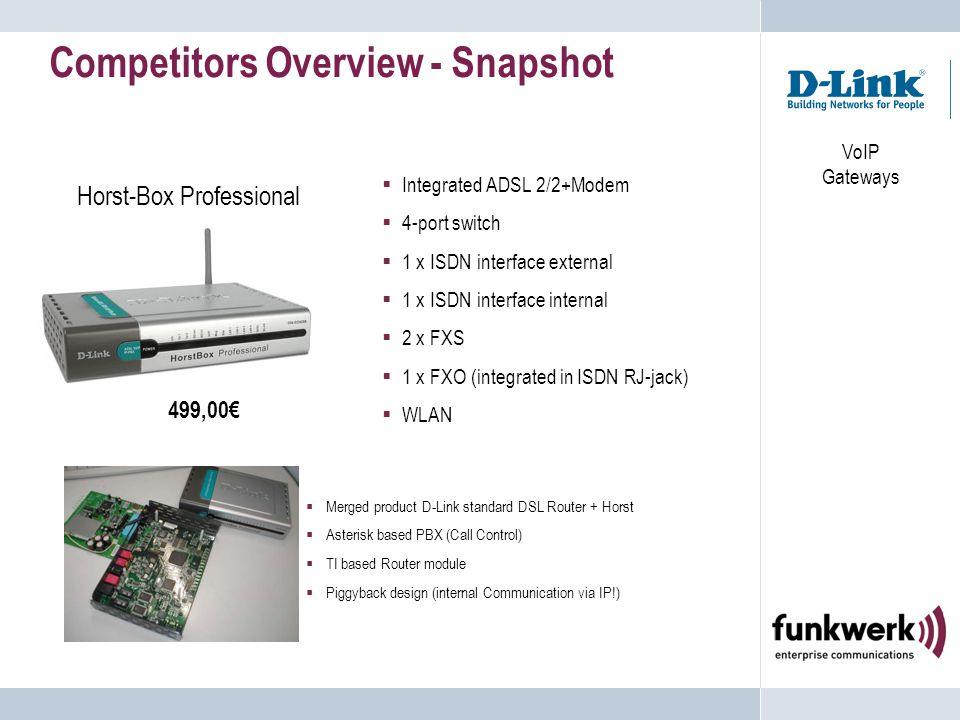

Competitors Overview - Snapshot VoIP Gateways Horst-Box Professional Integrated ADSL 2/2+Modem 4-port switch 1 x ISDN interface external 1 x ISDN interface internal 2 x FXS 1 x FXO (integrated in ISDN RJ-jack) WLAN 499,00€ Merged product D-Link standard DSL Router + Horst Asterisk based PBX (Call Control) TI based Router module Piggyback design (internal Communication via IP!)
LAN 4+1 – 5 ports 10/100 4 S0 (switchable) 2 x ISDN for PABX connection 2 x ISDN for PSTN connection SIP Proxy / Application Layer Gateway VoIP Implementation Release 7.5 (Media Gateway, Call Routing) 4 channel or 8 channel DSP R4000 (former R5000) based on Hilde plattform
R6000 / R9000 Prototypes for project acquisition LAN 4+1 – 5 ports 10/100 ADSL 2/2+ (ANNEX-A / B switchable) (R6000) SHDSL 4 wire (R9000) 2 x S0 1 x ISDN for PABX connection 1 x ISDN for PSTN connection 2 x FXS 2 x FXO SIP Proxy / Application Layer Gateway VoIP Implementation Release 7.5 (Media Gateway, Call Routing) 4 channel DSP (Mini-PCI Module), 4 channel DSP for FXS/FXO Optional WLAN or M inimum O rder Q uantity needed !
Current VoIP Competitors Patton / InAlp / Mediatrix Innovaphone VoIP Gateways + devices with differently equipped rich VoIP protocol support H.323, MGCP and SIP optional QSIG support for infrastructure networking solutions Router Feature set (also VPN) partially significant higher pricing
Internet since 1997 development and product for VoIP Portfolio: VoIP-Gateways, IP-Adapter, IP-telephones, Soft-PBX, Soft-Phones, IP-DECT, etc.VoIP-Gateways, IP-Adapter, IP-telephones, Soft-PBX, Soft-Phones, IP-DECT, etc High quality of development H.323, SIP, QSIG, additional applications, etc. Current VoIP Competitors
Future VoIP related Competitors PSTN Internet example
Future VoIP related Competitors since 1984 development and products for IP-access – later VoIP Portfolio: broad range – DSLAMS, Router, VoIP (ISDN and analogue) Rich supplier, VoIP portfolio is comparable with INNOVAPHONE

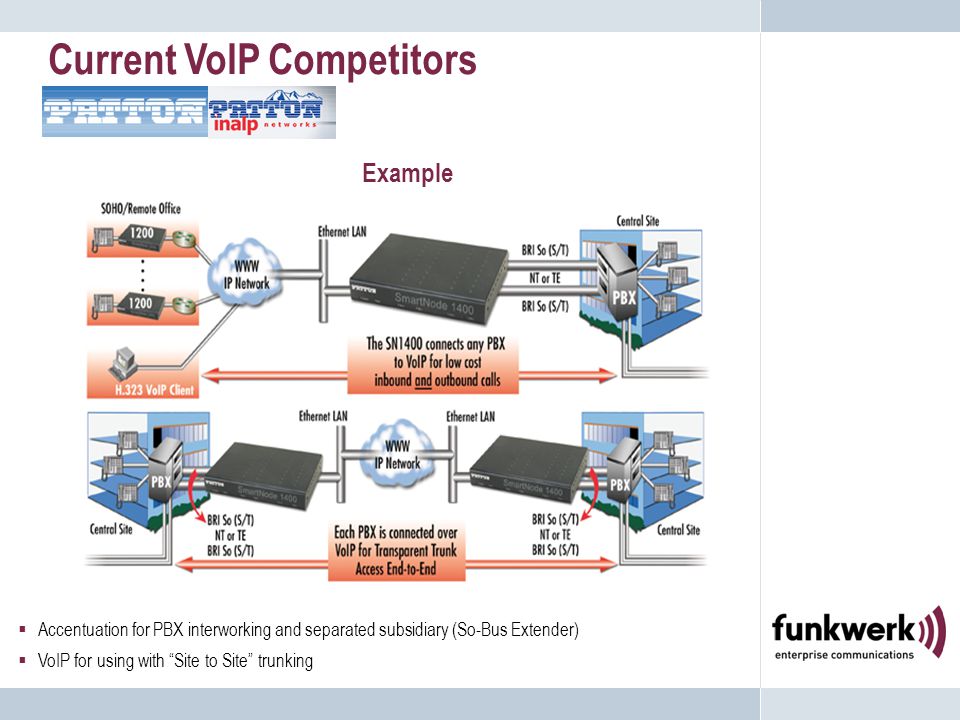

Example Accentuation for PBX interworking and separated subsidiary (So-Bus Extender) VoIP for using with “Site to Site” trunking Current VoIP Competitors
