1

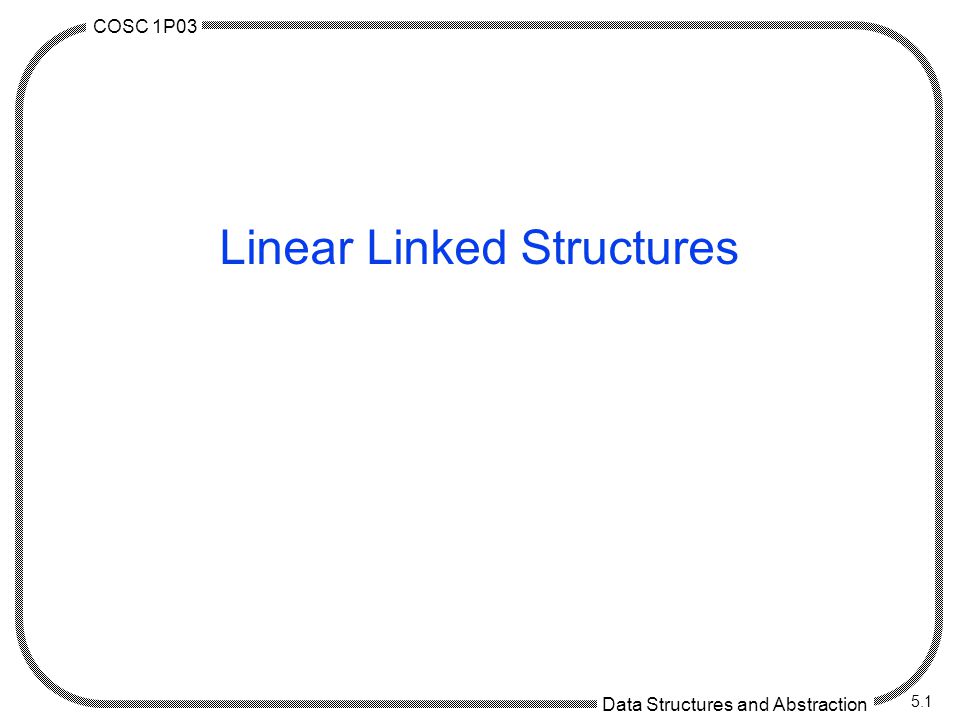

COSC 1P03 Data Structures and Abstraction 5.1 Linear Linked Structures

2
COSC 1P03 Data Structures and Abstraction 5.2 Dynamic Structures collections limitations of static structures (i.e. arrays) fixed size waste space rearrangement of entries dynamic data structures change size over time storage proportional to amount of information linked structures nodes (objects) connected together by references dynamic allocation/deallocation in array proximity implicit, in linked structure it is explicit linear linked structures aka linked lists

3

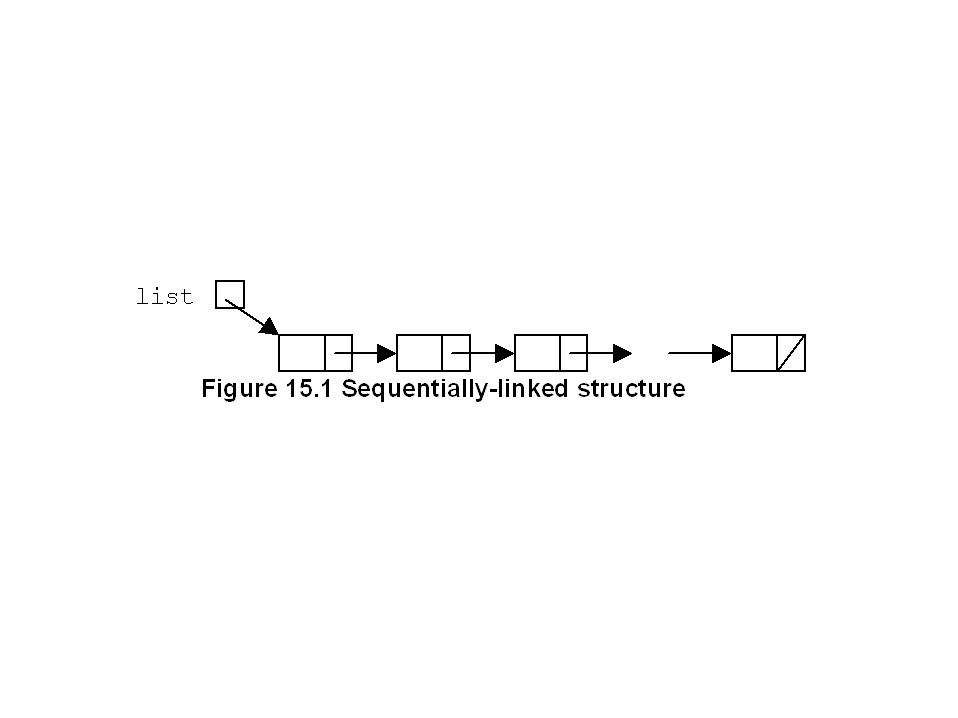

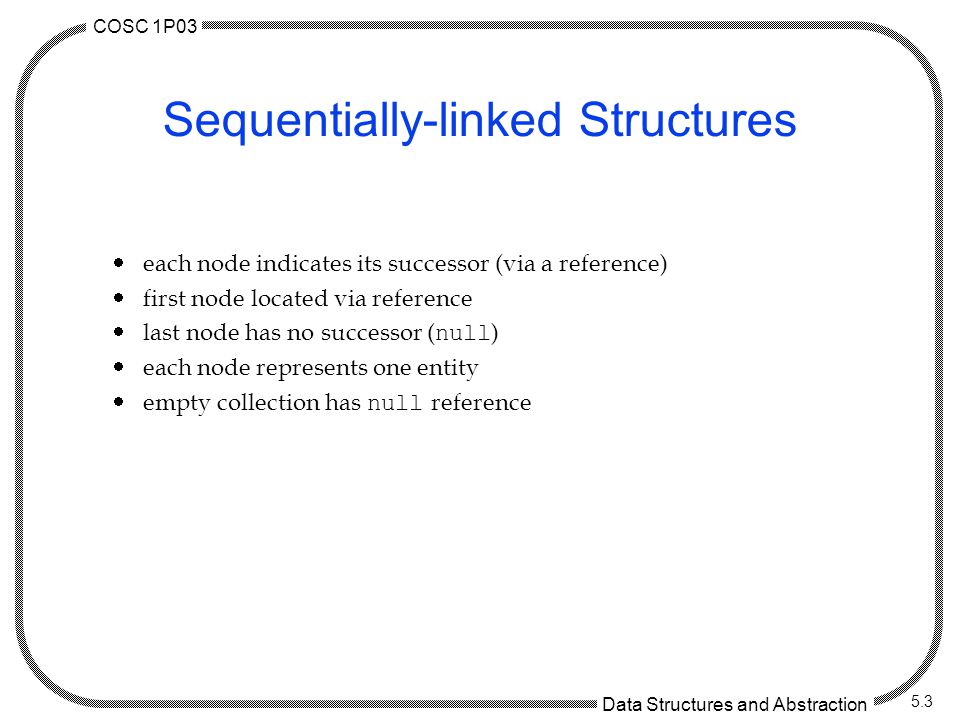

COSC 1P03 Data Structures and Abstraction 5.3 Sequentially-linked Structures each node indicates its successor (via a reference) first node located via reference last node has no successor ( null ) each node represents one entity empty collection has null reference

5
COSC 1P03 Data Structures and Abstraction 5.5 Representation dynamic creation nodes are objects let entity objects be nodes? add reference field disadvantages object must “know” it is on list multiple lists must modify class

7

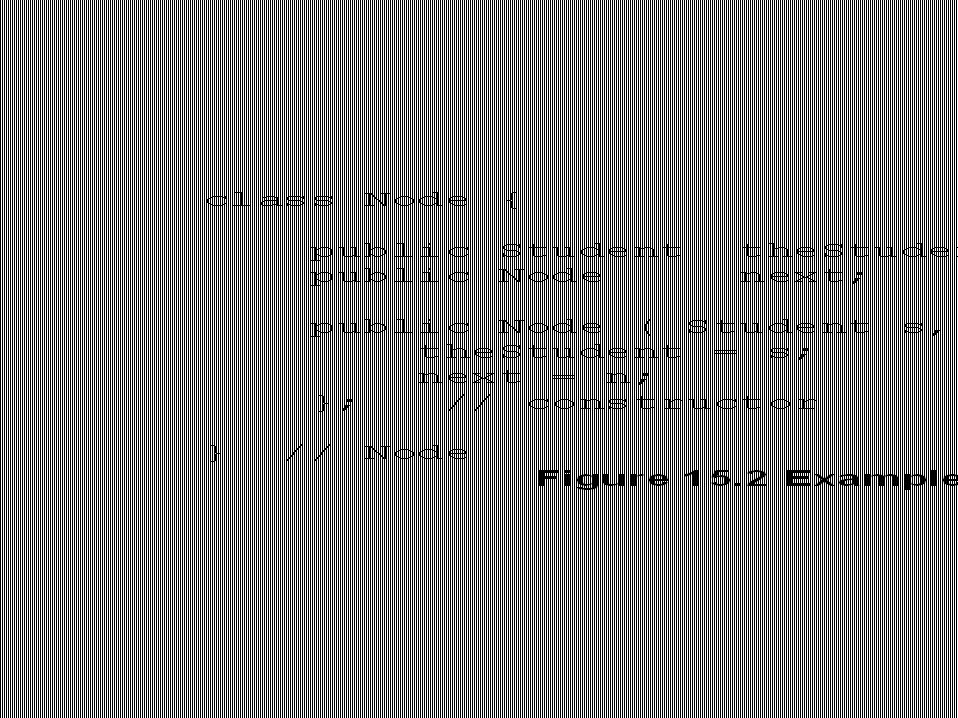

COSC 1P03 Data Structures and Abstraction 5.7 Node Wrapper Class separate class that references entities wrapper class, mixin, decorator (GoF) fields reference ( p.theStudent ) link ( p.next ) constructor visibility class fields as sequentially-linked structure general case initial (empty) state multiple lists different sequence of Node s, same entity objects

11
COSC 1P03 Data Structures and Abstraction 5.11 Operations insertion where? deletion which node? traversal “visit” all nodes like array traversal search special traversal simple vs exhaustive

12
COSC 1P03 Data Structures and Abstraction 5.12 Insertion insert where? front end in some order (e.g. sorted) at front new entry points to previous front list reference points to new entry algorithm O(1) repeated application reverse order

15
COSC 1P03 Data Structures and Abstraction 5.15 Deletion delete which node? first last matching a key only if not empty delete first move list pointer to second node garbage collection node entity algorithm O(1)

18
COSC 1P03 Data Structures and Abstraction 5.18 Traversal sequential processing to get to n th node must first get to (n-1) st node travelling pointer start at first node move to node's successor p = p.next termination no more nodes ( p == null ) algorithm O(n) vs array traversal sequential traversal pattern

23
COSC 1P03 Data Structures and Abstraction 5.23 Search sequential structure sequential search variant of traversal two exit conditions found not found algorithm O(n)

26

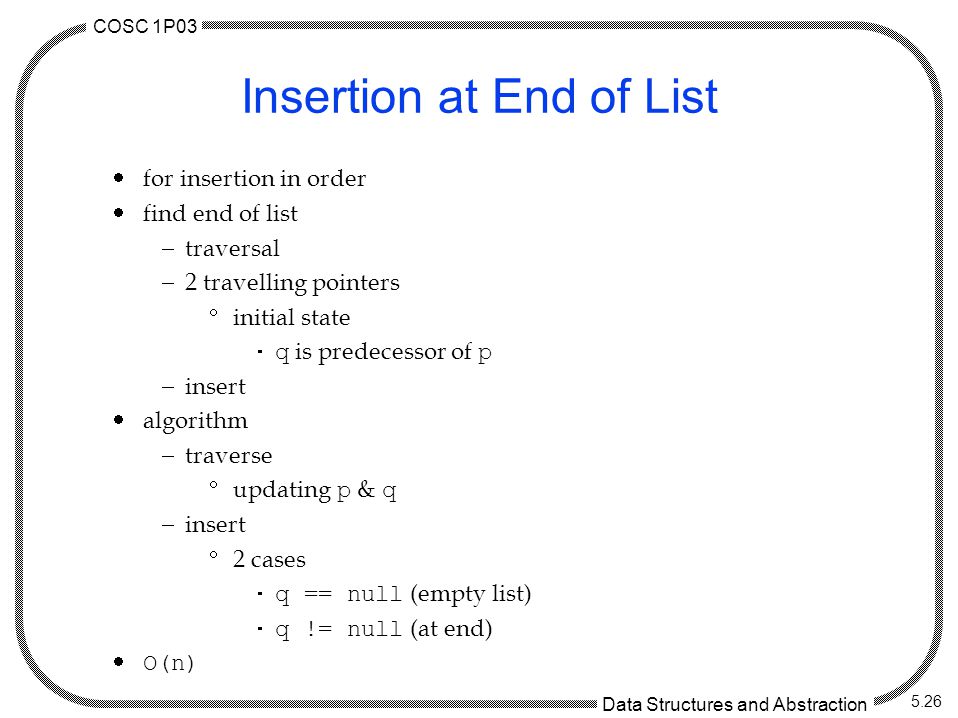

COSC 1P03 Data Structures and Abstraction 5.26 Insertion at End of List for insertion in order find end of list traversal 2 travelling pointers initial state q is predecessor of p insert algorithm traverse updating p & q insert 2 cases q == null (empty list) q != null (at end) O(n)

29
COSC 1P03 Data Structures and Abstraction 5.29 Deletion of Last Node must modify second last node find second last node traversal 2 travelling pointers test algorithm pre test error traverse delete 2 cases q == null (only node) q != null (last node) O(n)

32
COSC 1P03 Data Structures and Abstraction 5.32 Insertion in Sorted Order insert between 2 nodes criteria find insertion point search 2 travelling pointers insert between p & q combination of termination conditions (order) algorithm search first entity with greater key termination on found or end of list insert 2 cases q == null (front of list or empty list) q != null (after q ) O(n)

35
COSC 1P03 Data Structures and Abstraction 5.35 Deletion of Node by Key criterion match key find deletion point search 2 travelling pointers termination and subsequent test exception algorithm search delete if found 2 cases q == null (delete first node) q != null (delete q ’s successor) O(n)

38

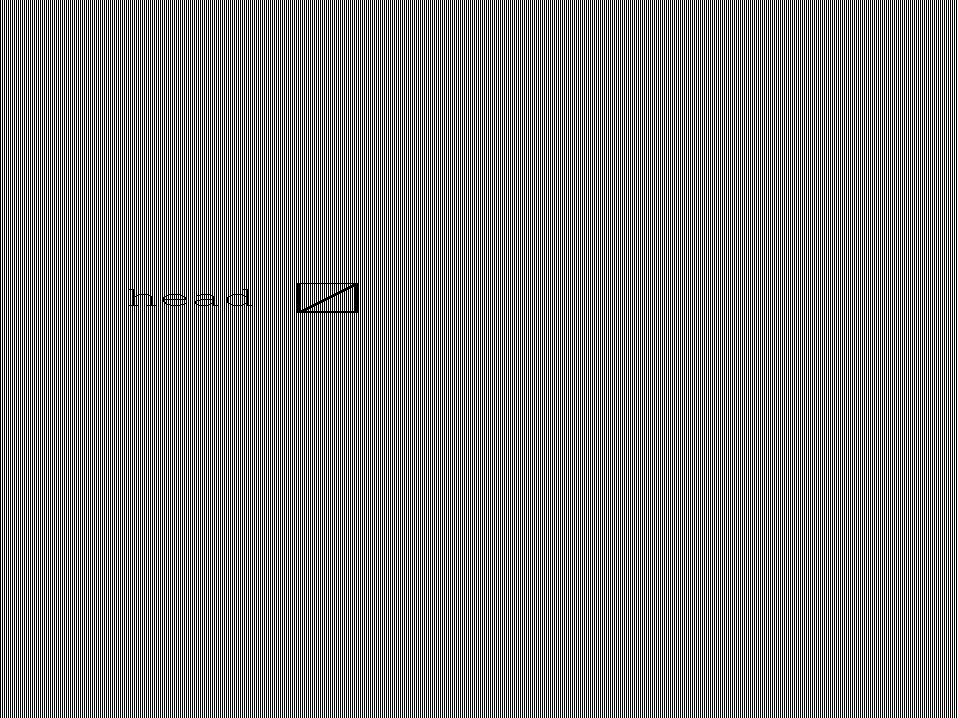

COSC 1P03 Data Structures and Abstraction 5.38 Insertion at End with Tail reference O(n) since must find end remember where end is then O(1) pair of pointers ( head, tail ) must be sure to update both appropriately insertion at end empty list insertion deletion at front last node deletion performance extra cost is O(1) deletion of last in O(1) ? not possible

46
COSC 1P03 Data Structures and Abstraction 5.46 Symmetrically-linked Structures each node points to successor and predecessor traversal in both directions arbitrary insertion/deletion extra work in insertion and deletion (extra pointers) e.g. sorted insertion e.g. keyed deletion

50
COSC 1P03 Data Structures and Abstraction 5.50 Circular Linked Structures sequentially-linked or symmetrically-linked last node points back to first single node traversal from any point treating each node as head in turn potential infinite loop in traversal

54
COSC 1P03 Data Structures and Abstraction 5.54 Header/Sentinel Nodes operations at front cause special cases header node extra node at front of list never deleted doesn’t contain data empty list traversal from successor of header e.g. insertion in sorted order e.g. keyed deletion sentinel node mark end of list high key value stops search cost

61

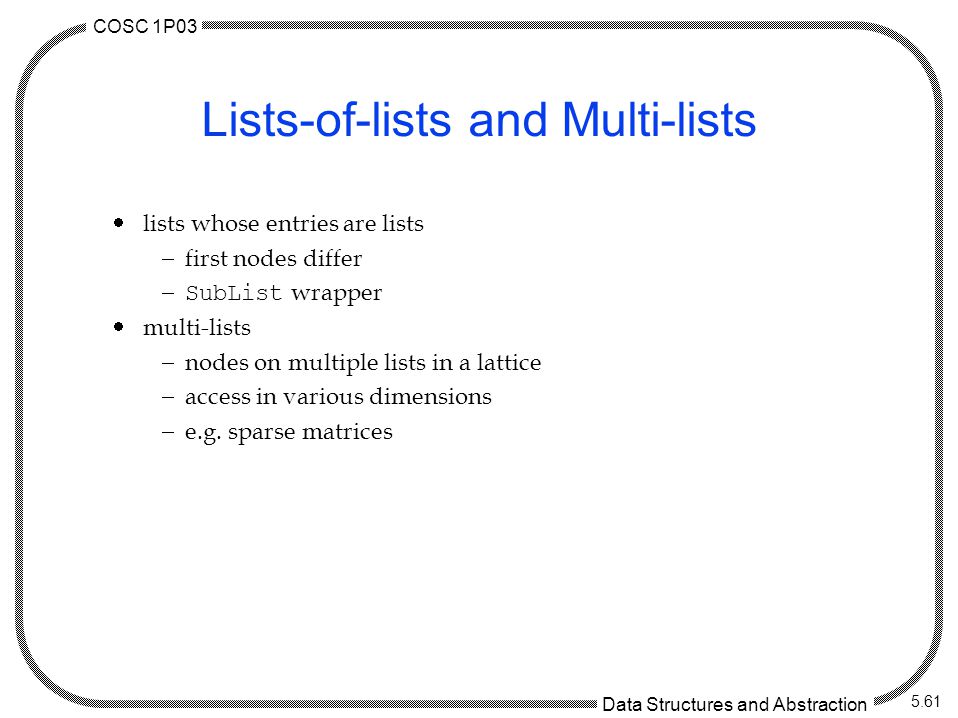

COSC 1P03 Data Structures and Abstraction 5.61 Lists-of-lists and Multi-lists lists whose entries are lists first nodes differ SubList wrapper multi-lists nodes on multiple lists in a lattice access in various dimensions e.g. sparse matrices

66
COSC 1P03 Data Structures and Abstraction 5.66 Working with Linked Structures encapsulating algorithms into methods passing list reference as parameter parameters are by-value? return new list pointer as function result other result? use header node creation of header? use instance variable instead of parameter multiple lists? encapsulate as list object list pointer is instance variable list object can be passed as parameter comparison of array and linked representations
