FIGURE 14-1 Amplifying system. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River,

Similar presentations


Presentation on theme: "FIGURE 14-1 Amplifying system. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River,"— Presentation transcript:

1 FIGURE 14-1 Amplifying system. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

2 FIGURE 14-2 Three-stage voltage amplifier. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

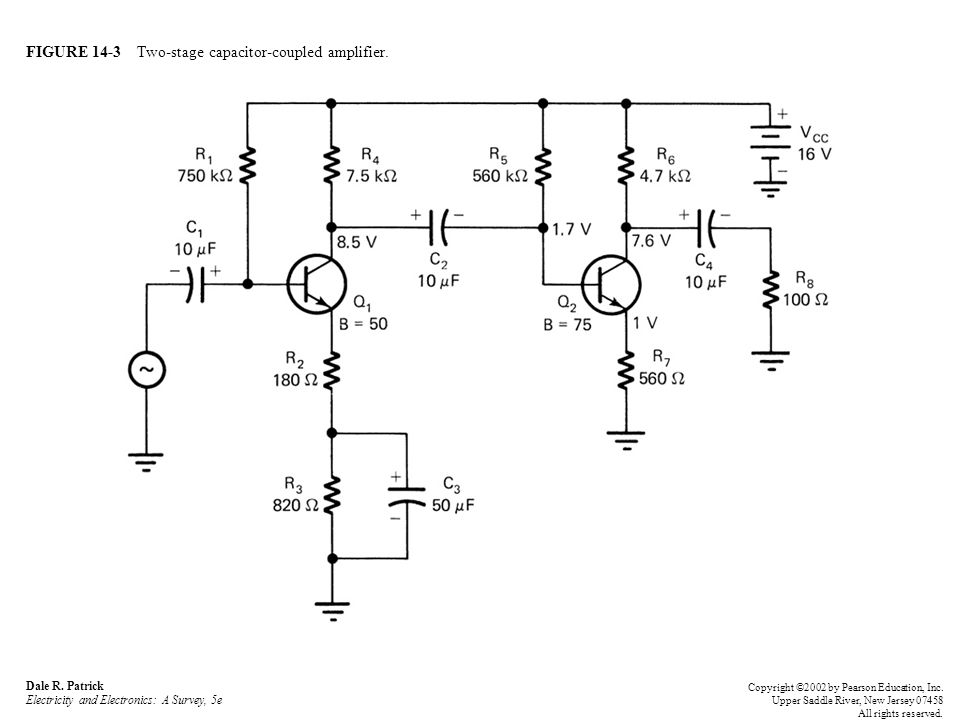

3 FIGURE 14-3 Two-stage capacitor-coupled amplifier. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

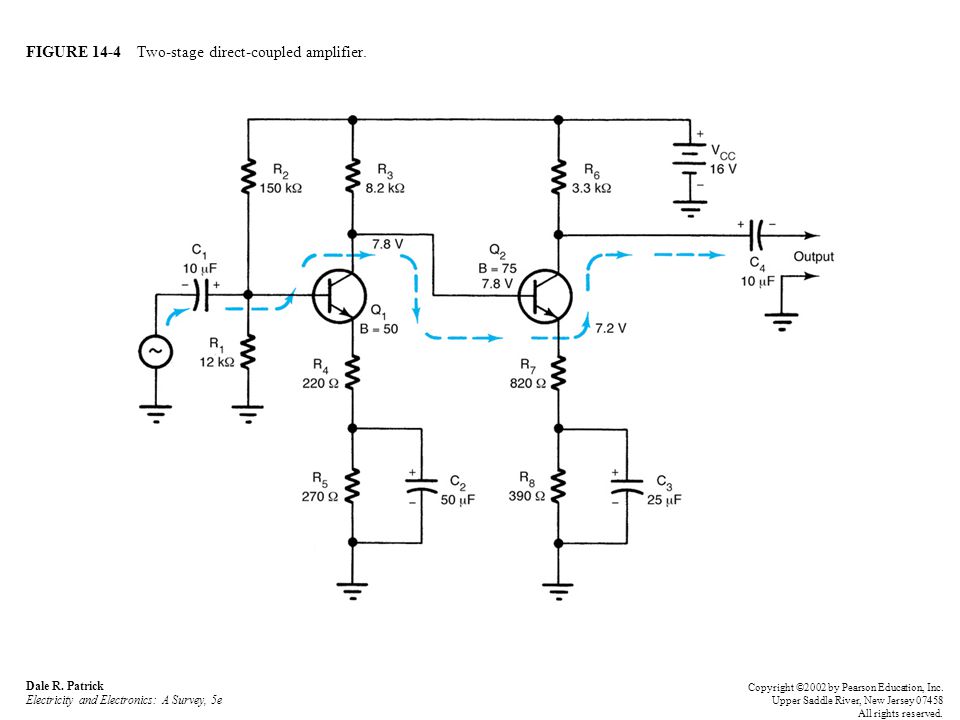

4 FIGURE 14-4 Two-stage direct-coupled amplifier. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

5 FIGURE 14-5 Darlington transistor amplifier. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

6 FIGURE 14-6 Coupling transformers. ( Courtesy of TRW/UTC Transformers.) Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

7 FIGURE 14-7 Two-stage transformer-coupled RF amplifier. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

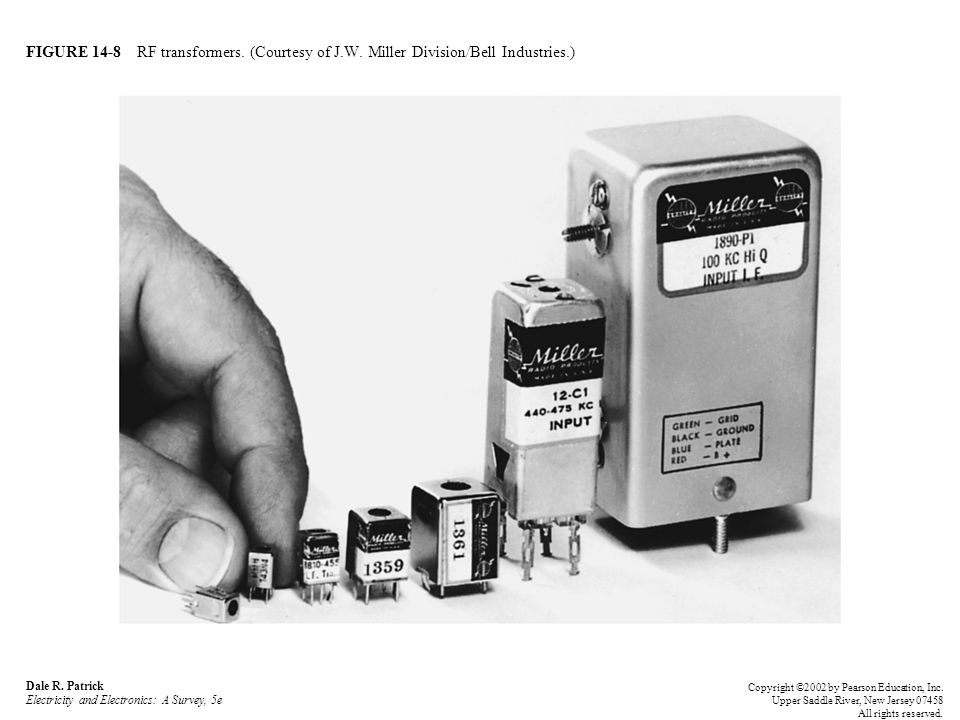

8 FIGURE 14-8 RF transformers. (Courtesy of J.W. Miller Division/Bell Industries.) Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

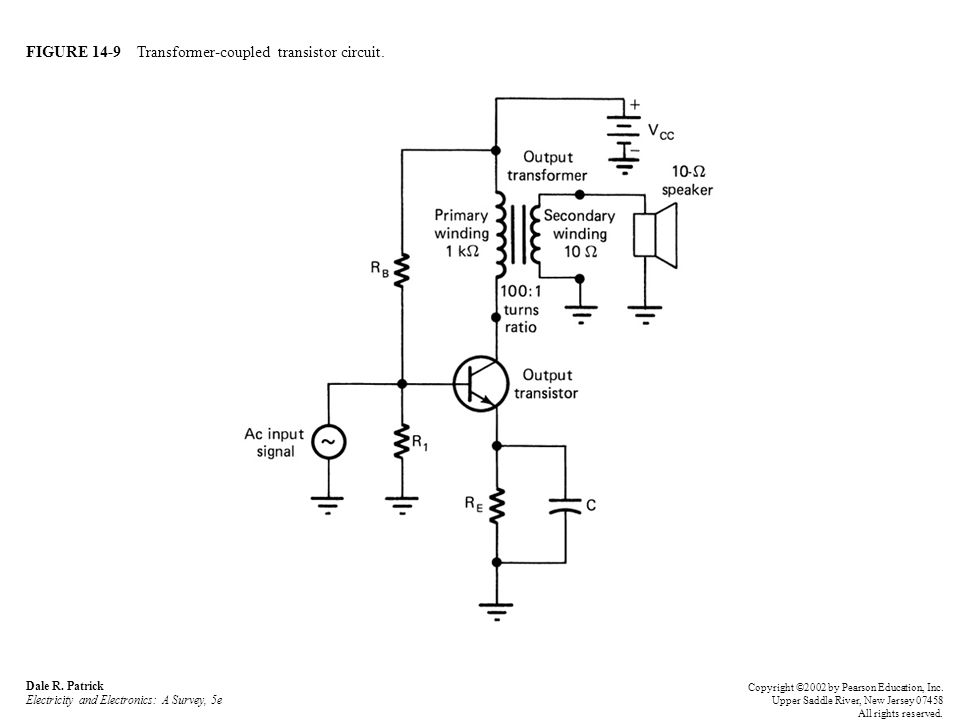

9 FIGURE 14-9 Transformer-coupled transistor circuit. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

10 FIGURE Single-ended audio amplifier. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

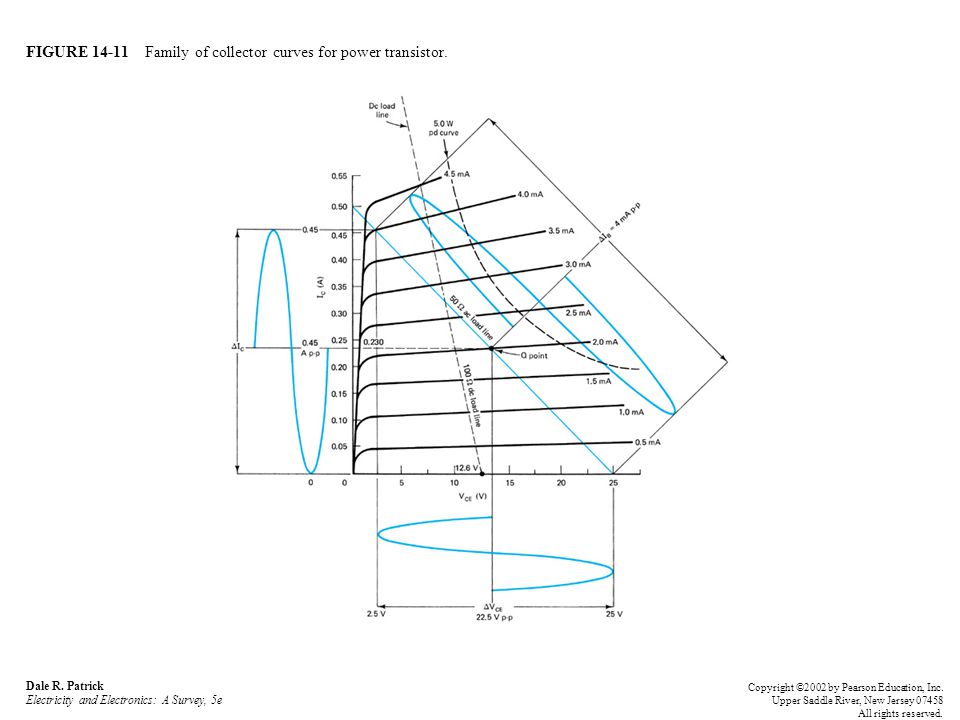

11 FIGURE Family of collector curves for power transistor. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

12 FIGURE Transformer-coupled class B push-pull amplifier. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

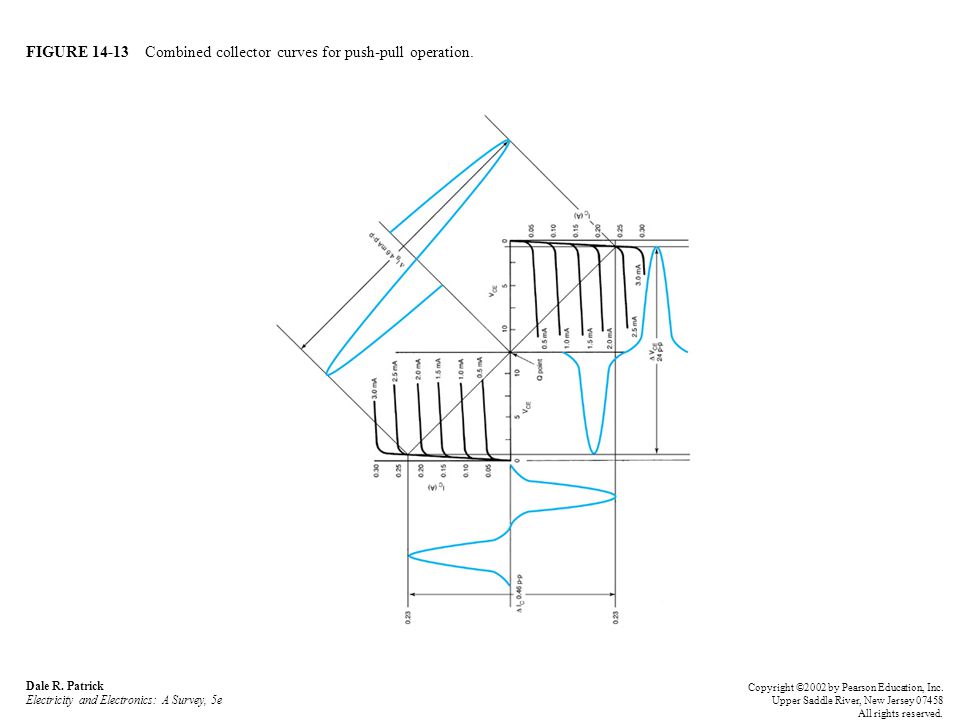

13 FIGURE Combined collector curves for push-pull operation. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

14 FIGURE Input characteristic of a silicon transistor. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

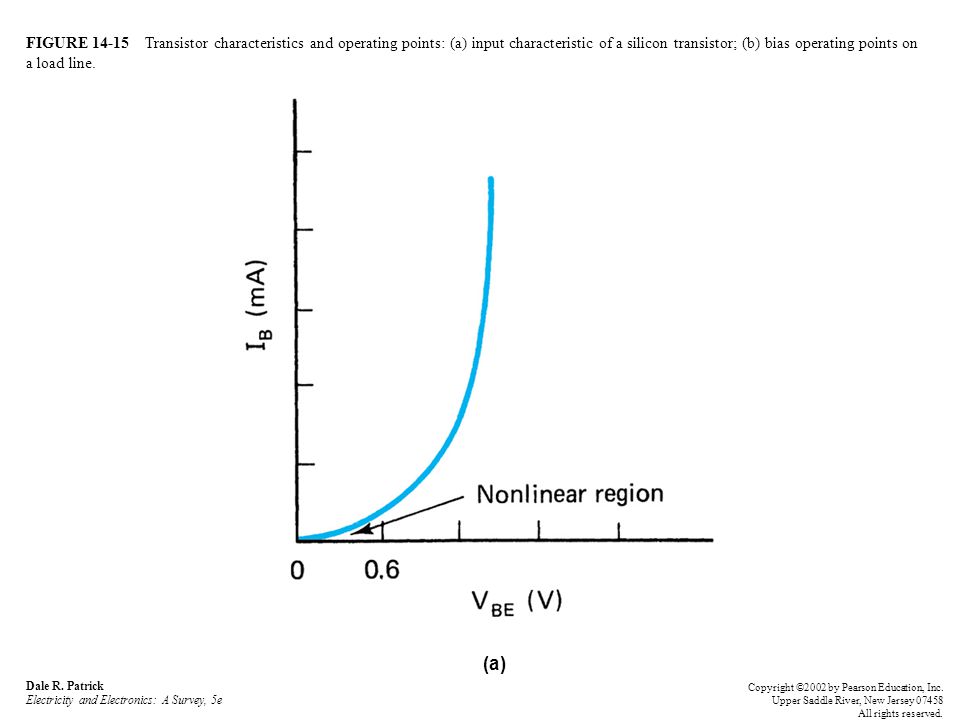

15 FIGURE Transistor characteristics and operating points: (a) input characteristic of a silicon transistor; (b) bias operating points on a load line. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. (a)

16 FIGURE continued Transistor characteristics and operating points: (a) input characteristic of a silicon transistor; (b) bias operating points on a load line. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. (b)

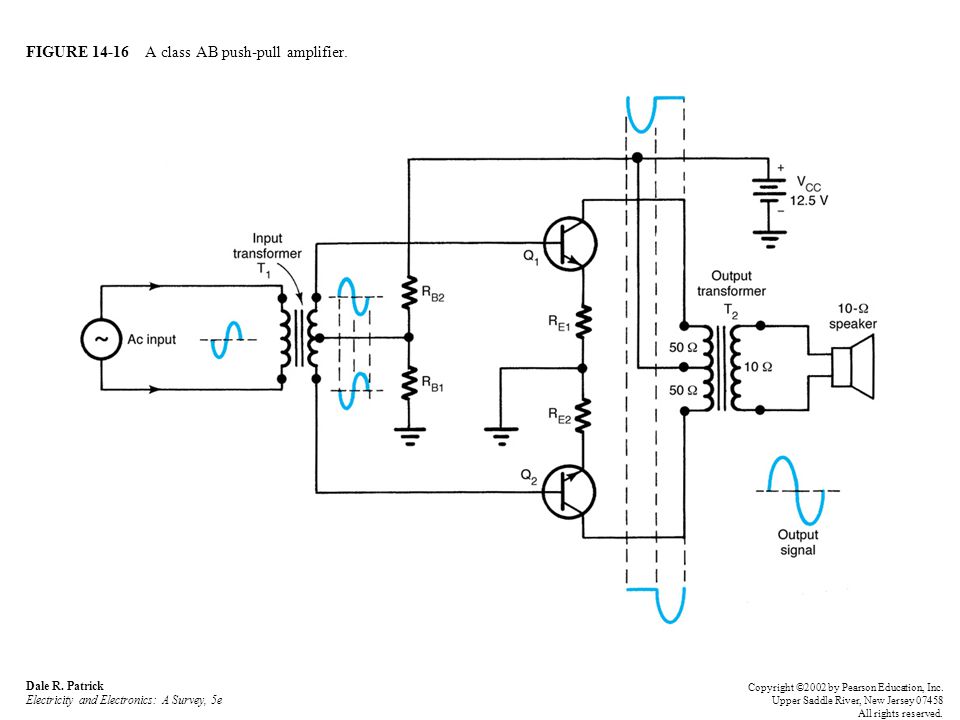

17 FIGURE A class AB push-pull amplifier. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

18 FIGURE Complementary-symmetry amplifier. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

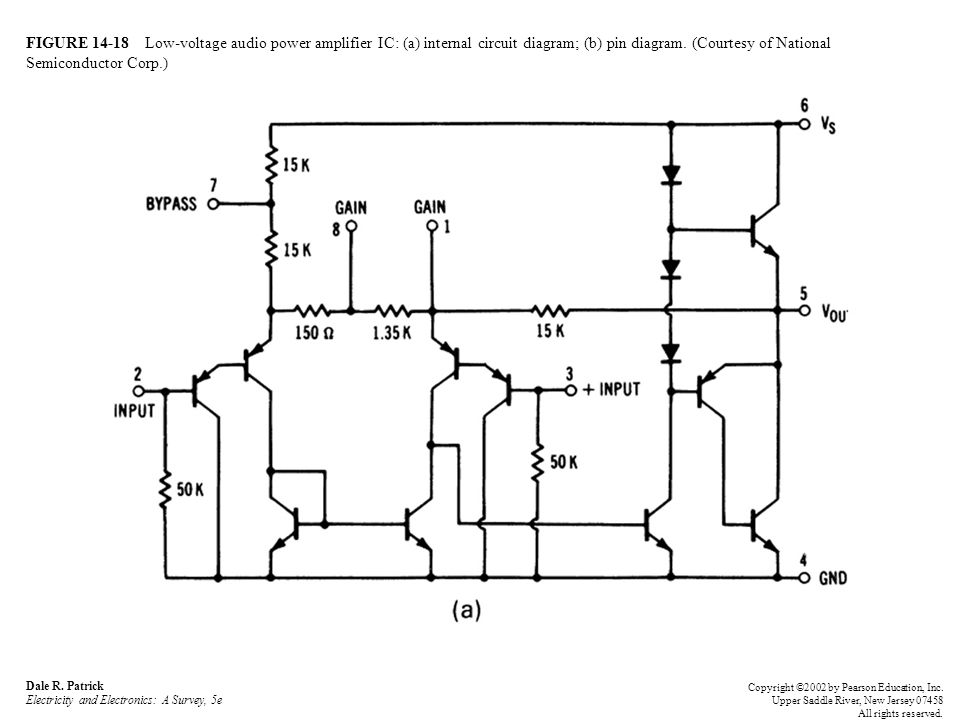

19 FIGURE Low-voltage audio power amplifier IC: (a) internal circuit diagram; (b) pin diagram. (Courtesy of National Semiconductor Corp.) Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

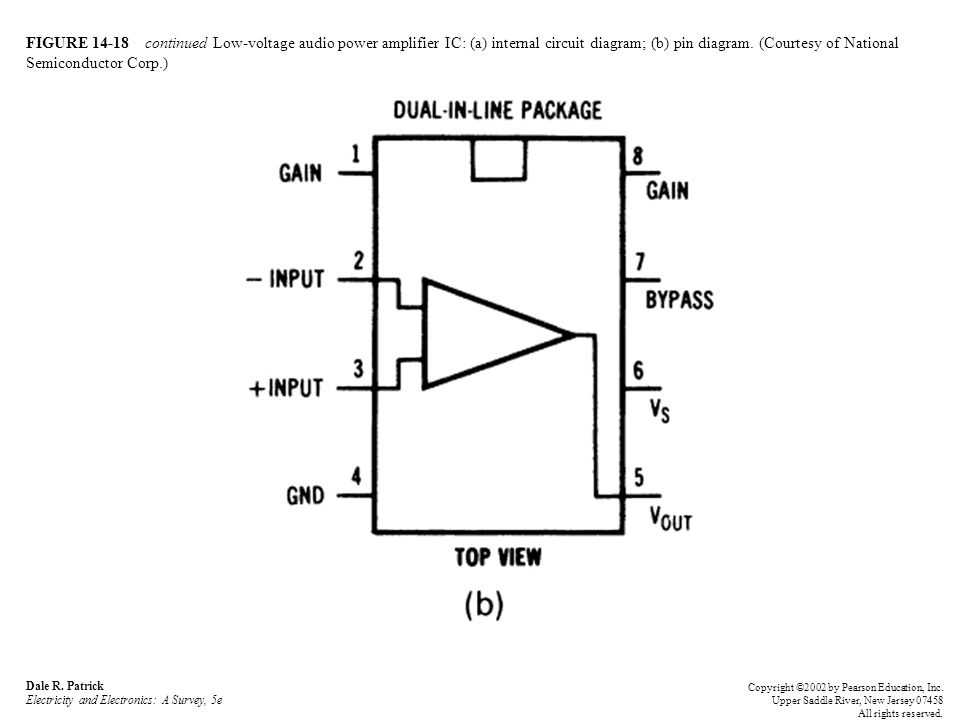

20 FIGURE continued Low-voltage audio power amplifier IC: (a) internal circuit diagram; (b) pin diagram. (Courtesy of National Semiconductor Corp.) Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

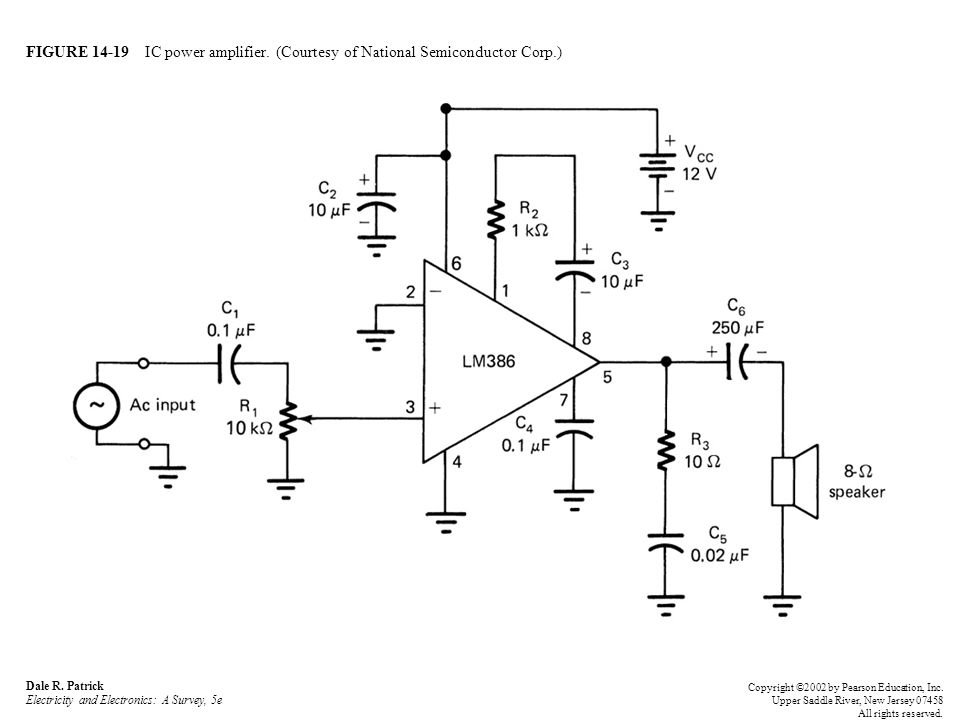

21 FIGURE IC power amplifier. (Courtesy of National Semiconductor Corp.) Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

22 FIGURE LM379 dual 6-W audio amplifier. (Courtesy of National Semiconductor Corp.) Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

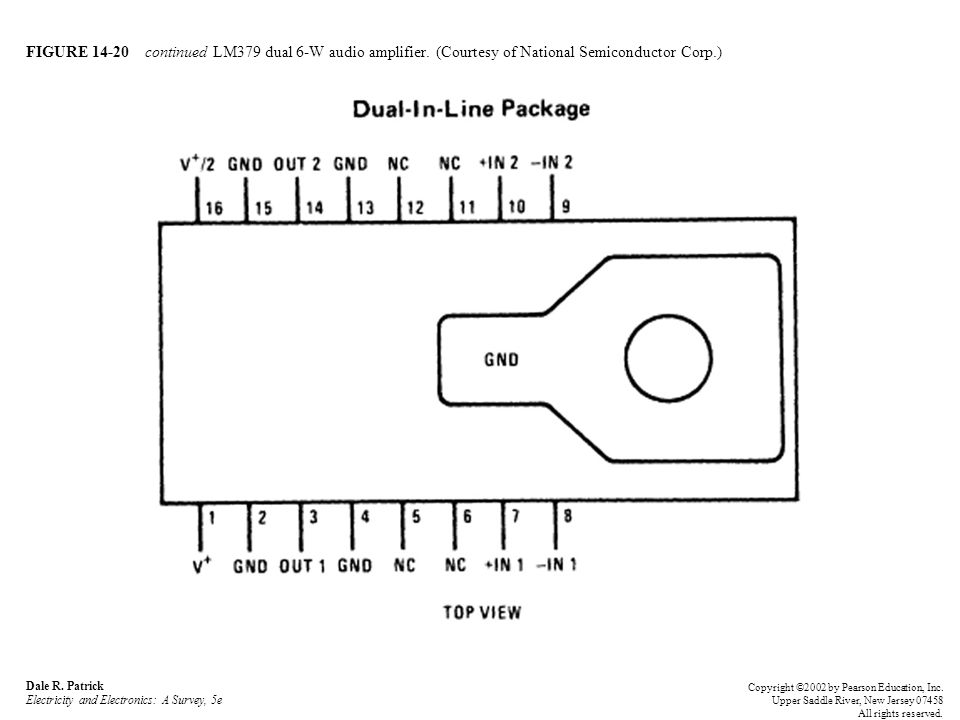

23 FIGURE continued LM379 dual 6-W audio amplifier. (Courtesy of National Semiconductor Corp.) Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

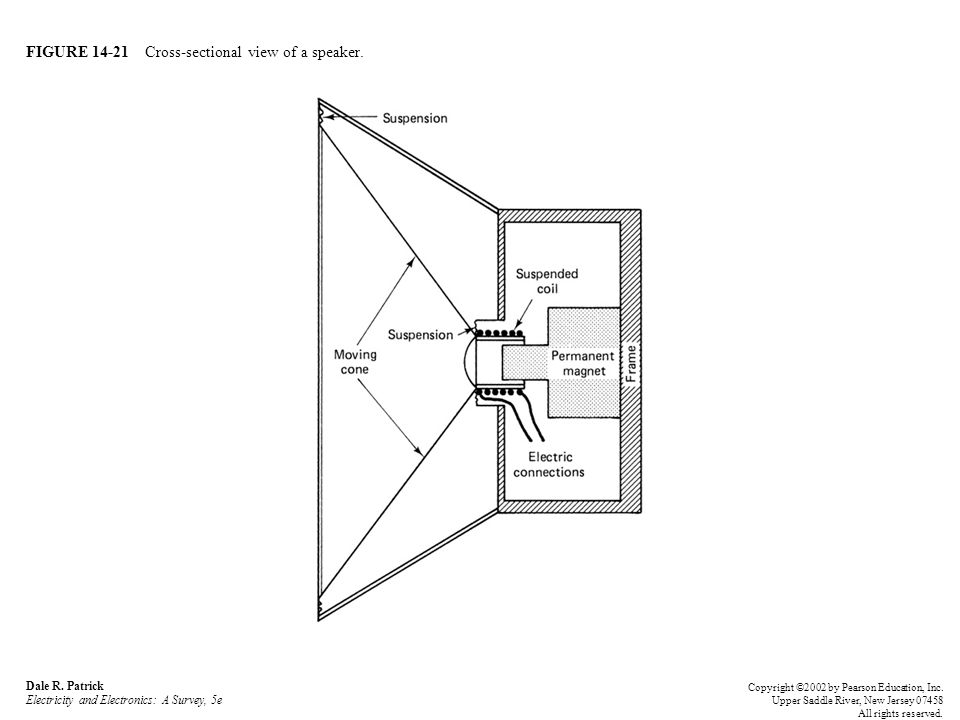

24 FIGURE Cross-sectional view of a speaker. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

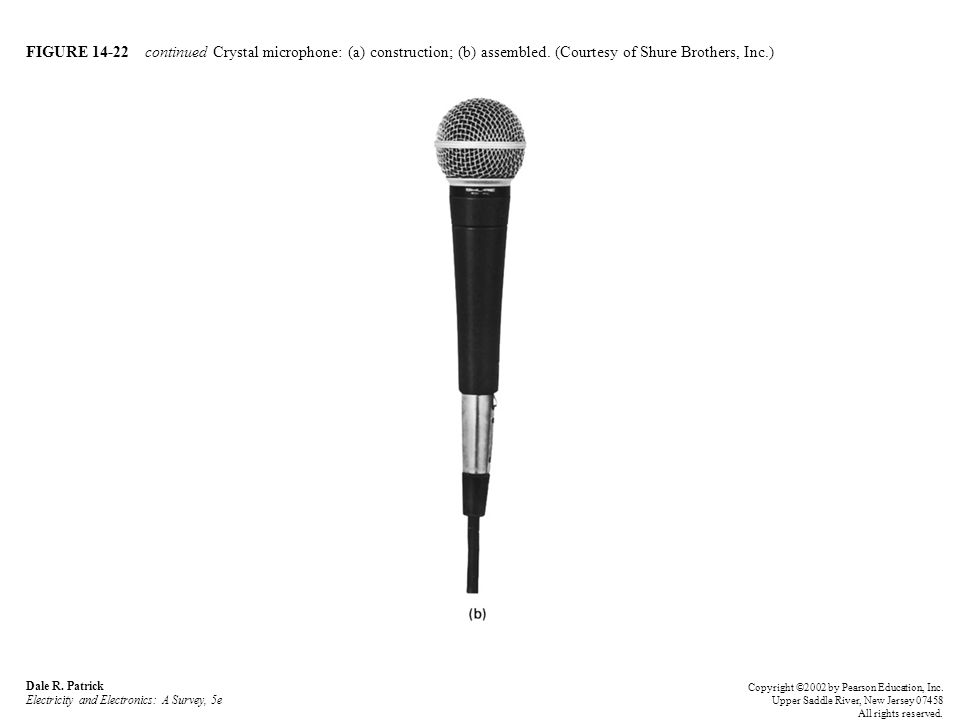

25 FIGURE Crystal microphone: (a) construction; (b) assembled. (Courtesy of Shure Brothers, Inc.) Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

26 FIGURE continued Crystal microphone: (a) construction; (b) assembled. (Courtesy of Shure Brothers, Inc.) Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

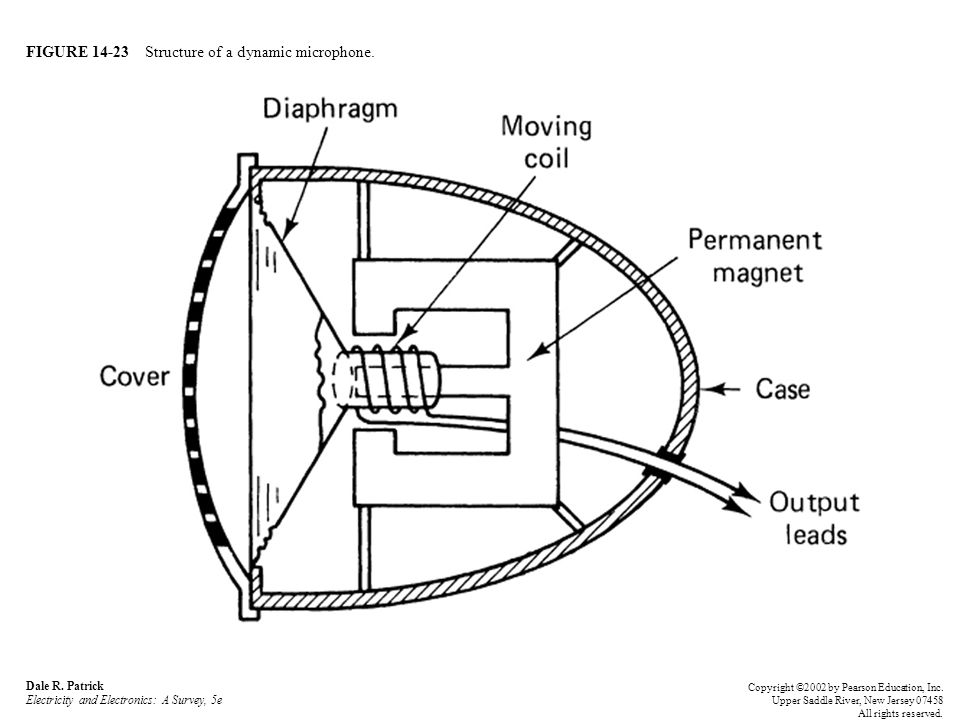

27 FIGURE Structure of a dynamic microphone. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

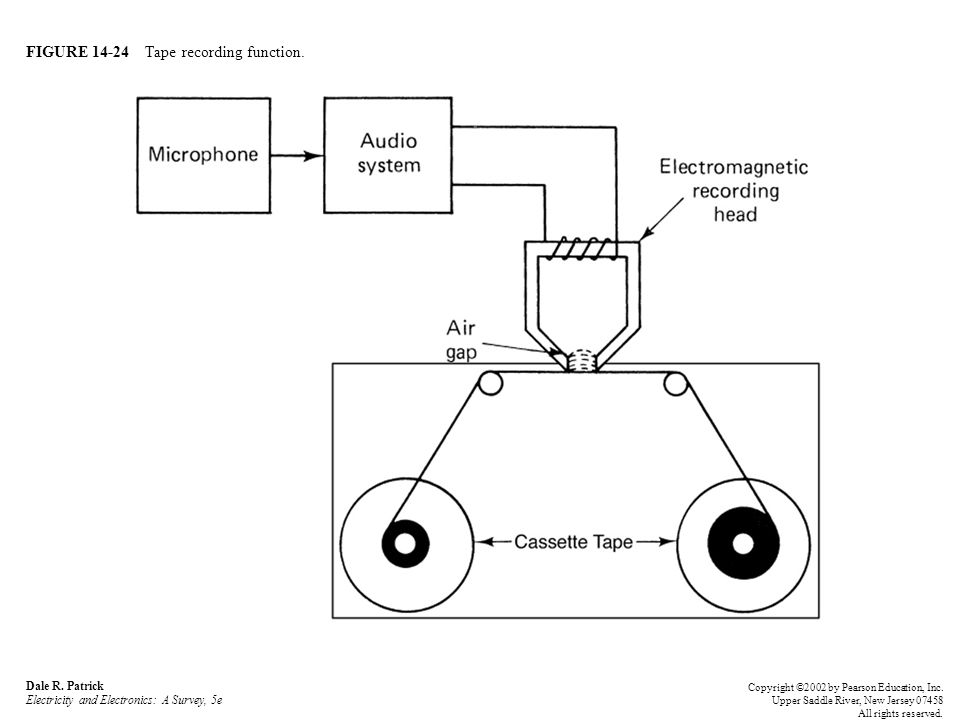

28 FIGURE Tape recording function. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

29 FIGURE Tape reading or playback function. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

30 FIGURE Recording-playback tape head. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

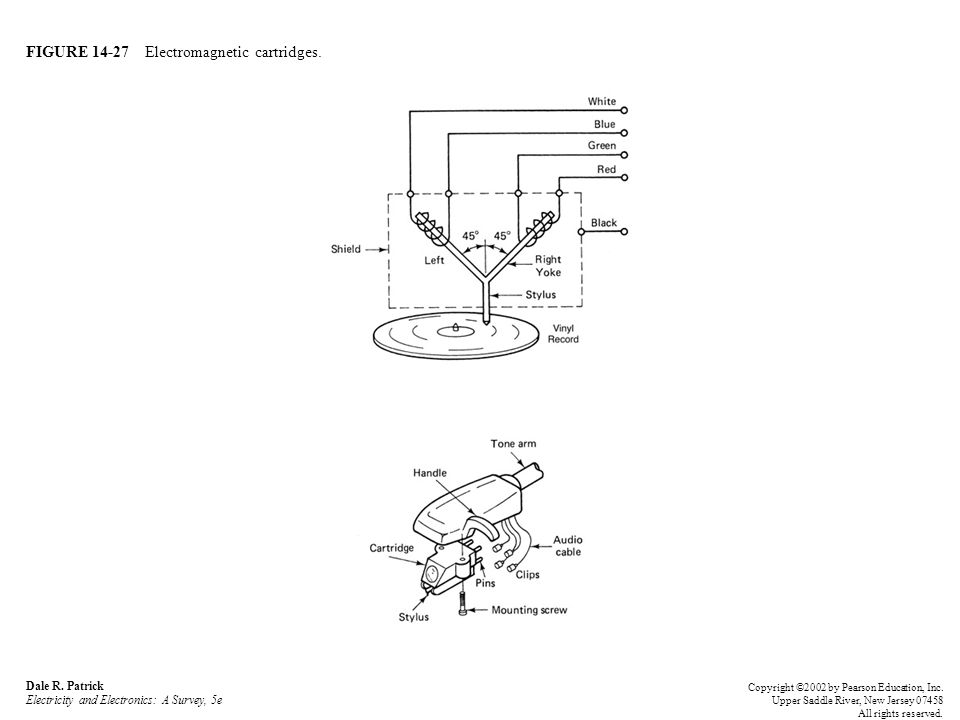

31 FIGURE Electromagnetic cartridges. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

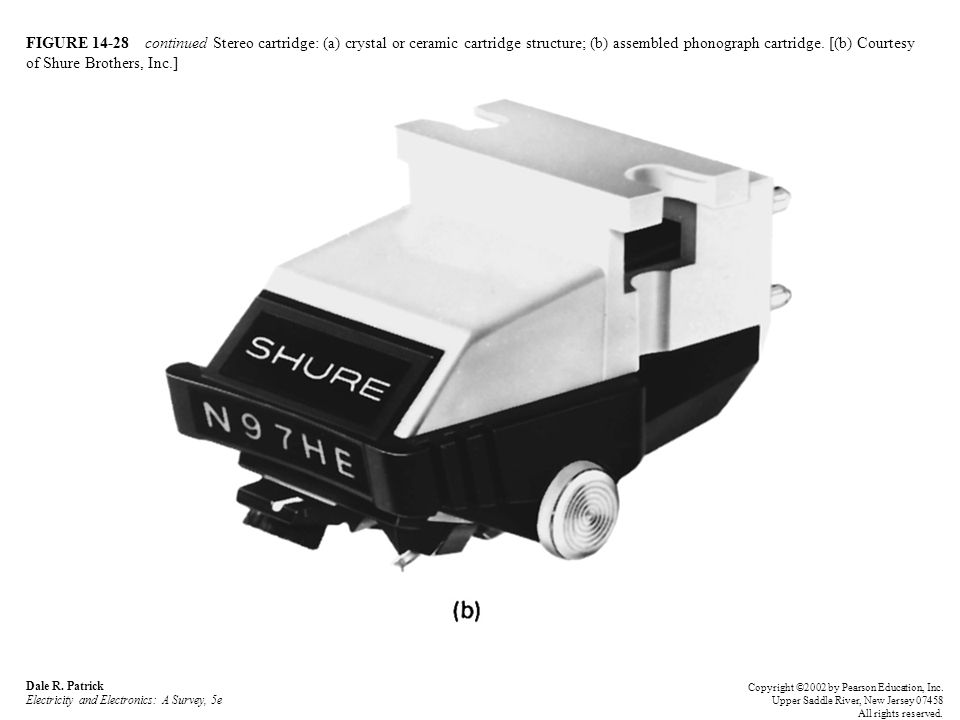

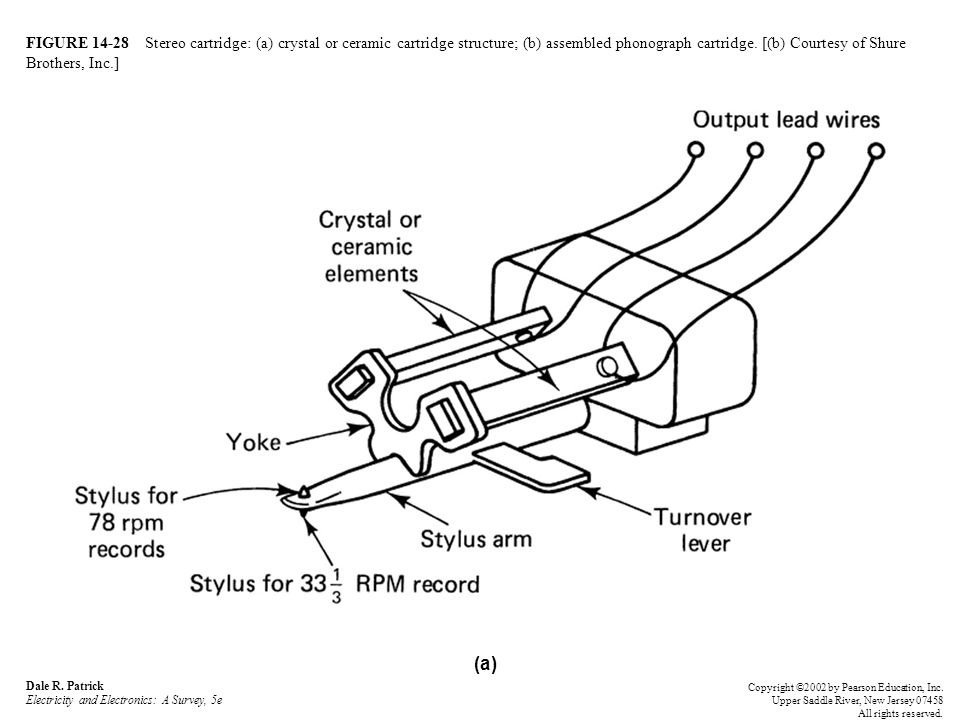

32 FIGURE Stereo cartridge: (a) crystal or ceramic cartridge structure; (b) assembled phonograph cartridge. [(b) Courtesy of Shure Brothers, Inc.] Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. (a)

33 FIGURE continued Stereo cartridge: (a) crystal or ceramic cartridge structure; (b) assembled phonograph cartridge. [(b) Courtesy of Shure Brothers, Inc.] Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

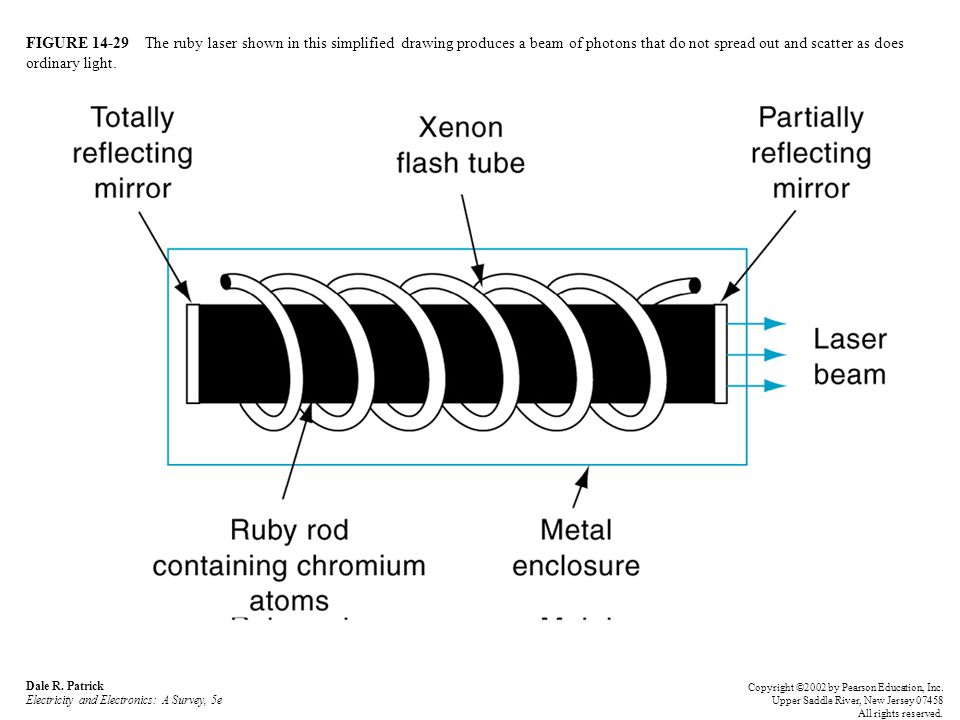

34 FIGURE The ruby laser shown in this simplified drawing produces a beam of photons that do not spread out and scatter as does ordinary light. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

35 FIGURE A laser using helium-neon gas is one of the types used for sensing and control applications. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.

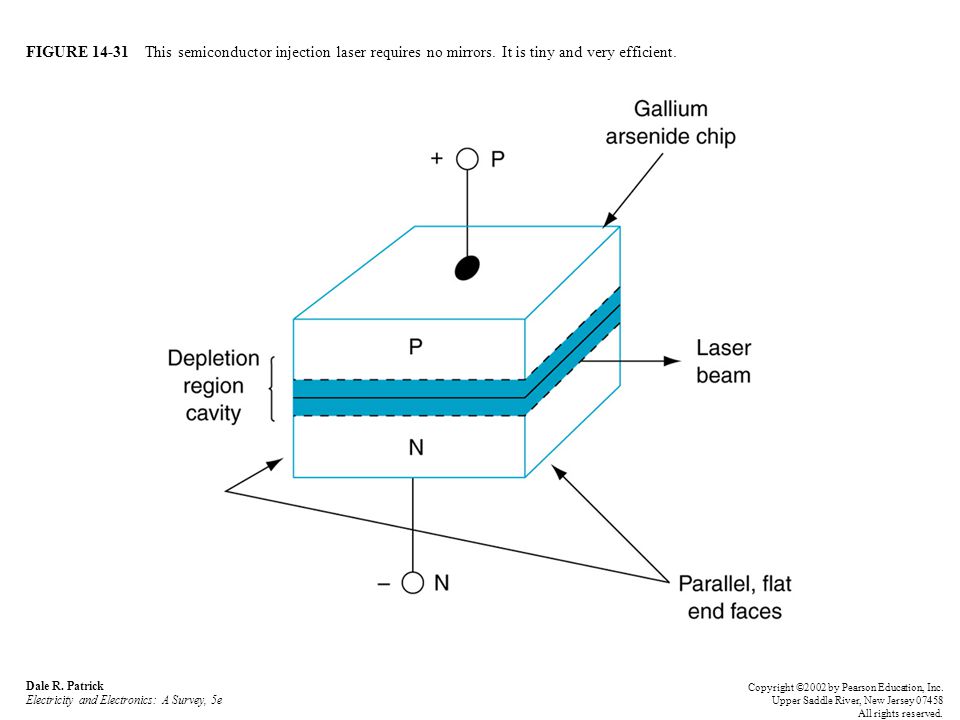

36 FIGURE This semiconductor injection laser requires no mirrors. It is tiny and very efficient. Dale R. Patrick Electricity and Electronics: A Survey, 5e Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved.
