Presentation on theme: "Andreas Buis, Software Engineer | Page 1 IGEL Technology | IGEL Technology is now shipping the first evaluation units of its new UD2-LX MultiMedia – a."— Presentation transcript:

1 Andreas Buis, Software Engineer | Page 1 IGEL Technology | IGEL Technology is now shipping the first evaluation units of its new UD2-LX MultiMedia – a compact and cost-effective system-on-chip (SoC) thin client for virtualized desktops and Server Based Computing environments.

2 Update webinar Systems Engineer UD2-LX MultiMedia ARM / Firmware Andreas Buis

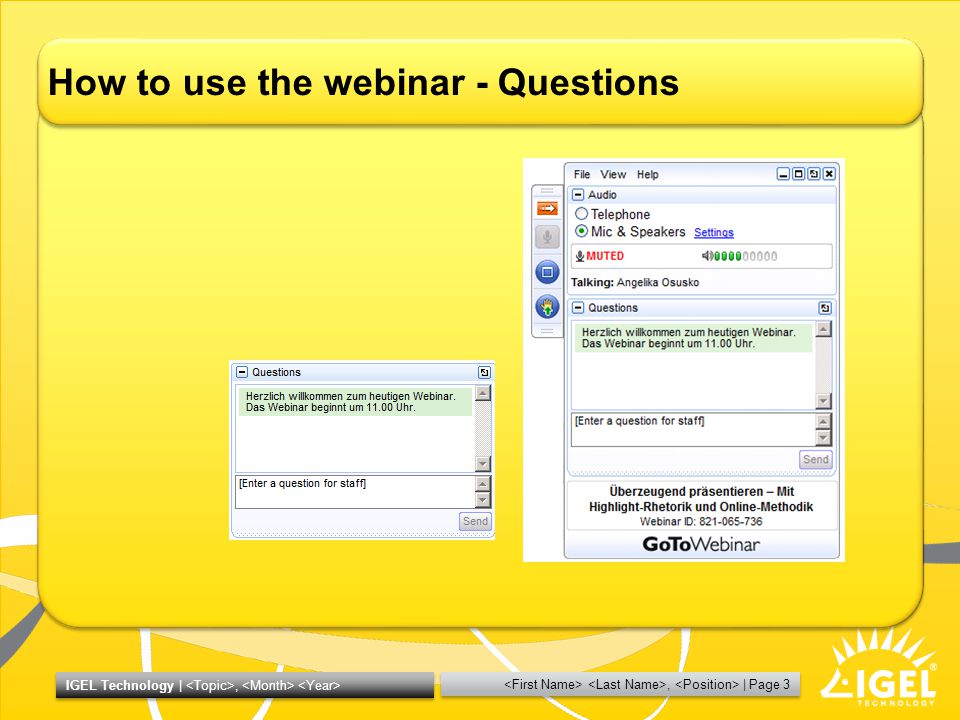

3 , | Page 3 IGEL Technology |, How to use the webinar - Questions

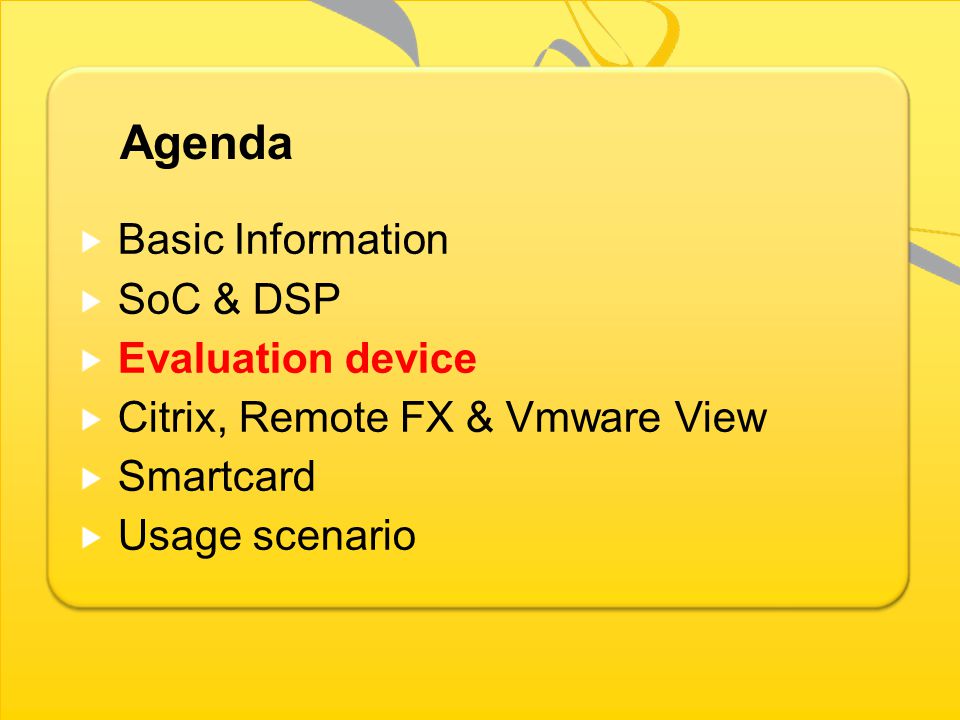

4 Agenda Basic Information SoC & DSP Evaluation device Citrix, Remote FX & Vmware View Smartcard Usage scenario

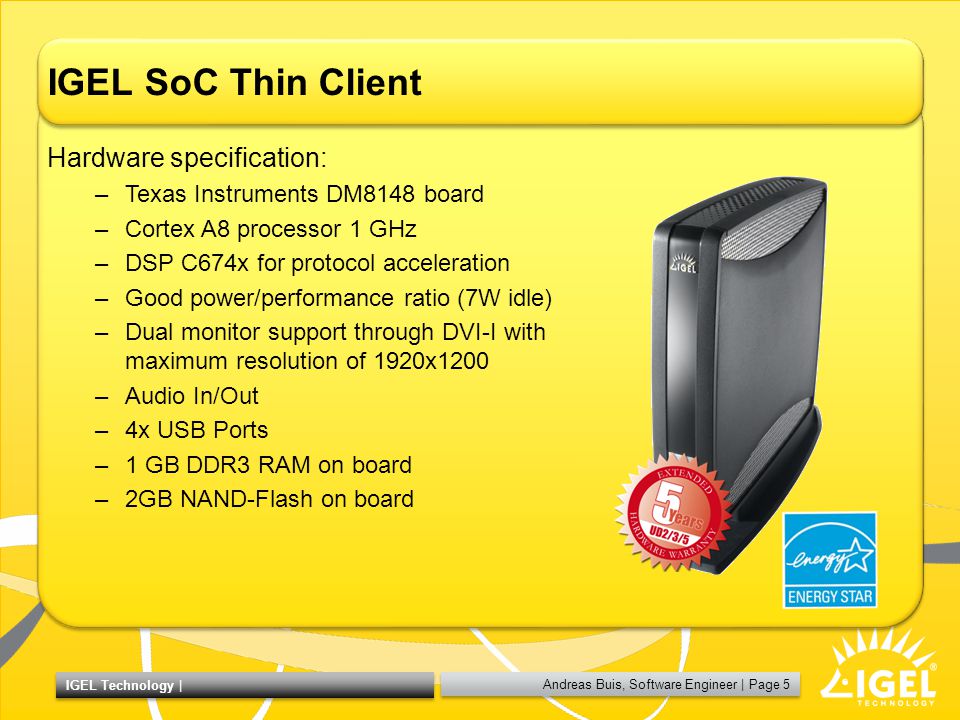

5 Andreas Buis, Software Engineer | Page 5 IGEL Technology | IGEL SoC Thin Client Hardware specification: –Texas Instruments DM8148 board –Cortex A8 processor 1 GHz –DSP C674x for protocol acceleration –Good power/performance ratio (7W idle) –Dual monitor support through DVI-I with maximum resolution of 1920x1200 –Audio In/Out –4x USB Ports –1 GB DDR3 RAM on board –2GB NAND-Flash on board

6 Andreas Buis, Software Engineer | Page 6 IGEL Technology | UD2-LX MultiMedia Software ► IGEL Linux base system ► Fully manageable through IGEL UMS ► Keeps up look and feel of an IGEL Linux desktop ► Integration of DSP acceleration infrastructure

7 Andreas Buis, Software Engineer | Page 7 IGEL Technology | UD2-LX MultiMedia DSP optimizations ARM CPU DSP RDP Client RemoteFX Decoder Media Player Citrix Receiver HDX Decoder MPEG4 Decoder H264 Decoder WMV Decoder General PurposeSpecial Tasks SoC

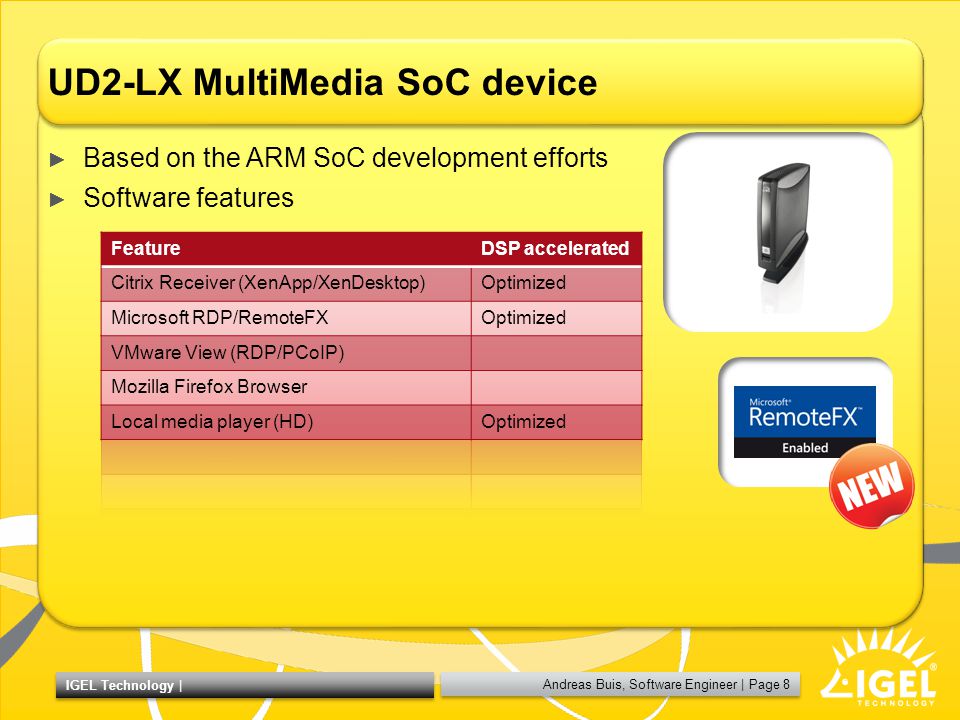

8 Andreas Buis, Software Engineer | Page 8 IGEL Technology | UD2-LX MultiMedia SoC device ► Based on the ARM SoC development efforts ► Software features

9 Andreas Buis, Software Engineer | Page 9 IGEL Technology | Why choose multiprotocol SoC devices ► Thin Clients have a up to 7 years lifetime IT infrastructure changes (not stuck in a one way technology) Changes in the backend infrastructure can be handled easily ► Always use the best protocol for your requirements ► Requirements to the Thin Client change with company‘s growth ► No need to use different types of devices and management approaches all devices can be managed through UMS

10 UD2-LX MULTIMEDIA Evaluation device

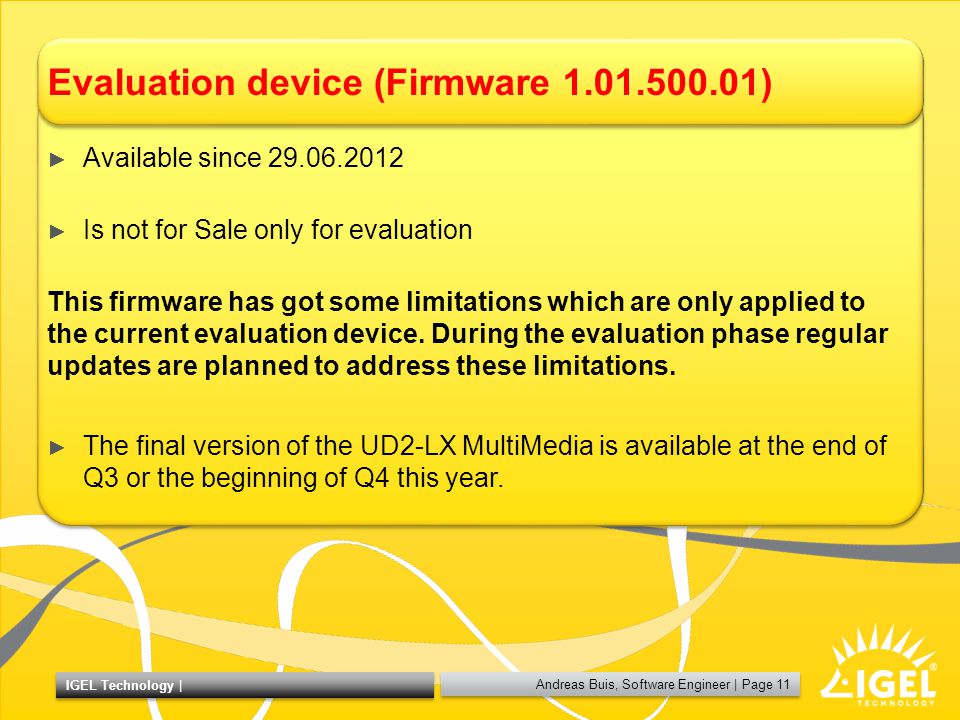

11 Andreas Buis, Software Engineer | Page 11 IGEL Technology | Evaluation device (Firmware ) ► Available since ► Is not for Sale only for evaluation This firmware has got some limitations which are only applied to the current evaluation device. During the evaluation phase regular updates are planned to address these limitations. ► The final version of the UD2-LX MultiMedia is available at the end of Q3 or the beginning of Q4 this year.

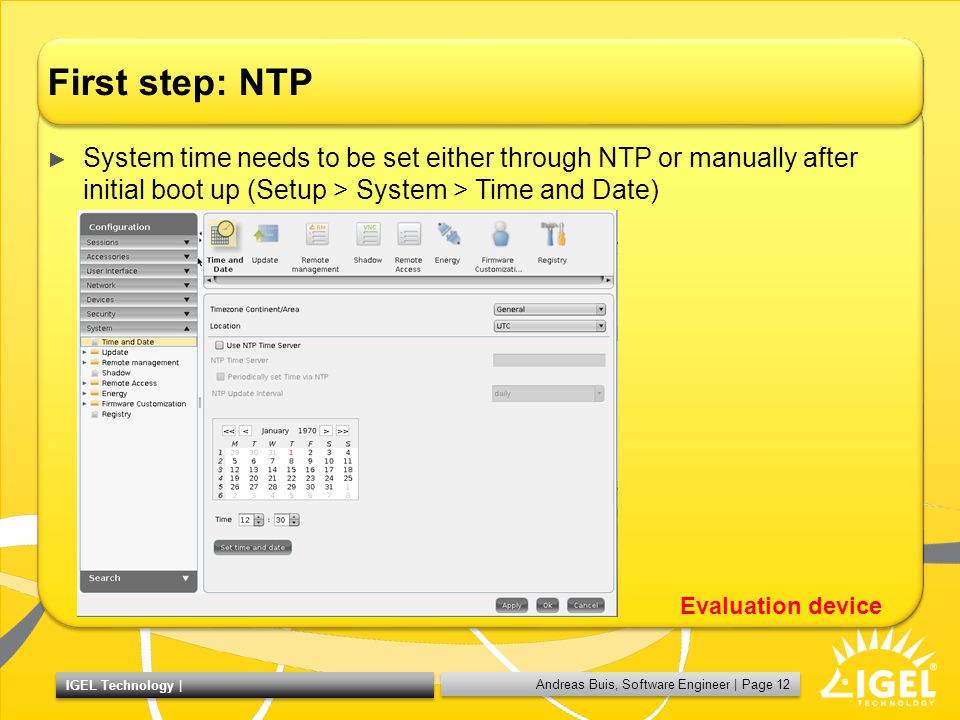

12 Andreas Buis, Software Engineer | Page 12 IGEL Technology | First step: NTP ► System time needs to be set either through NTP or manually after initial boot up (Setup > System > Time and Date) Evaluation device

13 Andreas Buis, Software Engineer | Page 13 IGEL Technology | IGEL UD look & feel Evaluation device

14 Andreas Buis, Software Engineer | Page 14 IGEL Technology | Acceleration: Remote FX OR Citrix ICA? ► To use the ARM for Remote FX OR Citrix ICA it must be selected in the IGEL „Application Launcher / DSP-Chooser“ Evaluation device

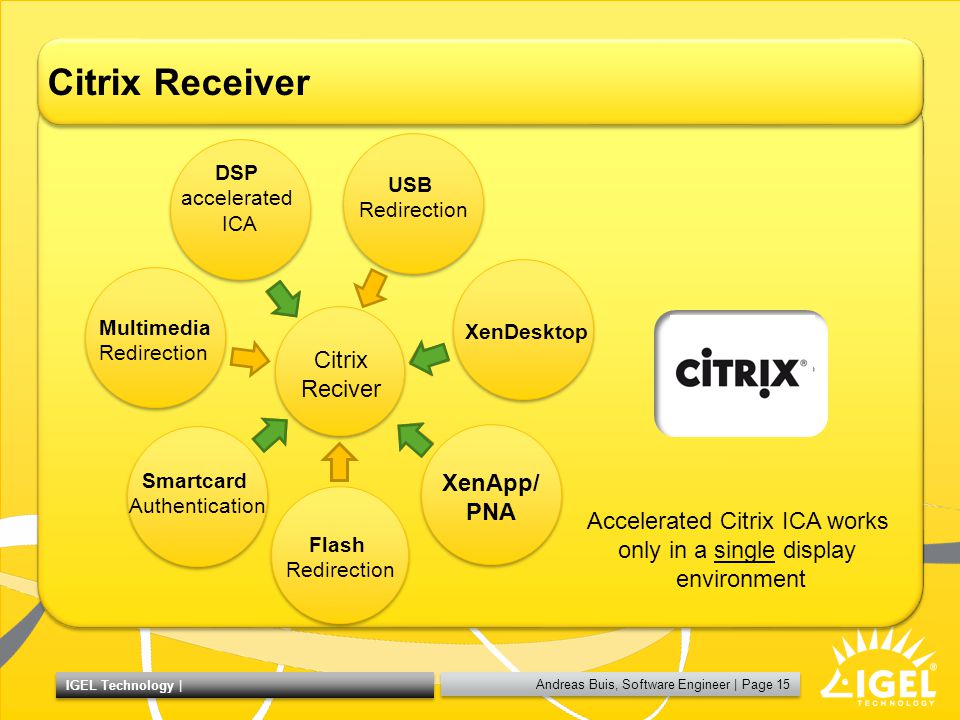

15 Andreas Buis, Software Engineer | Page 15 IGEL Technology | Citrix Receiver Flash Redirection USB Redirection Citrix Reciver Smartcard Authentication Multimedia Redirection DSP accelerated ICA XenDesktop XenApp/ PNA Accelerated Citrix ICA works only in a single display environment

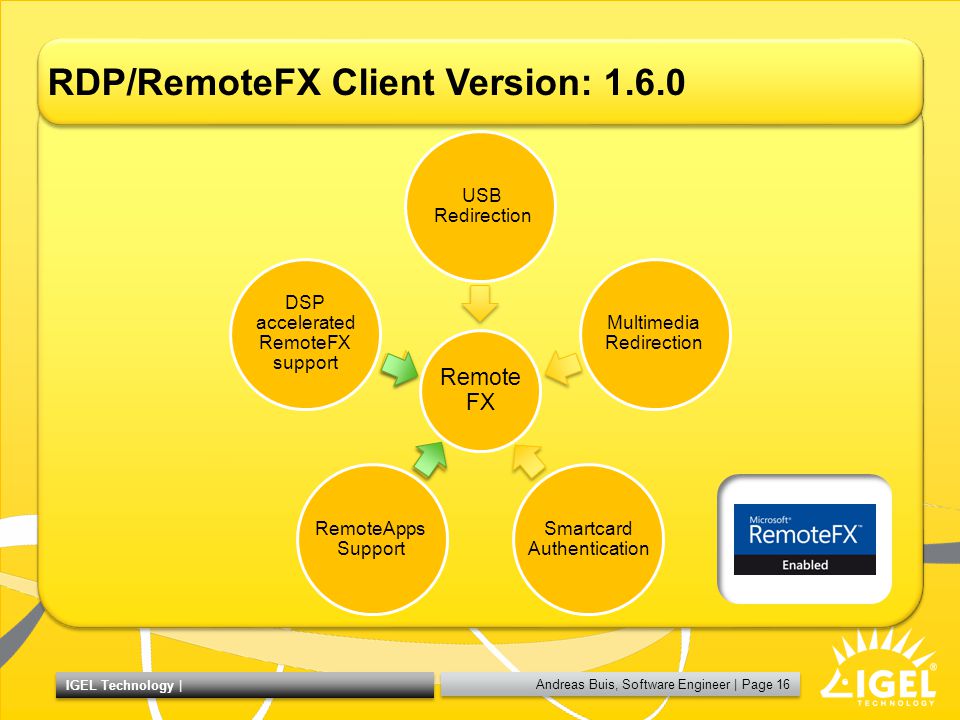

16 Andreas Buis, Software Engineer | Page 16 IGEL Technology | RDP/RemoteFX Client Version: Remote FX USB Redirection DSP accelerated RemoteFX support RemoteApps Support Smartcard Authentication Multimedia Redirection

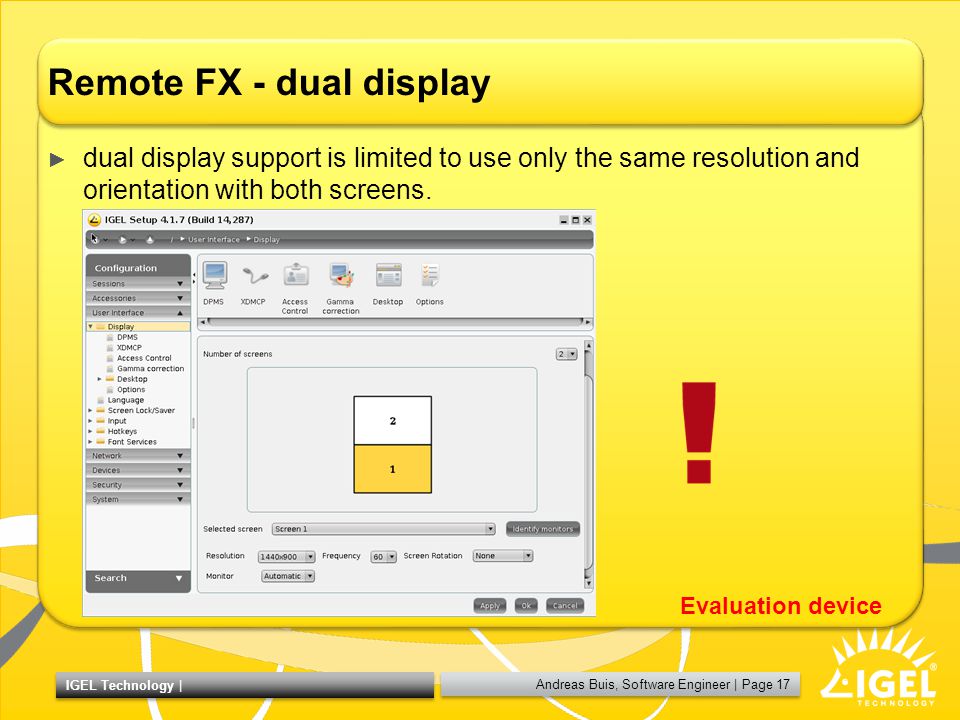

17 Andreas Buis, Software Engineer | Page 17 IGEL Technology | Remote FX - dual display ► dual display support is limited to use only the same resolution and orientation with both screens. Evaluation device

18 Andreas Buis, Software Engineer | Page 18 IGEL Technology | VMware View ► View client is currently not accelerated ► Version Evaluation device Note: Currently we only integrated the standard VMware View client which only provides limited acceleration through the SoC architecture. DSP accelerated PCoIP support USB Redirection Smartcard Authentication RDP PCoIP

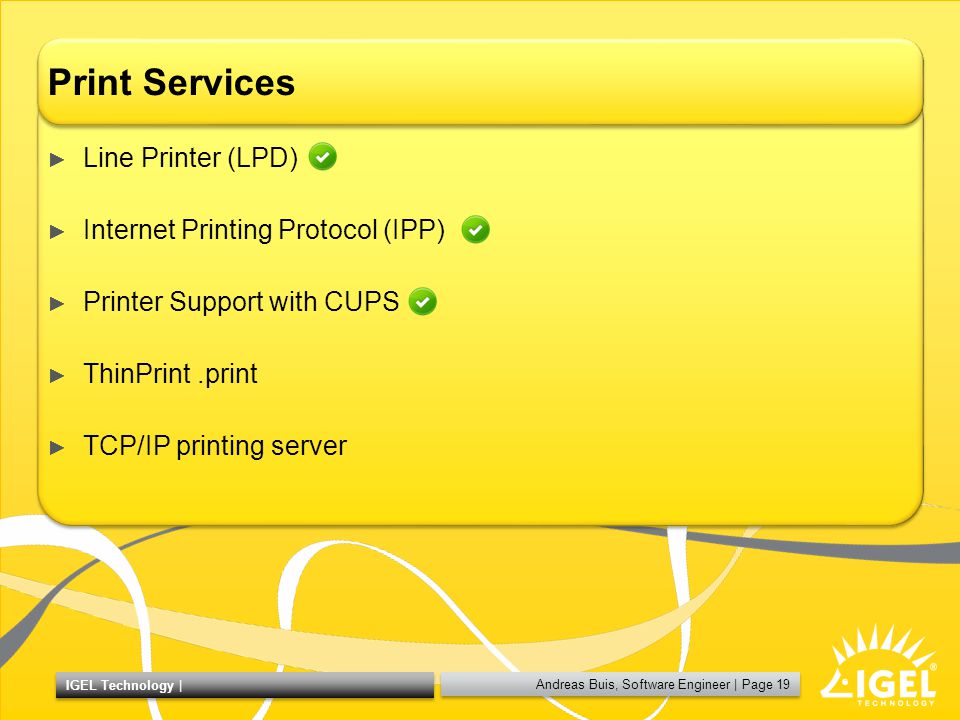

19 Andreas Buis, Software Engineer | Page 19 IGEL Technology | Print Services ► Line Printer (LPD) ► Internet Printing Protocol (IPP) ► Printer Support with CUPS ► ThinPrint.print ► TCP/IP printing server

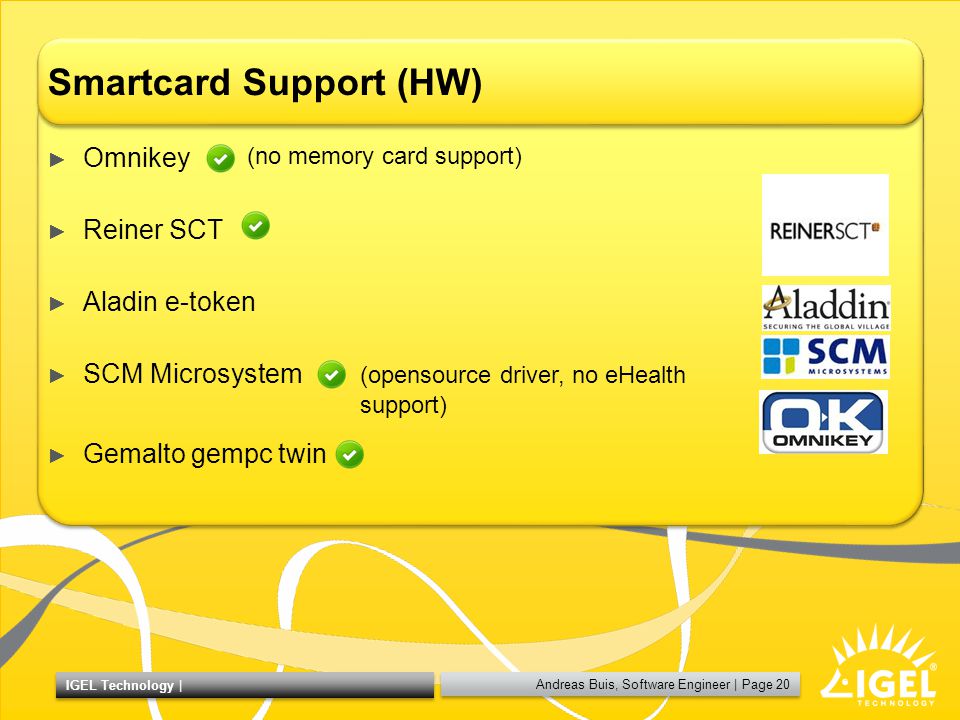

20 Andreas Buis, Software Engineer | Page 20 IGEL Technology | Smartcard Support (HW) ► Omnikey ► Reiner SCT ► Aladin e-token ► SCM Microsystem ► Gemalto gempc twin (no memory card support) (opensource driver, no eHealth support)

21 Andreas Buis, Software Engineer | Page 21 IGEL Technology | Smartcard Support (at local device) ► IGEL Smartcard ► A.E.T. Safesign ► Gemalto.NET ► Aladin e-token ► SecMaker NetID ► IGEL License Smartcard Note: Citrix session roaming does not work. No smartcard support for local browser sessions.

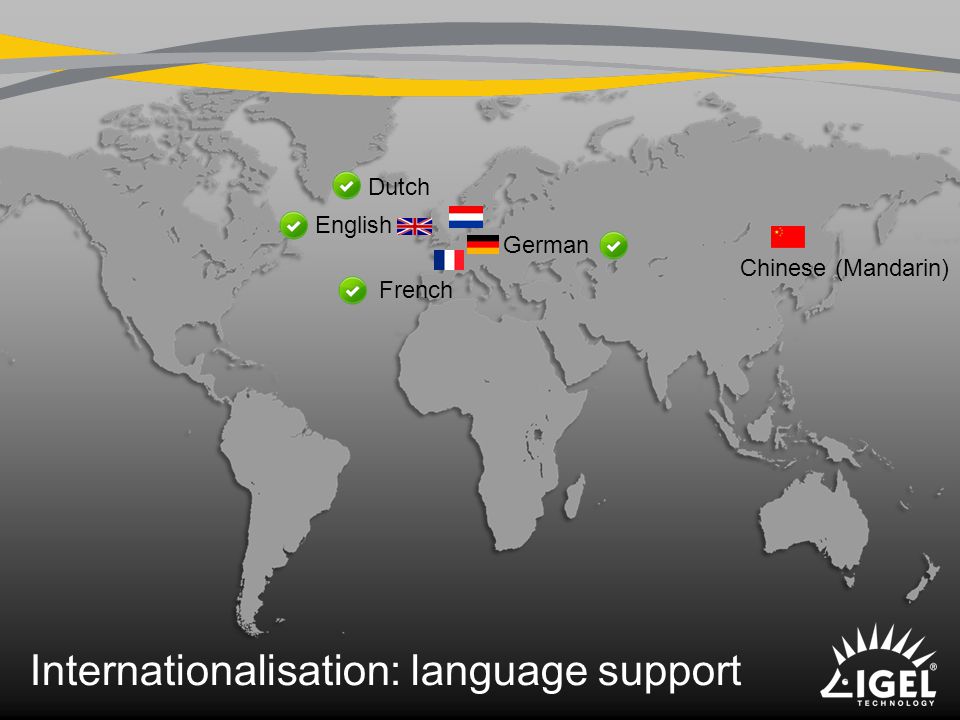

22 Internationalisation: language support French Dutch German English Chinese (Mandarin)

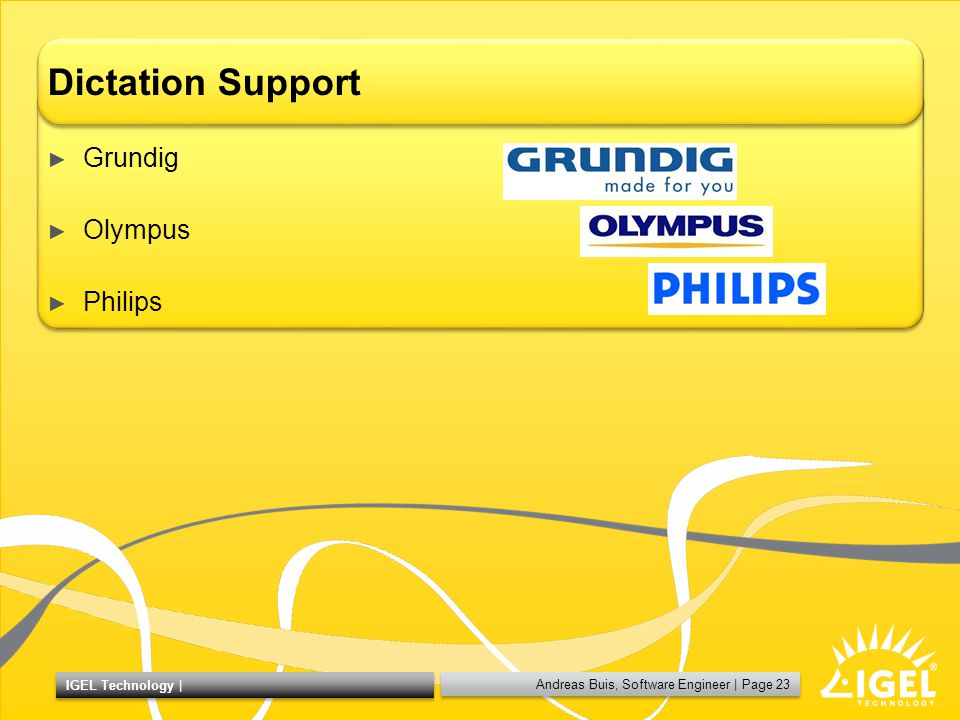

23 Andreas Buis, Software Engineer | Page 23 IGEL Technology | Dictation Support ► Grundig ► Olympus ► Philips

24 Andreas Buis, Software Engineer | Page 24 IGEL Technology | IGEL Software Features ► Shared Workplace ► Universal Multi Display ► Custom Partition ► Buddy Update (ARM Master only) ► USB access control ► Shadowing ► Dual View ► Custom Scripts ► Custom Boot Splash ► Custom Wallpaper ► Boot Menu (no fullscreen support)

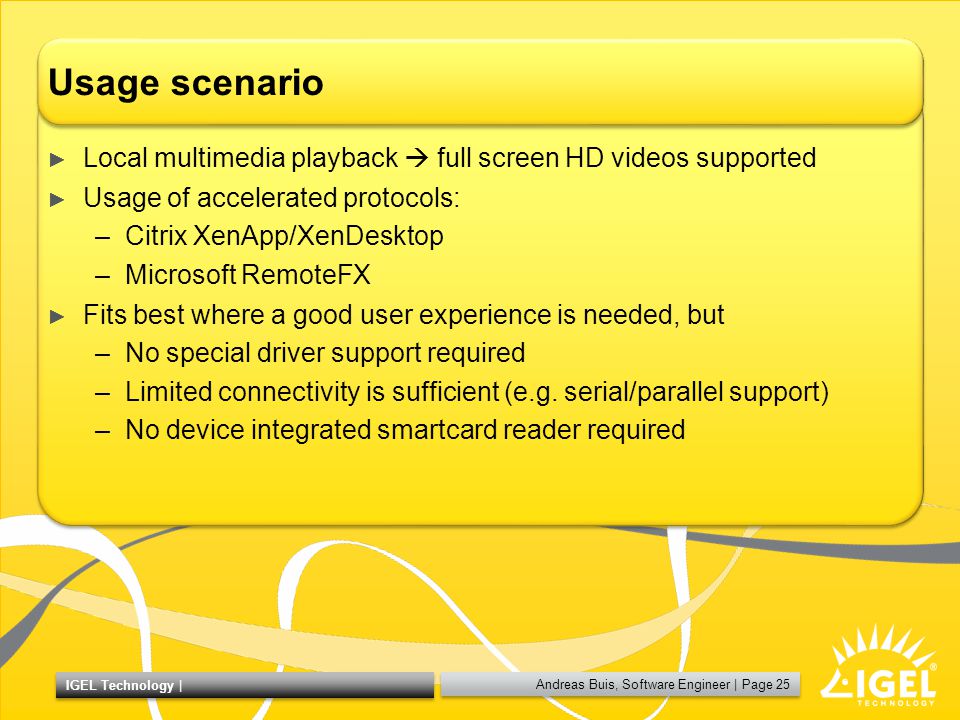

25 Andreas Buis, Software Engineer | Page 25 IGEL Technology | Usage scenario ► Local multimedia playback  full screen HD videos supported ► Usage of accelerated protocols: –Citrix XenApp/XenDesktop –Microsoft RemoteFX ► Fits best where a good user experience is needed, but –No special driver support required –Limited connectivity is sufficient (e.g. serial/parallel support) –No device integrated smartcard reader required

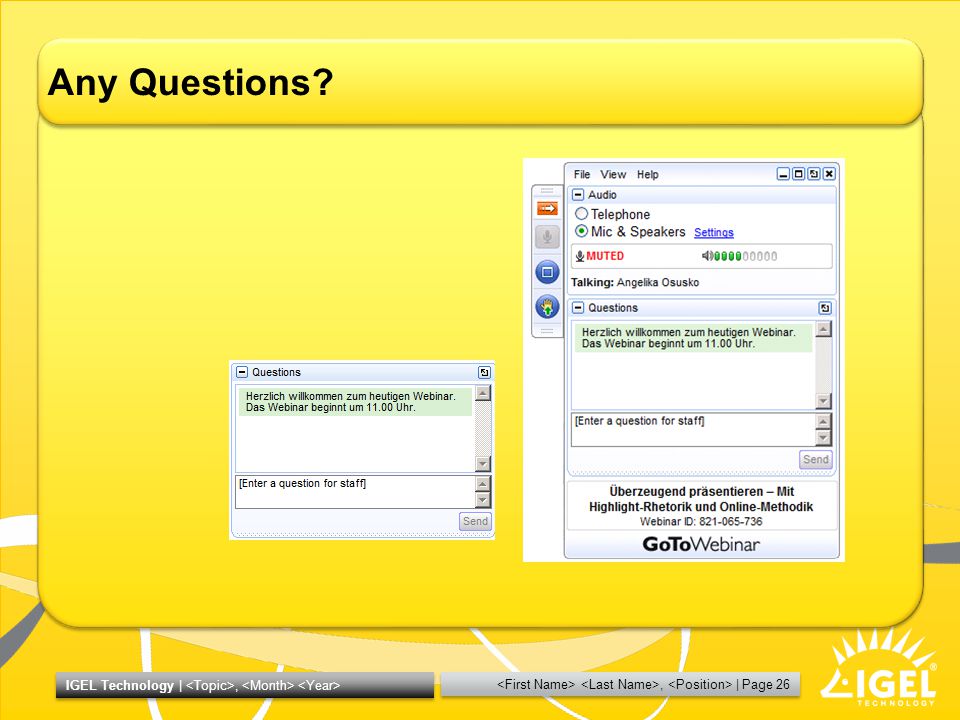

26 , | Page 26 IGEL Technology |, Any Questions?

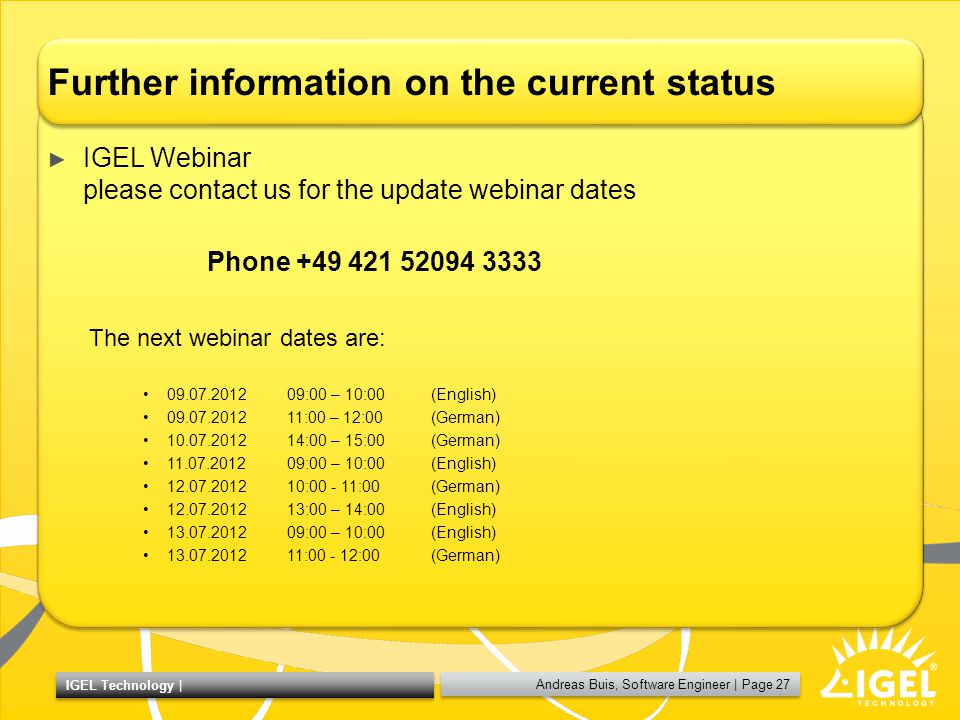

27 Andreas Buis, Software Engineer | Page 27 IGEL Technology | Further information on the current status ► IGEL Webinar please contact us for the update webinar dates Phone The next webinar dates are: :00 – 10:00 (English) :00 – 12:00 (German) :00 – 15:00 (German) :00 – 10:00 (English) : :00 (German) :00 – 14:00 (English) :00 – 10:00 (English) : :00 (German)

28 Questions? Thank you
