ICMS v3.4 Product Introduction Jeffrey Chou 2011/10/07.

Similar presentations


Presentation on theme: "ICMS v3.4 Product Introduction Jeffrey Chou 2011/10/07."— Presentation transcript:

1 iCMS v3.4 Product Introduction Jeffrey Chou 2011/10/07

2 IP Surveillance Solution: Central Management System

3 iCMS - Central Management Software Key Features PC-based recording and managing software Manage up to 64 sites x 16 channels = 1024 channels Simultaneously up to 64 channel recording and monitoring Instant / scheduled / Event / Pre-alarm recording DG-VSS / DG-700 / DG-900 support Dual stream support Main stream for recording, Sub stream for previewing Remote playback Remote PTZ control Remote IP Camera configuration notification with image Google Map in E-Map management Multiple language support

4  Managed up to 64 sites x 16CH = 1024CH  Simultaneously up to 64CH for recording and monitoring Manage up to 1024 channels iCMS DG-VSS / DG-700 / DG-900 … … 64 sites … IP camera Totally 1024 channels … … 64 channels live viewing to iCMS Others remain connected by iCMS and recorded by Storage devices …

5 Dual streams feature support for VSS / NVR … VSS Dual streams Camera x 16 Recording 1080P Live viewing / Recording 1080P … Dual streams Camera x 16 Recording 1080P Sub stream D1 NVR Sub stream D1 Live viewing D1 AND Live viewing / Recording 1080P Live viewing D1 OR Benefits of Dual Stream:  Reduce CPU decode loading  Reduce bandwidth consumption

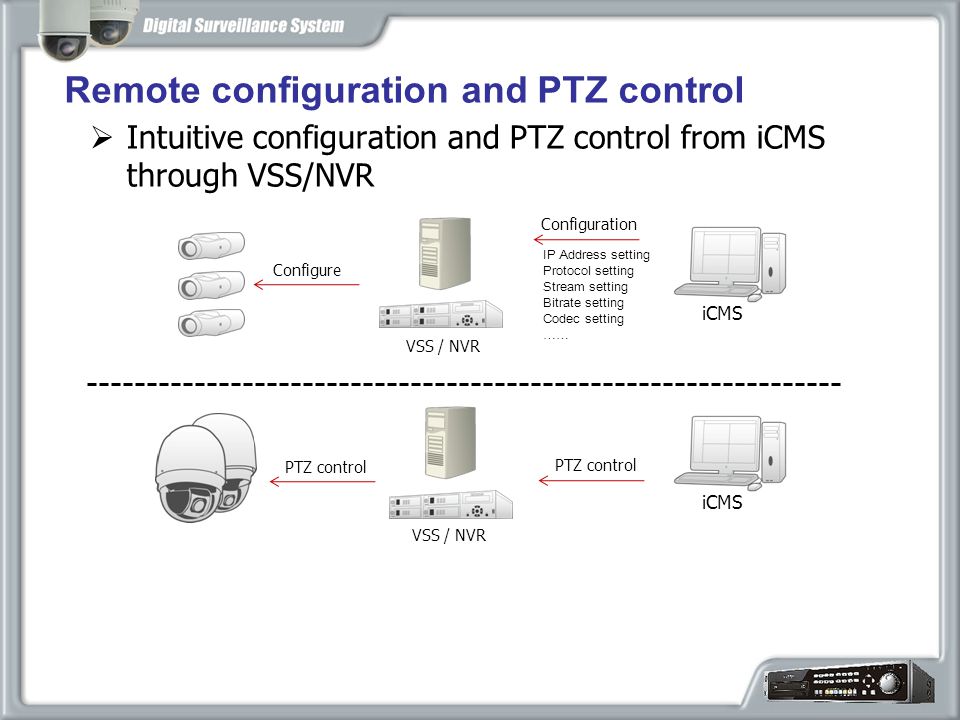

6  Intuitive configuration and PTZ control from iCMS through VSS/NVR Remote configuration and PTZ control VSS / NVR Configuration iCMS Configure IP Address setting Protocol setting Stream setting Bitrate setting Codec setting …… iCMS PTZ control VSS / NVR

7  CMS Player can either remote playback or archive video in VSS / NVR. CMS Player Remote Playback DG-VSS Remote playback Video stream CMS player DG-700 / DG-900 Edge recording devices Archive Video file OR
