1 Module 10 WPF 2-D Graphics, Multimedia, and Printing

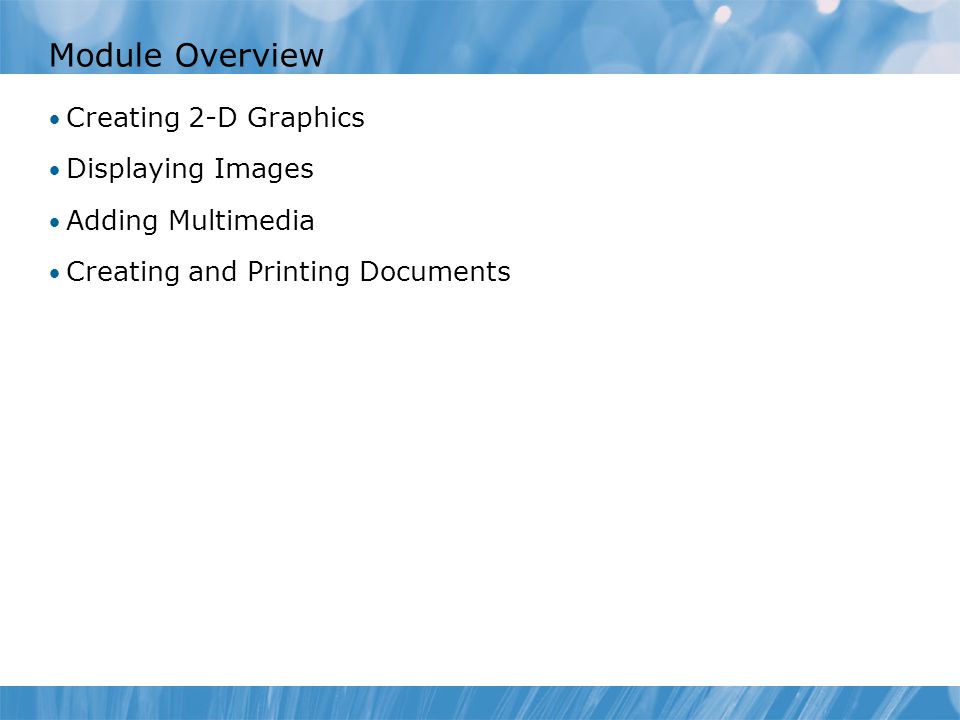

2 Module Overview Creating 2-D Graphics Displaying Images Adding Multimedia Creating and Printing Documents

3 Lesson 1: Creating 2-D Graphics 2-D Graphics Support in WPF Drawing Shapes What Are Paths and Geometries? Demonstration: Filling Shapes and Geometries Demonstration: Using and Animating Transformations

4 2-D Graphics Support in WPF Shapes Rectangle Ellipse Line Path Ellipse Pen Brush Geometry

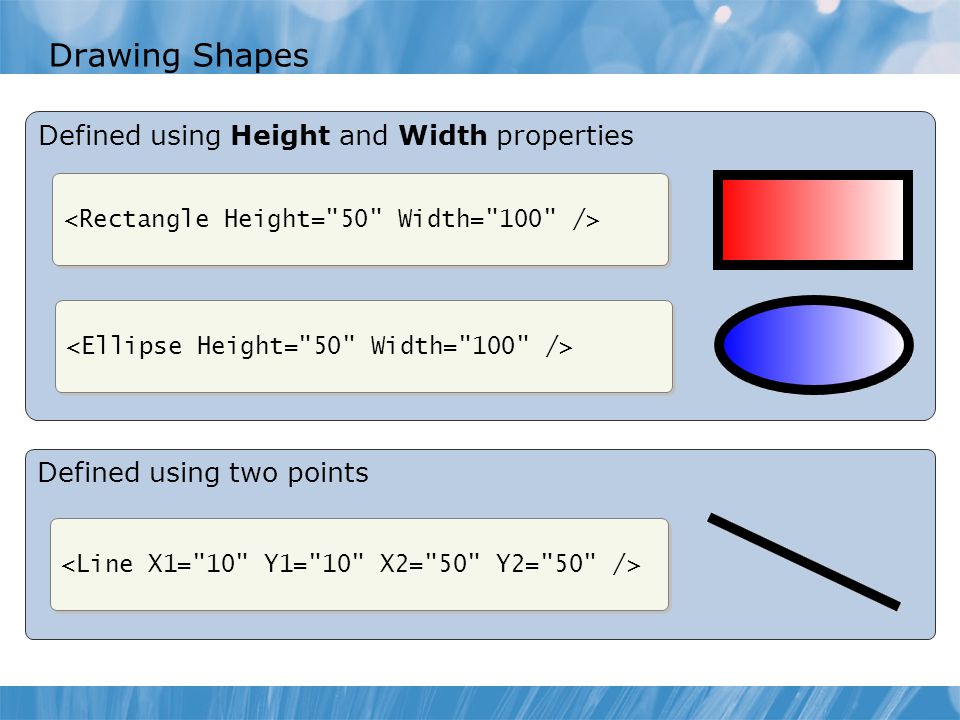

5 Drawing Shapes Defined using Height and Width properties Defined using two points

6 What Are Paths and Geometries? Paths are defined by geometries, which are made up of figures and segments

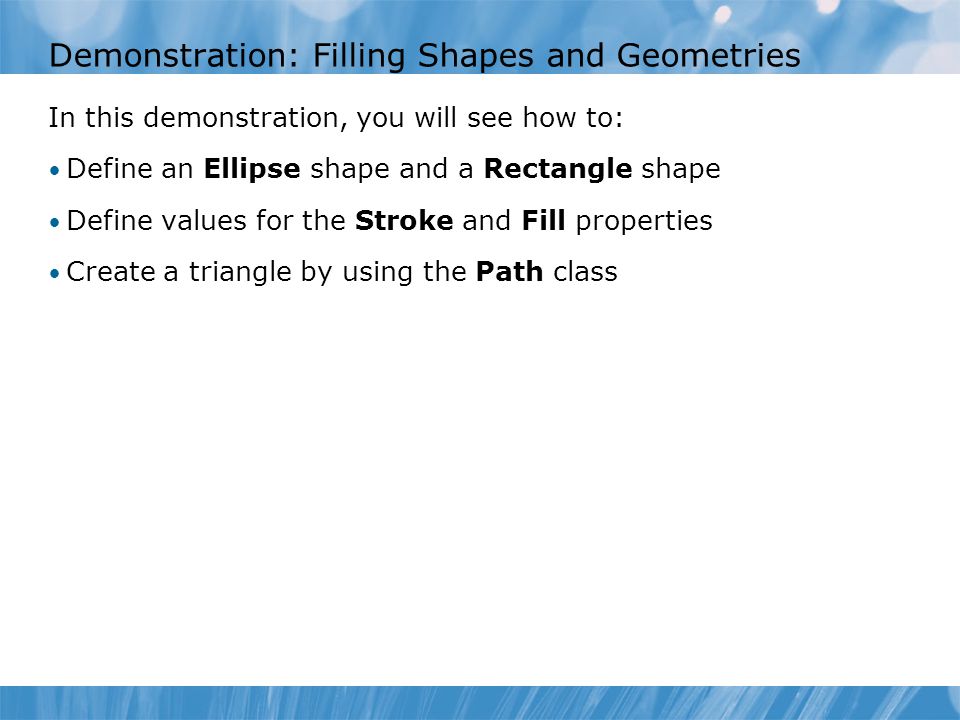

7 Demonstration: Filling Shapes and Geometries In this demonstration, you will see how to: Define an Ellipse shape and a Rectangle shape Define values for the Stroke and Fill properties Create a triangle by using the Path class

8 Notes Page Over-flow Slide. Do Not Print Slide. See Notes pane.

9

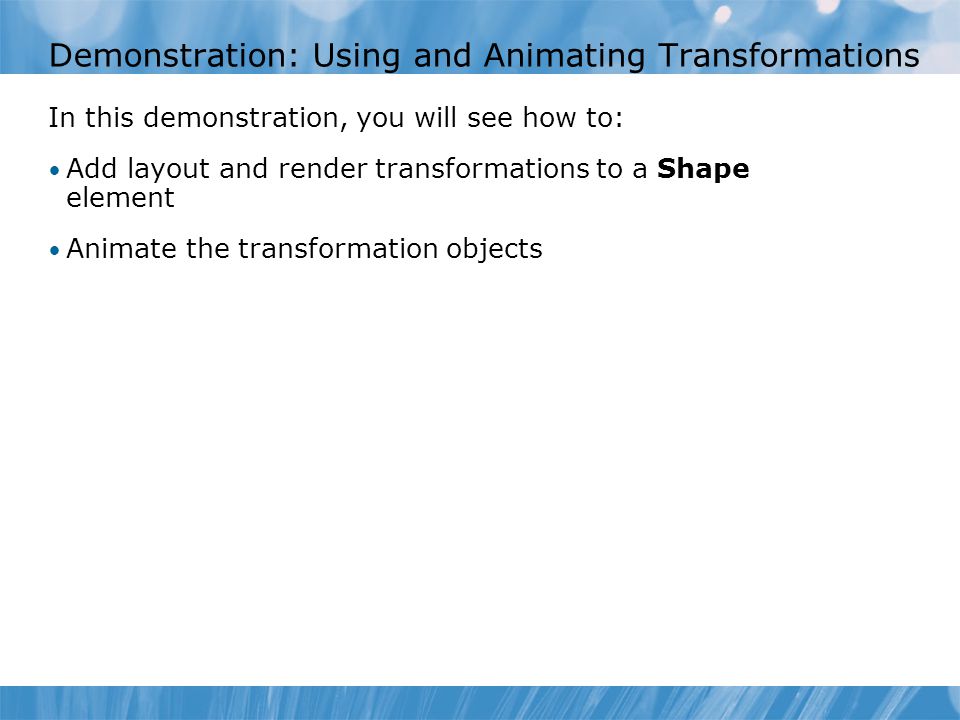

10 Demonstration: Using and Animating Transformations In this demonstration, you will see how to: Add layout and render transformations to a Shape element Animate the transformation objects

11 Notes Page Over-flow Slide. Do Not Print Slide. See Notes pane.

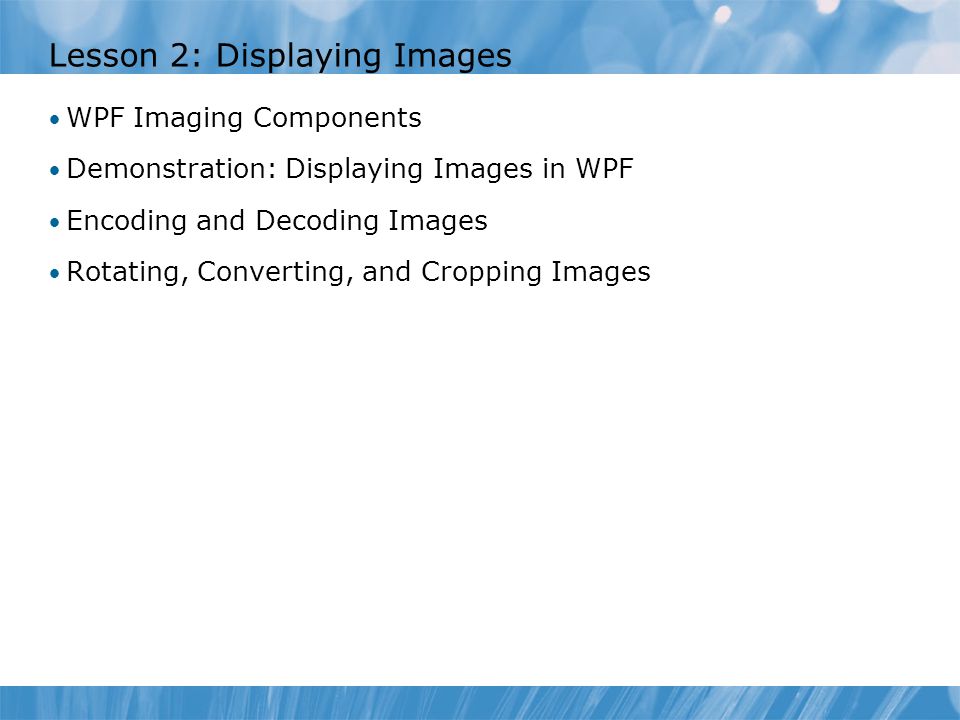

12 Lesson 2: Displaying Images WPF Imaging Components Demonstration: Displaying Images in WPF Encoding and Decoding Images Rotating, Converting, and Cropping Images

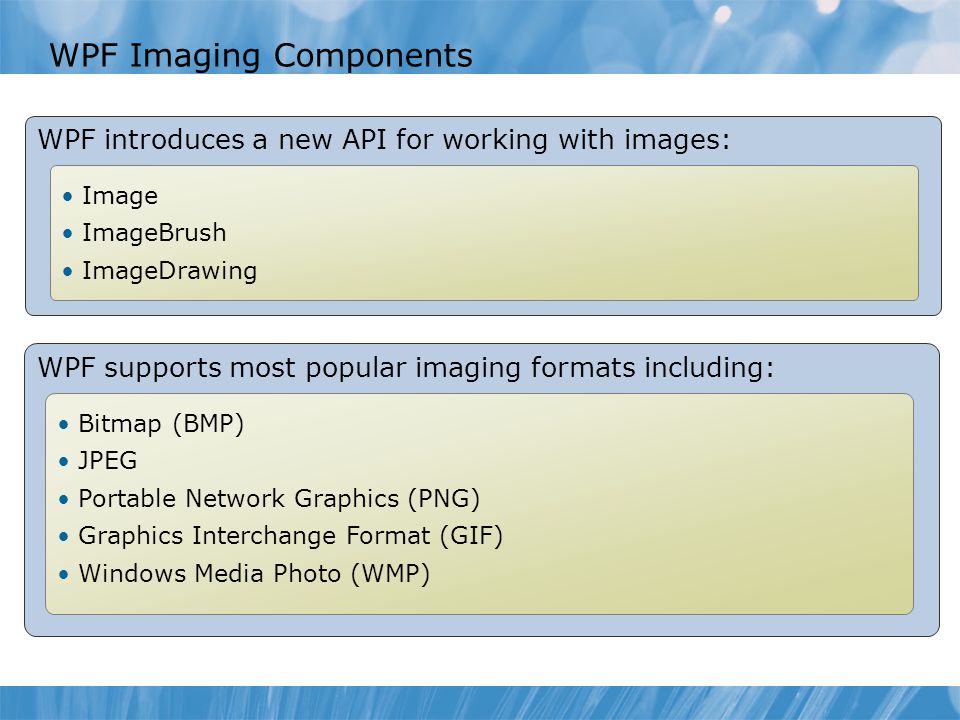

13 WPF Imaging Components WPF introduces a new API for working with images: Image ImageBrush ImageDrawing WPF supports most popular imaging formats including: Bitmap (BMP) JPEG Portable Network Graphics (PNG) Graphics Interchange Format (GIF) Windows Media Photo (WMP)

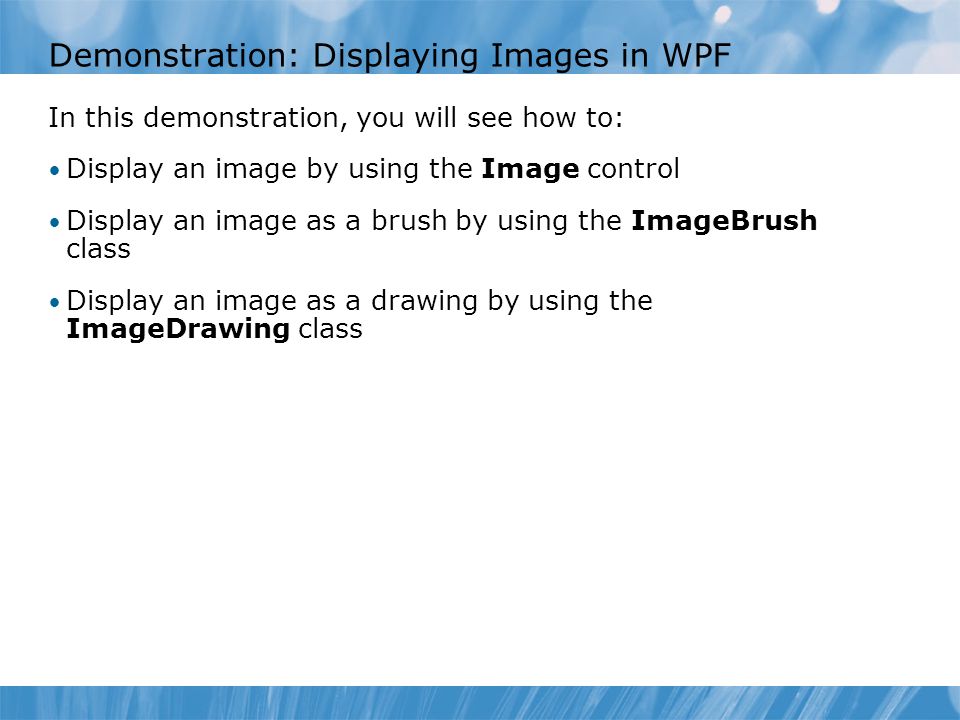

14 Demonstration: Displaying Images in WPF In this demonstration, you will see how to: Display an image by using the Image control Display an image as a brush by using the ImageBrush class Display an image as a drawing by using the ImageDrawing class

15 Notes Page Over-flow Slide. Do Not Print Slide. See Notes pane.

16 Encoding and Decoding Images Decode BitmapDecoder Encode BitmapEncoder

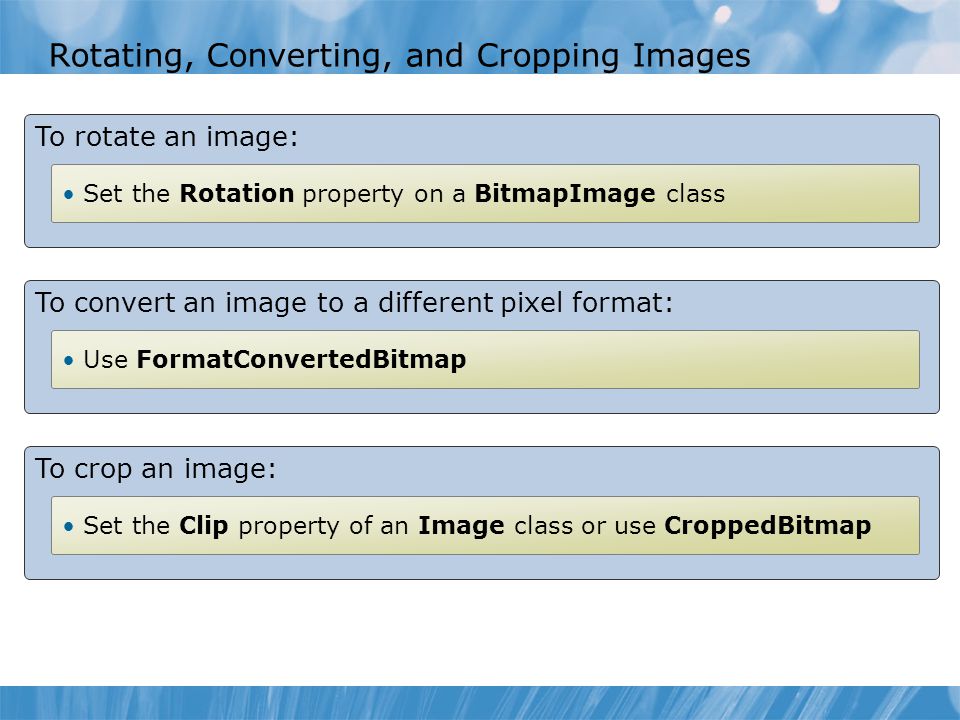

17 Rotating, Converting, and Cropping Images To rotate an image: Set the Rotation property on a BitmapImage class To convert an image to a different pixel format: Use FormatConvertedBitmap To crop an image: Set the Clip property of an Image class or use CroppedBitmap

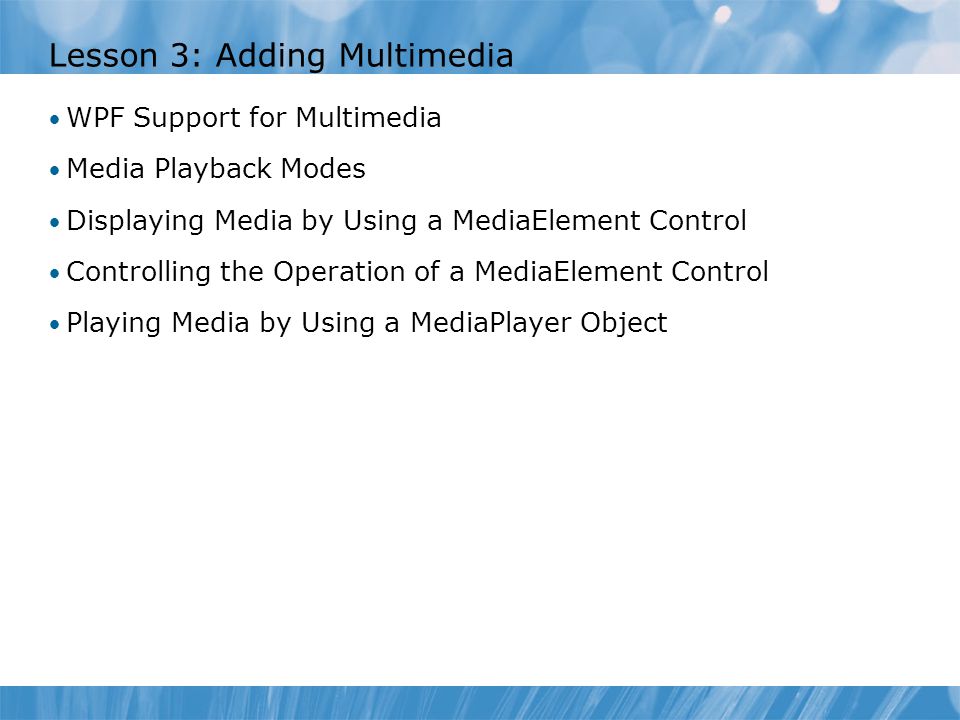

18 Lesson 3: Adding Multimedia WPF Support for Multimedia Media Playback Modes Displaying Media by Using a MediaElement Control Controlling the Operation of a MediaElement Control Playing Media by Using a MediaPlayer Object

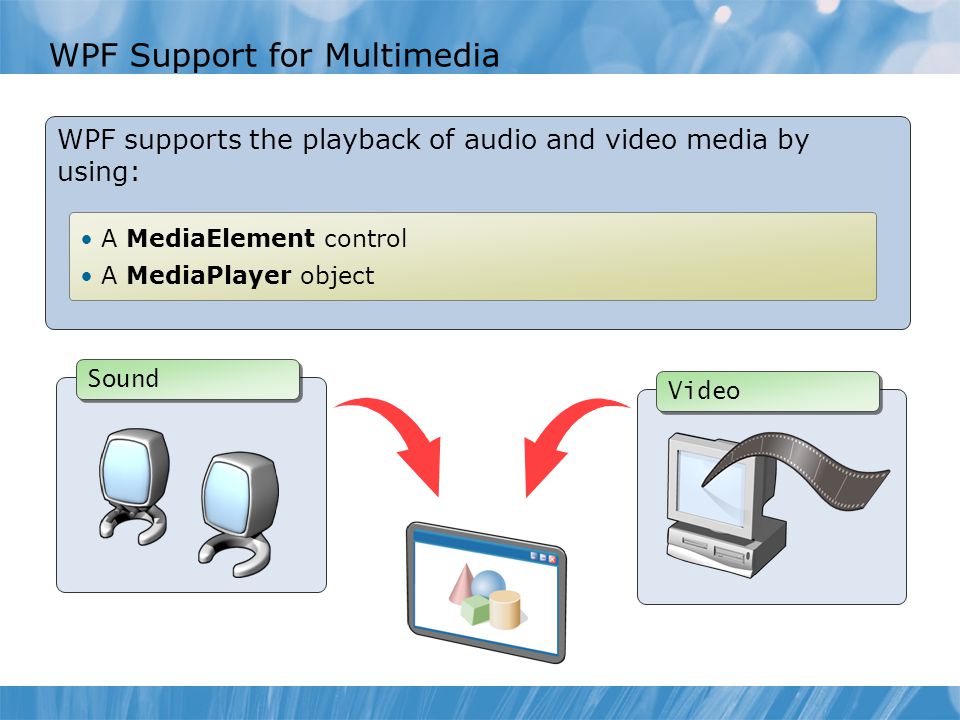

19 Sound WPF Support for Multimedia WPF supports the playback of audio and video media by using: A MediaElement control A MediaPlayer object Video

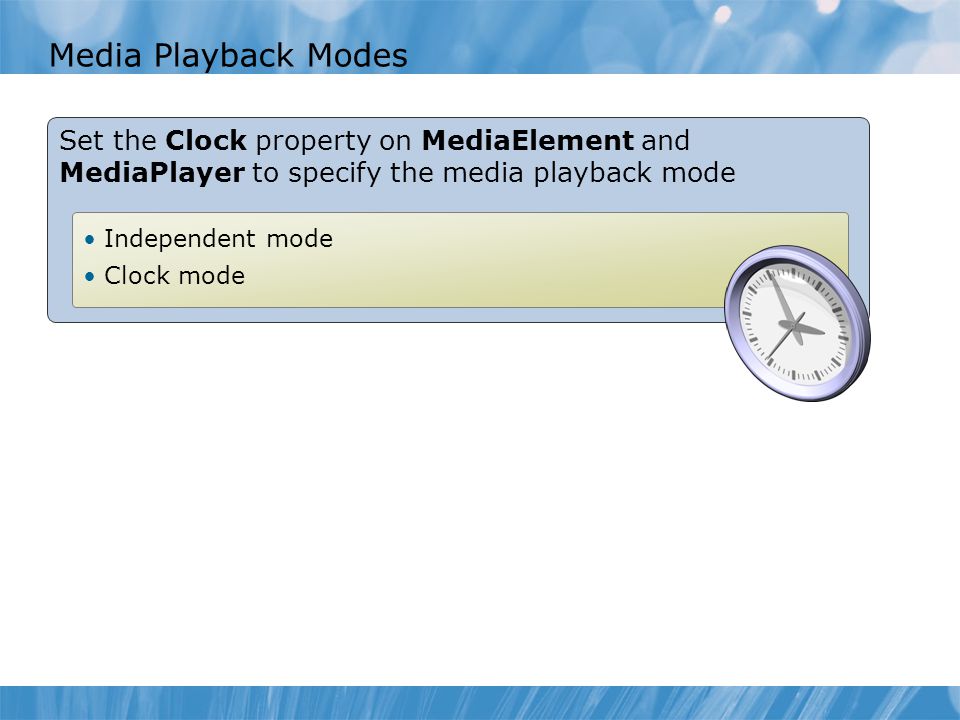

20 Media Playback Modes Set the Clock property on MediaElement and MediaPlayer to specify the media playback mode Independent mode Clock mode

21 Displaying Media by Using a MediaElement Control To play media by using a MediaElement control:

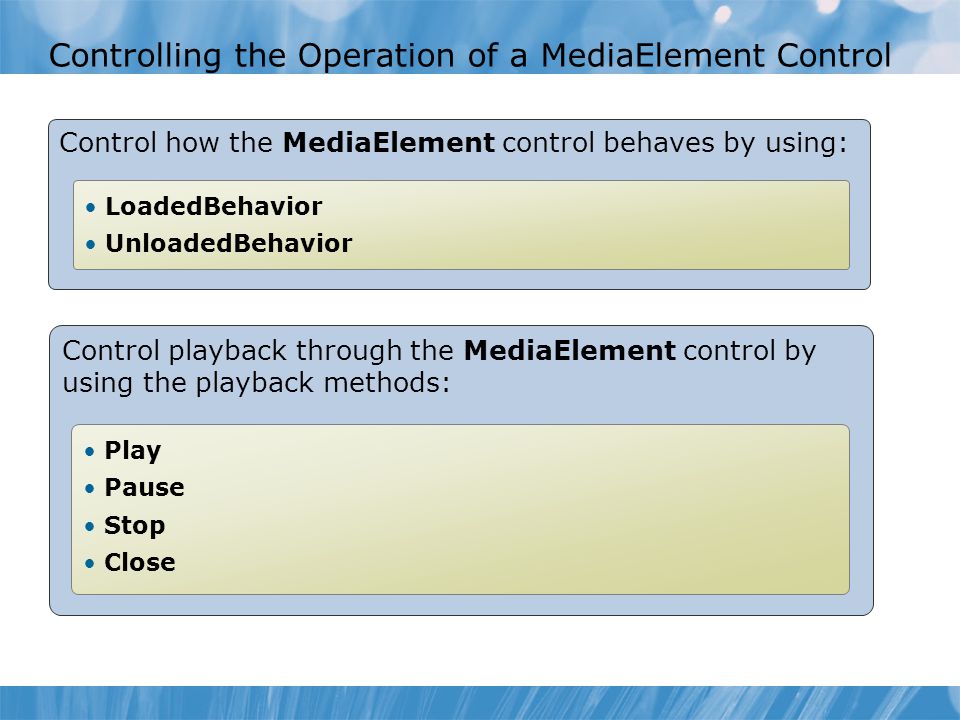

22 Controlling the Operation of a MediaElement Control Control how the MediaElement control behaves by using: LoadedBehavior UnloadedBehavior Control playback through the MediaElement control by using the playback methods: Play Pause Stop Close

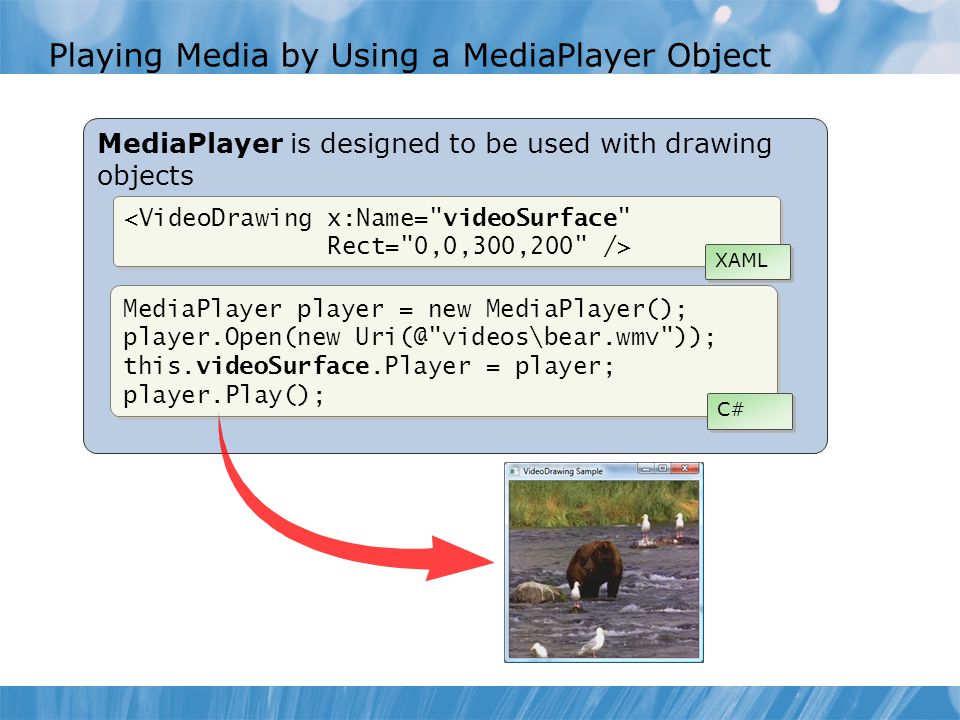

23 Playing Media by Using a MediaPlayer Object MediaPlayer is designed to be used with drawing objects MediaPlayer player = new MediaPlayer(); player.Open(new this.videoSurface.Player = player; player.Play(); MediaPlayer player = new MediaPlayer(); player.Open(new this.videoSurface.Player = player; player.Play(); XAML C#

24 Lesson 4: Creating and Printing Documents What Are Fixed and Flow Documents? Defining Fixed and Flow Documents Viewing Fixed and Flow Documents What Is the XML Paper Specification? Demonstration: Printing Documents Controlling Print Jobs Managing the Print Queue

25 What Are Fixed and Flow Documents? Fixed Documents: Are static, read-only, portable documents Provide WYSIWYG presentation Are independent of the display or printer hardware Flow Documents: Are a XAML construct for holding large blocks of textual data Provide an optimized viewing and reading experience Dynamically adjust and reflow content Provide additional viewing features: Searching Navigation Zooming

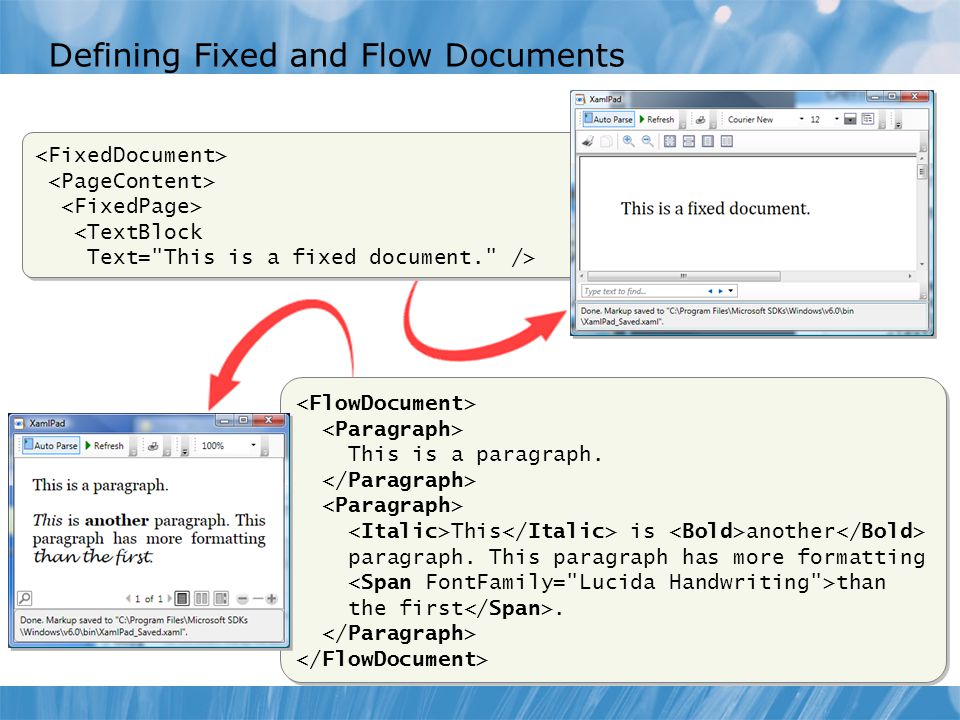

26 Defining Fixed and Flow Documents This is a paragraph. This is another paragraph. This paragraph has more formatting than the first. This is a paragraph. This is another paragraph. This paragraph has more formatting than the first.

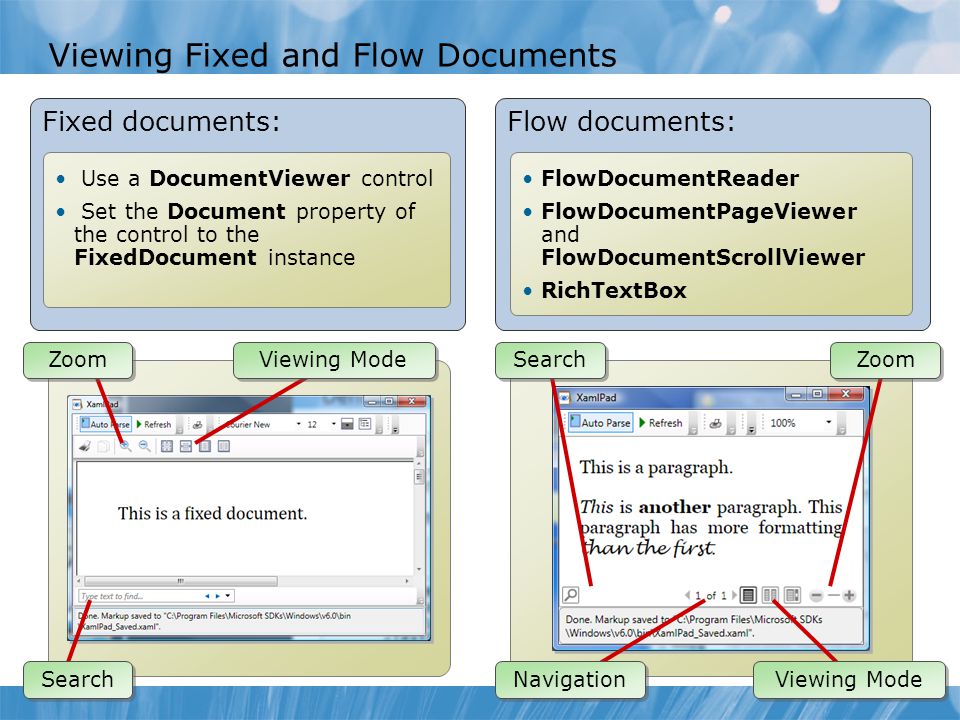

27 Viewing Fixed and Flow Documents Search Zoom Viewing Mode Fixed documents: Use a DocumentViewer control Set the Document property of the control to the FixedDocument instance Search Navigation Zoom Viewing Mode Flow documents: FlowDocumentReader FlowDocumentPageViewer and FlowDocumentScrollViewer RichTextBox

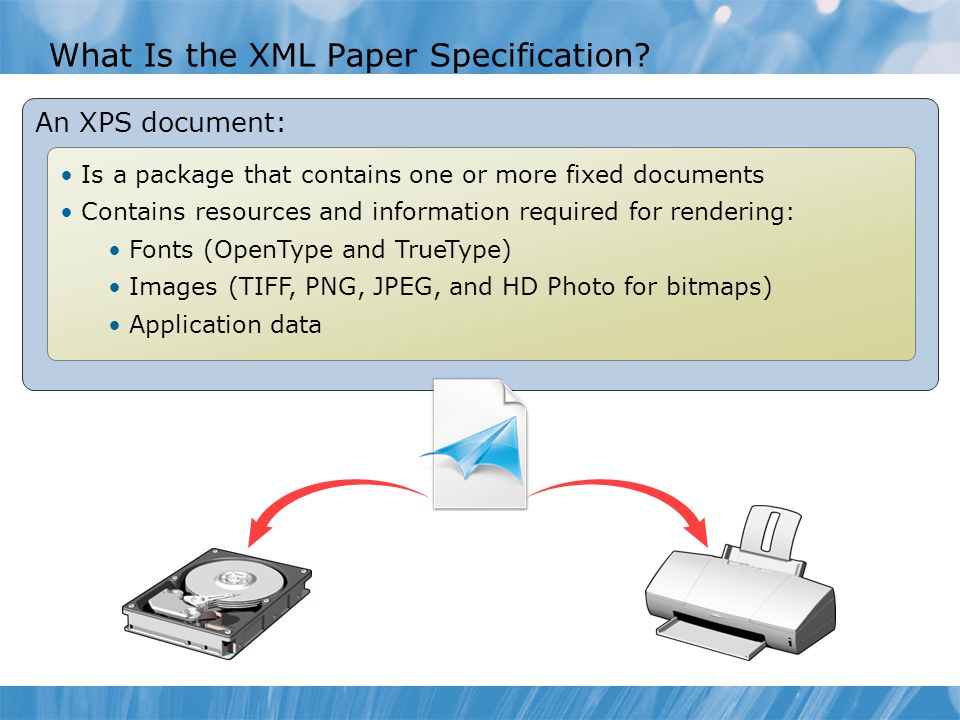

28 What Is the XML Paper Specification? An XPS document: Is a package that contains one or more fixed documents Contains resources and information required for rendering: Fonts (OpenType and TrueType) Images (TIFF, PNG, JPEG, and HD Photo for bitmaps) Application data

29 Demonstration: Printing Documents In this demonstration, you will see how to: Create a PrintDialog dialog box and return a PrintQueue instance Create an XpsDocumentWriter instance Write the document to a PrintQueue instance by using the XpsDocumentWriter class

30 Notes Page Over-flow Slide. Do Not Print Slide. See Notes pane.

31

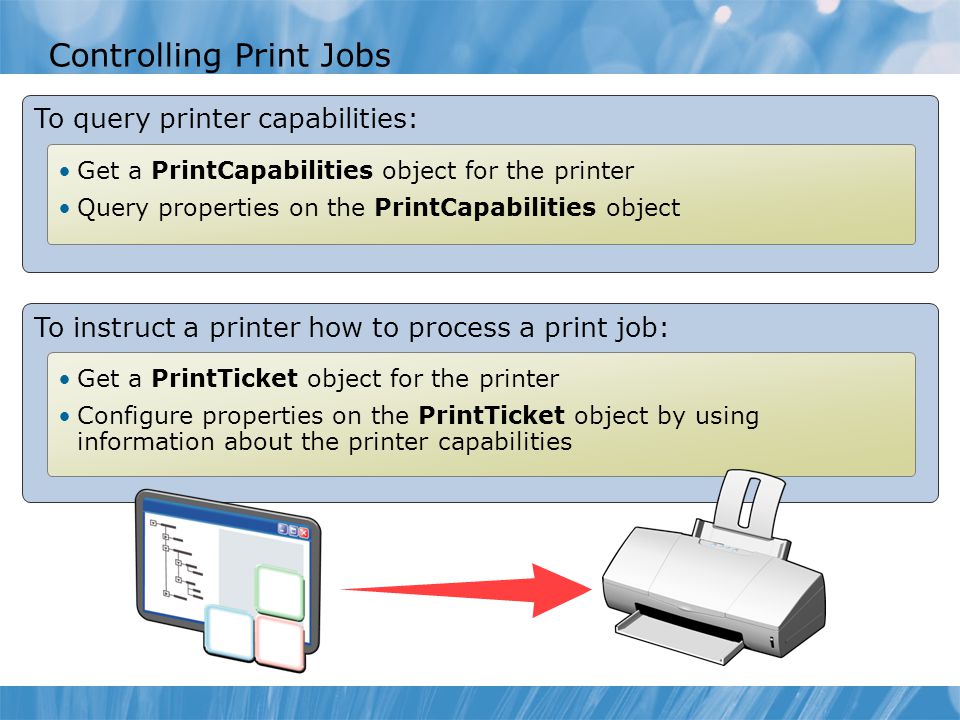

32 Controlling Print Jobs To query printer capabilities: Get a PrintCapabilities object for the printer Query properties on the PrintCapabilities object To instruct a printer how to process a print job: Get a PrintTicket object for the printer Configure properties on the PrintTicket object by using information about the printer capabilities

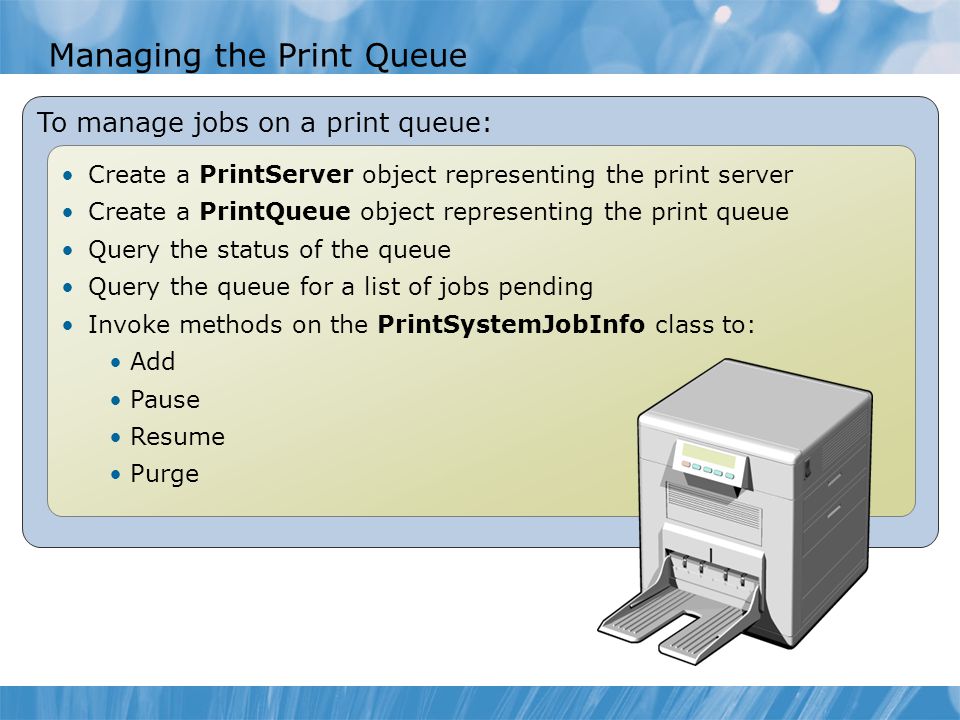

33 Managing the Print Queue To manage jobs on a print queue: Create a PrintServer object representing the print server Create a PrintQueue object representing the print queue Query the status of the queue Query the queue for a list of jobs pending Invoke methods on the PrintSystemJobInfo class to: Add Pause Resume Purge

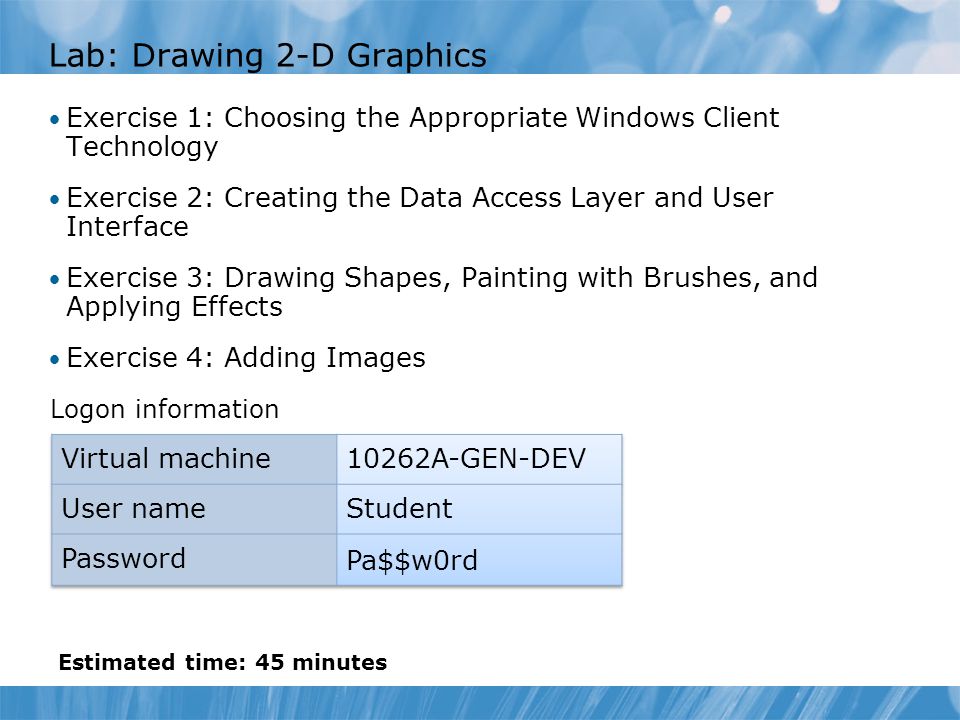

34 Lab: Drawing 2-D Graphics Exercise 1: Choosing the Appropriate Windows Client Technology Exercise 2: Creating the Data Access Layer and User Interface Exercise 3: Drawing Shapes, Painting with Brushes, and Applying Effects Exercise 4: Adding Images Logon information Estimated time: 45 minutes

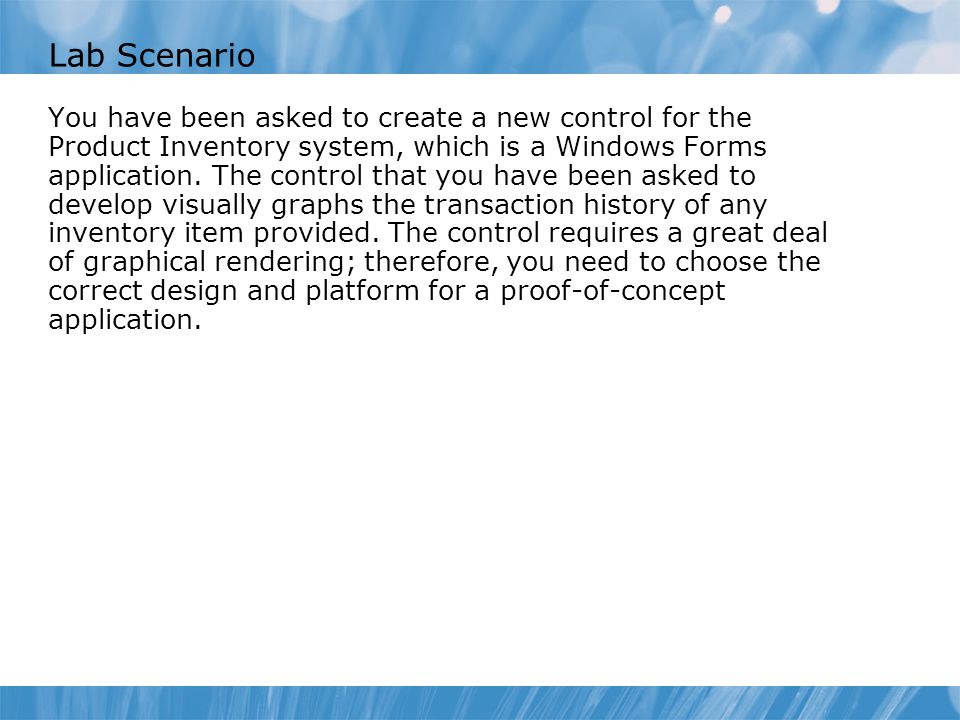

35 Lab Scenario You have been asked to create a new control for the Product Inventory system, which is a Windows Forms application. The control that you have been asked to develop visually graphs the transaction history of any inventory item provided. The control requires a great deal of graphical rendering; therefore, you need to choose the correct design and platform for a proof-of-concept application.

36 Lab Review Review Questions How do you use a single repeating image as the background of a UI element? Which control enables you to add an image to the UI?

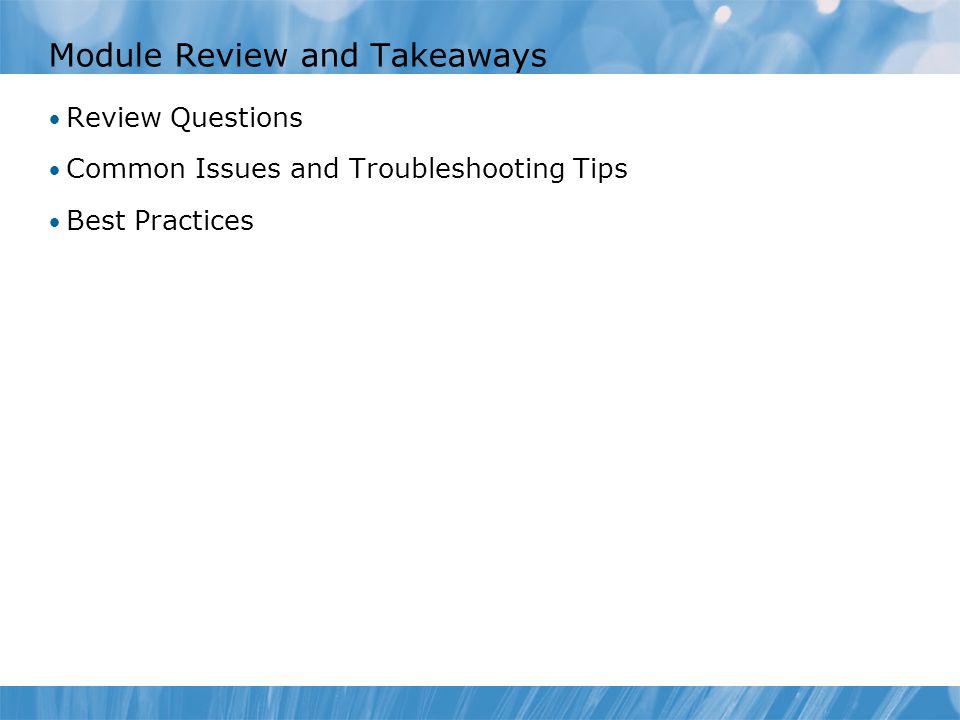

37 Module Review and Takeaways Review Questions Common Issues and Troubleshooting Tips Best Practices

38 Notes Page Over-flow Slide. Do Not Print Slide. See Notes pane.
