1 Apache Storm and Kafka Boston Storm User Group September 25, 2014 P. Taylor Goetz,

2 What is Apache Kafka?

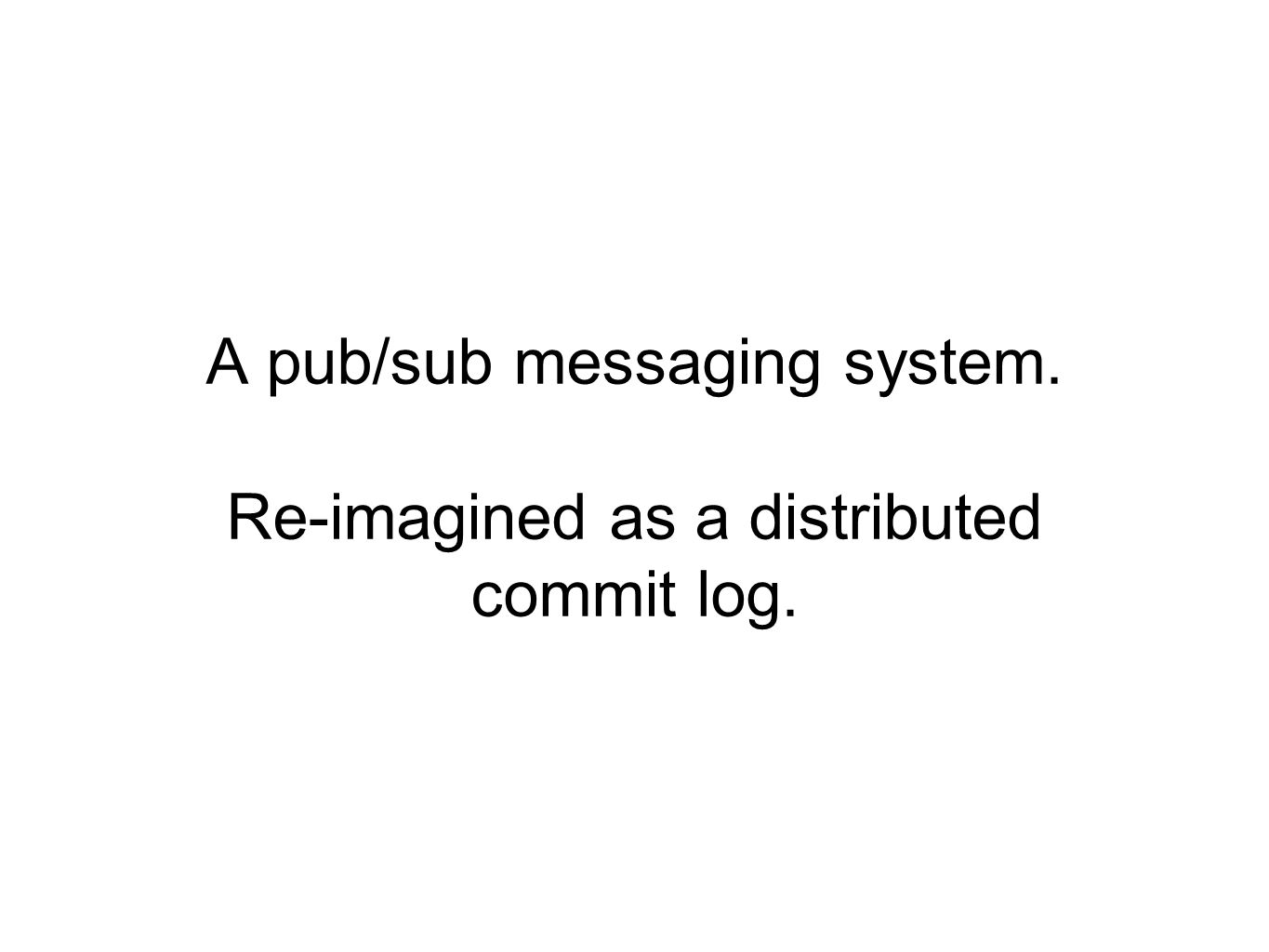

3 A pub/sub messaging system. Re-imagined as a distributed commit log.

4 Apache Kafka Fast Scalable Durable Distributed

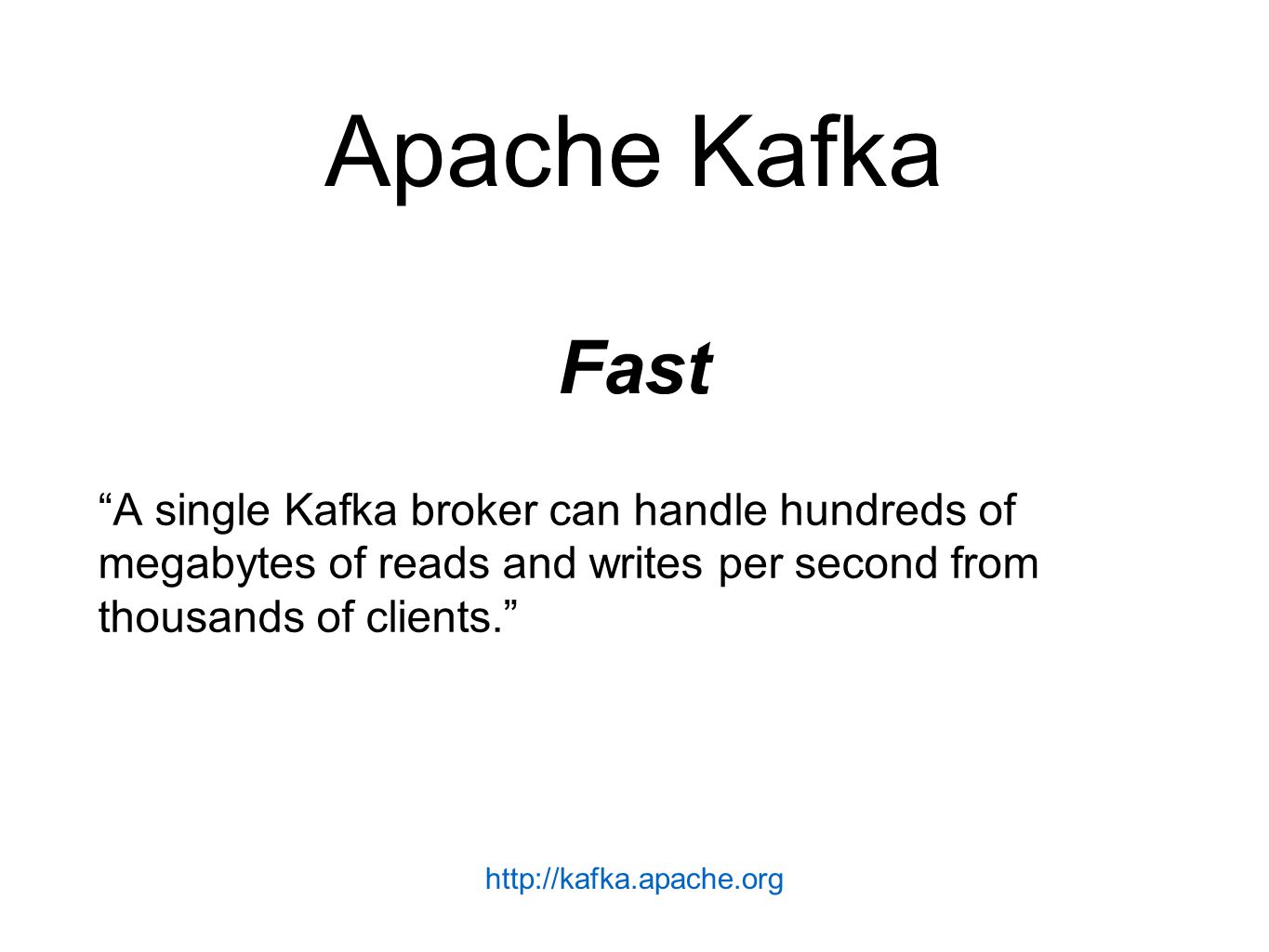

5 Apache Kafka Fast “A single Kafka broker can handle hundreds of megabytes of reads and writes per second from thousands of clients.”

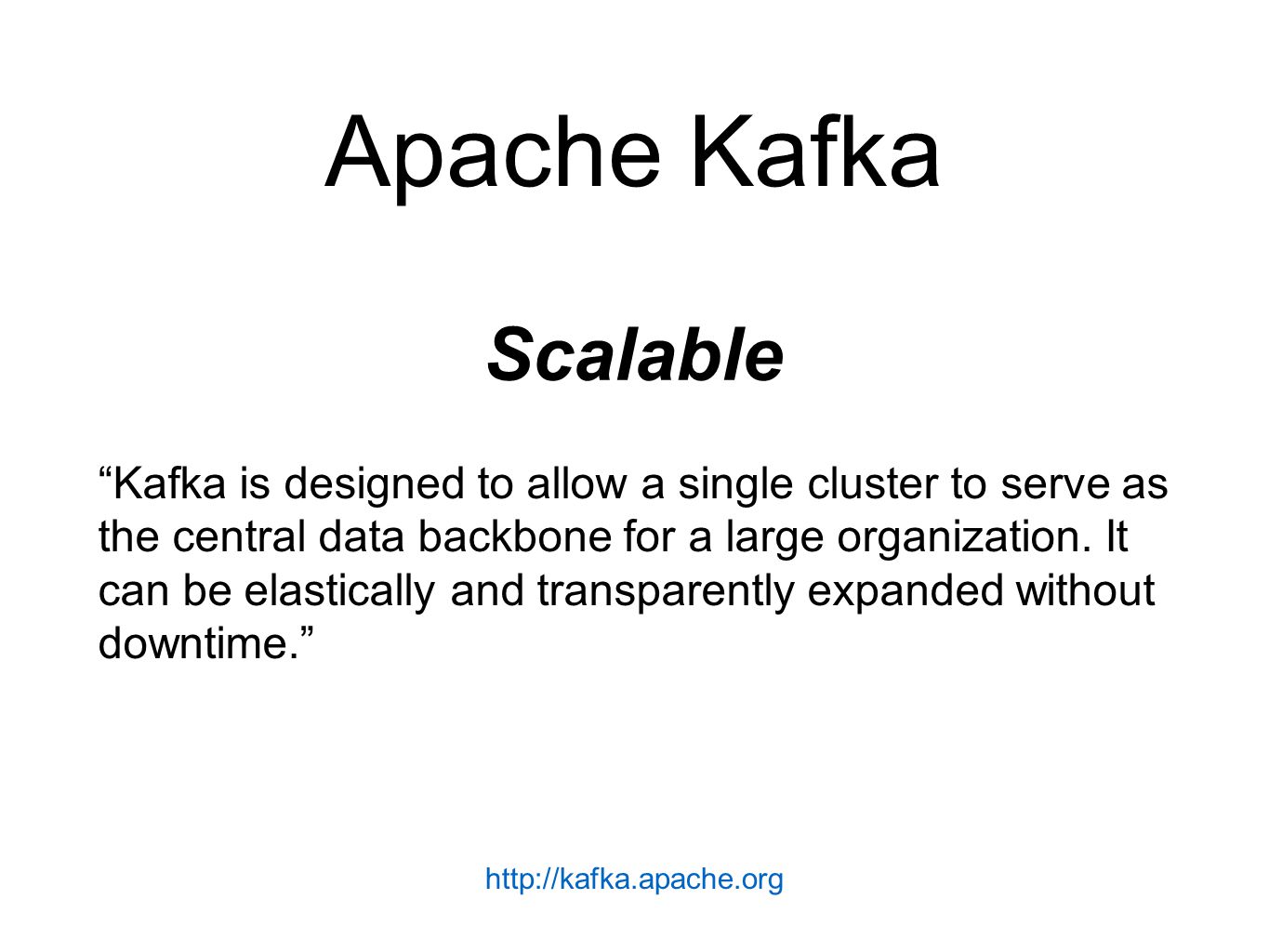

6 Apache Kafka Scalable “Kafka is designed to allow a single cluster to serve as the central data backbone for a large organization. It can be elastically and transparently expanded without downtime.”

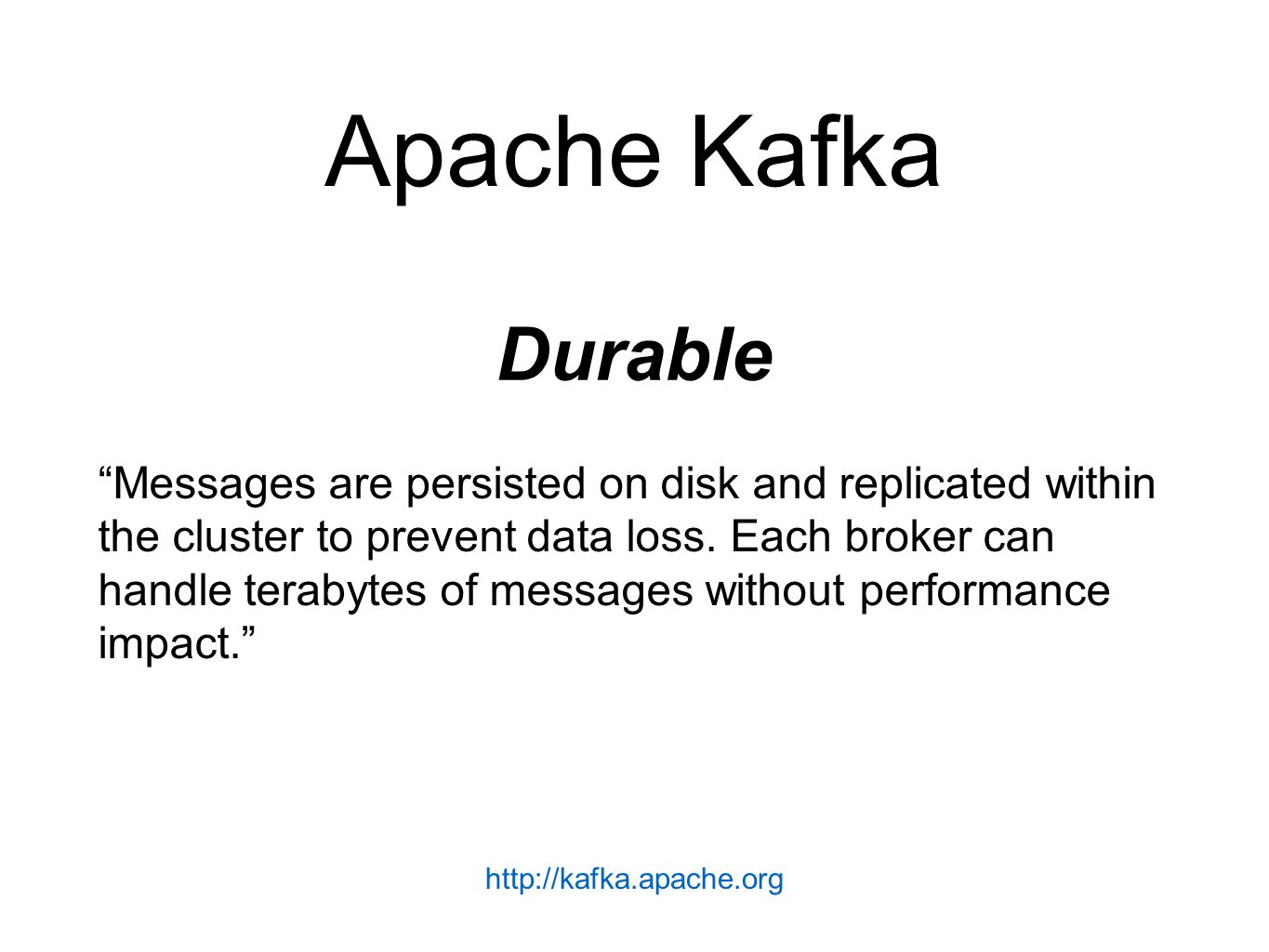

7 Apache Kafka Durable “Messages are persisted on disk and replicated within the cluster to prevent data loss. Each broker can handle terabytes of messages without performance impact.”

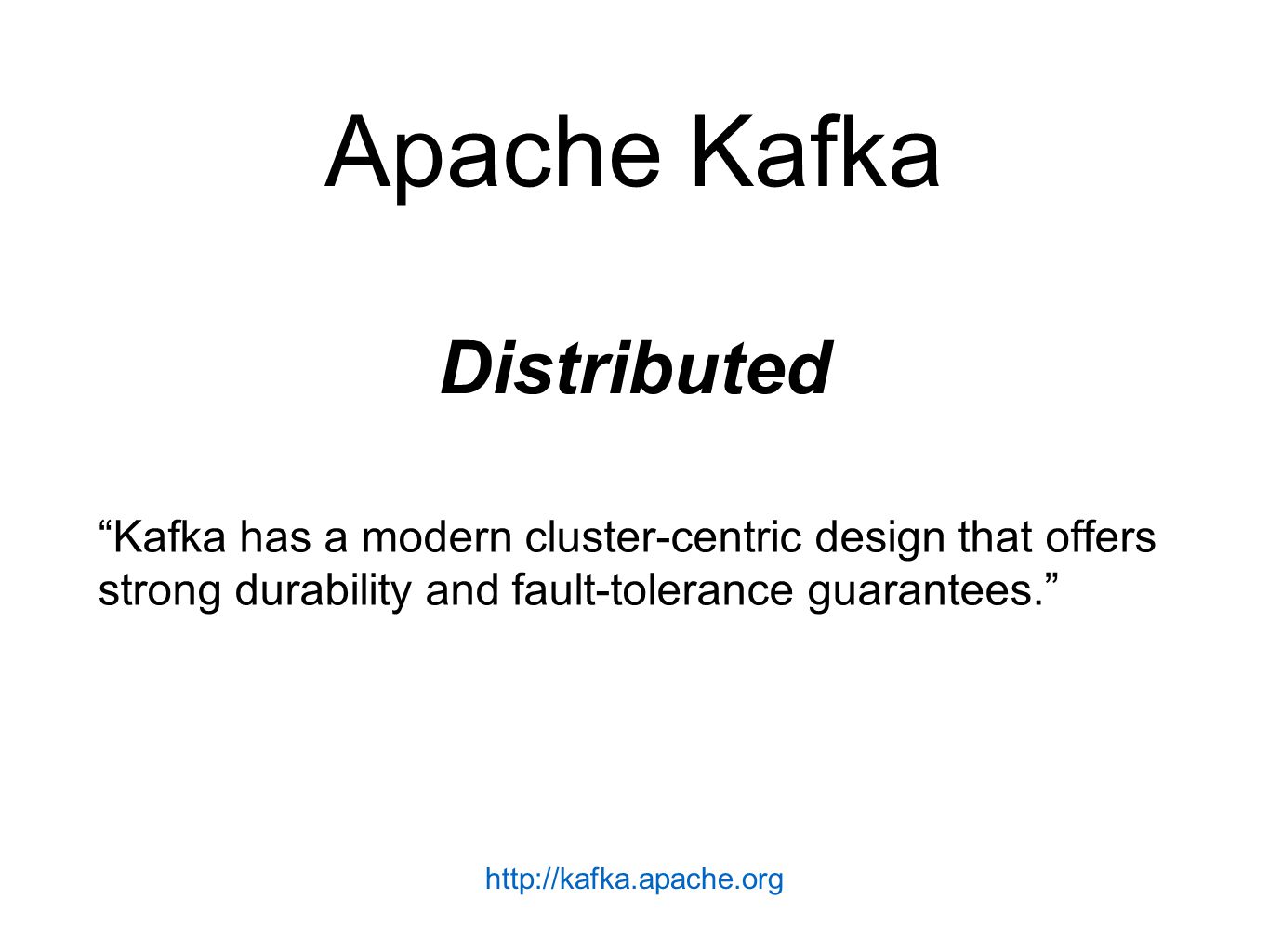

8 Apache Kafka Distributed “Kafka has a modern cluster-centric design that offers strong durability and fault-tolerance guarantees.”

9 Apache Kafka: Use Cases Stream Processing Messaging Click Streams Metrics Collection and Monitoring Log Aggregation

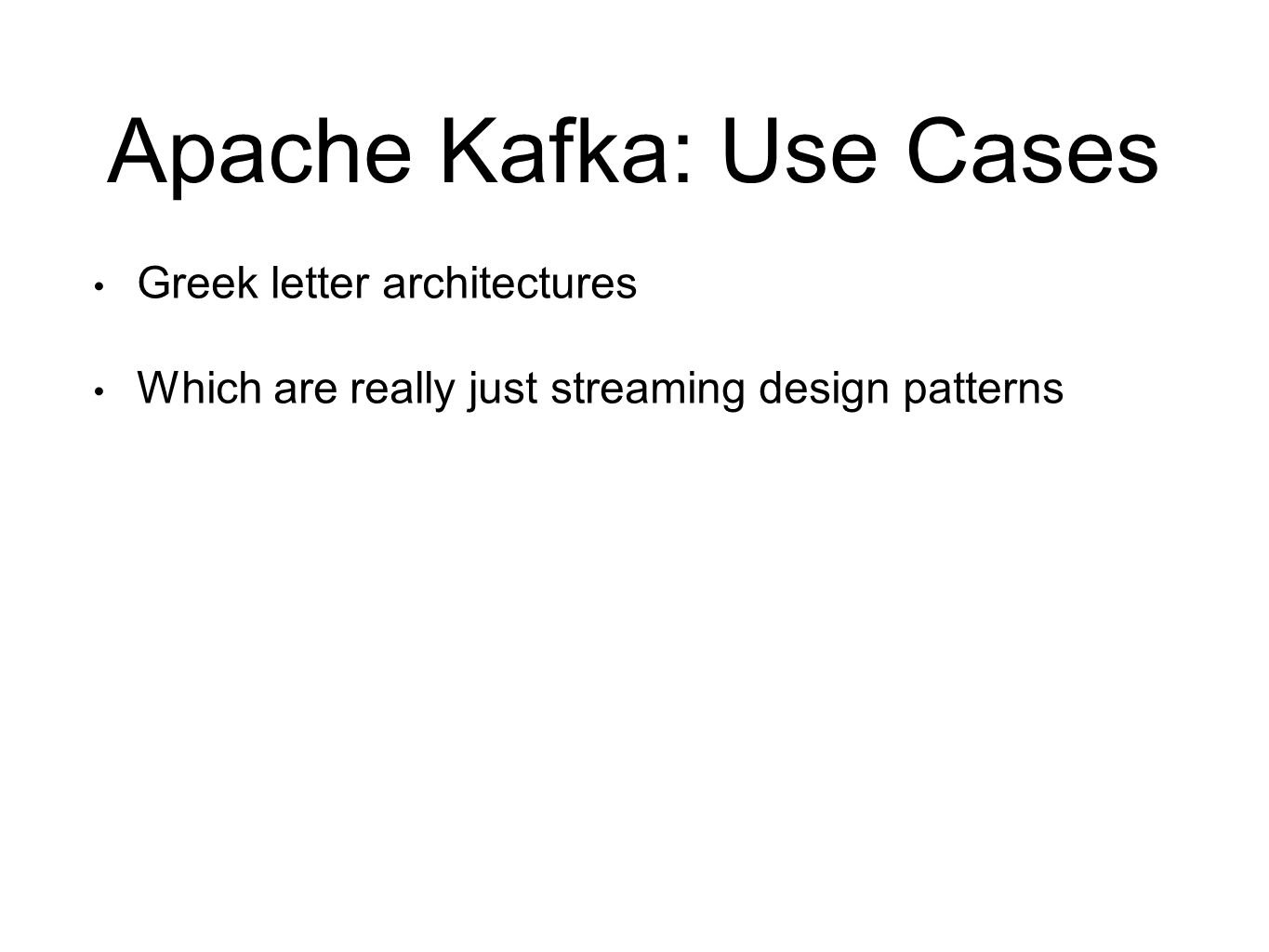

10 Apache Kafka: Use Cases Greek letter architectures Which are really just streaming design patterns

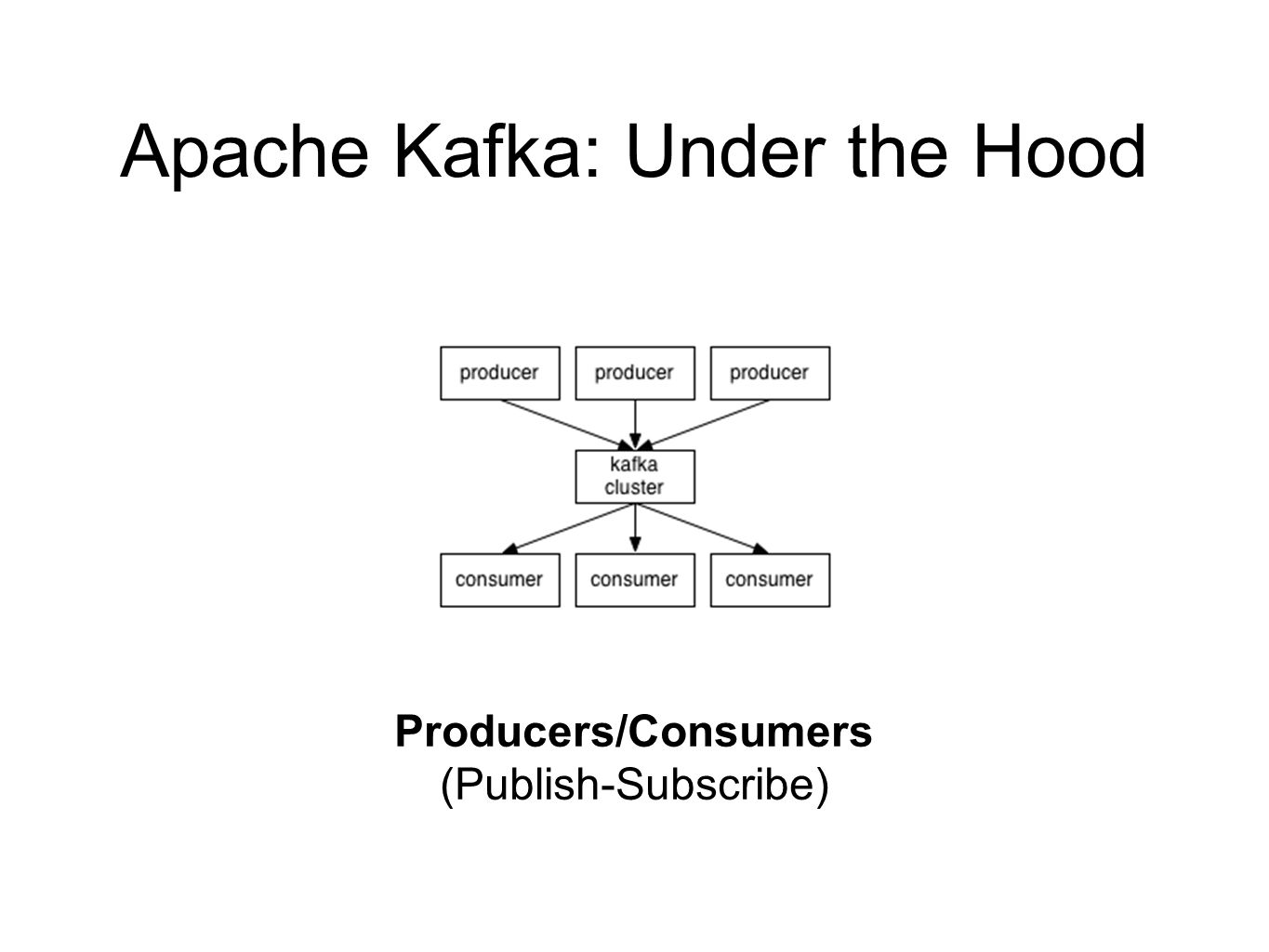

11 Apache Kafka: Under the Hood Producers/Consumers (Publish-Subscribe)

12 Apache Kafka: Under the Hood Producers write data to Brokers Consumers read data from Brokers This work is distributed across the cluster

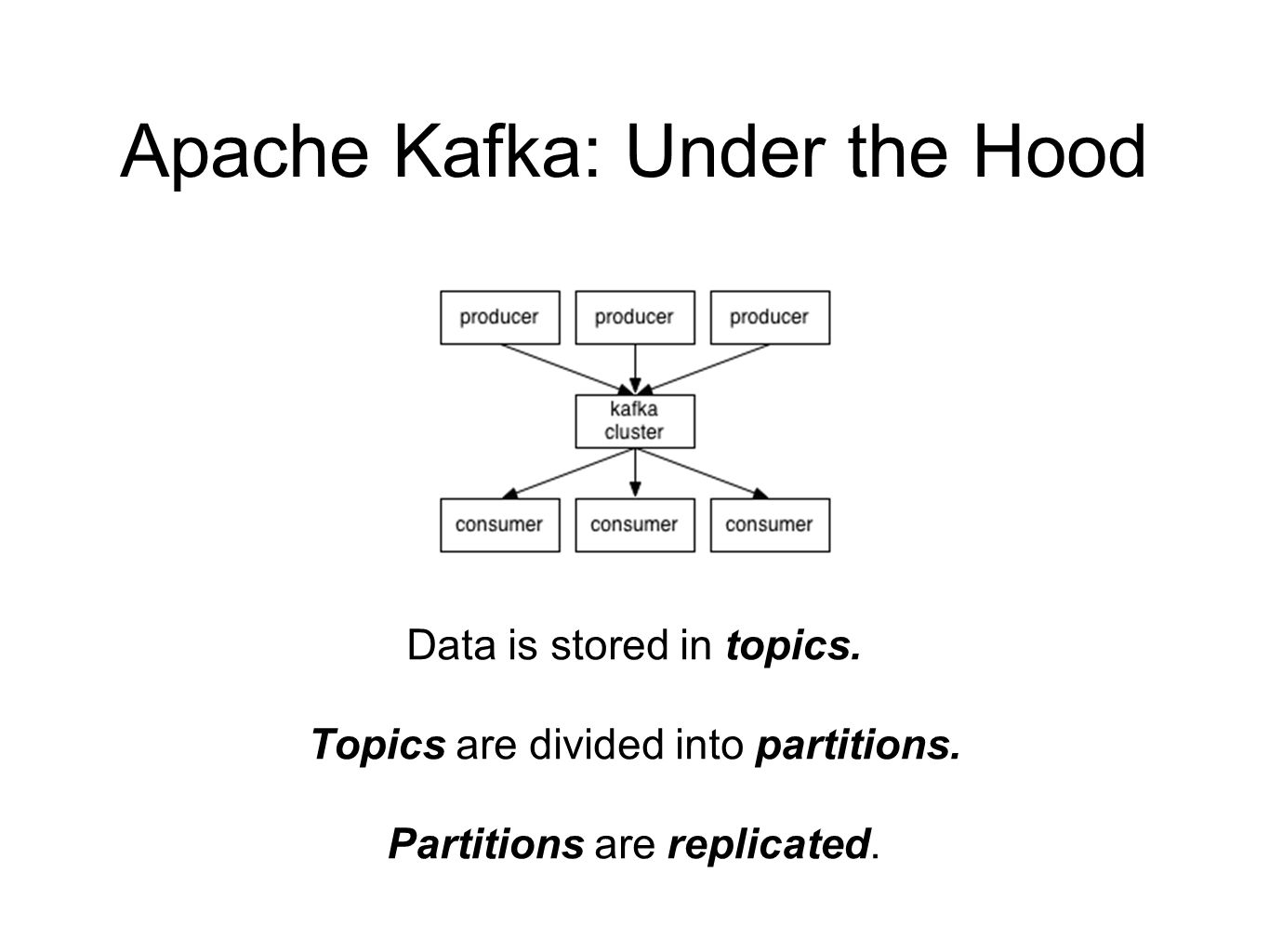

13 Apache Kafka: Under the Hood Data is stored in topics. Topics are divided into partitions. Partitions are replicated.

14 Apache Kafka: Under the Hood Topics are named feeds to which messages are published.

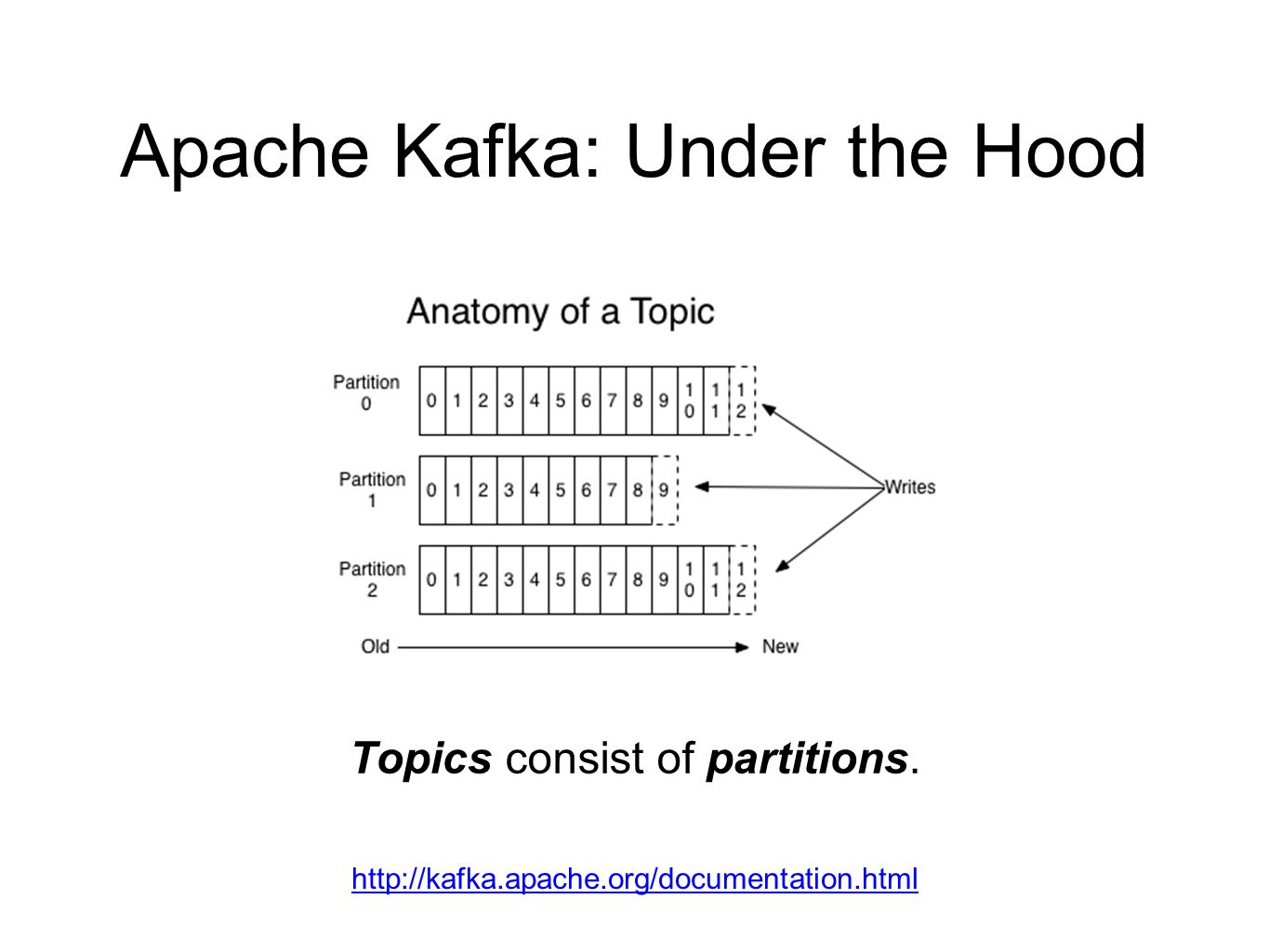

15 Apache Kafka: Under the Hood Topics consist of partitions.

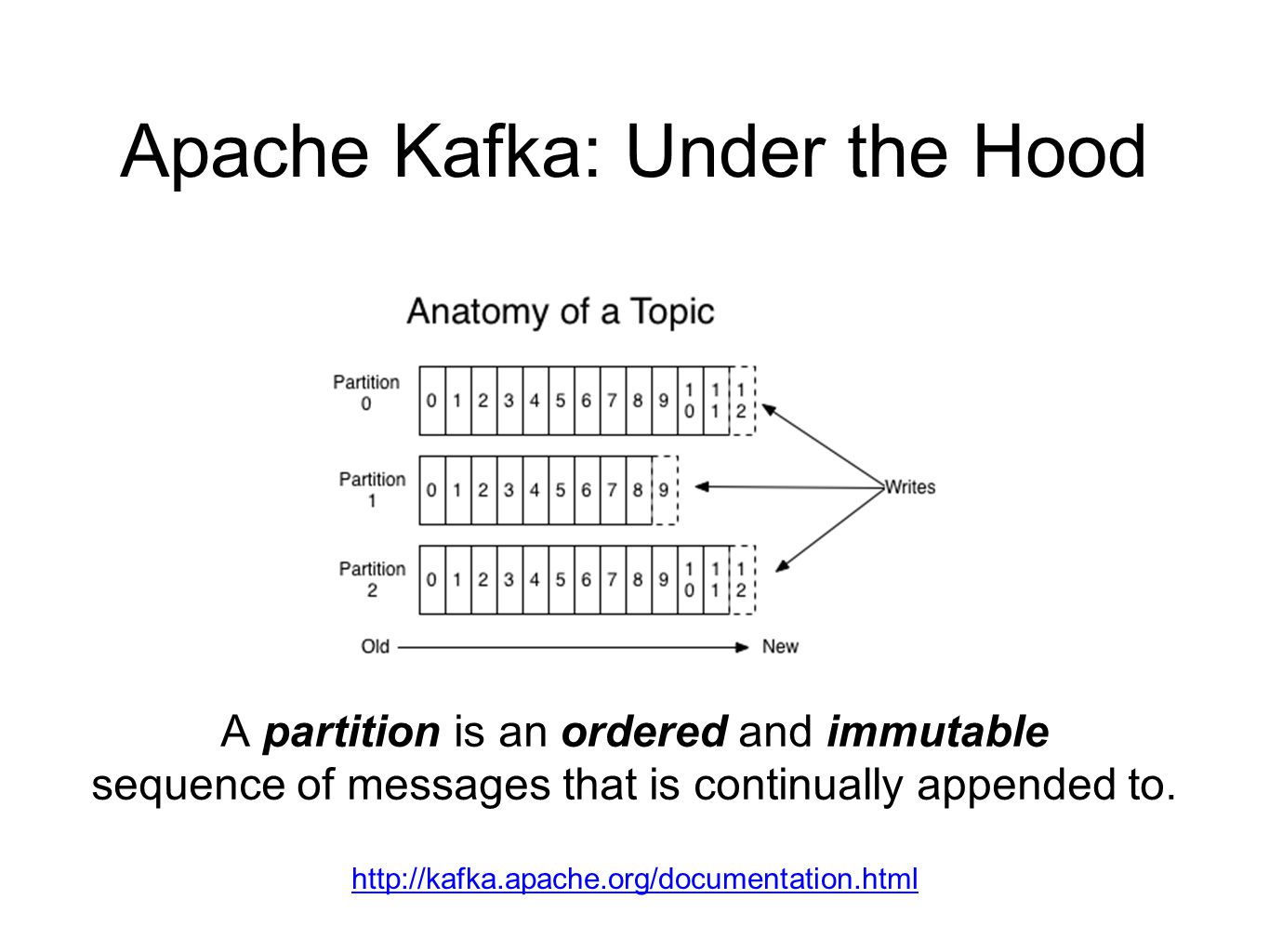

16 Apache Kafka: Under the Hood A partition is an ordered and immutable sequence of messages that is continually appended to.

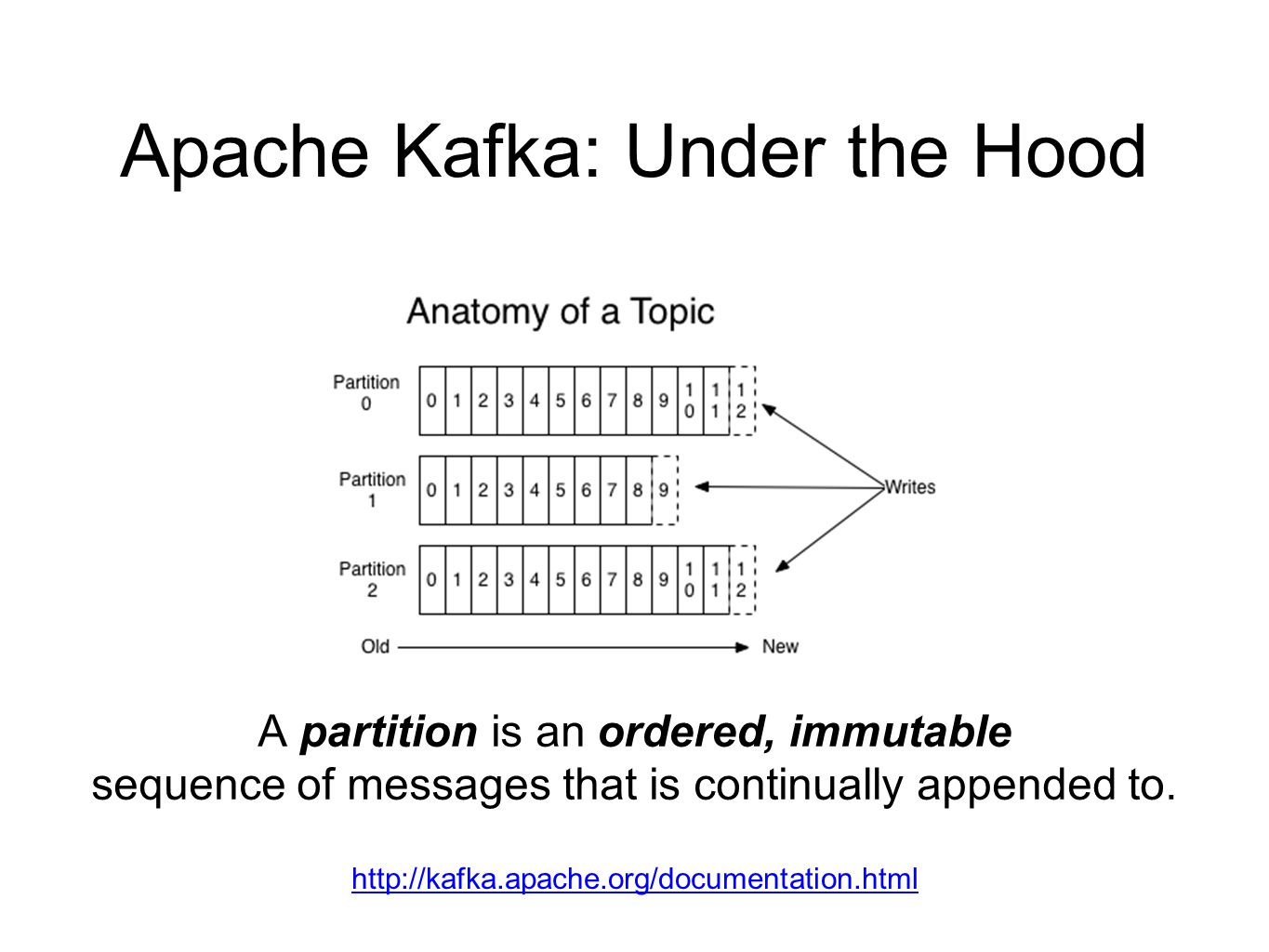

17 Apache Kafka: Under the Hood A partition is an ordered, immutable sequence of messages that is continually appended to.

18 Apache Kafka: Under the Hood Sequential disk access can be faster than RAM!

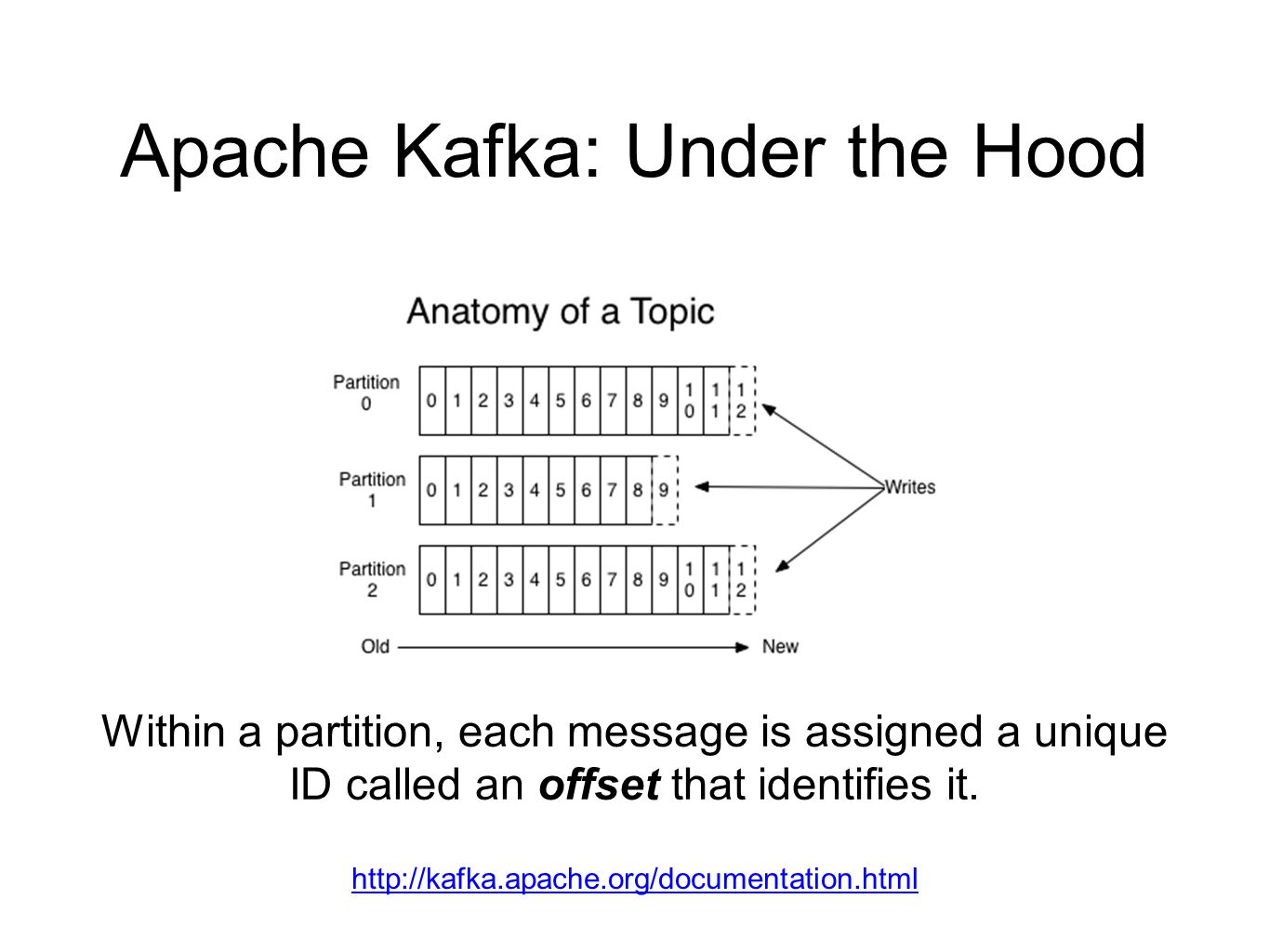

19 Apache Kafka: Under the Hood Within a partition, each message is assigned a unique ID called an offset that identifies it.

20 Apache Kafka: Under the Hood ZooKeeper is used to store cluster state information and consumer offsets.

21 Storm and Kafka A match made in heaven.

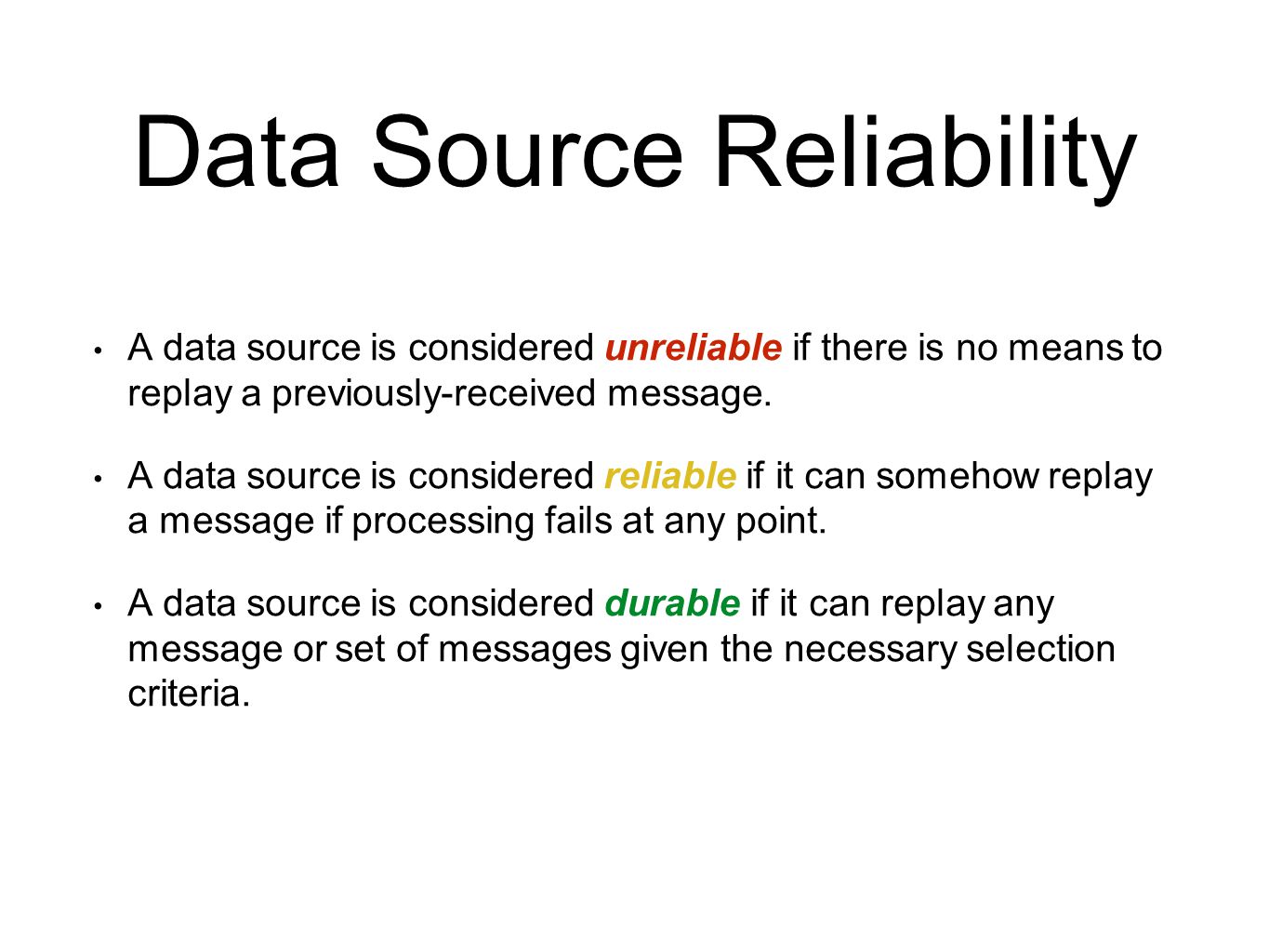

22 Data Source Reliability A data source is considered unreliable if there is no means to replay a previously-received message. A data source is considered reliable if it can somehow replay a message if processing fails at any point. A data source is considered durable if it can replay any message or set of messages given the necessary selection criteria.

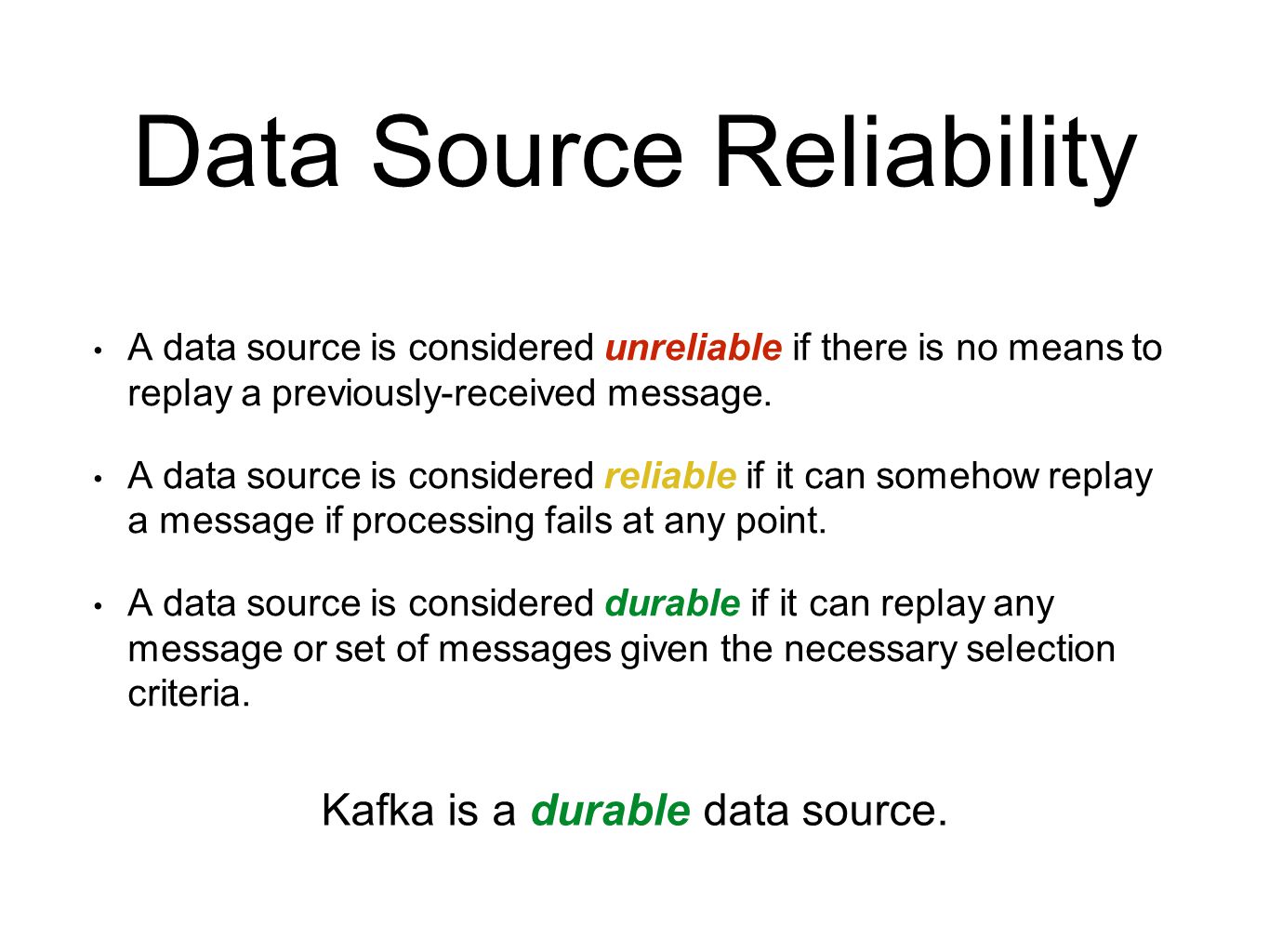

23 Data Source Reliability A data source is considered unreliable if there is no means to replay a previously-received message. A data source is considered reliable if it can somehow replay a message if processing fails at any point. A data source is considered durable if it can replay any message or set of messages given the necessary selection criteria. Kafka is a durable data source.

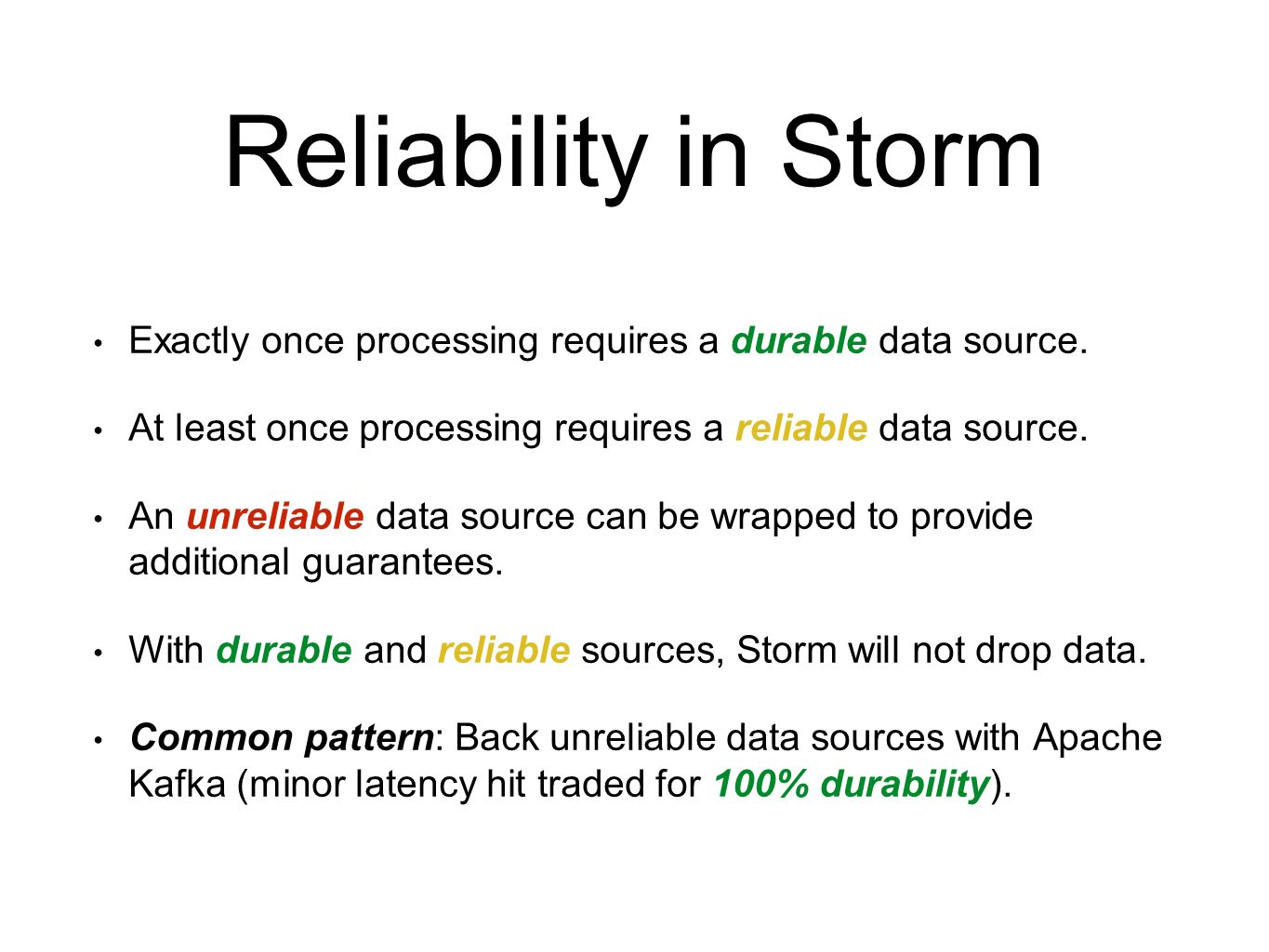

24 Reliability in Storm Exactly once processing requires a durable data source. At least once processing requires a reliable data source. An unreliable data source can be wrapped to provide additional guarantees. With durable and reliable sources, Storm will not drop data. Common pattern: Back unreliable data sources with Apache Kafka (minor latency hit traded for 100% durability).

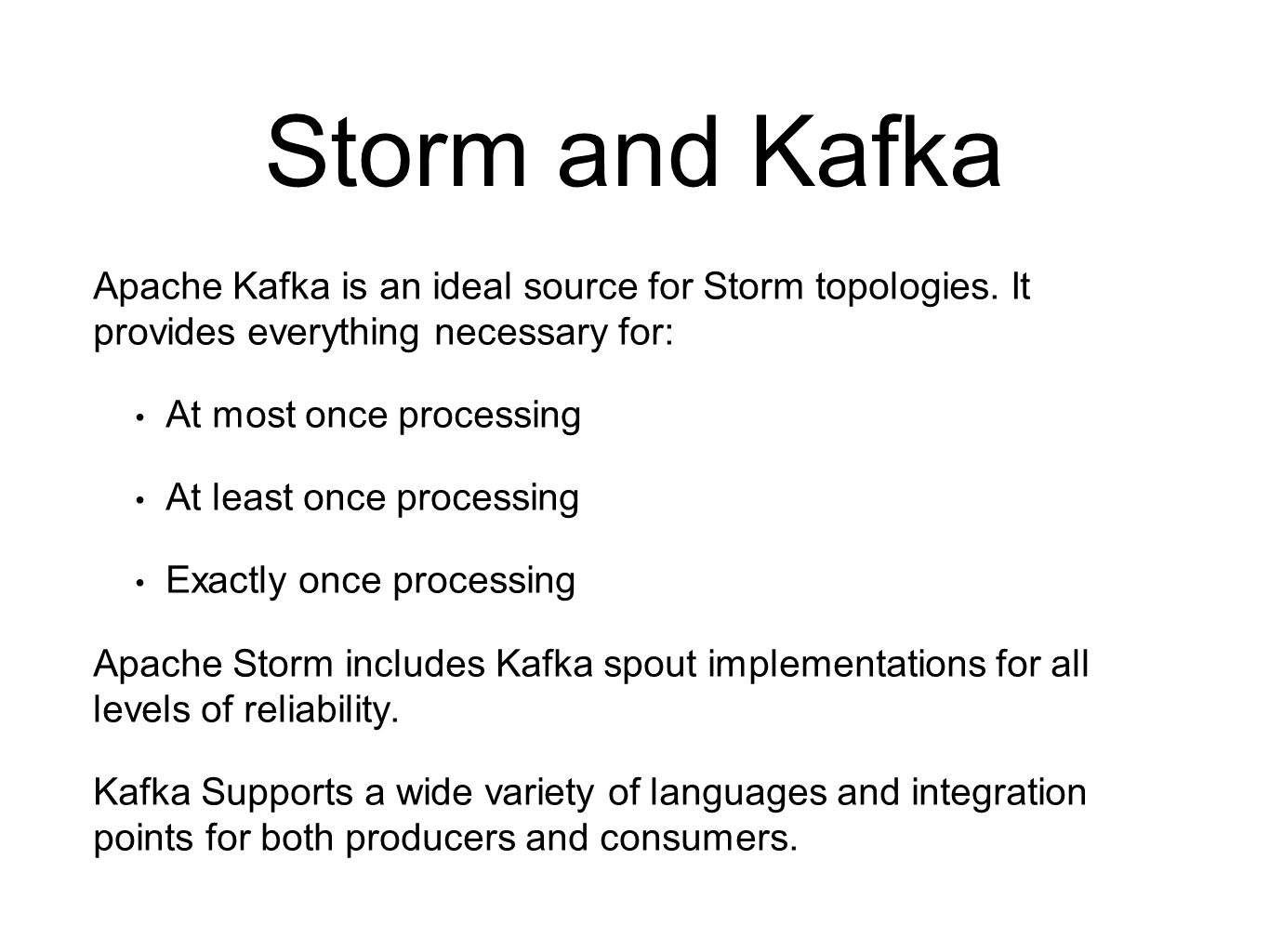

25 Storm and Kafka Apache Kafka is an ideal source for Storm topologies. It provides everything necessary for: At most once processing At least once processing Exactly once processing Apache Storm includes Kafka spout implementations for all levels of reliability. Kafka Supports a wide variety of languages and integration points for both producers and consumers.

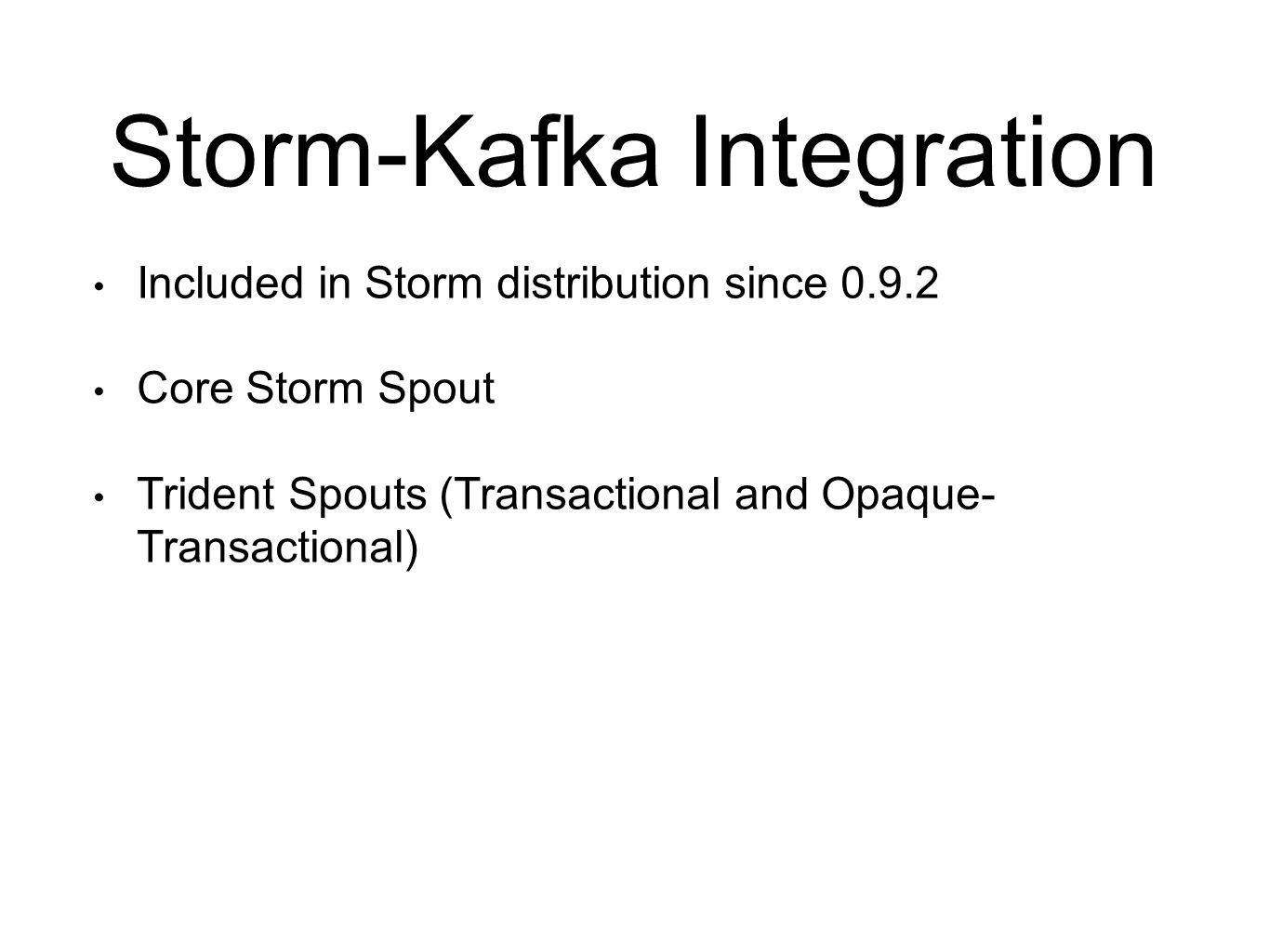

26 Storm-Kafka Integration Included in Storm distribution since Core Storm Spout Trident Spouts (Transactional and Opaque- Transactional)

27 Storm-Kafka Integration Features: Ingest from Kafka Configurable start time (offset position): Earliest, Latest, Last, Point-in-Time Write to Kafka (next release)

28 Use Cases

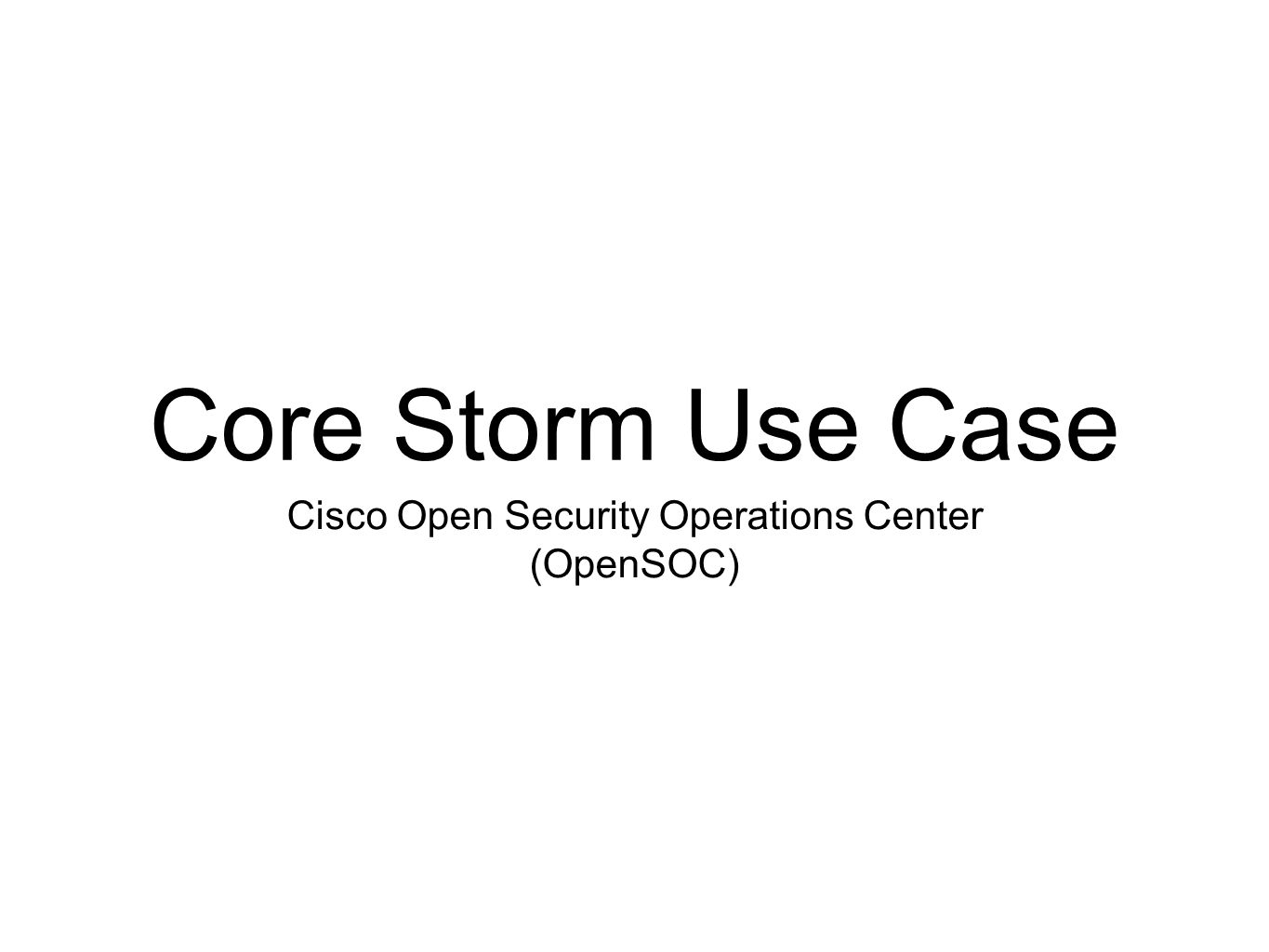

29 Core Storm Use Case Cisco Open Security Operations Center (OpenSOC)

30 Analyzing 1.2 Million Network Packets Per Second in Real Time

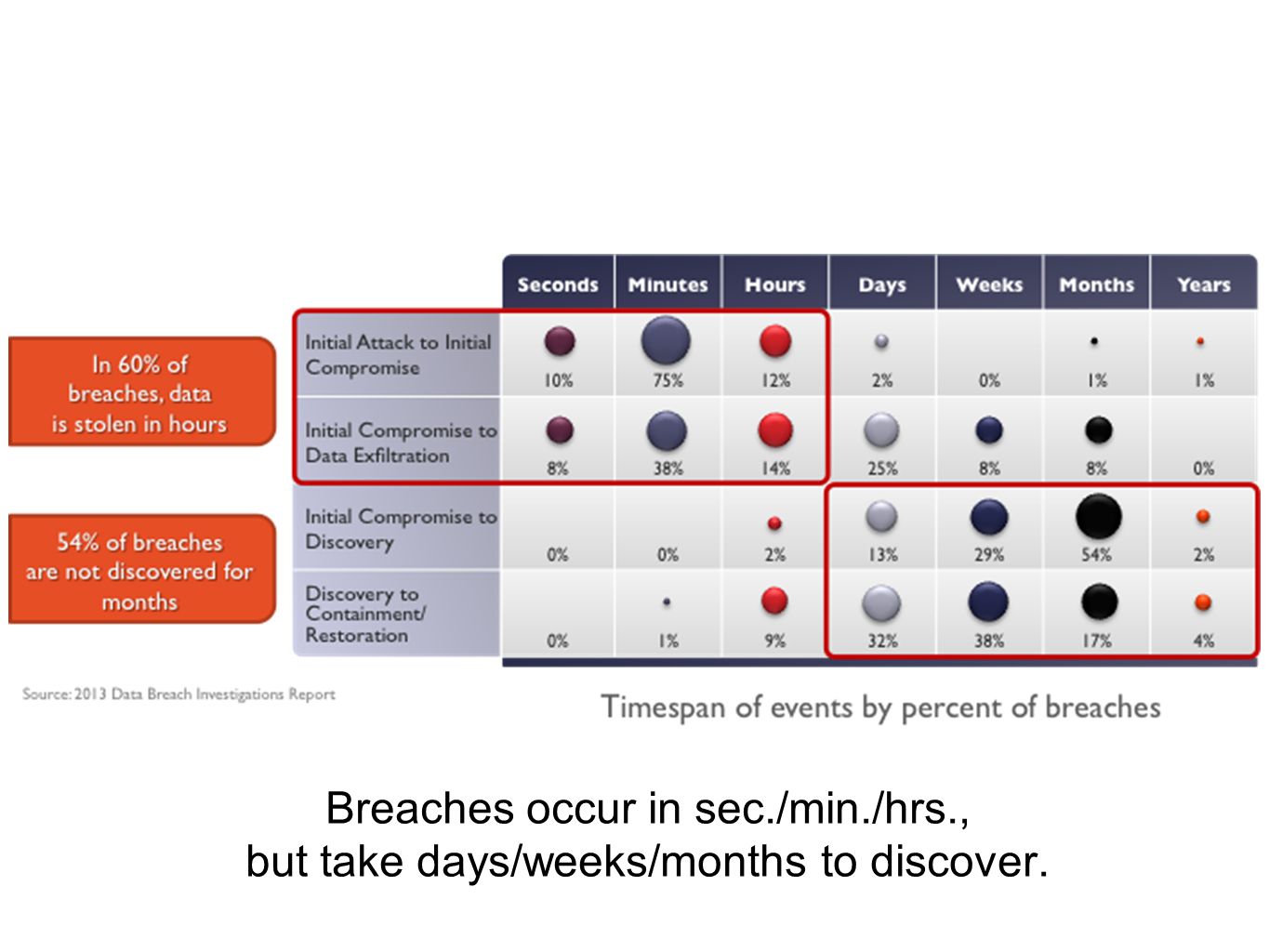

31 OpenSOC: Intrusion DetectionOpenSOC: Intrusion Detection Breaches occur in sec./min./hrs., but take days/weeks/months to discover.

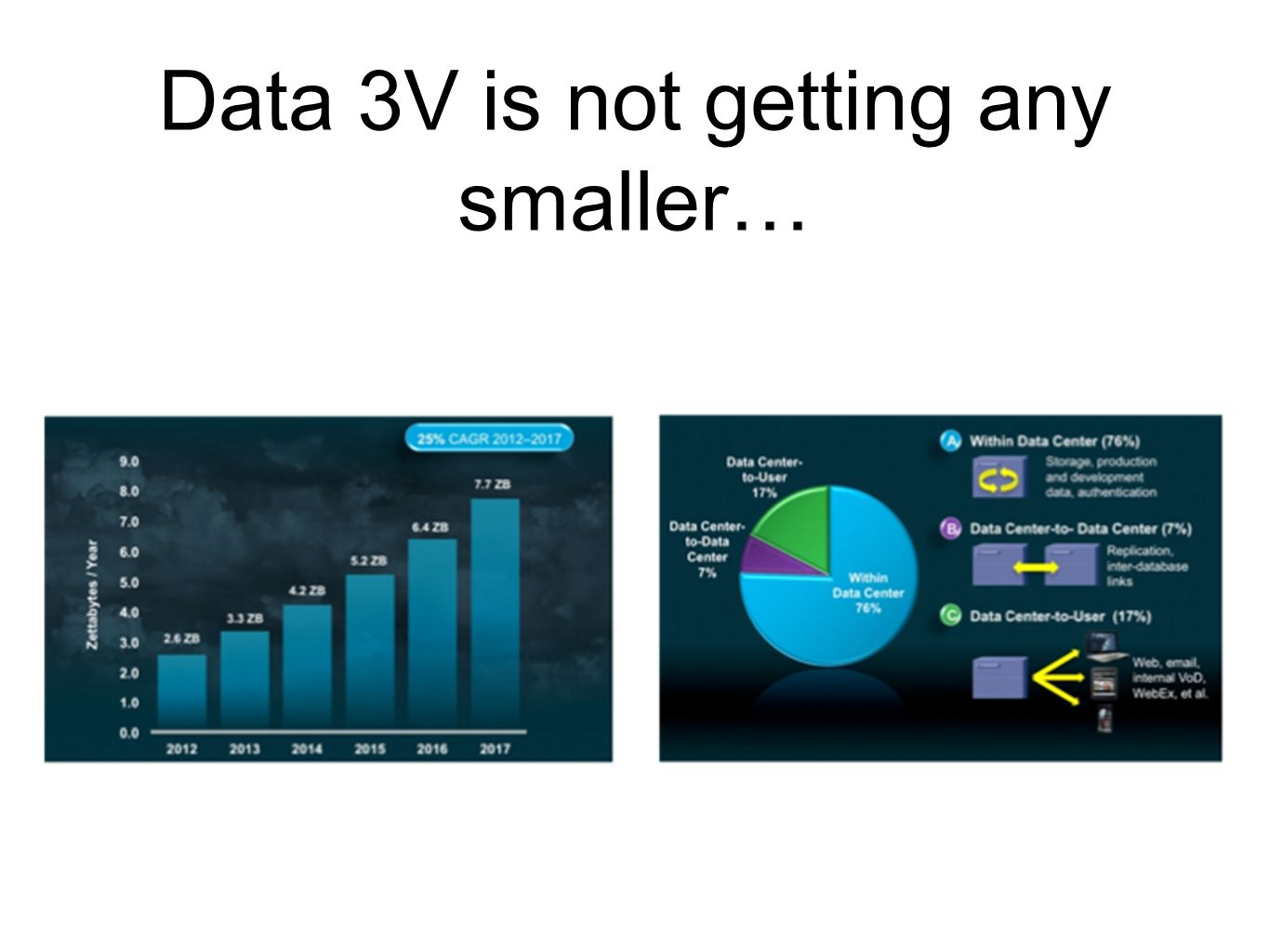

32 Data 3V is not getting any smaller…

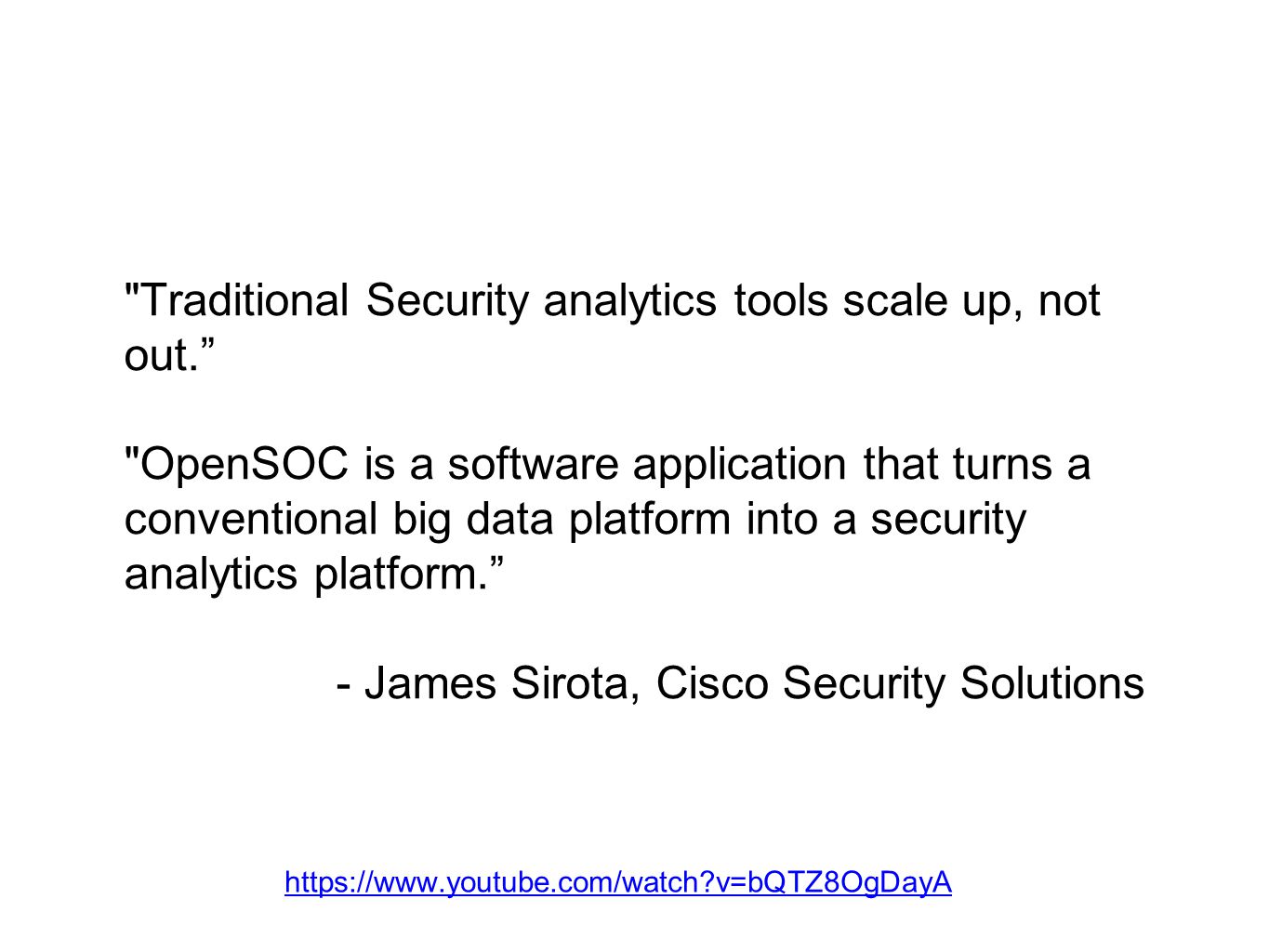

33 "Traditional Security analytics tools scale up, not out.” "OpenSOC is a software application that turns a conventional big data platform into a security analytics platform.” - James Sirota, Cisco Security Solutions https://www.youtube.com/watch?v=bQTZ8OgDayA

34

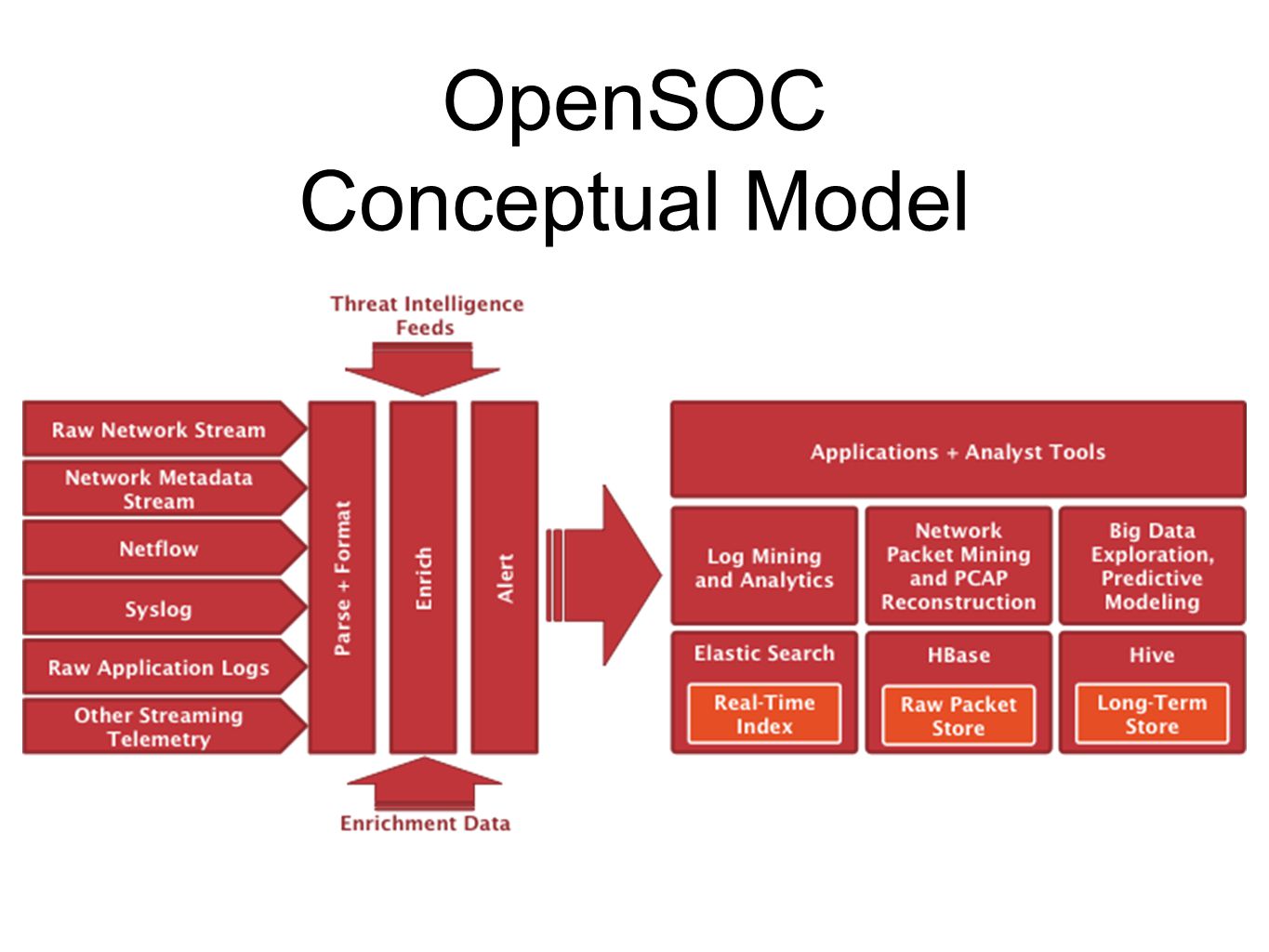

35 OpenSOC Conceptual Model

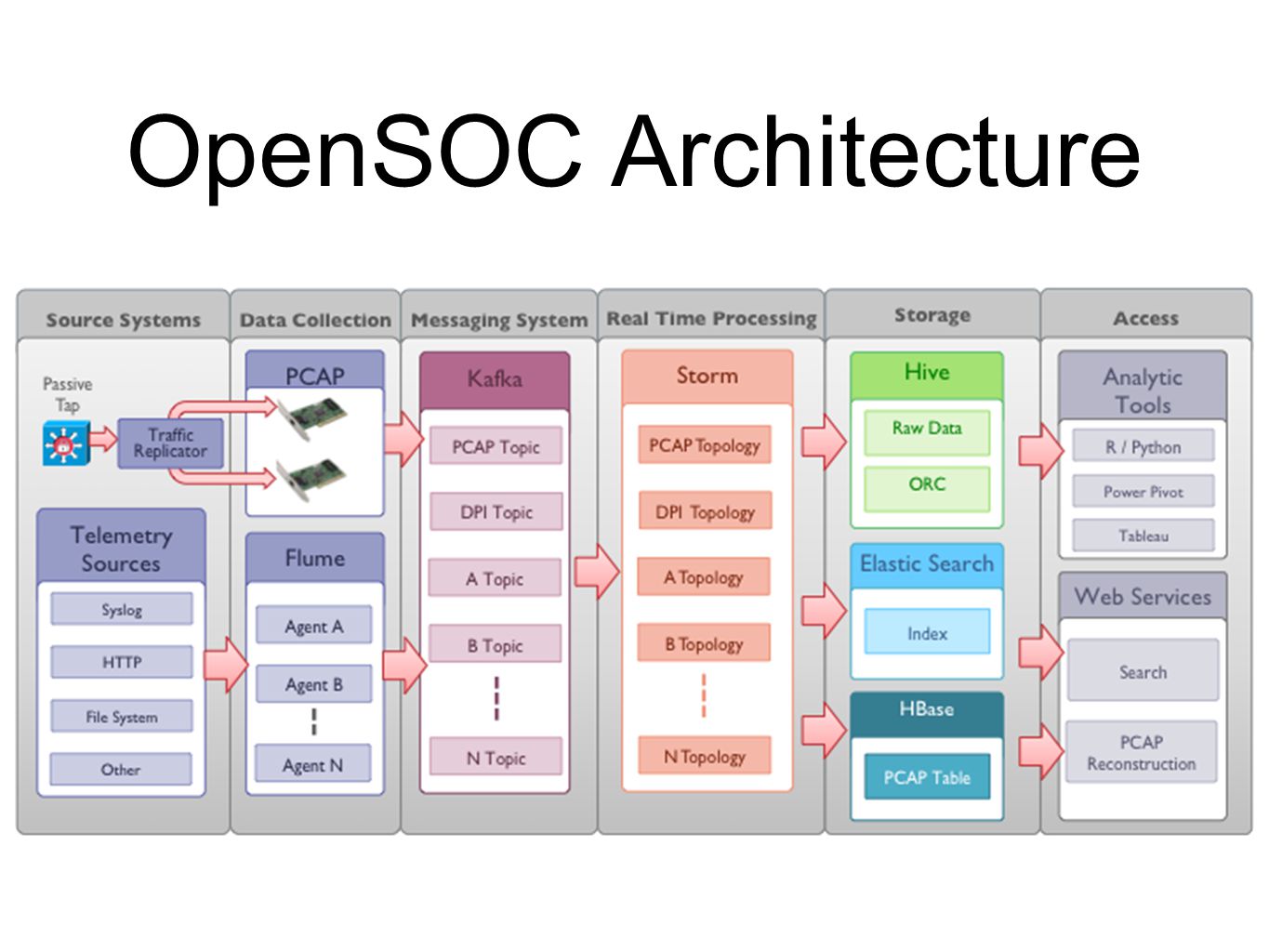

36 OpenSOC Architecture

37 PCAP Topology

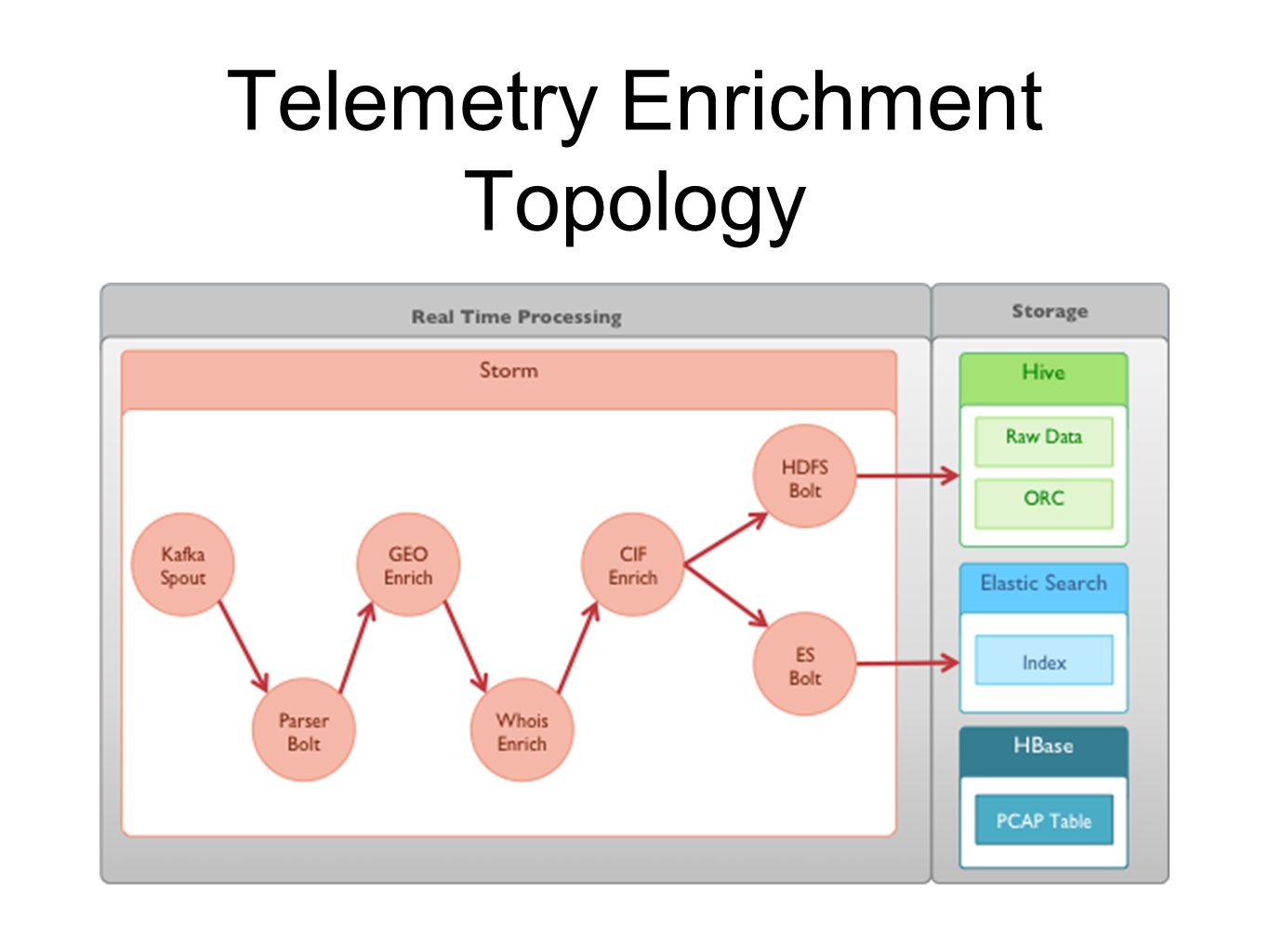

38 Telemetry Enrichment Topology

39 Enrichment

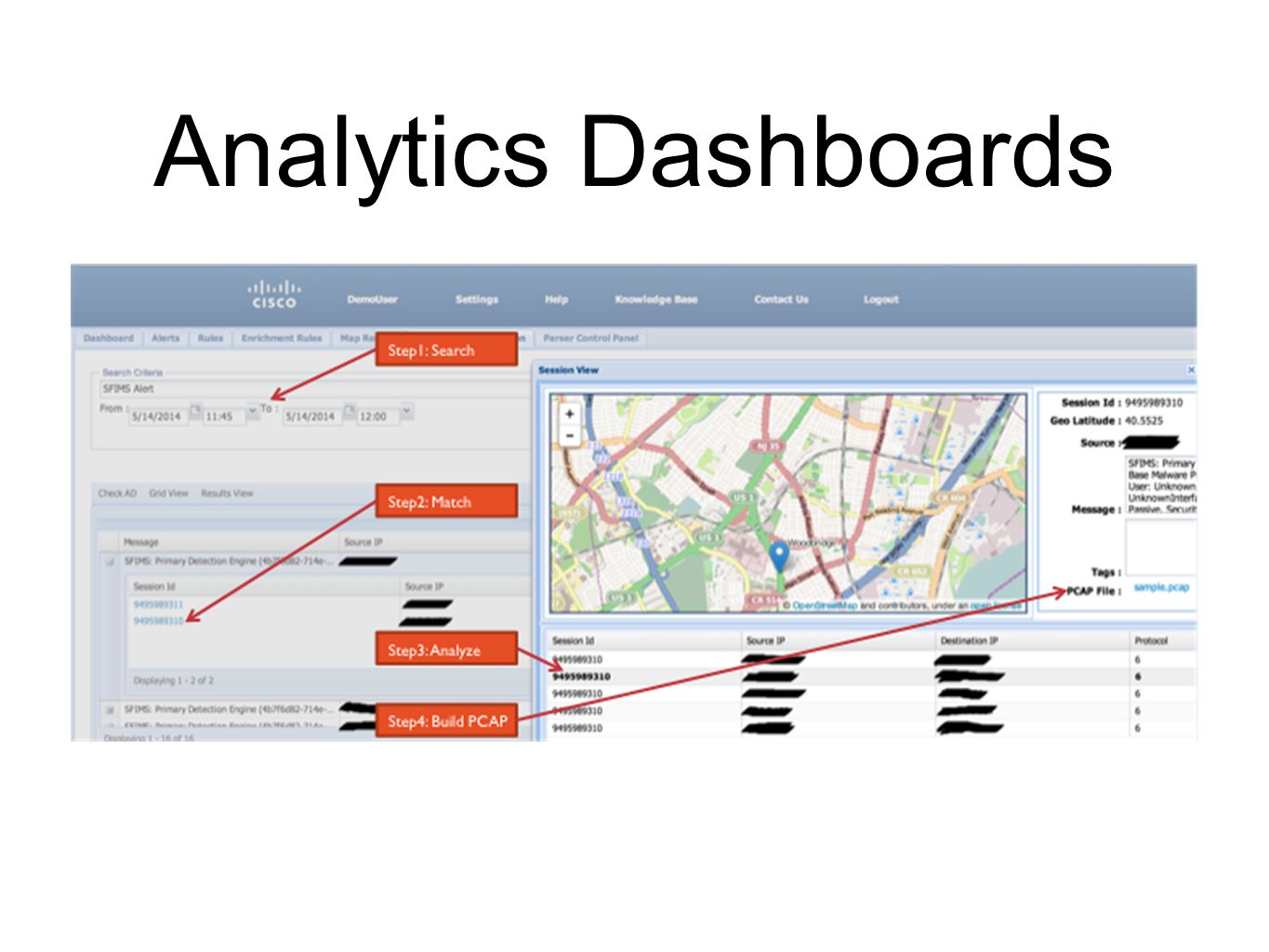

40 Analytics Dashboards

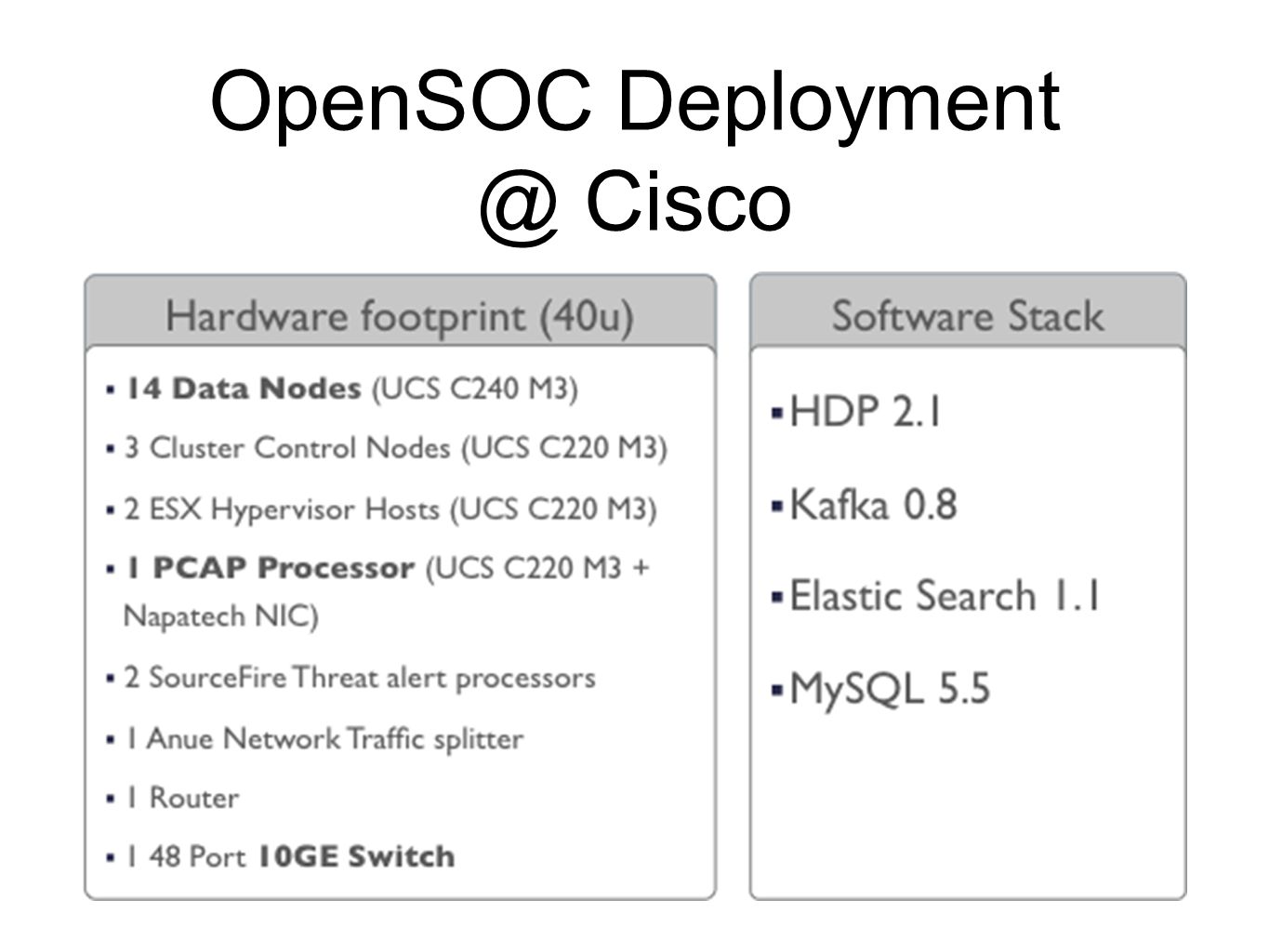

41 OpenSOC Cisco

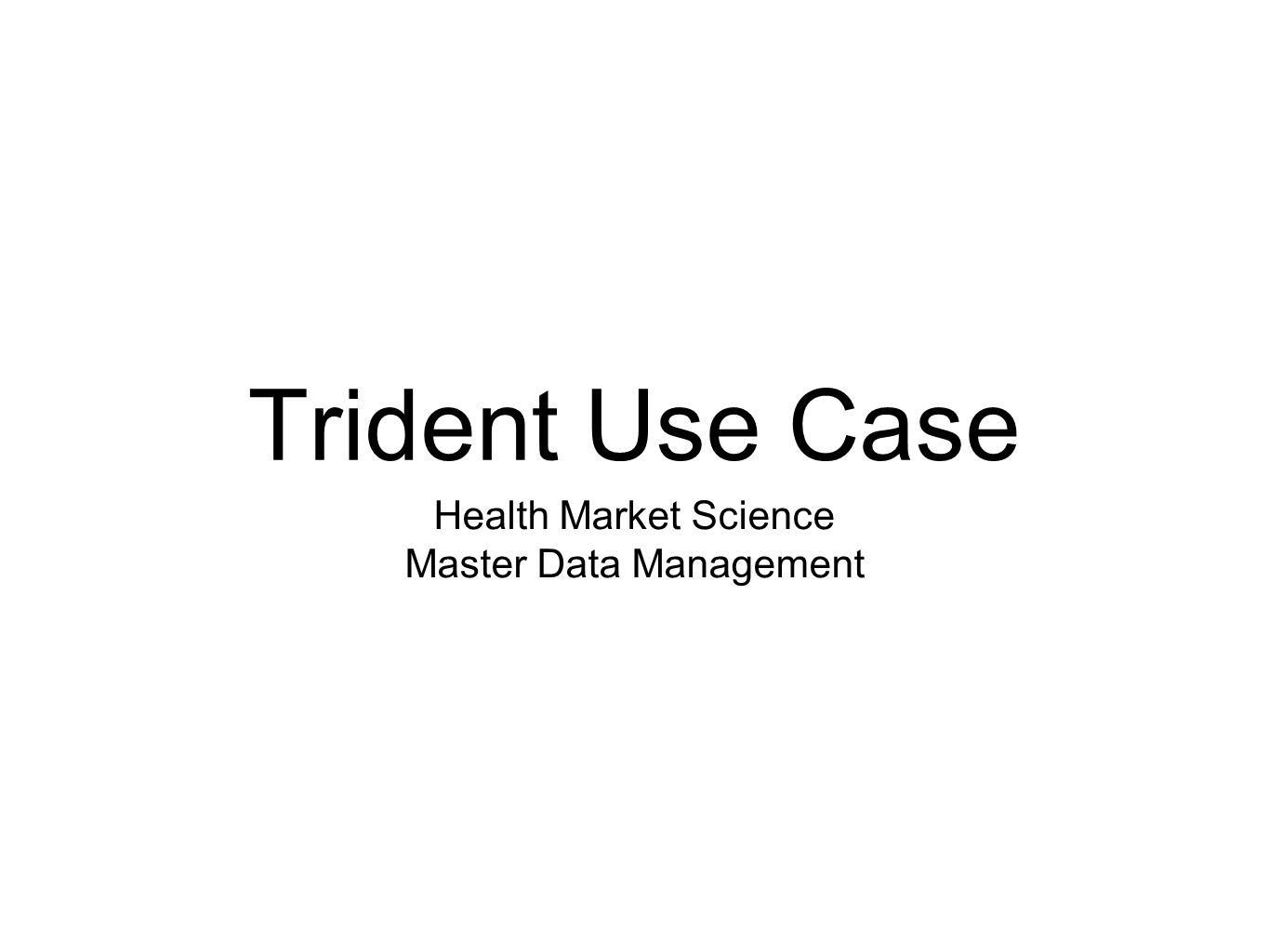

42 Trident Use Case Health Market Science Master Data Management

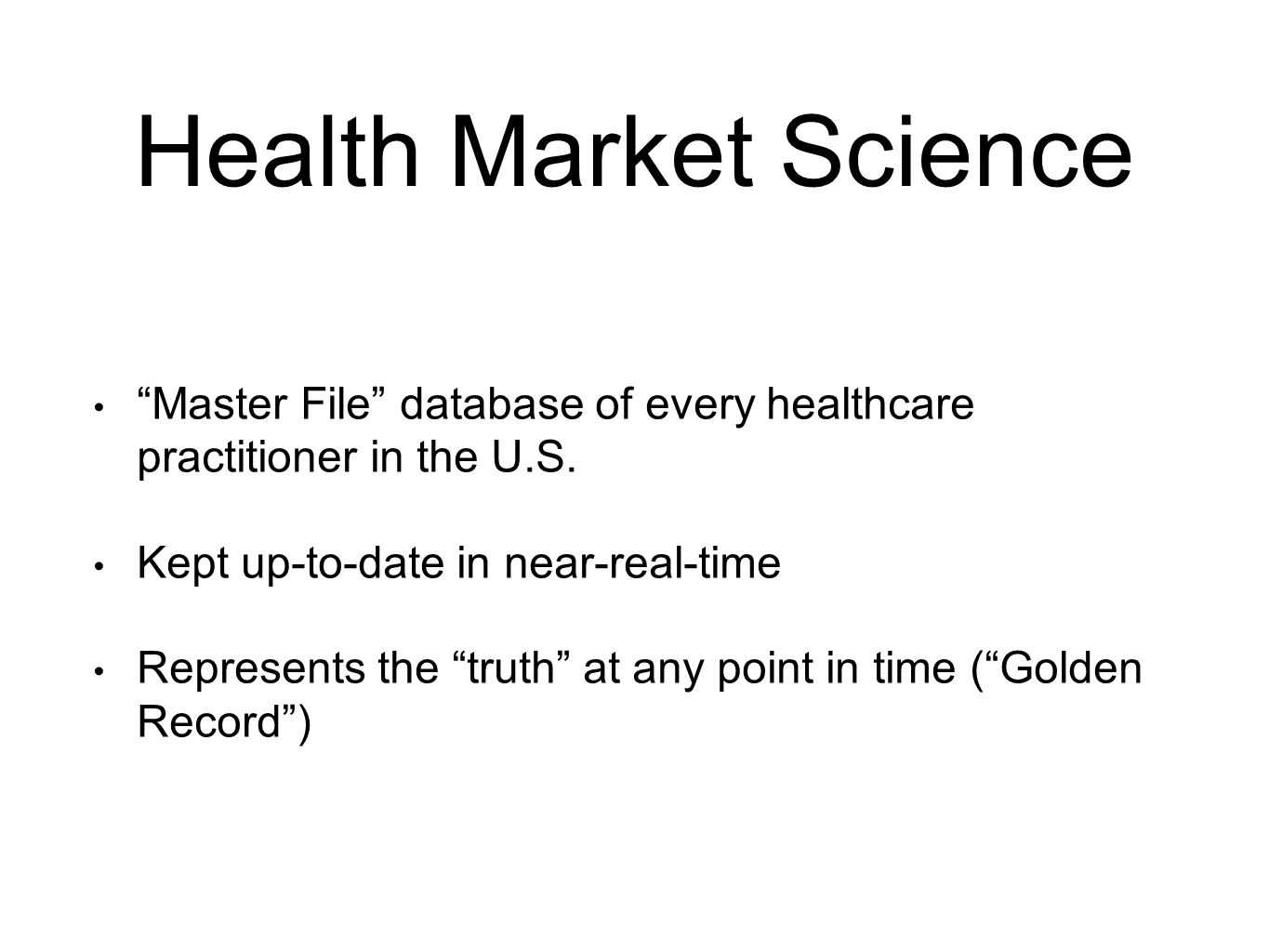

43 Health Market Science “Master File” database of every healthcare practitioner in the U.S. Kept up-to-date in near-real-time Represents the “truth” at any point in time (“Golden Record”)

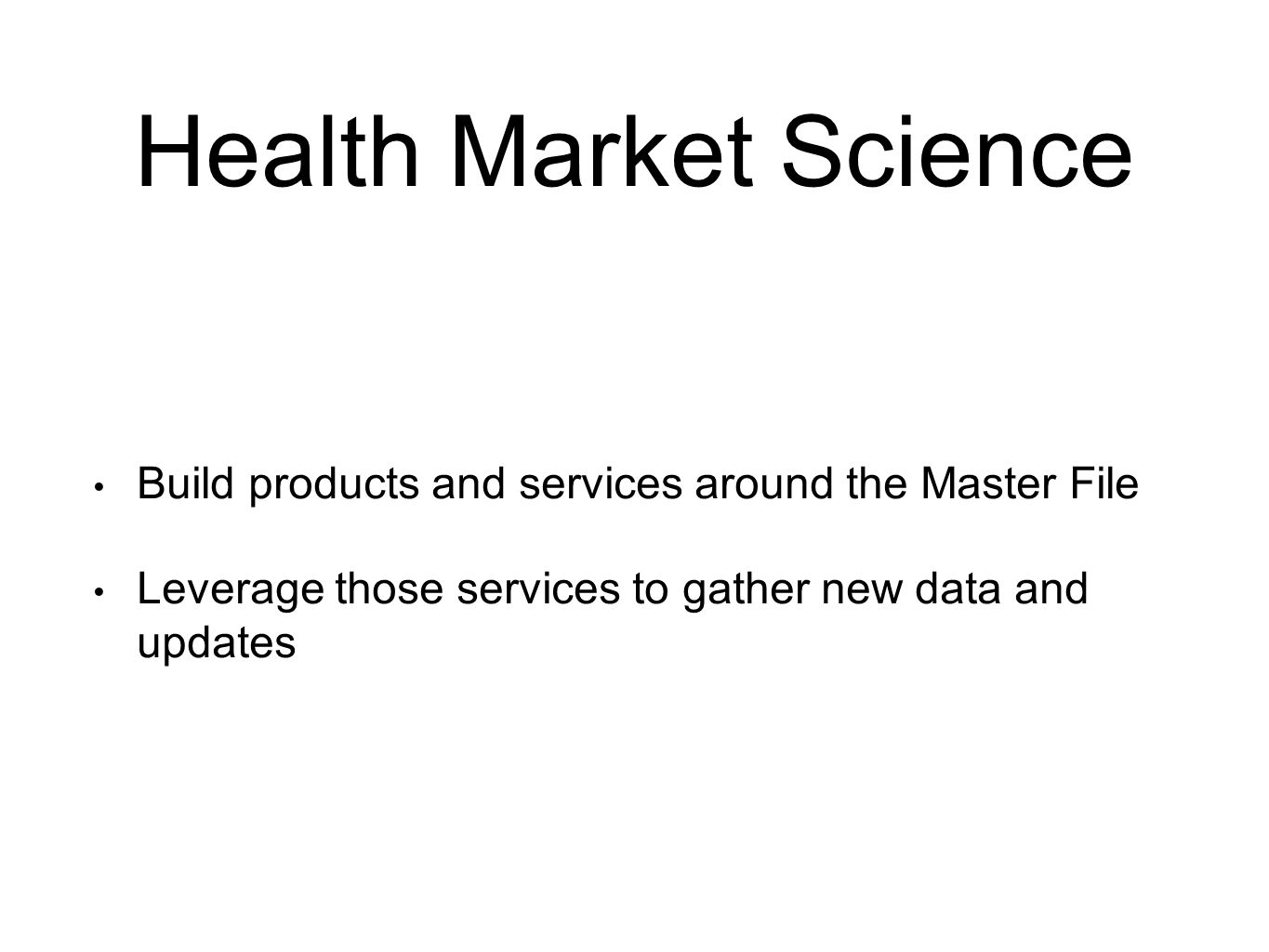

44 Health Market Science Build products and services around the Master File Leverage those services to gather new data and updates

45 Master Data Management

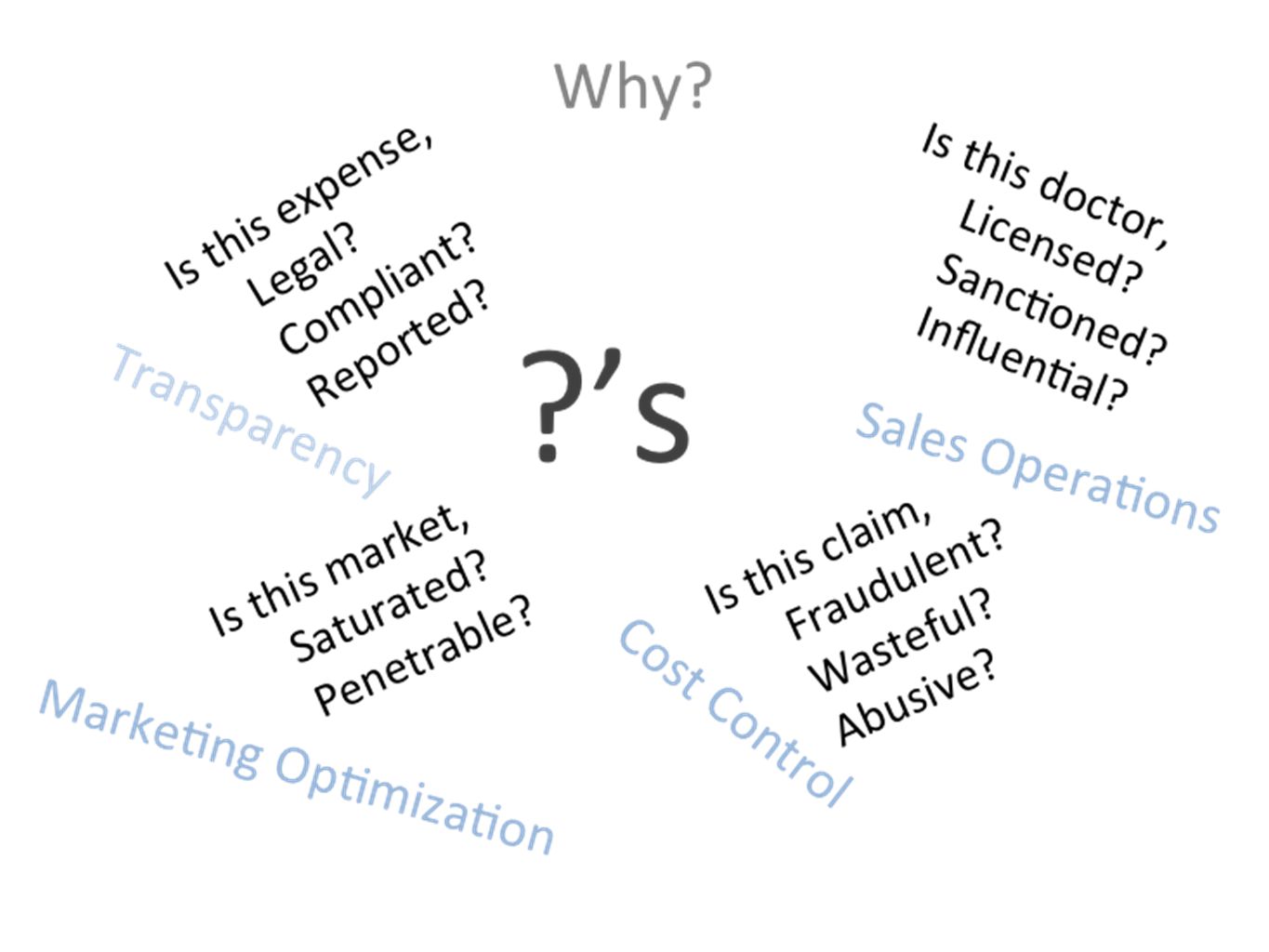

46

47 Data In

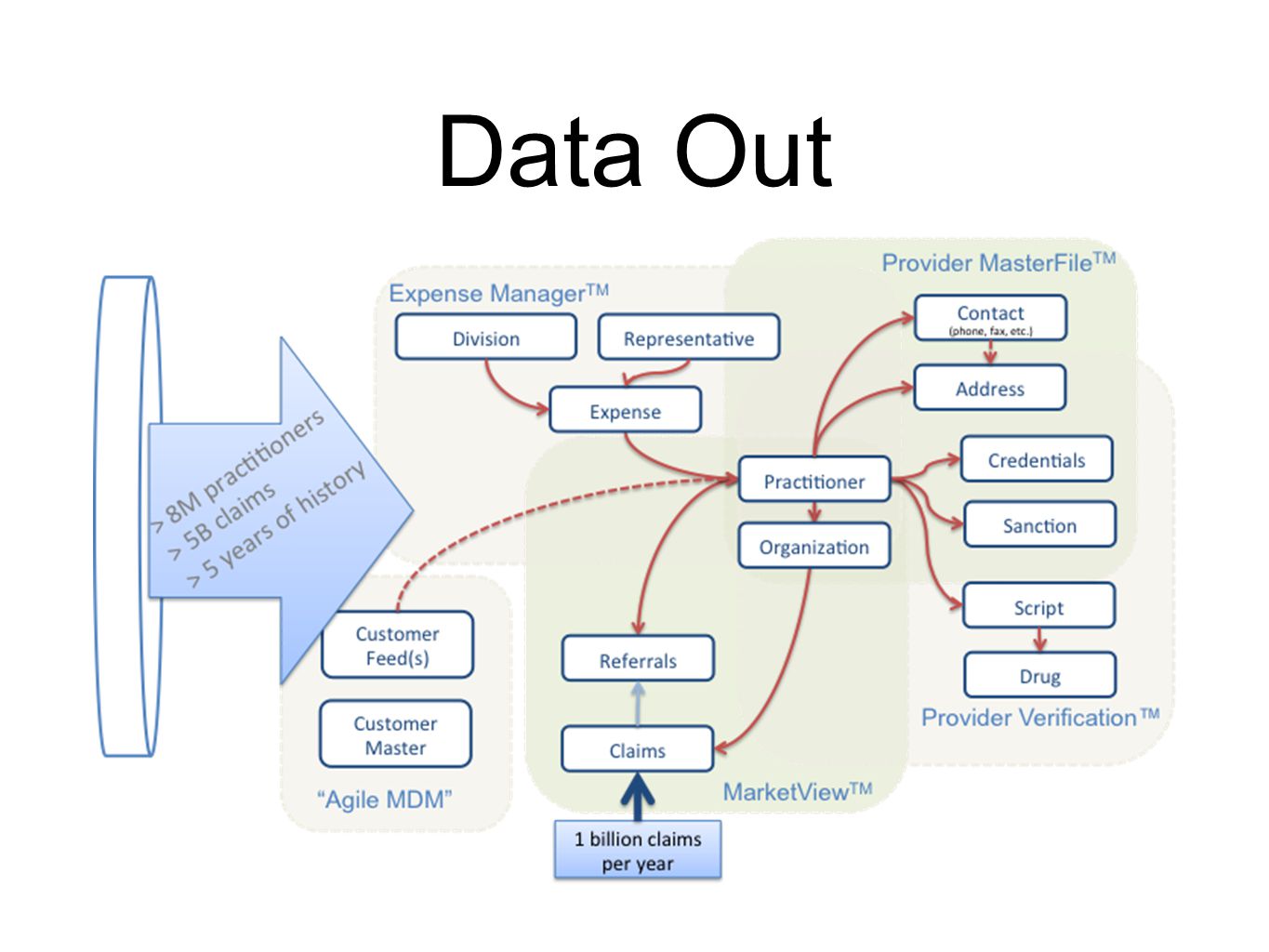

48 Data Out

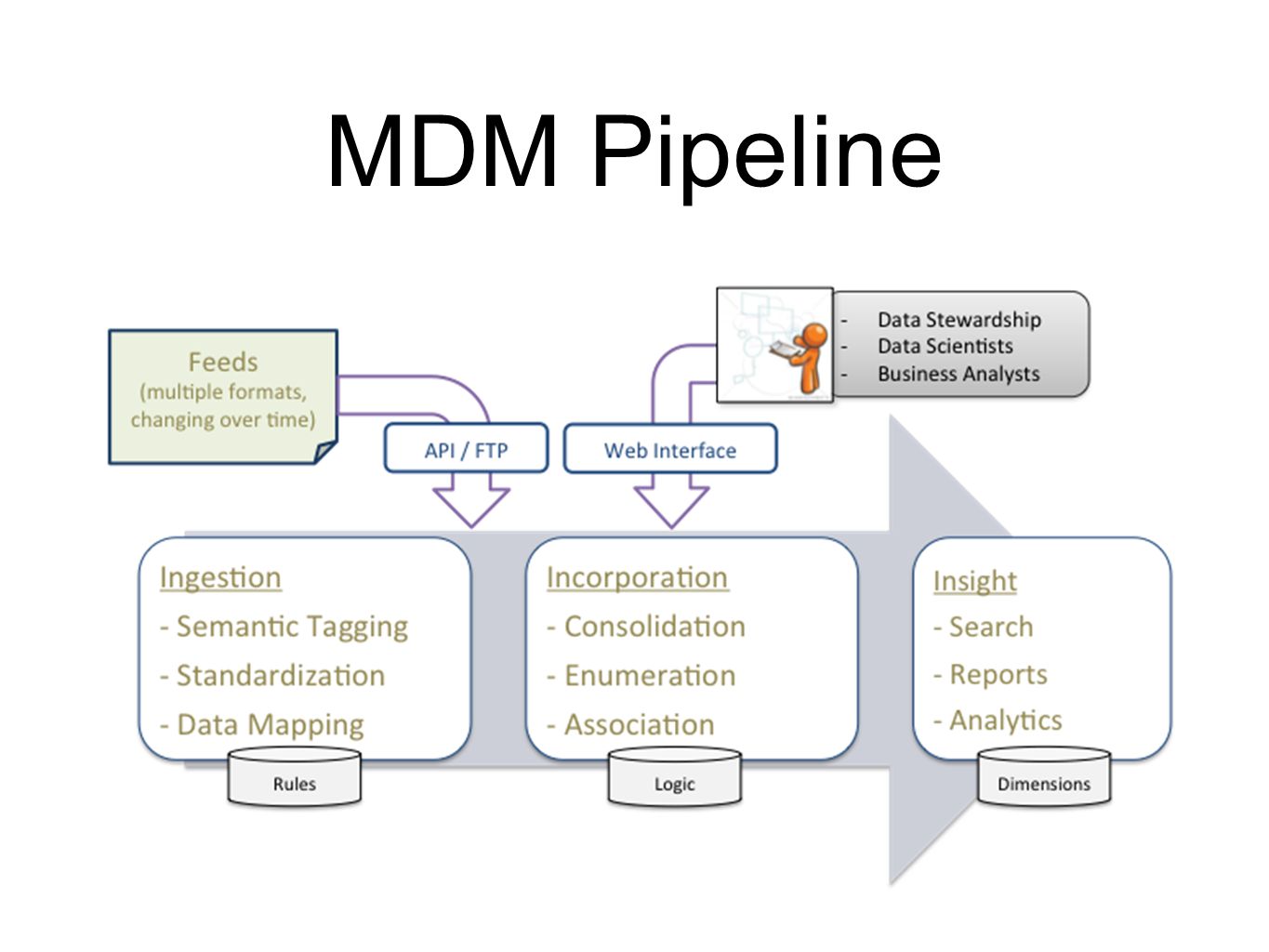

49 MDM Pipeline

50 Polyglot Persistence Choose the right tool for the job.

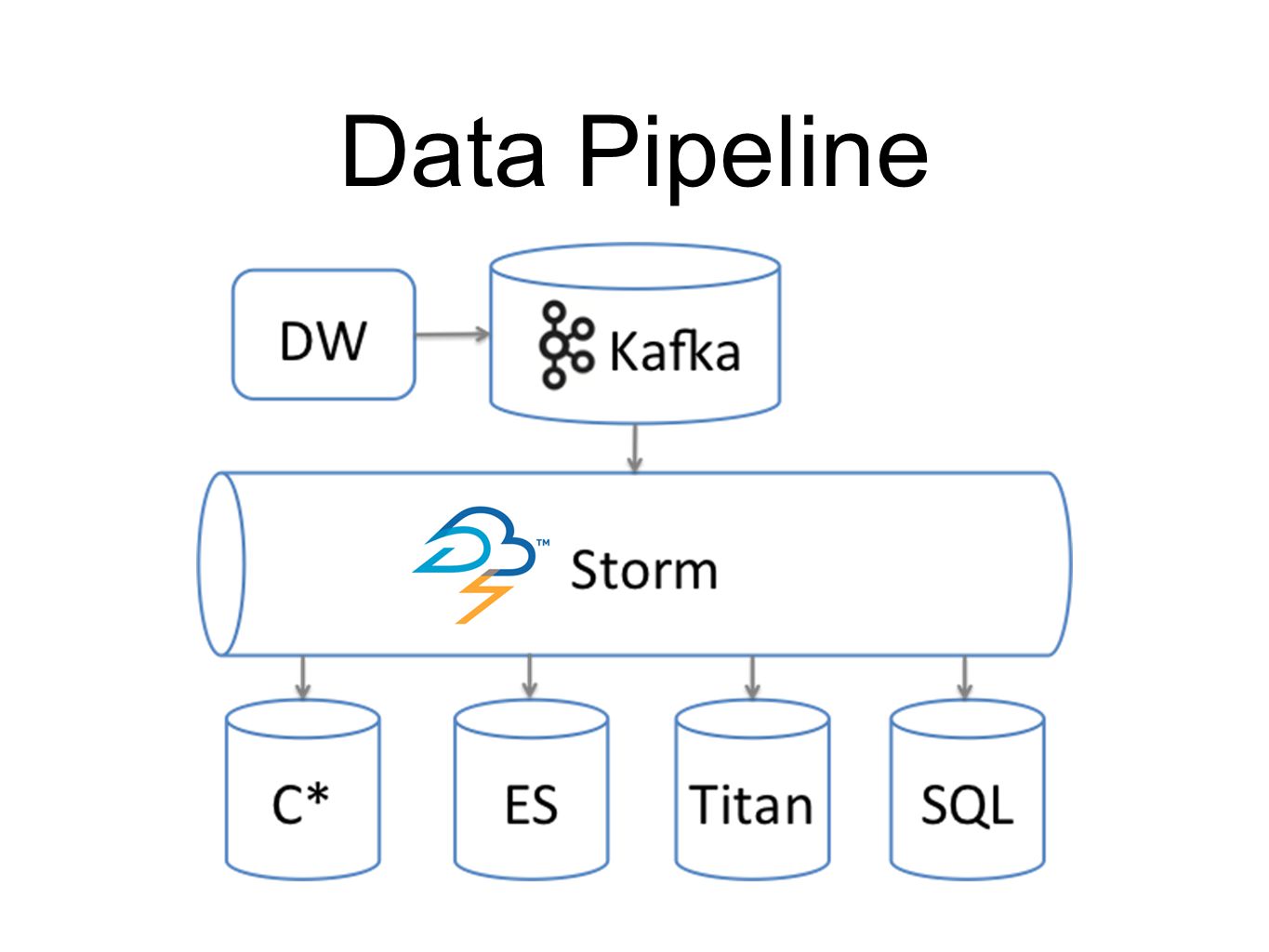

51 Data Pipeline

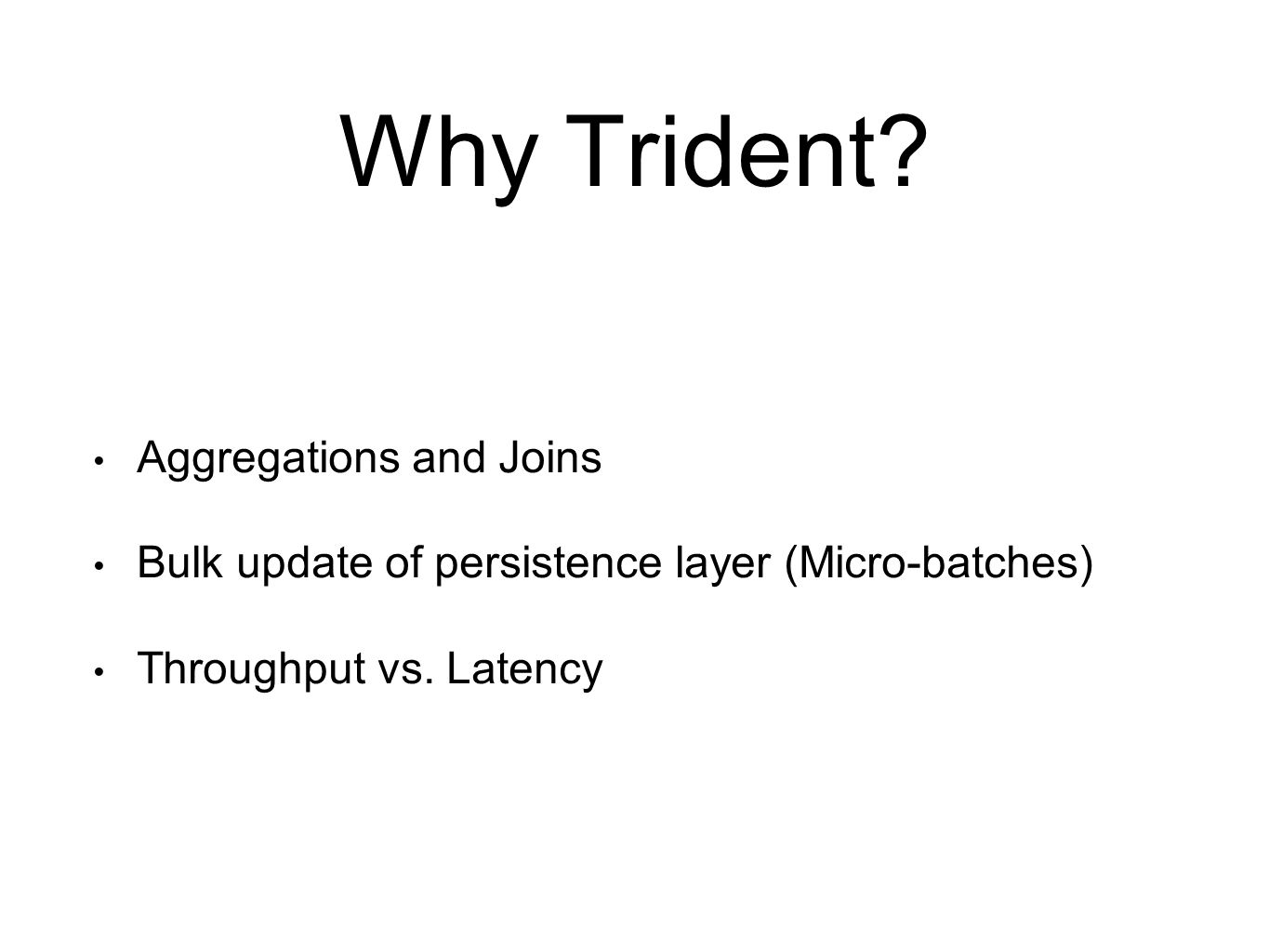

52 Why Trident? Aggregations and Joins Bulk update of persistence layer (Micro-batches) Throughput vs. Latency

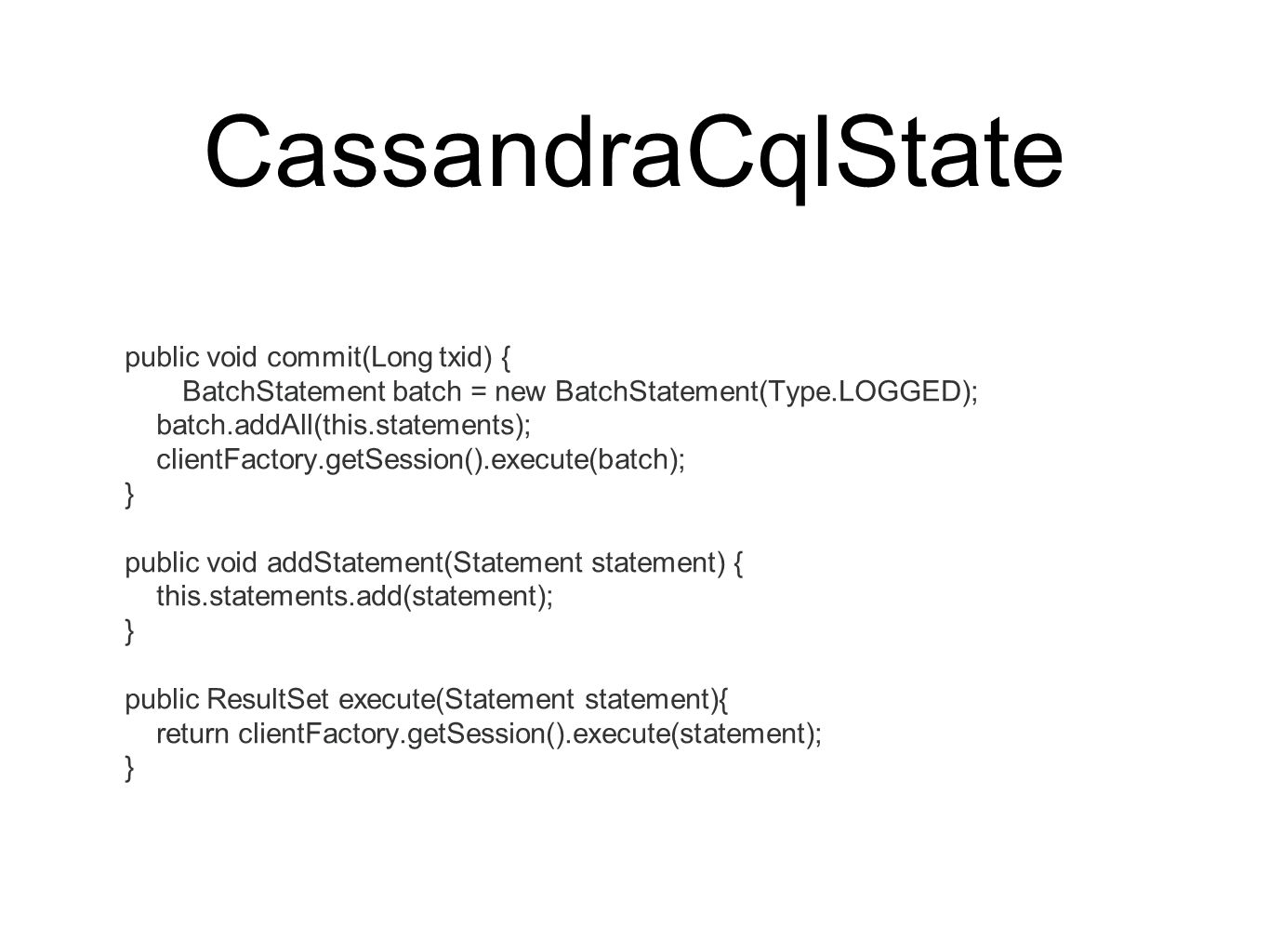

53 CassandraCqlState public void commit(Long txid) { BatchStatement batch = new BatchStatement(Type.LOGGED); batch.addAll(this.statements); clientFactory.getSession().execute(batch); } public void addStatement(Statement statement) { this.statements.add(statement); } public ResultSet execute(Statement statement){ return clientFactory.getSession().execute(statement); }

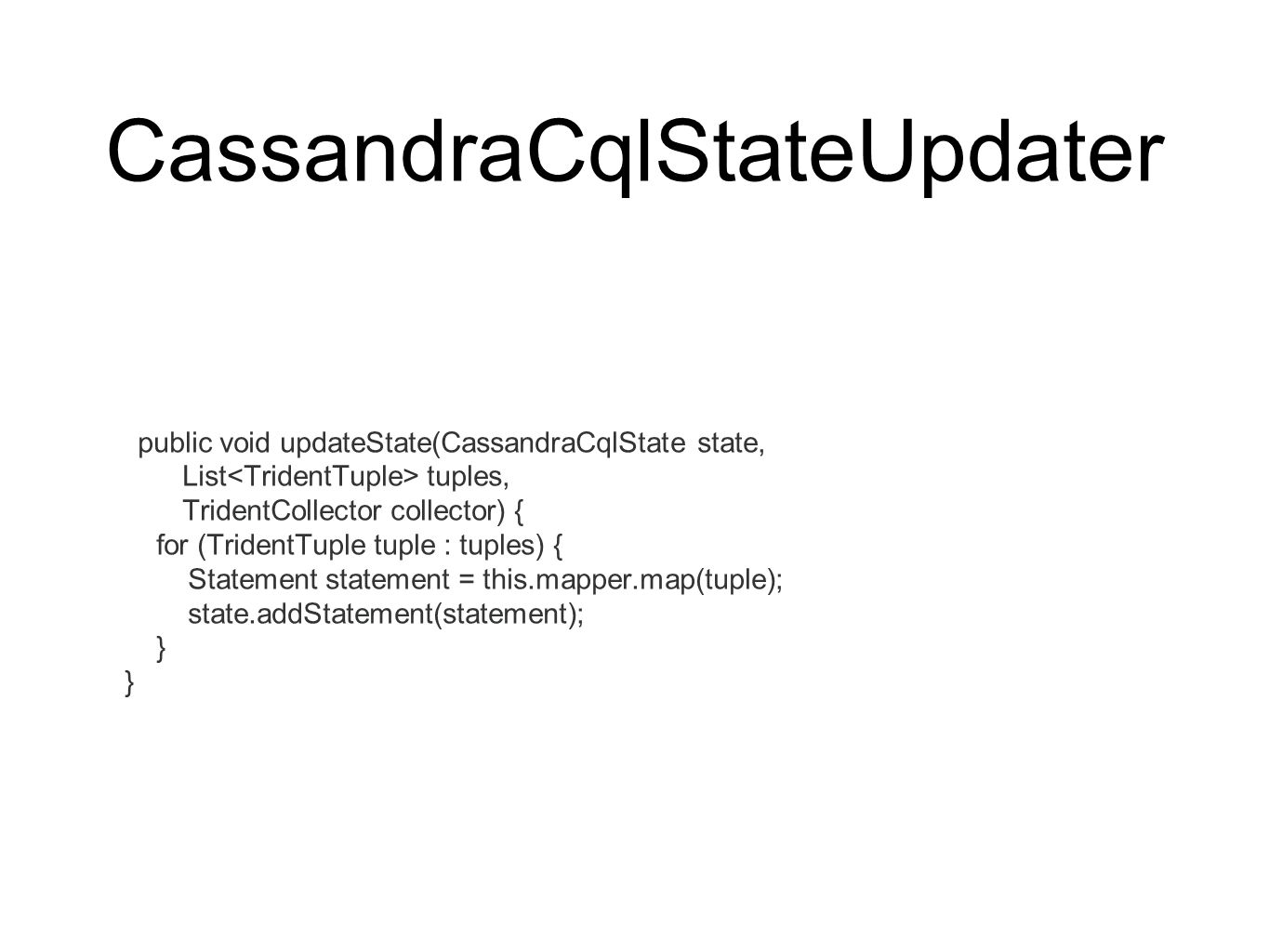

54 CassandraCqlStateUpdater public void updateState(CassandraCqlState state, List tuples, TridentCollector collector) { for (TridentTuple tuple : tuples) { Statement statement = this.mapper.map(tuple); state.addStatement(statement); }

55 Mapper Implementation public Statement map(List keys, Number value) { Insert statement = QueryBuilder.insertInto(KEYSPACE_NAME, TABLE_NAME); statement.value(KEY_NAME, keys.get(0)); statement.value(VALUE_NAME, value); return statement; } public Statement retrieve(List keys) { Select statement = QueryBuilder.select().column(KEY_NAME).column(VALUE_NAME).from(KEYSPACE_NAME, TABLE_NAME).where(QueryBuilder.eq(KEY_NAME, keys.get(0))); return statement; }

56 Storm Cassandra CQL {tuple} —> CQL Statement Trident Batch == CQL Batch

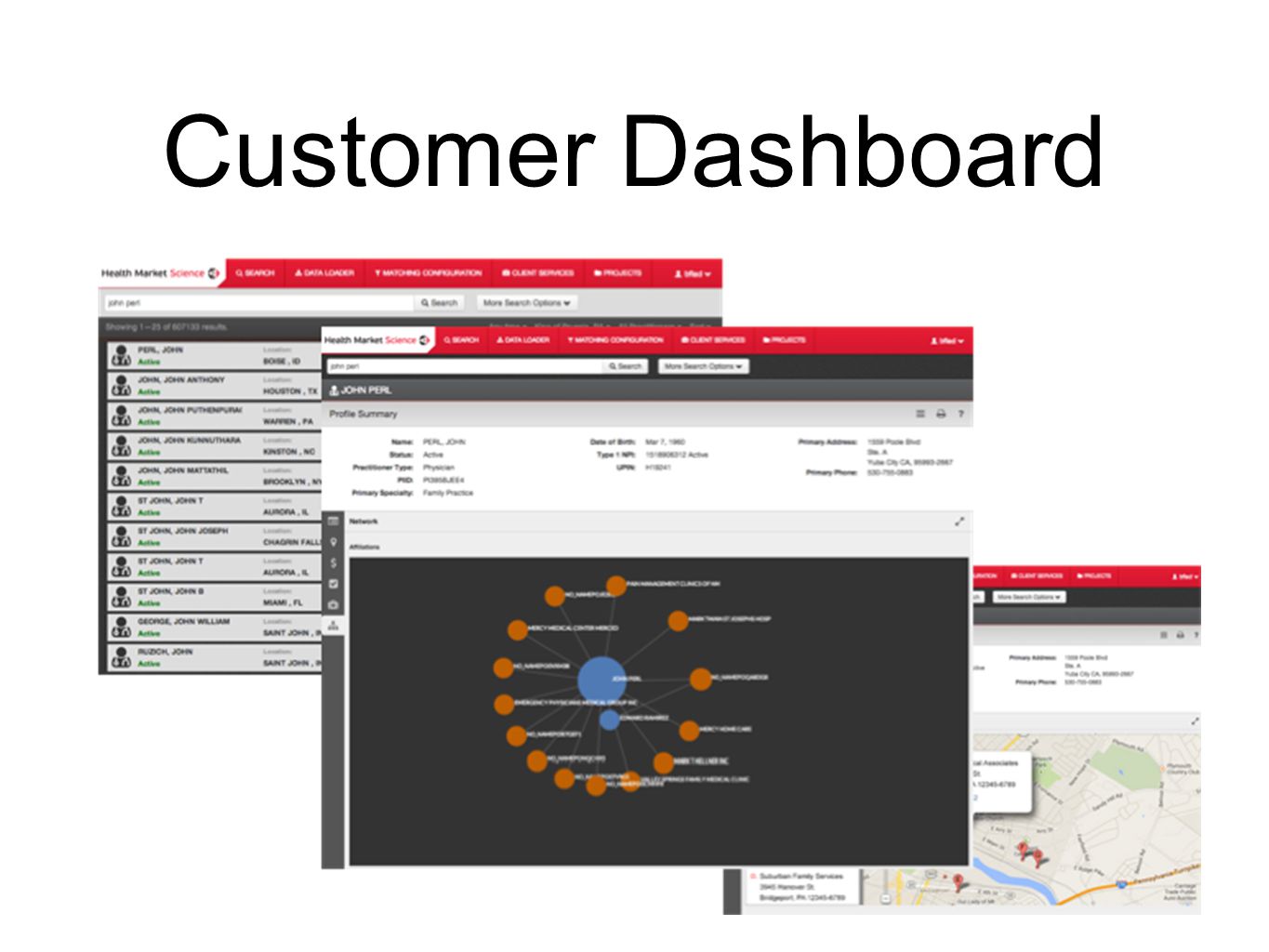

57 Customer Dashboard

58 Thanks! P. Taylor Goetz,
