(1 st Verse) They’re tiny and they’re teeny, Much smaller than a beany, They never can be seeny, The Atoms Family. (Chorus) (2 nd Verse) Together they make gases, And liquids like molasses, And all the solid masses, The Atoms Family (Chorus) They are so small. (snap, snap) They’re round like a ball. (snap, snap) They make up the air. They’re everywhere. Can’t see them at all. (snap, snap) (3 rd Verse) Neutrons can be found, Where protons hang around; Electrons, they surround The Atoms Family. (Chorus) (4 th verse) The periodic table, It isn’t just a fable; You’ll read it when your able; The Atoms Family (Chorus) (Chorus)
Discovery of electron (e-) J.J. Thomson 1856-1940 Cathode ray tube Discovered the electron in 1897. Identified a glowing beam of particles that traveled through a chamber of gas when exposed to an electrical current.
- This beam (cathode ray) was attracted to positive charges and repelled by negative charges. -Thomson concluded the beam must be composed of negatively charged particles. These came to be known as electrons.
Discovery of the Nucleus Ernest Rutherford 1871-1937
Rutherford’s Au foil Experiment “+” charge Rutherford’s experiment Rutherford’s experiment -Discovered the Nucleus (through the Gold Foil Experiment) -Discovered that the atom is mostly empty space -Alpha particle: a positively charged particle, consisting of two protons and two neutrons (helium nucleus).
Rutherford’s Nuclear Atom Positive Nucleus Negative electrons surround nucleus amidst lots of empty space.

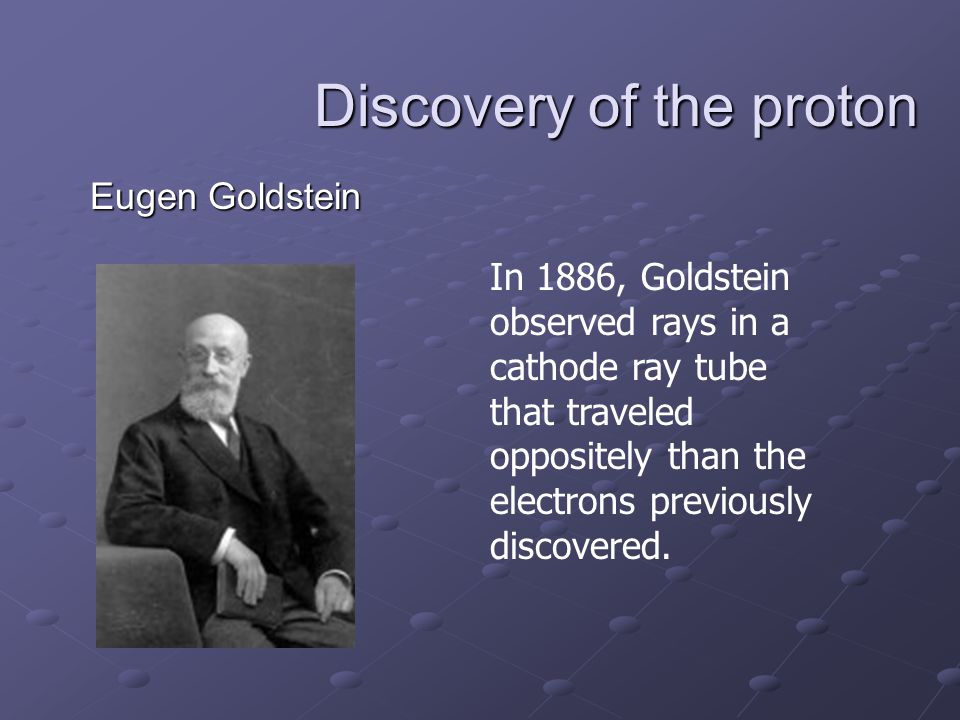

Discovery of the proton Eugen Goldstein In 1886, Goldstein observed rays in a cathode ray tube that traveled oppositely than the electrons previously discovered.
James Chadwick 1. Discovered the neutron in 1932 2. This subatomic particle is heavy enough to split a nucleus 3. Led the way to the creation of the atomic bomb
Protons Located in nucleus Determine which element (DNA) # of protons = atomic number equal to # of electrons in a neutral atom equal to # of electrons in a neutral atom Ch 1: Activity 4
LETS HAVE SOME PRACTICE 6 C Carbon 12 Atomic Number (Protons) Mass Number (Proton+Neutrons) Element Symbol Element Name 12 6 Mass Number (Protons+Neutrons) Atomic Number (Protons) C
Mass Number Almost all the mass of an atom comes from protons & neutrons # Protons + # Neutrons = mass number

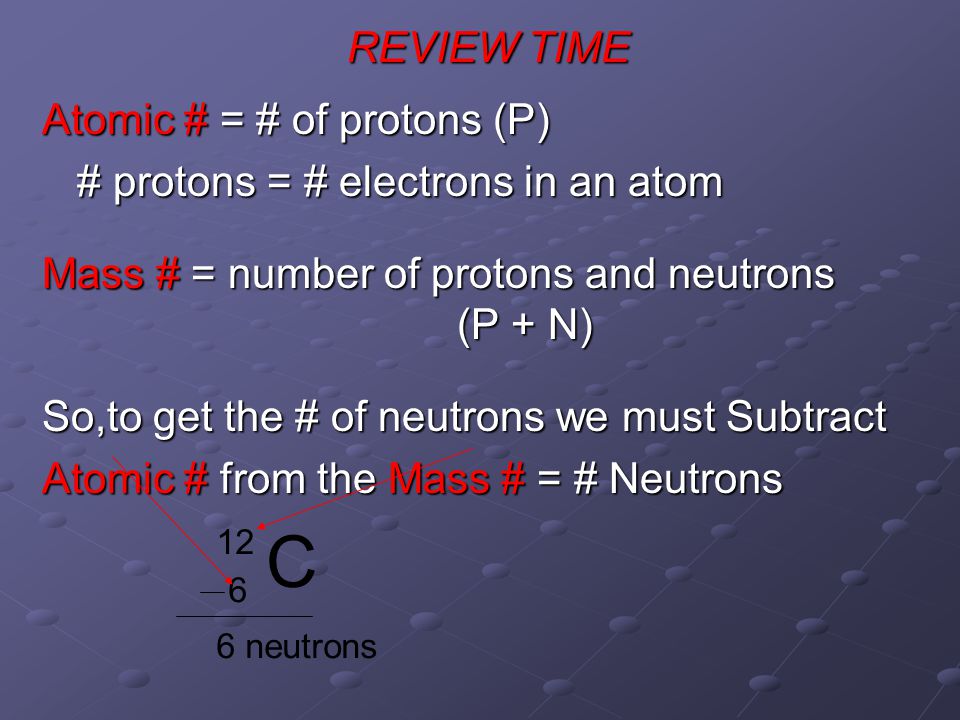

Atomic # = # of protons (P) # protons = # electrons in an atom # protons = # electrons in an atom Mass # = number of protons and neutrons (P + N) So,to get the # of neutrons we must Subtract Atomic # from the Mass # = # Neutrons REVIEW TIME 12 6 C 6 neutrons
Practice Determine the # of protons,neutrons, & electrons ProtonsNeutronsElectrons He B Mg ZnProtonsNeutronsElectronsHe222 B Mg ZnProtonsNeutronsElectronsHe B565 Mg ZnProtonsNeutronsElectronsHe B Mg121212 ZnProtonsNeutronsElectronsHe B Mg121212 Zn303530
Subatomic Particles Electron: e - negative charge negative charge 9.11 x 10 -31 kg 9.11 x 10 -31 kg Proton: p + positive charge positive charge 1.67 x 10 -27 kg 1.67 x 10 -27 kg Neutron: n 0 no charge no charge 1.67 x 10 -27 kg 1.67 x 10 -27 kg

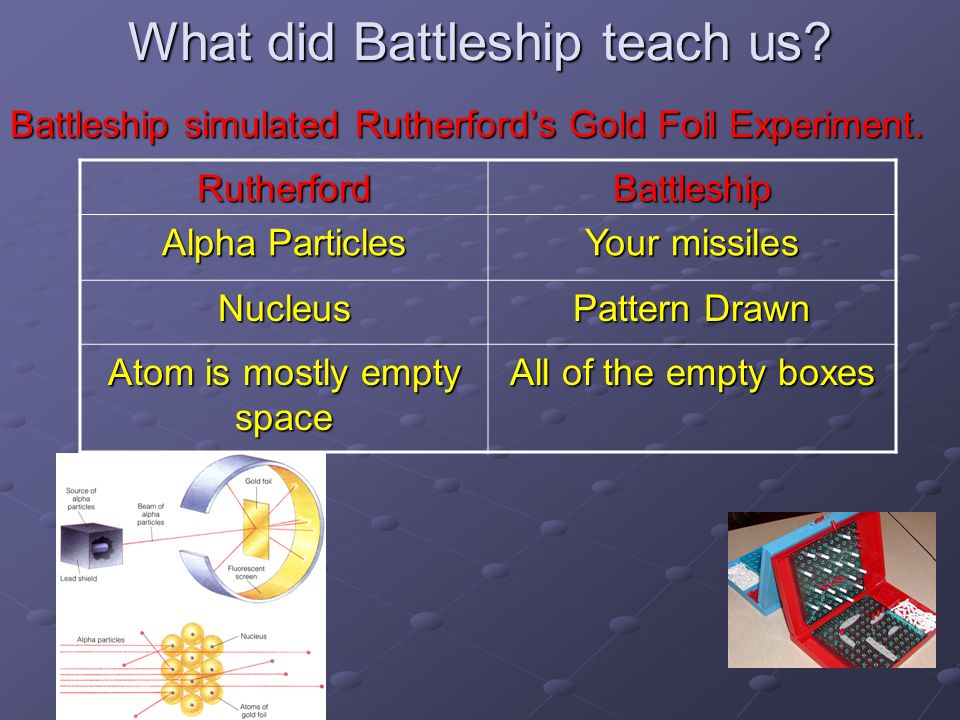

What did Battleship teach us? Battleship simulated Rutherford’s Gold Foil Experiment. RutherfordBattleship Alpha Particles Your missiles Nucleus Pattern Drawn Atom is mostly empty space All of the empty boxes
Atoms vs Ions ATOMSIONS Protons = Electrons Protons ≠ Electrons Cations= More Protons Positive Charge Anions= More Electrons Negative Charge
IONS cation (+) anion (-) Li +1 Cl -1 3 Protons 2 Electrons 17 Protons 18 Electrons Can’t Change the Number of Protons
Ions An ion is an atom with a positive (+) or negative (-) charge Atoms that gain electrons have - charges Atoms that lose electrons have + charges
Isotopes Atoms of an element can have different numbers of neutrons – these are isotopes The number of protons is always the same, but since more neutrons add more mass, the mass number can be different
Isotopes Protons = Protons BUT……#Neutrons are Different So Mass # is Different AtomProtonsNeutronsElectrons Mass # Carbon-1266612 Carbon-1367613 Carbon-1468614
The Scale of the Universe http://htwins.net/scale2/ Virtual Atom Ted Talk: How Small is an Atom Ted Talk: How Small is an Atom

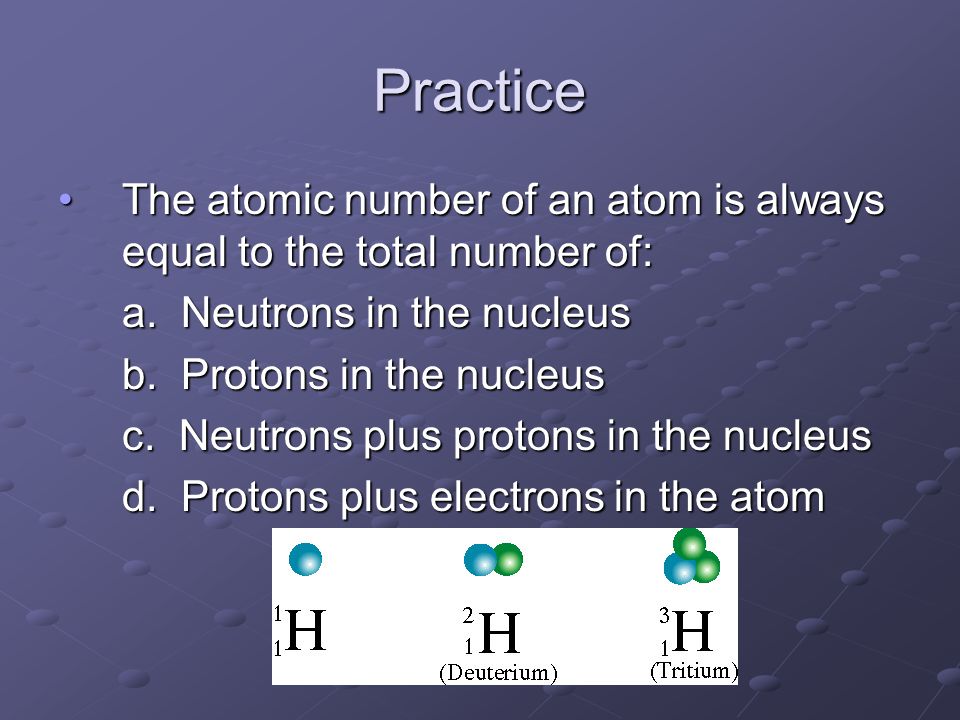

Practice The atomic number of an atom is always equal to the total number of:The atomic number of an atom is always equal to the total number of: a. Neutrons in the nucleus b. Protons in the nucleus c. Neutrons plus protons in the nucleus d. Protons plus electrons in the atom
Practice If the number of electrons and protons are not equal:If the number of electrons and protons are not equal: a. an atom exists b. an isotope exists c. an ion exists d. None of the above
Practice An atom that has lost electrons has what type of charge?An atom that has lost electrons has what type of charge? POSITIVE POSITIVE Once it has lost electrons it is no longer an atom. What is it called?Once it has lost electrons it is no longer an atom. What is it called? CATION
Practice An atom of 42 Ca contains:An atom of 42 Ca contains: a. 20 protons and 22 neutrons b. 20 protons and 42 neutrons c. 20 electrons and 42 neutrons d. 20 electrons and 22 protons
Practice Atoms that have the same atomic number but different mass numbers are called?Atoms that have the same atomic number but different mass numbers are called? isotopes isotopes
Practice Look at the picture below and then fill in the chart:Look at the picture below and then fill in the chart:AtomProtonsNeutronsElectrons Mass # Lithium-6 Lithium-7 Lithium-8 3336 3437 3538

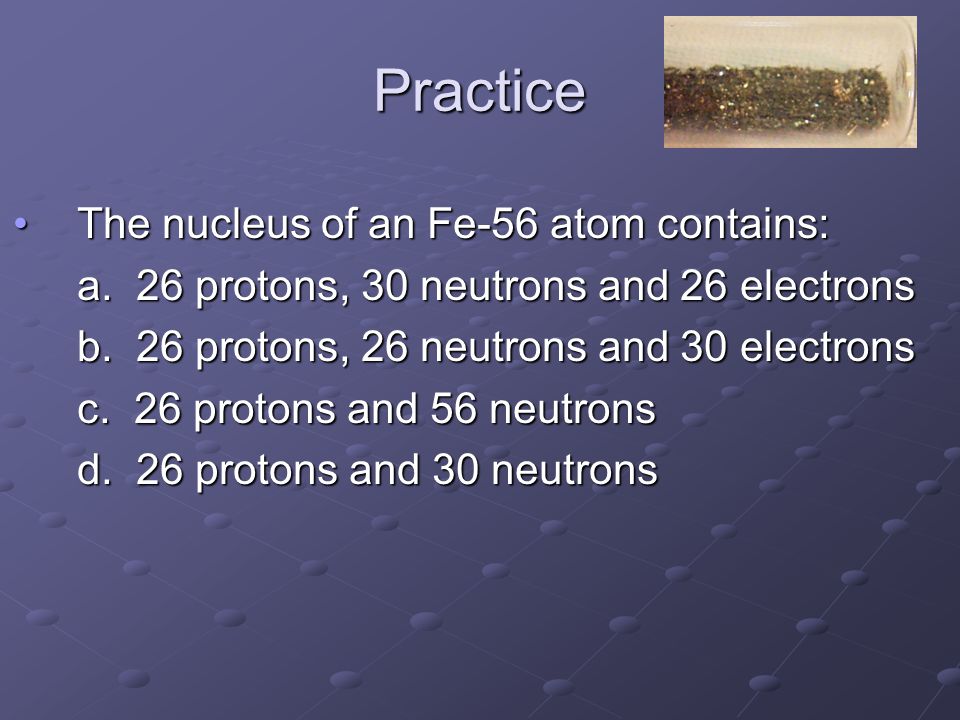

Practice The nucleus of an Fe-56 atom contains:The nucleus of an Fe-56 atom contains: a. 26 protons, 30 neutrons and 26 electrons b. 26 protons, 26 neutrons and 30 electrons c. 26 protons and 56 neutrons d. 26 protons and 30 neutrons
Practice What did Rutherford’s Gold Foil experiment discover?What did Rutherford’s Gold Foil experiment discover? a. electron b. neutron c. nucleus d. proton
Practice A 52 Cr 3+ ion contains:A 52 Cr 3+ ion contains: a. 24 protons, 52 neutrons, 21 electrons b. 24 protons, 28 neutrons, 24 electrons c. 24 protons, 28 neutrons, 27 electrons d. 24 protons, 28 neutrons, 21 electrons
Practice What is the total number of electrons in an atom with an atomic number of 30 and a mass number of 65?What is the total number of electrons in an atom with an atomic number of 30 and a mass number of 65? a. 30 b. 65 c. 35 d. 95
Practice Who discovered the electron and how?Who discovered the electron and how? a. Democritus, atomic theories b. Dalton, cathode ray tube c. Rutherford, gold foil experiment d. Thomson, cathode ray tube
