1. Introducing the TLS Series Libraries

2. Qualstar TLS Library Systems  Full range of tape libraries –AIT –SAIT –SDLT –LTO  Intra-family scalability  Proven robotics design  Advanced features  Flexible options  Full range of tape libraries –AIT –SAIT –SDLT –LTO  Intra-family scalability  Proven robotics design  Advanced features  Flexible options

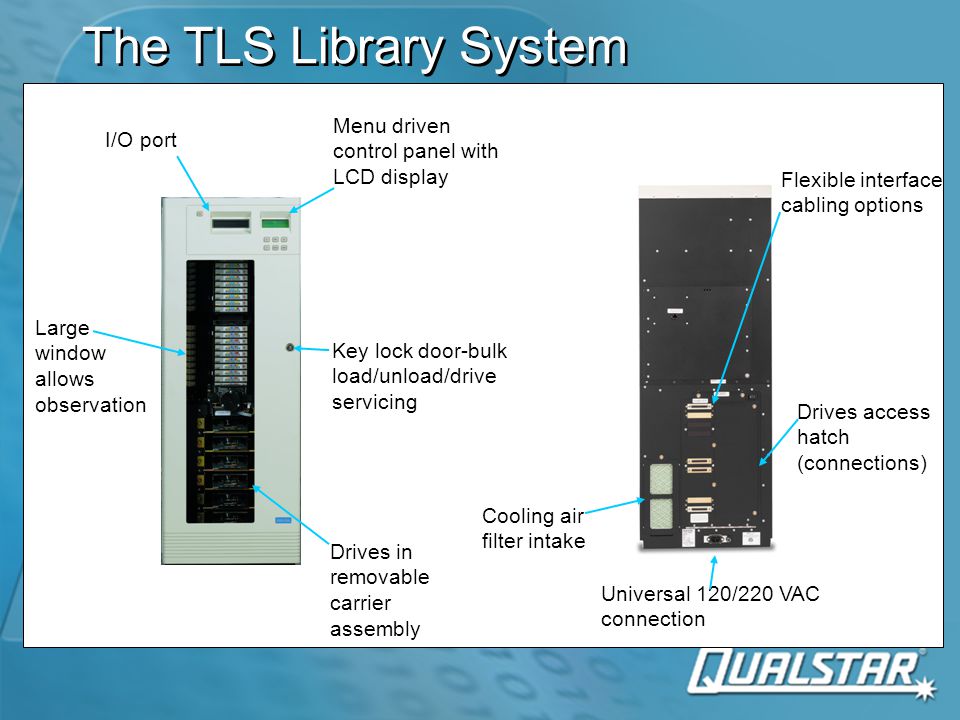

3. The TLS Library System Menu driven control panel with LCD display I/O port Drives in removable carrier assembly Key lock door-bulk load/unload/drive servicing Large window allows observation Cooling air filter intake Universal 120/220 VAC connection Drives access hatch (connections) Flexible interface cabling options

4. Qualstar Robotic Design The cornerstone of a Simply Reliable library  Rated for >1 Million MEBF’s  Very high resolution positioning  No maintenance required  Qualstar designed and built brushless motors  Proven design used in all Qualstar libraries, improved and perfected over 8 years of manufacturing  Rated for >1 Million MEBF’s  Very high resolution positioning  No maintenance required  Qualstar designed and built brushless motors  Proven design used in all Qualstar libraries, improved and perfected over 8 years of manufacturing Oversize linear bearings Fixed lead screw with aerospace low friction coating Patented “Rotating Nut” servo motor design

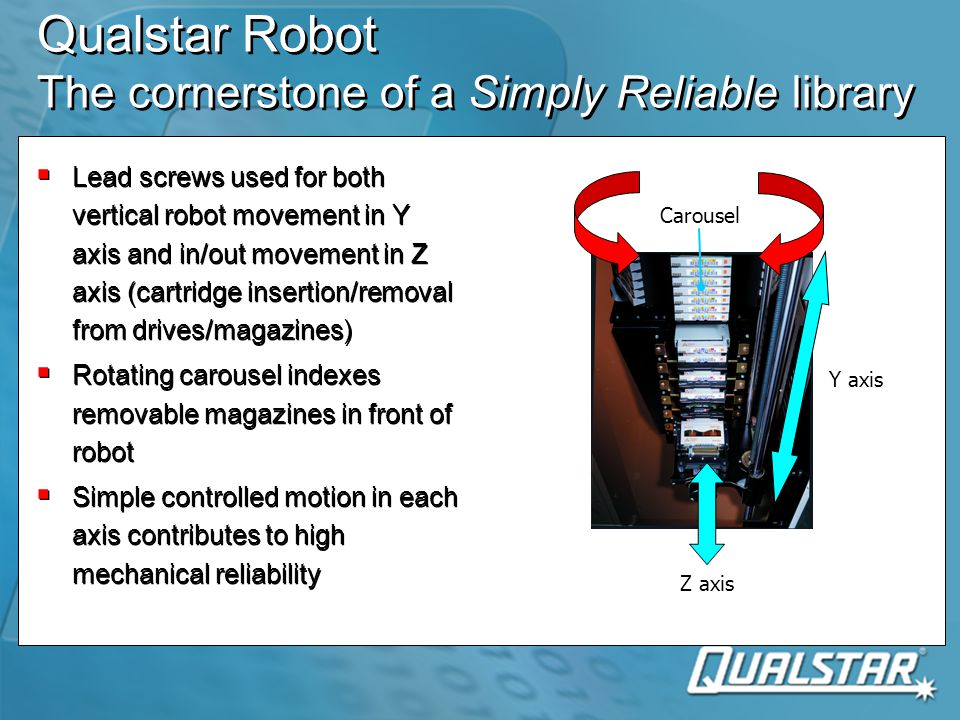

5. Qualstar Robot The cornerstone of a Simply Reliable library  Lead screws used for both vertical robot movement in Y axis and in/out movement in Z axis (cartridge insertion/removal from drives/magazines)  Rotating carousel indexes removable magazines in front of robot  Simple controlled motion in each axis contributes to high mechanical reliability  Lead screws used for both vertical robot movement in Y axis and in/out movement in Z axis (cartridge insertion/removal from drives/magazines)  Rotating carousel indexes removable magazines in front of robot  Simple controlled motion in each axis contributes to high mechanical reliability Carousel Y axis Z axis

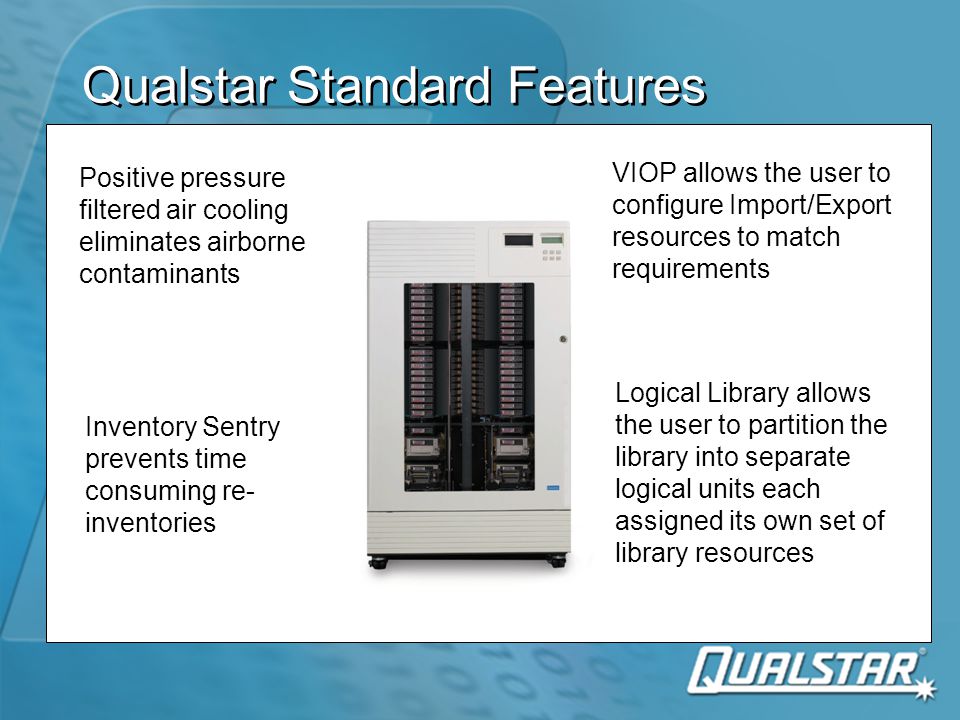

6. Qualstar Standard Features Positive pressure filtered air cooling eliminates airborne contaminants Inventory Sentry prevents time consuming re- inventories VIOP allows the user to configure Import/Export resources to match requirements Logical Library allows the user to partition the library into separate logical units each assigned its own set of library resources

7. VIOP Means More Control  Standard in all TLS and RLS libraries  Allows reassignment of any range of media storage slots to the I/O port function  Boundaries can be set at magazine or slot increments  Supports bulk load/unload and “group backup” strategies  Standard in all TLS and RLS libraries  Allows reassignment of any range of media storage slots to the I/O port function  Boundaries can be set at magazine or slot increments  Supports bulk load/unload and “group backup” strategies 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 A B C D E F I/O 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 A B C D E F I/O Without VIOP I/O port resources are fixed With VIOP I/O port resources are variable

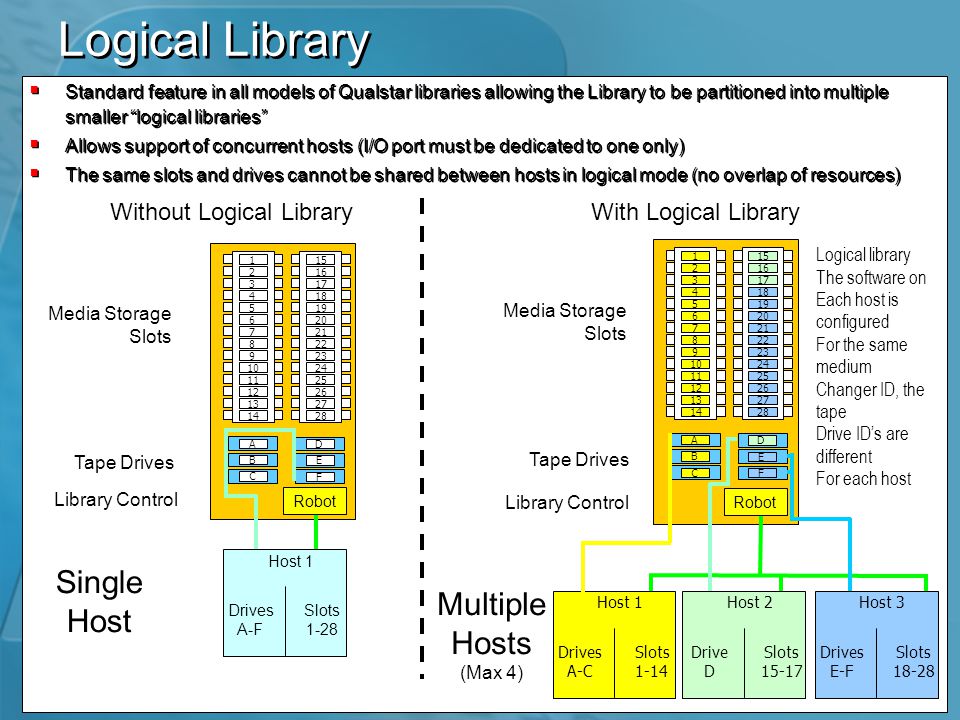

8. Logical Library  Standard feature in all models of Qualstar libraries allowing the Library to be partitioned into multiple smaller “logical libraries”  Allows support of concurrent hosts (I/O port must be dedicated to one only)  The same slots and drives cannot be shared between hosts in logical mode (no overlap of resources)  Standard feature in all models of Qualstar libraries allowing the Library to be partitioned into multiple smaller “logical libraries”  Allows support of concurrent hosts (I/O port must be dedicated to one only)  The same slots and drives cannot be shared between hosts in logical mode (no overlap of resources) With Logical Library 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 A B C D E F Without Logical Library Single Host Tape Drives Media Storage Slots 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 A B C D E F Multiple Hosts (Max 4) Tape Drives Media Storage Slots Logical library The software on Each host is configured For the same medium Changer ID, the tape Drive ID’s are different For each host Robot Library Control Host 1 Drives A-F Slots 1-28 Robot Host 1 Drives A-C Slots 1-14 Library Control Host 2 Drive D Slots 15-17 Host 3 Drives E-F Slots 18-28

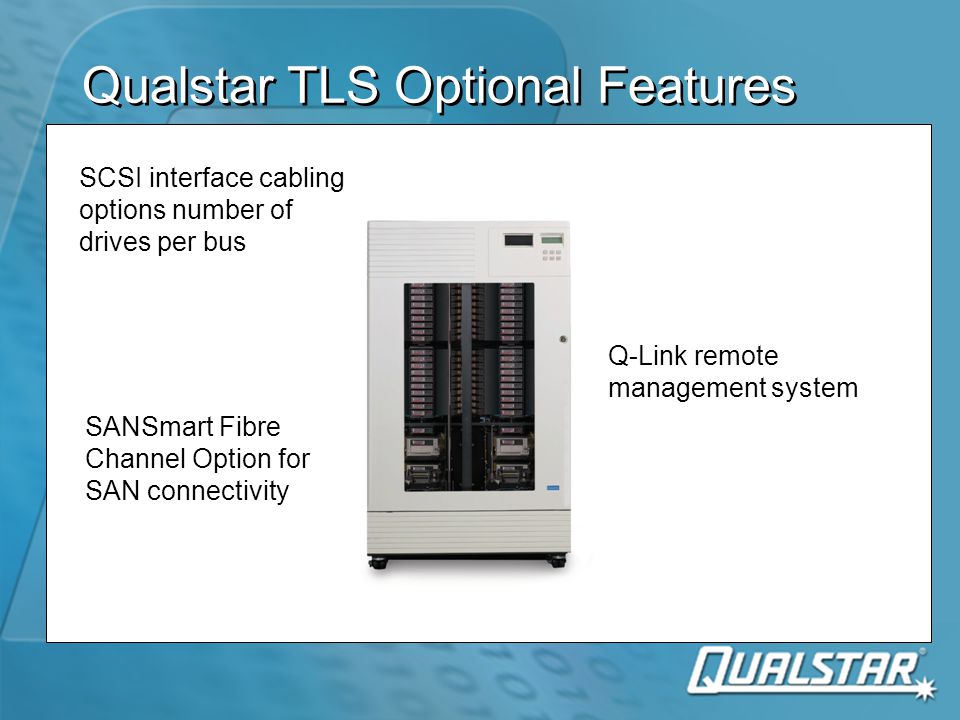

9. Qualstar TLS Optional Features SCSI interface cabling options number of drives per bus SANSmart Fibre Channel Option for SAN connectivity Q-Link remote management system

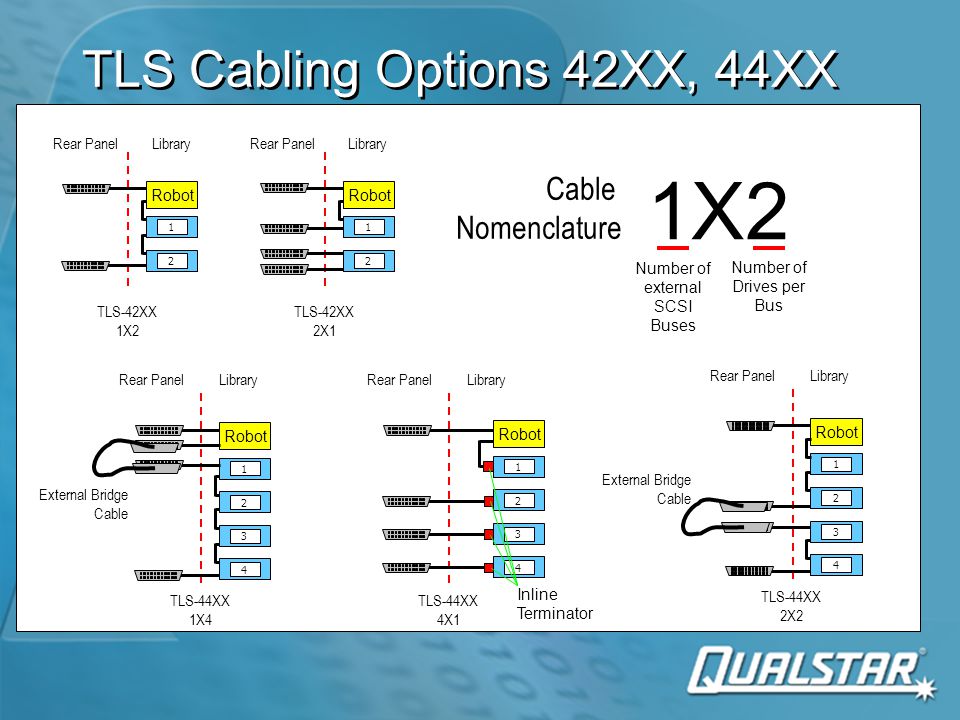

10. TLS Cabling Options 42XX, 44XX 1 Robot 2 Library TLS-42XX 1X2 Rear Panel 1 Robot 2 Library TLS-42XX 2X1 Rear Panel LibraryRear Panel 1 Robot 2 TLS-44XX 1X4 3 4 External Bridge Cable LibraryRear Panel 1 Robot 2 TLS-44XX 4X1 3 4 Inline Terminator LibraryRear Panel 1 Robot 2 TLS-44XX 2X2 3 4 External Bridge Cable Nomenclature 1X2 Number of external SCSI Buses Number of Drives per Bus

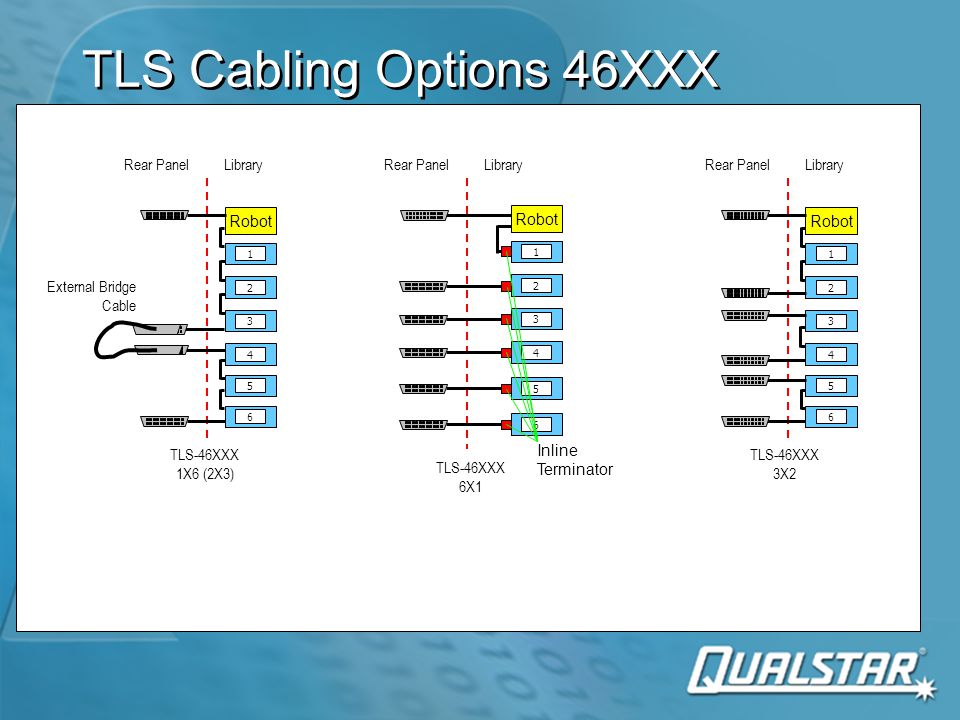

11. TLS Cabling Options 46XXX LibraryRear Panel 1 Robot 2 TLS-46XXX 1X6 (2X3) 3 4 External Bridge Cable 5 6 Inline Terminator LibraryRear Panel 1 Robot 2 TLS-46XXX 6X1 3 4 5 6 LibraryRear Panel 1 Robot 2 TLS-46XXX 3X2 3 4 5 6

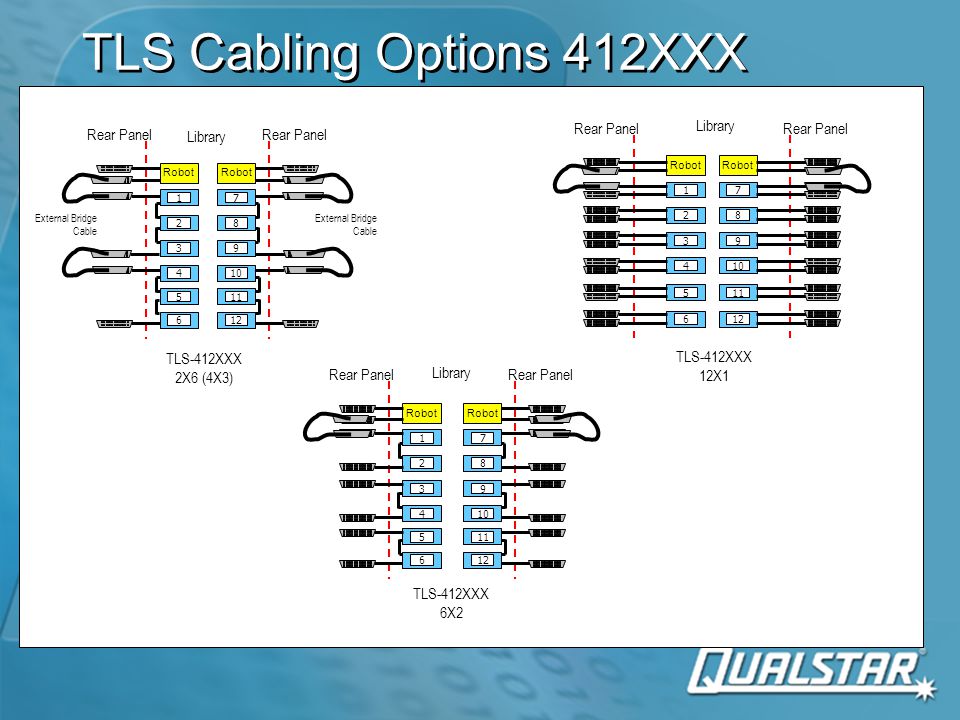

12. TLS Cabling Options 412XXX TLS-412XXX 2X6 (4X3) Library Rear Panel 1 Robot 2 3 4 External Bridge Cable 5 6 Rear Panel 7 Robot 8 9 10 External Bridge Cable 11 12 TLS-412XXX 12X1 Library Rear Panel 1 Robot 2 3 4 5 6 Rear Panel 7 Robot 8 9 10 11 12 TLS-412XXX 6X2 Library Rear Panel 1 Robot 2 3 4 5 6 Rear Panel 7 Robot 8 9 10 11 12

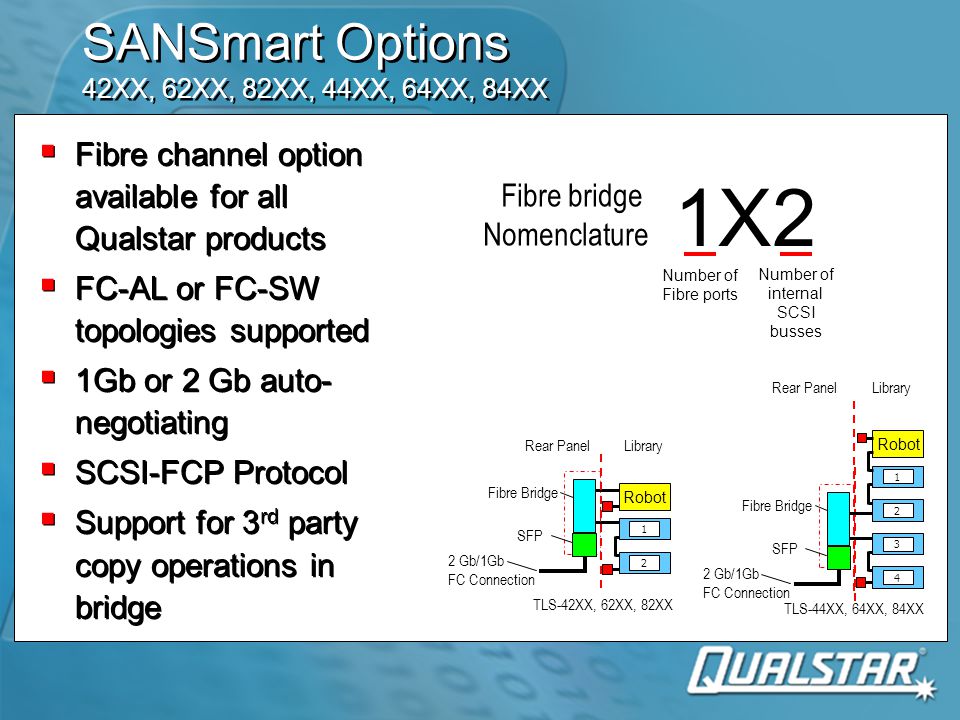

13. SANSmart Options 42XX, 62XX, 82XX, 44XX, 64XX, 84XX TLS-42XX, 62XX, 82XX 1 Robot 2 LibraryRear Panel Fibre Bridge SFP 2 Gb/1Gb FC Connection LibraryRear Panel 1 Robot 2 TLS-44XX, 64XX, 84XX 3 4 Fibre Bridge SFP 2 Gb/1Gb FC Connection  Fibre channel option available for all Qualstar products  FC-AL or FC-SW topologies supported  1Gb or 2 Gb auto- negotiating  SCSI-FCP Protocol  Support for 3 rd party copy operations in bridge  Fibre channel option available for all Qualstar products  FC-AL or FC-SW topologies supported  1Gb or 2 Gb auto- negotiating  SCSI-FCP Protocol  Support for 3 rd party copy operations in bridge Fibre bridge Nomenclature 1X2 Number of Fibre ports Number of internal SCSI busses

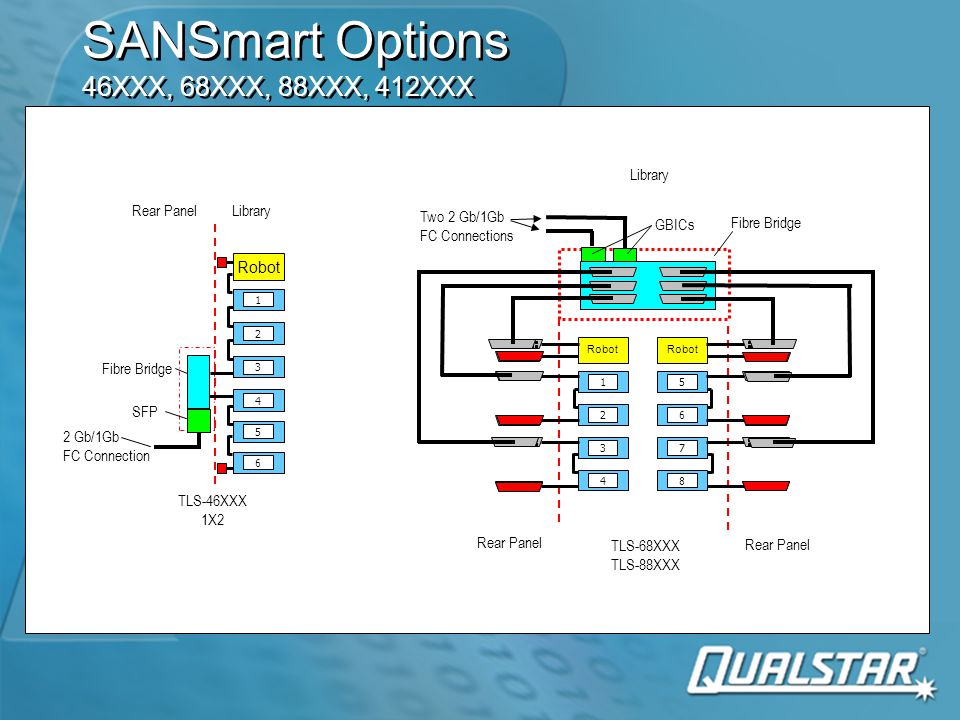

14. SANSmart Options 46XXX, 68XXX, 88XXX, 412XXX LibraryRear Panel 1 Robot 2 TLS-46XXX 1X2 3 4 5 6 Fibre Bridge SFP 2 Gb/1Gb FC Connection Library TLS-412XXX 2X6 Rear Panel 1 Robot 2 3 4 5 6 7 8 9 10 11 12 Fibre Bridge GBICs Two 2 Gb/1Gb FC Connections Library TLS-68XXX TLS-88XXX Rear Panel 1 Robot 2 3 4 5 6 7 8 Fibre Bridge GBICs Two 2 Gb/1Gb FC Connections

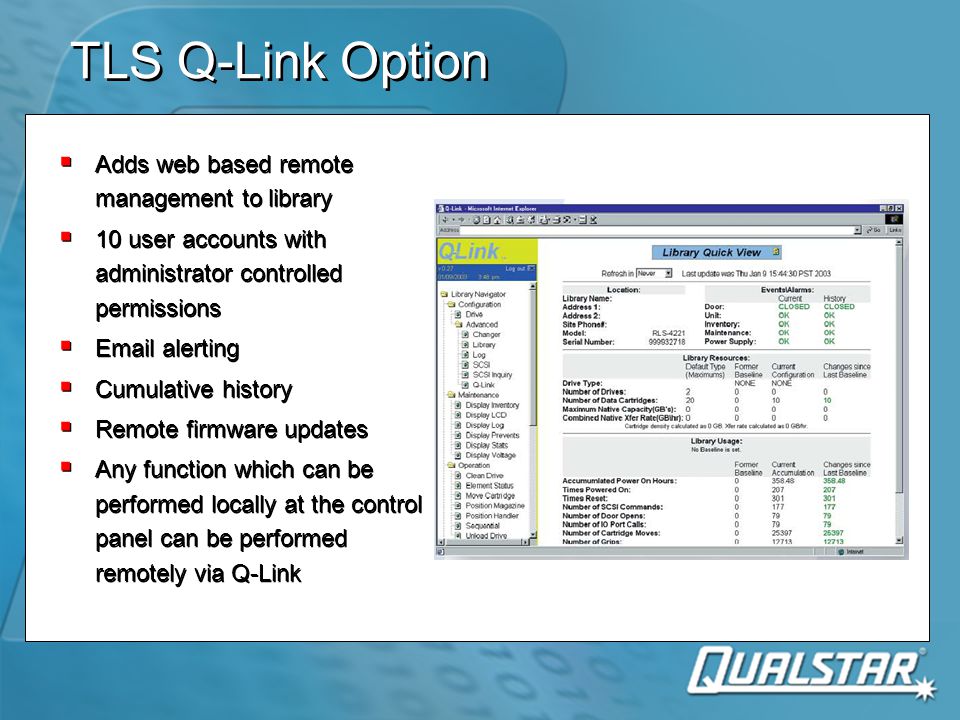

15. TLS Q-Link Option  Adds web based remote management to library  10 user accounts with administrator controlled permissions  Email alerting  Cumulative history  Remote firmware updates  Any function which can be performed locally at the control panel can be performed remotely via Q-Link  Adds web based remote management to library  10 user accounts with administrator controlled permissions  Email alerting  Cumulative history  Remote firmware updates  Any function which can be performed locally at the control panel can be performed remotely via Q-Link

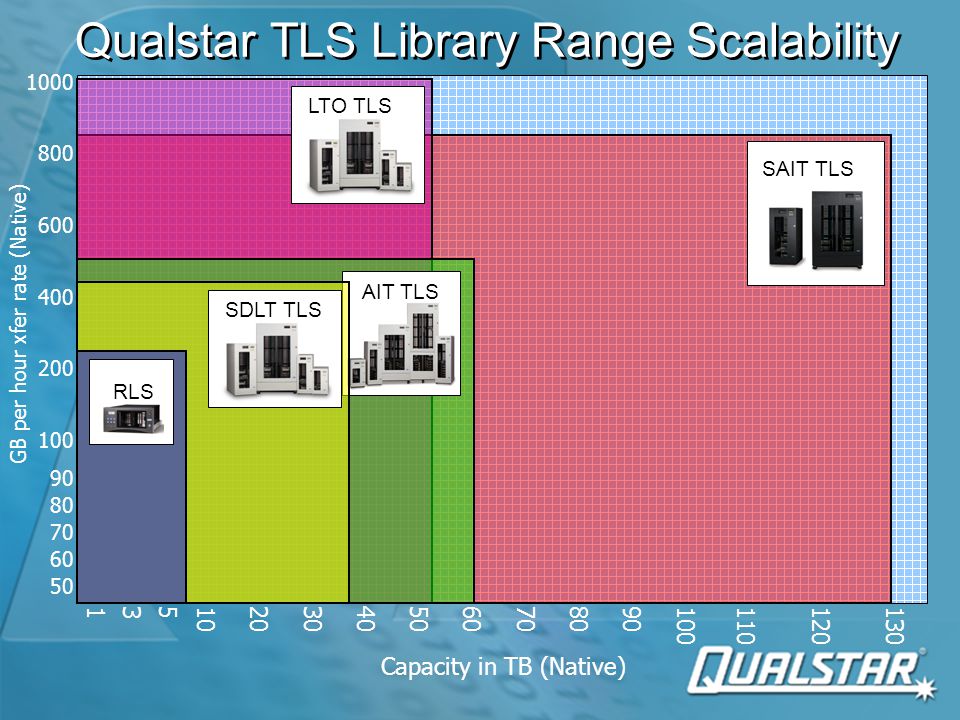

16. Qualstar TLS Library Range Scalability 1000 800 600 400 200 100 90 80 70 60 50 GB per hour xfer rate (Native) 130 120 110 100 90 80 70 60 50 40 30 20 10 5 3 1 Capacity in TB (Native) SAIT TLS LTO TLS AIT TLS SDLT TLS RLS

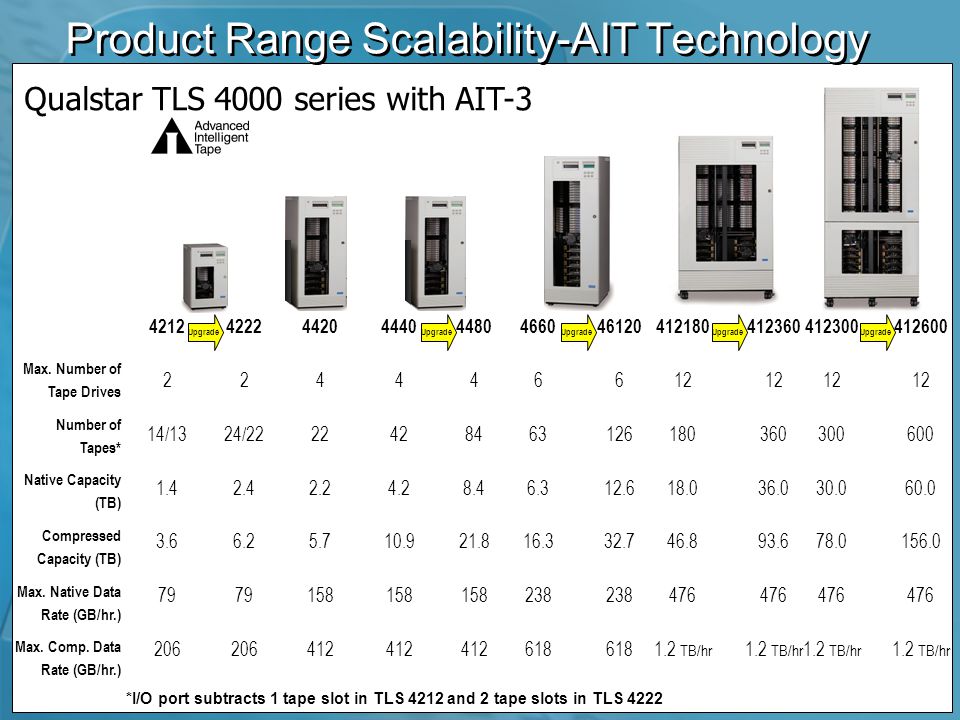

17. Product Range Scalability-AIT Technology Max. Number of Tape Drives Number of Tapes* Native Capacity (TB) Compressed Capacity (TB) Max. Native Data Rate (GB/hr.) Max. Comp. Data Rate (GB/hr.) Qualstar TLS 4000 series with AIT-3 4222 2 24/22 2.4 6.2 79 206 4480 4 84 8.4 21.8 158 412 46120 6 126 12.6 32.7 238 618 412360 12 360 36.0 93.6 476 1.2 TB/hr 412600 12 600 60.0 156.0 476 1.2 TB/hr Upgrade 412300 12 300 30.0 78.0 476 1.2 TB/hr 412180 12 180 18.0 46.8 476 1.2 TB/hr 4660 6 63 6.3 16.3 238 618 4212 2 14/13 1.4 3.6 79 206 4420 4 22 2.2 5.7 158 412 4440 4 42 4.2 10.9 158 412 *I/O port subtracts 1 tape slot in TLS 4212 and 2 tape slots in TLS 4222

18. Product Range Scalability-SAIT Technology Number of Drives Number of Tapes Native Capacity (TB) Compressed Capacity (TB) Max. Native Data Rate (GB/hr.) Max. Comp. Data Rate (TB/hr.) Upgrade TLS 5466 1-4 66 33 85.8 432 1.1 TLS 58264 1-8 264 132 343.2 864 2.2 Standard with:  Q-Link remote management  I/O Port  Barcode Reader TLS 5433 1-4 33 16.5 42.9 432 1.1 TLS 5433, 5466 TLS 58132 1-8 132 66 171.6 864 2.2 TLS 58132, 58264 Qualstar TLS 5000 series Upgrade

19. Product Range Scalability-SDLT Technology Max. Number of Tape Drives Number of Tapes* Native Capacity (TB) Compressed Capacity (TB) Max. Native Data Rate (GB/hr.) Max. Comp. Data Rate (GB/hr.) Qualstar TLS 6000 series with SDLT320 6460 4 60 9.6 19.2 230 460 68240 8 240 38.4 76.8 460 921 6220 2 20 3.2 6.4 115 230 6210 2 10 1.6 3.2 115 230 6430 4 30 4.8 9.6 230 460 68120 8 120 19.2 38.4 460 921 Upgrade

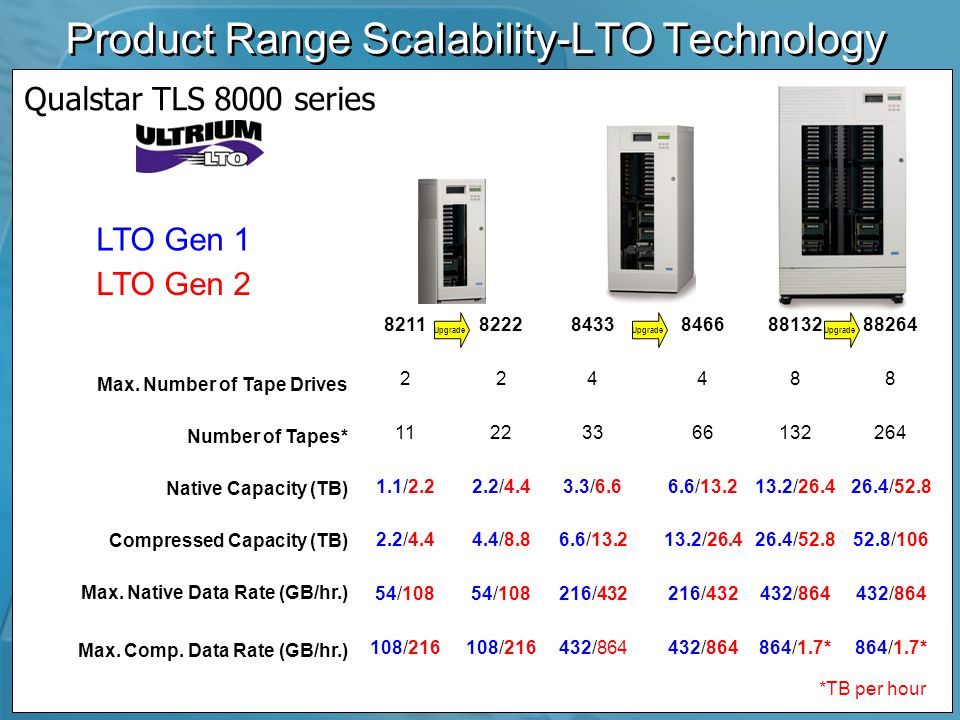

20. Product Range Scalability-LTO Technology Max. Number of Tape Drives Number of Tapes* Native Capacity (TB) Compressed Capacity (TB) Max. Native Data Rate (GB/hr.) Max. Comp. Data Rate (GB/hr.) 8466 4 66 6.6/13.2 13.2/26.4 216/432 432/864 88264 8 264 26.4/52.8 52.8/106 432/864 864/1.7* 8222 2 22 2.2/4.4 4.4/8.8 54/108 108/216 Upgrade Qualstar TLS 8000 series 8433 4 33 3.3/6.6 6.6/13.2 216/432 432/864 8211 2 11 1.1/2.2 2.2/4.4 54/108 108/216 88132 8 132 13.2/26.4 26.4/52.8 432/864 864/1.7* *TB per hour LTO Gen 1 LTO Gen 2
