1 Weathering of Rocks

2 Exam 1

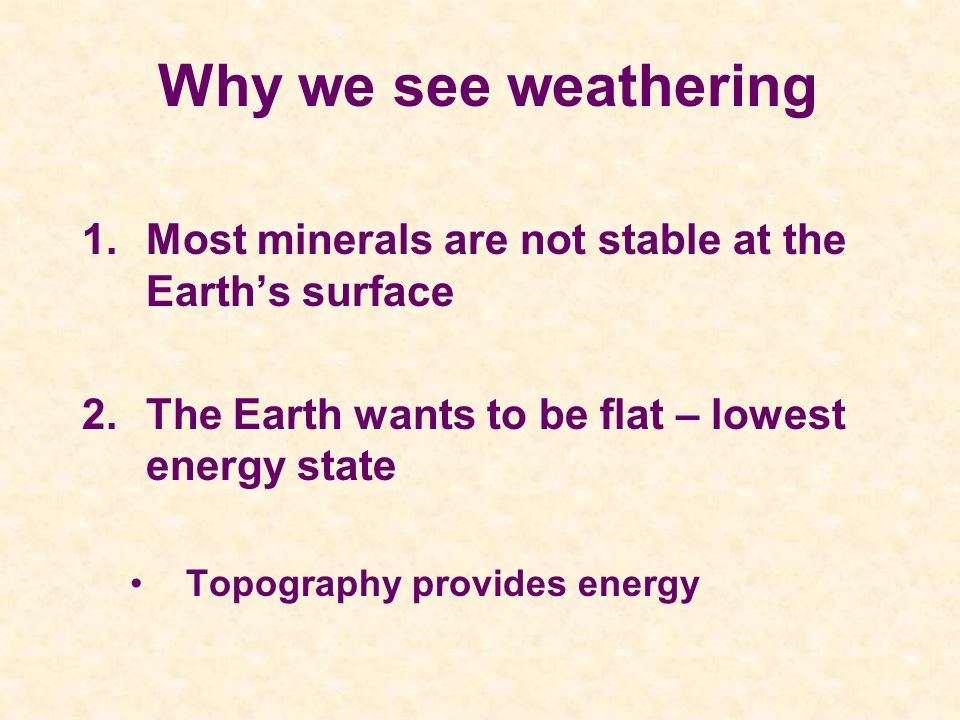

3 Why we see weathering 1.Most minerals are not stable at the Earth’s surface 2.The Earth wants to be flat – lowest energy state Topography provides energy

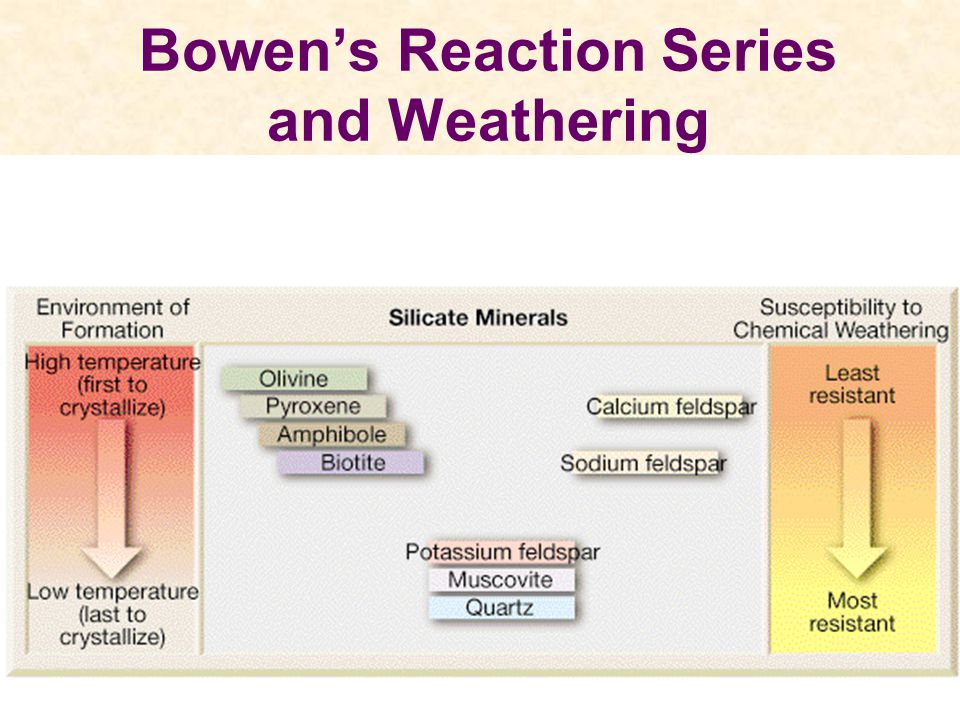

4 Bowen’s Reaction Series and Weathering

5 IgneousSedimentary Metamorphic Melting Erosion + Deposition Melting Erosion + Deposition Burial + Heating Weathering in the Rock Cycle

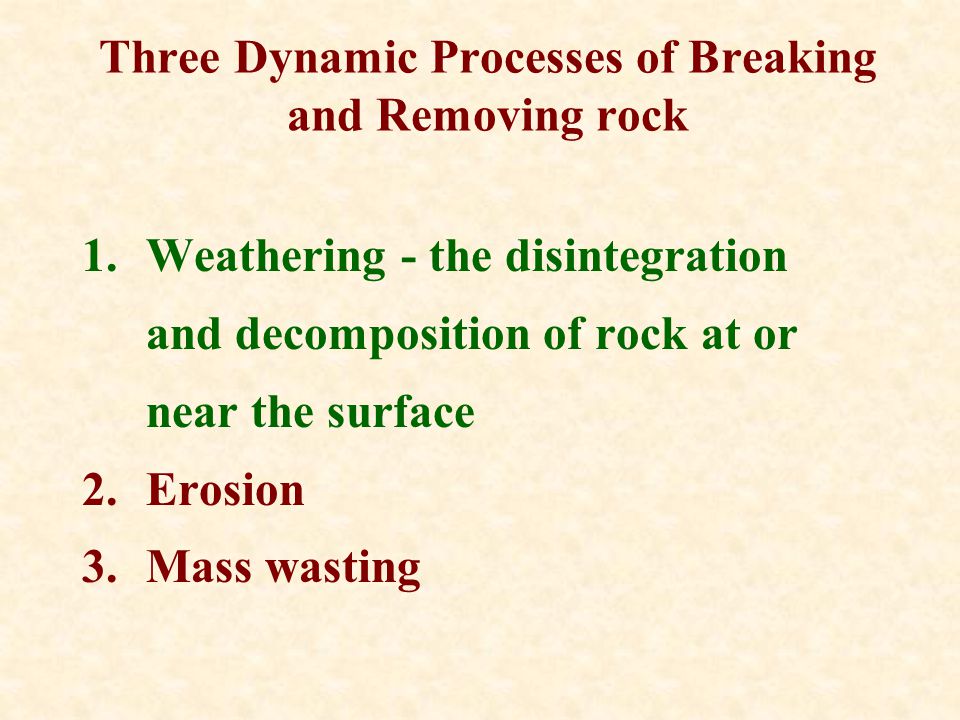

6 Three Dynamic Processes of Breaking and Removing rock 1.Weathering - the disintegration and decomposition of rock at or near the surface 2.Erosion 3.Mass wasting

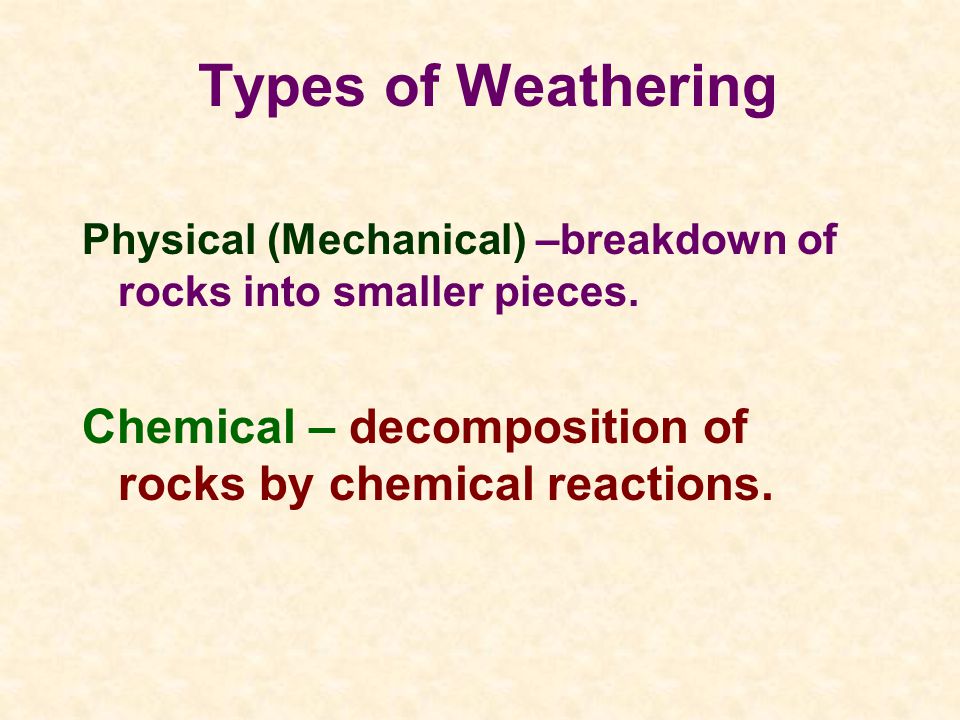

7 Types of Weathering Physical (Mechanical) –breakdown of rocks into smaller pieces. Chemical – decomposition of rocks by chemical reactions.

8 Page 250

9 Daily Questions Examine the five World Heritage Sites in Figure 9.1 (pg. 244) 1)Which site is at the greatest risk from physical weathering? Why? 2)Which site is at the greatest risk from chemical weathering? Why?

10 Mechanical Weathering Mechanical weathering breaks down rocks/minerals Smaller particles increases the amount of exposed surface area Does not change the chemical composition of the minerals\

11 Mechanical Weathering - making smaller pieces

12 Mechanical Weathering 1.Frost Wedging 2.Salt Wedging 3.Biological Wedging 4.Unloading

13 Frost wedging – water penetrates into cracks, expands when it freezes. Must have: Adequate moisture Cracks in rocks Freeze/thaw cycles Types of Mechanical Weathering

14 Salt Wedging

15 Biological Wedging

16 Removal of overlying material allows rock to expands Top layers expand more than deeper layers Causes sheeting or exfoliation Unloading

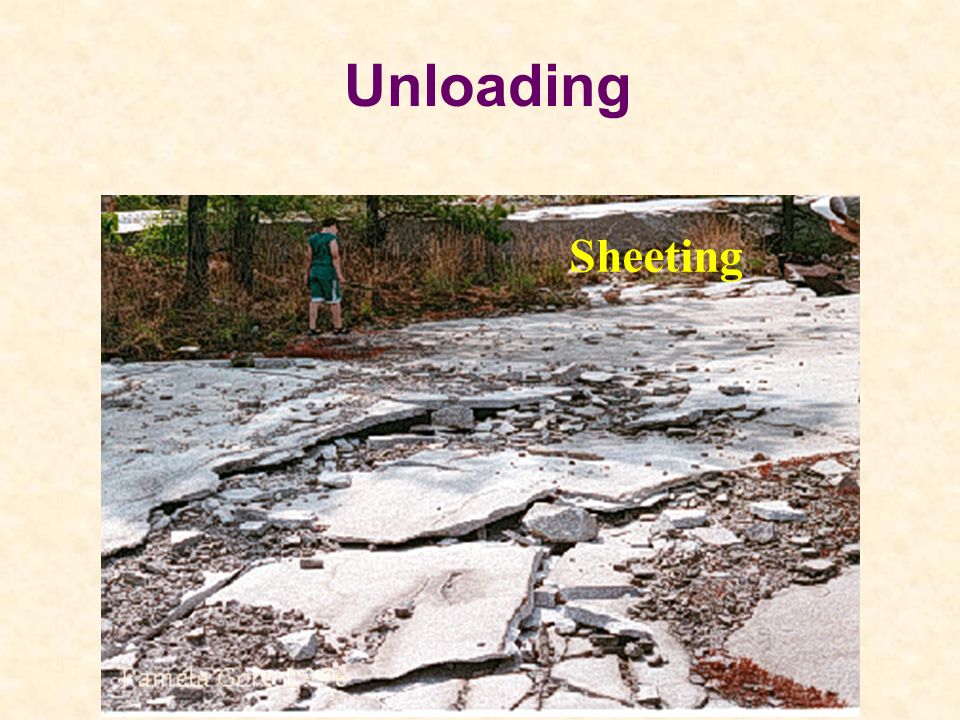

17 Sheeting Unloading

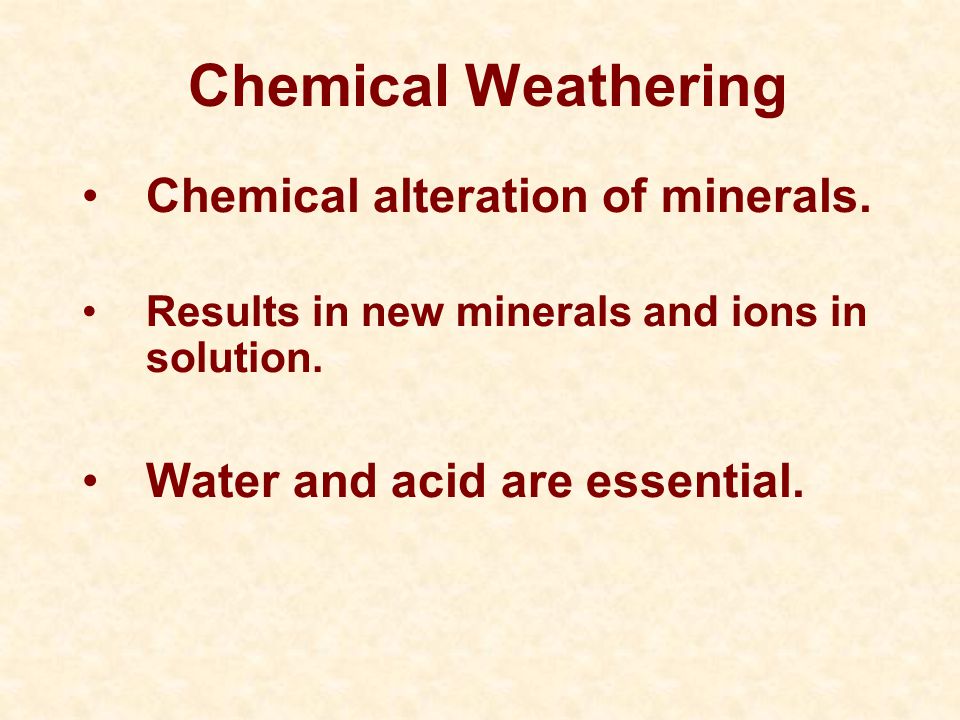

18 Chemical Weathering Chemical alteration of minerals. Results in new minerals and ions in solution. Water and acid are essential.

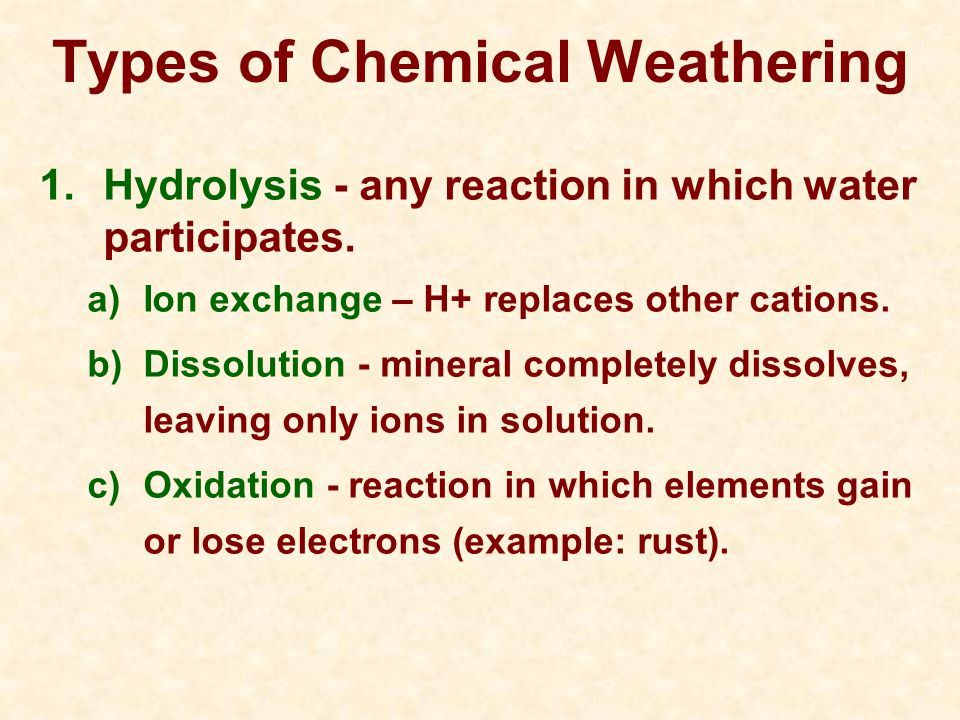

19 Types of Chemical Weathering 1.Hydrolysis - any reaction in which water participates. a)Ion exchange – H+ replaces other cations. b)Dissolution - mineral completely dissolves, leaving only ions in solution. c)Oxidation - reaction in which elements gain or lose electrons (example: rust).

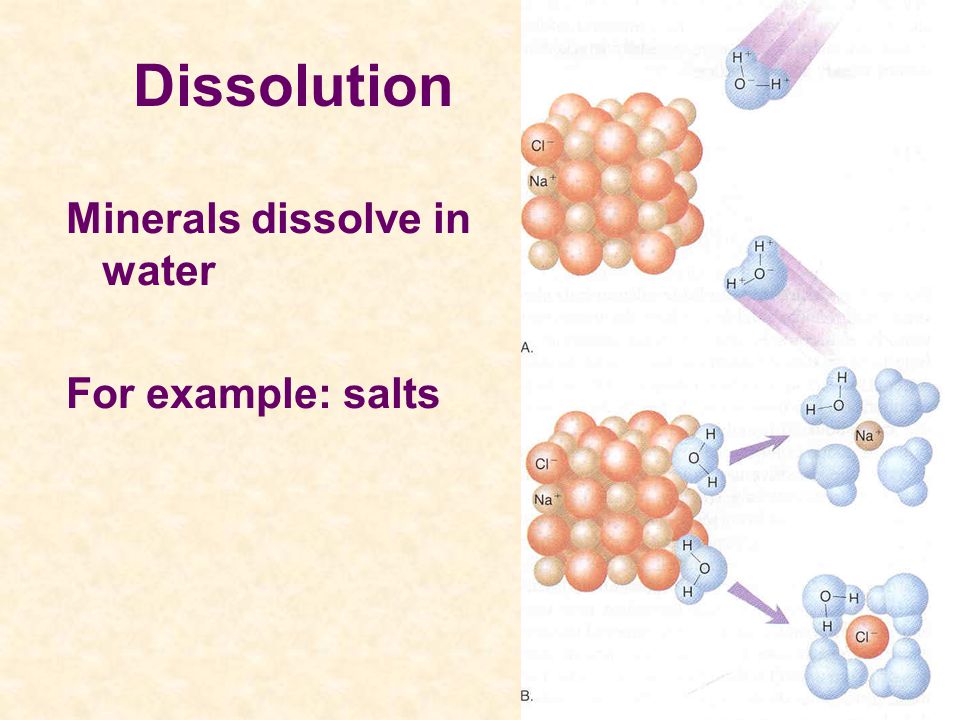

20 Dissolution Minerals dissolve in water For example: salts

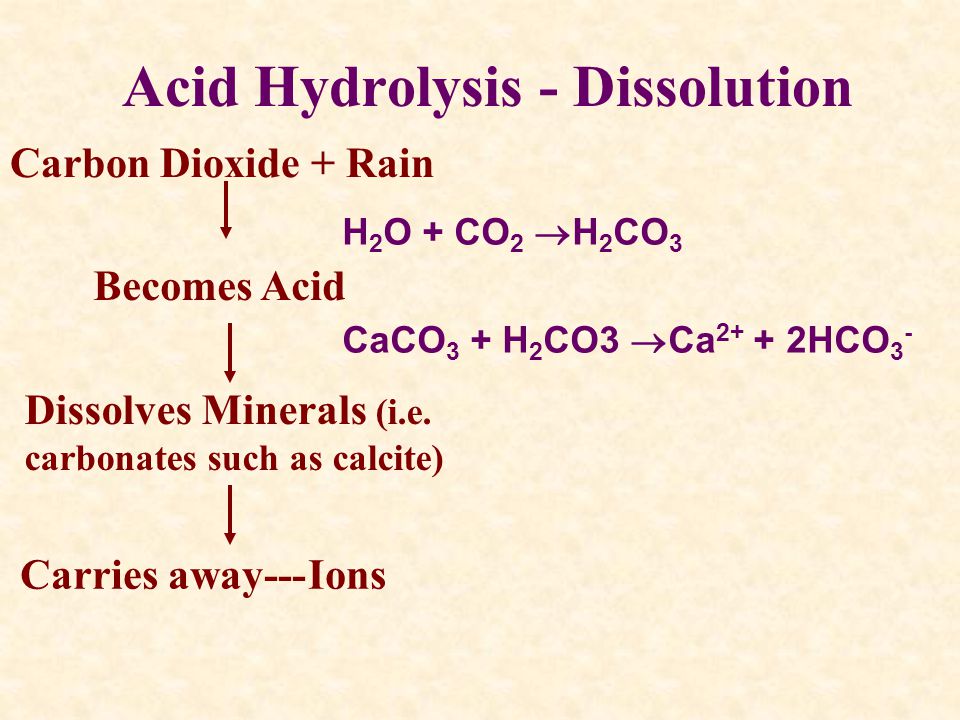

21 Carbon Dioxide + Rain Becomes Acid Dissolves Minerals (i.e. carbonates such as calcite) Carries away---Ions Acid Hydrolysis - Dissolution H 2 O + CO 2  H 2 CO 3 CaCO 3 + H 2 CO3  Ca HCO 3 -

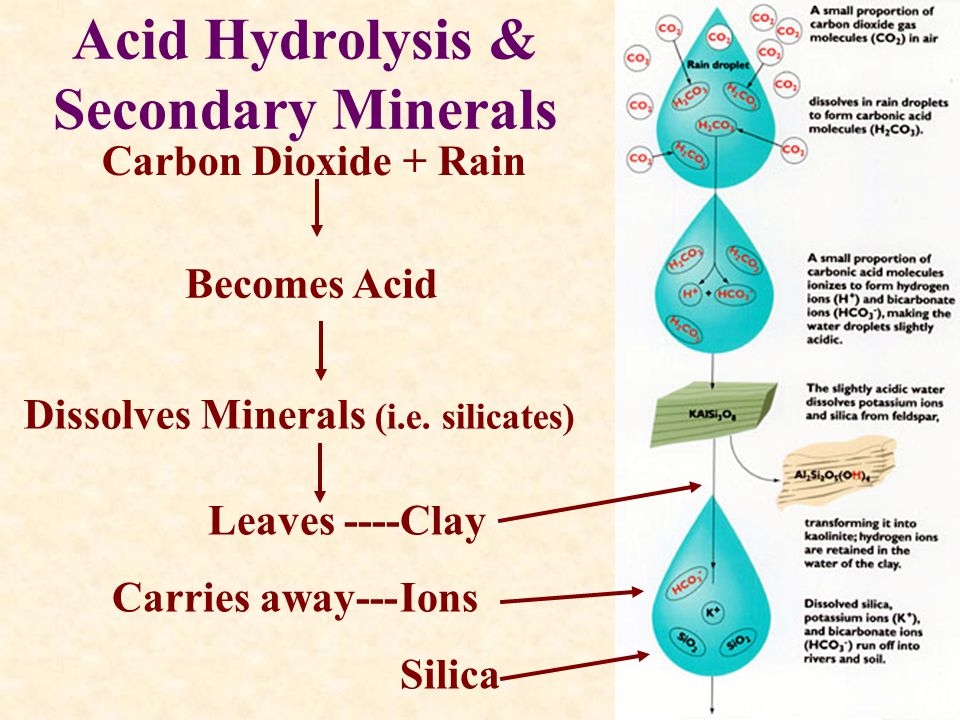

22 Carbon Dioxide + Rain Becomes Acid Dissolves Minerals (i.e. silicates) Leaves ----Clay Carries away---Ions Silica Acid Hydrolysis & Secondary Minerals

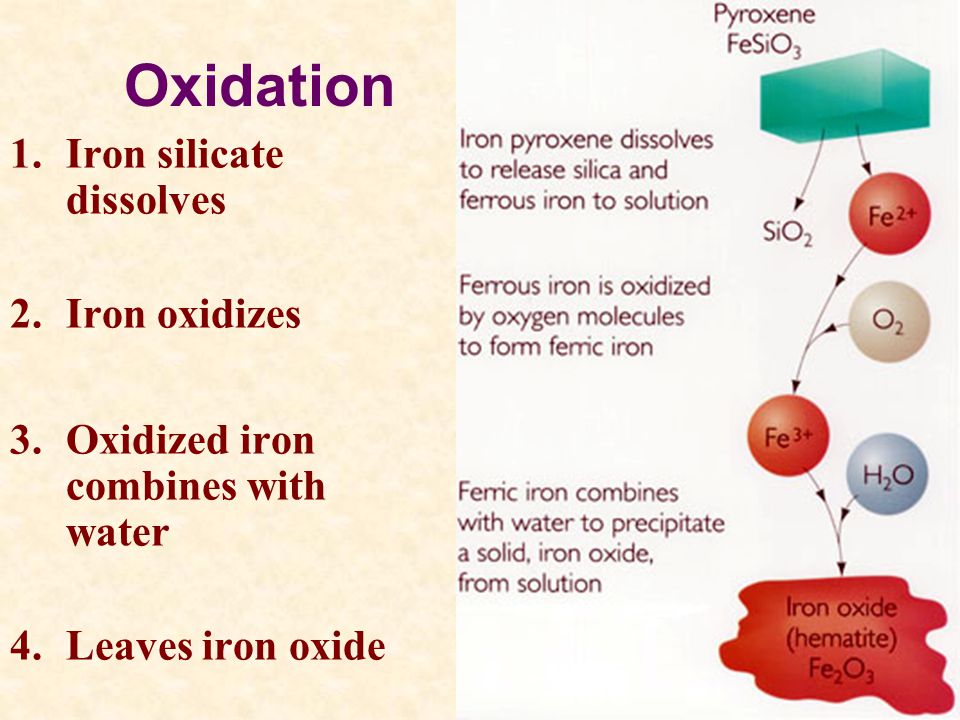

23 Oxidation 1.Iron silicate dissolves 2.Iron oxidizes 3.Oxidized iron combines with water 4.Leaves iron oxide

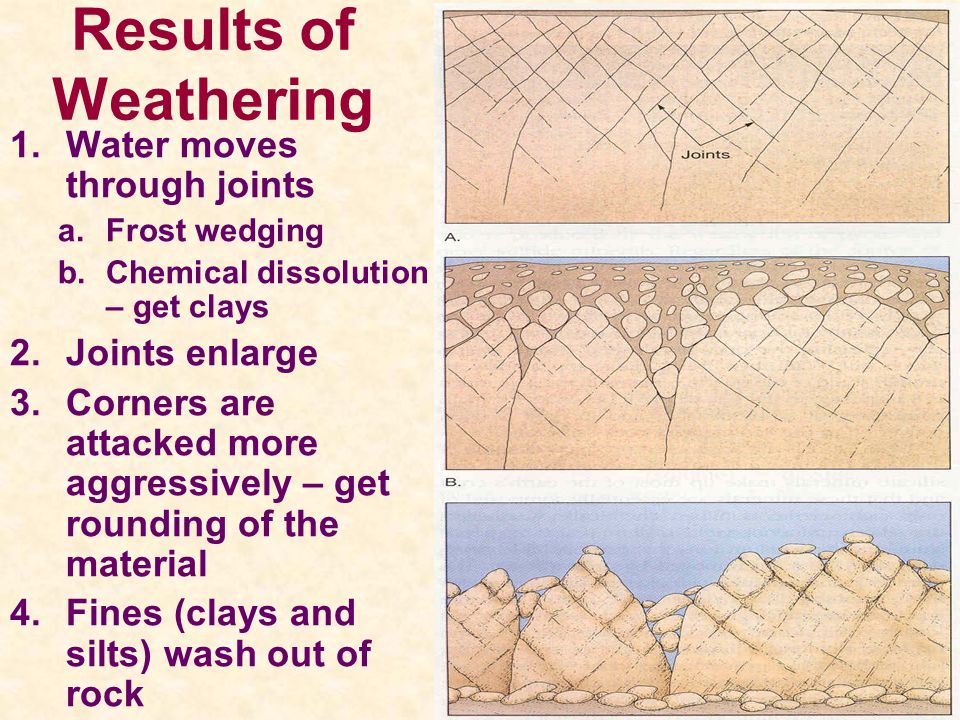

24 Results of Weathering 1.Water moves through joints a.Frost wedging b.Chemical dissolution – get clays 2.Joints enlarge 3.Corners are attacked more aggressively – get rounding of the material 4.Fines (clays and silts) wash out of rock

25

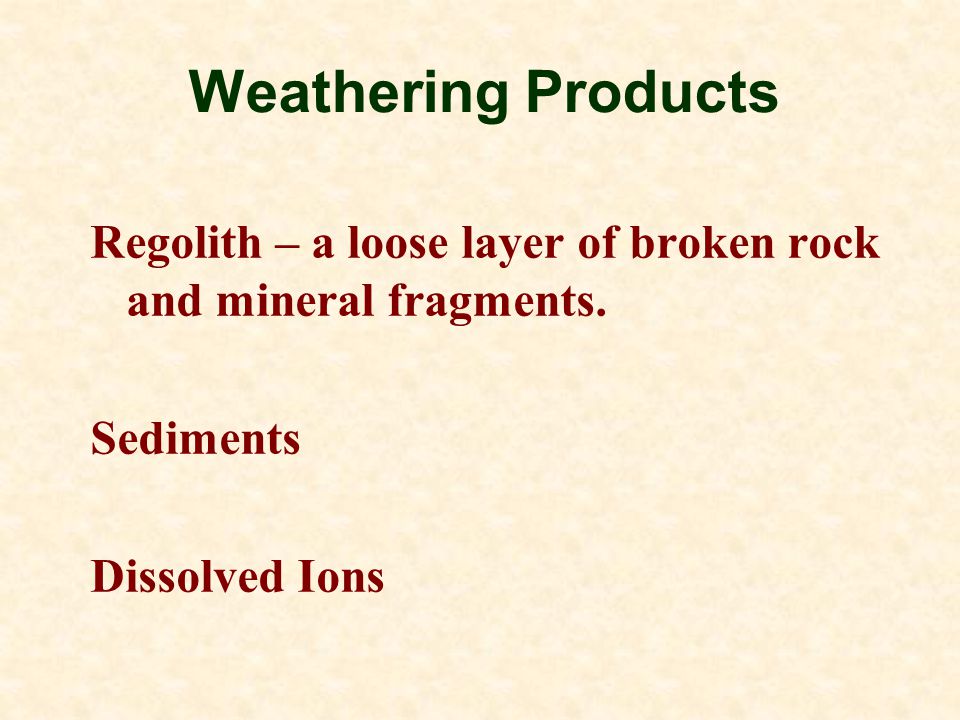

26 Weathering Products Regolith – a loose layer of broken rock and mineral fragments. Sediments Dissolved Ions

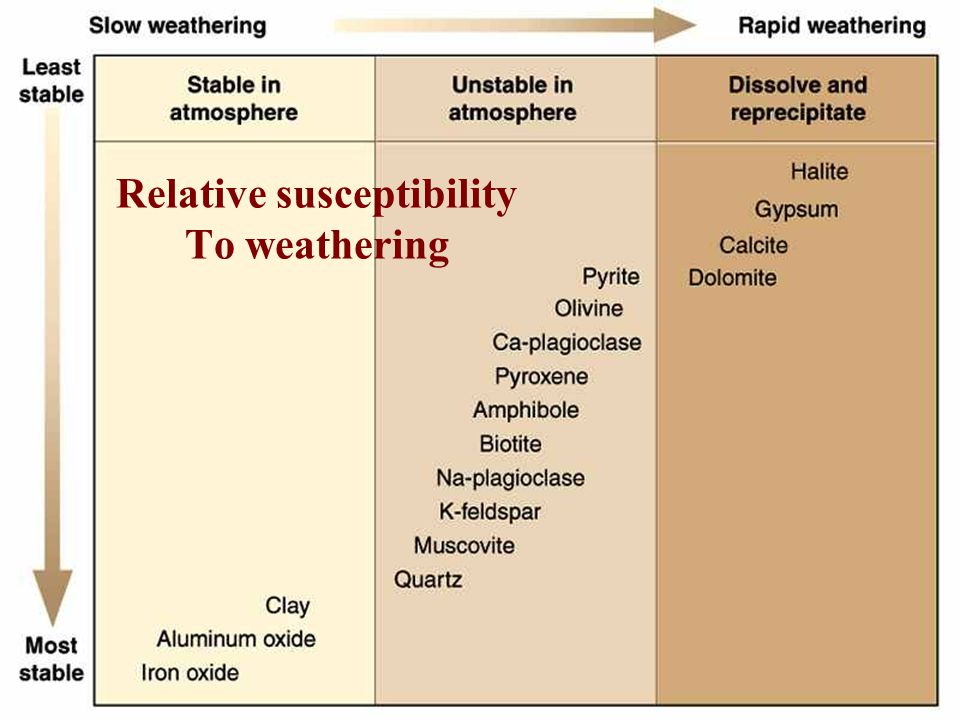

27 Relative susceptibility To weathering

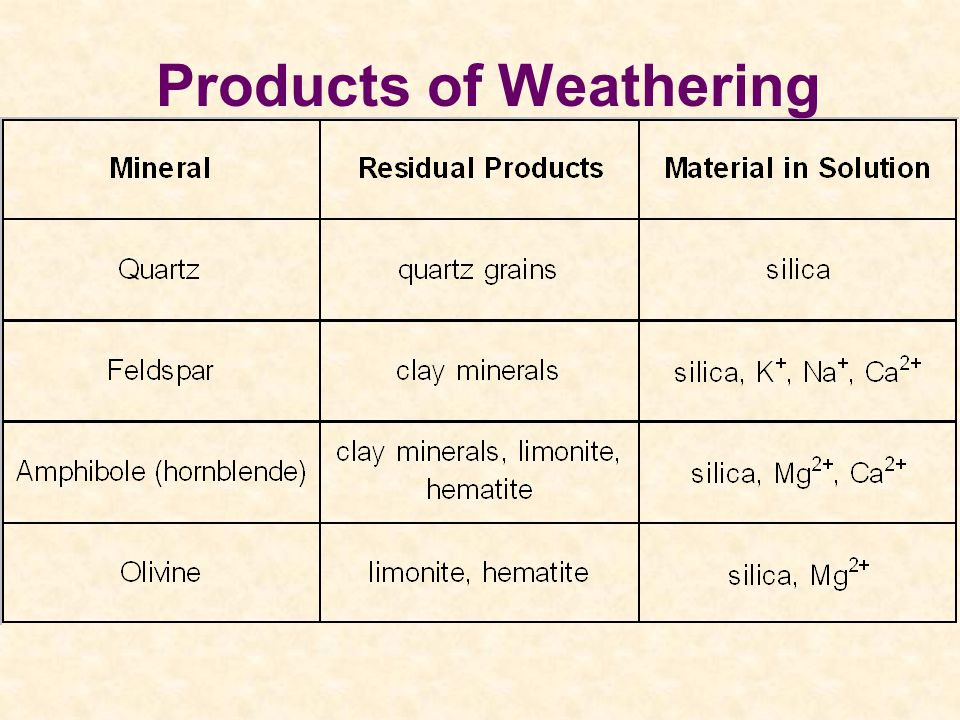

28 Products of Weathering

29 Factors influencing Weathering Rates 1.Rock structures – chemical/mineral composition, physical features 2.Topography 3.Climate 4.Vegetation 5.Time

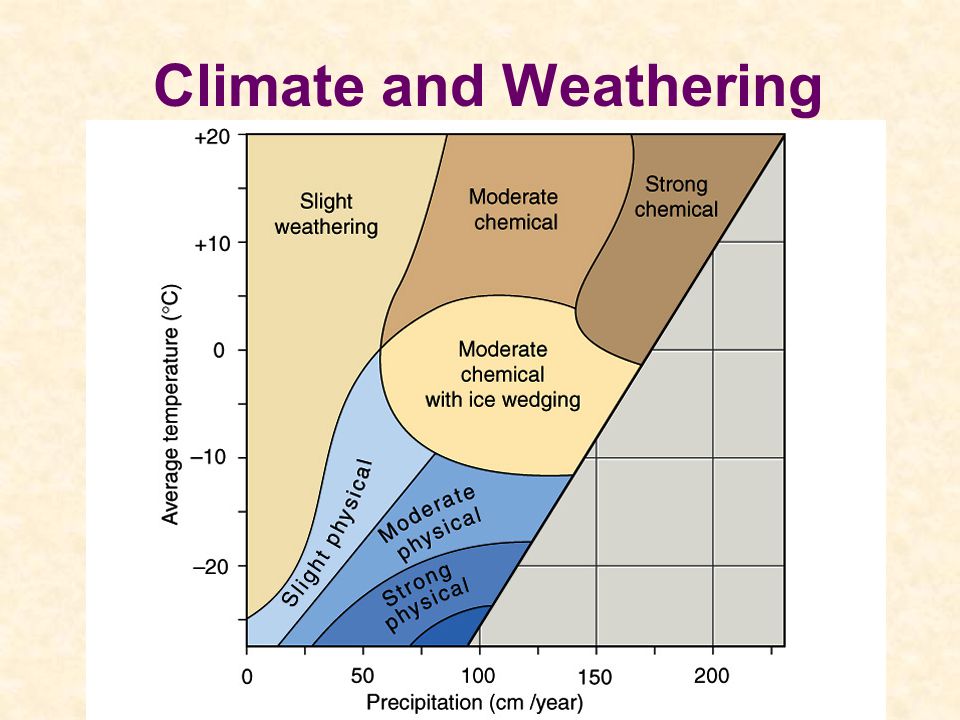

30 Climate and Weathering

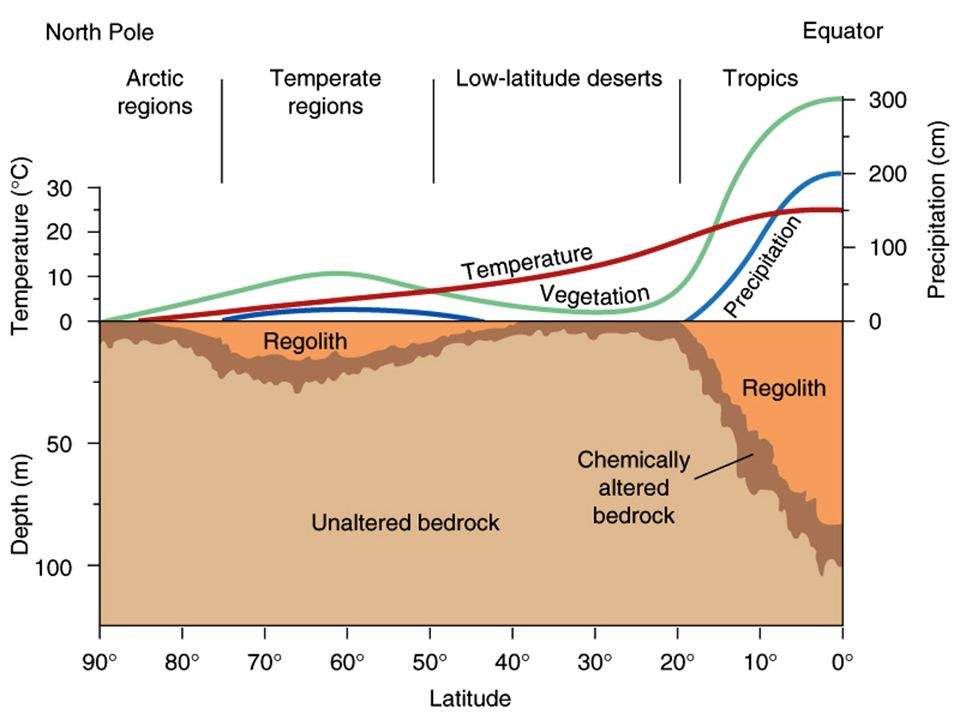

31

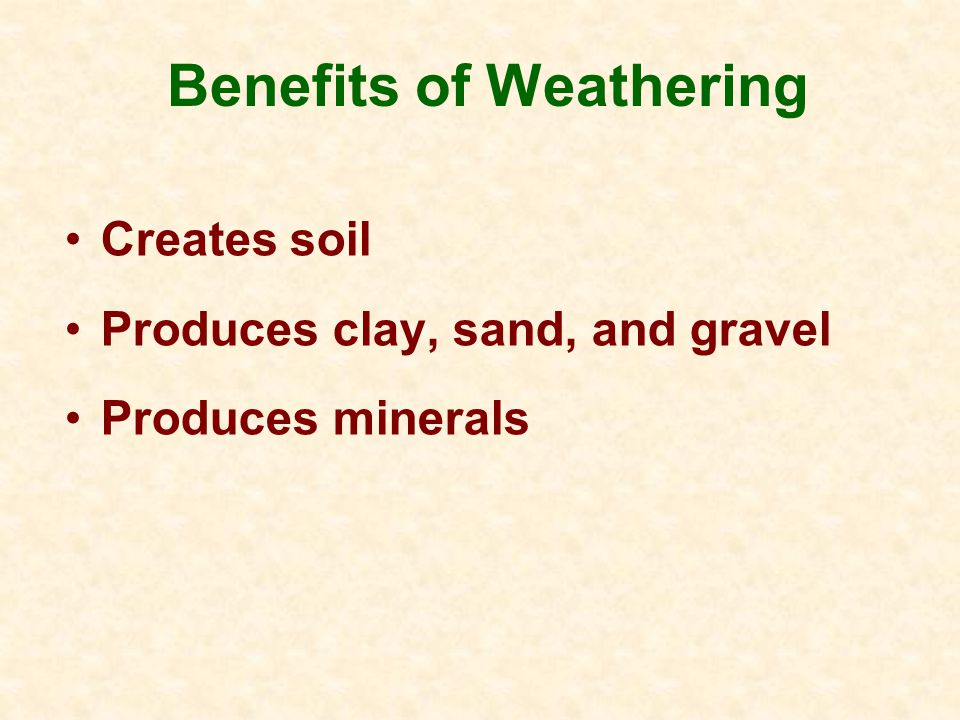

32 Benefits of Weathering Creates soil Produces clay, sand, and gravel Produces minerals

33 Soils

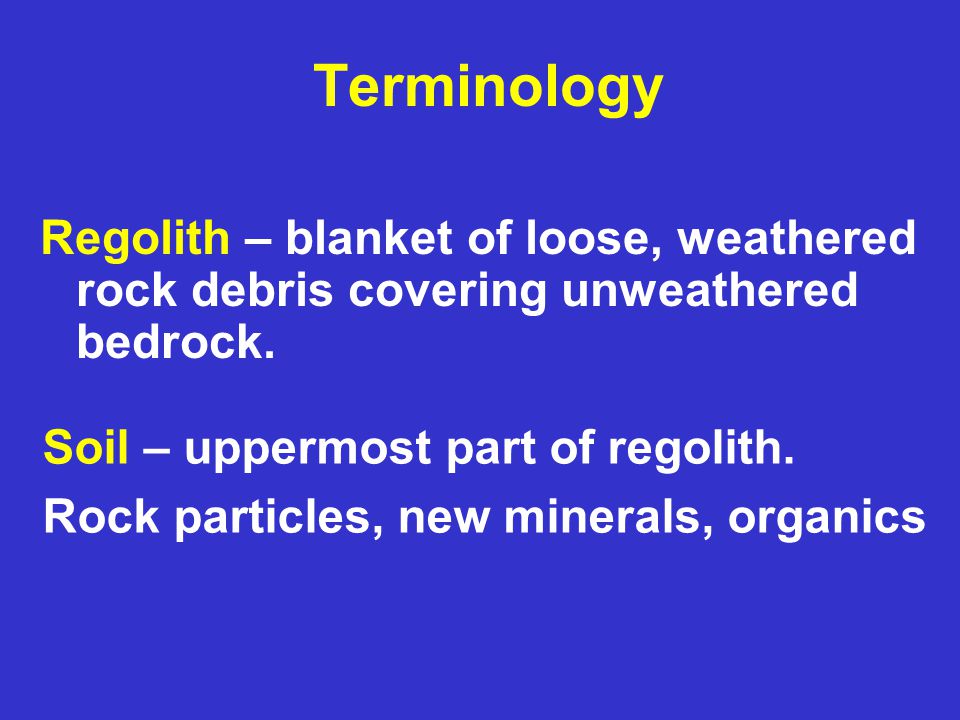

34 Terminology Regolith – blanket of loose, weathered rock debris covering unweathered bedrock. Soil – uppermost part of regolith. Rock particles, new minerals, organics

35 How soil differs from regolith: 1.More chemical weathering in soil. 2.Soil has structure (layers called soil horizons). 3.Soil retains nutrients and moisture, essential for abundant plant growth.

36 More Terminology Soil profile – sequence of soil horizons. Soil horizon – layer within a soil profile that has distinct characteristics. Composition, color, texture

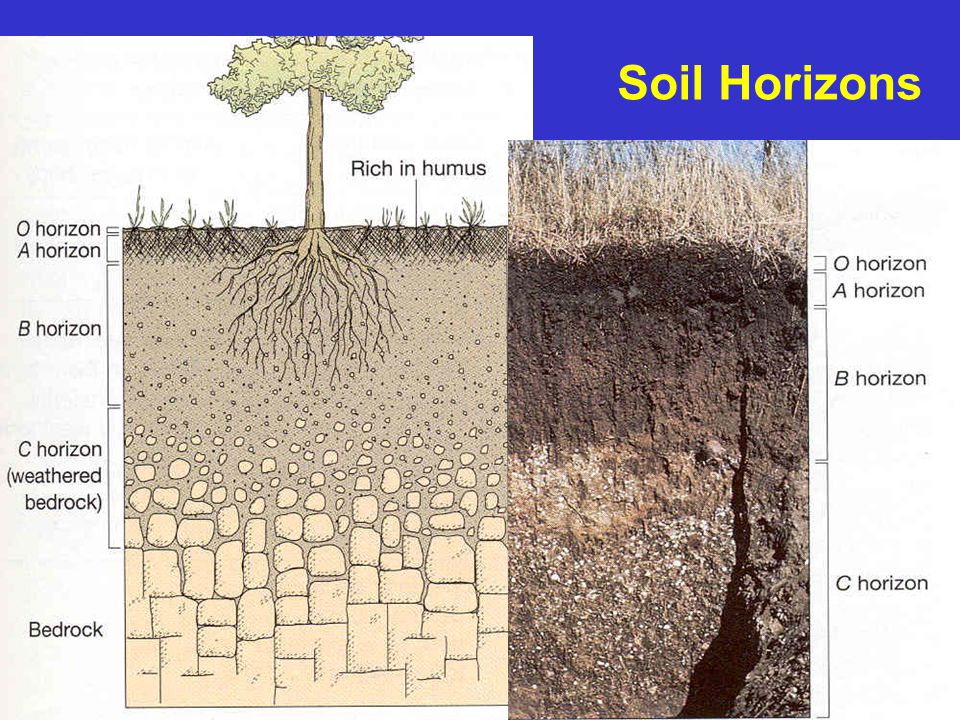

37 Soil Horizons

38 A horizon Zone of leaching (lots of chemical weathering) Organic rich, often dark in color Decaying organic matter releases nutrients

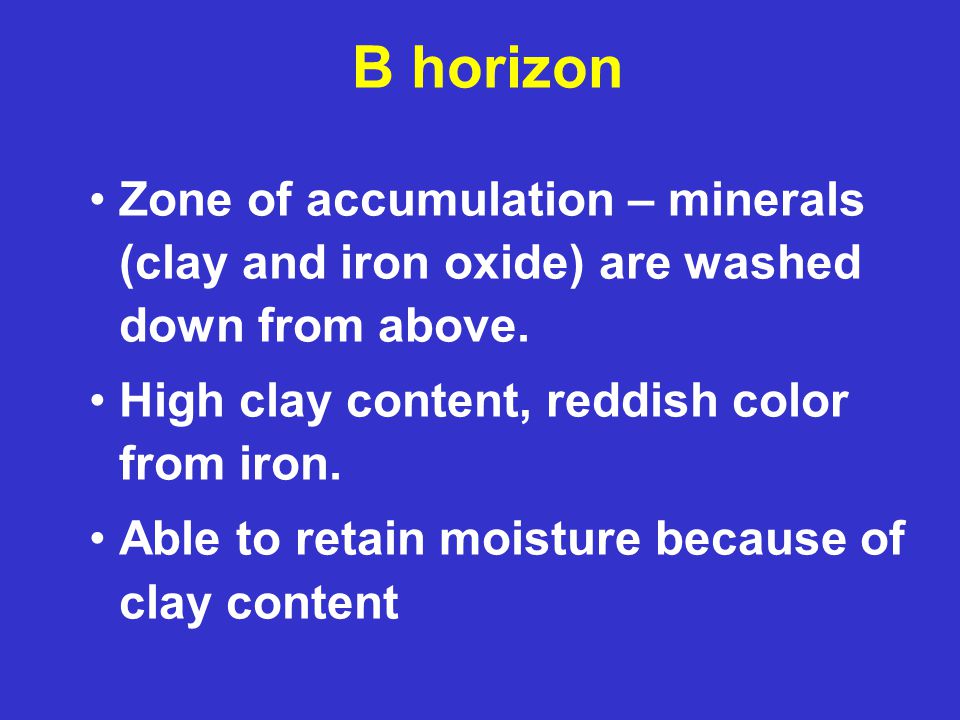

39 B horizon Zone of accumulation – minerals (clay and iron oxide) are washed down from above. High clay content, reddish color from iron. Able to retain moisture because of clay content

40 C horizon Parent material – grading from weathered to unweathered. Parent material can be: 1.Bedrock 2.Stream sediments 3.Volcanic ash

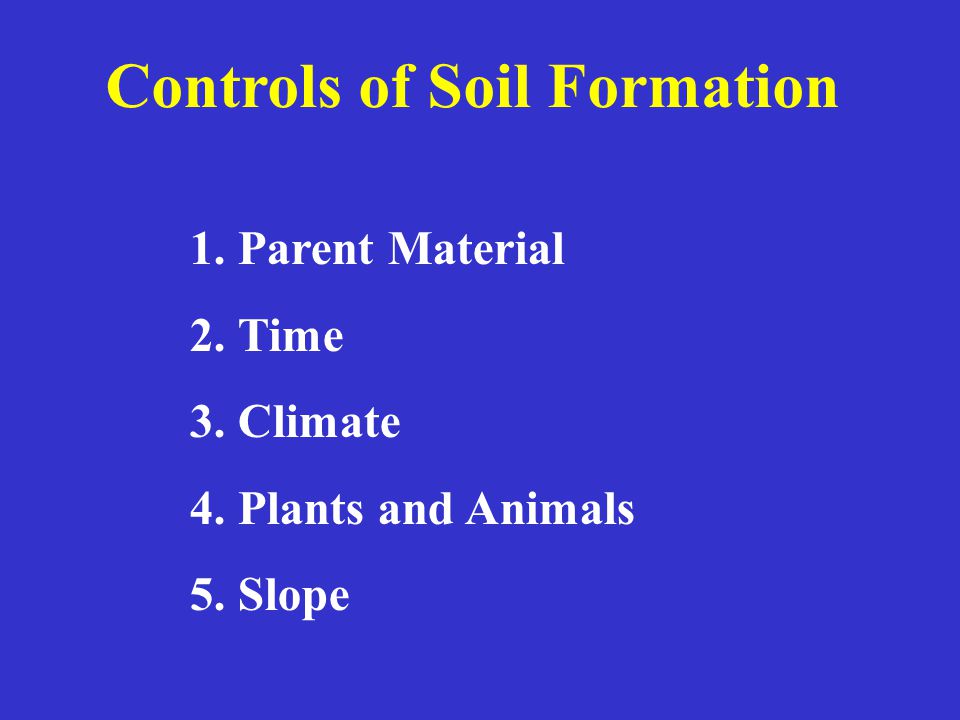

41 Controls of Soil Formation 1.Parent Material 2.Time 3.Climate 4.Plants and Animals 5.Slope
