1 CHREID 2008 ELECTRICAL SAFETY Introduction and Overview of Safety Clayton H. Reid September, 2010

2 CHREID ELECTRICAL HAZARDS Electrical shock Electrical arc-flash Electrical arc-blast

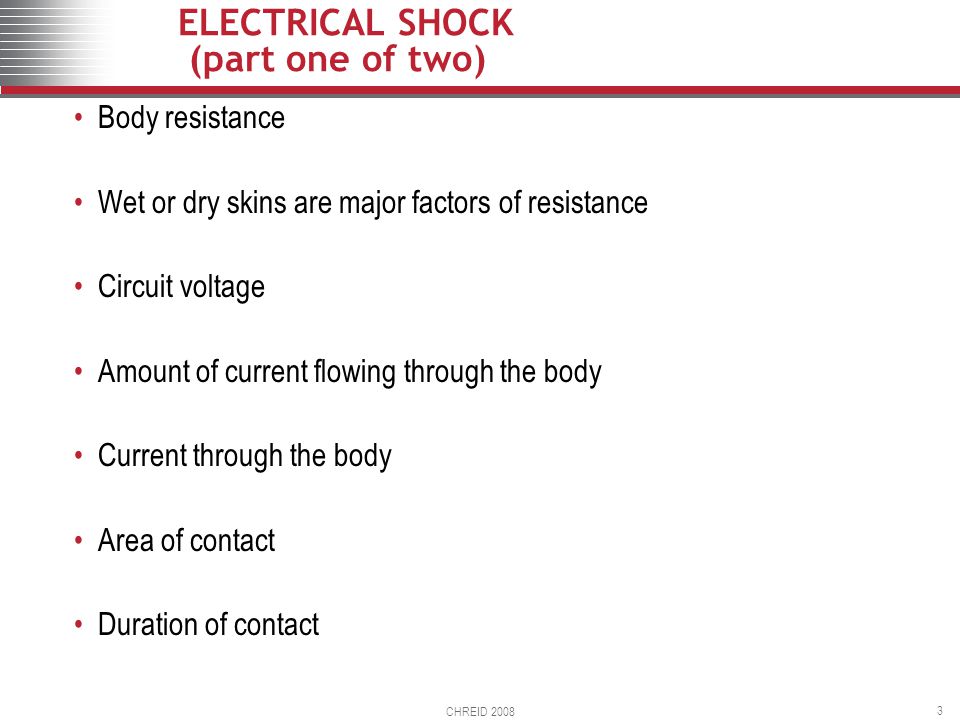

3 CHREID ELECTRICAL SHOCK (part one of two) Body resistance Wet or dry skins are major factors of resistance Circuit voltage Amount of current flowing through the body Current through the body Area of contact Duration of contact

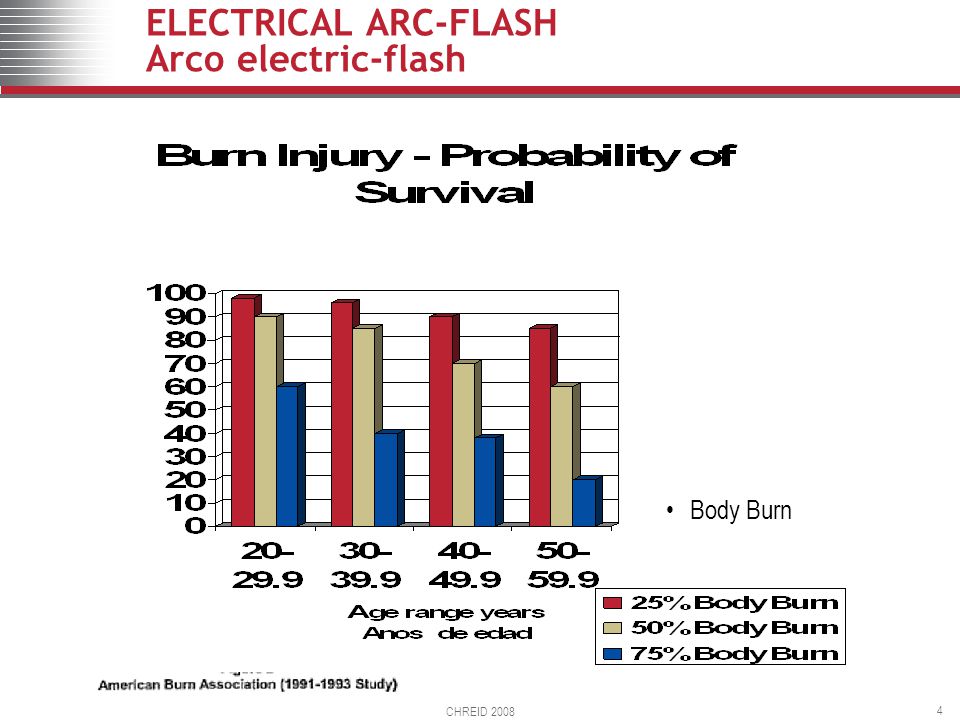

4 CHREID ELECTRICAL ARC-FLASH Arco electric-flash Body Burn

5 CHREID What is an Arc Flash?

6 CHREID ELECTRICAL Arc-Blast Rapid expansion of the air caused by an electrical arc, referred to as an electrical arc-blast or explosion

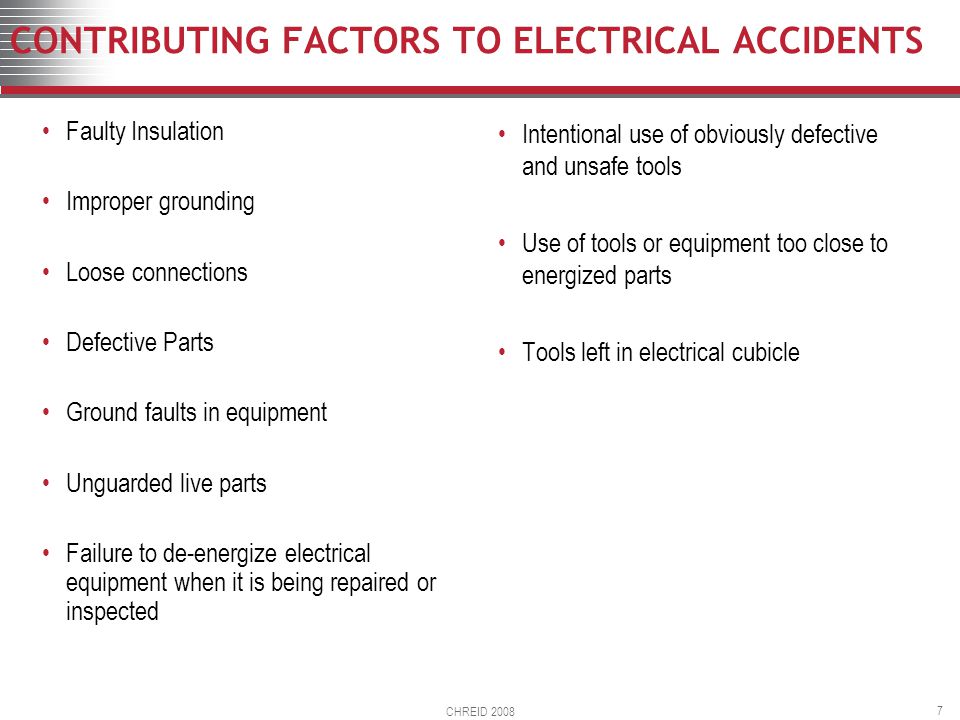

7 CHREID CONTRIBUTING FACTORS TO ELECTRICAL ACCIDENTS Faulty Insulation Improper grounding Loose connections Defective Parts Ground faults in equipment Unguarded live parts Failure to de-energize electrical equipment when it is being repaired or inspected Intentional use of obviously defective and unsafe tools Use of tools or equipment too close to energized parts Tools left in electrical cubicle

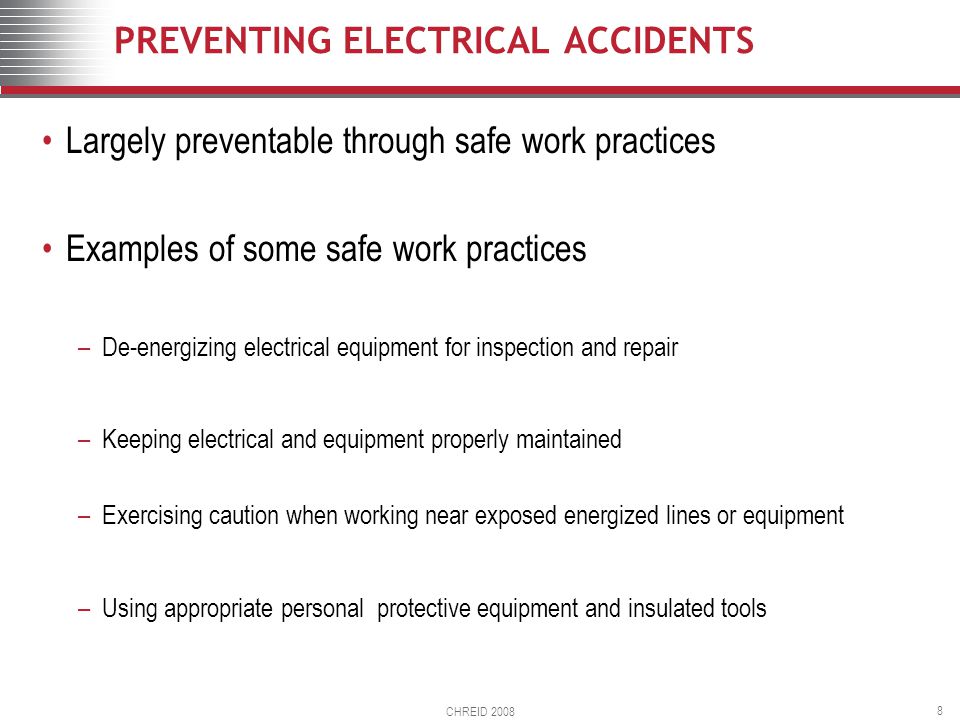

8 CHREID PREVENTING ELECTRICAL ACCIDENTS Largely preventable through safe work practices Examples of some safe work practices –De-energizing electrical equipment for inspection and repair –Keeping electrical and equipment properly maintained –Exercising caution when working near exposed energized lines or equipment –Using appropriate personal protective equipment and insulated tools

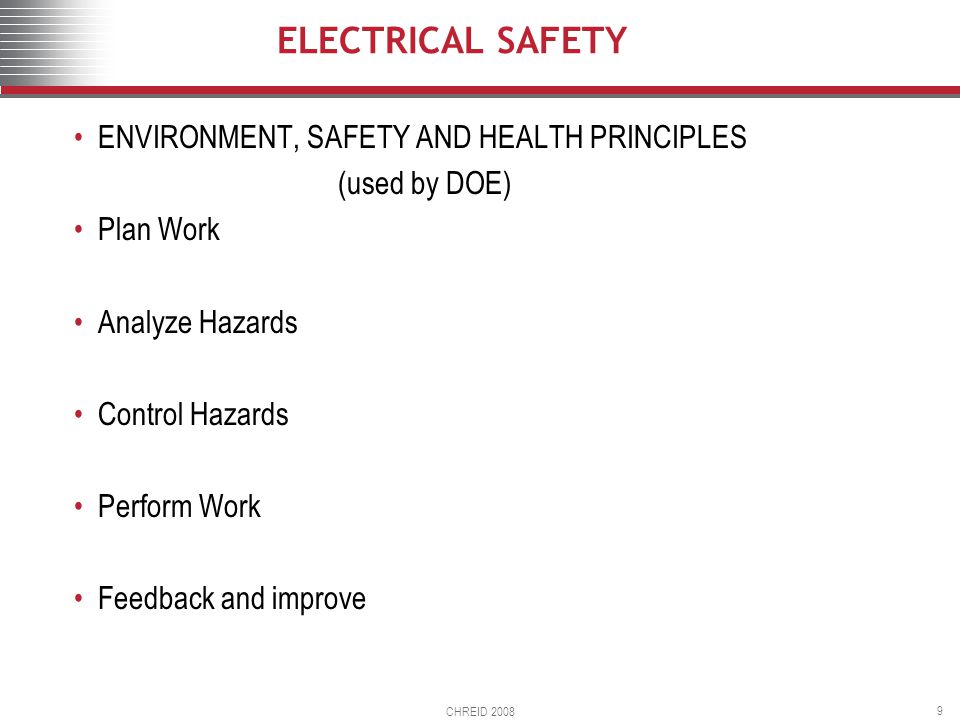

9 CHREID ELECTRICAL SAFETY ENVIRONMENT, SAFETY AND HEALTH PRINCIPLES (used by DOE) Plan Work Analyze Hazards Control Hazards Perform Work Feedback and improve

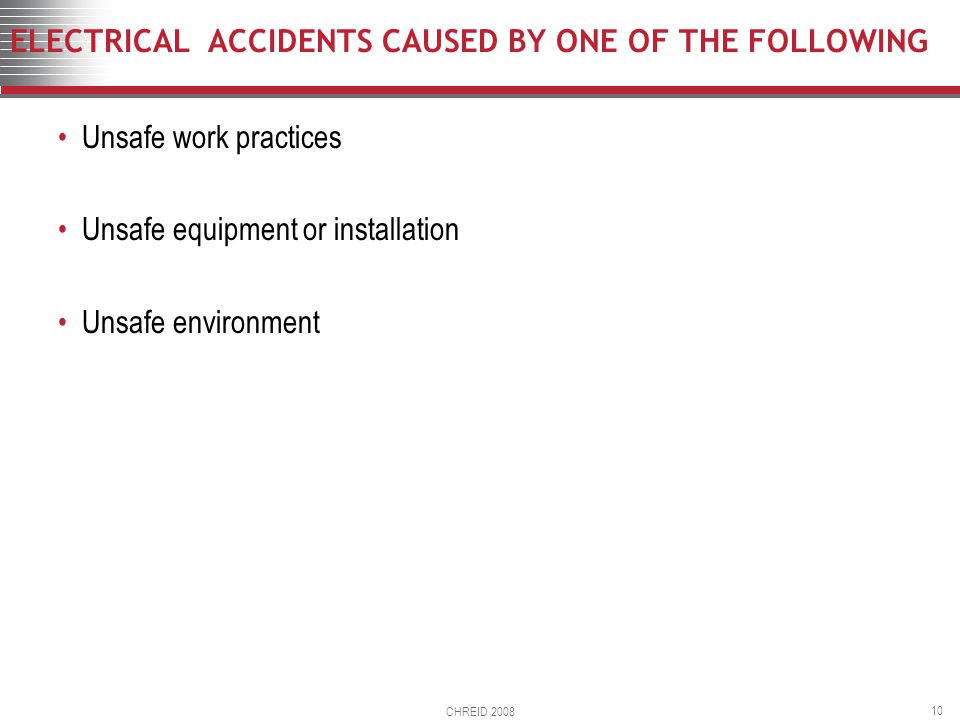

10 CHREID ELECTRICAL ACCIDENTS CAUSED BY ONE OF THE FOLLOWING Unsafe work practices Unsafe equipment or installation Unsafe environment

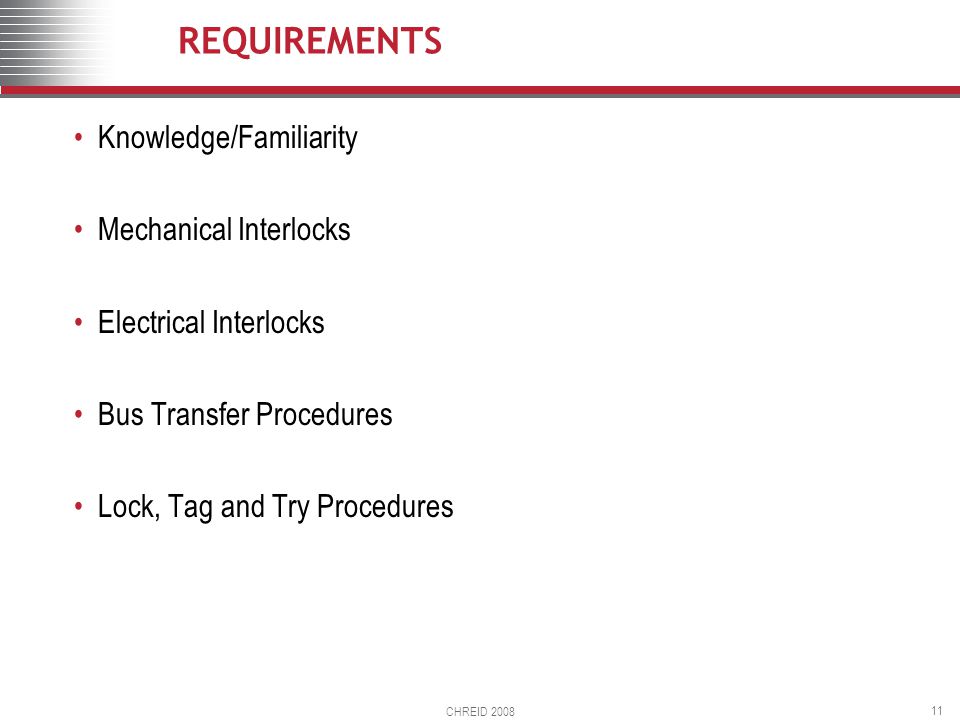

11 CHREID REQUIREMENTS Knowledge/Familiarity Mechanical Interlocks Electrical Interlocks Bus Transfer Procedures Lock, Tag and Try Procedures

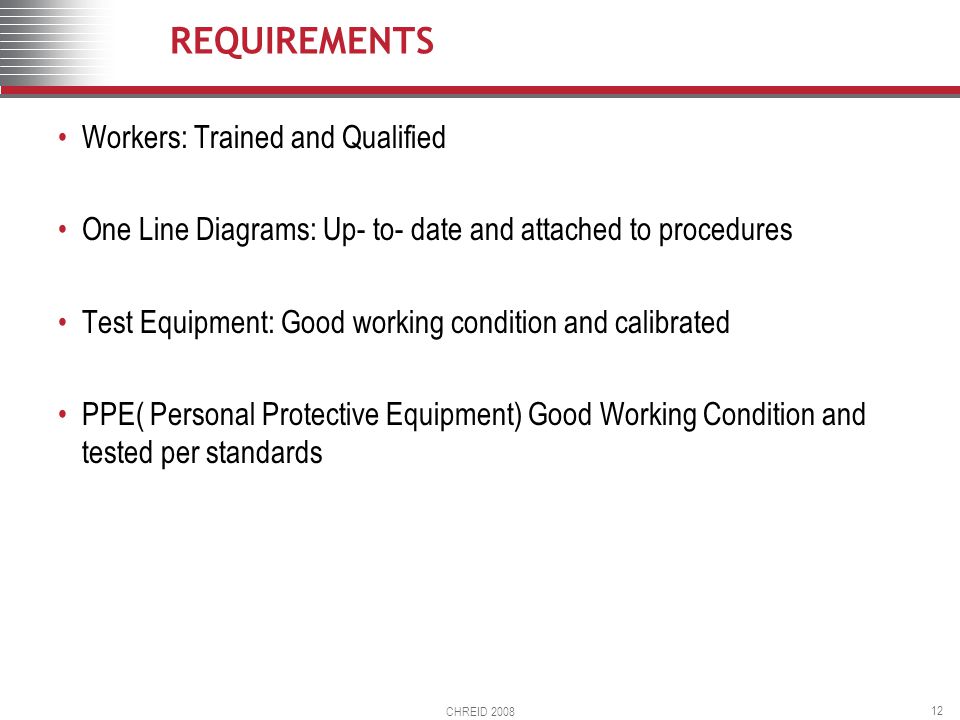

12 CHREID REQUIREMENTS Workers: Trained and Qualified One Line Diagrams: Up- to- date and attached to procedures Test Equipment: Good working condition and calibrated PPE( Personal Protective Equipment) Good Working Condition and tested per standards

13 CHREID SAFETY INTERLOCKS IN MEDIUM VOLTAGE STARTERS Protective Barriers for Safe Operation of MV Starter Isolating Switches Design And Function Of Safety Interlocks Maintenance of Safety Interlocks in MV Starters

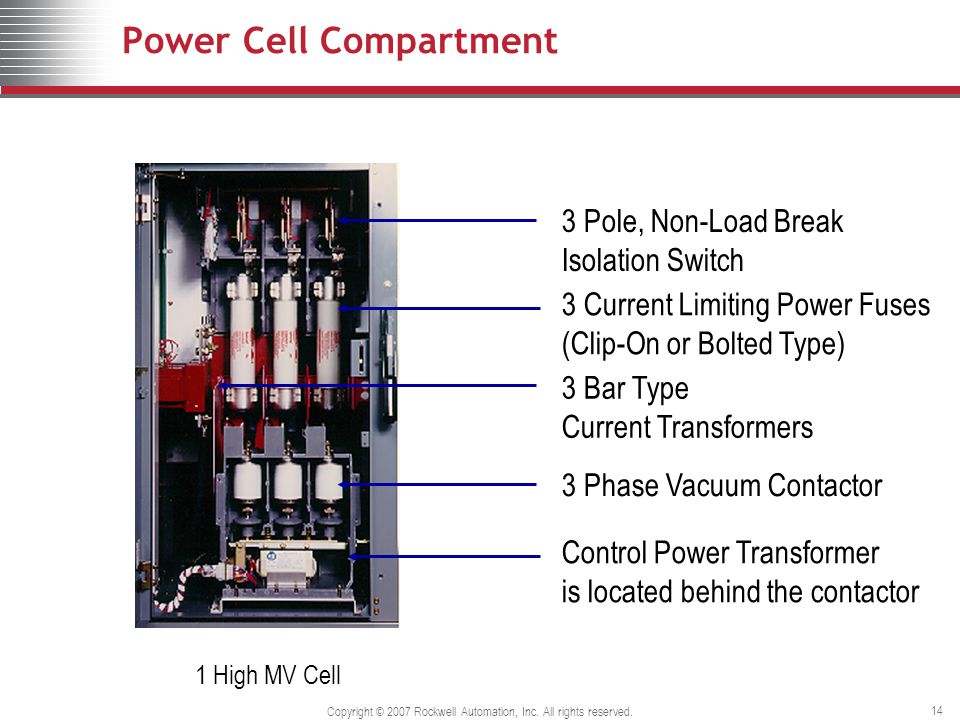

14 Copyright © 2007 Rockwell Automation, Inc. All rights reserved Pole, Non-Load Break Isolation Switch 3 Current Limiting Power Fuses (Clip-On or Bolted Type) 3 Phase Vacuum Contactor 3 Bar Type Current Transformers 1 High MV Cell Control Power Transformer is located behind the contactor Power Cell Compartment

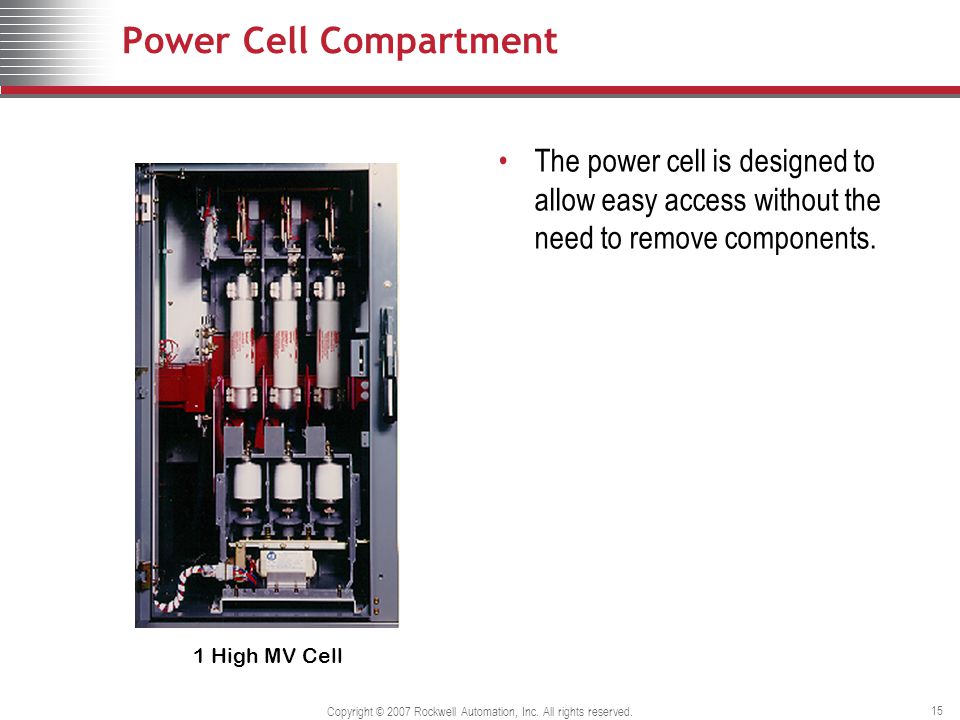

15 Copyright © 2007 Rockwell Automation, Inc. All rights reserved High MV Cell Power Cell Compartment The power cell is designed to allow easy access without the need to remove components.

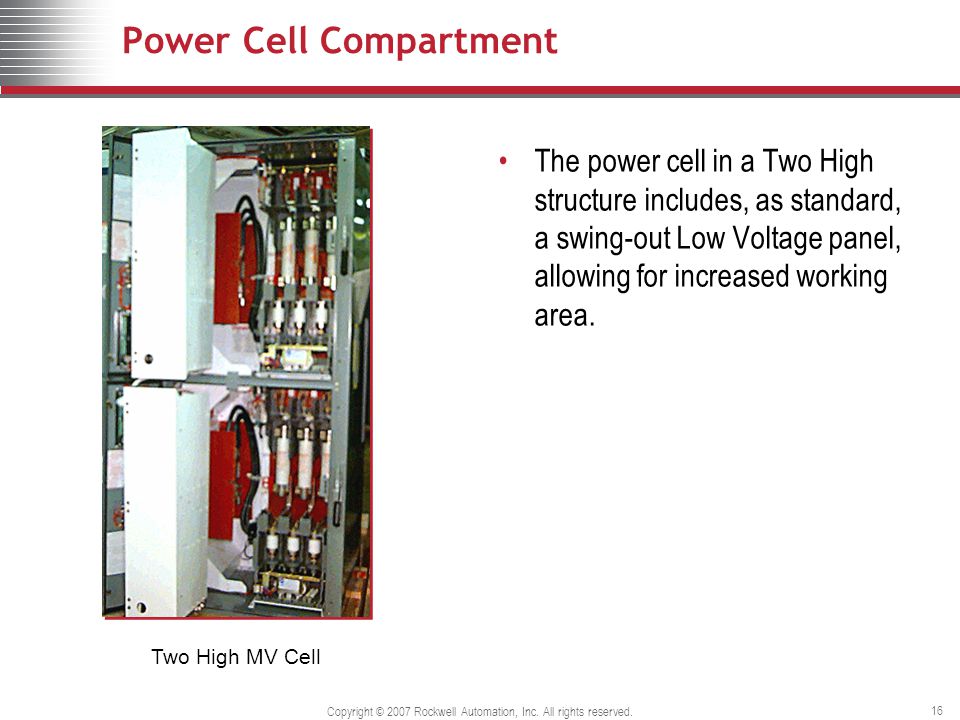

16 Copyright © 2007 Rockwell Automation, Inc. All rights reserved. 16 Two High MV Cell Power Cell Compartment The power cell in a Two High structure includes, as standard, a swing-out Low Voltage panel, allowing for increased working area.

17 Copyright © 2007 Rockwell Automation, Inc. All rights reserved. 17 l The standard components housed in the panel are: l Normal-Off-Test selector switch l Male test power receptacle l Rectifier Bridge l CR1 and CR2 control relays l Motor protection relay(s) Low Voltage Compartment

18 Copyright © 2007 Rockwell Automation, Inc. All rights reserved. 18 When in the “OFF” position the isolation switch is connected to “Ground Potential” via grounding pins. Non-load Break Isolation Switch

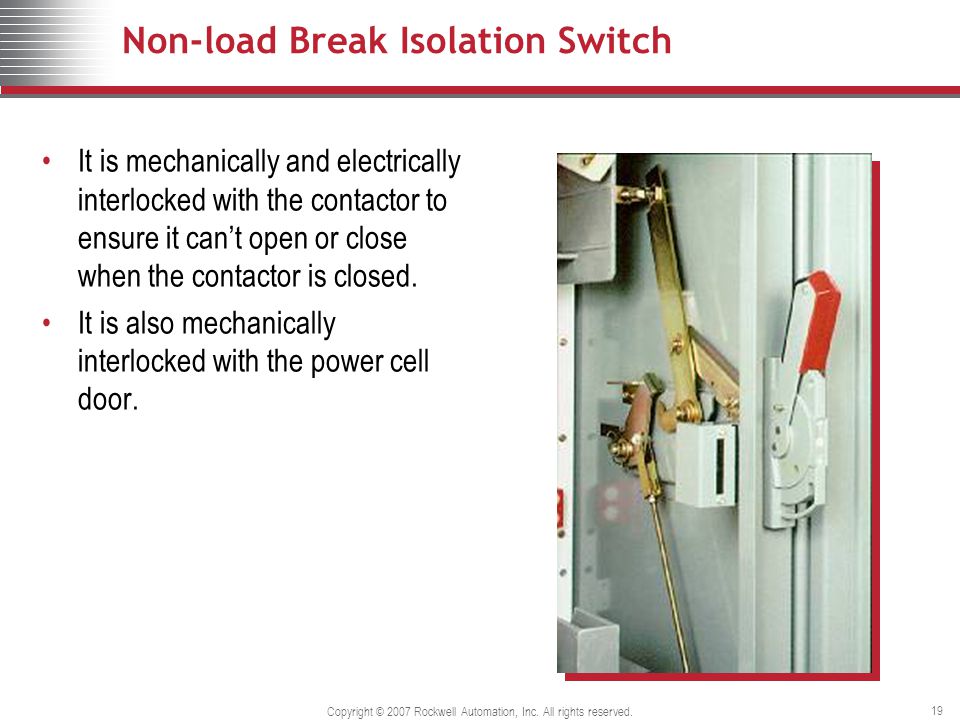

19 Copyright © 2007 Rockwell Automation, Inc. All rights reserved. 19 Non-load Break Isolation Switch It is mechanically and electrically interlocked with the contactor to ensure it can’t open or close when the contactor is closed. It is also mechanically interlocked with the power cell door.

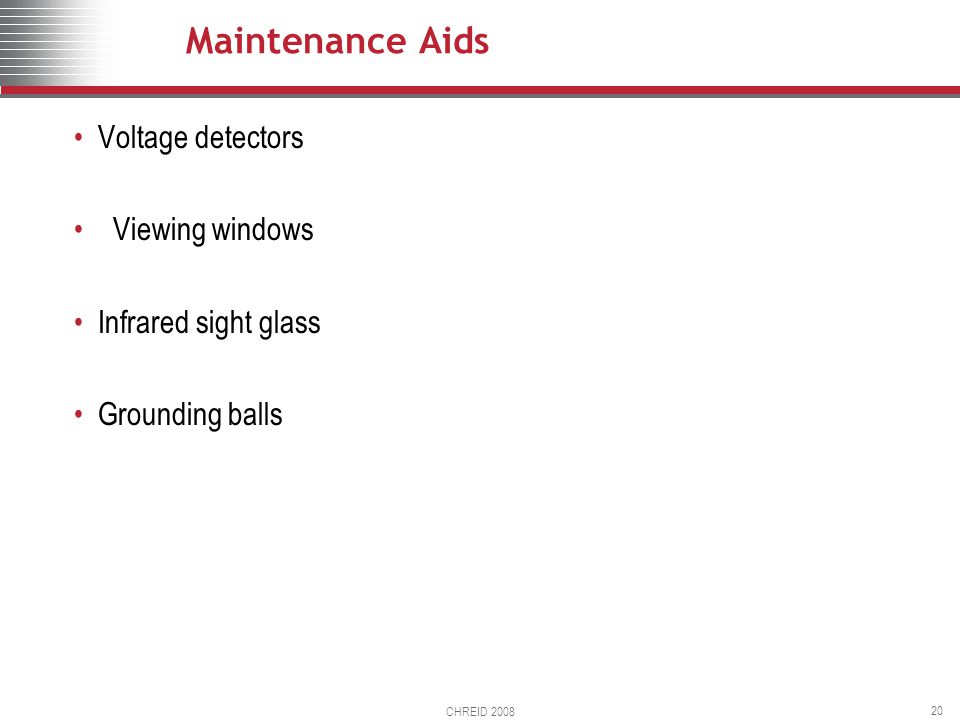

20 CHREID Maintenance Aids Voltage detectors Viewing windows Infrared sight glass Grounding balls

21 Voltage Checking Devices Non Contact Voltage Detectors (NCVD) Voltage Indicator (low and high voltage) Voltmeters CHREID

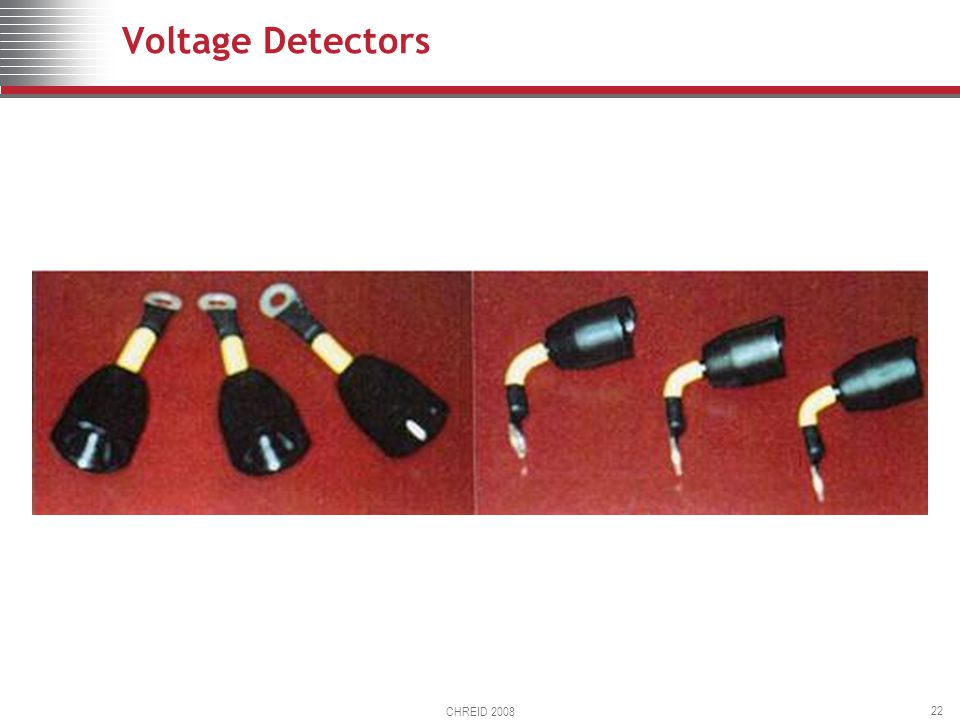

22 CHREID Voltage Detectors

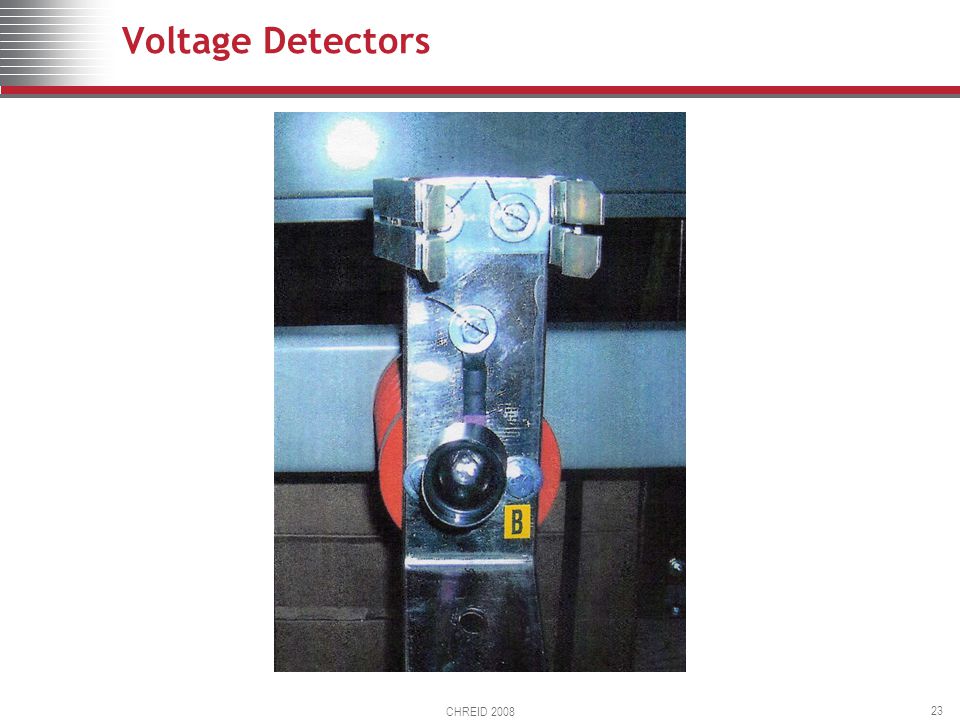

23 CHREID Voltage Detectors

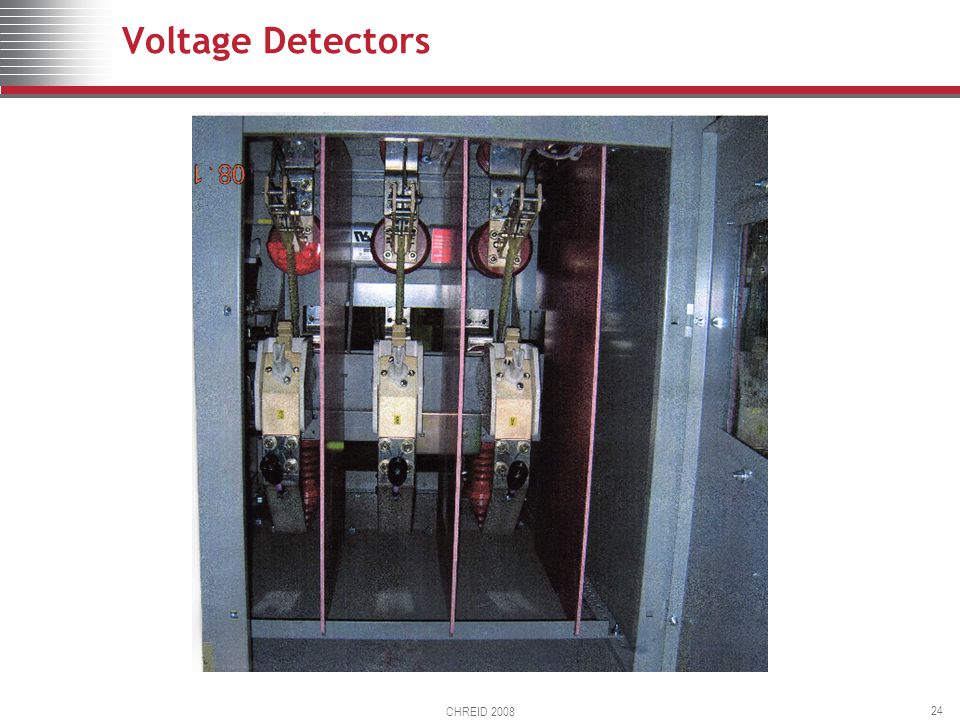

24 CHREID Voltage Detectors

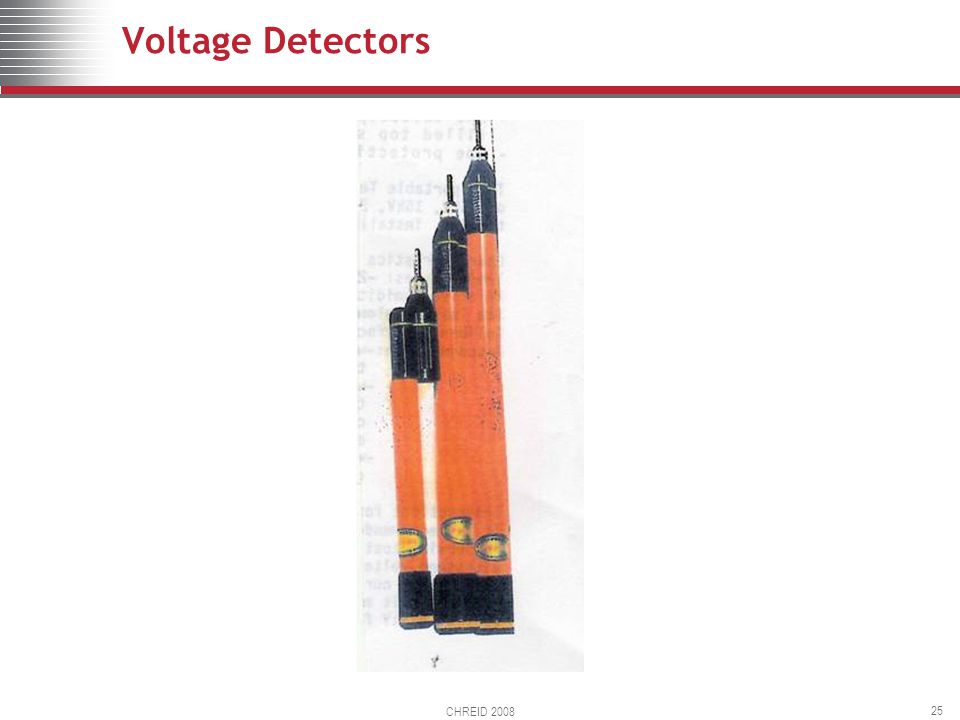

25 CHREID Voltage Detectors

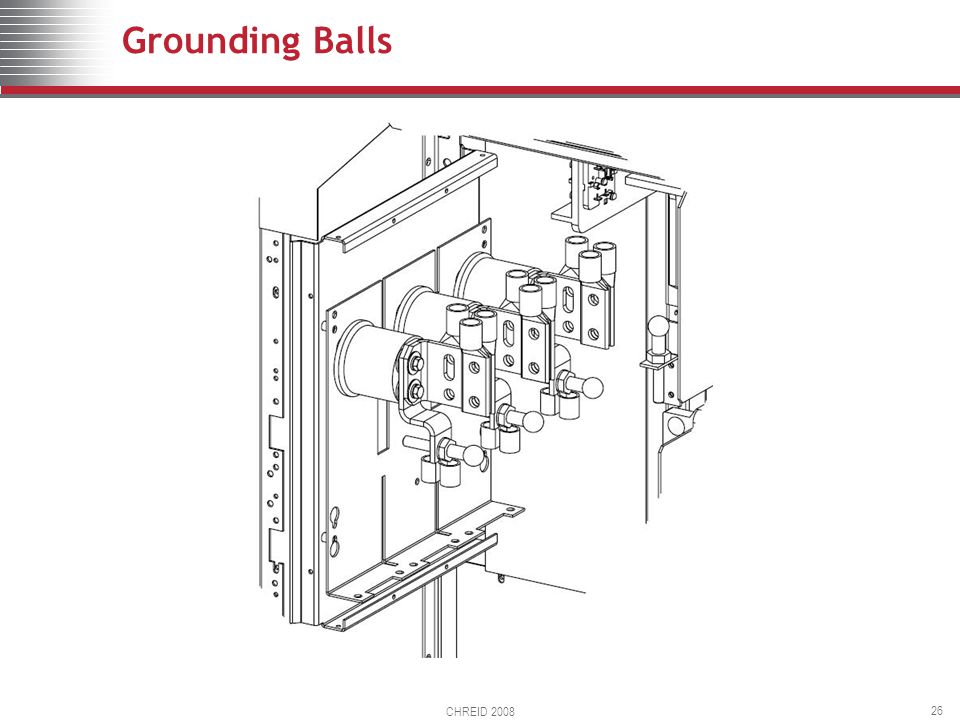

26 Grounding Balls CHREID

27 CHREID Grounding Cable

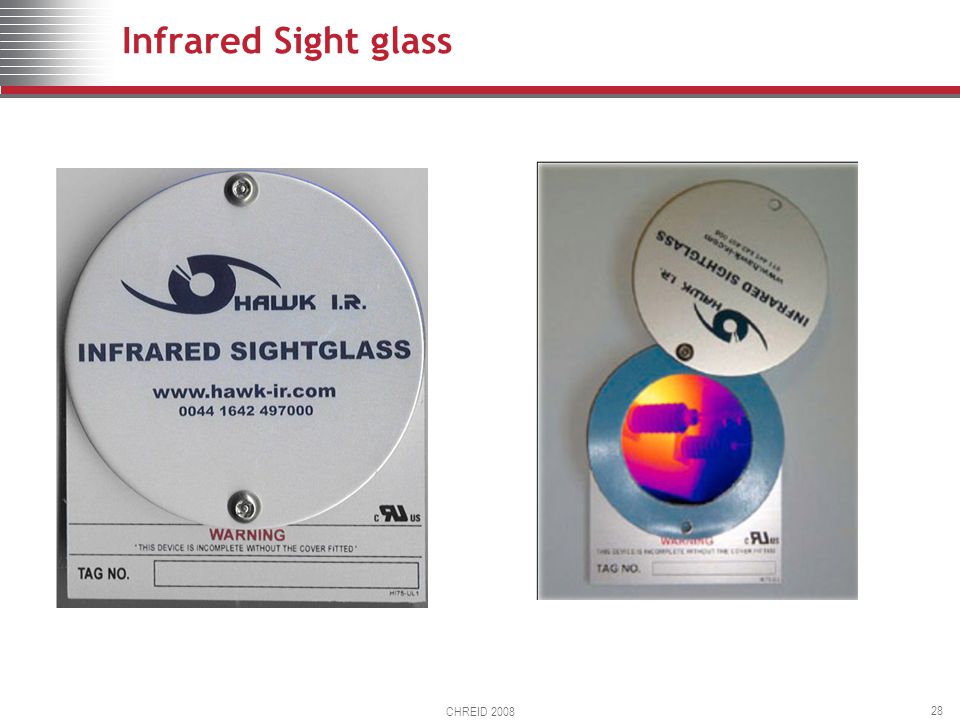

28 CHREID Infrared Sight glass

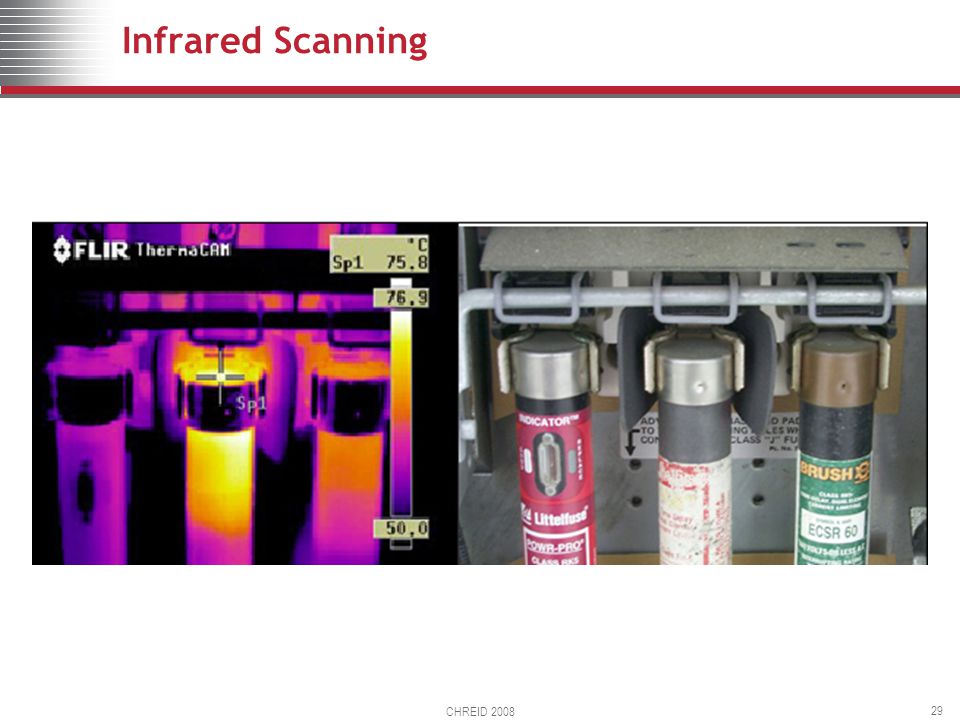

29 CHREID Infrared Scanning

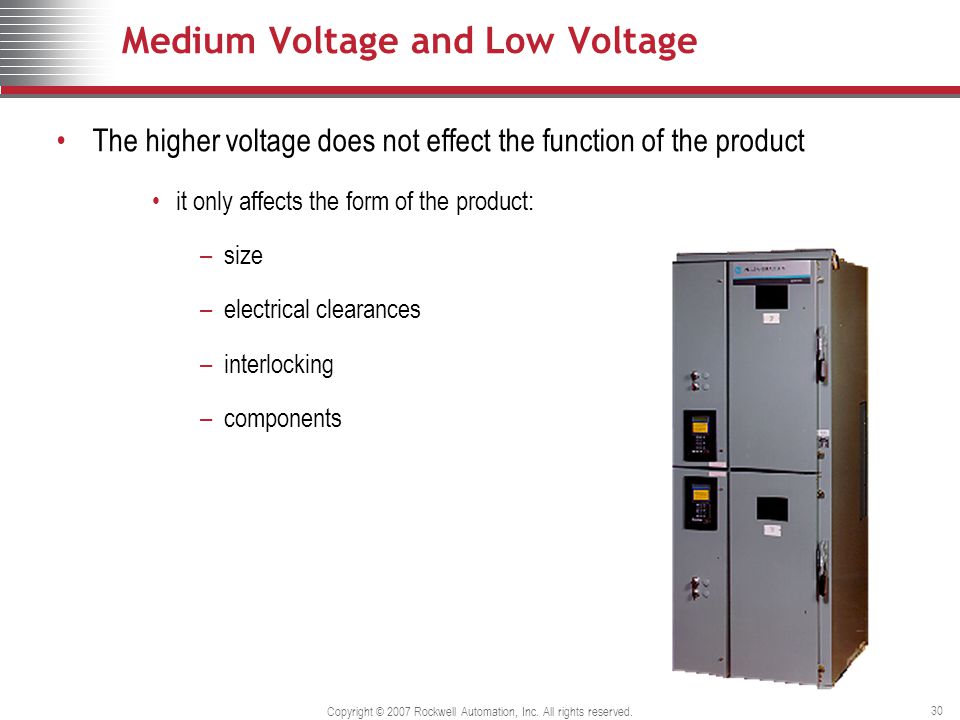

30 Copyright © 2007 Rockwell Automation, Inc. All rights reserved. 30 The higher voltage does not effect the function of the product it only affects the form of the product: –size –electrical clearances –interlocking –components Medium Voltage and Low Voltage

31 CHREID ArcShield Two-High: Top Cable Entry/Exit New plenum design enables top cable/conduit connections! 1512B 1512A 1591A

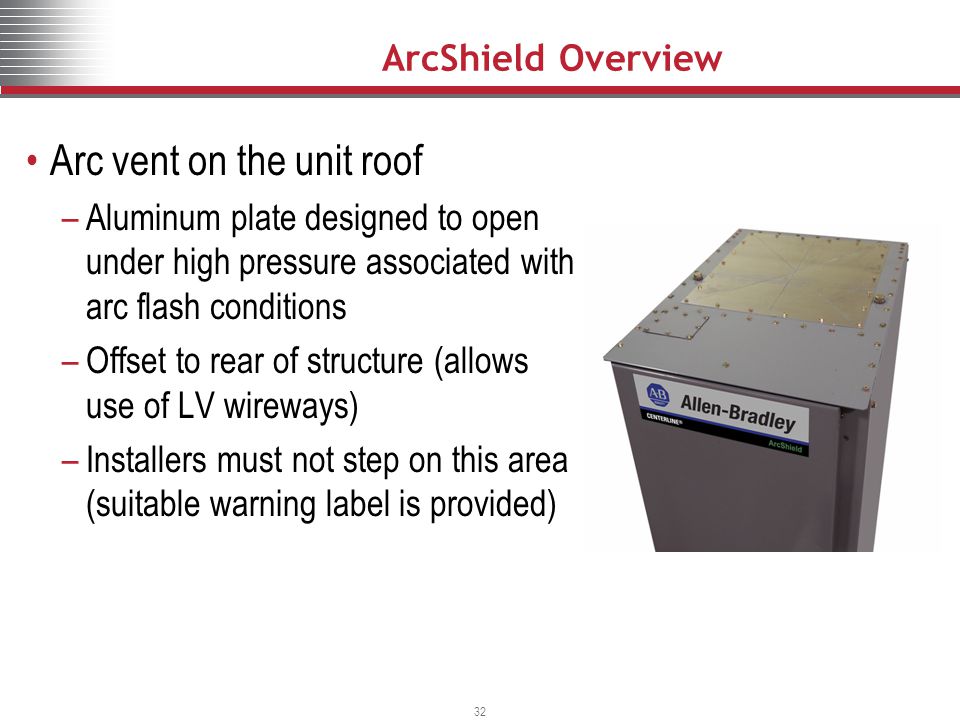

32 32 Arc vent on the unit roof –Aluminum plate designed to open under high pressure associated with arc flash conditions –Offset to rear of structure (allows use of LV wireways) –Installers must not step on this area (suitable warning label is provided) ArcShield Overview

33 Unusual Electrical Events CHREID

34 CHREID CASE HISTORY #1 MCC starter unit

35 CHREID CASE HISTORY #2 The Reluctant Skip

36 CHREID CASE HISTORY #3 Incorrect testing with a multimeter

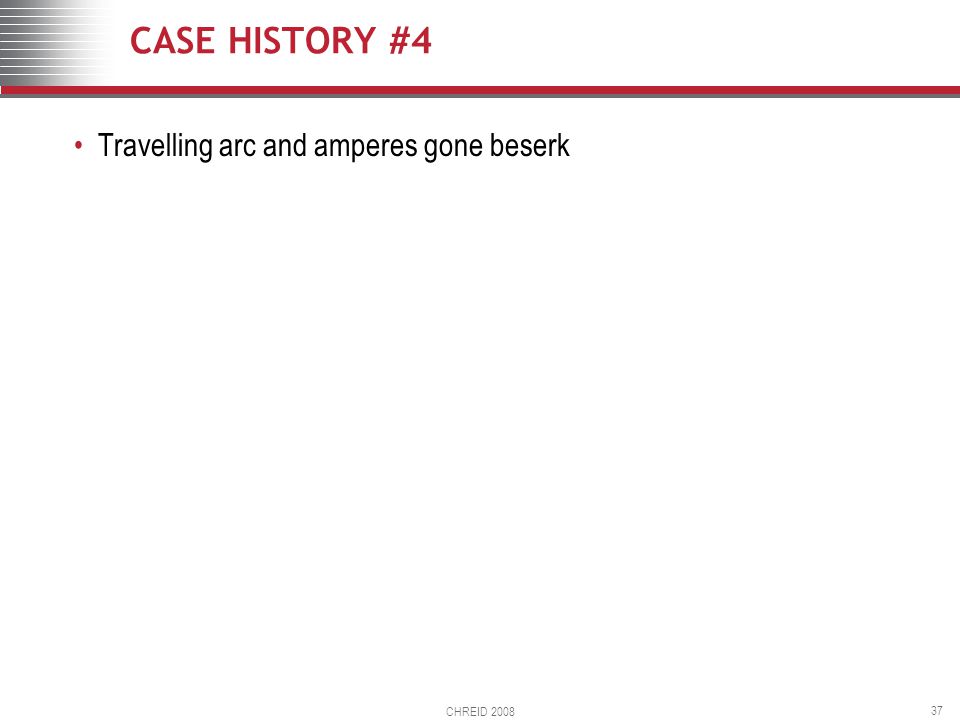

37 CHREID CASE HISTORY #4 Travelling arc and amperes gone beserk

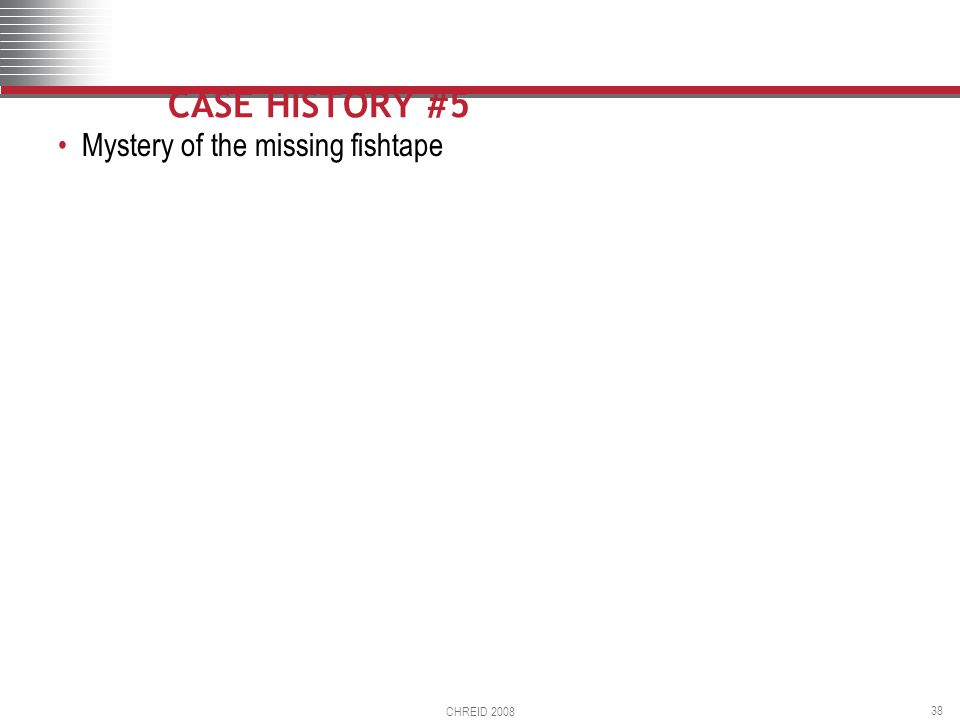

38 CHREID CASE HISTORY #5 Mystery of the missing fishtape
