1 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 Series SoftGOT-GOT Link Function for GT15 and GT16 series

2 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// SoftGOT-GOT Link function – Remote Maintenance for GOTs! The SoftGOT-GOT link function enables GT SoftGOT1000 to connect the GOT via Ethernet. The function synchronizes SoftGOT1000 data with GOT project data and resource data. This function is available for: (GT12 not supported yet)

3 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GT15/ GT16 Ethernet WorksiteOffice SoftGOT QPLC Serial/BUS/ Ethernet Operation interlock HUB Up to 99 GOTs can be monitored on a single PC Automatically upload the project data from connected GOTs No need to create the project data for SoftGOT!! ⇒ No need to create the project data for SoftGOT!! Prevent unexpected behaviors!! Interlock operations with GOT and SoftGOT ⇒ Prevent unexpected behaviors!! Data auto upload System overview Note! FX PLCs will be supported in one of the next development steps (no schedule yet)

4 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GT15/GT16 Ethernet WorksiteOffice SoftGOT QPLC RS232/ RS422/ QBUS Read/write devices via GOT 1) QBUS/serial connection between GOT and PLC SoftGOT reads/writes devices in a PLC via GOT. (Ethernet Transparent Function) Configuration (Connection Type)

5 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// Worksite Office Read/write devices by directly connecting to PLC 2) Ethernet connection between GOT and PLC SoftGOT reads/writes devices in a PLC by directly connecting to the PLC via Ethernet, not via GOT. Configuration (Connection Type) GT15/GT16 RS232/ RS422/ QBUS QPLC SoftGOT

6 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// Data Auto Acquisition Function Operation Interlock Project data auto acquisition function SoftGOT automatically acquires GOT screen data (project data). There is no need to create the project data for SoftGOT. Alarm data auto acquisition function SoftGOT automatically acquires the alarm data of GOT. Alarms that are already restored before connecting to SoftGOT can also be viewed. In both functions, the data stored in SoftGOT will be updated every time the SoftGOT is started up. Operating authority Either one of SoftGOT or GOT can be operable to prevent the simultaneous operation from both sides that may cause unexpected behaviors. Operating authority (only GOT side) A mode to make only GOT operable. Until this mode is cancelled on a GOT, SoftGOT is not operable. Features

7 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// Interlock operations with SoftGOT and GOT to prevent simultaneous operation on both sides. GT15/ GT16 Worksite Office SoftGOT QPLC Operation interlock Operable (with operating authority) × Obtain operating authority on the operating authority acquisition screen Operable (with operating authority) × Not operable (no operating authority) Operation is prohibited on the GOT that had operating authority before. Move operating authority Not operable (without operating authority) Operation Interlock – Operating Authority

8 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// Provides a mode to operate PLC only by GOT to prevent the operating authority from being moved to SoftGOT. Worksite Office Operation interlock Operable × Not operable until GOT cancels the operating authority priority SoftGOT cannot enable/cancel the operating authority priority The operating authority can be enabled/cancelled only on the GOT side by using switches or utility functions on the GOT. If operating authority is enabled… Not operable Operation Interlock – Operating Authority GT15/ GT16 SoftGOT QPLC

9 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// Required Hardware All GT15 models plus GT15-J71E Ethernet module All GT16 models using integrated Ethernet port Any Q CPU (only Q!)

10 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// Required Software GT Works 3 V1.10L with –GT Designer 3 V1.10L –SoftGOT L

11 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// OS Installation -> GT15/GT16 Transfer extended OS into GOT!

12 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GT Designer 3 Project Settings Decide how to use the SoftGOT: 1.GOT and SoftGOT should always show the same screen: Use PLC Register (D) as Screen switching device! 2.SoftGOT should act as separate HMI showing different screens as GOT: Use GOT Register (GD) as Screen switching device!

13 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// SoftGOT settings Start SoftGOT1000 and open Communication settings QCPU serial or QBUS connection QCPU Ethernet connection

14 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// SoftGOT settings 1.Test GOT Link Make sure to enter the IP-address of the GOT (not the PLC!)

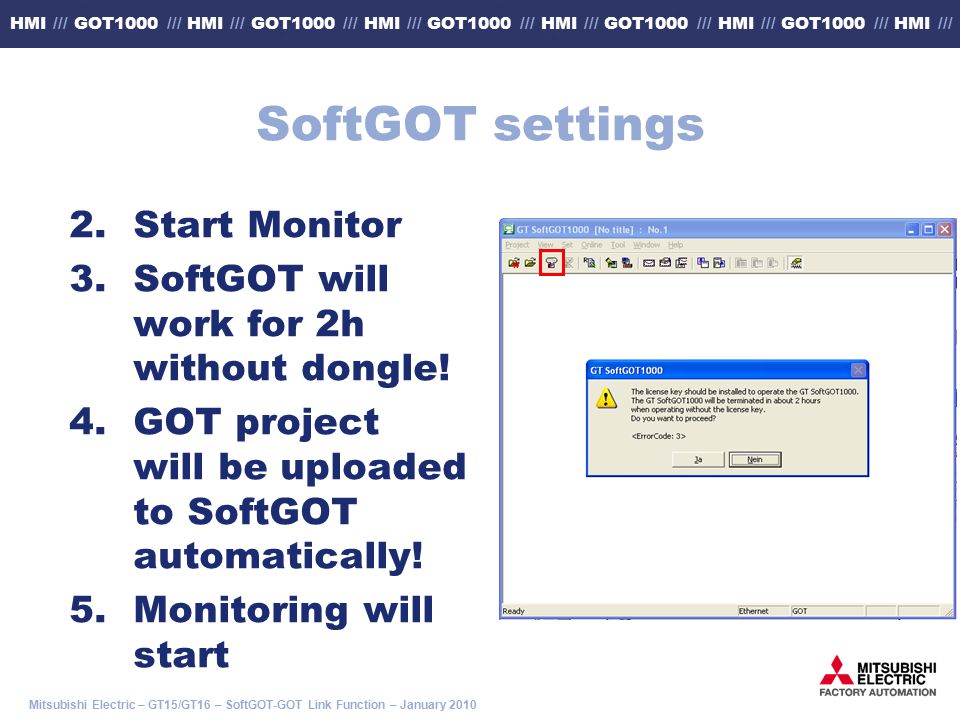

15 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// SoftGOT settings 2.Start Monitor 3.SoftGOT will work for 2h without dongle! 4.GOT project will be uploaded to SoftGOT automatically! 5.Monitoring will start

16 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI ///

17 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// Good to know!

18 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// Good to know! Use internal GOT devices to control operation method effectively!

19 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// Manual references

20 Mitsubishi Electric – GT15/GT16 – SoftGOT-GOT Link Function – January 2010 HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// GOT1000 /// HMI /// This is the first time to have an Ethernet Remote Maintenance function in the GT15/GT16! This is the first time to have an Ethernet Remote Maintenance function in the GT15/GT16! Let’s got out to customers promoting and selling it! Thank you for your attention
