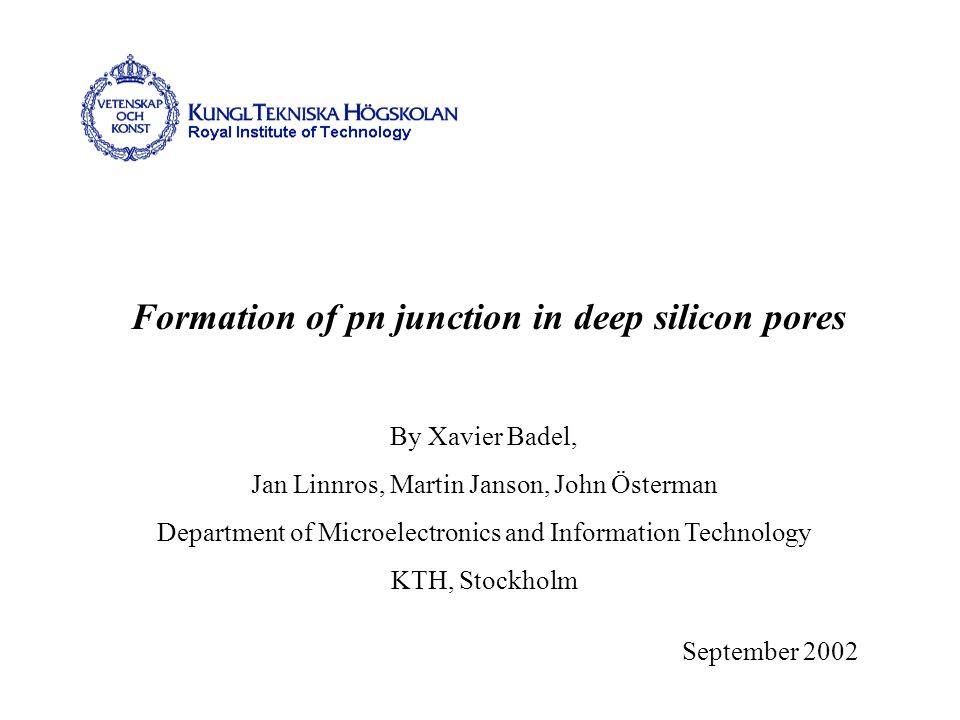

Formation of pn junction in deep silicon pores September 2002 By Xavier Badel, Jan Linnros, Martin Janson, John Österman Department of Microelectronics and Information Technology KTH, Stockholm

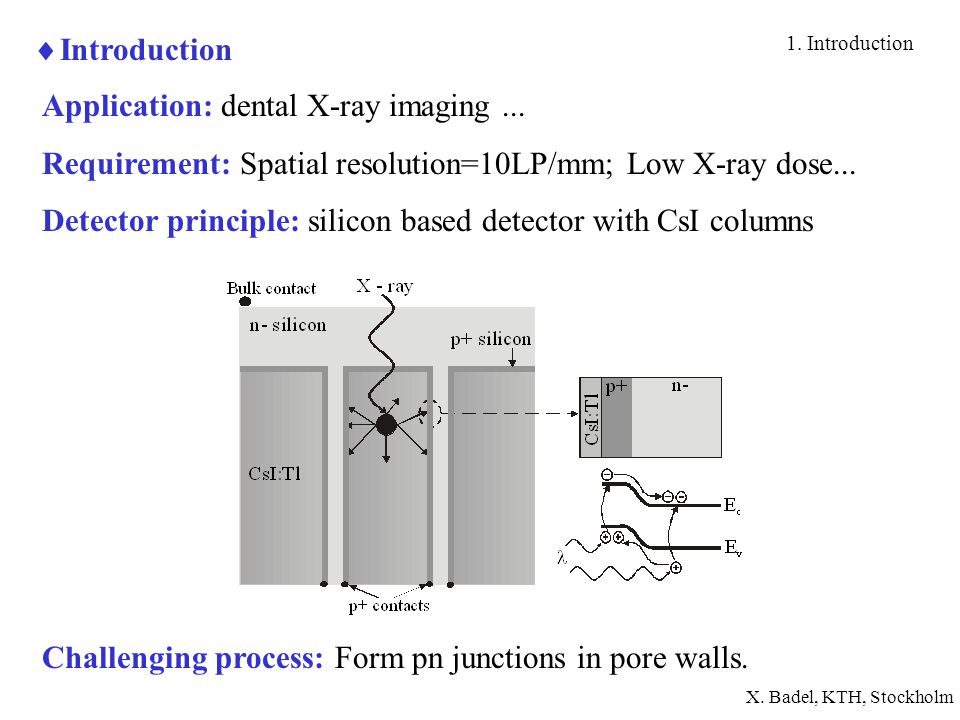

Introduction 1. Introduction Application: dental X-ray imaging... Requirement: Spatial resolution=10LP/mm; Low X-ray dose... Detector principle: silicon based detector with CsI columns Challenging process: Form pn junctions in pore walls. X. Badel, KTH, Stockholm

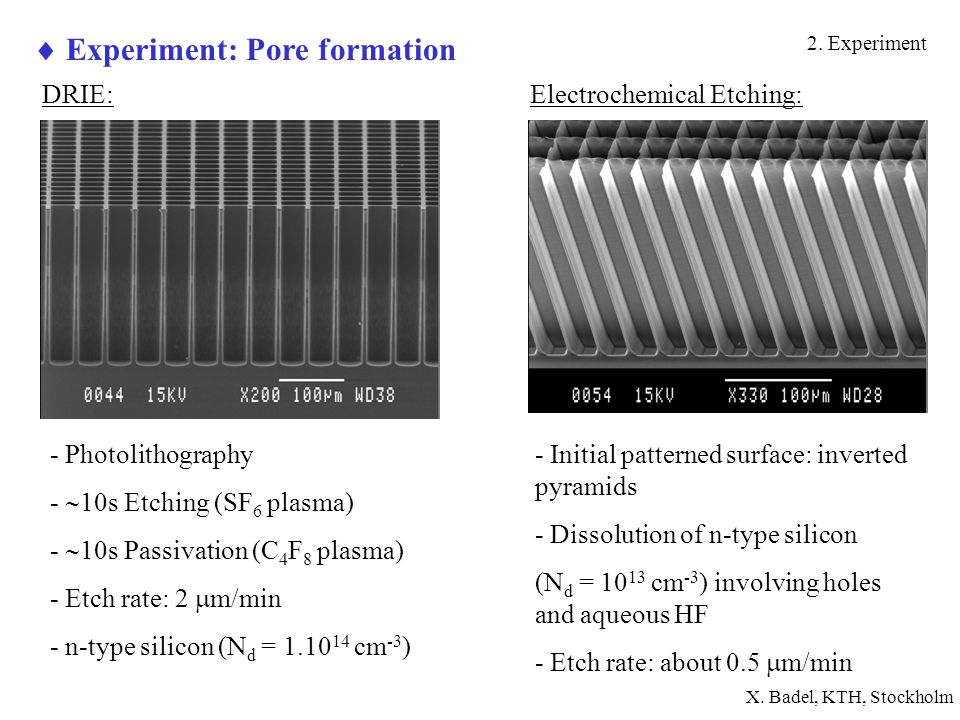

Experiment: Pore formation 2. Experiment DRIE:Electrochemical Etching: - Photolithography - 10s Etching (SF 6 plasma) - 10s Passivation (C 4 F 8 plasma) - Etch rate: 2 m/min - n-type silicon (N d = 1.10 14 cm -3 ) X. Badel, KTH, Stockholm - Initial patterned surface: inverted pyramids - Dissolution of n-type silicon (N d = 10 13 cm -3 ) involving holes and aqueous HF - Etch rate: about 0.5 m/min

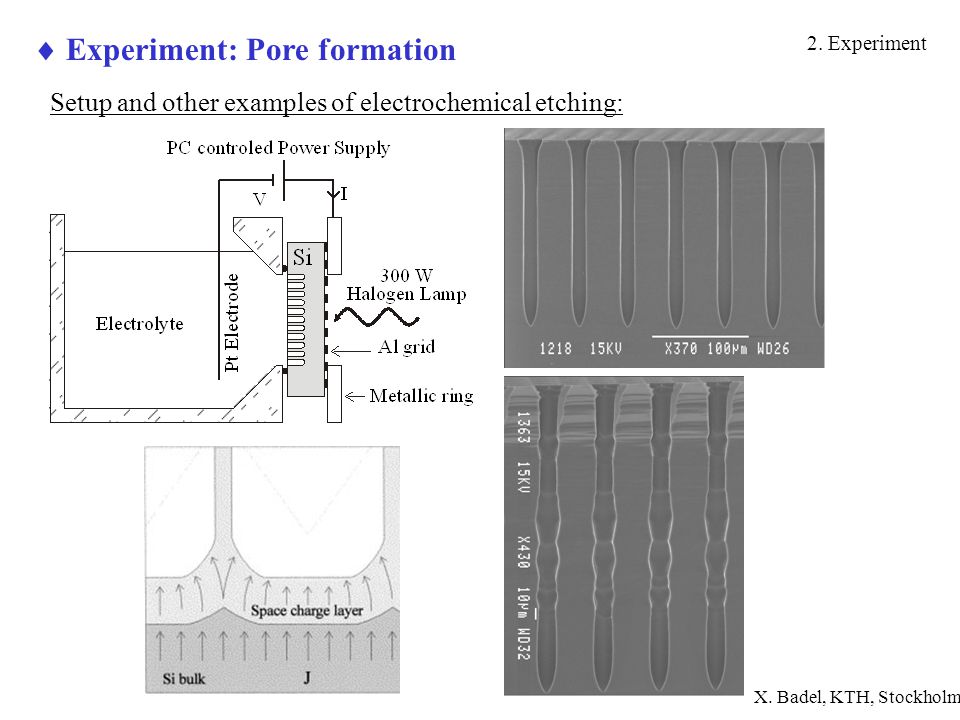

Experiment: Pore formation 2. Experiment Setup and other examples of electrochemical etching: X. Badel, KTH, Stockholm

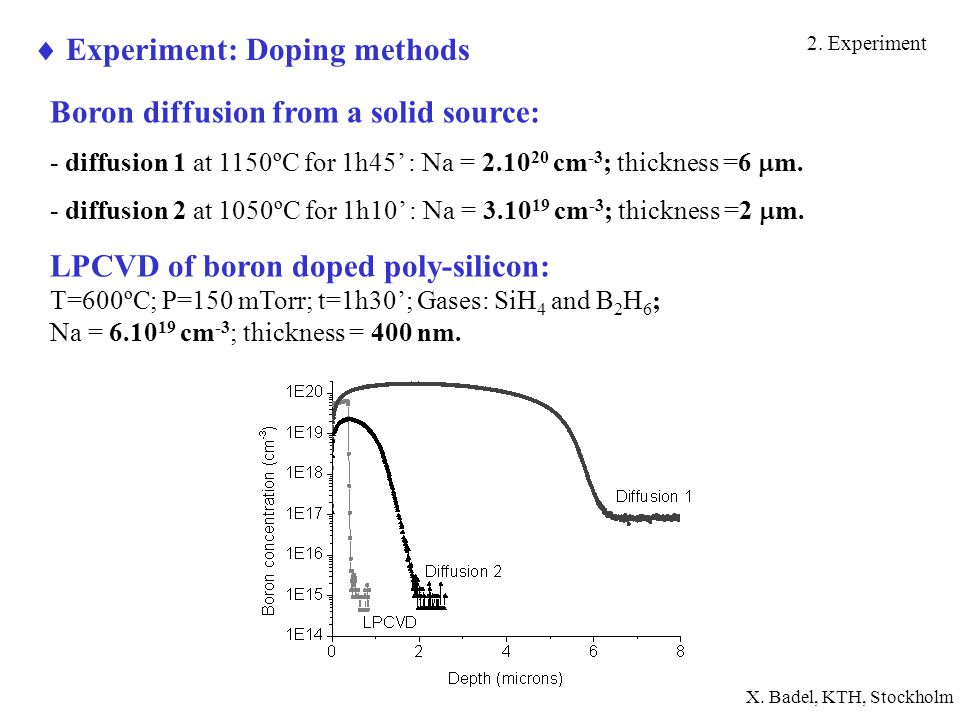

2. Experiment Experiment: Doping methods Boron diffusion from a solid source: - diffusion 1 at 1150ºC for 1h45’ : Na = 2.10 20 cm -3 ; thickness =6 m. - diffusion 2 at 1050ºC for 1h10’ : Na = 3.10 19 cm -3 ; thickness =2 m. LPCVD of boron doped poly-silicon: T=600ºC; P=150 mTorr; t=1h30’; Gases: SiH 4 and B 2 H 6 ; Na = 6.10 19 cm -3 ; thickness = 400 nm. X. Badel, KTH, Stockholm
2. Experiment Experiment: Techniques for analyses X. Badel, KTH, Stockholm SEM: Scanning Electron microscopy SCM: Scanning Capacitance Microscopy 2D imaging of the doping Principle: measure dC/dV (related to the doping) via a probe scanning the surface. SSRM: Scanning Spreading Resistance Microscopy 2D imaging of the doping Principle: measure the current (related to the resistance/doping). SIMS: Secondary Ion Mass Spectrometry Dopant profiling in planar samples and through the wall thickness

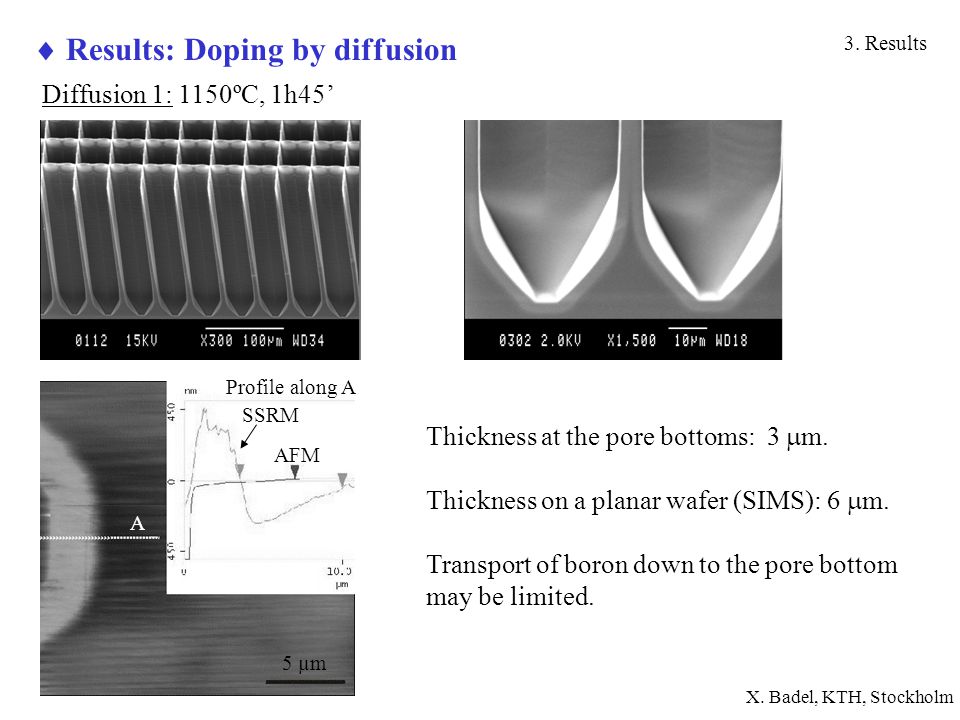

Results: Doping by diffusion 3. Results Diffusion 1: 1150ºC, 1h45’ Profile along A A 5 µm AFM SSRM X. Badel, KTH, Stockholm Thickness at the pore bottoms: 3 m. Thickness on a planar wafer (SIMS): 6 m. Transport of boron down to the pore bottom may be limited.
Results: Doping by diffusion 3. Results Diffusion 1: SIMS profiles at different positions along the pore depth: X. Badel, KTH, Stockholm - No B in the substrate (profiles c, g). Walls fully doped. - [B] in pores < [B] in a planar wafer (about 5.10 19 instead of 2.10 20 cm -3 ).
Results: Doping by diffusion 3. Results Diffusion 2: 1050ºC, 1h10’. SIMS profiles at different positions along the depth: X. Badel, KTH, Stockholm - [B] in pores [B] in a planar sample; no significant variation along pore depth. - Boron atmosphere in the pores maybe more uniform at 1050ºC than at 1150ºC. - Boron layers on each side of the walls.

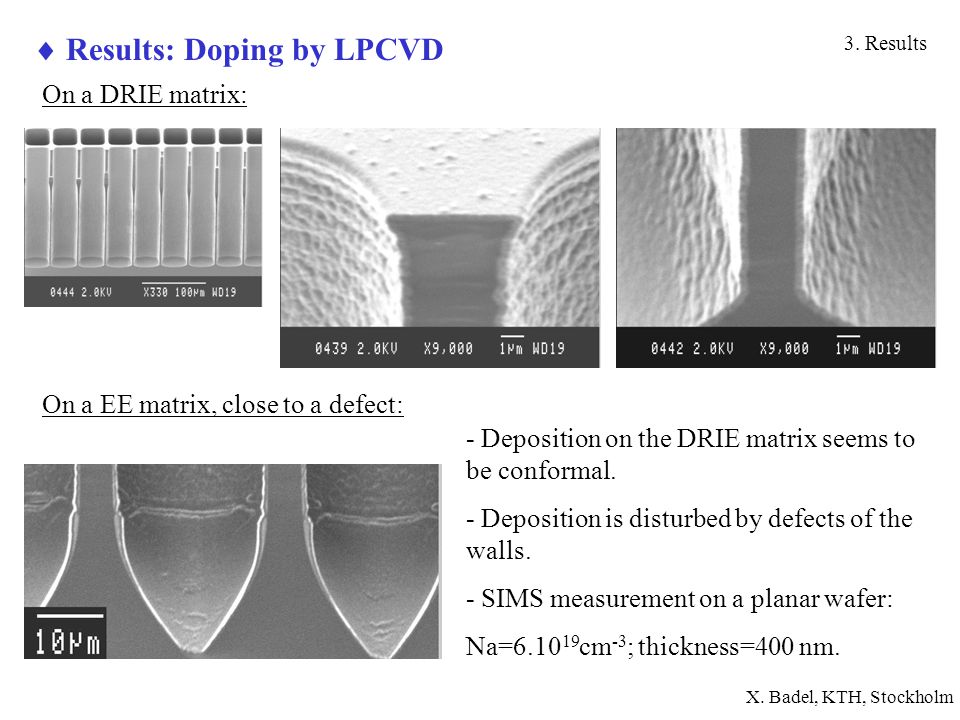

Results: Doping by LPCVD 3. Results On a DRIE matrix: On a EE matrix, close to a defect: - Deposition on the DRIE matrix seems to be conformal. - Deposition is disturbed by defects of the walls. - SIMS measurement on a planar wafer: Na=6.10 19 cm -3 ; thickness=400 nm. X. Badel, KTH, Stockholm

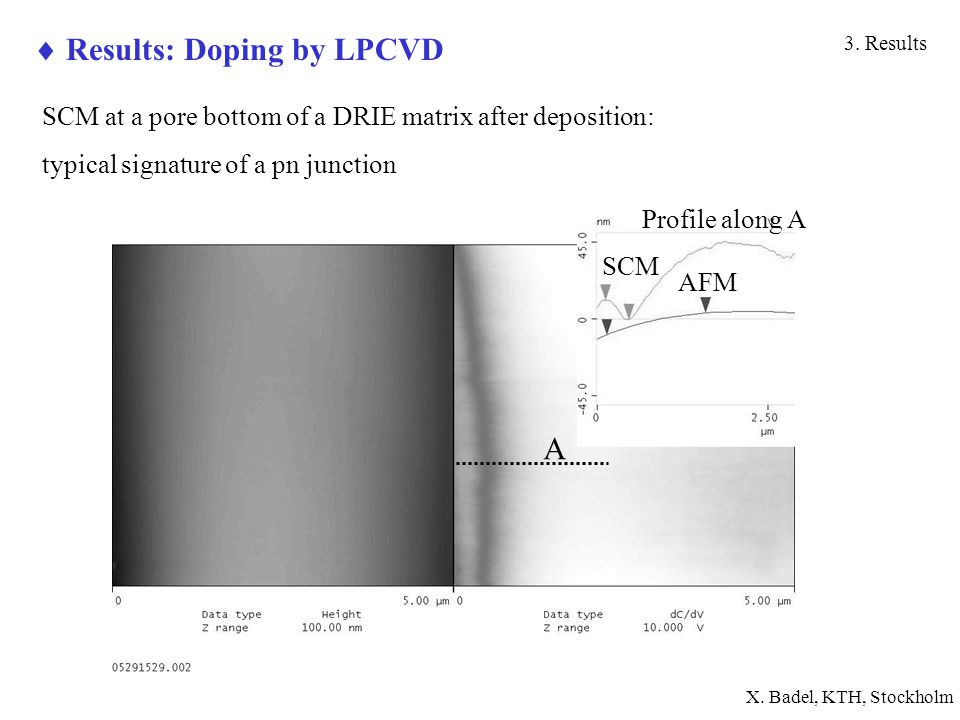

Results: Doping by LPCVD 3. Results SCM at a pore bottom of a DRIE matrix after deposition: typical signature of a pn junction SCM AFM A Profile along A X. Badel, KTH, Stockholm
Results: Detector efficiency 3. Results Calculated efficiency for depth=300 µm and wall=4.1 µm : 60%. X. Badel, KTH, Stockholm “Ideal” matrix: Pore spacing = 50 µm; Pores as deep as possible; Trade-off on the wall thickness: CsI(Tl) Si B: poly-Si CsI(Tl) Si B: poly-Si
Summary 4. Summary X. Badel, KTH, Stockholm 1. Diffusion - Transport of boron into the pores is limited at high temperature (diffusion at 1150°C for 1h45’). - Doping improved in the case of diffusion at lower temperature (1050°C for 1h10’). - p+/n/p+ structure in the walls revealed by SIMS, SEM and SSRM. 2. LPCVD - Homogeneous coverage of the pore walls. - Presence of the pn-junction revealed by SCM. 3. Next - Need of contacts on the p + layers for I-V characterization and final detector. - Expected efficiency of about 60%.
