Warm-Up: Describe the texture and composition of each igneous rock.

Similar presentations

Presentation on theme: "Warm-Up: Describe the texture and composition of each igneous rock."— Presentation transcript:

1 Warm-Up: Describe the texture and composition of each igneous rock.

2 Rocks Rock! Definition of A Rock
A naturally occurring, solid, mixture of one or more minerals or organic matter Classified into 3 groups based on how they are formed: igneous, sedimentary, and metamorphic Texture and composition give clues as to how rocks are formed, and are used to classify and identify rocks Rocks are always changing form in a cycle called the Rock Cycle

3 Rock Classification Composition – the type of minerals a rock contains (ex: Limestone is 95% Calcite and 5% Aragonite) Texture – the size, shape and arrangement of the minerals that make up a rock. Can be fine, medium, or coarse.

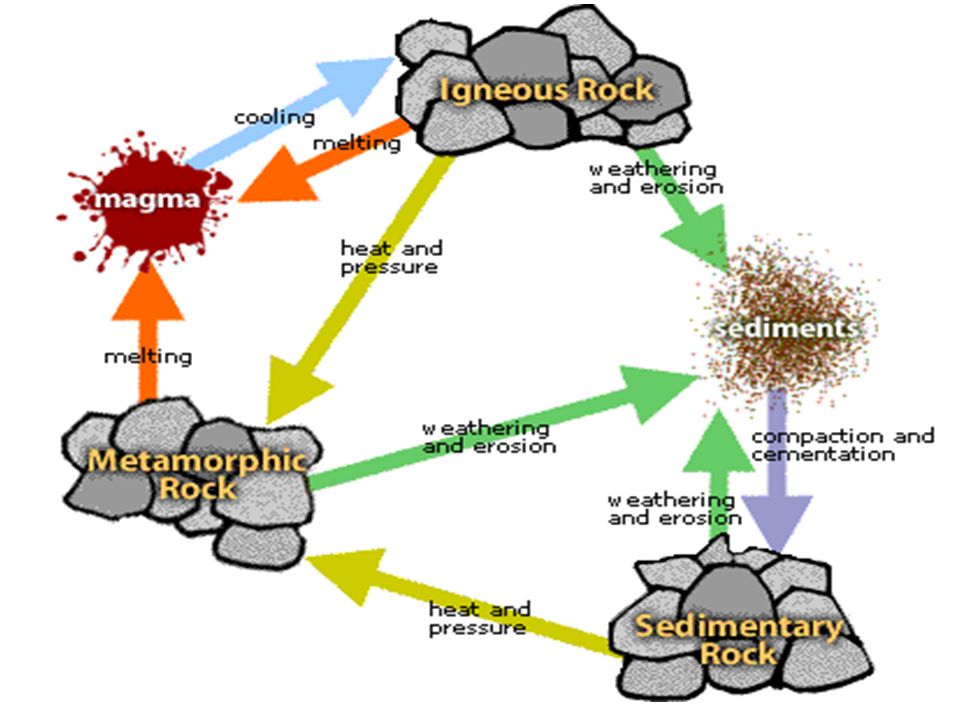

4 The Rock Cycle The main idea of the rock cycle is that rocks are continually changing from one type to another and back again The elements that make up a rock are never created or destroyed - instead, they are constantly being recycled.



7 Igneous Rock Form when magma cools and hardens.
Sometimes look shiny and glasslike if lava cools quickly Sometimes have tiny holes and spaces if gas is trapped in the rock as it cools Two examples are: Basalt and Obsidian

8 Igneous Rocks Extrusive rocks- formed by cooling lava
Texture Can Be: glassy porous fine-grained Intrusive rocks- formed by cooling magma Texture Is Always: coarse-grained

9 Formation of Extrusive Igneous Rock


11 Igneous Features and Landforms
To view this animation, click “View” and then “Slide Show” on the top navigation bar.

12 Extrusive Igneous Rock

13 Formation of Intrusive Igneous Rock

14 Intrusive Igneous Rock
Yosemite N.P.

15 Examples of Textures: Pumice Obsidian Granite Basalt Porous Texture
Course Grained Texture Basalt

16 Sedimentary Rock Formed from particles called sediments
Fairly soft and break easily Contain sand, pebbles, stones, and is the only rock to contain fossils Examples are: Conglomerate and Limestone Form at or near Earth’s surface Most have layers or strata

17 Sedimentary Rocks Formed by: Weathering (breaking down of rock)
Erosion (movement of sediments) Deposition (collection of sediments) Compaction & Cementation (sediments bonding together)

18 Two Types of Weathering
1. Mechanical Weathering Root Action Frost Action Moss

19 Types of Weathering 2. Chemical Weathering:
Oxidation (rust) – Oxygen in air reacts with metals in rocks Acidic rain water


21 Physical Weathering To view this animation, click “View” and then “Slide Show” on the top navigation bar.

22 Five Agents of Erosion Gravity (Mass wasting) Wind Running water
Glaciers Waves

23 Gravity (Mass Wasting)
Soil creep Slumping


25 Mass Movements: Five Main Types
To view this animation, click “View” and then “Slide Show” on the top navigation bar.

26 Wind

27 Running Water Niagara Falls Yellowstone Canyon & River

28 Glaciers


30 Glacial Processes I To view this animation, click “View” and then “Slide Show” on the top navigation bar.

31 Waves Australia

32 Examples of Deposition
Nile River Delta Lateral moraine Cape Cod (spit)

33 Compaction & Cementation

34 Sedimentary Rocks (categorized by composition)
Clastic Rocks (rock fragments) Conglomerates (pebbles) Sandstones (sand) Shales (mud & clay) Organic Rocks (once living) Ex: limestone(coral and shells), coal (plants) Chemical Rocks (evaporation) Ex: rock salt, limestone, geodes, gypsum

35 Clastic Sedimentary Rock…
Conglomerate Shale Sandstone

36 Organic Sedimentary Rocks…
Coal (plant mateiral) Limestone (shell & coral)

37 Chemical Sedimentary Rocks…
Gypsum rock Limestone Geode

38 Sedimentary rocks according to texture:
Fine-grained Medium-grained Shale Sandstone Coarse-grained Conglomerate

39 Metamorphic Rock Formed under the surface of the Earth due to extreme heat and pressure Have ribbon-like layers and may have shiny crystals formed by minerals cooling slowly over time Two examples are: Gneiss and Marble

40 Metamorphic Rocks Formed by tremendous heat & pressure, and chemical reactions inside the crust. Formed from all three rock types.

41 Formation of Metamorphic Rock

42 Types of Metamorphic Rock
Slate 1. Foliated - bands or layers Ex: schist, slate, gneiss Gneiss

43 Types of Metamorphic Rock
2. Unfoliated - no bands or layers Ex: marble and quartzite Quartzite

44 Unfoliated Texture
