1. Atmospheric data for Arctic modeling John Walsh International Arctic Research Center University of Alaska, Fairbanks Arctic System Modeling Workshop, Montreal, July 2009

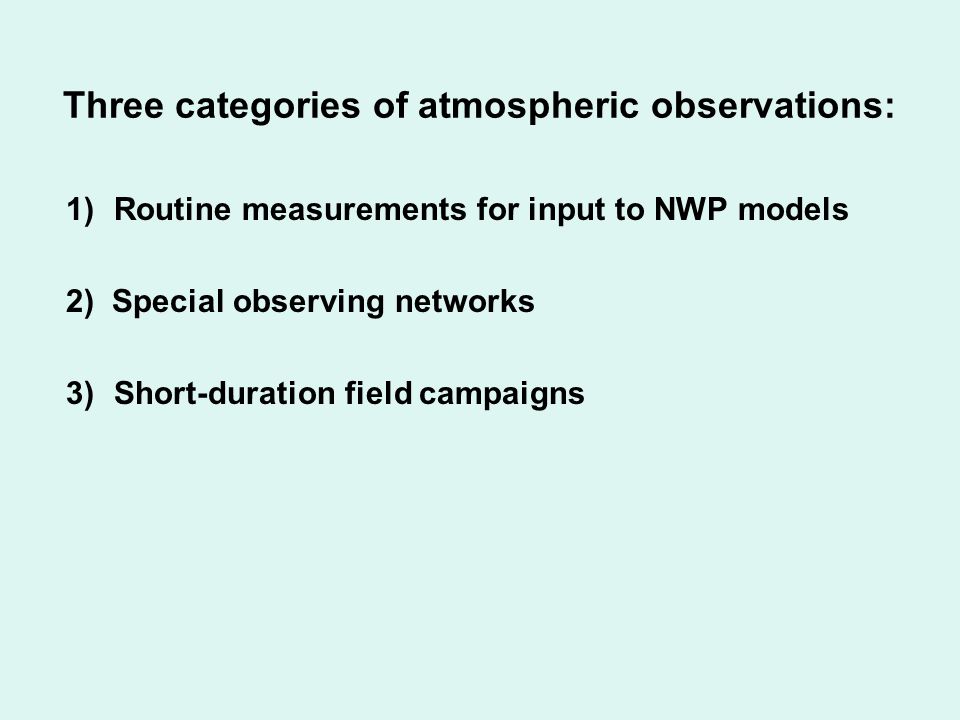

2. Three categories of atmospheric observations: 1)Routine measurements for input to NWP models 2) Special observing networks 3)Short-duration field campaigns

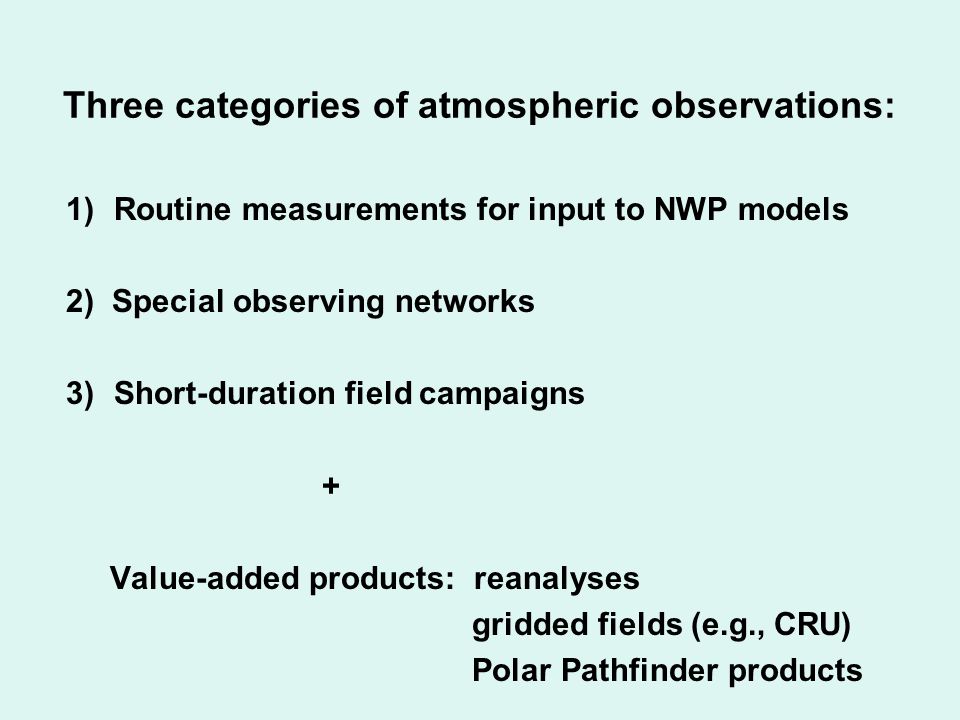

3. Three categories of atmospheric observations: 1)Routine measurements for input to NWP models 2) Special observing networks 3)Short-duration field campaigns + Value-added products: reanalyses gridded fields (e.g., CRU) Polar Pathfinder products

4. Routine measurements – in some respects, the Arctic is well-covered  surface synoptic network  rawinsonde network  buoy, ship reports  aircraft reports  satellite measurements (profiles of T, q, wind)  Archived in reanalysis ingest data banks (e.g., PREPBUFR files at NCAR)

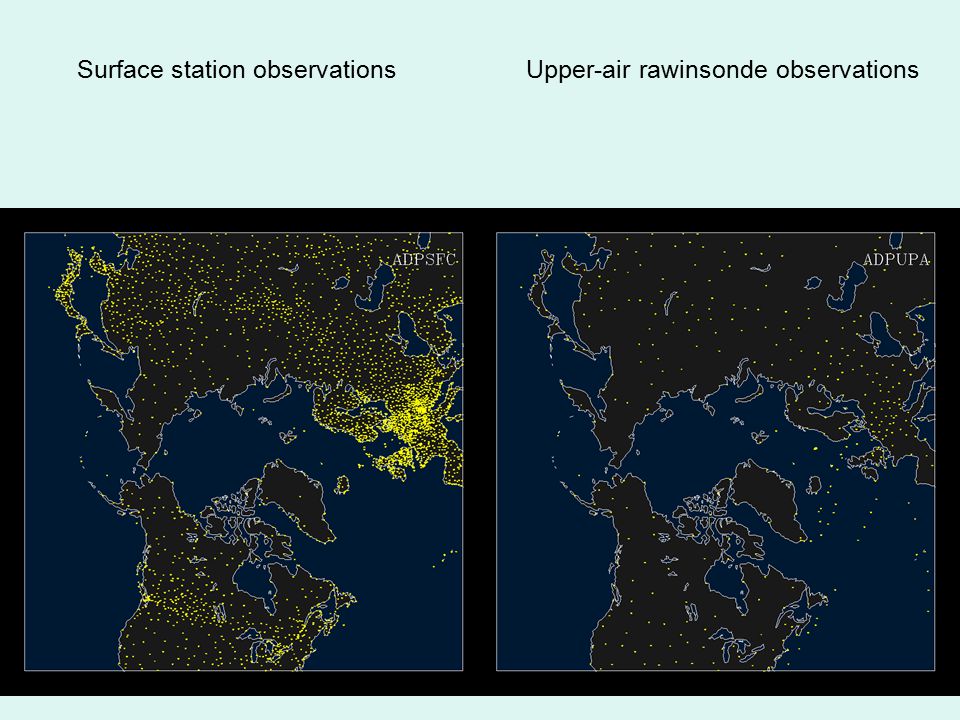

5. Surface station observationsUpper-air rawinsonde observations

6. Surface ship and ocean buoy reports 7-days

7. Reports from commercial, military, and reconnaissance sources 7-days: 01/01/2003 - 01/07/2003

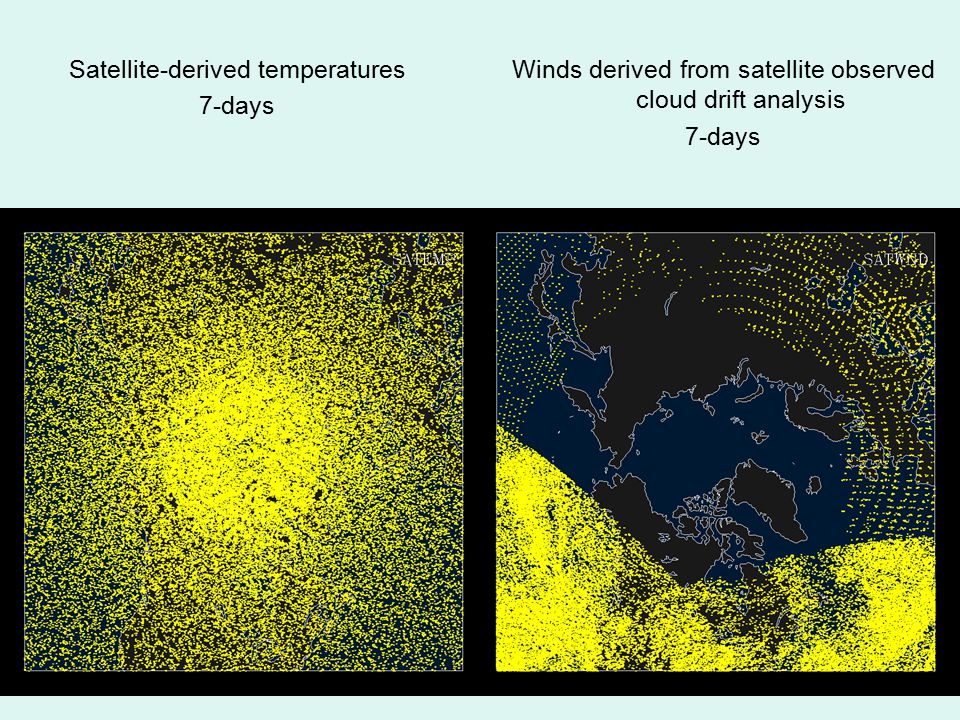

8. Satellite-derived temperatures 7-days Winds derived from satellite observed cloud drift analysis 7-days

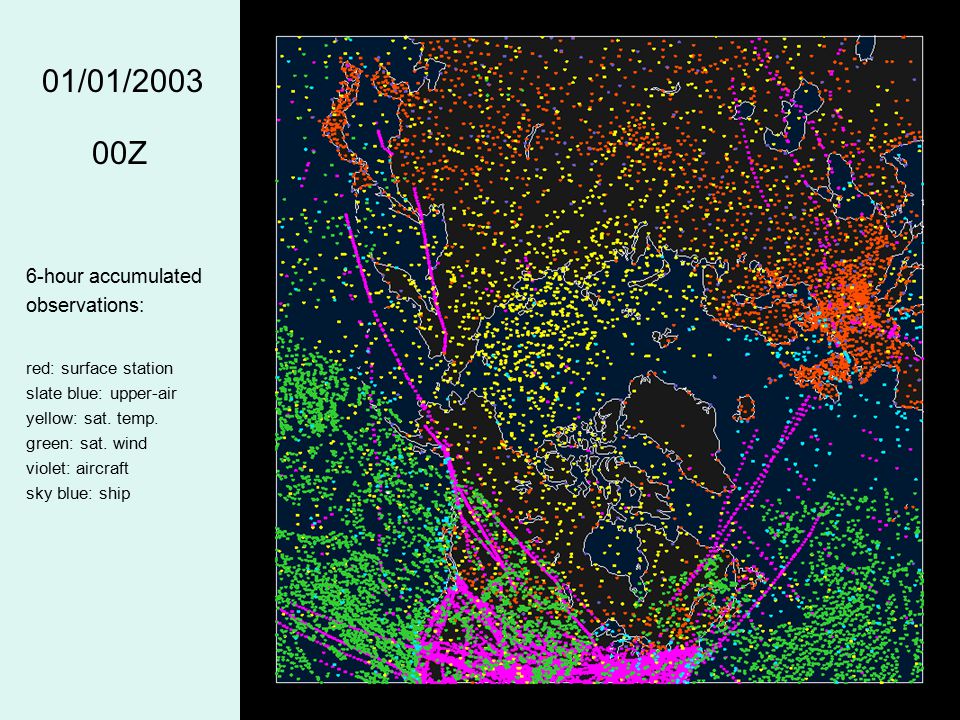

9. 6-hour accumulated observations: red: surface station slate blue: upper-air yellow: sat. temp. green: sat. wind violet: aircraft sky blue: ship 01/01/2003 00Z

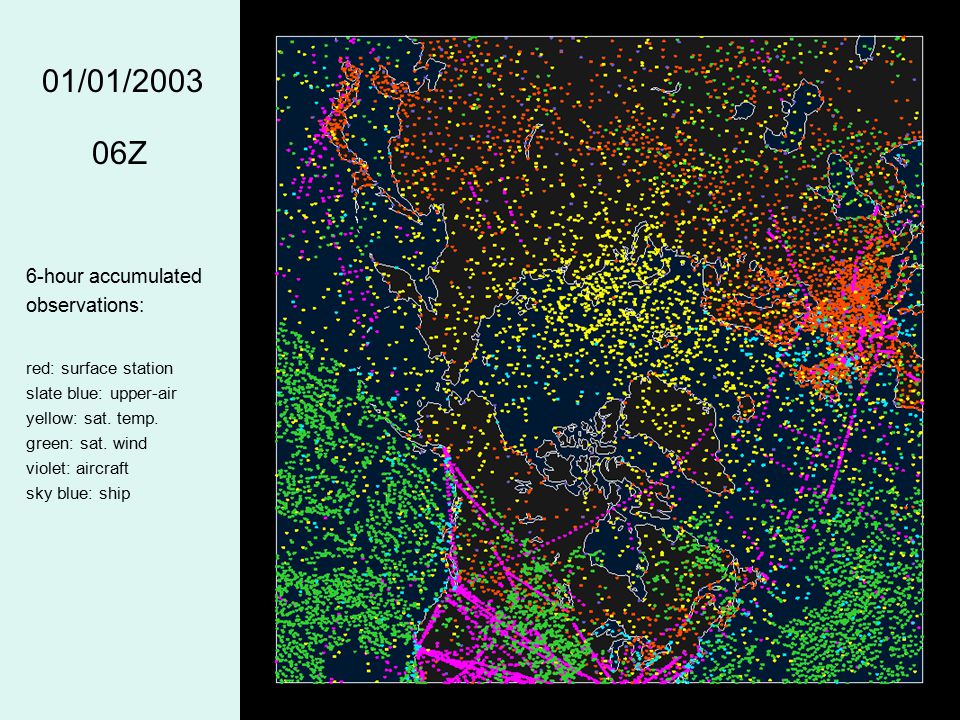

10. 6-hour accumulated observations: red: surface station slate blue: upper-air yellow: sat. temp. green: sat. wind violet: aircraft sky blue: ship 01/01/2003 06Z

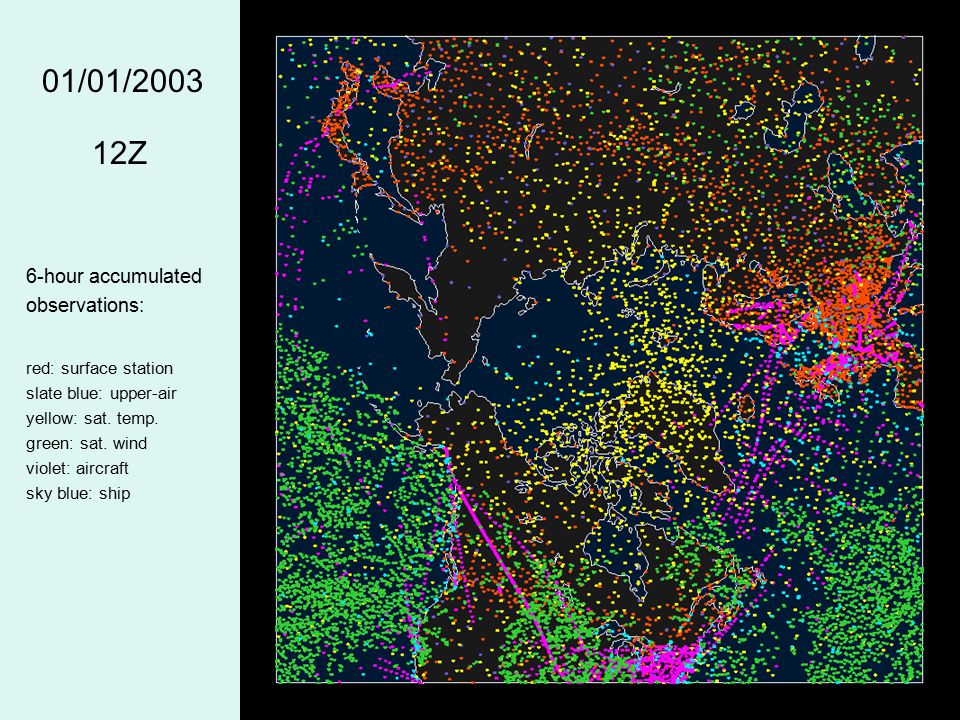

11. 6-hour accumulated observations: red: surface station slate blue: upper-air yellow: sat. temp. green: sat. wind violet: aircraft sky blue: ship 01/01/2003 12Z

12. 6-hour accumulated observations: red: surface station slate blue: upper-air yellow: sat. temp. green: sat. wind violet: aircraft sky blue: ship 01/01/2003 18Z

13. SID=BAW269, YOB= 60.00, XOB=340.00, ELV=10058, DHR=-0.550, RPT= 17.450, TCOR=0, TYP=130, TSB=0, T29= 41, ITP=99, SQN= 26 PROCN= 0, SAID=*** RCT= 18.08, PCAT=*****, POAF=***, DGOT=*** ---------------------------------------------------------------------------------------------- level 1 obs qmark qc_step rcode fcst anal oberr category ---------------------------------------------------------------------------------------------- PRESSURE (MB) 262.0 2. PREPRO ***** ******** ******** ******** 6. SP HUMIDITY(MG/KG) ******** ****** ***** 35.0 35.0 ******** 6. TEMPERATURE (C) -62.0 1. PREPACQC 17. -61.1 -60.9 1.7 6. TEMPERATURE (C) -62.0 2. PREPRO ***** -61.1 -60.9 1.7 6. HEIGHT (METERS) 10058.0 2. PREPRO ***** 9708.0 9724.0 ******** 6. U-COMP WIND (M/S) 4.4 1. PREPACQC 17. -2.3 1.8 3.6 6. U-COMP WIND (M/S) 4.4 2. PREPRO ***** -2.3 1.8 3.6 6. V-COMP WIND (M/S) 2.6 1. PREPACQC 17. 4.8 2.1 3.6 6. V-COMP WIND (M/S) 2.6 2. PREPRO ***** 4.8 2.1 3.6 6. WIND DIR (DEG) 240.0 ****** PREPRO ***** ******** ******** ******** 6. WIND SPEED (KNOTS) 10.0 ****** PREPRO ***** ******** ******** ******** 6. Sample PrepBUFR observations: SID=48582, YOB= 82.85, XOB=194.99, ELV= 0, DHR= 1.883, RPT= 19.883, TCOR=0, TYP=180, TSB=*, T29=562, ITP=99, SQN= 203 PROCN= 2, SAID=*** PMO=******, PMQ=** ---------------------------------------------------------------------------------------------- level 1 obs qmark qc_step rcode fcst anal oberr category ---------------------------------------------------------------------------------------------- PRESSURE (MB) 988.2 2. PREPRO ***** 987.6 987.4 1.6 0. SP HUMIDITY(MG/KG) ******** ****** ***** 234.0 239.0 ******** 0. TEMPERATURE (C) -33.3 2. PREPRO ***** -32.8 -32.8 2.5 0. HEIGHT (METERS) 0.0 2. PREPRO ***** -4.0 -5.0 ******** 0.

14. PrepBUFR data Quality Control Flags 0) Keep (always assimilate) 1)Good 2)Neutral or not checked (default) -- e.g., IAOBP T and P obs are flagged as QC=2 3)Suspect 4)Rejected (don’t assimilate) ** Rejected obs. have an additional flag layer indicating justification (e.g., conflicts with a pre-existing QC=0; threshold test failure, etc.)

15. 2) Examples of special observing networks International Arctic Buoy Network ( + Russian NP stations) Greenland automated weather stations Trace gas/chemical sampling (NOAA CMDL) Baseline Surface Radiation Network (BSRN), ARM International Arctic System for Observing the Atmosphere (IASAO)

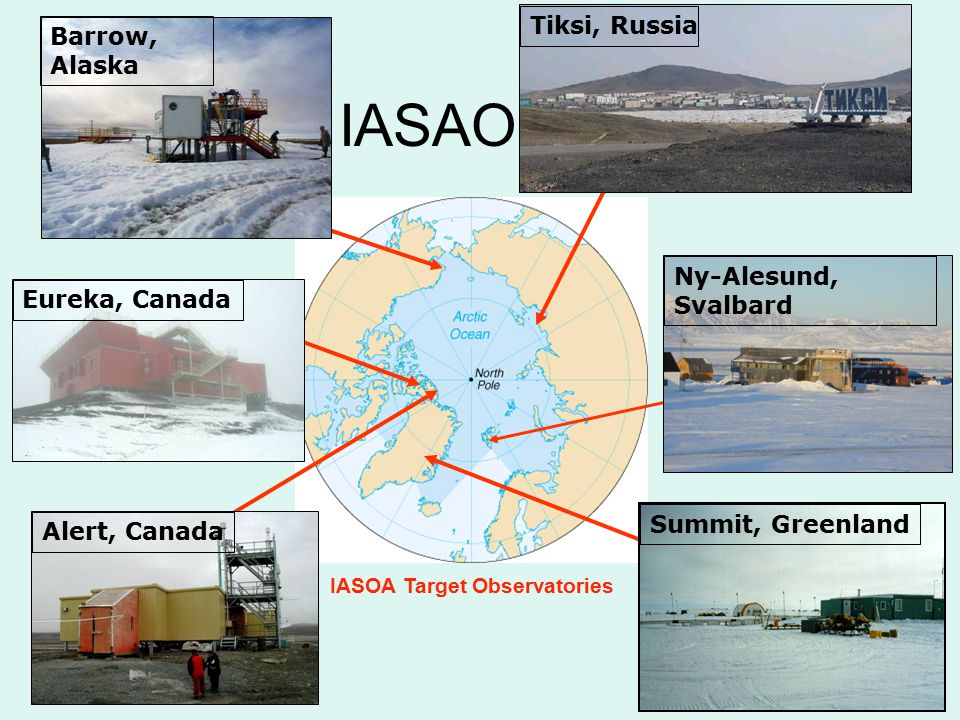

16. Tiksi, Russia Alert, CanadaBarrow, Alaska Eureka, Canada Summit, Greenland Ny-Alesund, Svalbard IASOA Target Observatories IASAO

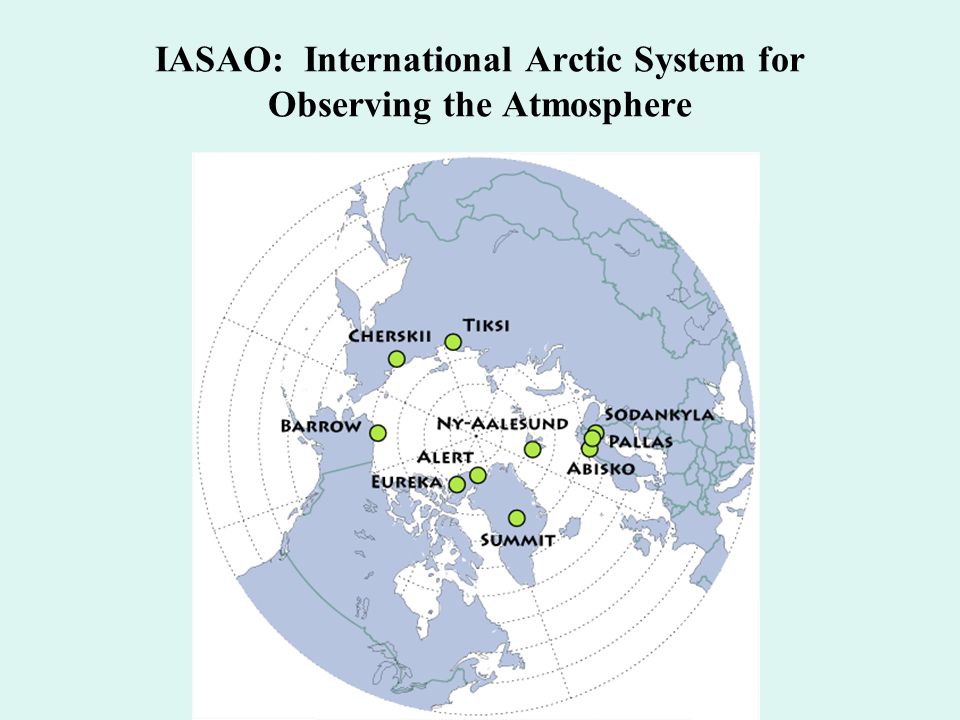

17. IASAO: International Arctic System for Observing the Atmosphere

18. 3) Short-duration field programs -- process studies for algorithm development, model validation SHEBA ATLAS, LAII Flux Study ARM field campaigns OASIS IPY cruises … others

19. Problem areas Precipitation, especially solid precip (snowfall, depth, water equivalent) Clouds Aerosols … others
